Regular Joe

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe 2" x 18" Heel Proof
Product ID	RJZ2-18I31HP
Dimensions	2.375" x 18.11" x .625"
Drain Manufacturer	Zurn®
Fits	Zurn® Z880
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	3.35
Free Drain Area	18.03%
Gallons Per Minute (GPM)	10.16
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

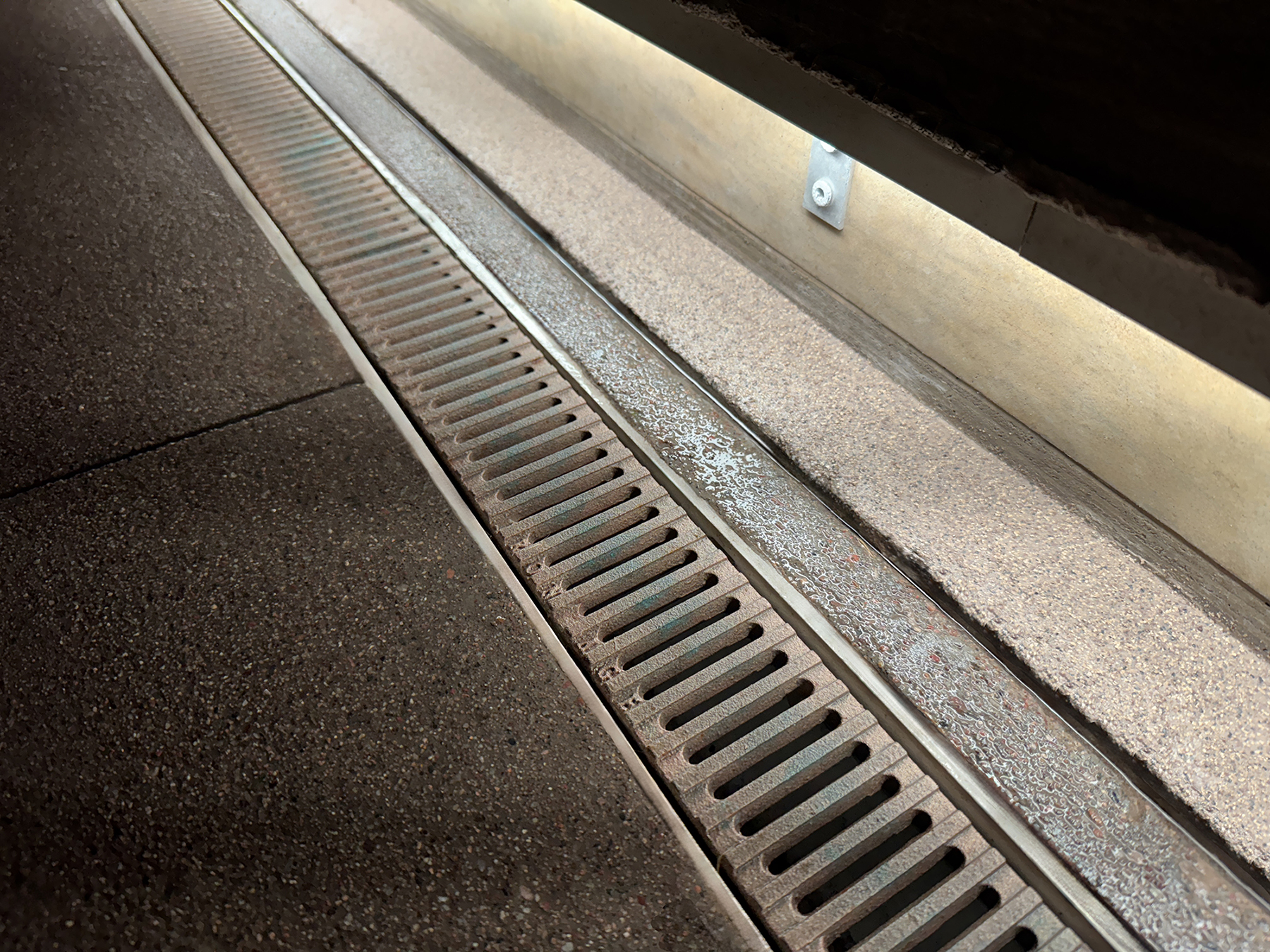

Name / Design	Regular Joe 3.75" x 20"
Product ID	RJX4-20I99
Dimensions	3.75" x 19.88" x 2"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	9
Free Drain Area	28.9%
Gallons Per Minute (GPM)	28.22
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe 4" x 18"
Product ID	RJN4-18I02
Dimensions	4.09" x 18.12" x .75"
Drain Manufacturer	NDS®
Fits	NDS® Spee-D® Channel
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	7.20
Free Drain Area	18.23%
Gallons Per Minute (GPM)	17.45
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

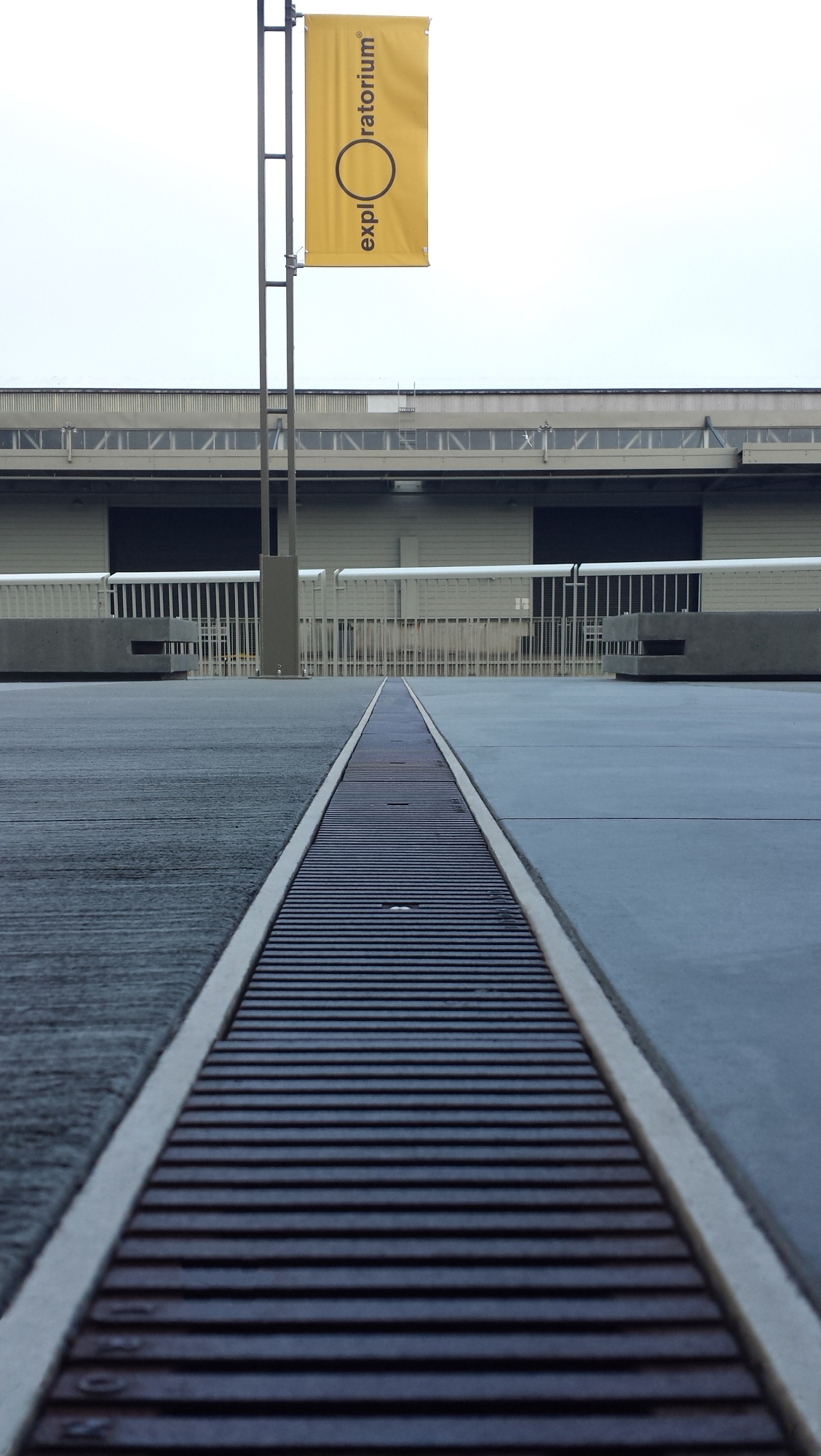

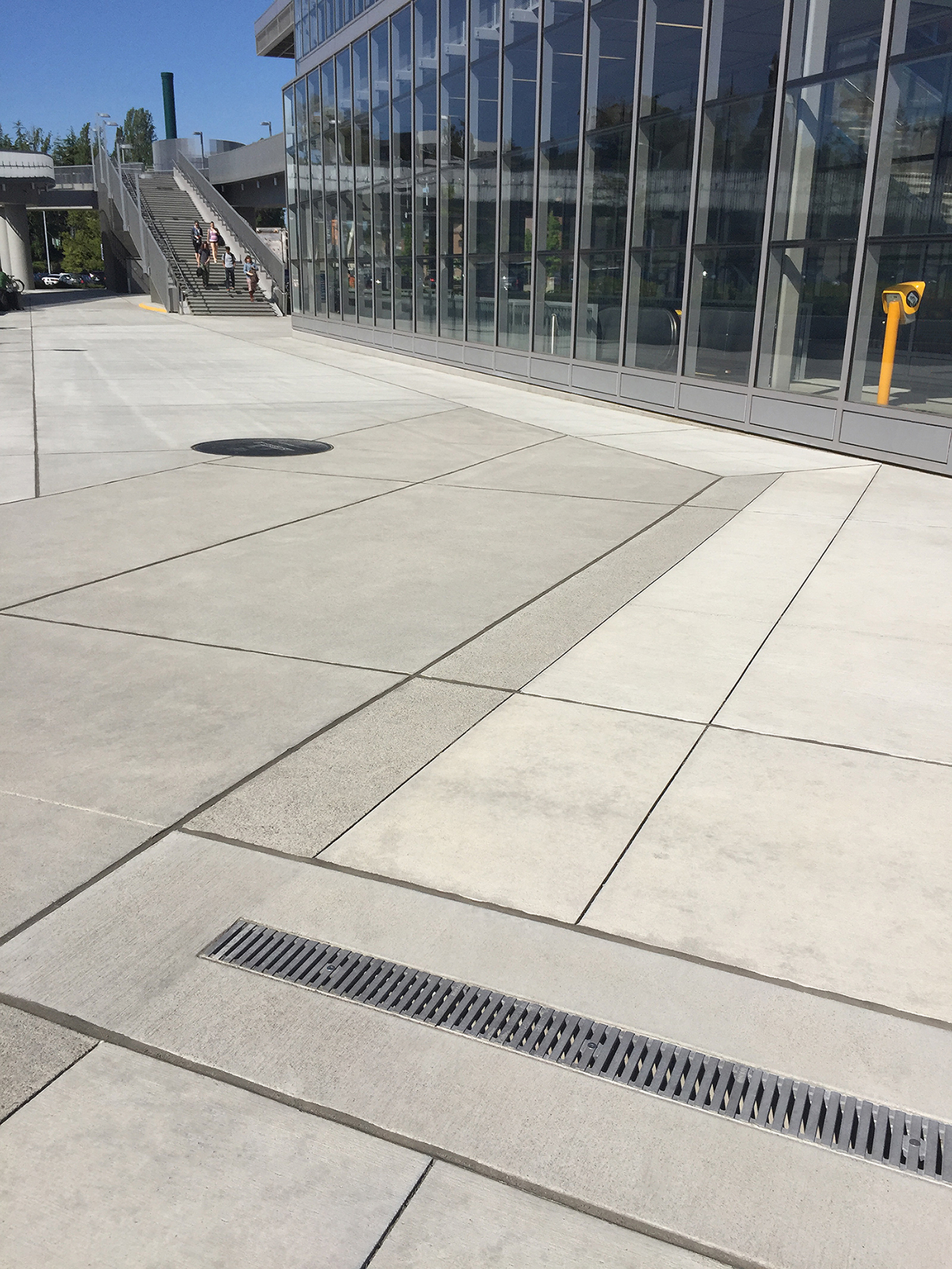

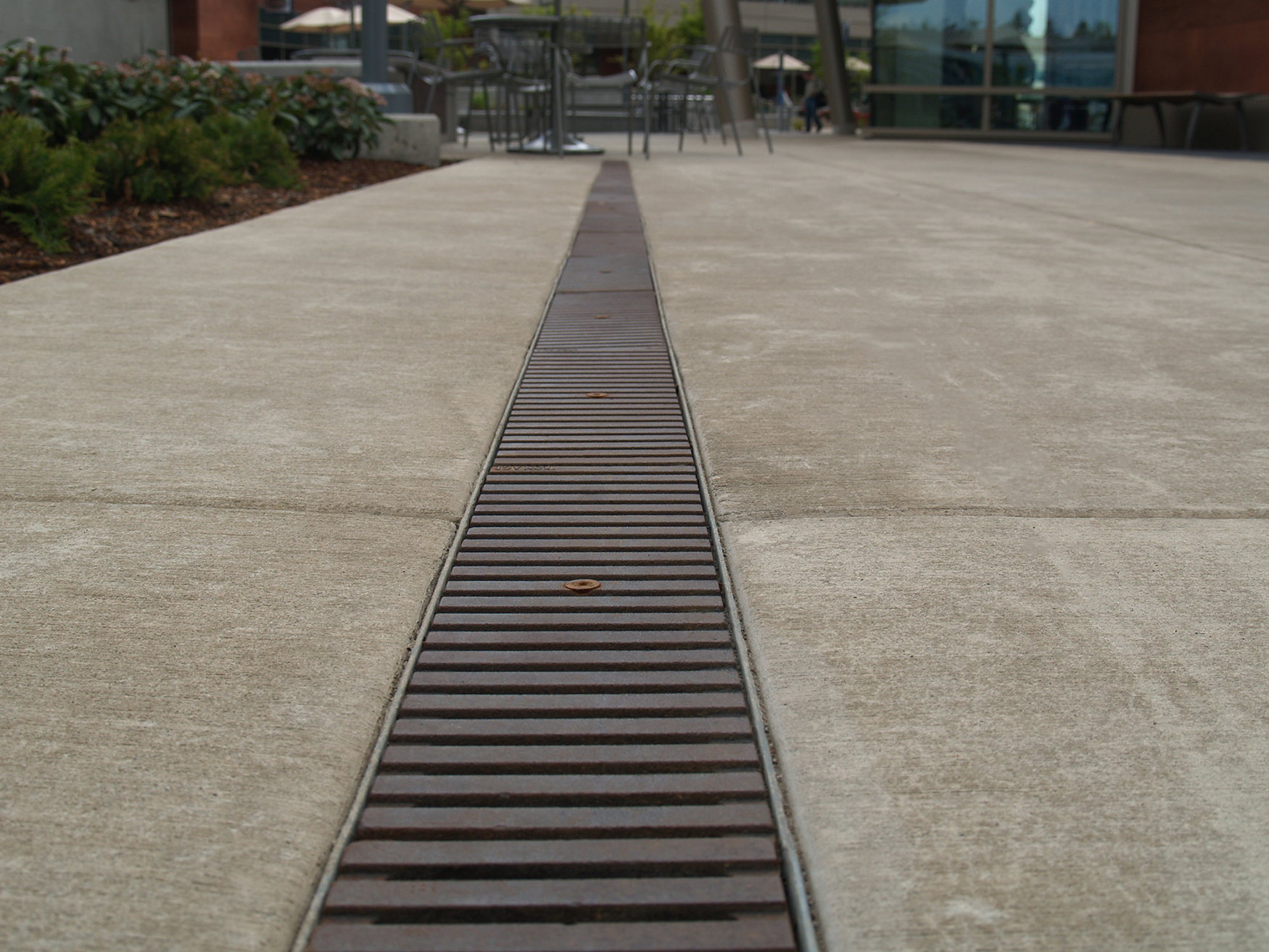

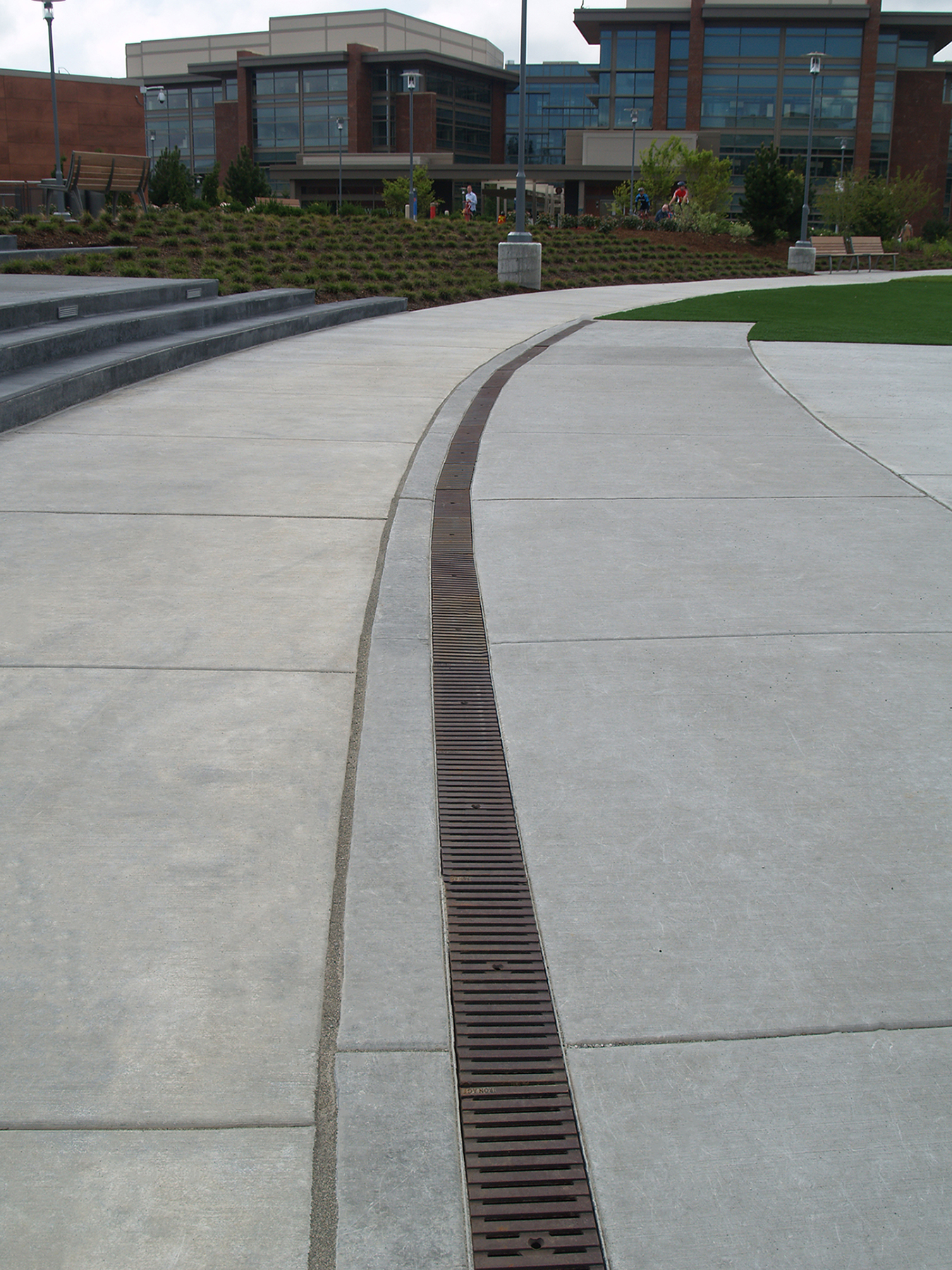

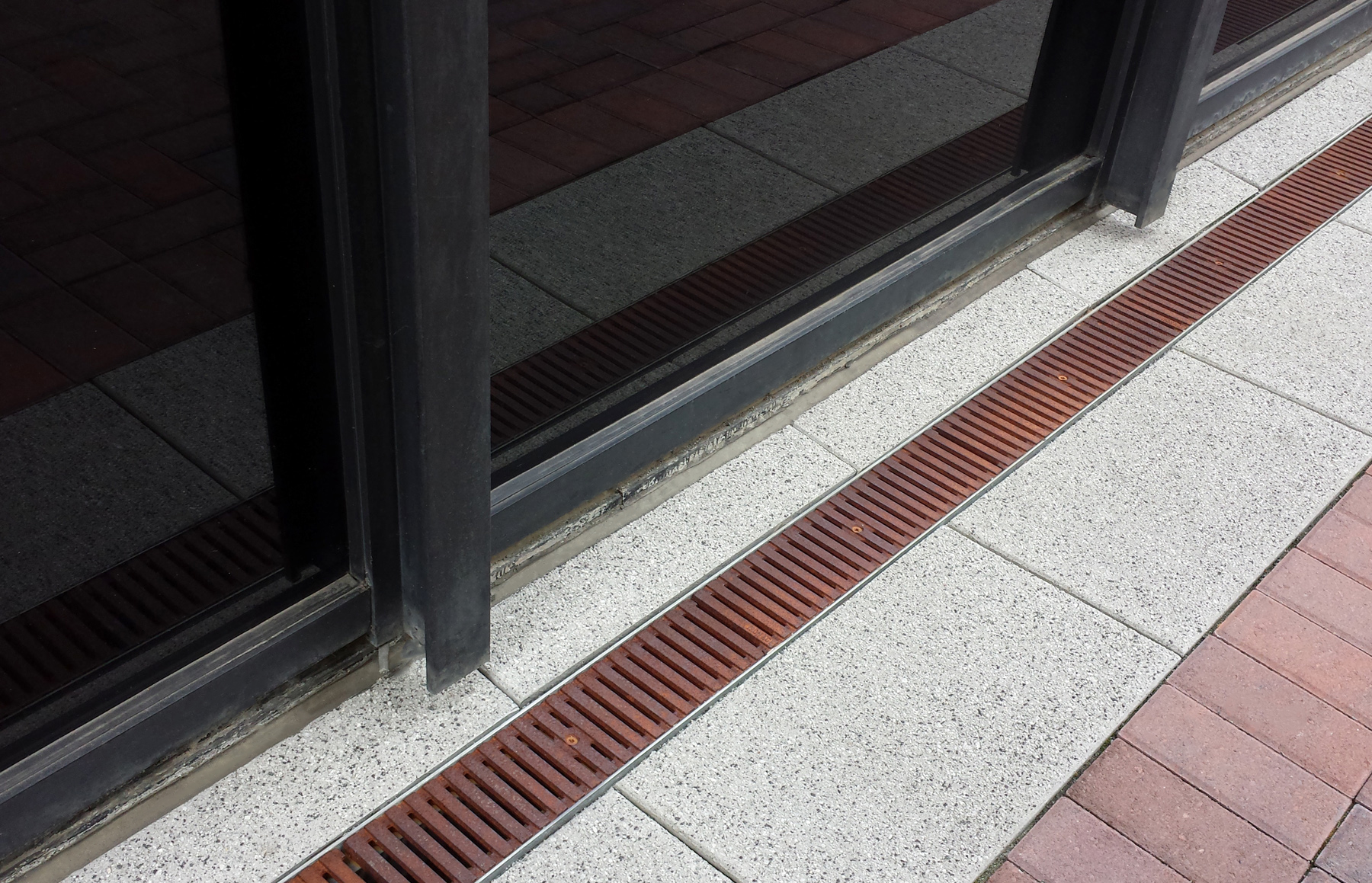

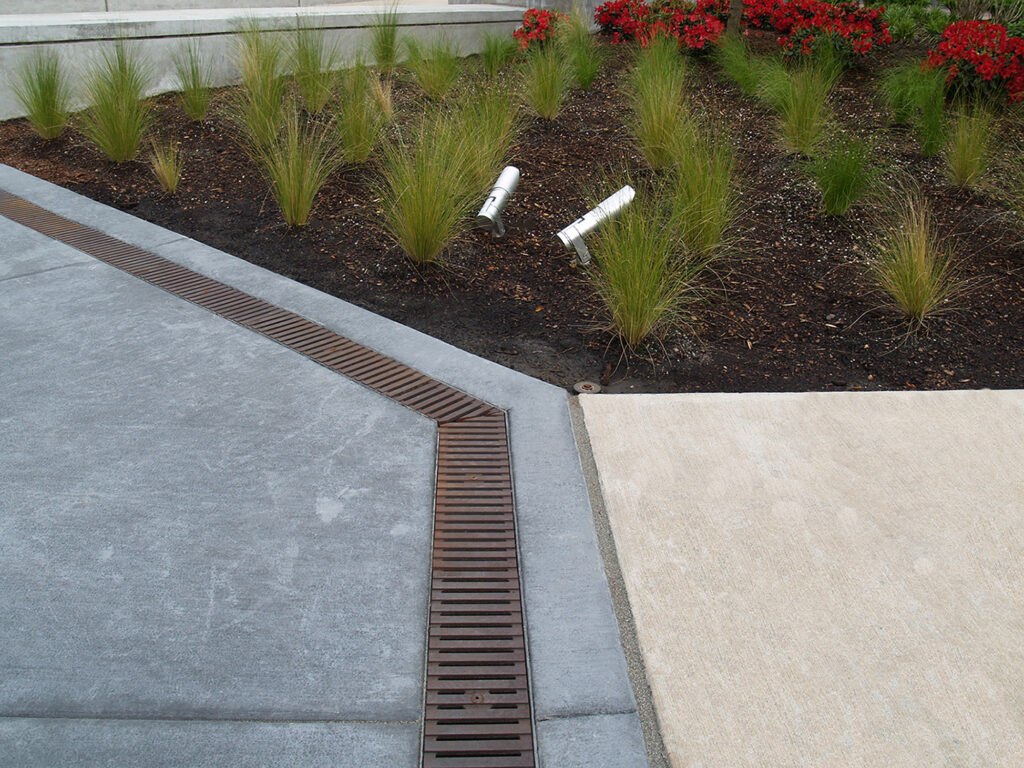

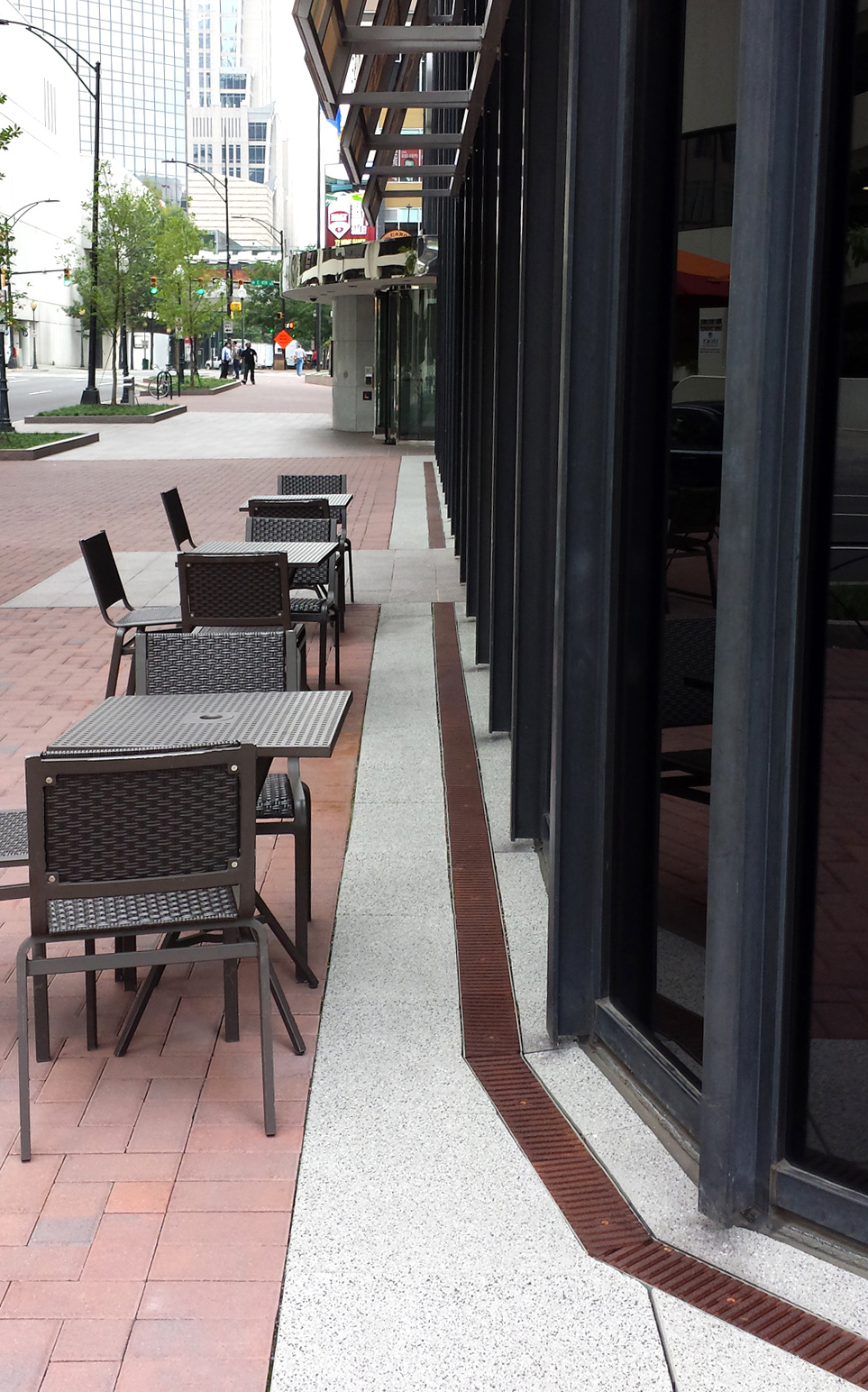

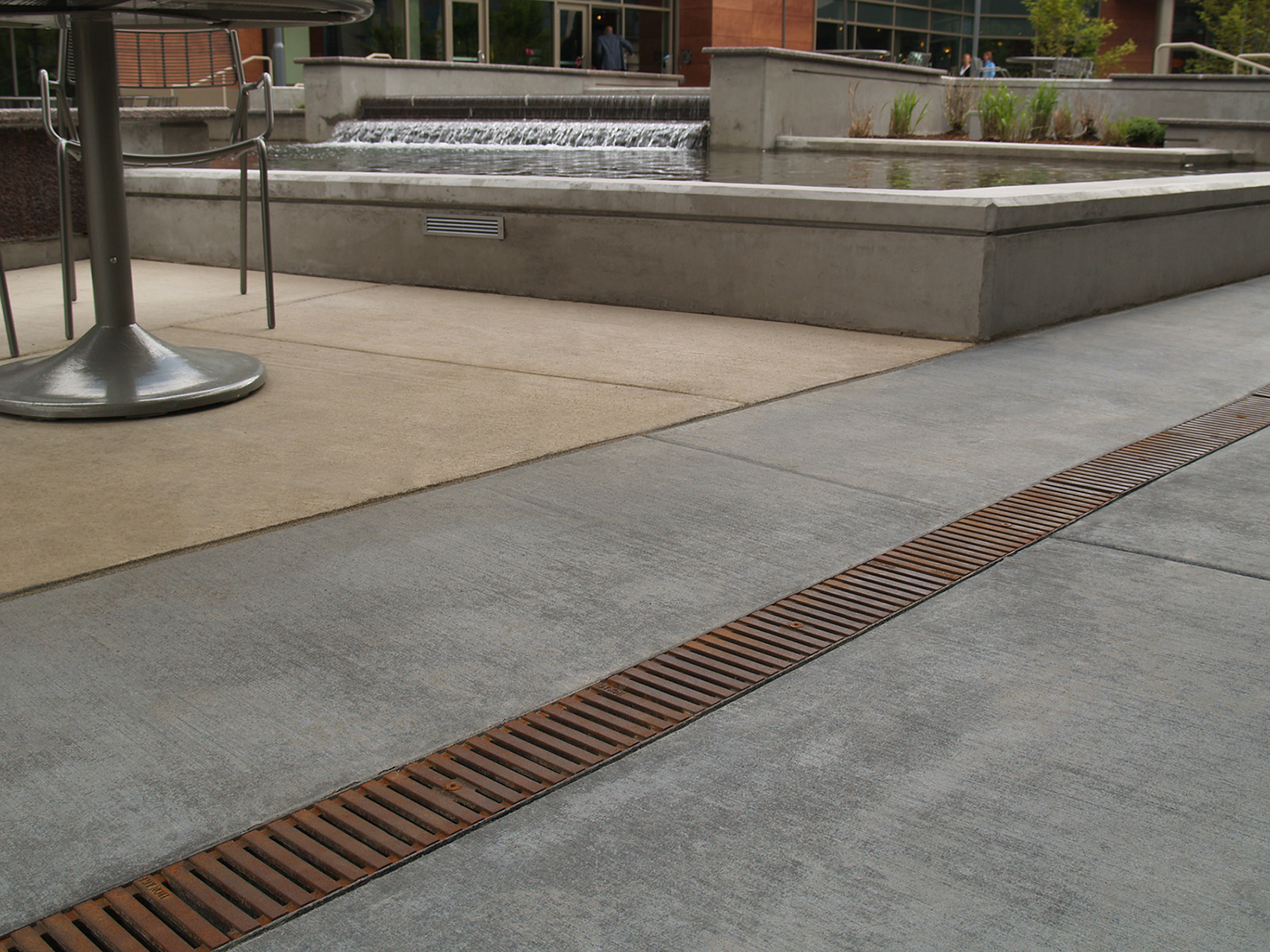

Name / Design	Regular Joe 5" x 20"
Product ID	RJA5-20I21
Dimensions	4.81" x 19.92" x .81"
Drain Manufacturer	ACO™ MEA®
Fits	ACO™ K100, K100S, KS100 MEA® 1000 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	10
Free Drain Area	23.7%
Gallons Per Minute (GPM)	29.32
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

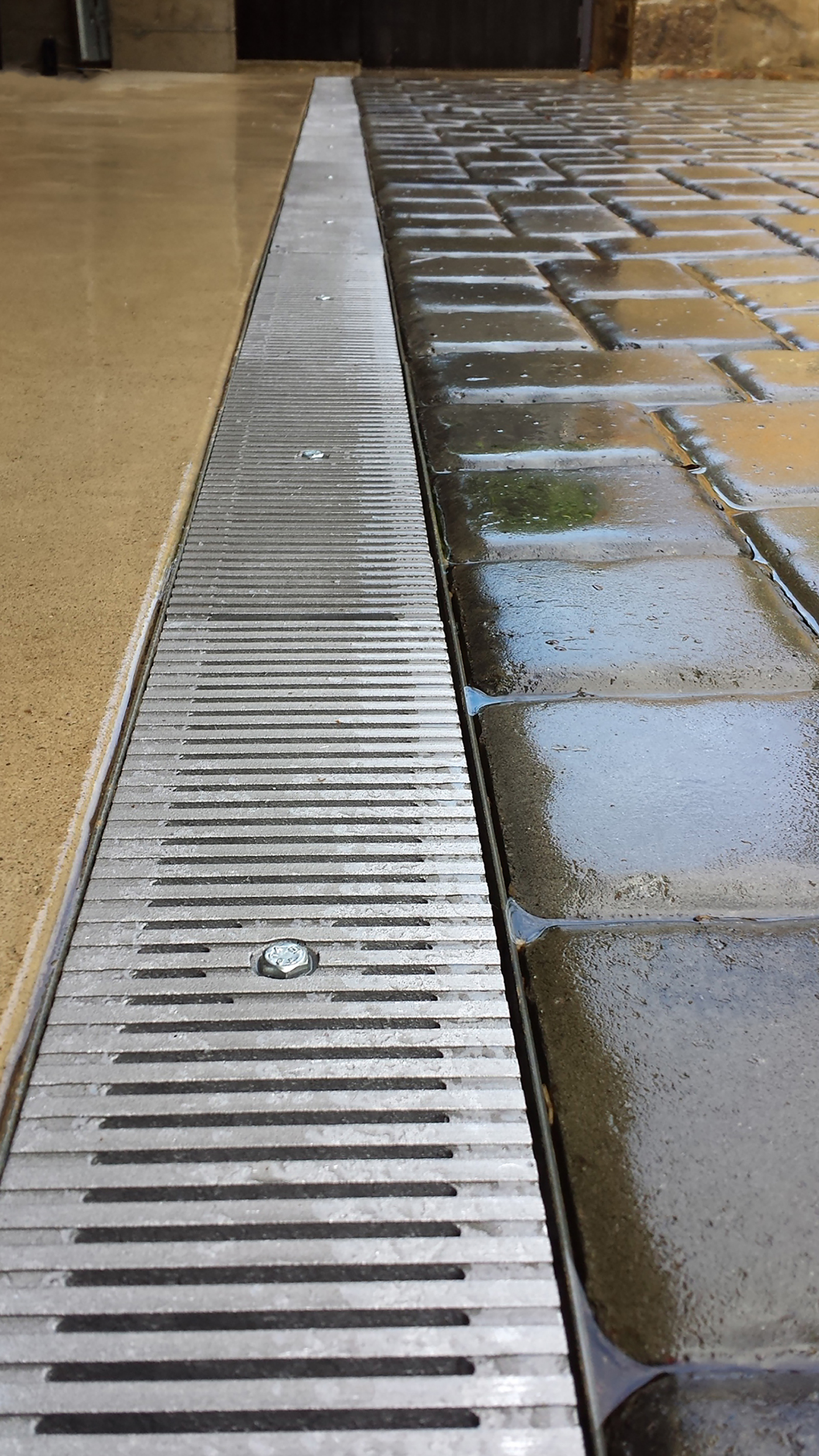

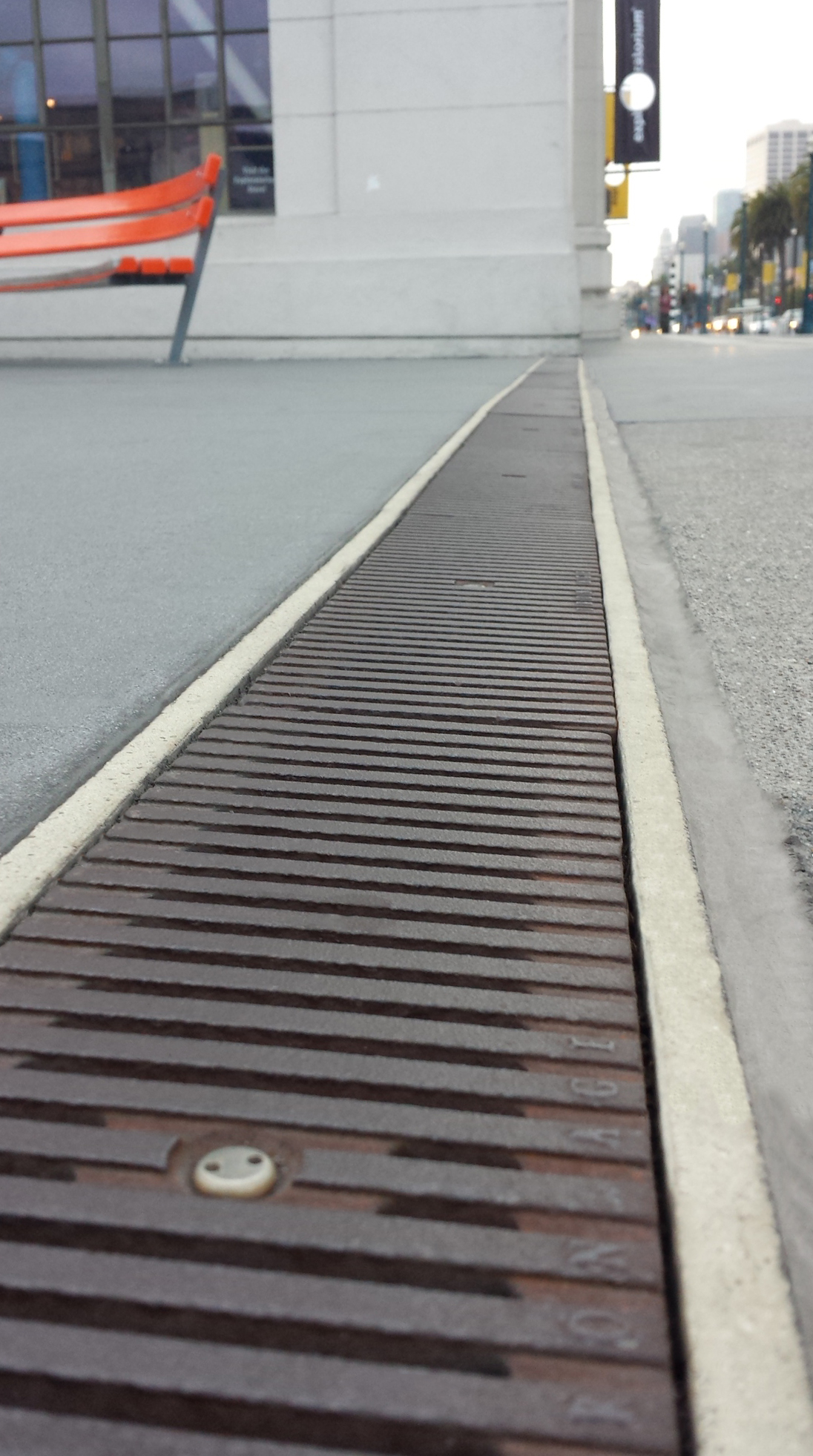

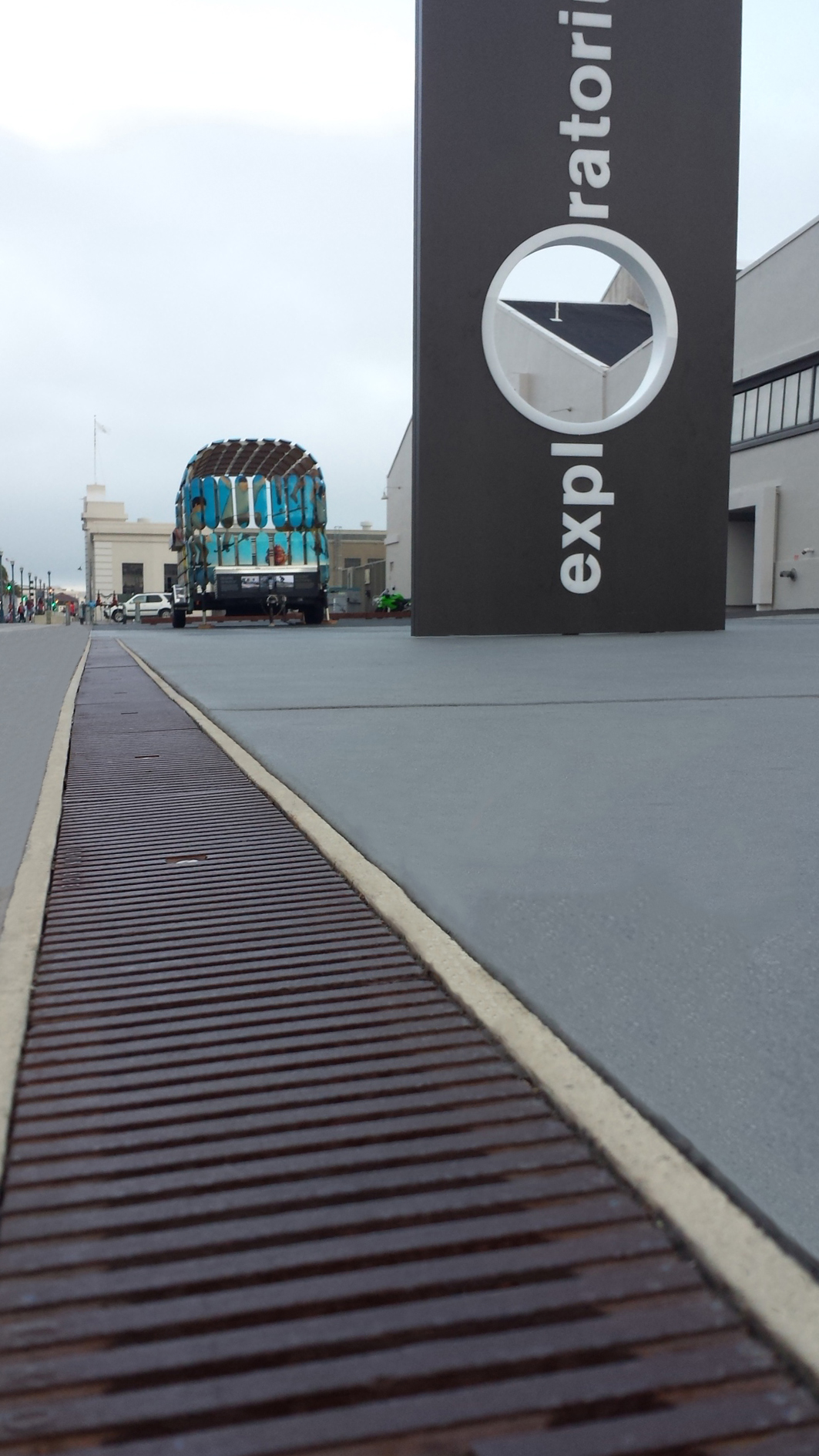

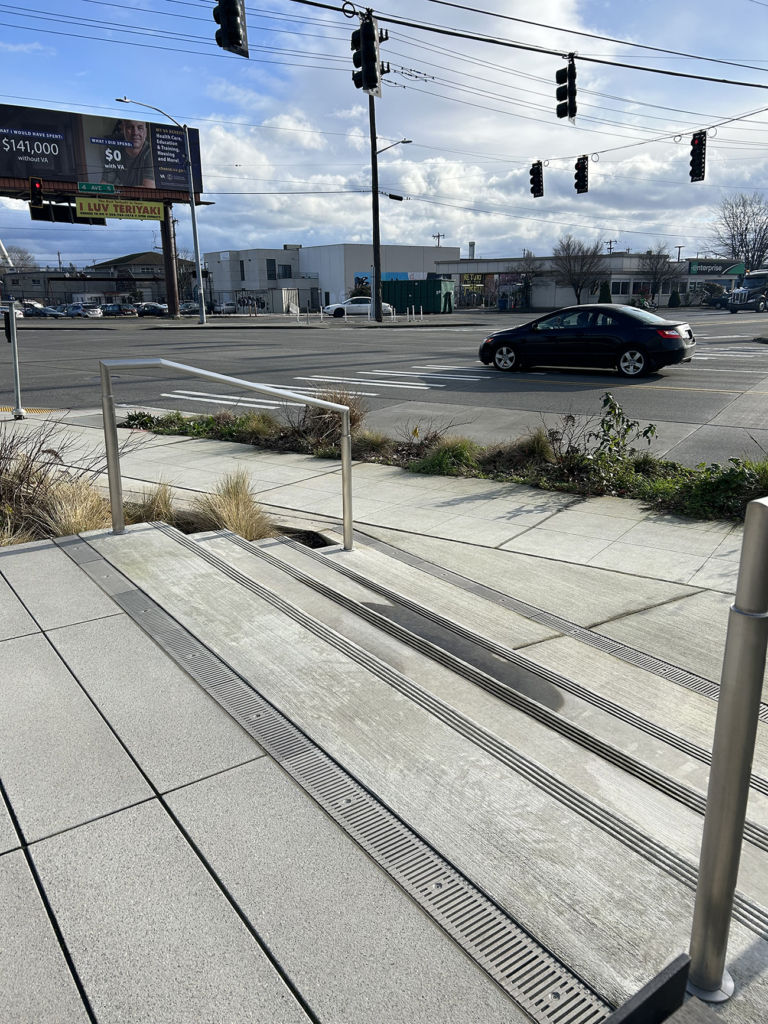

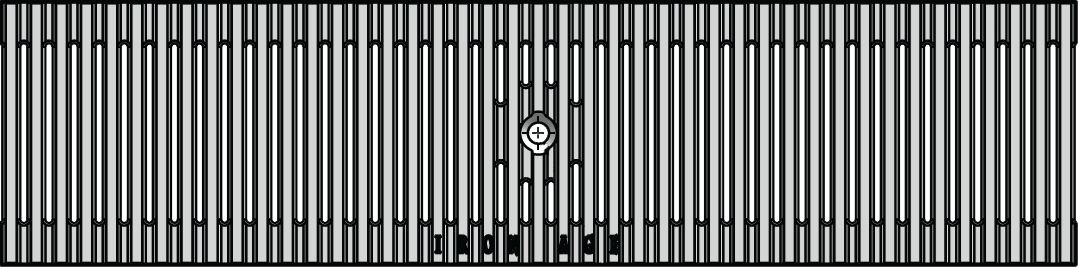

Name / Design	Regular Joe 5" x 20" Heel Proof
Product ID	RJA5-20I21HP
Dimensions	4.81" x 19.56" x .81"
Drain Manufacturer	ACO™ MEA®
Fits	ACO™ K100, K100S, KS100 MEA® 1000 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	11.38
Free Drain Area	17.25%
Gallons Per Minute (GPM)	21.31
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe 5" x 20" Heel Proof, Heavy Duty
Product ID	RJA520I21HPHD
Dimensions	4.85" x 19.79" x .75"
Drain Manufacturer	ACO™
Fits	ACO™ K100, K100S, KS100
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	16.03
Free Drain Area	16.75%
Gallons Per Minute (GPM)	21.05
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe 5" x 20" Heel Proof - fits Filcoten®
Product ID	RJF5-20I91HP
Dimensions	4.75" x 19.61" x .81"
Drain Manufacturer	Filcoten®
Fits	Filcoten® Tec V 100
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	13
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

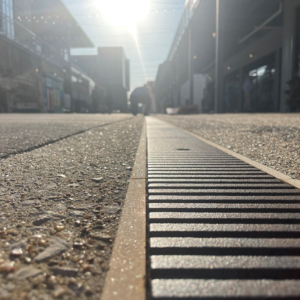

Name / Design	Regular Joe "Plain" 5" x 20" Heel Proof
Product ID	PJA5-20I20HP
Dimensions	4.81" x 19.57" x .75"
Drain Manufacturer	ABT® MEA®
Fits	ABT® PolyDrain® MEA® 1000 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	10.43
Free Drain Area	22.63%
Gallons Per Minute (GPM)	25.45
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

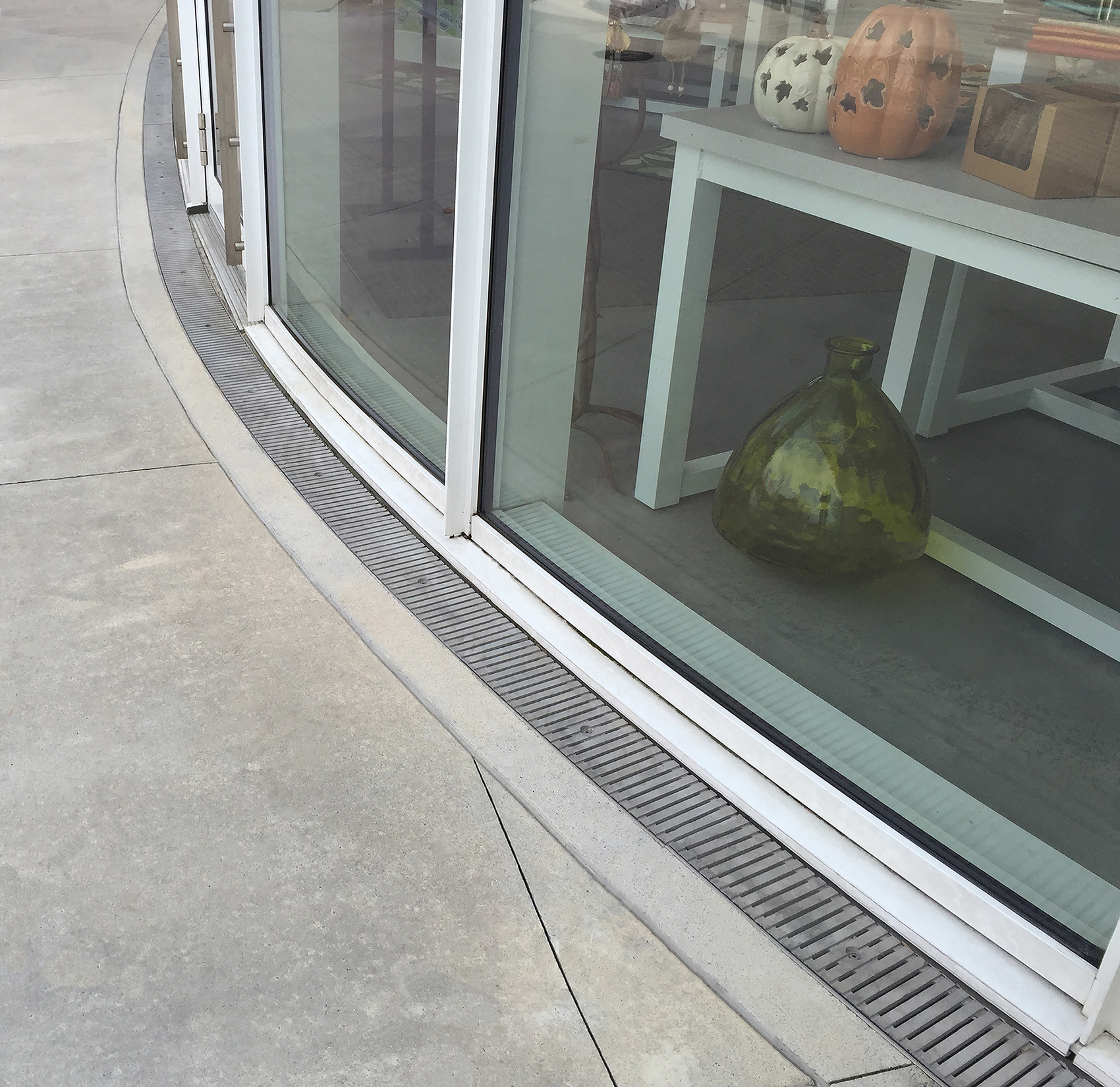

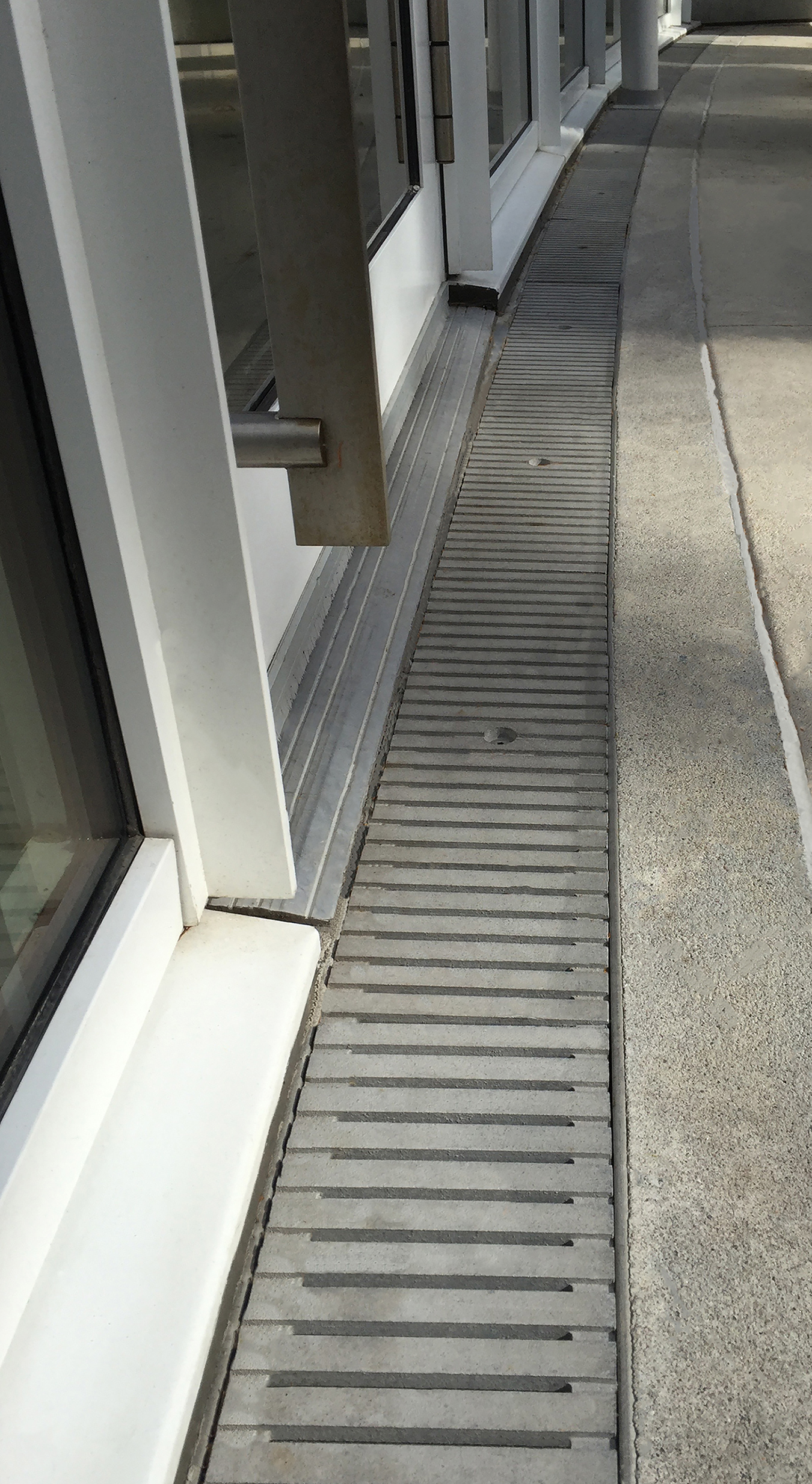

Name / Design	Regular Joe 5.38" x 20" Heel Proof
Product ID	RJZ5-20I32HP
Dimensions	5.38" x 19.94" x .75"
Drain Manufacturer	Zurn®
Fits	Zurn® Z806 Zurn® Z886
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	13.90
Free Drain Area	17.36%
Gallons Per Minute (GPM)	24.37
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe 7" x 20" Heel Proof
Product ID	RJM7-20I23HP
Dimensions	6.81" x 19.61" x .75"
Drain Manufacturer	MEA®
Fits	MEA® EN1500
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	16.00
Free Drain Area	23.72%
Gallons Per Minute (GPM)	31.07
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe 8" x 20"
Product ID	RJN8-20I04
Dimensions	7.87"x 20.16" x .75"
Drain Manufacturer	NDS®
Fits	NDS® 8" Pro Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	20
Free Drain Area	25%
Gallons Per Minute (GPM)	51.3
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

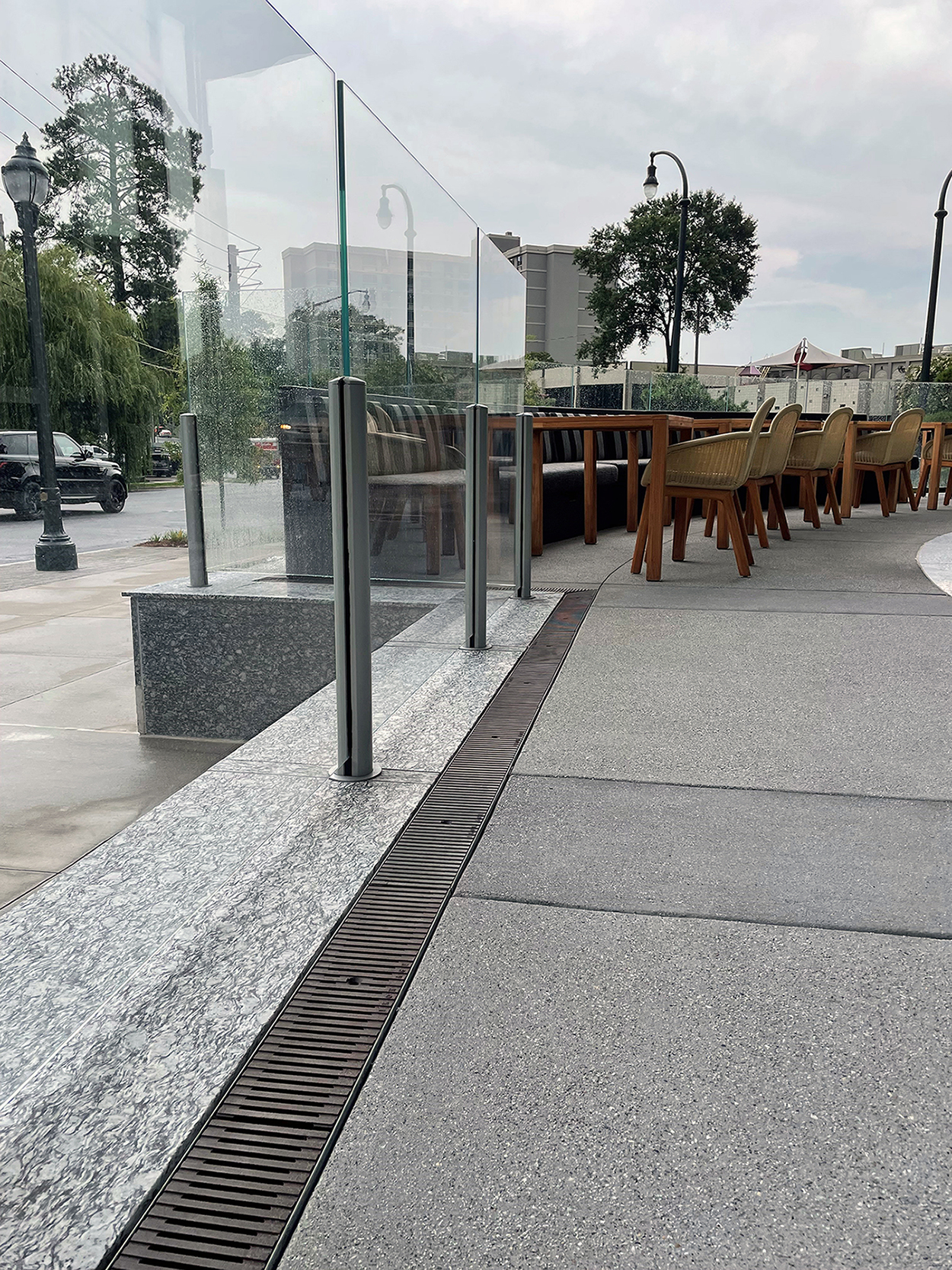

Name / Design	Regular Joe 8" x 20" Heel Proof, Heavy Duty Fits ABT
Product ID	RJX8-20I99HPHD
Dimensions	8" x 19.63" x 1.5"
Drain Manufacturer	ABT®
Fits	ABT® PolyDrain® PDX-6 ABT® TrenchFormer® TFX-6
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	18.41
Free Drain Area	24.58%
Gallons Per Minute (GPM)	50.60
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe 8" x 20" Heel Proof, Heavy Duty Fits Filcoten
Product ID	RJF8-20I82HPHD
Dimensions	8.77" x 19.66" x .78"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	28.84
Free Drain Area	13.87%
Gallons Per Minute (GPM)	31.33
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe 8" x 20" Heel Proof, Heavy Duty Fits NDS
Product ID	RJN8-20I04HPHD
Dimensions	7.88" x 19.63" x .75"
Drain Manufacturer	NDS®
Fits	NDS® 8" Pro Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	22.00
Free Drain Area	17.3%
Gallons Per Minute (GPM)	35.02
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

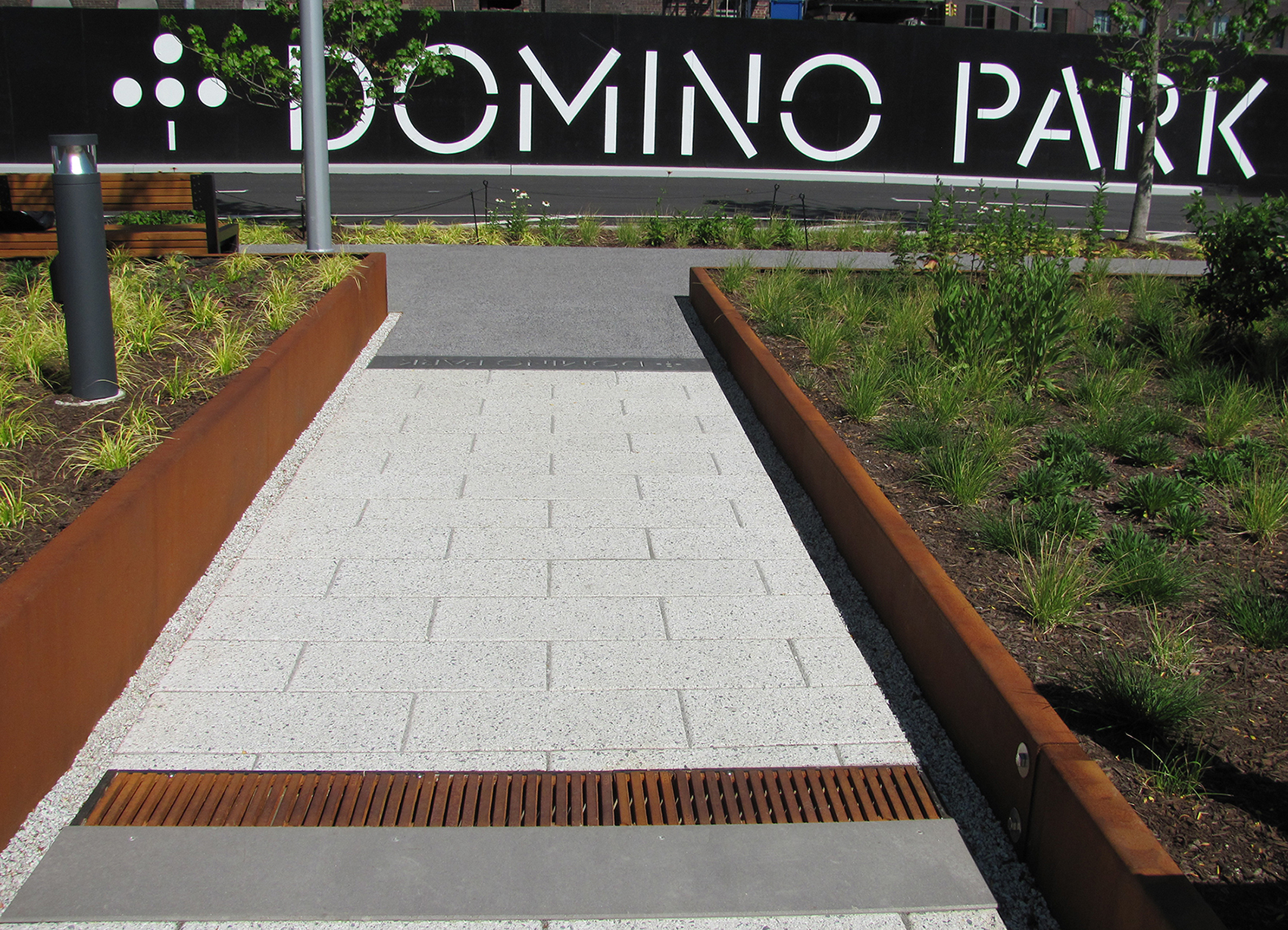

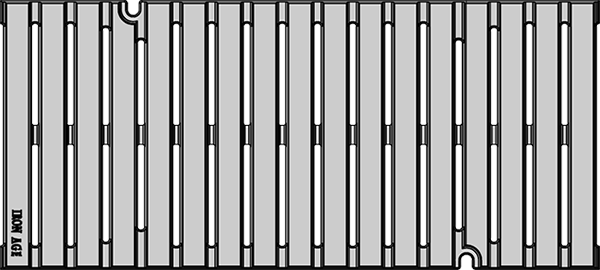

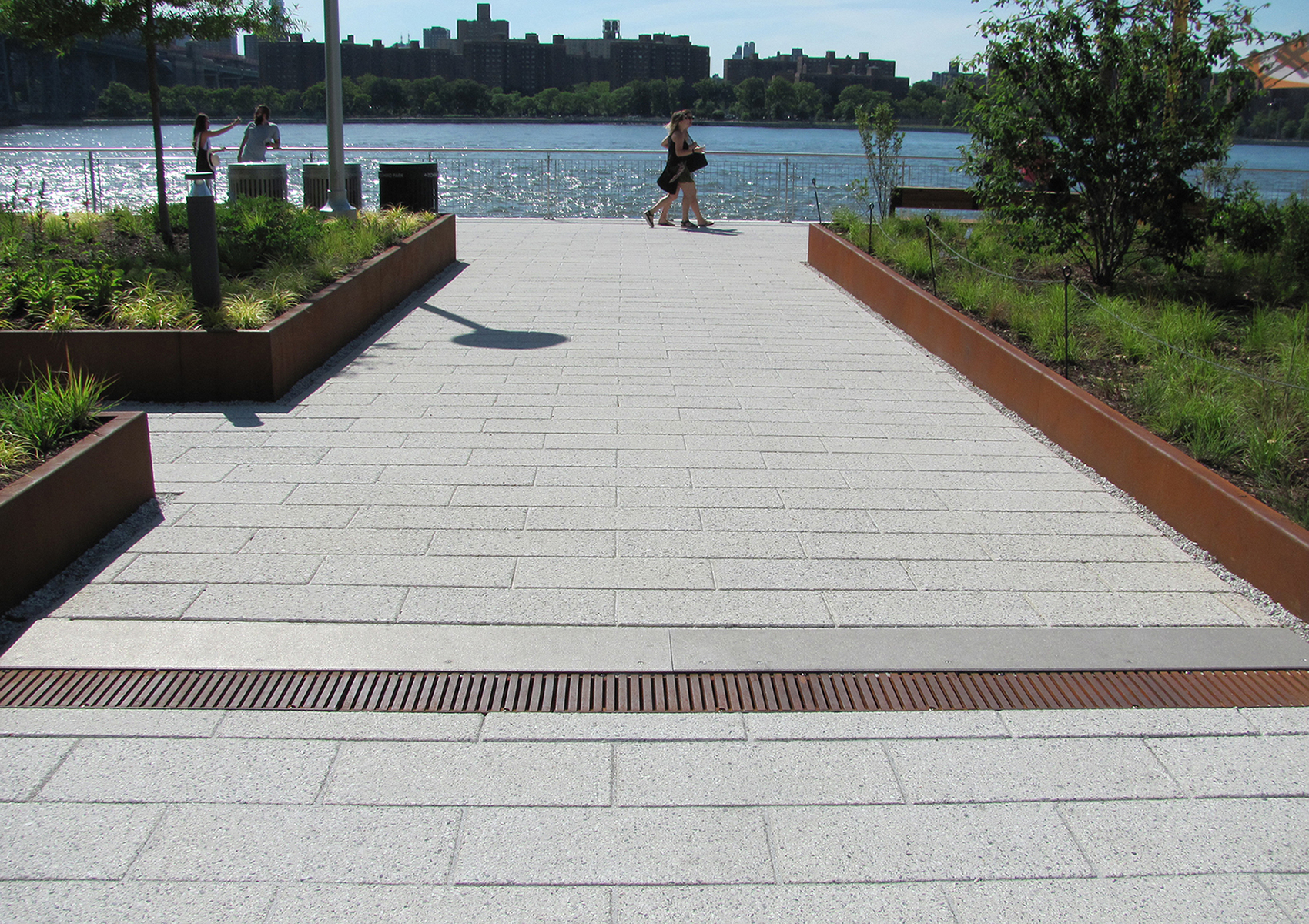

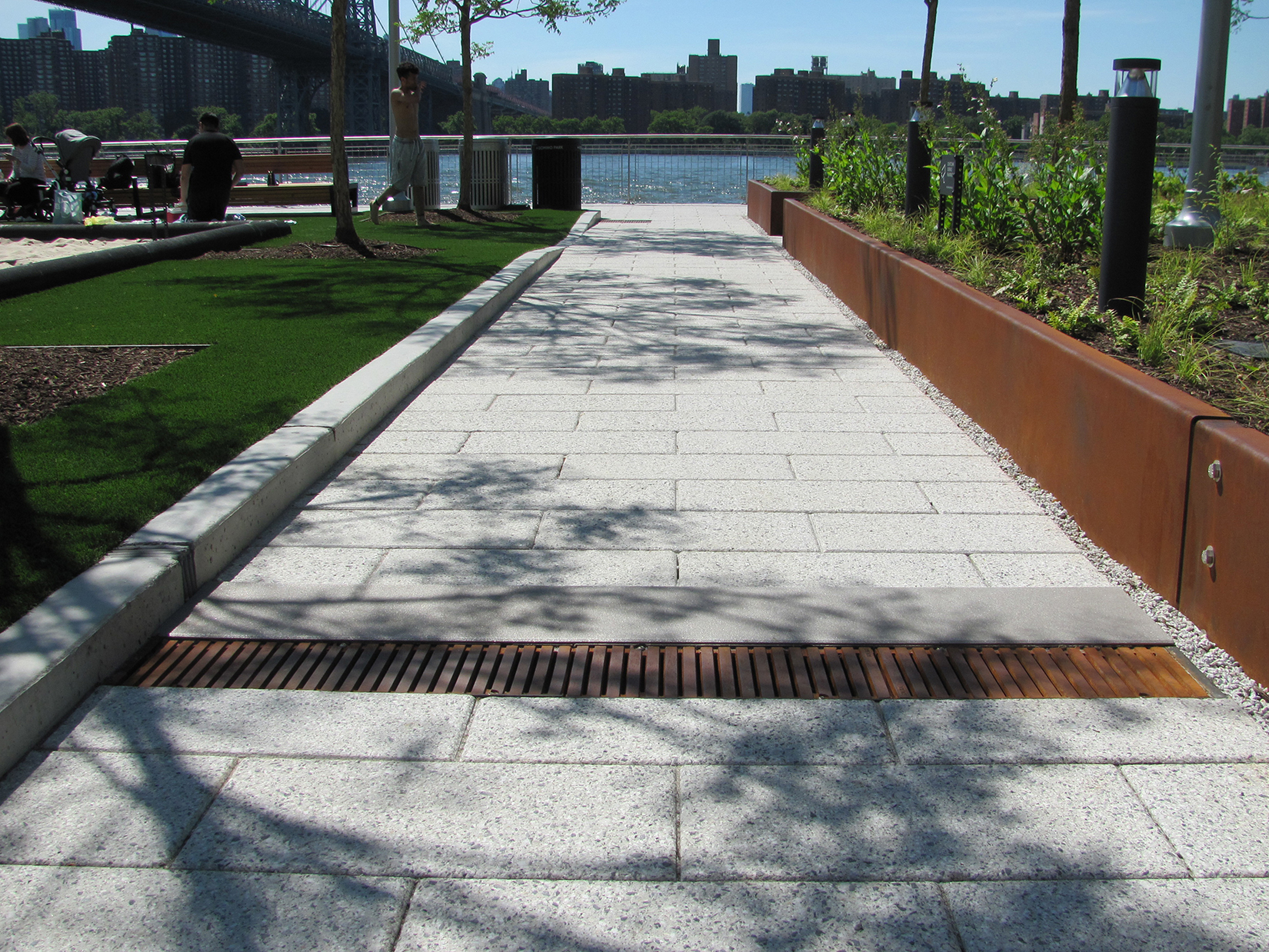

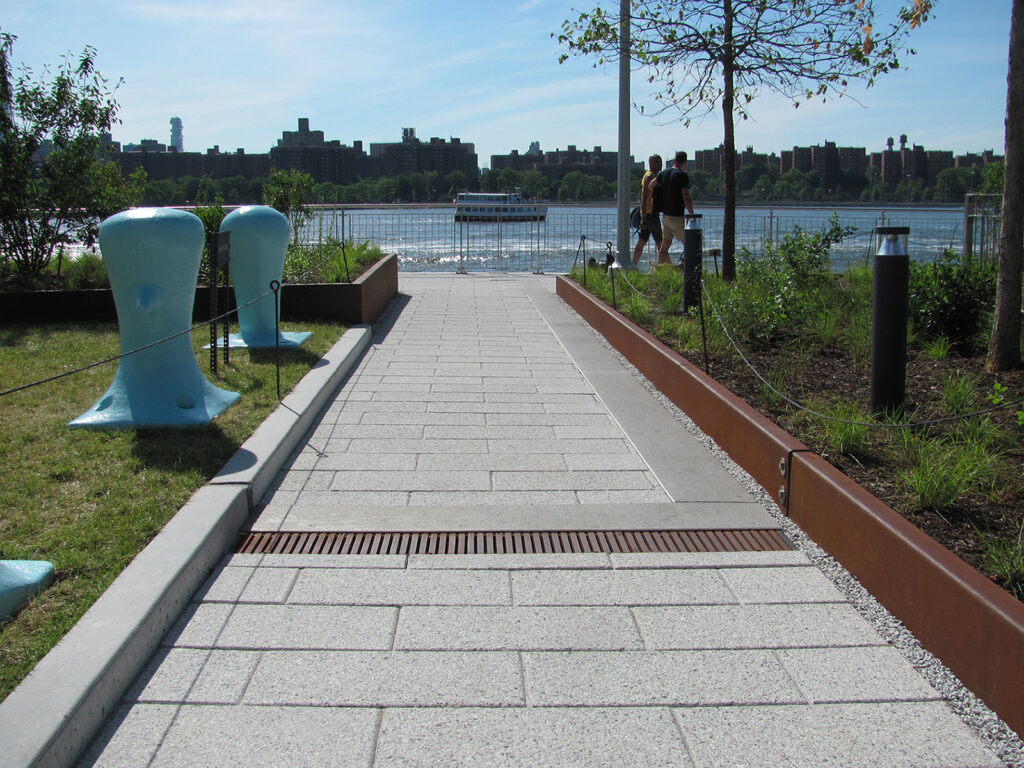

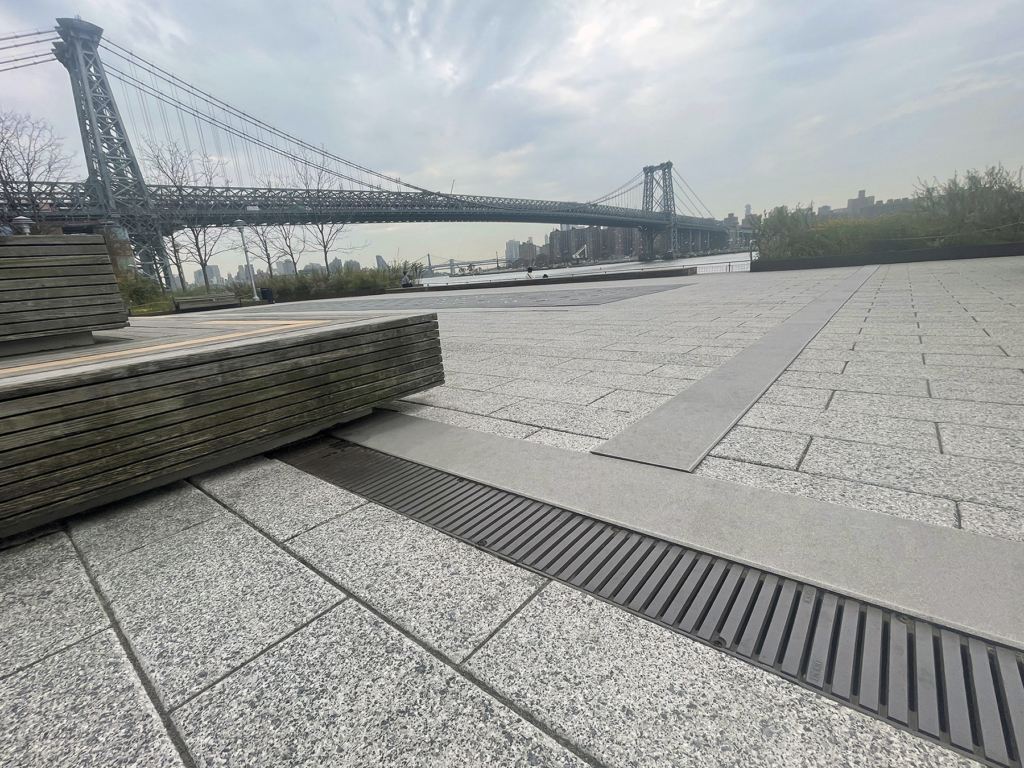

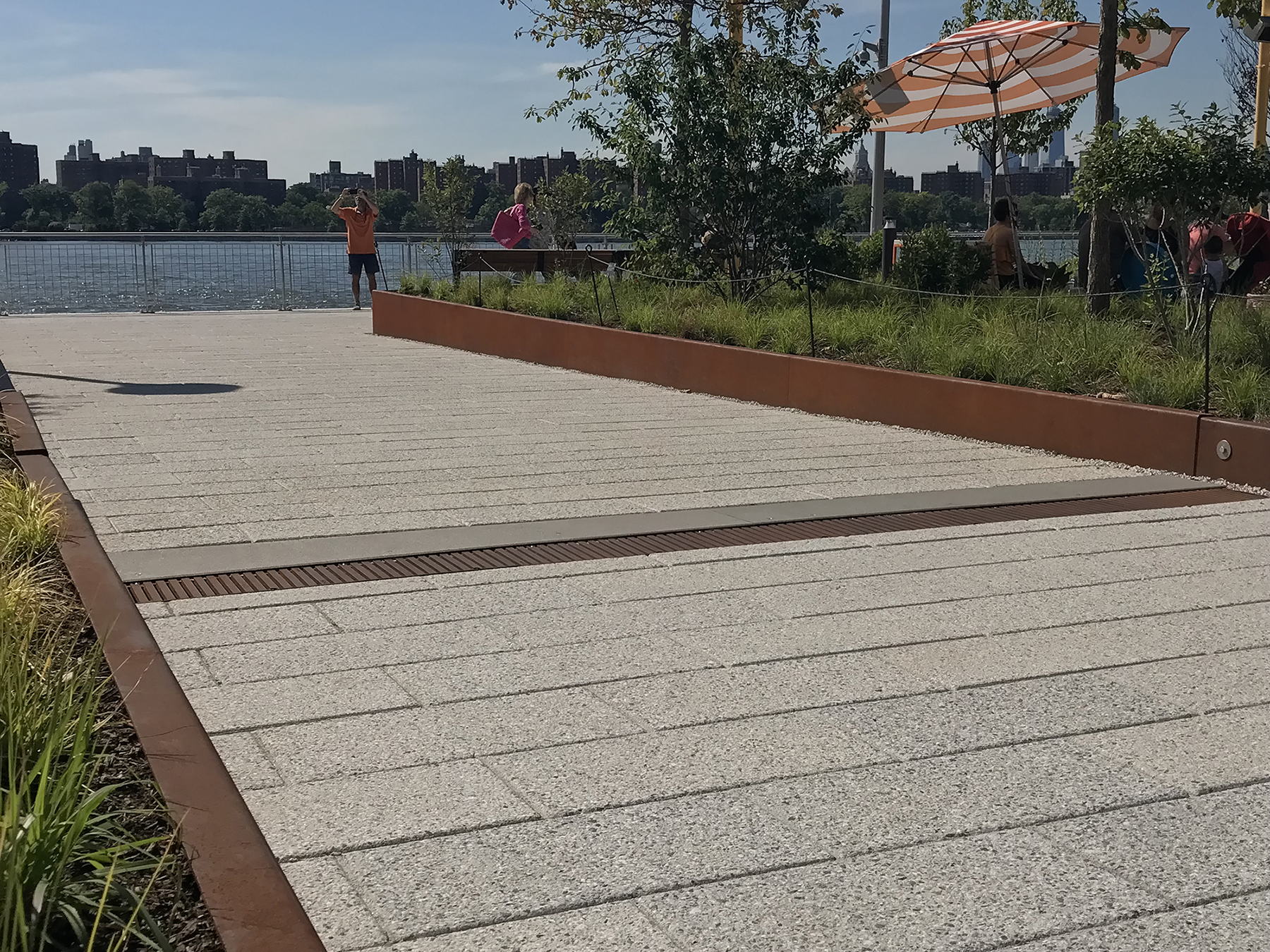

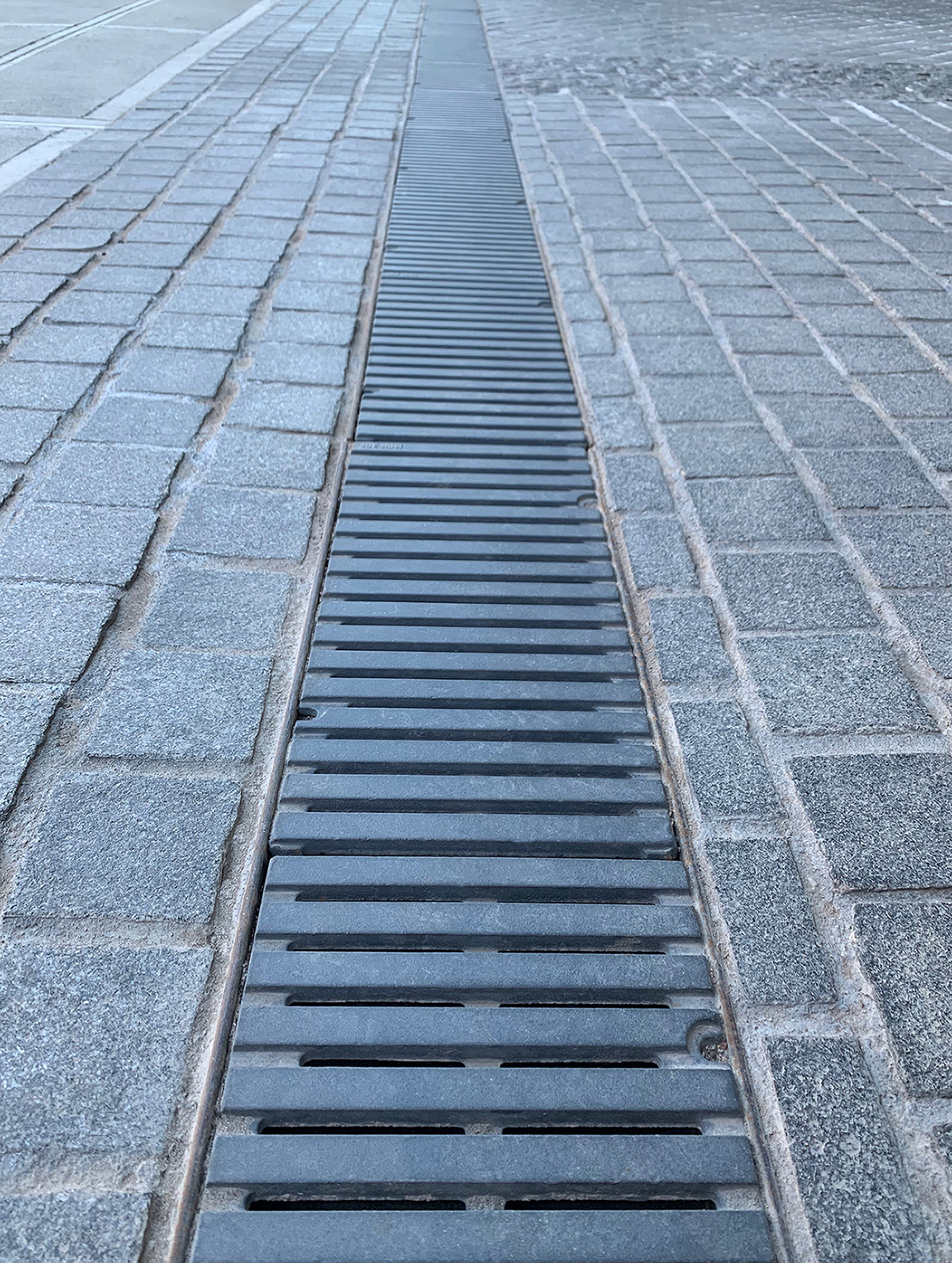

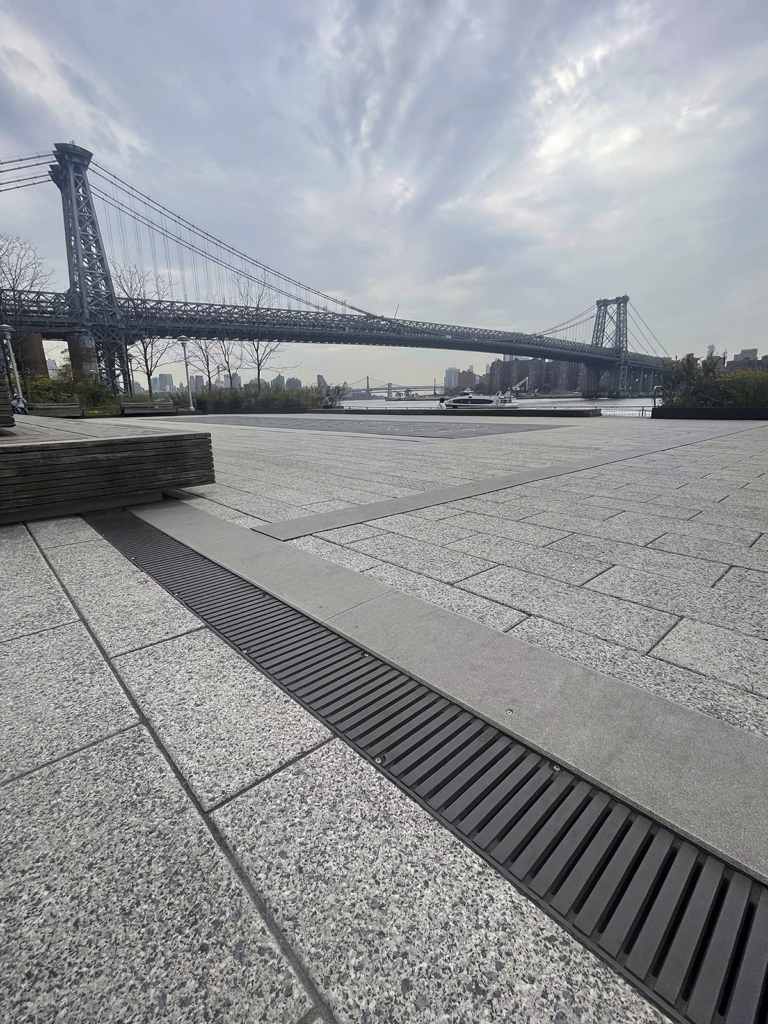

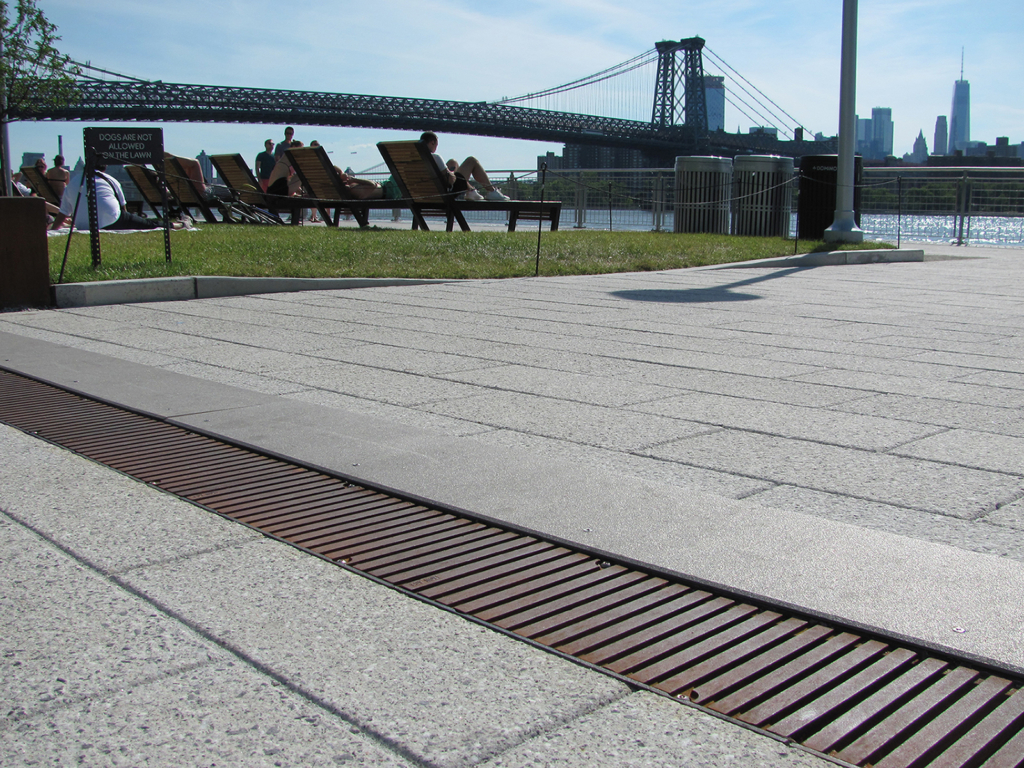

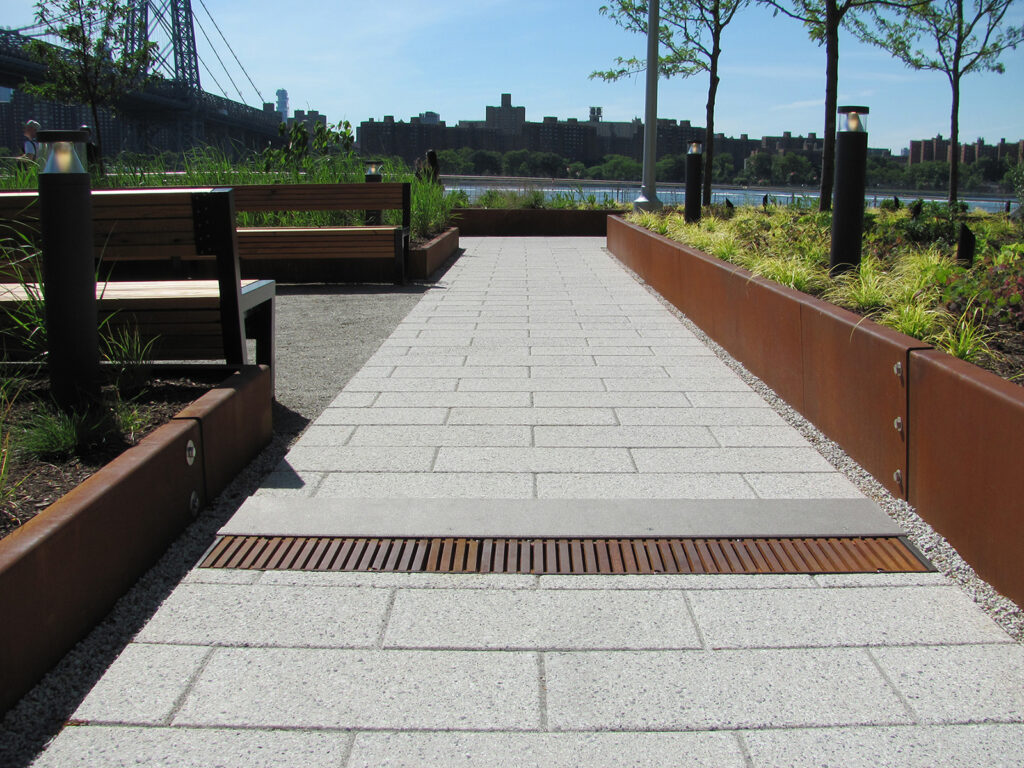

Name / Design	Regular Joe 9" x 20" Heel Proof FITS MEA
Product ID	RJM9-20I22HP
Dimensions	8.78" x 19.61" x .79"
Drain Manufacturer	MEA®
Fits	MEA® EN2000
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	29
Free Drain Area	13.36%
Gallons Per Minute (GPM)	30.33
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe 9" x 20" Heel Proof
Product ID	RJX9-20I99HP
Dimensions	8.87" x 20" x 1"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	22
Free Drain Area	21%
Gallons Per Minute (GPM)	49.51
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

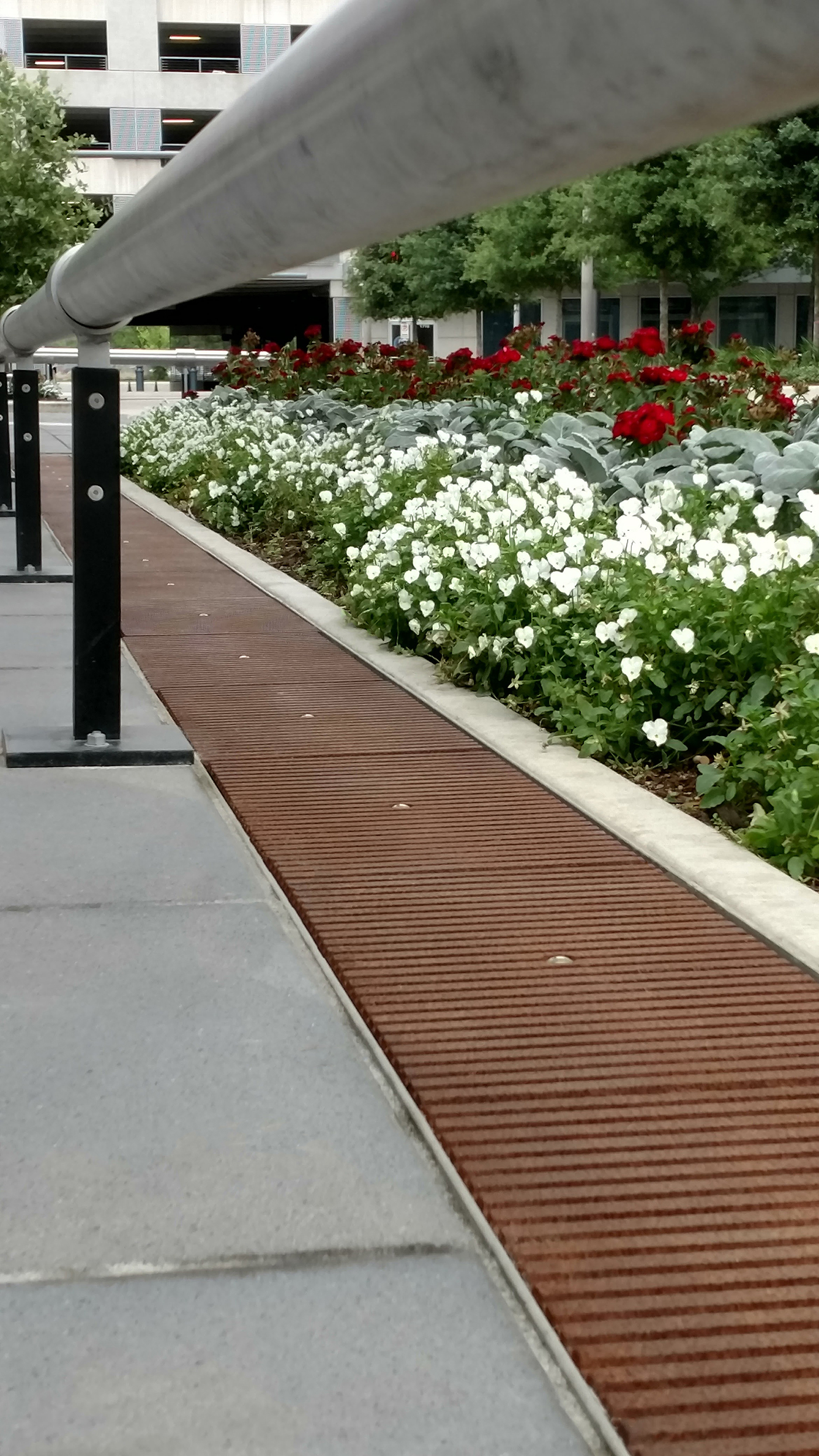

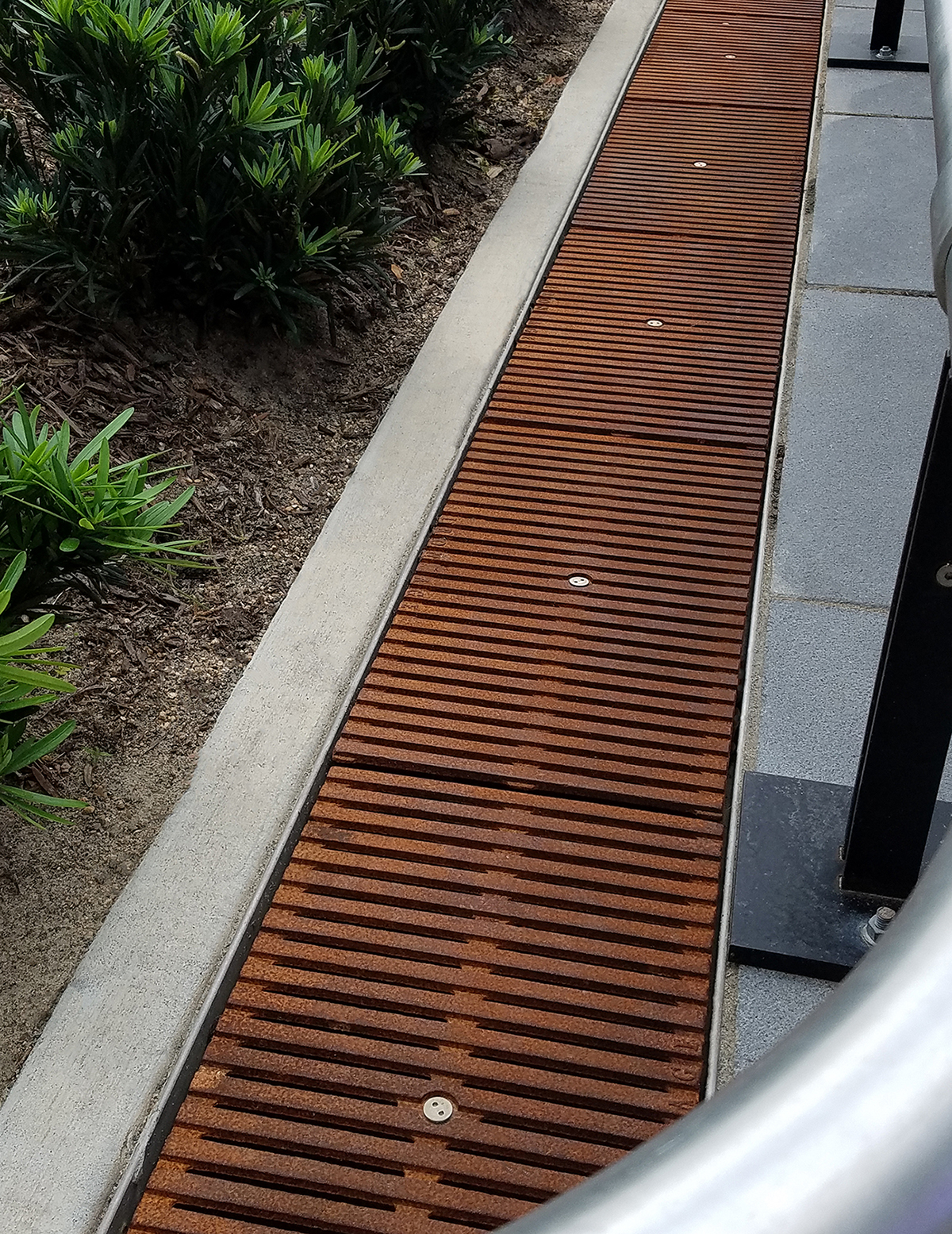

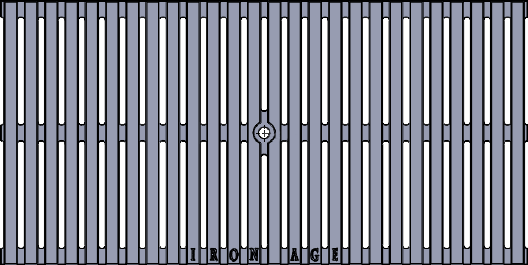

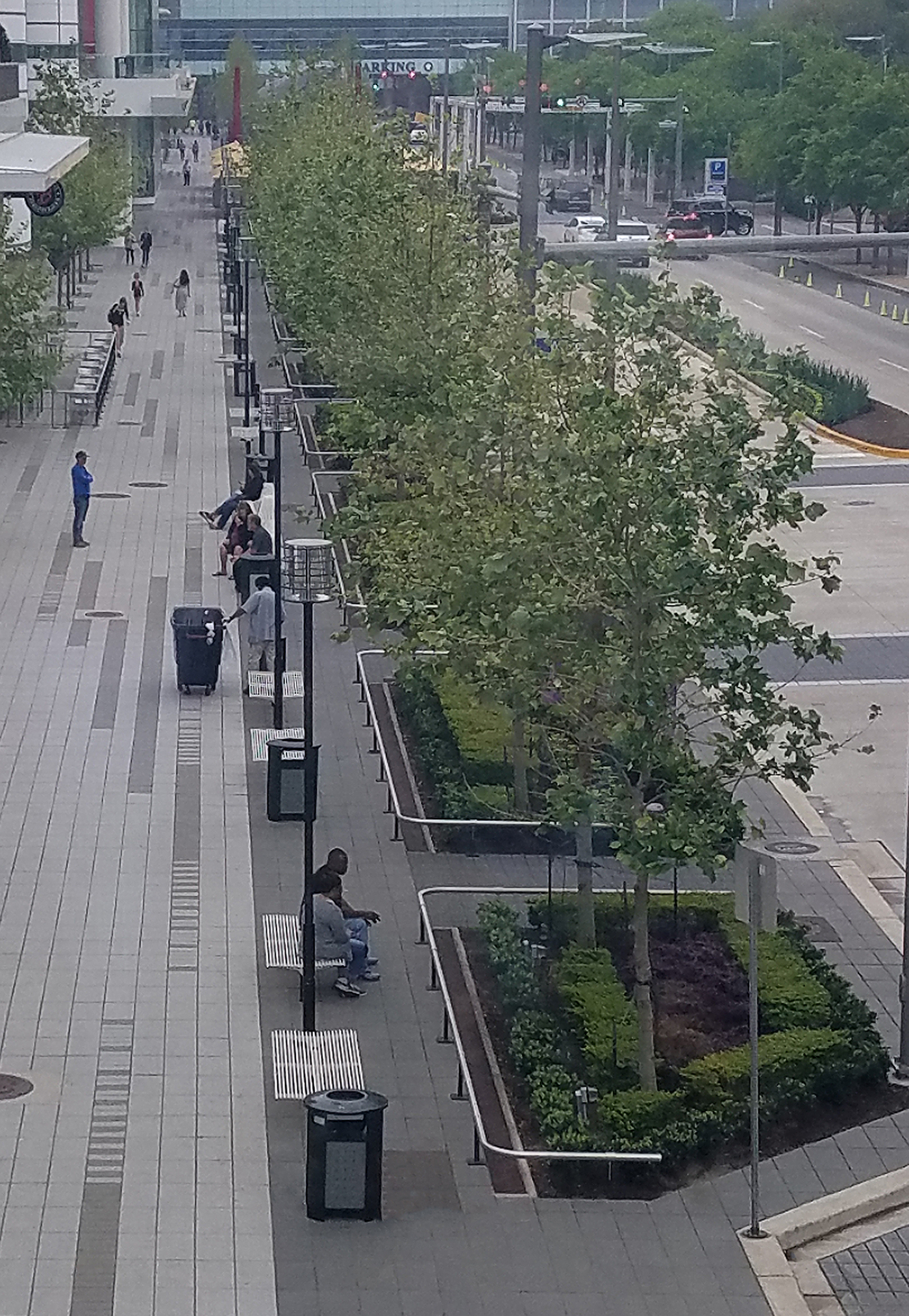

Name / Design	Regular Joe 10" x 20" Heel Proof, Heavy Duty FITS ABT
Product ID	RJX10-20I99HPHD
Dimensions	9.81" x 19.63" x 1.25"
Drain Manufacturer	ABT®
Fits	ABT® PolyDrain® PDX-8
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	23.13
Free Drain Area	23.37%
Gallons Per Minute (GPM)	58.98
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

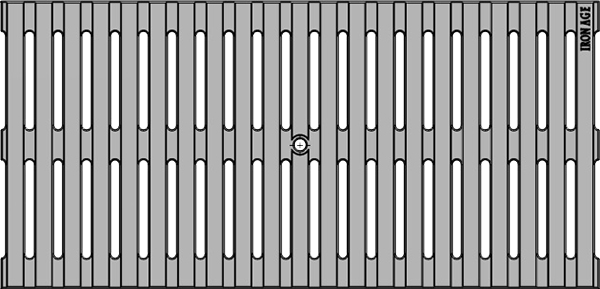

Name / Design	Regular Joe 10" x 20" Heel Proof, Heavy Duty FITS ACO
Product ID	RJA10-20I24HDHP
Dimensions	9.41" x 19.61" x 1.18"
Drain Manufacturer	ACO™
Fits	ACO™ K200
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	33
Free Drain Area	17.68%
Gallons Per Minute (GPM)	42.75
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

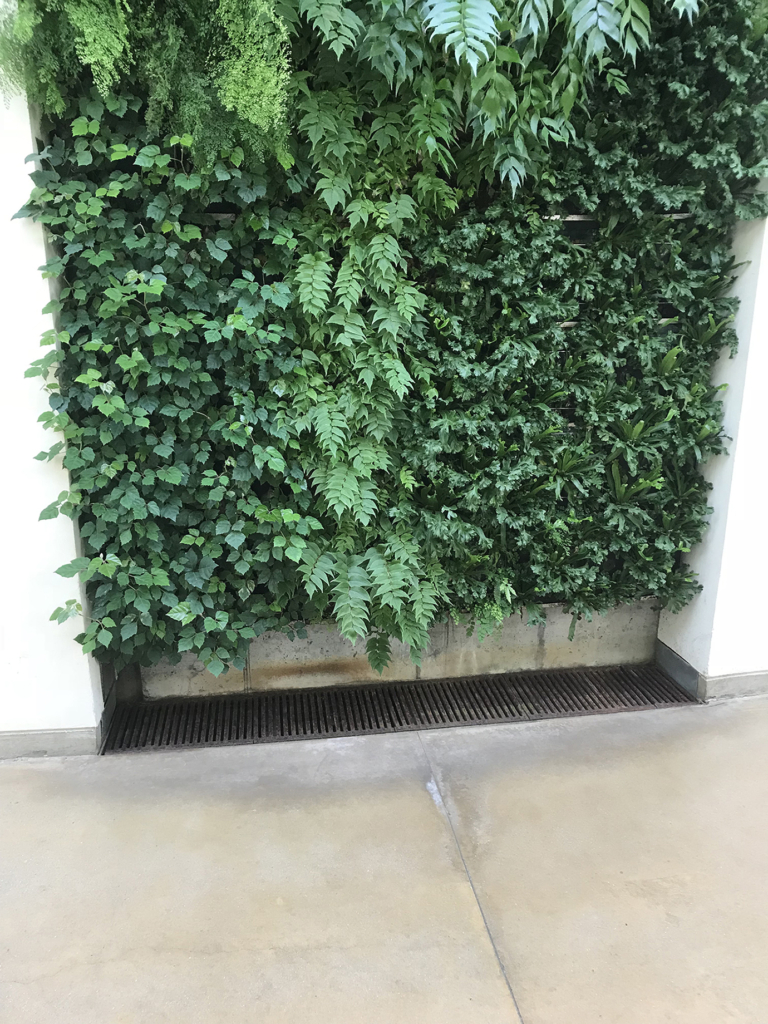

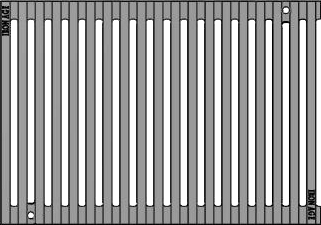

Name / Design	Regular Joe 12" x 17"
Product ID	RJX12-17I99
Dimensions	11.87" x 17" x 1"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	20
Free Drain Area	34.3%
Gallons Per Minute (GPM)	90.86
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

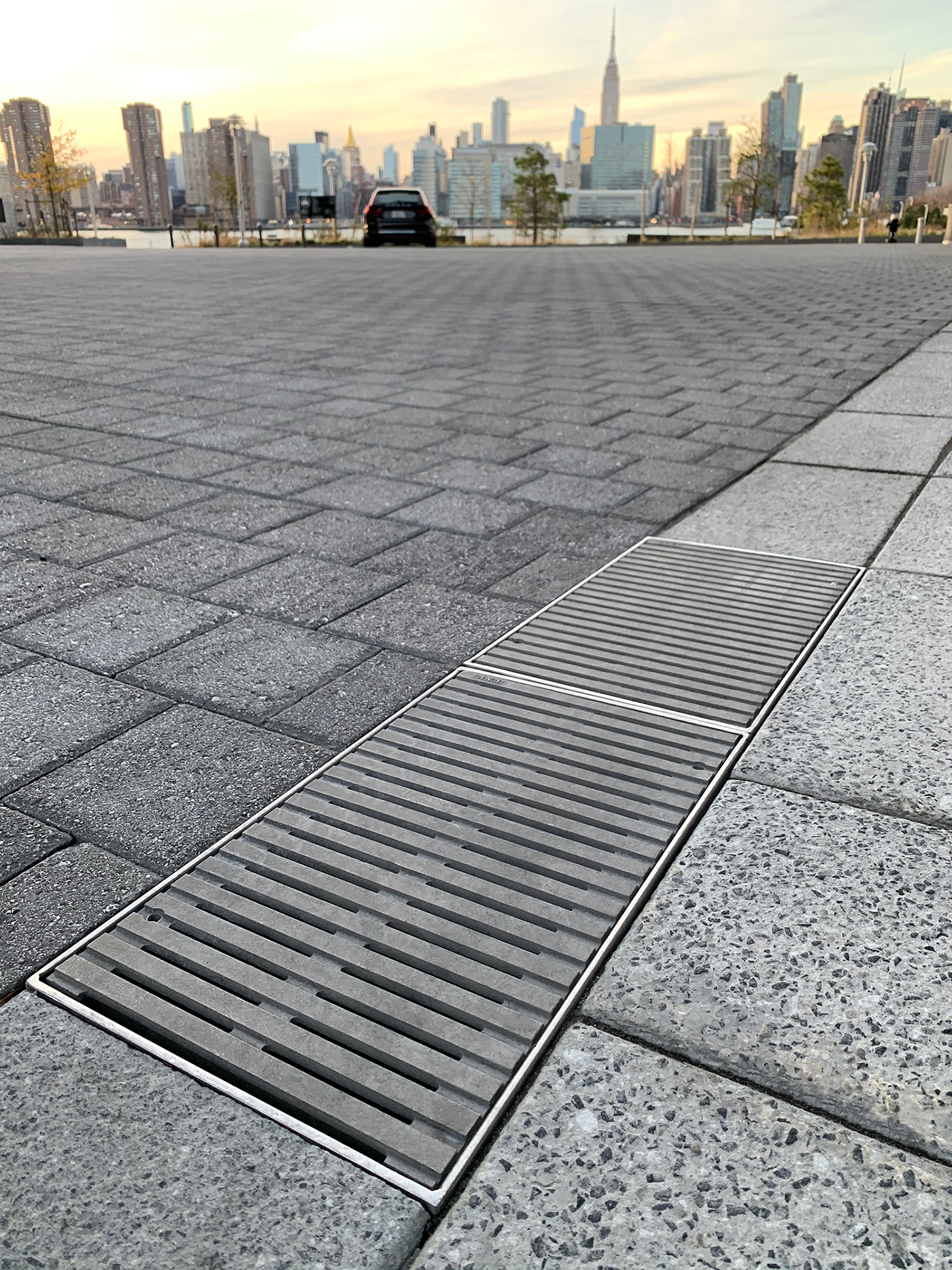

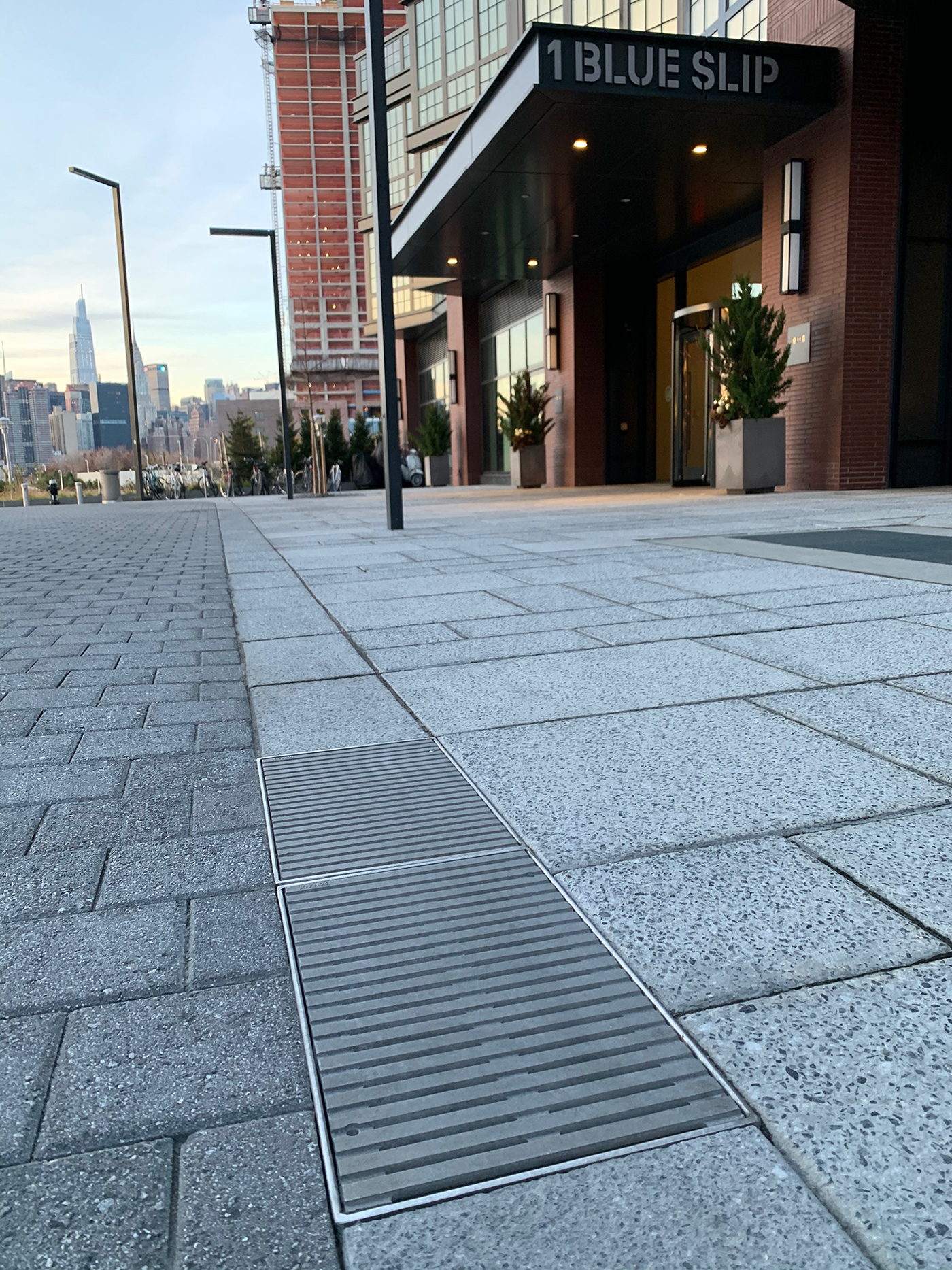

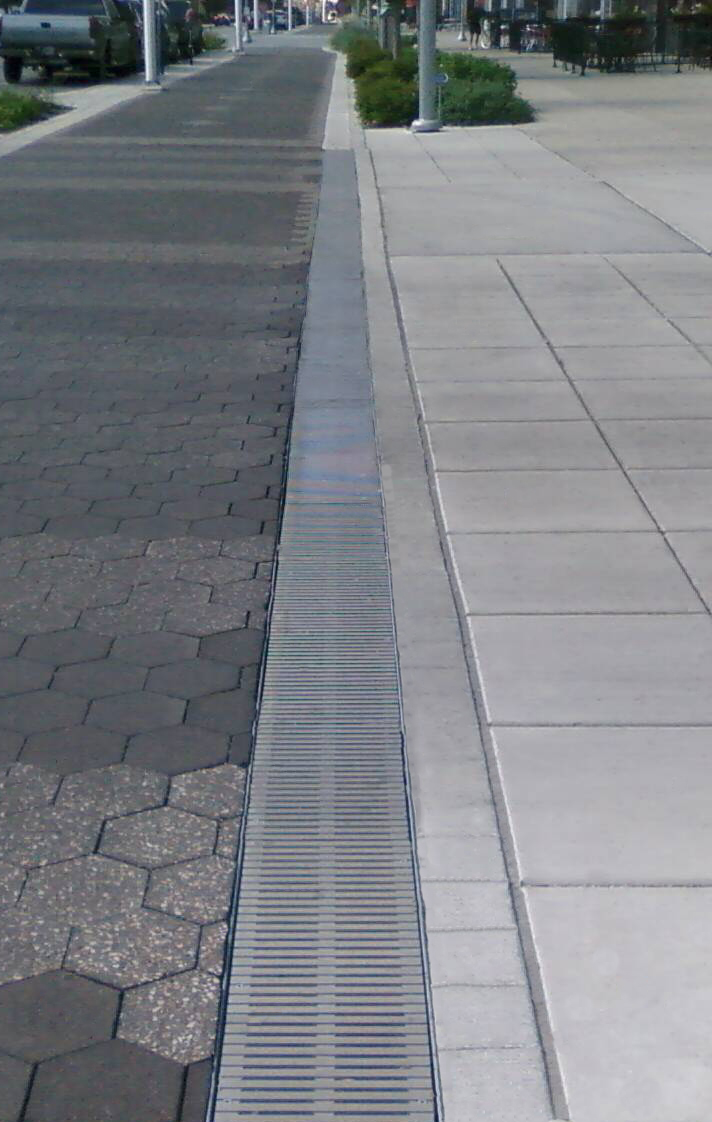

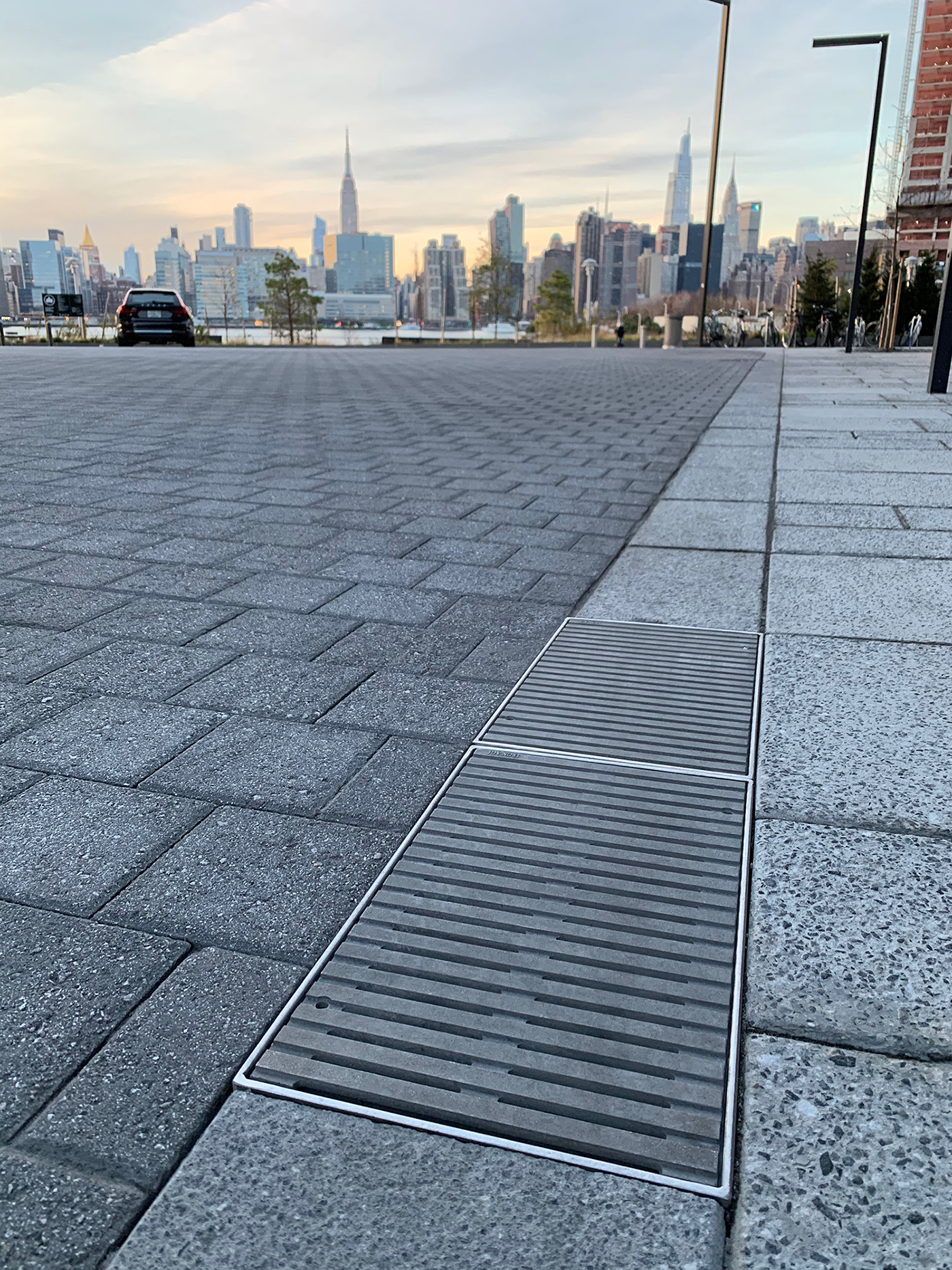

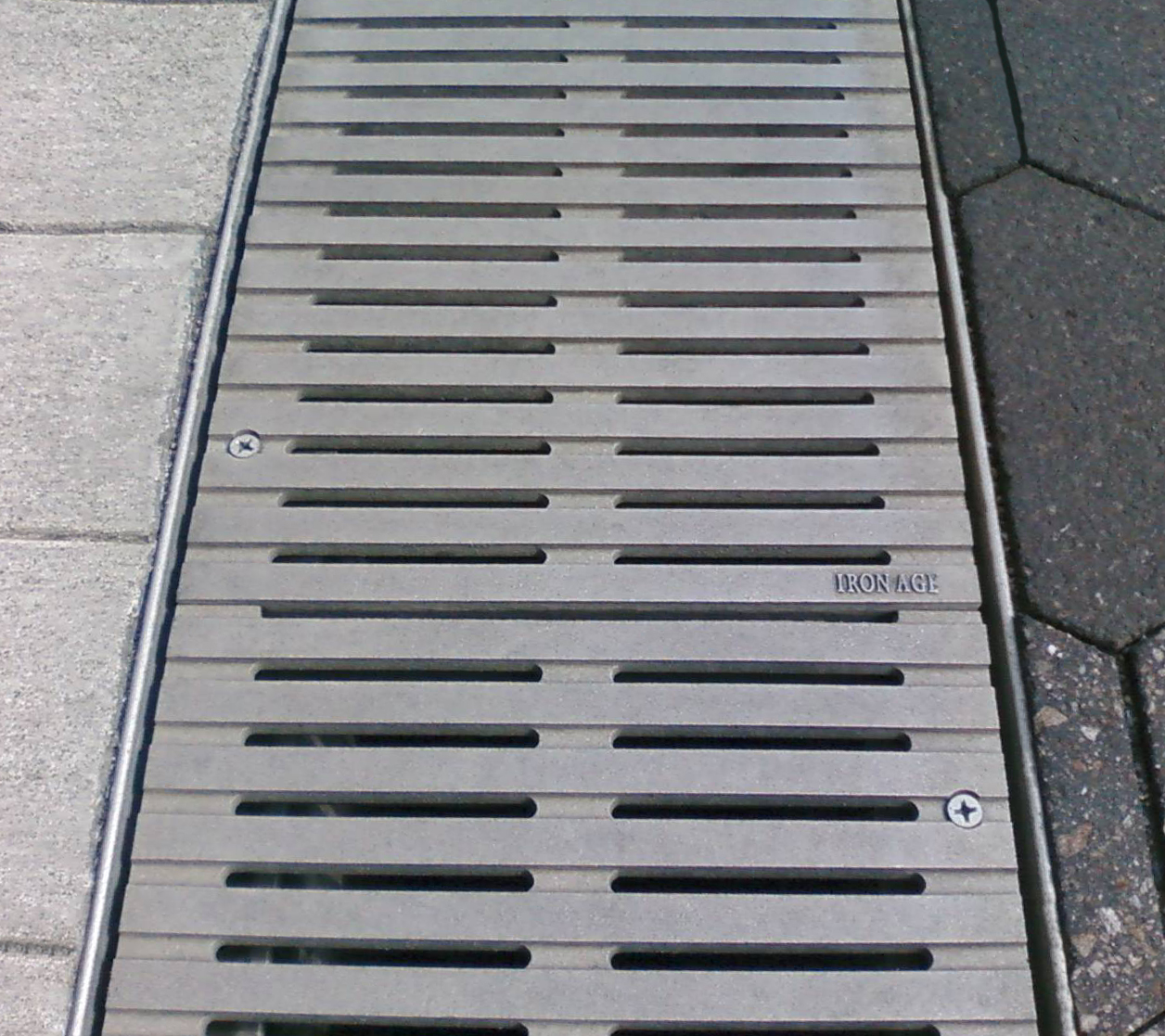

Name / Design	Regular Joe 12" x 20" Heel Proof, Heavy Duty
Product ID	RJX12-20I99HPHD
Dimensions	11.88" x 19.53" x 1.0"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	34.15
Free Drain Area	16.21%
Gallons Per Minute (GPM)	49.27
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

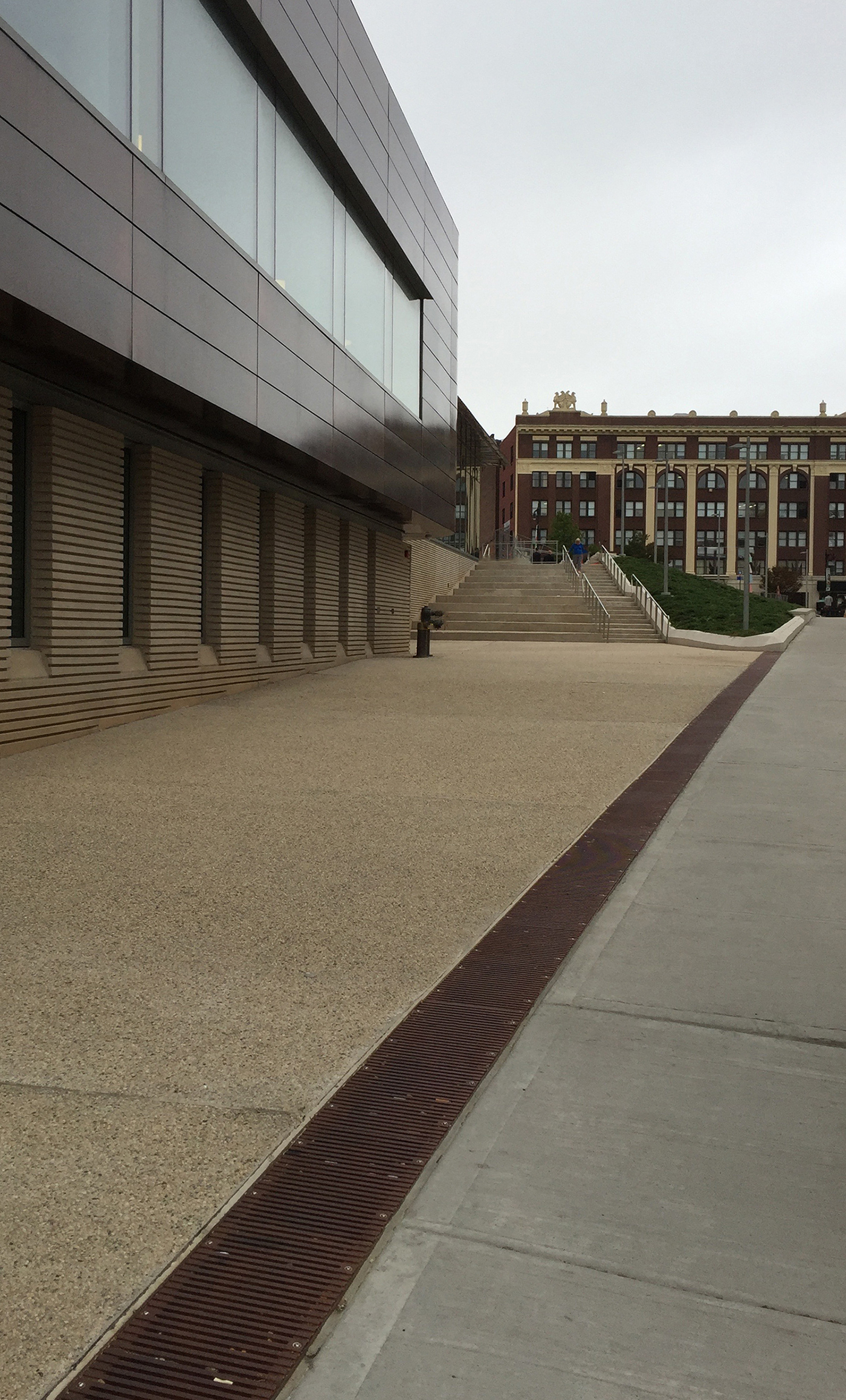

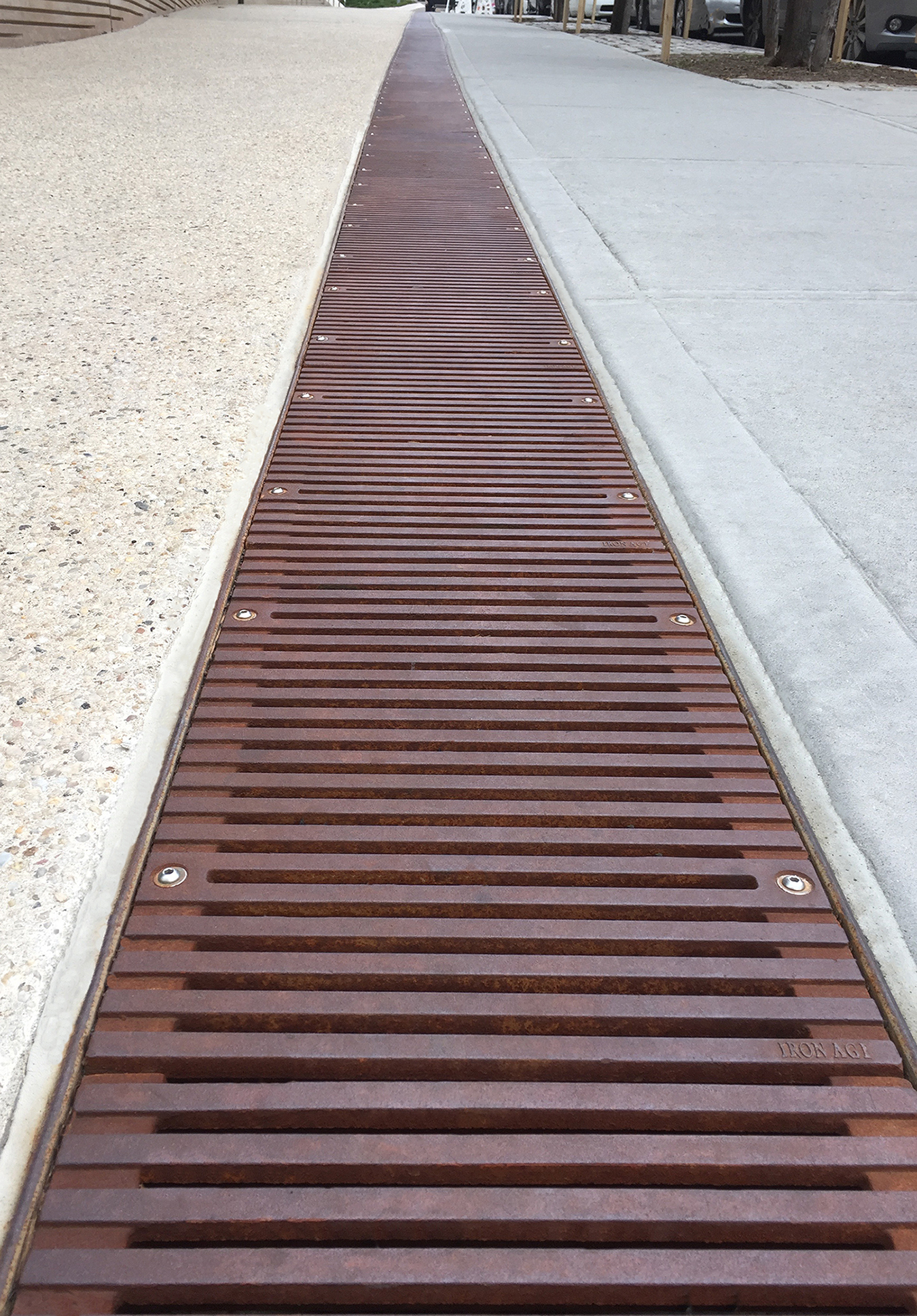

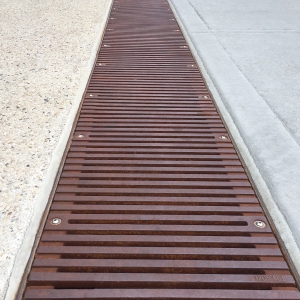

Name / Design	Regular Joe 13" x 20"
Product ID	RJX13-20I99
Dimensions	13" x 19.87" x .75"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	19
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe "Plain" 14" x 20" Heel Proof
Product ID	PJX14-20I99HP
Dimensions	13.50" x 18.98" x .75"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	26.66
Free Drain Area	22.48%
Gallons Per Minute (GPM)	75.46
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

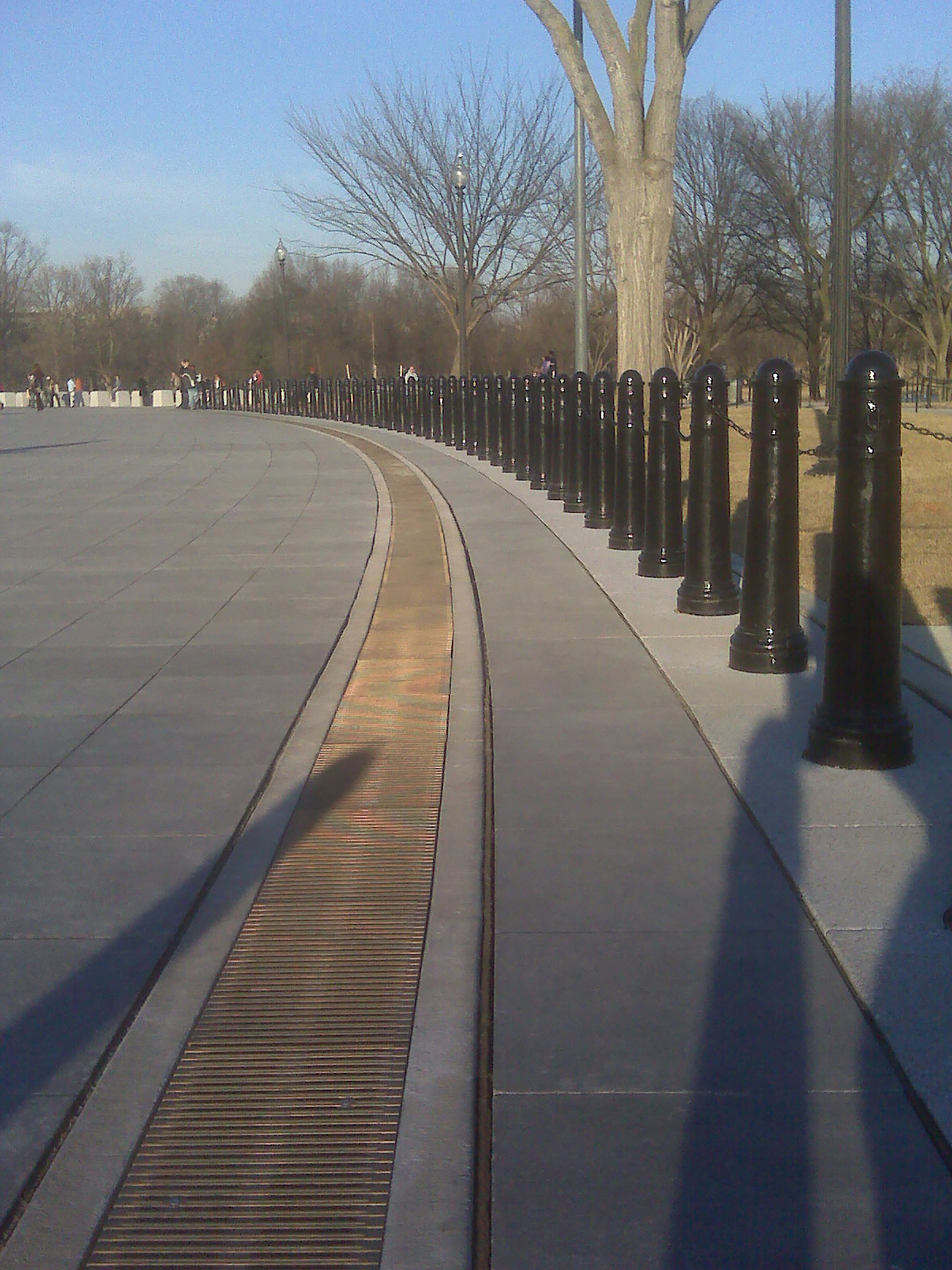

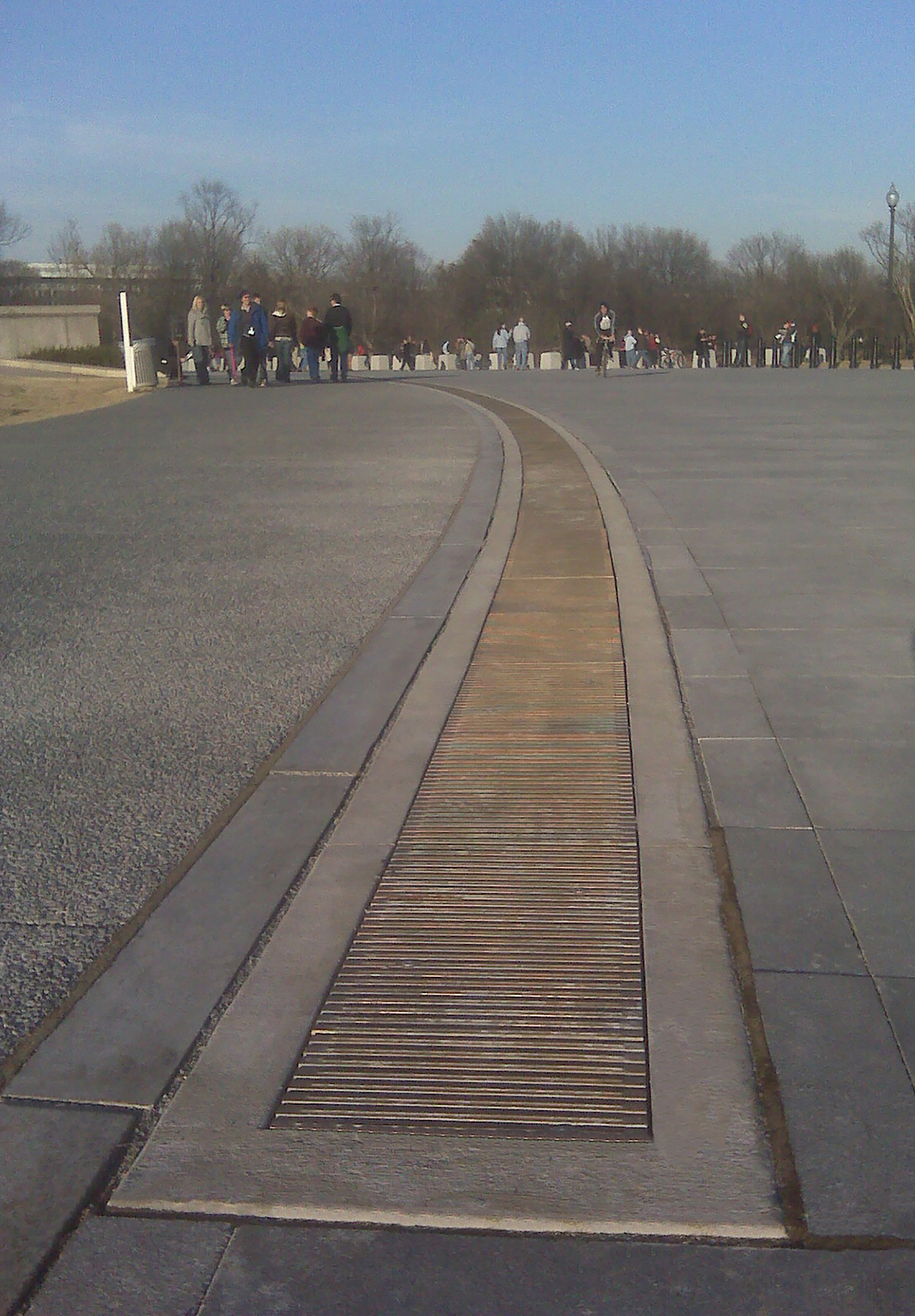

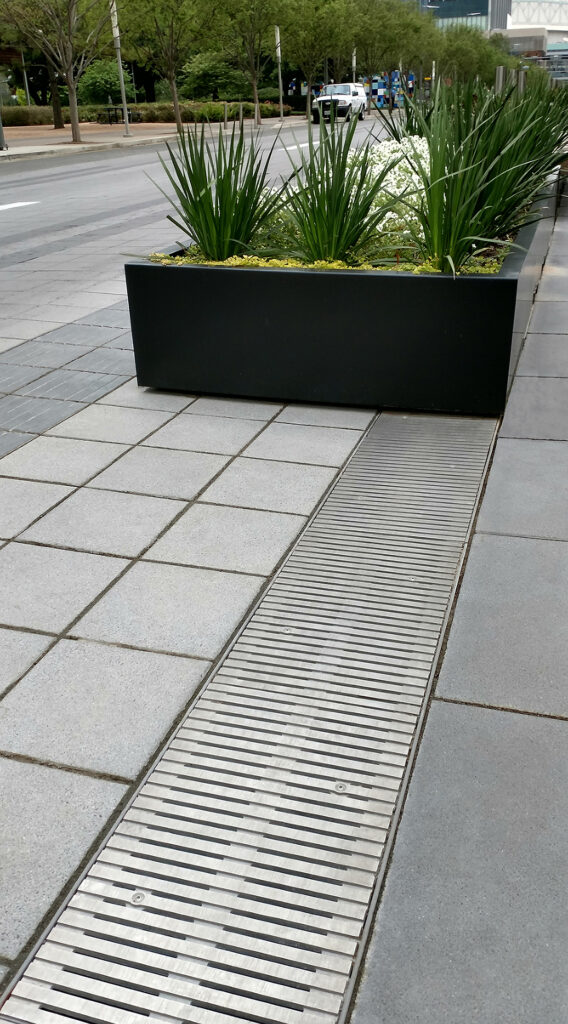

Name / Design	Regular Joe 14" x 24", Heel Proof
Product ID	RJX14-24I99HP
Dimensions	13.87" x 23.94" x 1.75"
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	53
Gallons Per Minute (GPM)	75.8
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe 24" x 24"
Product ID	RJX24-24I99
Dimensions	23.87" x 23.87" x 1.5"
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	95
Free Drain Area	25%
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

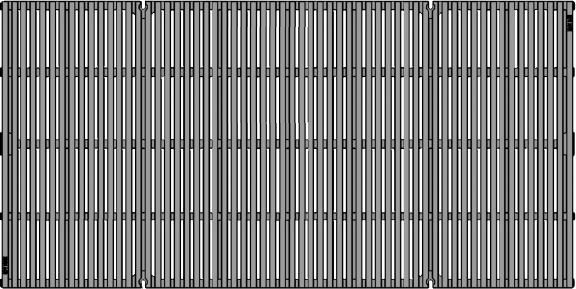

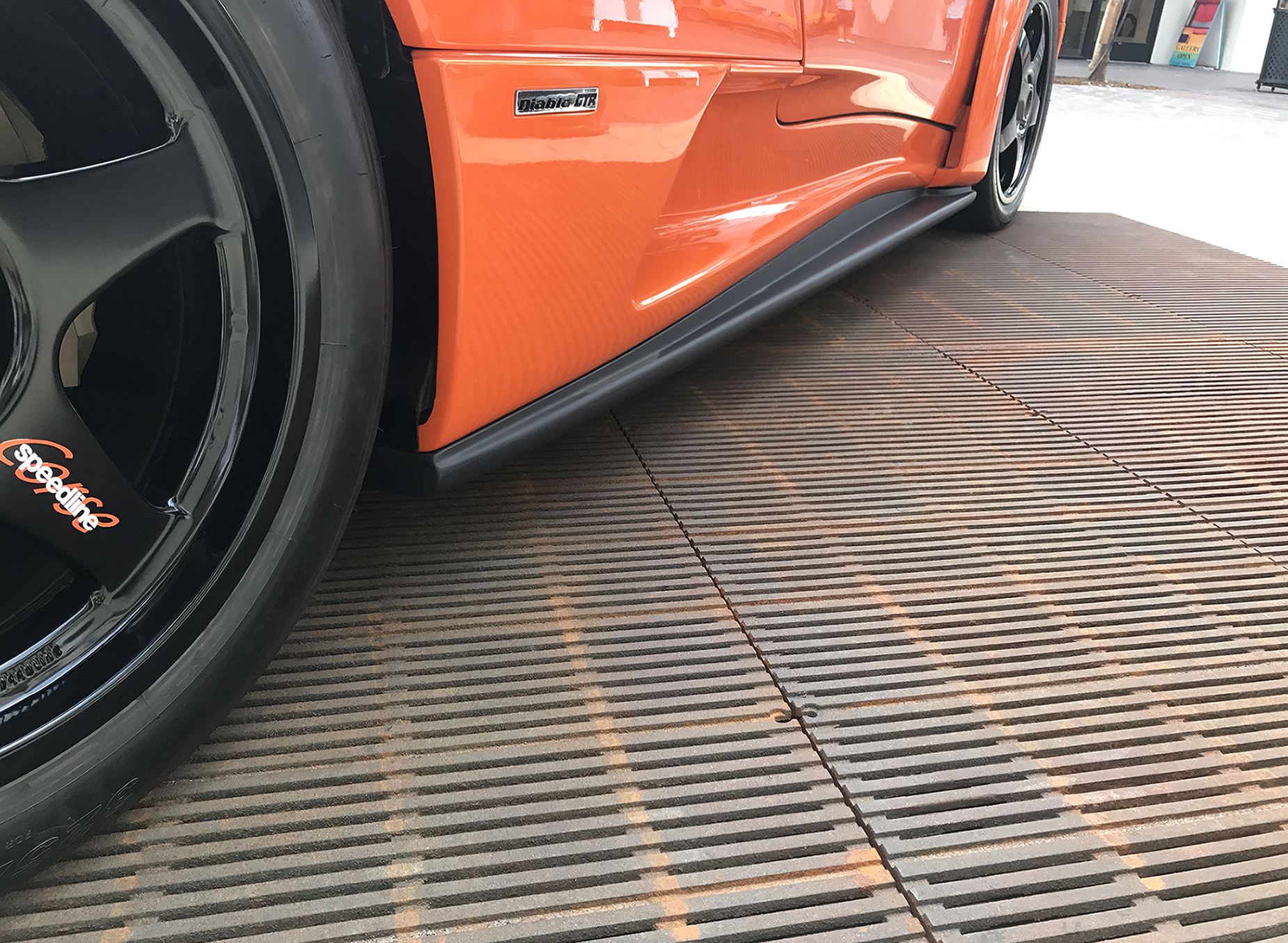

Name / Design	Regular Joe 24" x 48" Heel Proof, Heavy Duty
Product ID	RJX24-48I99HPHD
Dimensions	23.81" x 47.88" x 1.25"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	166
Free Drain Area	20.9%
Gallons Per Minute (GPM)	312.13
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

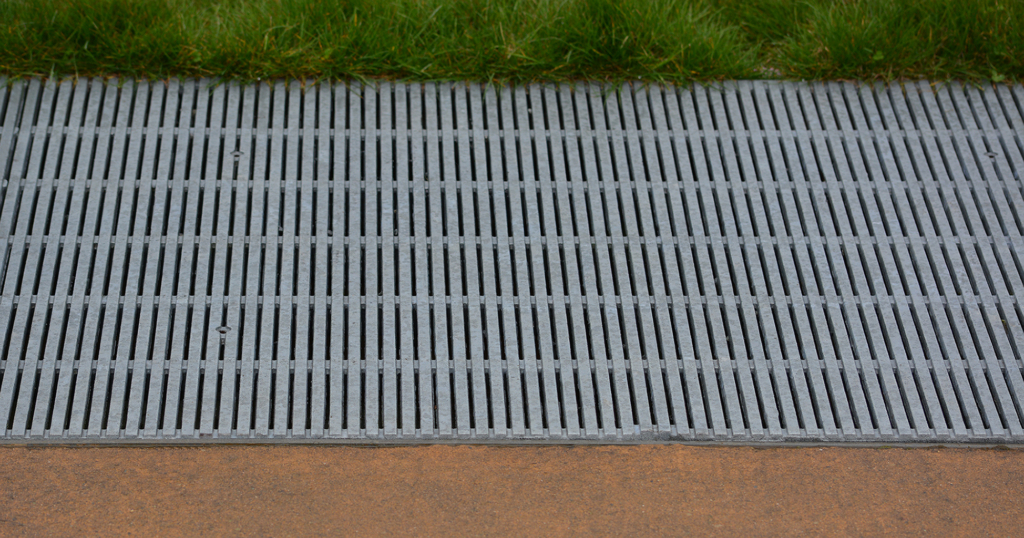

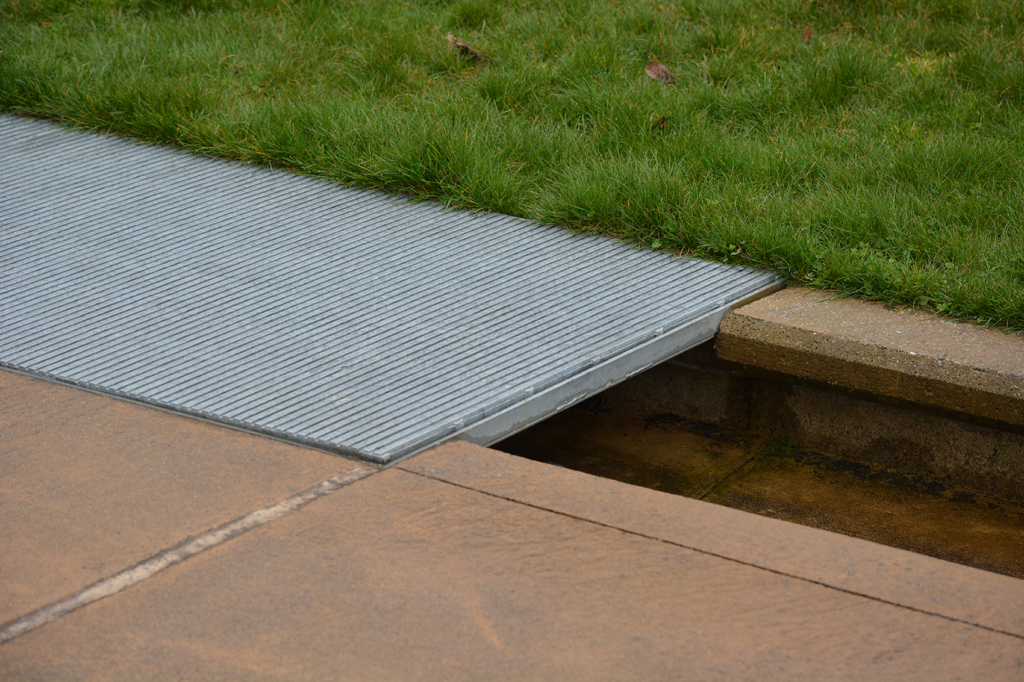

Name / Design	Regular Joe 36" x 48" Heel Proof, Heavy Duty
Product ID	RJX36-48I99HPHD
Dimensions	35.25" x 47.87" x 1.25"
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	215
Free Drain Area	21%
Gallons Per Minute (GPM)	475.37
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe 48" x 46" Heel Proof, Heavy Duty
Product ID	RJX48-46I99HPHD
Dimensions	47.88" x 46.25" x 2.25"
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	215
Free Drain Area	21%
Gallons Per Minute (GPM)	475.37
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

Regular Joe 5″ x 20″ trench grate, raw cast aluminum.

Download photo

Regular Joe 5″ x 20″ trench grate, raw cast ductile iron.

Download photo

Regular Joe 5″ x 20″ trench grate, raw cast ductile iron.

Download photo

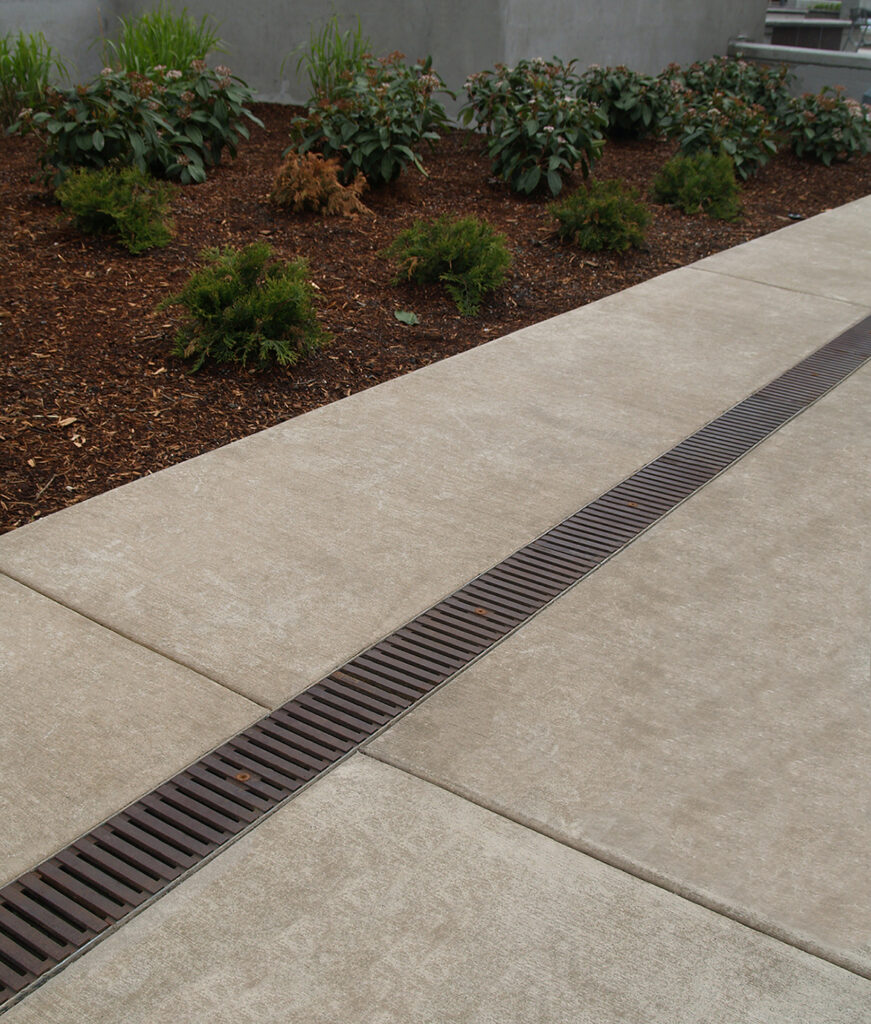

Regular Joe 5″ x 20″ trench grate, raw cast iron. PROJECT: Microsoft West Campus. LOCATION: Redmond, WA.

Download photo

Regular Joe 5″ x 20″ trench grate, raw cast iron. PROJECT: Microsoft West Campus. LOCATION: Redmond, WA.

Download photo

Regular Joe 5″ x 20″ trench grate, raw cast iron. PROJECT: Microsoft West Campus. LOCATION: Redmond, WA.

Download photo

Regular Joe 5″ x 20″ trench grate, raw cast iron. PROJECT: Microsoft West Campus. LOCATION: Redmond, WA.

Download photo

Regular Joe 5″ x 20″ trench grate, raw cast iron. PROJECT: Microsoft West Campus. LOCATION: Redmond, WA.

Download photo

Regular_Joe_5_x_20_HP_Plain_fits_ABT_(1)_E

Regular Joe “Plain” 5″ x 20″ heel proof trench grate, aged cast iron. DESIGN: Lawrence Group. PROJECT: City Foundry STL. LOCATION: St. Louis, MO

Download photo

Cast aluminum trench grate in Regular Joe pattern from Iron Age Designs at top of concrete entry stairs.

Regular Joe 5″ x 20″ heel proof trench grate, raw cast aluminum. LANDSCAPE ARCHITECT: Berger Partnership. PROJECT: Georgetown Wet Weather Treatment Station. LOCATION: Seattle, WA.

Download photo

Regular Joe 5″ x 20″ heel-proof, raw cast aluminum.

Download photo

Regular Joe 5″ x 20″ heel-proof, raw ductile iron.

Download photo

Regular Joe 5″ x 20″ heel-proof trench grate, cast ductile iron with baked-on oil finish. DESIGN: GLS. PROJECT: Exploratorium. LOCATION: San Francisco, CA.

Download photo

Regular Joe 5″ x 20″ heel-proof trench grate, cast ductile iron with baked-on oil finish. DESIGN: GLS. PROJECT: Exploratorium. LOCATION: San Francisco, CA.

Download photo

Regular Joe 5″ x 20″ heel-proof trench grate, cast ductile iron with baked-on oil finish. DESIGN: GLS. PROJECT: Exploratorium. LOCATION: San Francisco, CA.

Download photo

Regular Joe 5.38″ x 20″ heel-proof trench grate, raw cast aluminum. Project: Brooklyn Botanic Garden. LOCATION: Brooklyn, NY.

Download photo

Regular Joe 5.38″ x 20″ heel-proof trench grate, raw cast aluminum. Project: Brooklyn Botanic Garden. LOCATION: Brooklyn, NY.

Download photo

Regular Joe 8″ x 20″ trench grate, raw cast iron. DESIGN: Raymond Jungles. PROJECT: FAENA Hotel. LOCATION: South Beach, FL.

Download photo

Regular Joe 8″ x 20″ trench grate, raw cast ductile iron.

Download photo

Decorative cast iron trench grates installed in outdoor hotel patio

Regular Joe 8″ x 20″ heel-proof, heavy-duty trench grates, cast ductile iron with baked-on-oil finish. DESIGN: SITE Solutions. PROJECT: Thompson Buckhead Hotel. LOCATION: Atlanta, GA.

Download photo
