Regular Joe

Detailed Specifications:

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe 8" Sq. Heel Proof
Product ID	RJX8-8I99HP
Dimensions	7.87"x 7.87"x 2.38"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	12
Free Drain Area	23.91%
Gallons Per Minute (GPM)	19.42
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

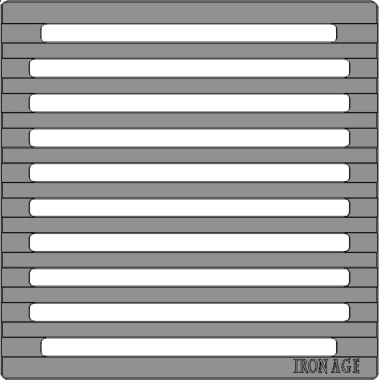

Name / Design	Regular Joe 8" Sq. Heel Proof, PEDESTRIAN LOAD ONLY
Product ID	RJX8-8I99HPPED
Dimensions	7.88" x 7.88" x .19"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	3
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe 9" Sq. Heel Proof
Product ID	RJN9-9I11HP
Dimensions	8.8" x 8.8" x 1.13"
Drain Manufacturer	NDS®
Fits	NDS® 900 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	9.88
Free Drain Area	20.02%
Gallons Per Minute (GPM)	20.26
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec CAD Details Spec
Name / Design	Regular Joe 12" Sq. Heel Proof
Product ID	RJN12-12I12HP
Dimensions	11.75" x 11.75" x 1.13"
Drain Manufacturer	NDS®
Fits	NDS® 1200 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	17.90
Free Drain Area	22.53%
Gallons Per Minute (GPM)	40.27
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe 13" Sq. Heel Proof
Product ID	RJO13-13I62HP
Dimensions	13.34" x 13.34" x .75"
Material	Cast Ductile Iron
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	19.32
Free Drain Area	15.24%
Gallons Per Minute (GPM)	35.55
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec CAD Details Spec
Name / Design	Regular Joe 17" Sq. Heel Proof
Product ID	RJN18-18I13HP
Dimensions	16.78" x 16.78" x 1"
Drain Manufacturer	NDS®
Fits	NDS® 1800 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	25.98
Free Drain Area	25.71%
Gallons Per Minute (GPM)	94.87
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe 19" x 20" Heel Proof
Product ID	RJX19-20D99HP
Dimensions	20" x 19" x 1.25"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	46.18
Free Drain Area	14.53%
Gallons Per Minute (GPM)	72.35
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

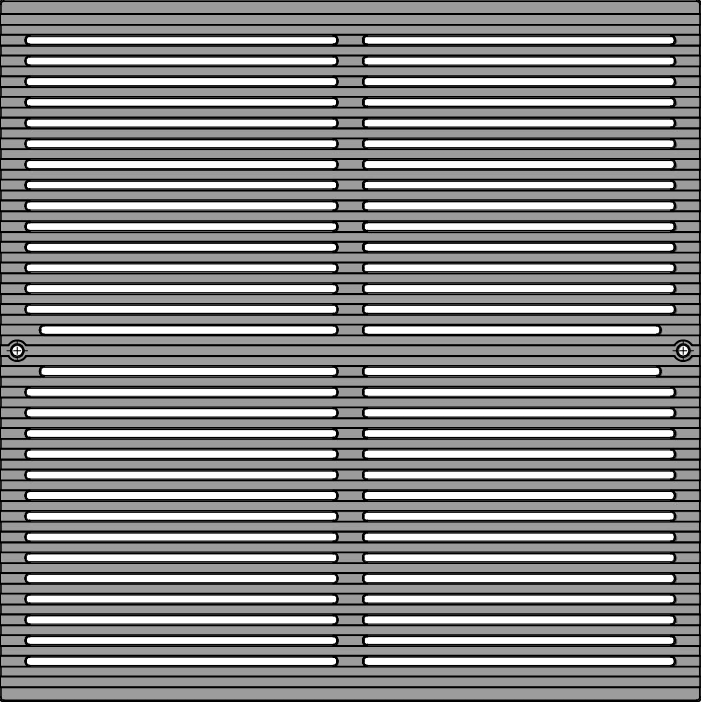

Name / Design	Regular Joe 20" Sq, Heel Proof
Product ID	RJX20-20I99HP
Dimensions	19.5" x 19.5" x 1"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	38
Free Drain Area	30.4%
Gallons Per Minute (GPM)	151.4
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe 20" x 24" Heel Proof
Product ID	RJO20-24I63HP
Dimensions	19.97" x 23.84" x 1.69"
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	86.50
Free Drain Area	12.47%
Gallons Per Minute (GPM)	78.04
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe 24" Sq.
Product ID	RJX24-24I99
Dimensions	23.88" x 23.88" x 1.50"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	88.19
Free Drain Area	23.8%
Gallons Per Minute (GPM)	183.95
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe 24" Sq. Heel Proof
Product ID	RJX24-24I99HP
Dimensions	23.88" x 23.88" x 1.50"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	93.97
Free Drain Area	14.25%
Gallons Per Minute (GPM)	106.44
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe 24" x 48" Heel Proof, Heavy Duty
Product ID	RJX24-48I99TGFWHPHD
Dimensions	23.91" x 47.88" x 1.25"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	166
Free Drain Area	20.9%
Gallons Per Minute (GPM)	312.13
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe 36" x 48" Heel Proof, Heavy Duty
Product ID	RJX36-48I99HPHD
Dimensions	35.25" x 47.88" x 1.25"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	215
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Regular Joe 48" x 46" Heel Proof, Heavy Duty
Product ID	RJX48-46I99HPHD
Dimensions	48.06" x 46.38" x 2.25"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	352.77
Free Drain Area	27.58%
Gallons Per Minute (GPM)	805.51
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

Photo Gallery:

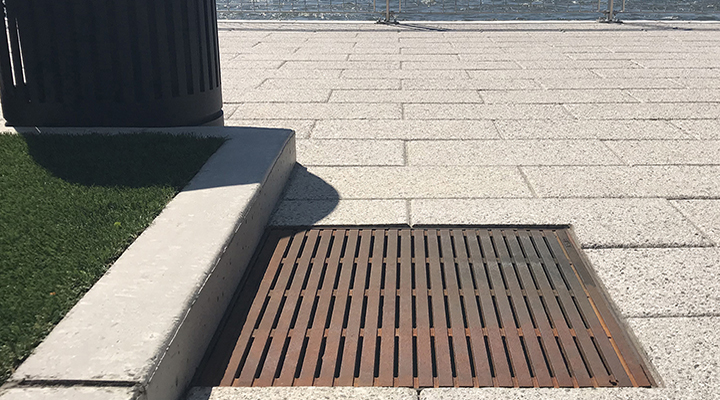

Decorative cast iron catch basin grate in Regular Joe pattern

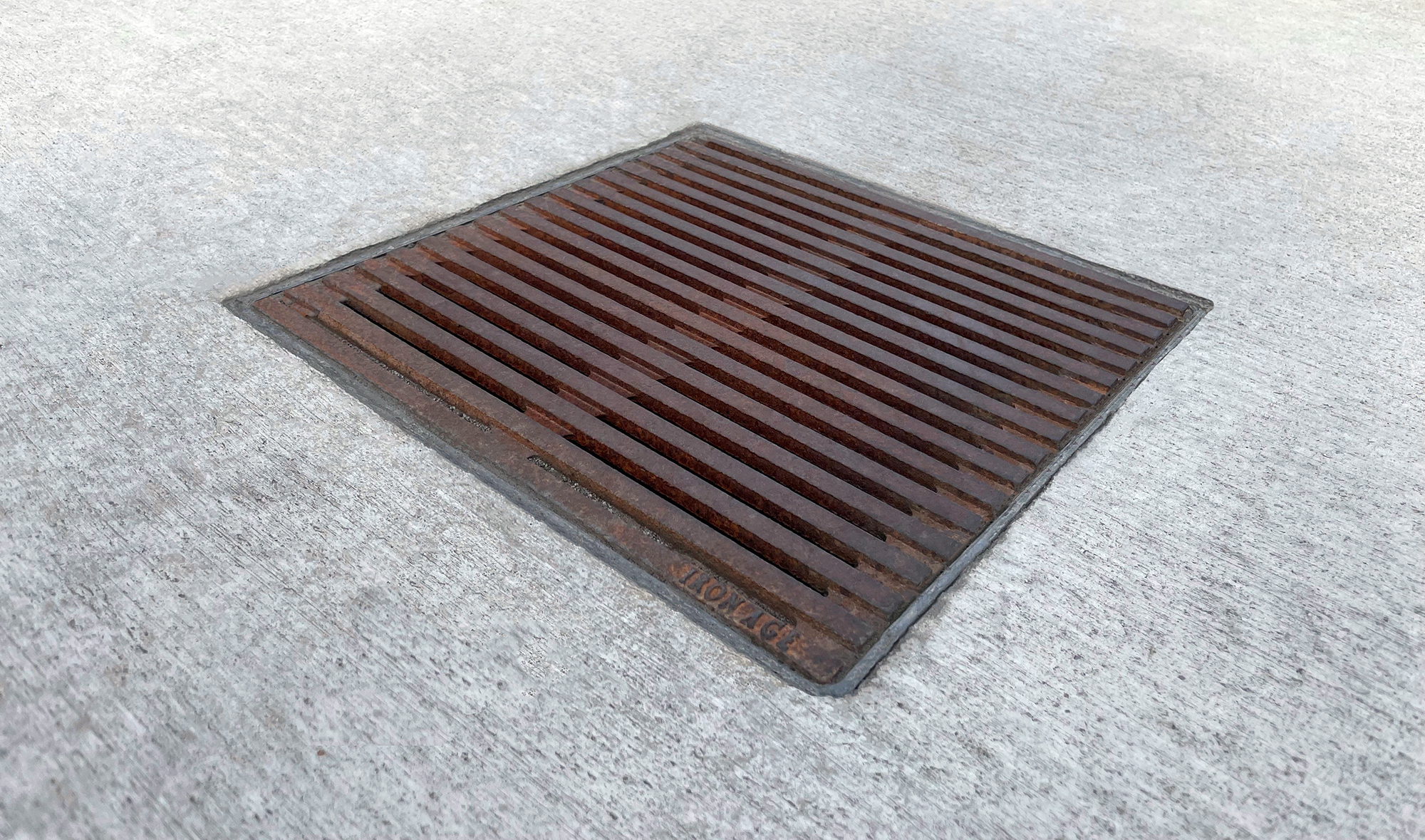

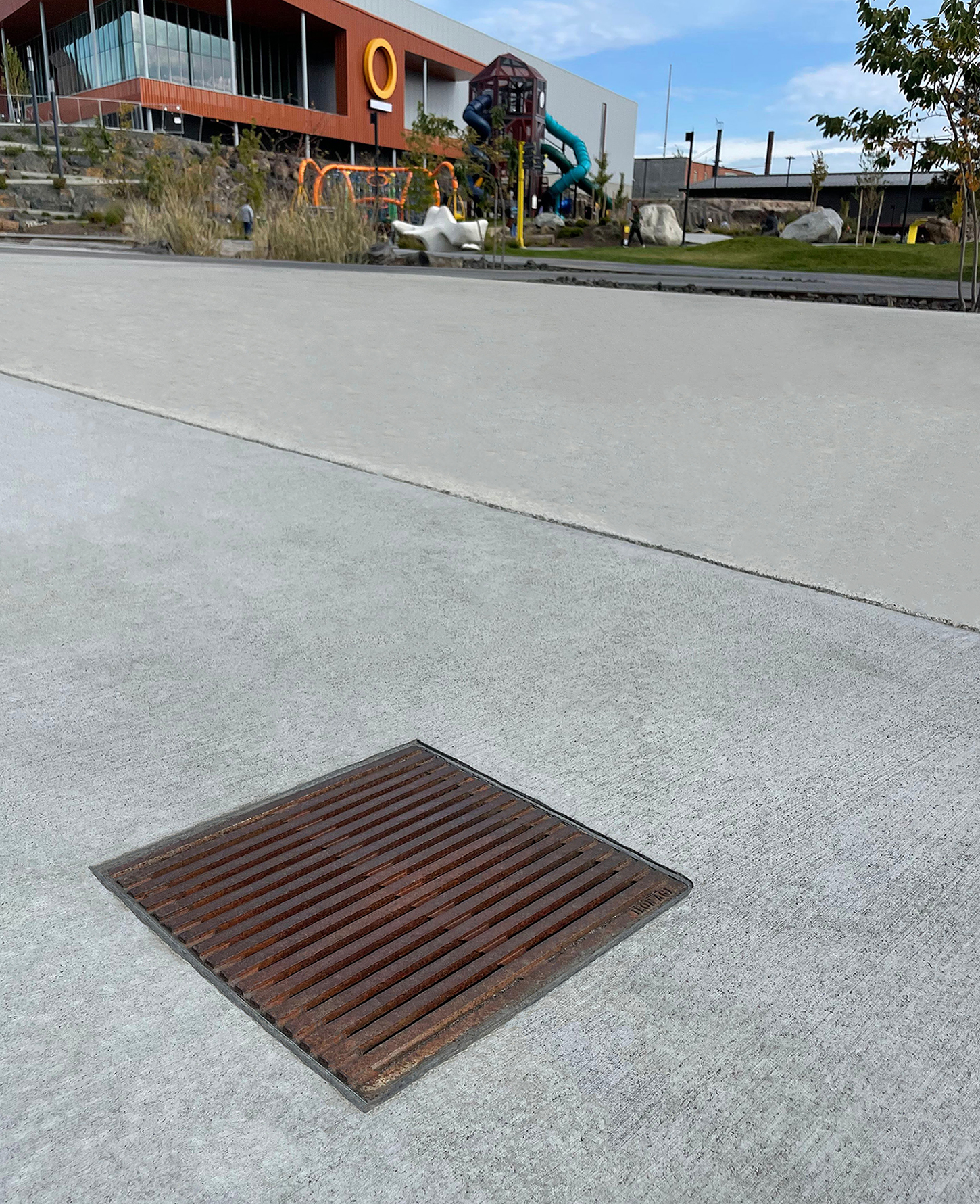

Regular Joe 12″ x 12″ heel-proof catch basin grate, raw cast ductile iron. DESIGN: Bernardo Wills. PROJECT: Ice Age Floods Playground at Riverfront Park. LOCATION: Spokane, WA.

Download photo

Regular Joe 12″ x 12″ heel-proof catch basin grate, raw cast ductile iron. DESIGN: Bernardo Wills. PROJECT: Ice Age Floods Playground at Riverfront Park. LOCATION: Spokane, WA.

Download photo

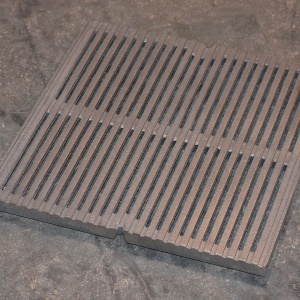

Regular Joe 17″ Sq. Heel Proof catch basin, raw cast iron.

Download photo

Regular Joe 20″ Sq. Heel Proof catch basin, raw cast iron.

Download photo

Cast iron drain grates in linear Regular Joe pattern, with Brooklyn Bridge in the background

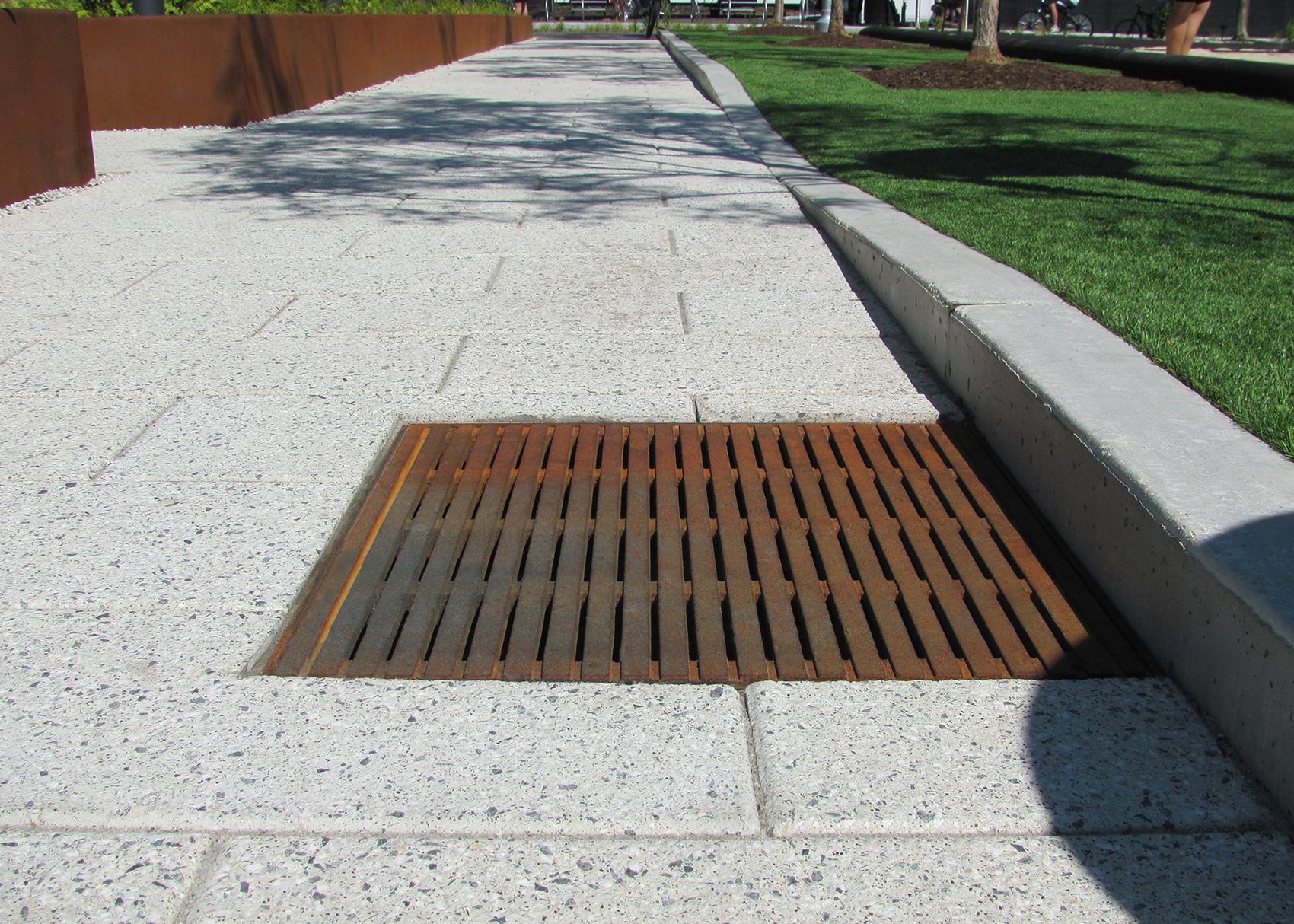

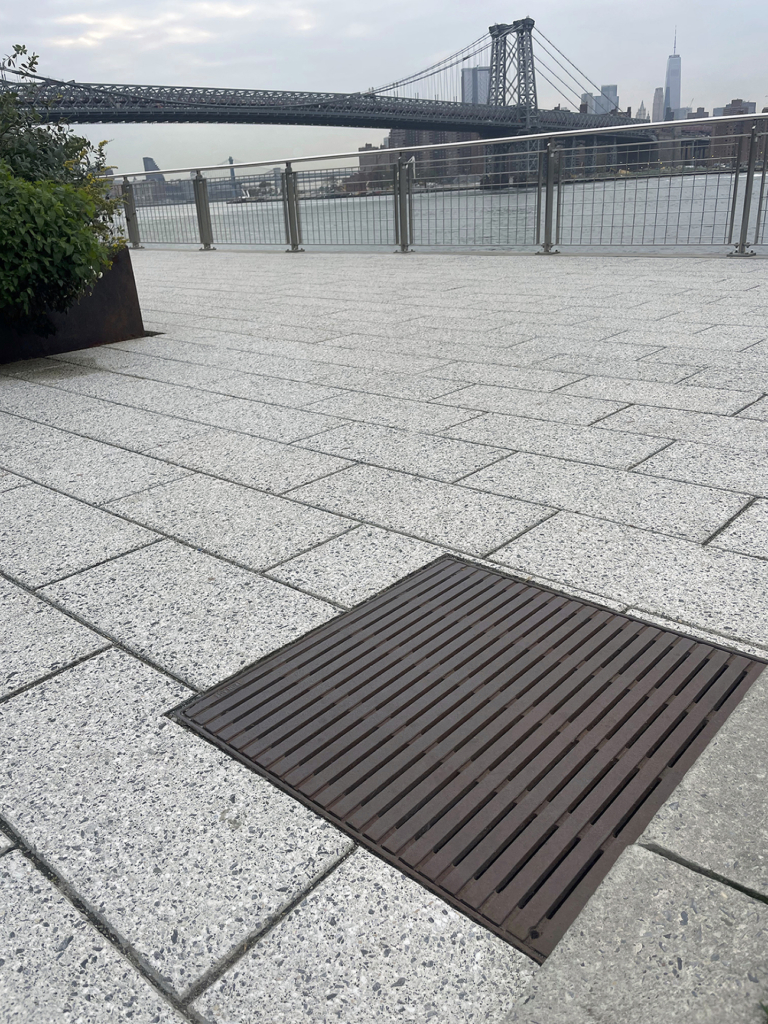

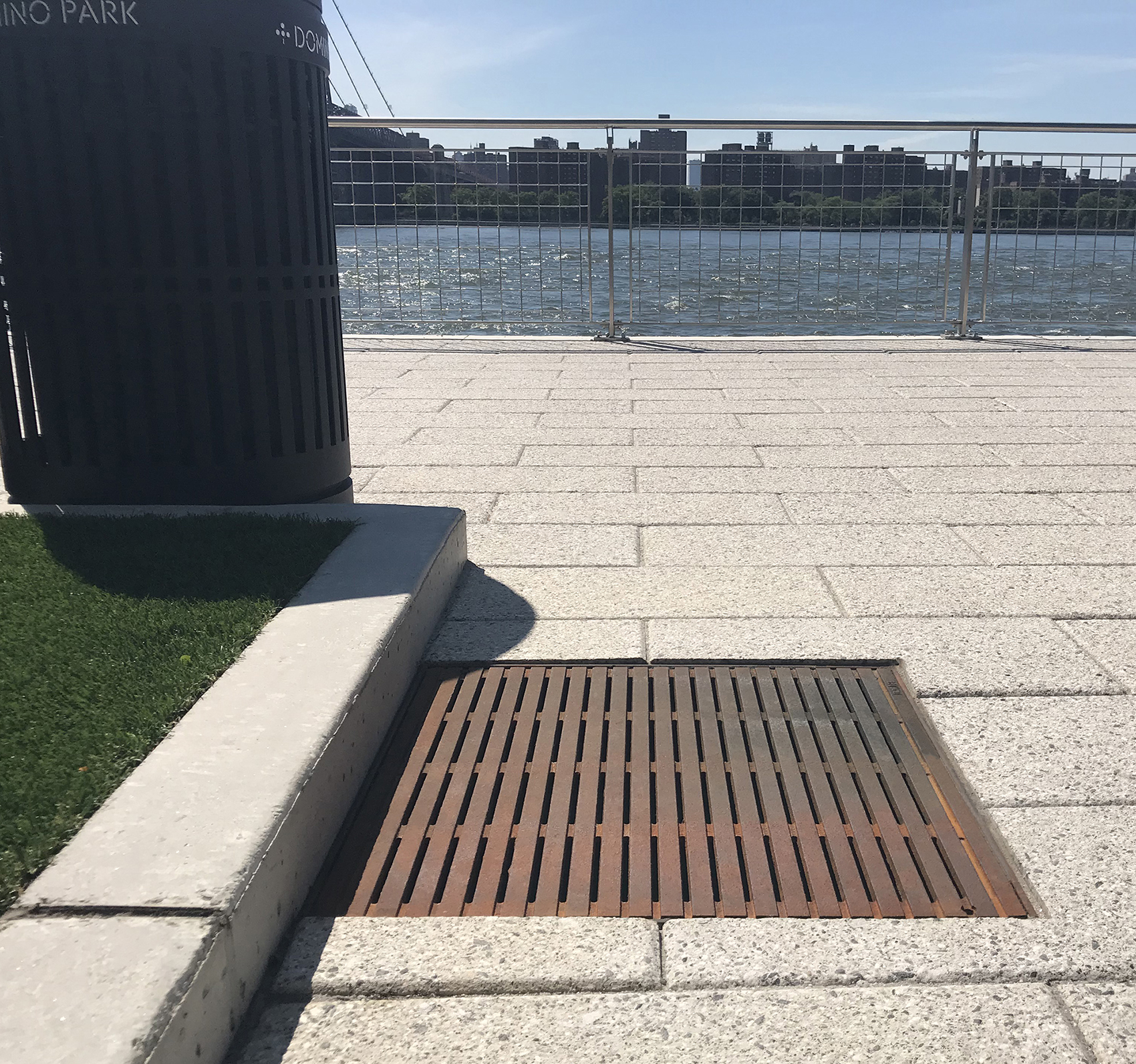

Regular Joe 24″ x 24″ heel-proof catch basin grate, raw cast iron. Shown five years after installation (newly installed photos below). DESIGN: James Corner Field Operations. PROJECT: Domino Park. LOCATION: Brooklyn, NY.

Download photo

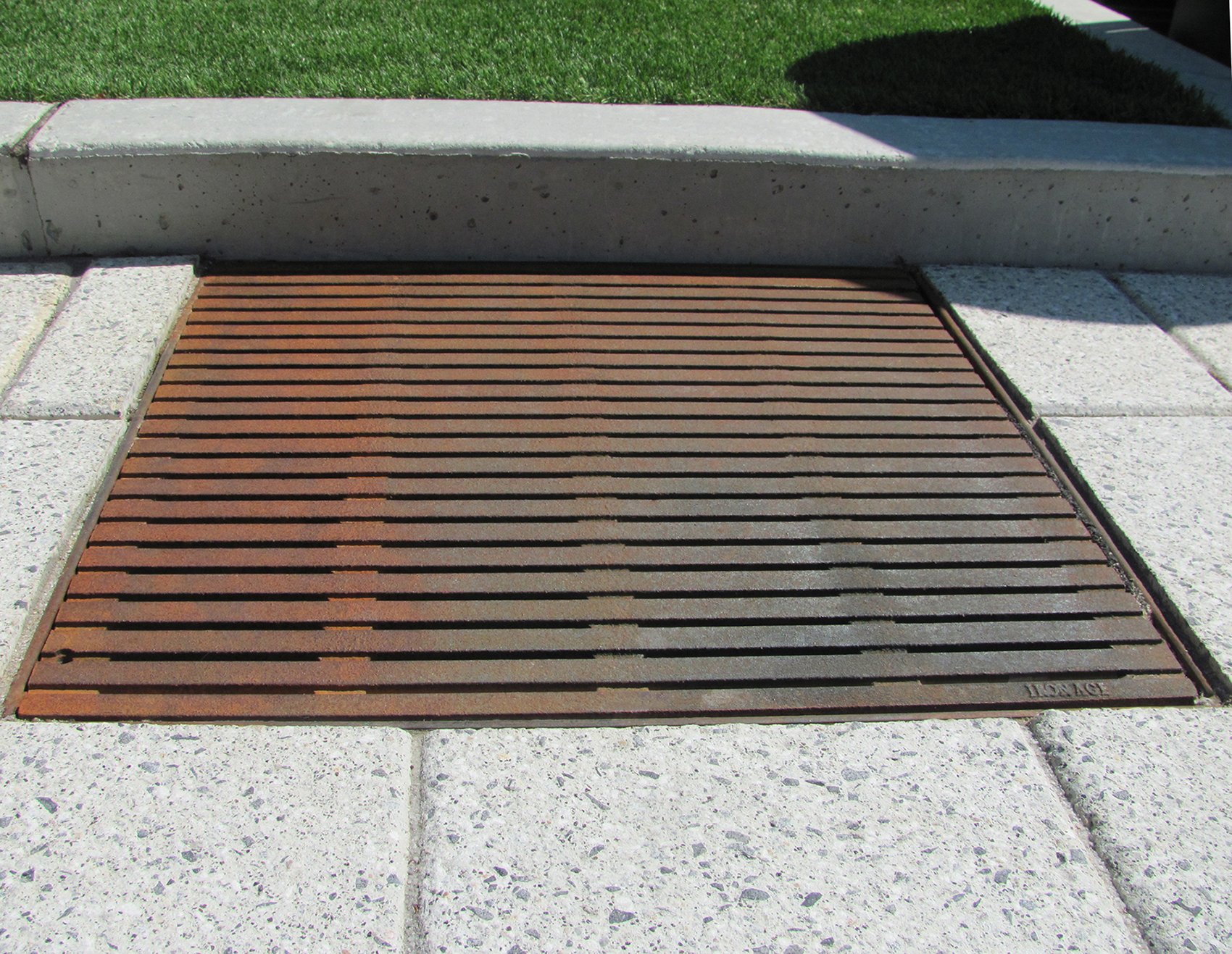

Regular Joe 24″ x 24″ heel-proof catch basin grate, raw cast iron. DESIGN: James Corner Field Operations. PROJECT: Domino Park. LOCATION: Brooklyn, NY.

Download photo

Regular Joe 24″ x 24″ heel-proof catch basin grate, raw cast iron. DESIGN: James Corner Field Operations. PROJECT: Domino Park. LOCATION: Brooklyn, NY.

Download photo

Regular Joe 24″ x 24″ heel-proof catch basin grate, raw cast iron. DESIGN: James Corner Field Operations. PROJECT: Domino Park. LOCATION: Brooklyn, NY.

Download photo

Decorative cast iron catch basin grate in Regular Joe pattern, installed as a walk off mat in front of a residential entryway

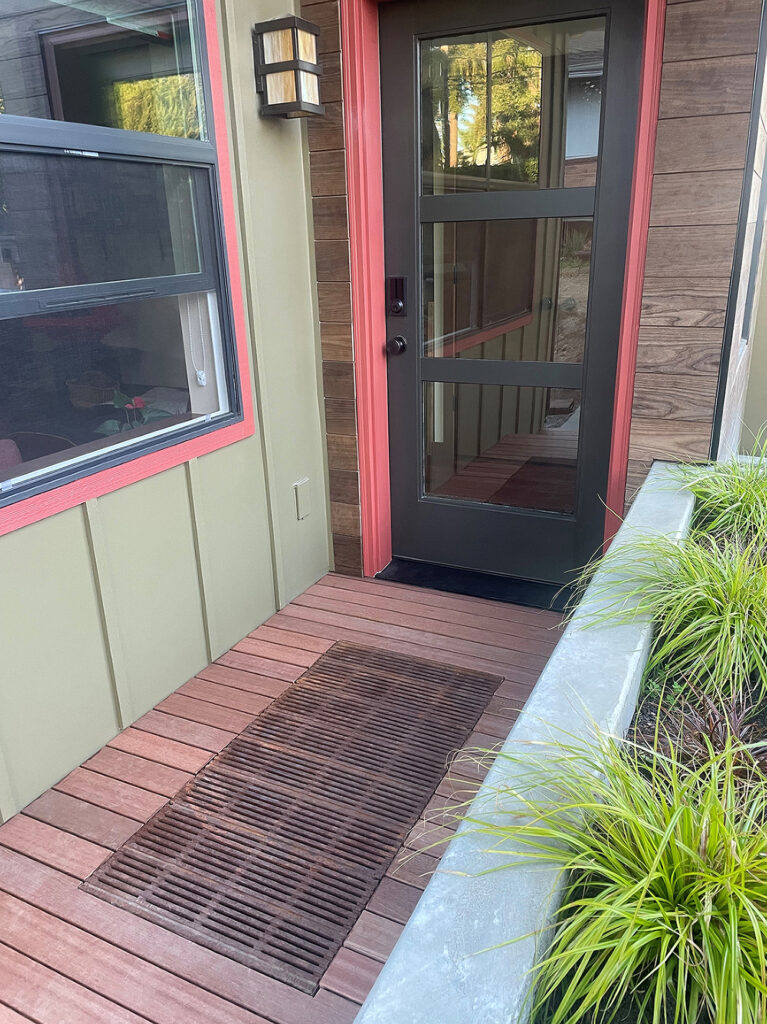

Regular Joe 24″ x 48″ heel-proof, heavy-duty catch basin grate, raw cast ductile iron. PROJECT: Installed as a walk-off mat in front of a residential entryway. LOCATION: Burien, WA.

Download photo

Regular Joe 24″ x 48″ heel-proof, heavy-duty catch basin grate, raw cast ductile iron. PROJECT: Installed as a walk-off mat in front of a residential entryway. LOCATION: Burien, WA.

Download photo

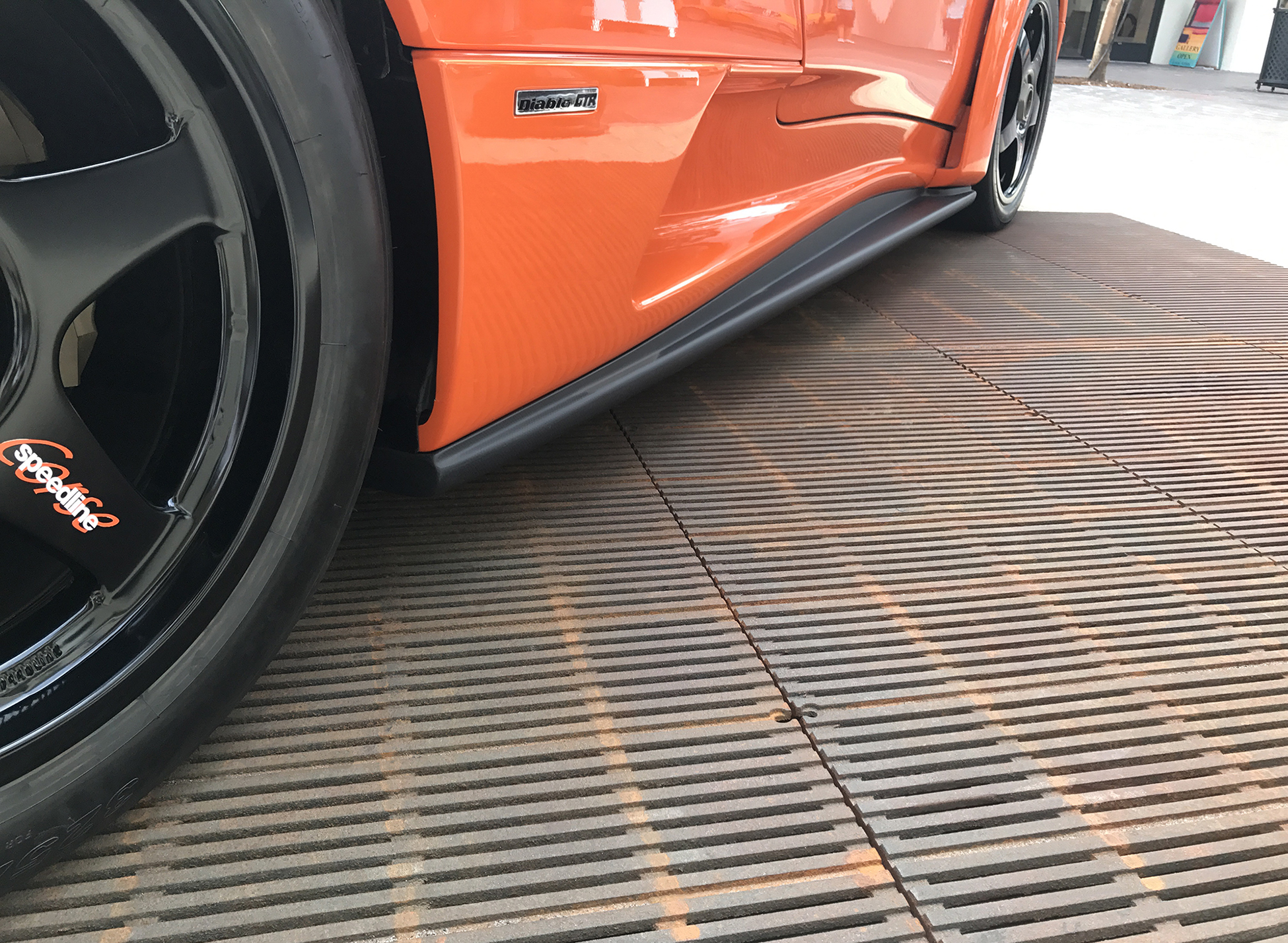

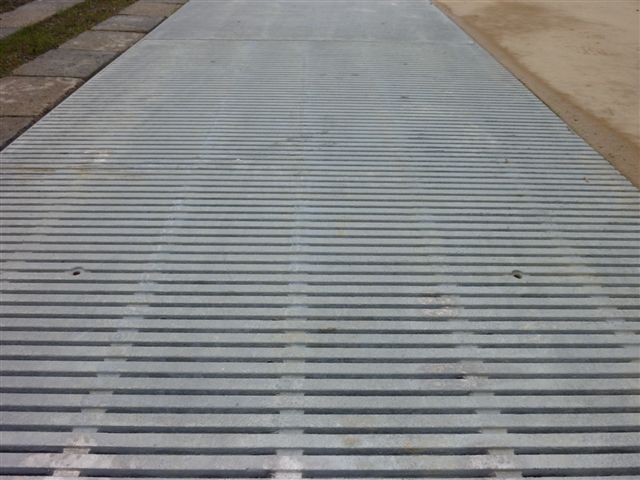

Regular Joe 24″ x 48″ heel-proof, heavy-duty trench grate (arrayed as a grated walkway), raw cast iron. DESIGN: GLS. PROJECT: Monterey Conference Center. LOCATION: Monterey, CA.

Download photo

Regular Joe 24″ x 48″ heel-proof, heavy-duty trench grate (arrayed as a grated walkway), raw cast iron. DESIGN: GLS. PROJECT: Monterey Conference Center. LOCATION: Monterey, CA.

Download photo

Regular Joe 36 x 48 HPHD CBasin WO (2) E rev

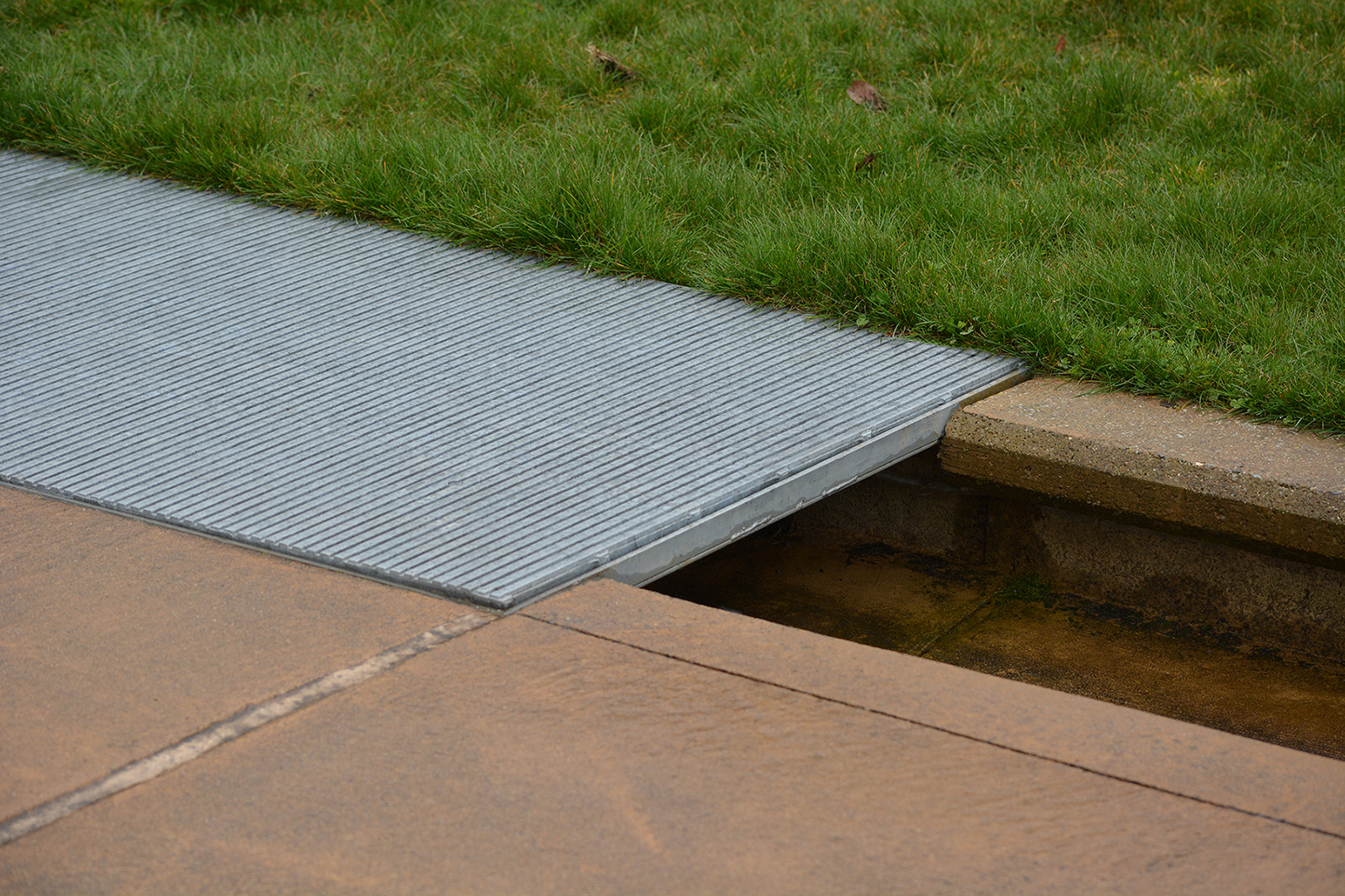

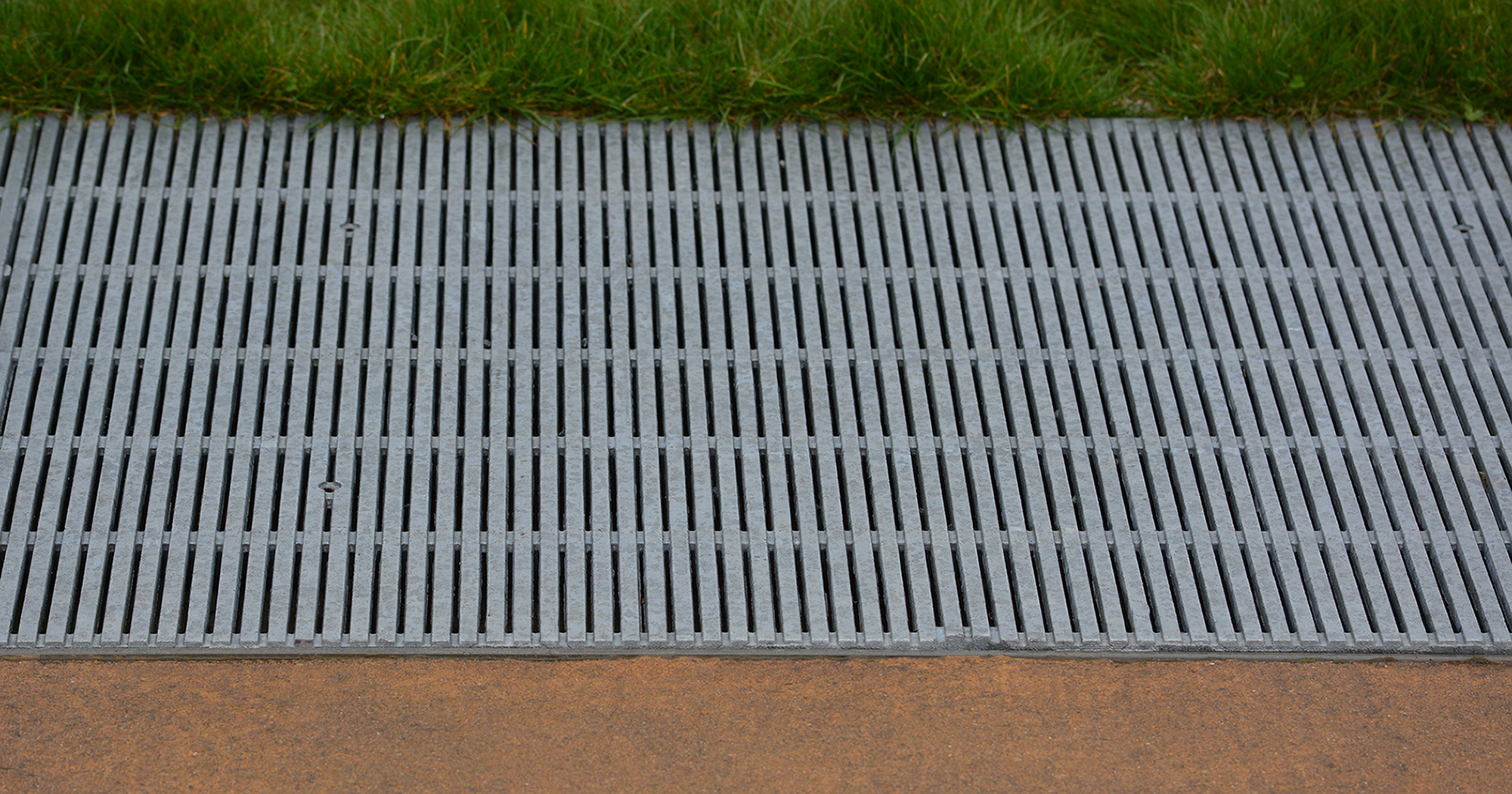

Regular Joe 36″ x 48″ heel-proof, heavy-duty catch basin grate, raw cast aluminum. Arrayed as trench/curb inlet grates.

Download photo

Regular Joe 36″ x 48″ heel-proof, heavy-duty catch basin grate, raw cast aluminum. Arrayed as trench/curb inlet grates.

Download photo

Regular Joe 36″ x 48″ heel-proof, heavy-duty catch basin grate, raw cast aluminum. Arrayed as trench/curb inlet grates.

Download photo

Regular Joe 36″ x 48″ heel-proof, heavy-duty catch basin grate, raw cast aluminum. Arrayed as trench/curb inlet grates.

Download photo
