Creating Large Grate Arrays
Iron Age grates can be combined into larger arrays while maintaining pattern continuity and clean transitions. Explore common applications, real-world examples, and reference tables showing which Iron Age grates are designed to pair seamlessly when specified together.
Large Format Tree Grates
Urban trees often demand more soil volume than a single grate can provide. Large-format tree grate arrays allow designers to expand coverage in one or both directions while maintaining a cohesive pattern and clean perimeter.
By combining standard grates with compatible extension panels, these assemblies support healthier root systems, accommodate long-term growth, and create a unified surface that integrates naturally with surrounding paving.
PROJECT DETAILS: Rain 42″ x 42″ and 30″ x 30″ heel-proof grate panels combined to create three large arrays – the left and right arrays are 5′ x 79′-7″, and the middle array is 7′ x 79′-7″. Raw cast iron.
DESIGN: Floura Teeter
PROJECT: Rye Street
LOCATION: Baltimore, MD. See our article, “8 Benefits of Large Tree Grate Arrays” for more details.
Pedestrian Bridges
Bridges and elevated walkways benefit from grate systems that can span long distances without visual interruption. Arrayed grate panels offer a durable, slip-resistant walking surface while preserving openness for light, air, and drainage.
When designed as a continuous field rather than a series of isolated pieces, grate arrays reinforce the linear character of the structure and contribute to a more intentional, architectural result.

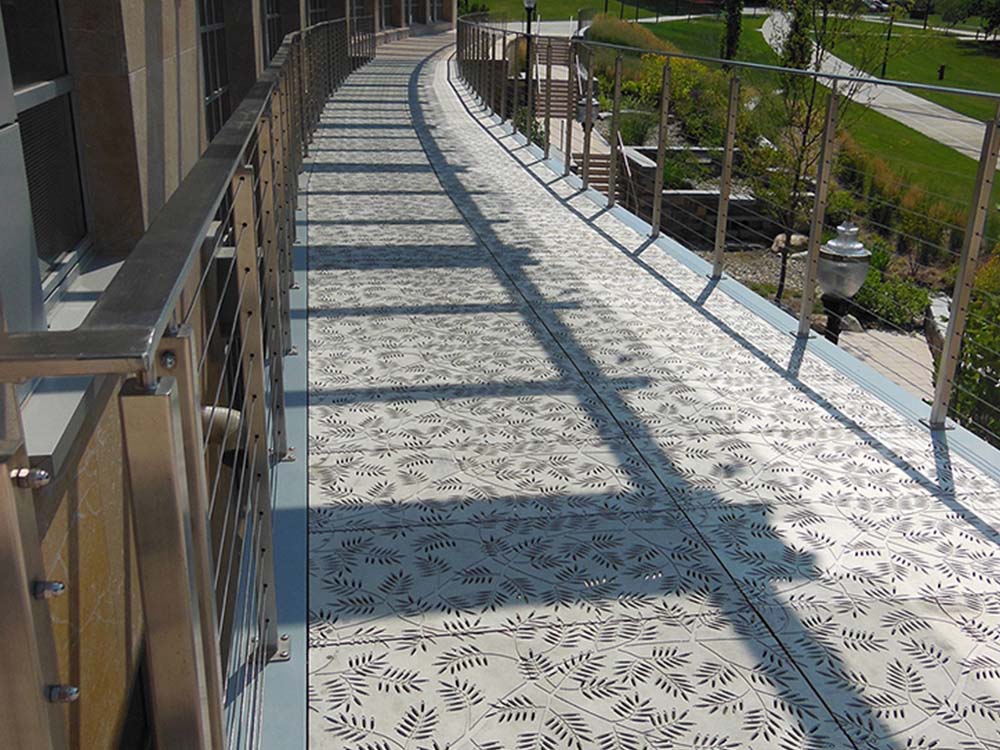

PROJECT DETAILS: This permeable bridge deck, clad in cast aluminum 20″ x 40″ Locust heel proof grate panels, is just one element in a complex system beautifully designed to capture, filter, and detain runoff from the roof and surrounding paved areas.
DESIGN: Towers | Golde
PROJECT: Life Science Laboratories, University of Massachusetts – Amherst
LOCATION: Amherst, MA. See our article, “Decorative Grating in Pedestrian Bridge Designs” for more details.
Stormwater Management
From large flumes to curb inlet systems, stormwater infrastructure often requires grates that extend well beyond standard dimensions.
Arrayed grate systems make it possible to manage high water volumes while maintaining consistent slot geometry, pattern alignment, and load performance across the entire run. These applications support large-scale drainage needs while preserving pattern alignment and a clean, intentional surface.

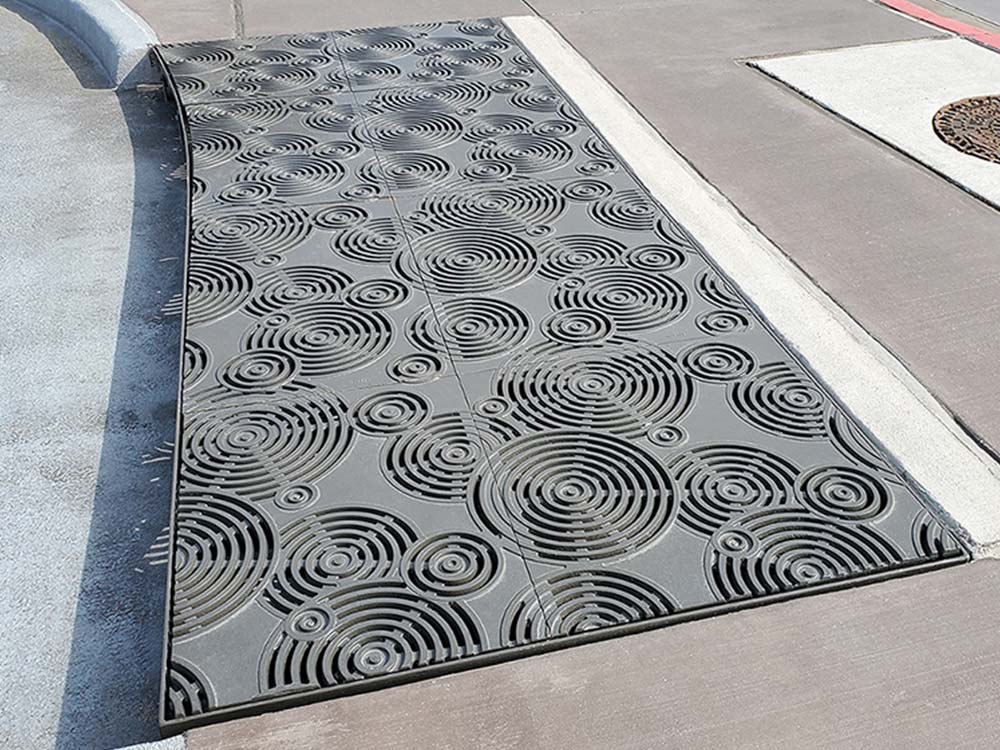

This is one in a series of stormwater flumes topped with arrays of our Oblio 27″ x 37″ and 27″ x 47″ grates. Cast iron with “antique bronze pearlescent” powder coat finish.
DESIGN: The Olsson Studio
PROJECT: Grandscape
LOCATION: The Colony, TX.
The reference tables below identify Iron Age grates that have been intentionally designed to pair together, with compatible dimensions, pattern alignment, and perimeter conditions. Use these guides to quickly identify viable combinations and confidently specify large arrays that perform as a unified system.
Tree Grates with Grate Panels that can be arrayed by Length and/or Width
| Pattern | Tree Grate Size | Tree Grate Product ID | Extension Panel Size | Extension Panel Product ID |
|---|---|---|---|---|
| Explora | 6' x 6' | EXX72-72199TG | 36" Sq. | EXX36-36199 |
| Interlaken | 4' x 4' | IX48-48199TG | 24" Sq. | IX24-24199FW |
| Interlaken | 5' x 5' | IX60-60199TG | 30" Sq. | IX30-30199FW |
| Locust | 4' x 4' HP | LX48-48199TGHP | 24" x 48" HP | LX24-48199TGH PFW |
| Madras | 4' x 4' HP | MDX48-48199TGHP | 24" x 48" HP | MDX24-48199HPFW |
| Madras | 5' x 5' HP | MDX60-60199TGHP | 30" Sq. HP | MDX30-30199HP |
| Rain | 4' x 4' HP | RNX48-48199TGHP | 24" x 48" HP | RNX24-48199HPFW |
| Rain | 4' x 6' HP | RNX48-72199TGHP | 24" x 36" HP | RNX24-36199HPFW |
| Rain | 5' x 5' HP | RNX60-60199TGHP | 30" Sq. HP | RNX30-30199FWH P |
| Rain | 6' x 6' HP | RNX72-72199TGHP | 36" Sq. HP | RNX36-36199FW |

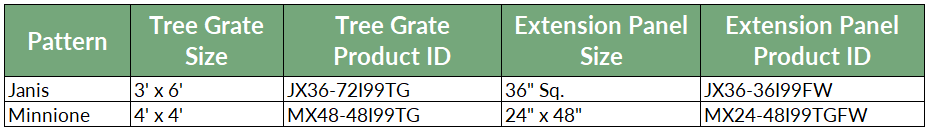

Tree Grates with Grate Panels that can be arrayed Lengthwise Only
| Pattern | Tree Grate Size | Tree Grate Product ID | Extension Panel Size | Extension Panel Product ID |
|---|---|---|---|---|
| Janis | 3' x 6' | JX36-72199TG | 36" Sq. | JX36-36199FW |
| Minniione | 4' x 4' | MX48-48199TG | 24" x 48" | MX24-48199TGFW |
Grate Panels that can be arrayed by Length and/or Width
| Pattern | Grate Size | Product ID |
|---|---|---|
| Divisadero | 24" Sq. HP | DIX24-24199HP |
| Explora | 36" Sq. | EXX36-36199 |
| Interlaken | 24" Sq. | IX24-24199FW |
| Interlaken | 30" Sq. | IX30-30199FW |
| Kelp | 24" x 48" | KEX24-48199FW |
| Locust | 20" x 40" HP | LX20-40199HP |
| Locust | 24" Sq. | LN24-24114 |
| Locust | 24" x 48" HP | LX24-48199TGHPFW |
| Madras | 24" x 48" HP | MDX24-48199HPFW |
| Madras | 30" Sq. HP | MDX30-30199HP |
| Minniione | 26" x 26" | MX26-26199 |
| Minniione | 26" Sq. | MX26-36199 |
| Oblio | 24" Sq. | OX24-24199FW |
| Oblio | 27" Sq. | OX27-37199 |
| Oblio | 27" x 47" | OX27-47199 |
| Rain | 24" Sq. HP | RNX24-36199HPFW |
| Rain | 24" x 48" HP | RNX24-48199HPFW |
| Rain | 30" Sq. HP | RNX30-30199HPFW |
| Rain | 36" Sq. HP | RNX36-36199HPFW |
| Regular Joe | 24" Sq. | RJX24-42199FW |
| Regular Joe | 24" x 48" HP | RJX24-48199TGFWPHD |
| Ripple | 24" Sq. | RPX24-24199 |
In addition to these grate combinations, we can also work with you on custom arrays. We have the expertise, creativity, and design know-how to help you create a one-of-a-kind solution. Contact us to discuss the specifics of your project.
