Radius Grates
Regular Joe Radius Grates
Regular Joe combines the clean, simple lines of a traditional slotted grate with the surface interest and architectural refinement inherent in all our cast metal designs.
Select Size:
Detailed Specifications:
- Name / Design
- Regular Joe 19" Wide Heel-Proof, 18'-6" CLR
- Product ID
- RJR19-17I9919HP
- Dimensions
- 19.25" x 17.29" x 1"
- Fits
-
Iron Age Custom Frame
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 38.68
- Free Drain Area
- 16.74%
- Gallons Per Minute (GPM)
- 69.94
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
Photo Gallery:
Click image for high-res file and description
Regular Joe 5″ wide radius trench grate, cast iron with baked-on-oil finish. DESIGN: Sikora Wells Appel. PROJECT: Green Wall at Longwood Gardens. LOCATION: Kennett Square, PA.
Regular Joe 5″ wide radius trench grate, cast iron with baked-on-oil finish. DESIGN: Sikora Wells Appel. PROJECT: Green Wall at Longwood Gardens. LOCATION: Kennett Square, PA.
Regular Joe 5″ wide radius trench grate, cast iron with black powder coat finish, shown 1.5 years after installation (see below for photos showing the grates newly installed). DESIGN: Hargreaves Jones. INSTALLER: Coastal Contracting Corp. PROJECT: Brigham Park, NYC Parks. LOCATION: Brooklyn, NY.
Regular Joe 5″ wide radius trench grate, cast iron with black powder coat finish, shown 1.5 years after installation (see below for photos showing the grates newly installed). DESIGN: Hargreaves Jones. INSTALLER: Coastal Contracting Corp. PROJECT: Brigham Park, NYC Parks. LOCATION: Brooklyn, NY.
Regular Joe 5″ wide radius trench grate, cast iron with black powder coat finish, newly installed. DESIGN: Hargreaves Jones. INSTALLER: Coastal Contracting Corp. PROJECT: Brigham Park, NYC Parks. LOCATION: Brooklyn, NY.
Regular Joe 5″ wide radius trench grate, cast iron with black powder coat finish, newly installed. DESIGN: Hargreaves Jones. INSTALLER: Coastal Contracting Corp. PROJECT: Brigham Park, NYC Parks. LOCATION: Brooklyn, NY.
Regular Joe 5″ wide radius trench grate, cast iron with black powder coat finish, newly installed. DESIGN: Hargreaves Jones. INSTALLER: Coastal Contracting Corp. PROJECT: Brigham Park, NYC Parks. LOCATION: Brooklyn, NY.

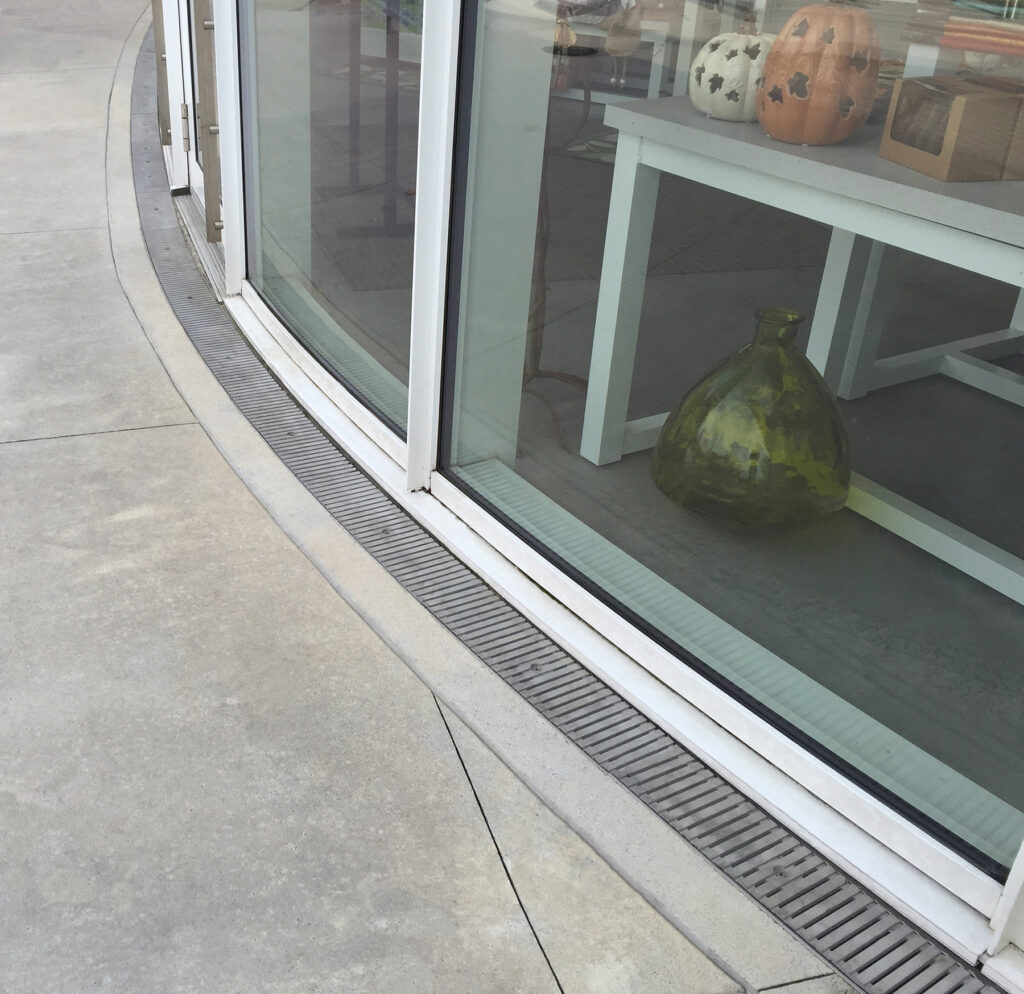

Regular Joe 5.38″ wide radiused heel-proof trench grate, raw cast aluminum. PROJECT: Brooklyn Botanic Garden. LOCATION: Brooklyn, NY.
Regular Joe 5.38″ wide radiused heel-proof trench grate, raw cast aluminum. PROJECT: Brooklyn Botanic Garden. LOCATION: Brooklyn, NY.

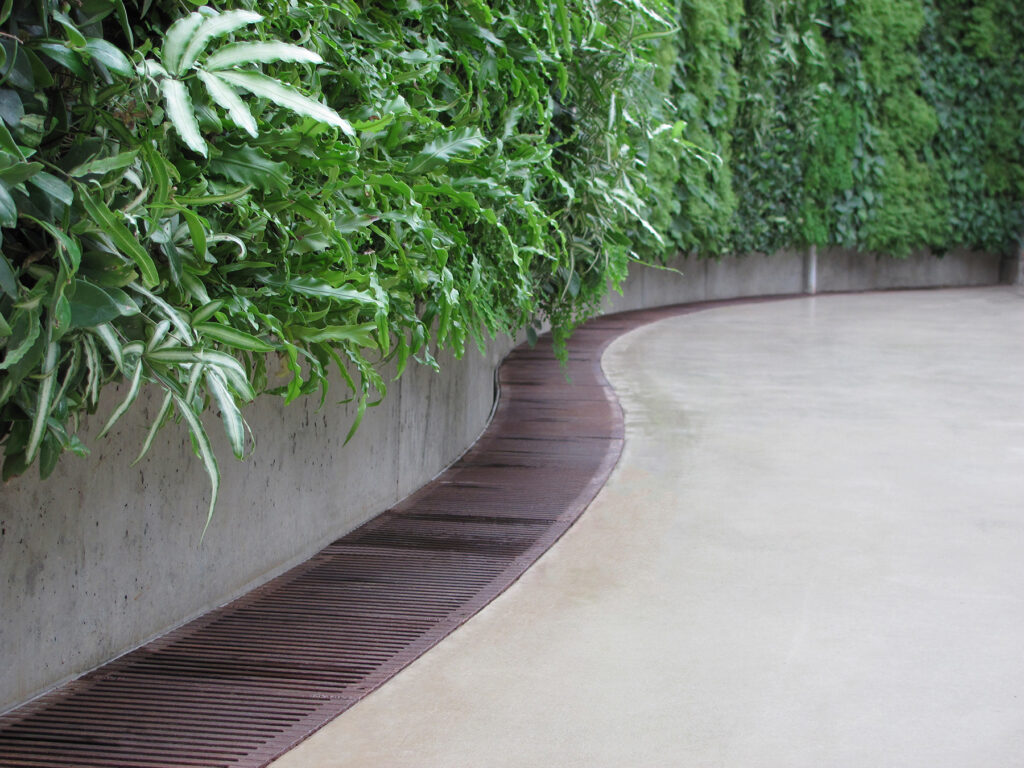

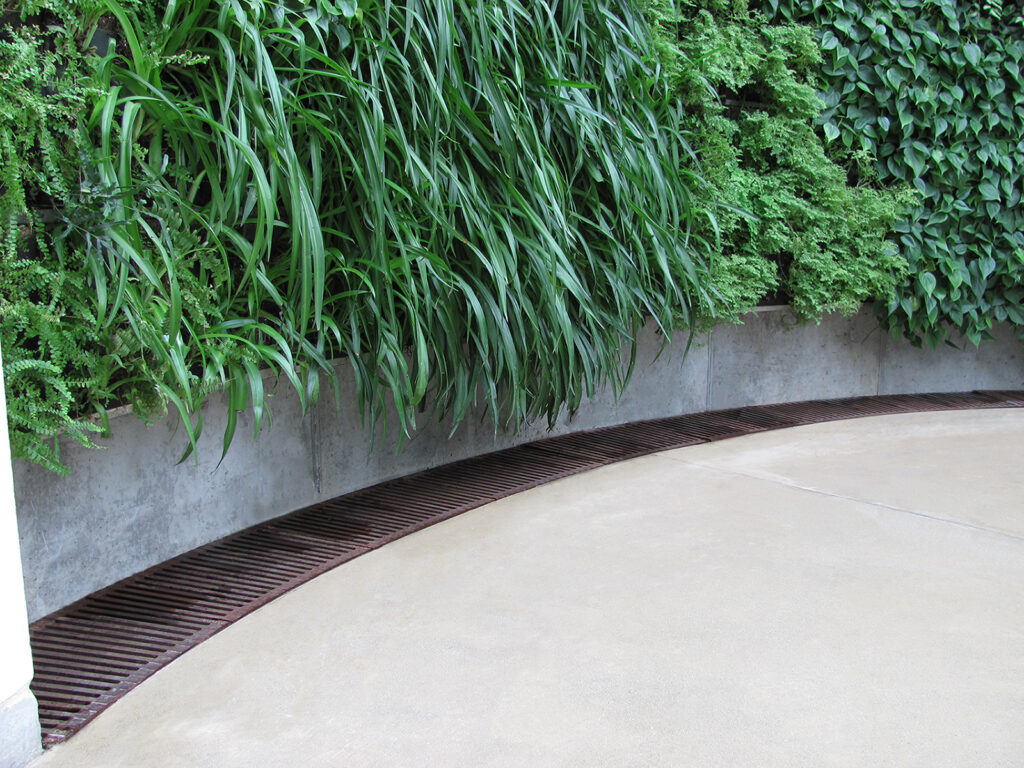

Regular Joe 12″ radius grates, cast iron with baked-on-oil finish, arrayed with various radii. DESIGN: Sikora Wells Appel. PROJECT: Green Wall at Longwood Gardens. LOCATION: Kennett Square, PA.
Regular Joe 12″ radius grates, cast iron with baked-on-oil finish, arrayed with various radii. DESIGN: Sikora Wells Appel. PROJECT: Green Wall at Longwood Gardens. LOCATION: Kennett Square, PA.

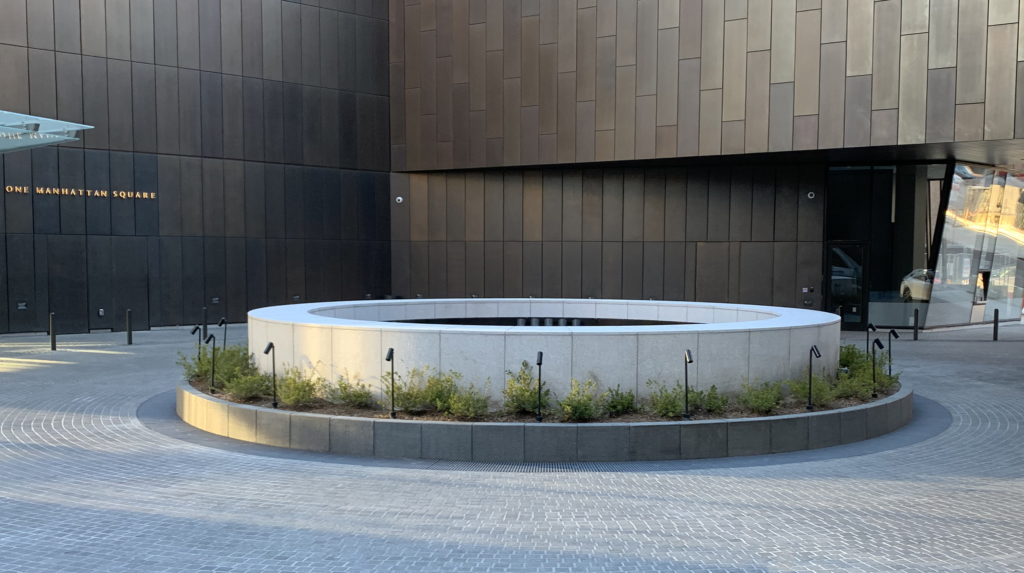

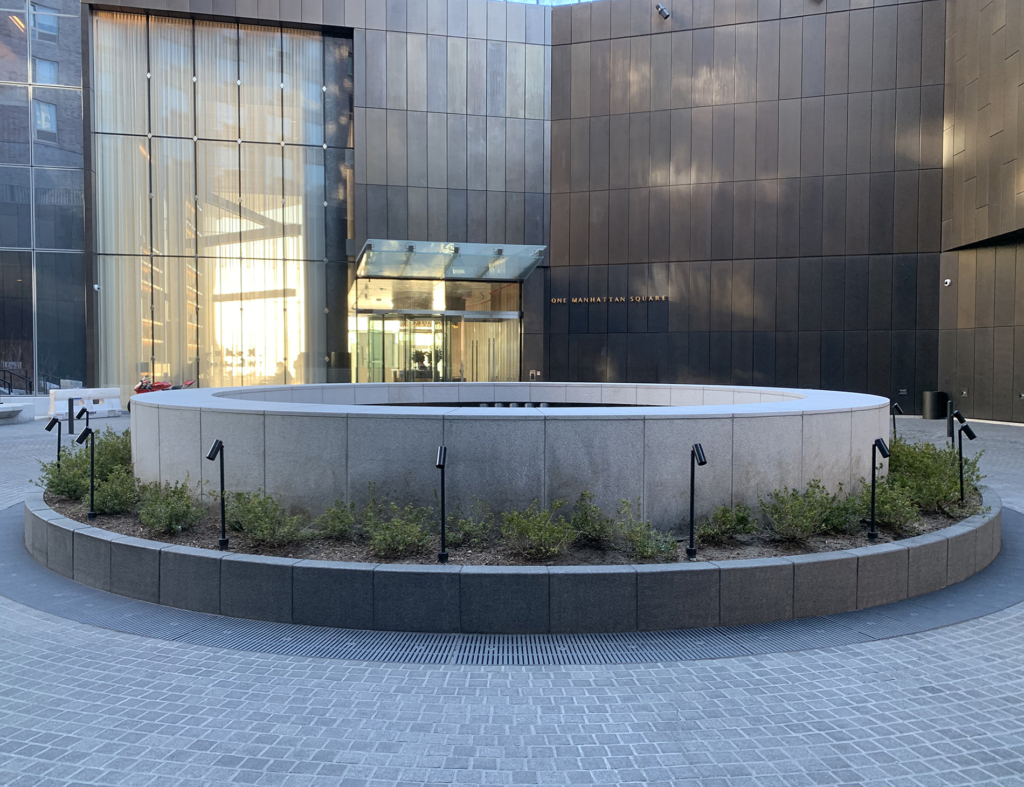

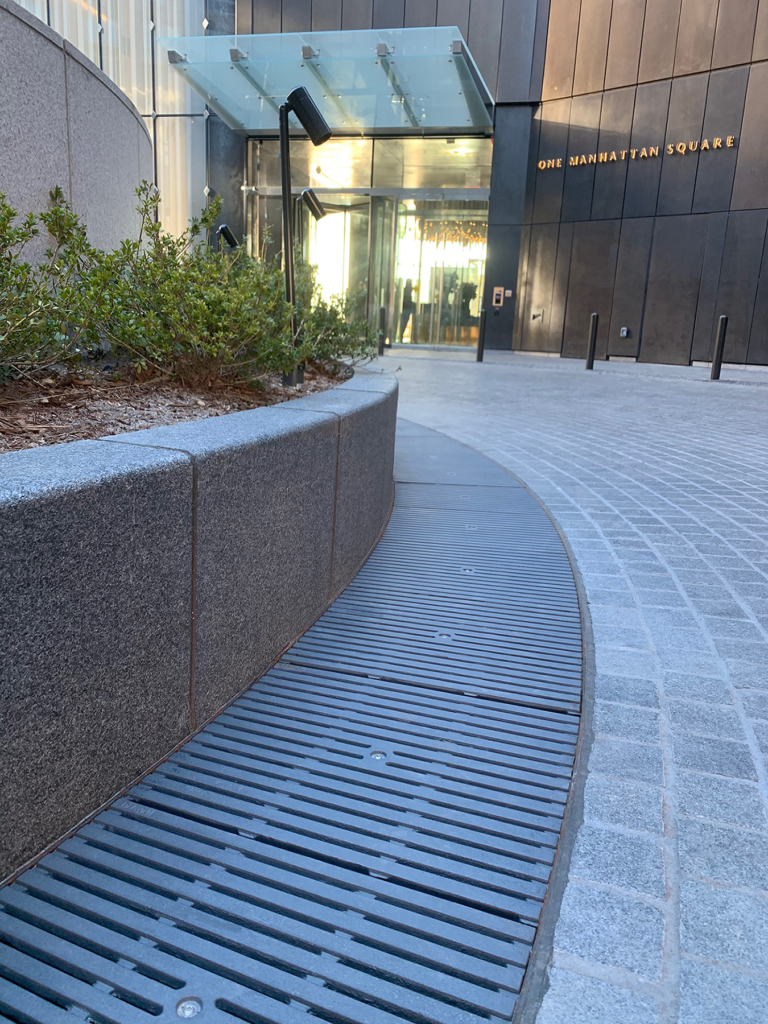

Regular Joe 19.25″ wide radius trench grate, cast iron with powder coat finish. DESIGN: West 8. INSTALLATION: Steven Dubner Landscaping. PROJECT: One Manhattan Square. LOCATION: New York City, NY.
Regular Joe 19.25″ wide radius trench grate, cast iron with powder coat finish. DESIGN: West 8. INSTALLATION: Steven Dubner Landscaping. PROJECT: One Manhattan Square. LOCATION: New York City, NY.
Regular Joe 19.25″ wide radius trench grate, cast iron with powder coat finish. DESIGN: West 8. INSTALLATION: Steven Dubner Landscaping. PROJECT: One Manhattan Square. LOCATION: New York City, NY.
Regular Joe 19.25″ wide radius trench grate, cast iron with powder coat finish. DESIGN: West 8. INSTALLATION: Steven Dubner Landscaping. PROJECT: One Manhattan Square. LOCATION: New York City, NY.
Similar Products:
View additional products featuring the Regular Joe design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
