Oblio

Description:

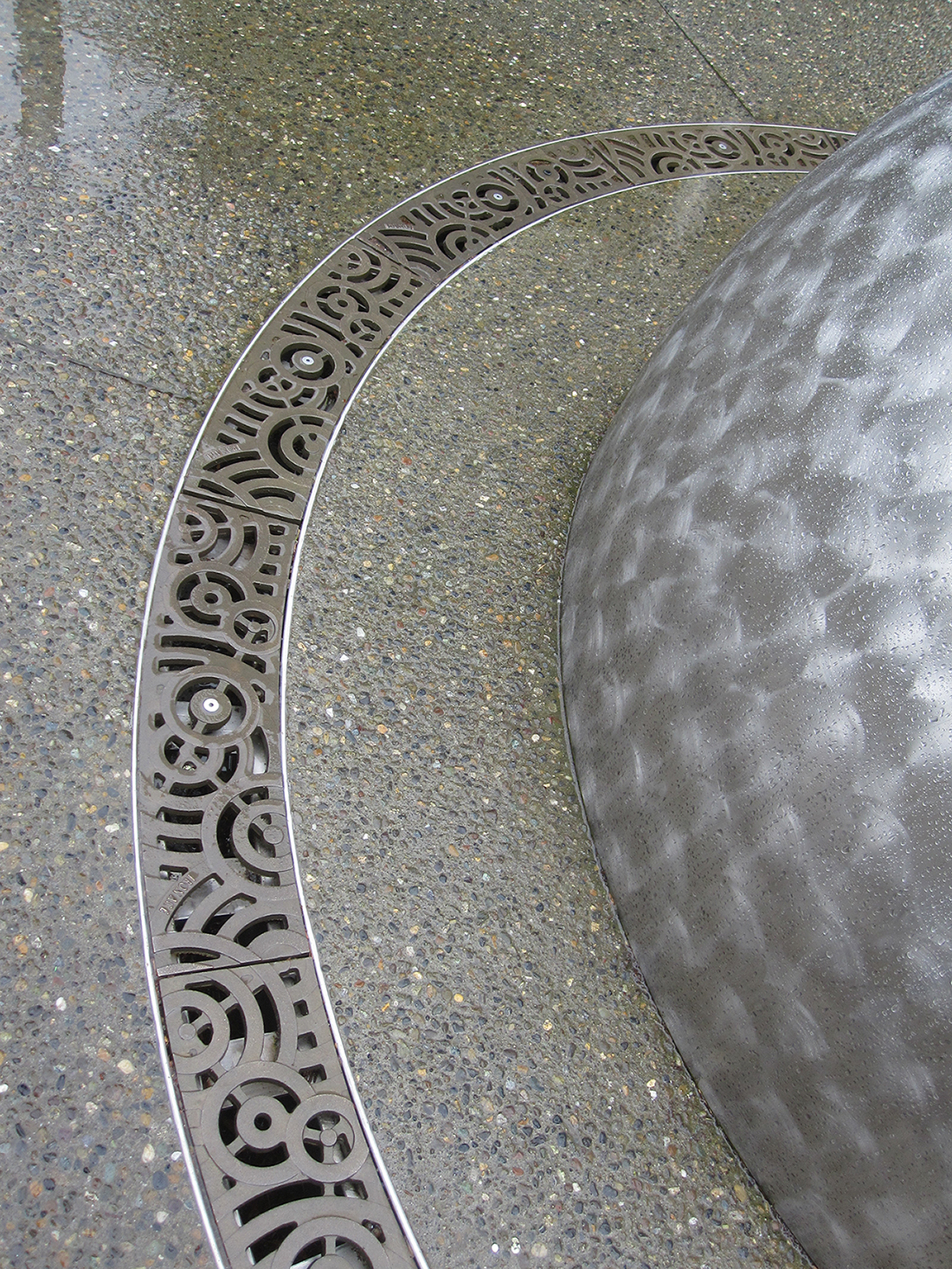

With a pattern that suggests ripples forming on the surface of water, our trademark Oblio design will add distinctive style to a wide range of architectural applications.



Detailed Specifications:

Name / Design Oblio 5" Wide, 4'-0" CLR
Product ID OR5-19I994
Dimensions 4.81" x 18.61" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Oblio 5" Wide, 4'-9" CLR
Product ID OR5-19I995
Dimensions 5" x 18.8" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 10
Free Drain Area 21%
Gallons Per Minute (GPM) 26
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Oblio 5" Wide, 7'-9" CLR
Product ID OR5-20I998
Dimensions 4.81" x 19.8" x 1.25"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Oblio 5" Wide, 16'-6" CLR
Product ID OR5-20I9916
Dimensions 4.81" x 19.43" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 10
Free Drain Area 23%
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Oblio 5" Wide, 20'-0" CLR
Product ID OR5-20I9920
Dimensions 4.81" x 19.44" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Oblio 5" Wide, 27'-0" CLR
Product ID OR5-20I9927
Dimensions 4.81" x 19.44" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 10
Free Drain Area 23%
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Oblio 5" Wide, 44'-0" CLR
Product ID OR5-20I9944
Dimensions 4.81" x 19.44" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Oblio 5" Wide, 65'-8" CLR
Product ID OR5-20I9965
Dimensions 4.89" x 19.82" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 10
Free Drain Area 23%
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Oblio 5.5" Wide Heel Proof, 44'-0" CLR
Product ID OR5-20I9944HP
Dimensions 5.5" x 19.63" x .88"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Oblio 6" Wide, 11'-3" CLR
Product ID OR6-19I9911
Dimensions 6" x 19.66" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 12
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Oblio 8" Wide, 27'-10" CLR
Product ID OR8-20I9928
Dimensions 7.88" x 19.83" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 11
Free Drain Area 27.6%
Gallons Per Minute (GPM) .558
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Oblio 8" Wide, 53'-10" CLR
Product ID OR8-20I9954
Dimensions 7.88" x 19.97" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 12
Free Drain Area 27.2%
Gallons Per Minute (GPM) 55.7
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Oblio 9" Wide Heel Proof, 5'-0" CLR
Product ID OR9-19I995HP
Dimensions 8.88" x 19.22" x 1.25"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 28
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Oblio 9" Wide, 11'-2.5" CLR
Product ID OR9-19I9911
Dimensions 8.88" x 20.25" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 19
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending

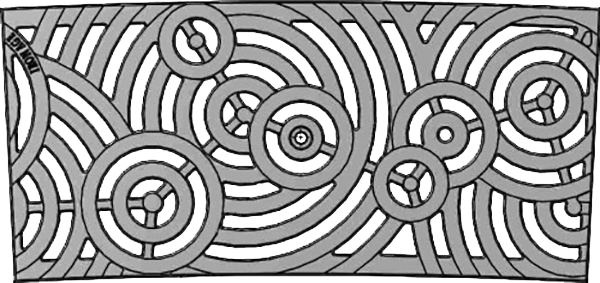

Name / Design Oblio 9" Wide, 16'-0" CLR
Product ID OR9-19I9916
Dimensions 8.88" x 19.44" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 18
Free Drain Area 25%
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Oblio 9" Wide, 25'-4" CLR
Product ID OR9-20I9925
Dimensions 8.87" x 19.79" x .75"
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 12
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Oblio 9" Wide Heel Proof, 54'-1" CLR
Product ID OR9-19I9954HP
Dimensions 8.88" x 19.89" x 1.25"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 18
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Oblio 9" Wide, 79-4" CLR
Product ID OR9-20I9979
Dimensions 8.88" x 19.51" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 12
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Oblio 12" Wide, 3'-6" CLR
Product ID OR12-15I994
Dimensions 11.88" x 15.39" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 21
Free Drain Area 21.68%
Gallons Per Minute (GPM) 11.32
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Oblio 12" Wide, 13'-0" CLR
Product ID OR12-18I9913
Dimensions 11.88" x 17.87" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 18
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending

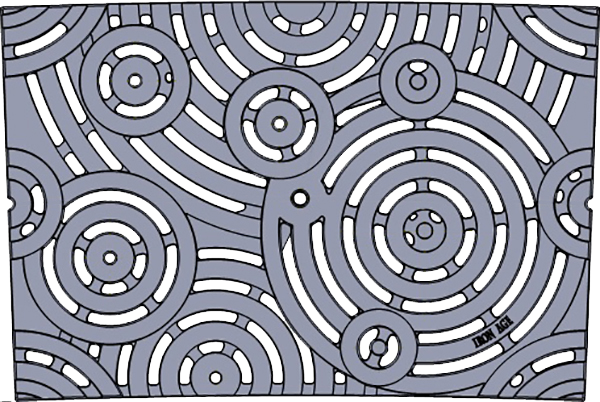

Name / Design Oblio 12" Wide, 20'-0" CLR
Product ID OR12-18I9920
Dimensions 11.87" x 17.61" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 15
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Oblio 12" Wide, 27'-0" CLR
Product ID OR12-18I9927
Dimensions 11.88" x 17.87" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 15
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Oblio 25" Wide, 14'-3" CLR
Product ID OR25-26I9914
Dimensions 25.25" x 26.06" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending

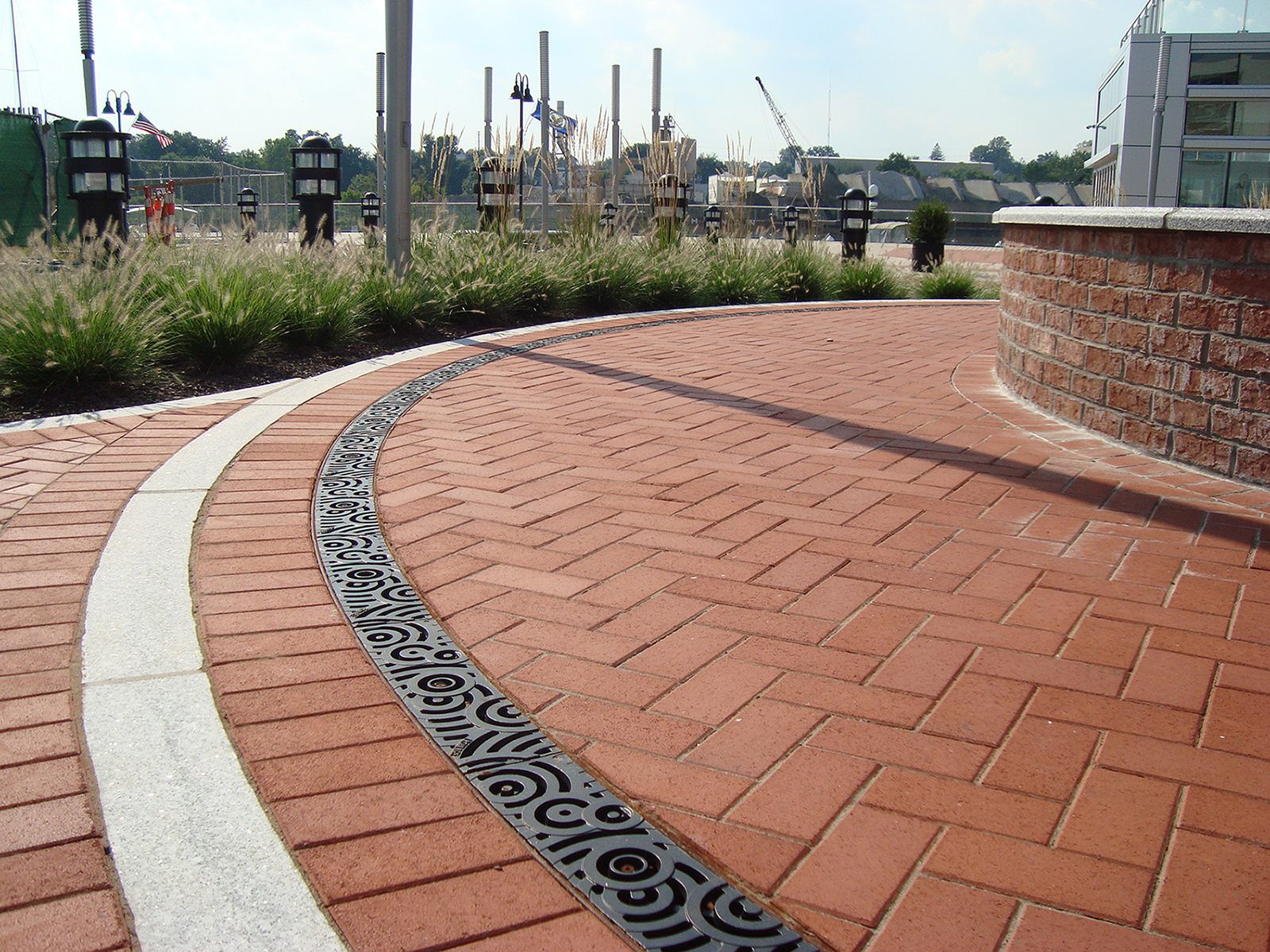

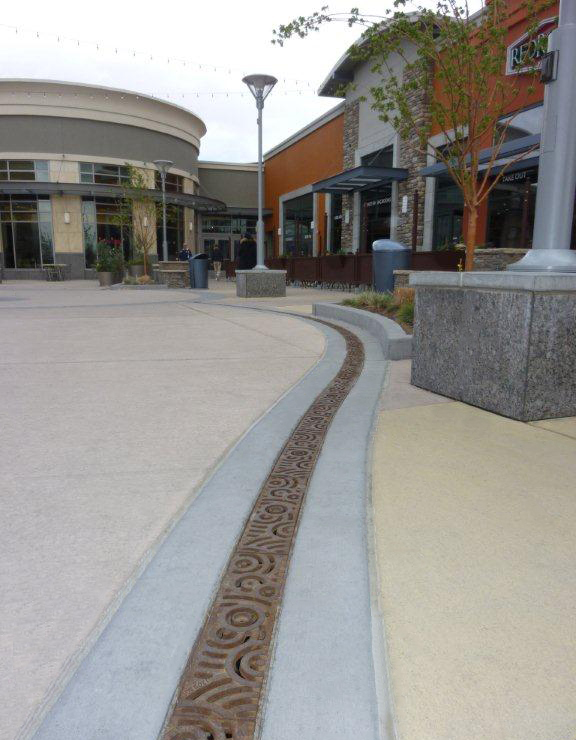

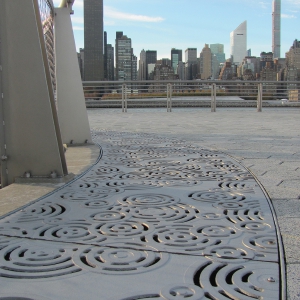

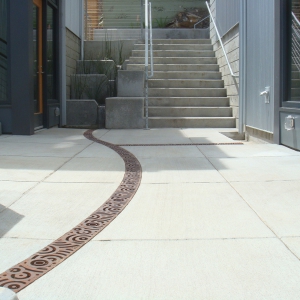

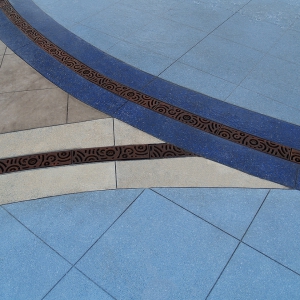

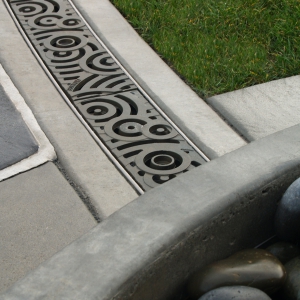

Photo Gallery:

Standard Finish

For details, see Materials and Finish Options under Resources.

Optional Finish

For details, see Materials and Finish Options under Resources.

Optional Material Upgrades

Call for pricing and lead time.
