Oblio

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Oblio 3' x 3' Heel Proof
Product ID	OX36-36I99TGHP
Dimensions	35.88" x 35.88" x 1"
Fits	Iron Age Custom Frame
Frame(s)	"E" Frame Installation Frame Types
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	132
Free Drain Area	7.87%
Gallons Per Minute (GPM)	121.02
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze Cast Ductile Iron
Copyright Registration No.	VA 2-246-543

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Oblio 4' x 4' Heel Proof
Product ID	OX48-48I99TGHP
Dimensions	47.88" x 47.88" x 1.00"
Fits	Iron Age Custom Frame
Frame(s)	Frame Types "E" Frame Installation
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	247
Free Drain Area	8.16%
Gallons Per Minute (GPM)	232.76
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-159-800

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec CAD Details Spec
Name / Design	Oblio 4' x 4' Heel Proof, Heavy Duty
Product ID	OX48-48I99TGHDHP
Dimensions	47.88" x 47.88" x 1.00"
Fits	Iron Age Custom Frame
Frame(s)	Frame Types "E" Frame Installation
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	242
Free Drain Area	14.62%
Gallons Per Minute (GPM)	417.59
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	Pending

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec CAD Details Spec

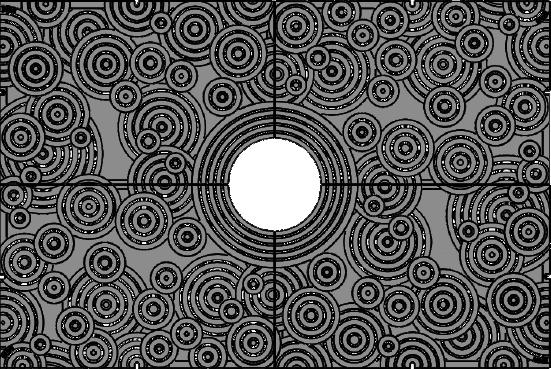

Name / Design	Oblio 4' x 6' Heel Proof
Product ID	OX48-72I99TGHP
Dimensions	47.85" x 71.85" x 1.25"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Frame(s)	Frame Types "E" Frame Installation
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	411.86
Free Drain Area	8.28%
Gallons Per Minute (GPM)	360.85
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	Pending

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec CAD Details Spec
Name / Design	Oblio 5' x 5' Heel Proof
Product ID	OX60-60-I99TGHP
Dimensions	59.88" x 58.99" x 1.25"
Fits	Iron Age Custom Frame
Frame(s)	Frame Types "E" Frame Installation
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	348.92
Free Drain Area	9.07%
Gallons Per Minute (GPM)	415.19
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze Cast Ductile Iron

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec CAD Details Spec
Name / Design	Oblio 6' x 6' Heel Proof
Product ID	OX72-72I99TGHP
Dimensions	71.88" x 71.88" x 1.25"
Fits	Iron Age Custom Frame
Frame(s)	Frame Types "E" Frame Installation
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	614.12
Free Drain Area	8.54%
Gallons Per Minute (GPM)	565.14
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-112-772

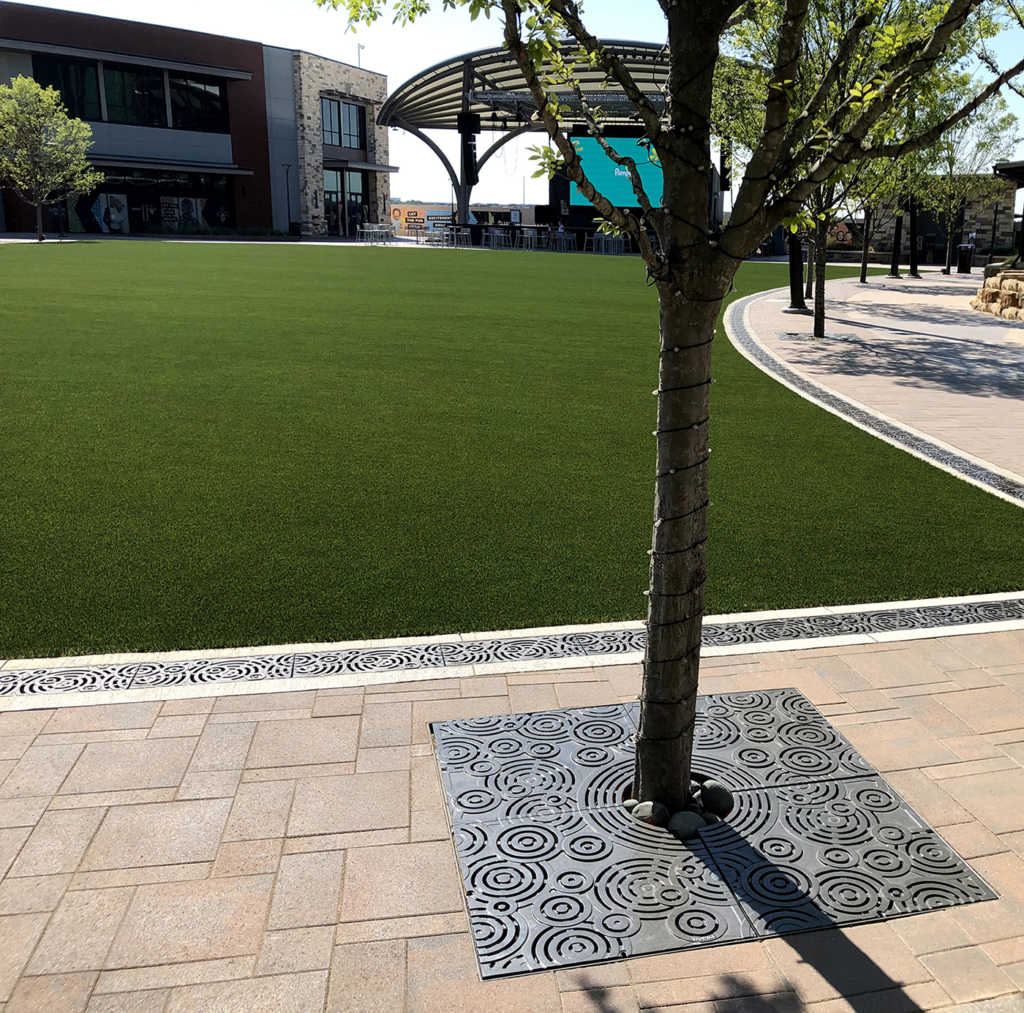

Oblio 4′ x 4′ heel-proof tree grate, cast iron with “antique bronze pearlescent” powder coat finish. DESIGN: The Olsson Studio. INSTALL: Superscapes. PROJECT: Grandscape. LOCATION: The Colony, TX.

Download photo

Oblio 4′ x 4′ heel-proof tree grate, cast iron with “antique bronze pearlescent” powder coat finish. DESIGN: The Olsson Studio. INSTALL: Superscapes. PROJECT: Grandscape. LOCATION: The Colony, TX.

Download photo

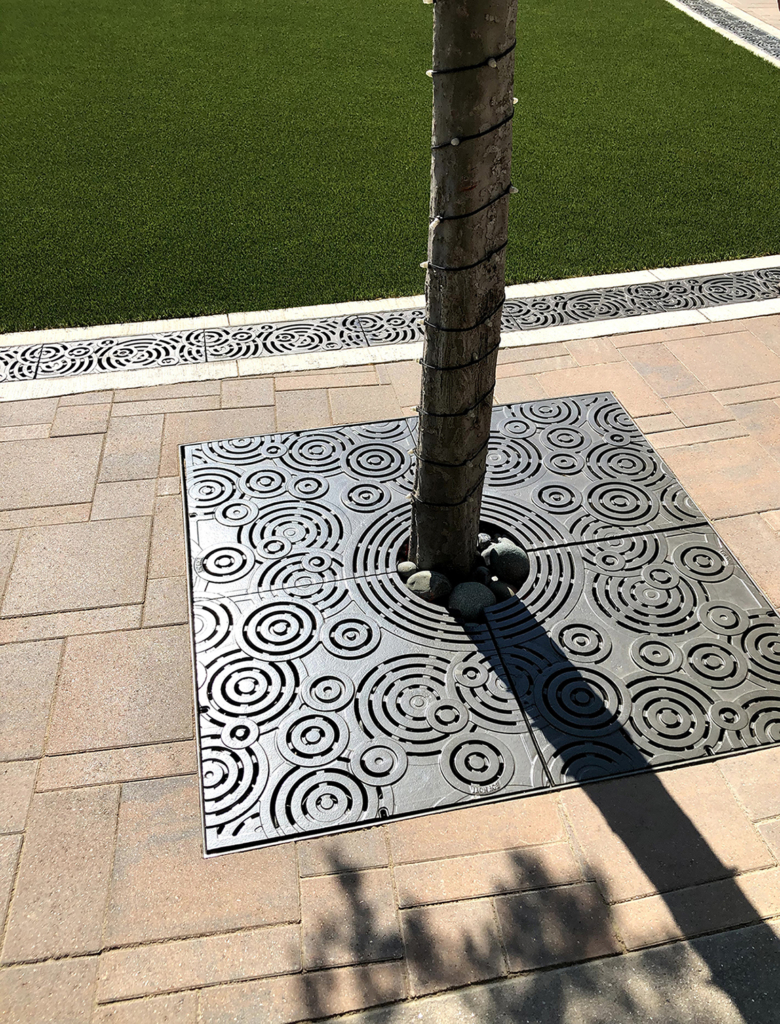

Cast iron radius trench grates and tree grate in Oblio pattern which suggests circular ripples on water

Oblio 4′ x 4′ heel-proof tree grate, cast iron with “antique bronze pearlescent” powder coat finish. DESIGN: The Olsson Studio. INSTALL: Superscapes. PROJECT: Grandscape. LOCATION: The Colony, TX.

Download photo

Oblio 4′ x 4′ heel-proof tree grate, cast iron with “antique bronze pearlescent” powder coat finish. DESIGN: The Olsson Studio. INSTALL: Superscapes. PROJECT: Grandscape. LOCATION: The Colony, TX.

Download photo

Oblio 4′ Sq. tree grate, raw cast iron.

Download photo

Oblio 4′ Sq. tree grate, raw cast iron.

Download photo

Oblio 4′ Sq. tree grate, raw cast iron. Photo courtesy of Gabe Hayes.

Download photo

Oblio 4′ Sq. tree grate, raw cast iron.

Download photo

Oblio 4′ Sq. tree grate, raw cast iron.

Download photo

Oblio 4′ Sq. tree grate, raw cast iron. Photo courtesy of Gabe Hayes.

Download photo

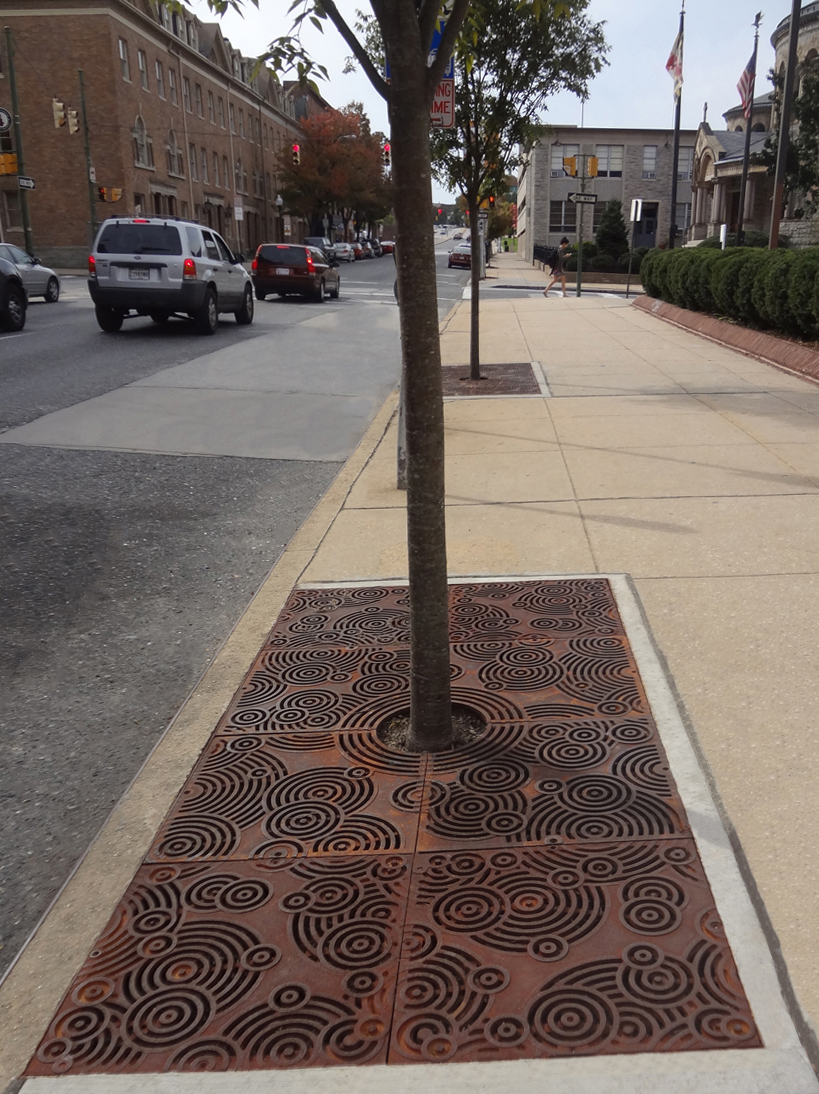

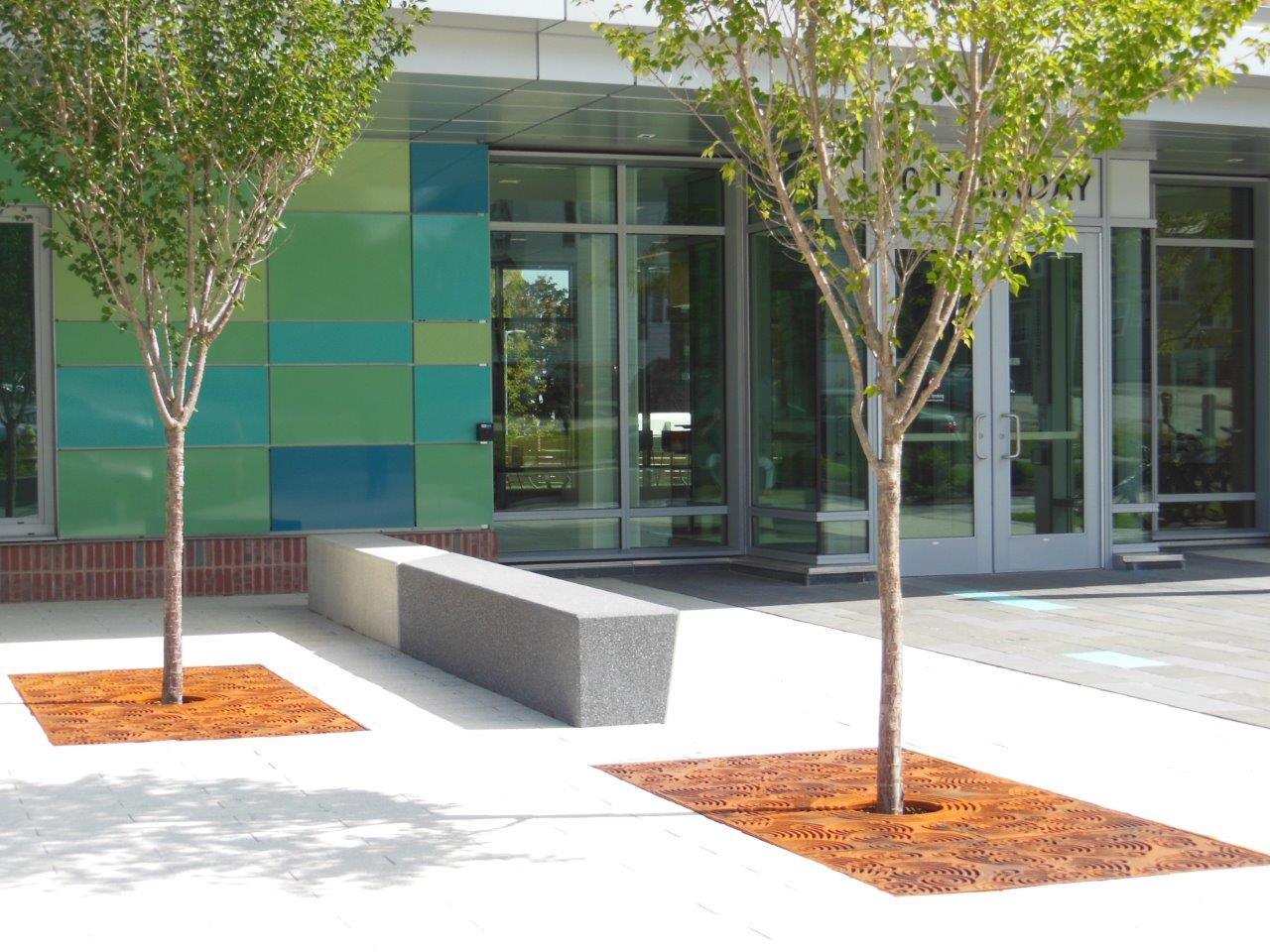

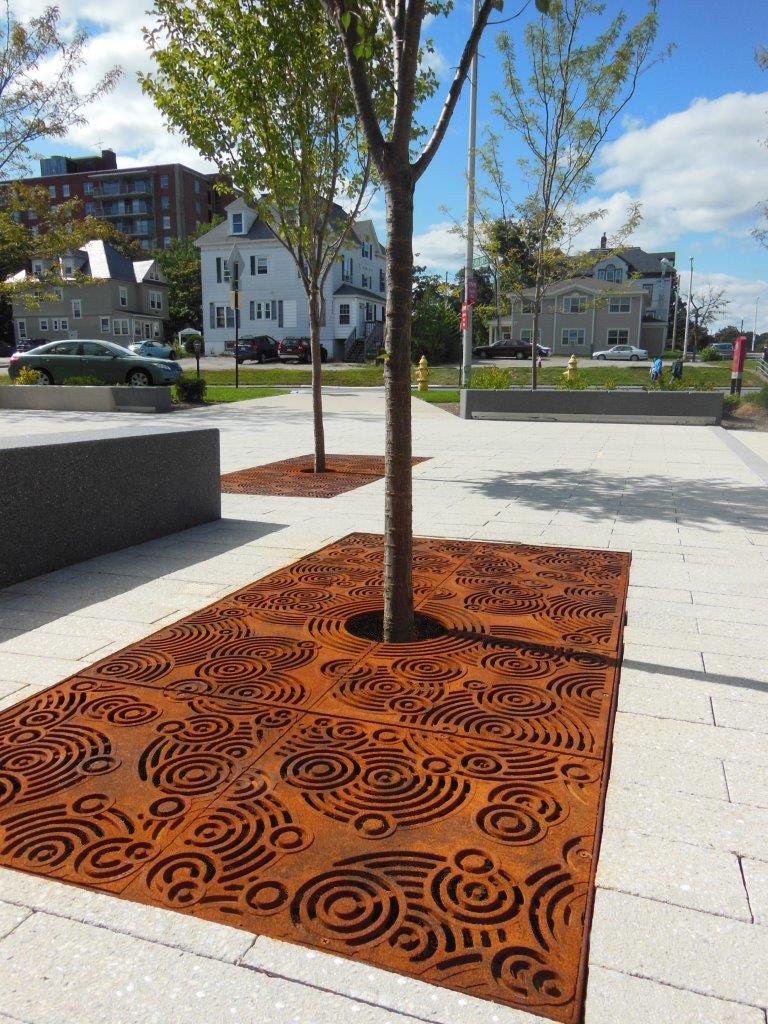

Oblio 4′ sq. tree grate with extension panels to form a 4′ x 8′ array, raw cast iron.

Download photo

Oblio 4′ sq. tree grate with extension panels to form a 4′ x 8′ array, raw cast iron.

Download photo

Oblio 4′ sq. tree grate with extension panels to form a 4′ x 8′ array, raw cast iron.

Download photo

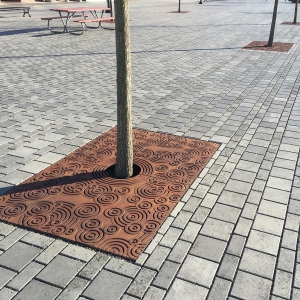

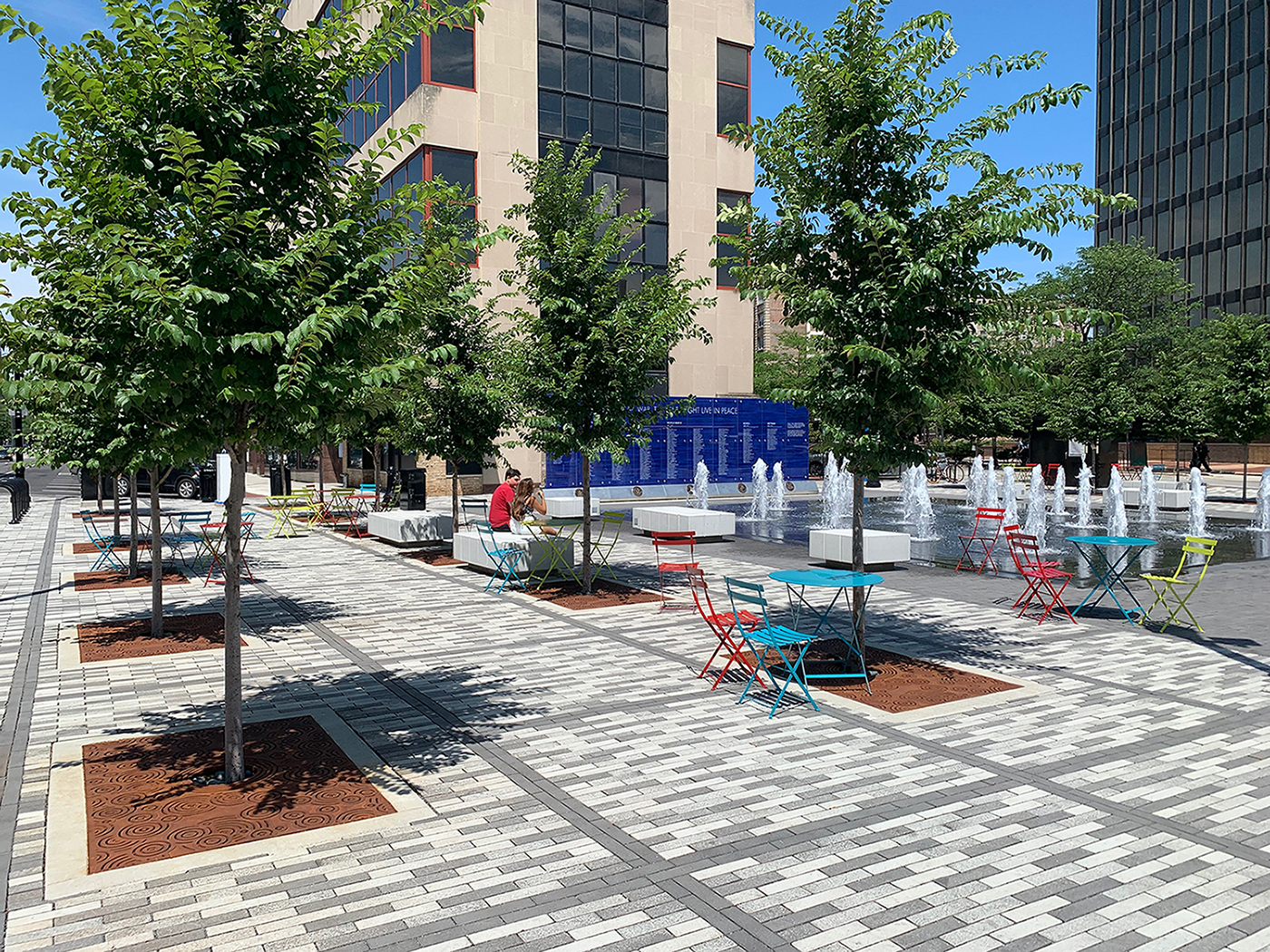

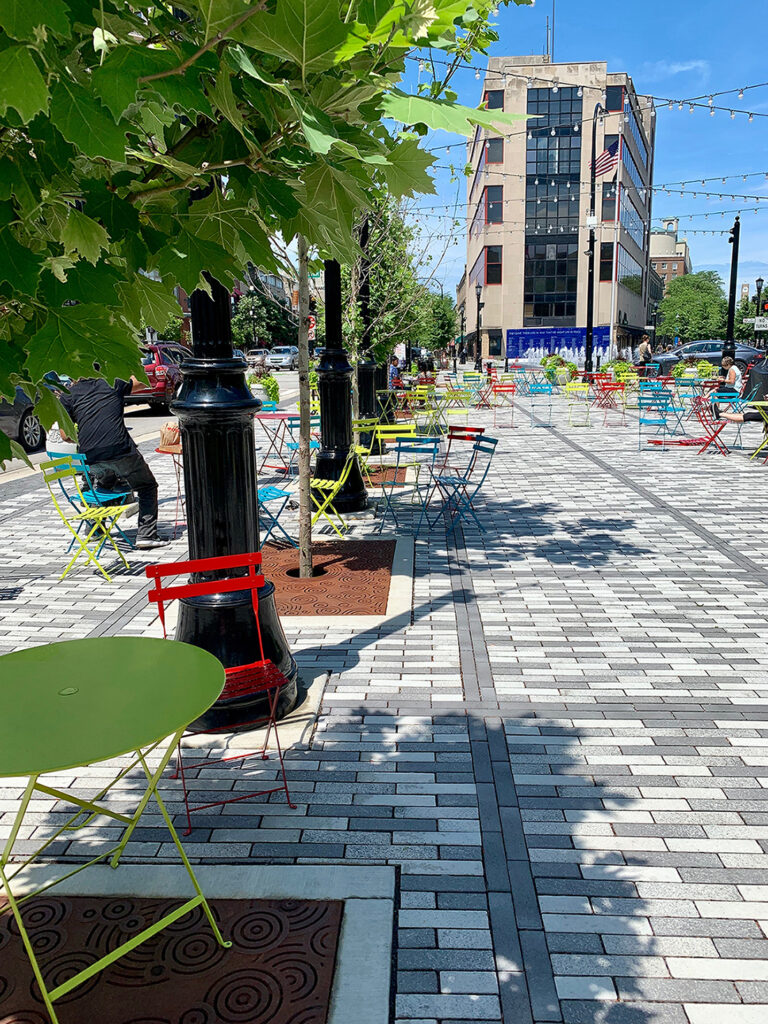

Oblio 4′ x 6′ heel-proof tree grate, raw cast iron. DESIGN: Teska Associates, Inc. PROJECT: Fountain Square Plaza. LOCATION: Evanston, IL.

Download photo

Oblio 4′ x 6′ heel-proof tree grate, raw cast iron. DESIGN: Teska Associates, Inc. PROJECT: Fountain Square Plaza. LOCATION: Evanston, IL.

Download photo

Oblio 4′ x 6′ heel-proof tree grate, raw cast iron. DESIGN: Teska Associates, Inc. PROJECT: Fountain Square Plaza. LOCATION: Evanston, IL.

Download photo

Oblio 4′ x 6′ heel-proof tree grate. DESIGN: City of Bellingham. LOCATION: Bellingham, WA.

Download photo

Oblio 4′ x 6′ heel-proof tree grate. DESIGN: City of Bellingham. LOCATION: Bellingham, WA.

Download photo

Oblio 4′ x 6′ heel-proof tree grate. DESIGN: City of Bellingham. LOCATION: Bellingham, WA.

Download photo

Oblio 4′ x 6′ heel-proof tree grate, raw cast iron. DESIGN: KPG. PROJECT: Main Street. LOCATION: Duvall, WA.

Download photo

Oblio 4′ x 6′ heel-proof tree grate, raw cast iron. DESIGN: KPG. PROJECT: Main Street. LOCATION: Duvall, WA.

Download photo

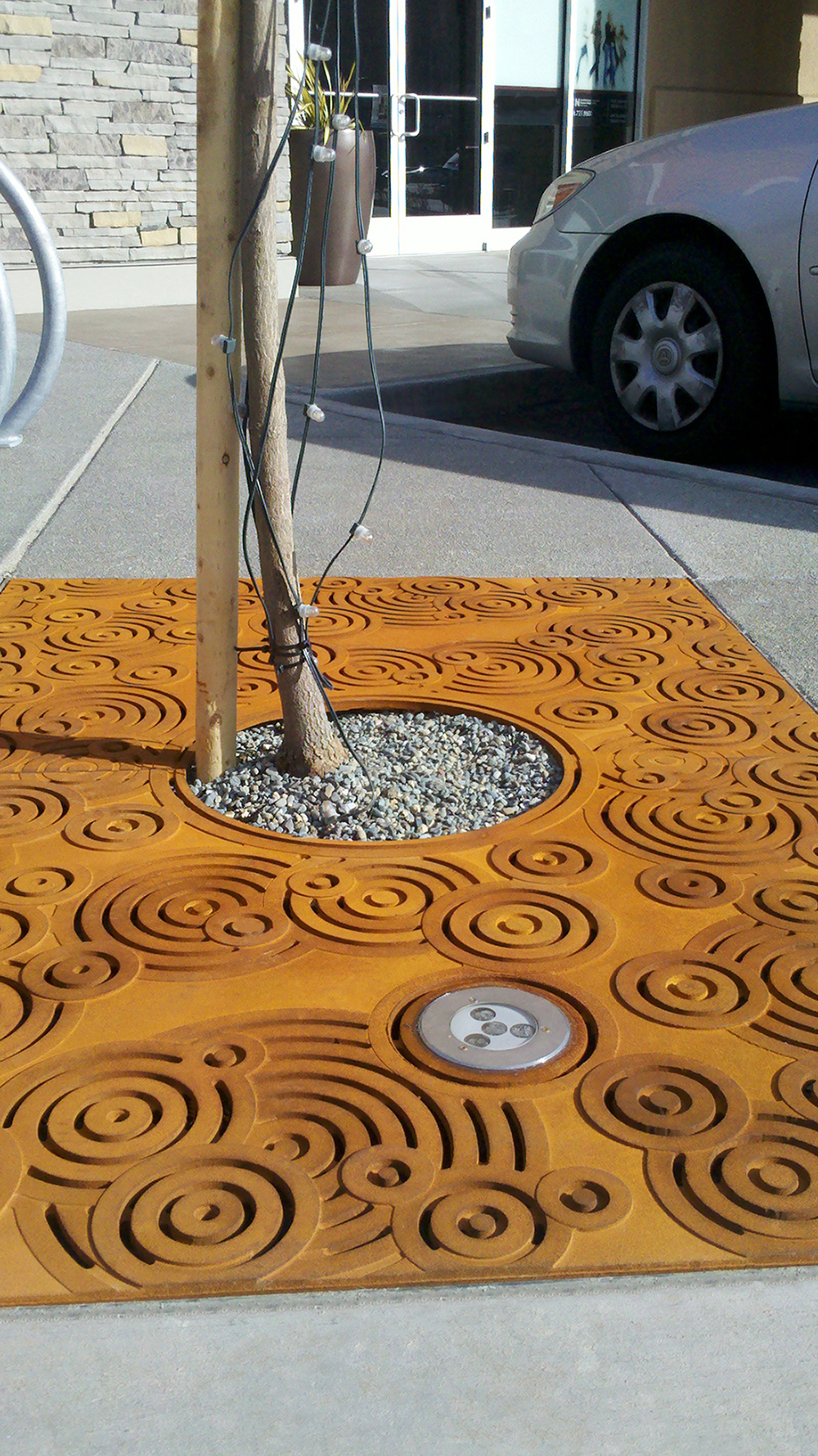

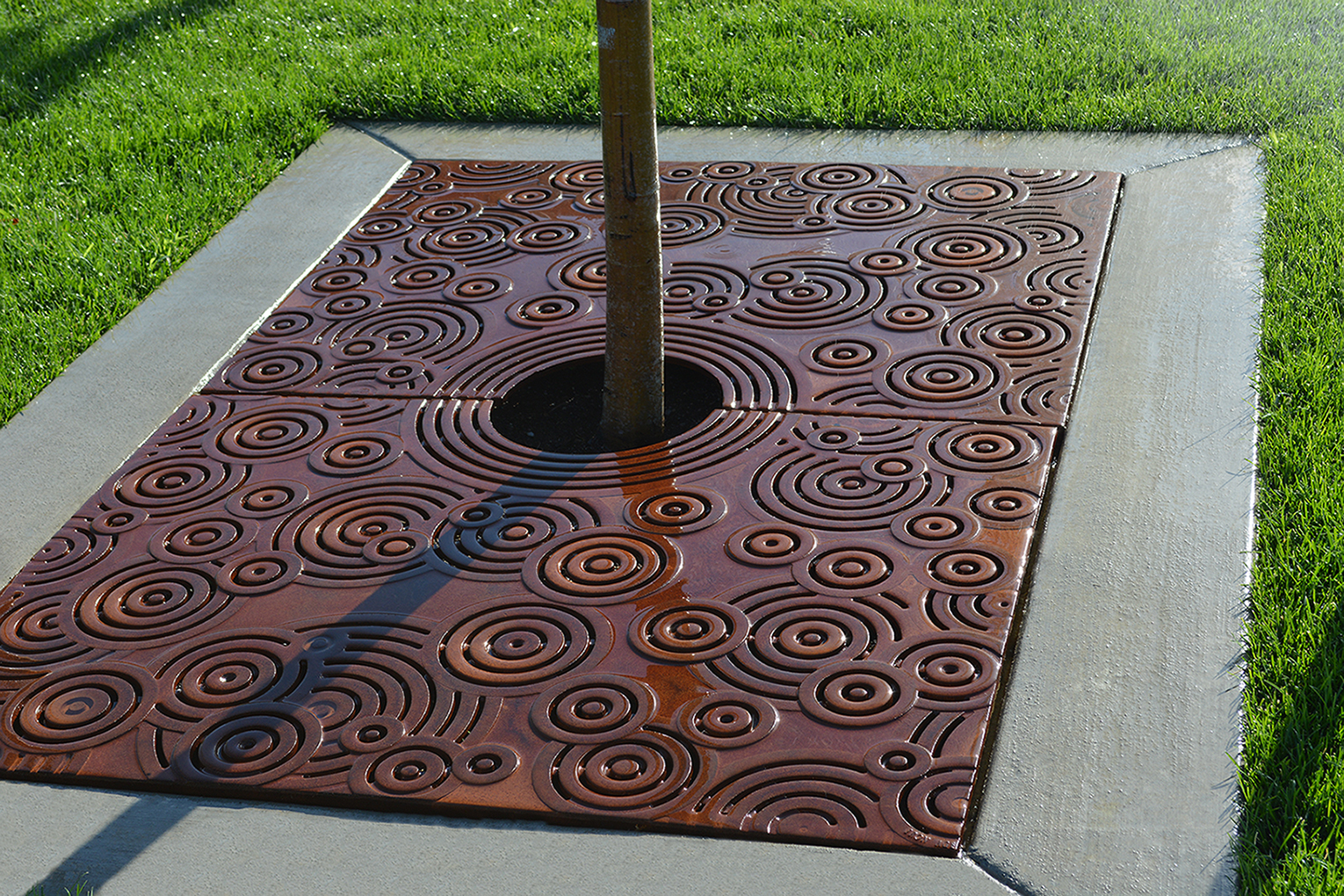

Oblio 4′ x 6′ heel-proof tree grate*, raw cast iron. LOCATION: Pleasanton, CA *Please note: this tree grate now comes in four pieces vs. two as shown here.

Download photo

Oblio 4′ x 6′ heel-proof tree grate*, raw cast iron. LOCATION: Pleasanton, CA *Please note: this tree grate now comes in four pieces vs. two as shown here.

Download photo

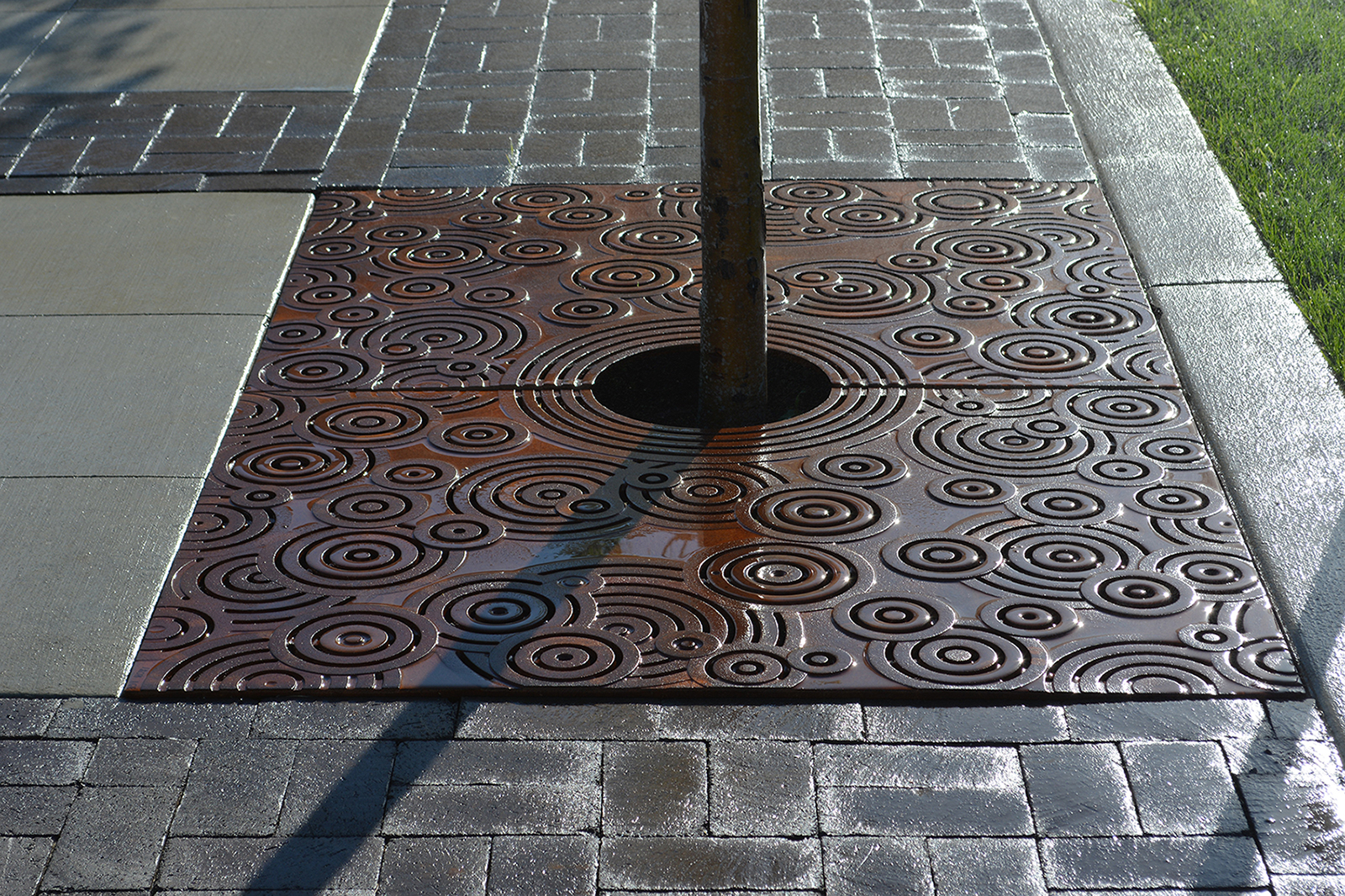

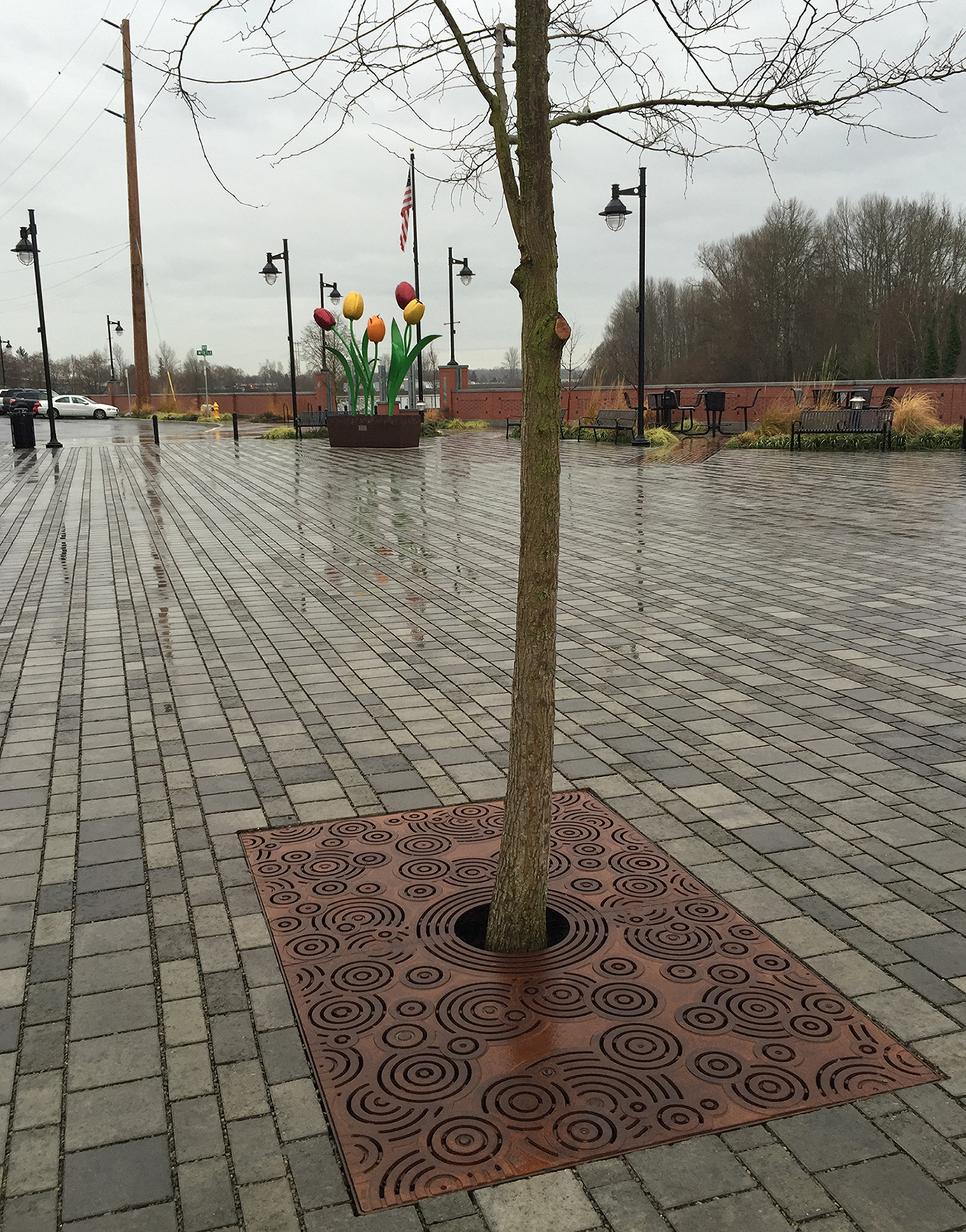

Oblio 4′ x 6′ heel-proof tree grate*, cast iron with baked-on-oil finish. LOCATION: Mount Vernon, WA *Please note: this tree grate now comes in four pieces vs. two as shown here

Download photo

Oblio 4′ x 6′ heel-proof tree grate*, cast iron with baked-on-oil finish. LOCATION: Mount Vernon, WA *Please note: this tree grate now comes in four pieces vs. two as shown here

Download photo

Oblio 4′ x 6′ heel-proof tree grate, cast iron with baked-on-oil finish. LOCATION: Mount Vernon, WA *Please note: this tree grate now comes in four pieces vs. two as shown here.

Download photo

Oblio 4′ x 6′ heel-proof tree grate, cast iron with baked-on-oil finish. LOCATION: Spokane, WA *Please note: this tree grate now comes in four pieces vs. two as shown here.

Download photo

Oblio 5′ x 5′ tree grate*, raw cast iron. DESIGN: French & Parrello Associates. PROJECT: Turtle Back Zoo Entrance. LOCATION: West Orange, NJ.

Download photo

Oblio 5′ x 5′ tree grate*, raw cast iron. PROJECT: Maffeo Sutton Park. LOCATION: Nanaimo, BC.

Download photo

Oblio 5′ x 5′ tree grate*, raw cast iron. PROJECT: Maffeo Sutton Park. LOCATION: Nanaimo, BC.

Download photo

Oblio 5′ x 5′ tree grate*, raw cast iron.

Download photo

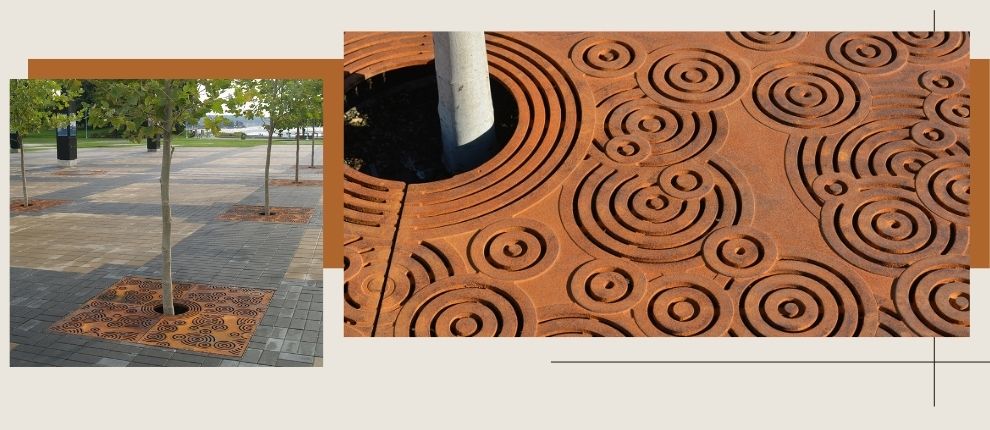

Cast iron tree grate in Oblio pattern which suggests circular ripples on water

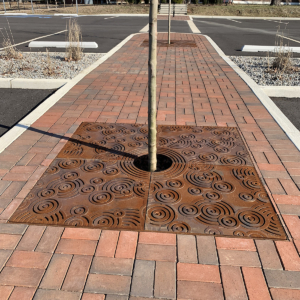

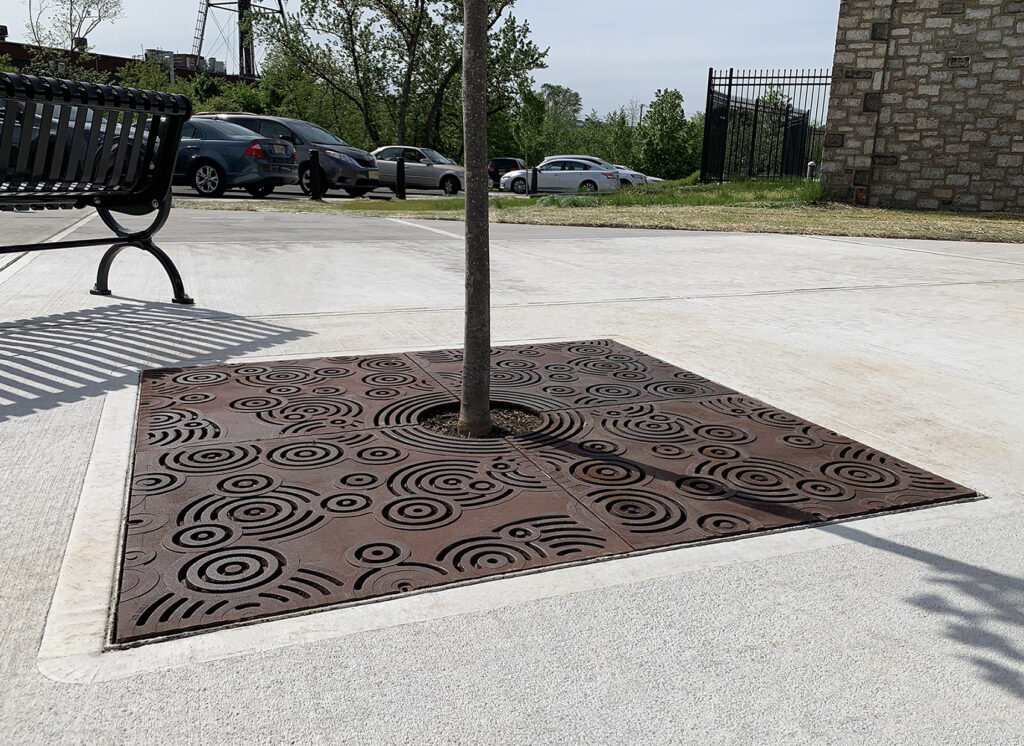

Oblio 5′ x 5′ heel-proof tree grate, cast iron with baked-on-oil finish. DESIGN: French & Parrello Associates. INSTALLER: The Earle Companies. PROJECT: Hetzel Field Pool Parking Lot. LOCATION: Trenton, NJ.

Download photo

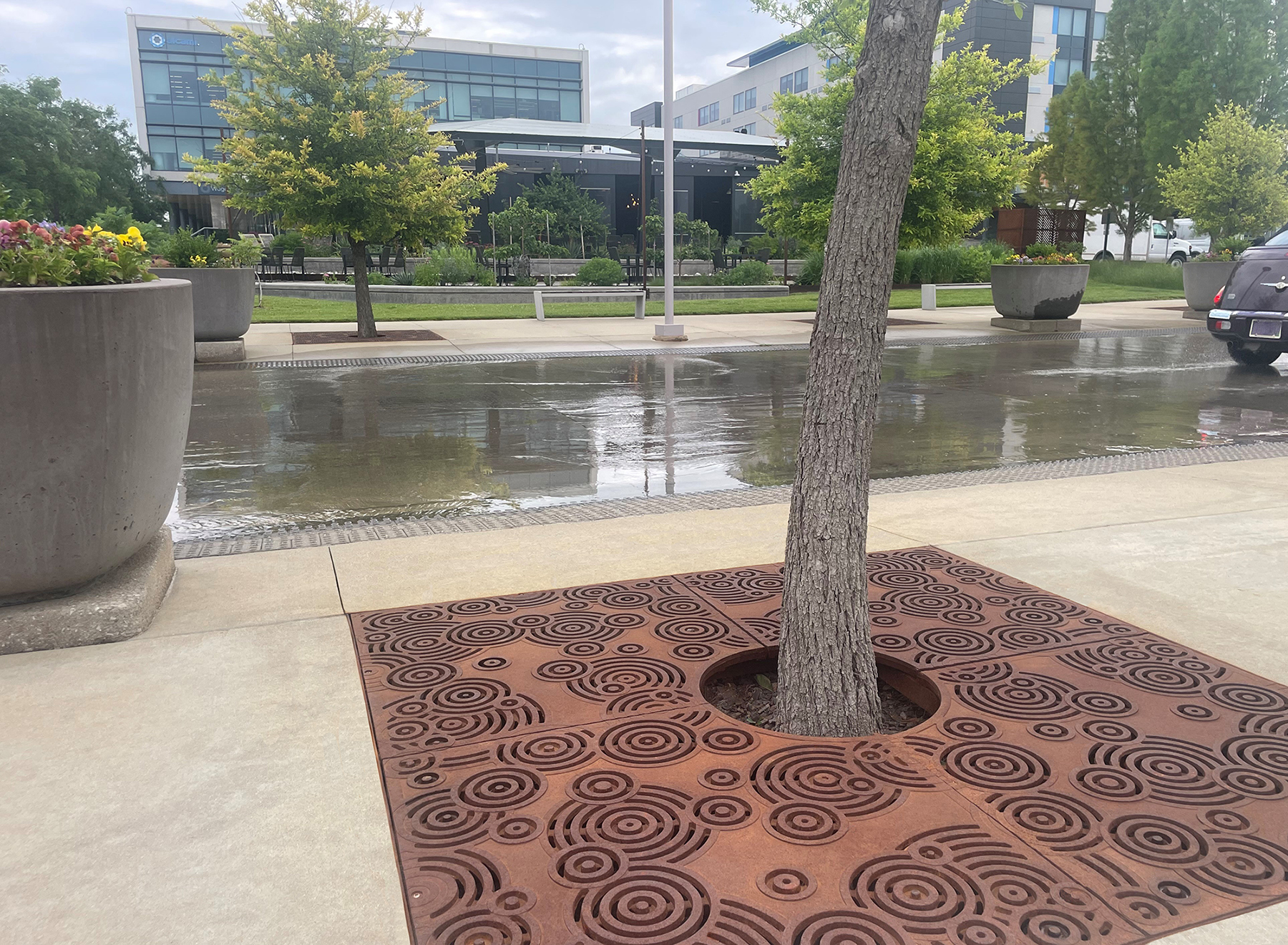

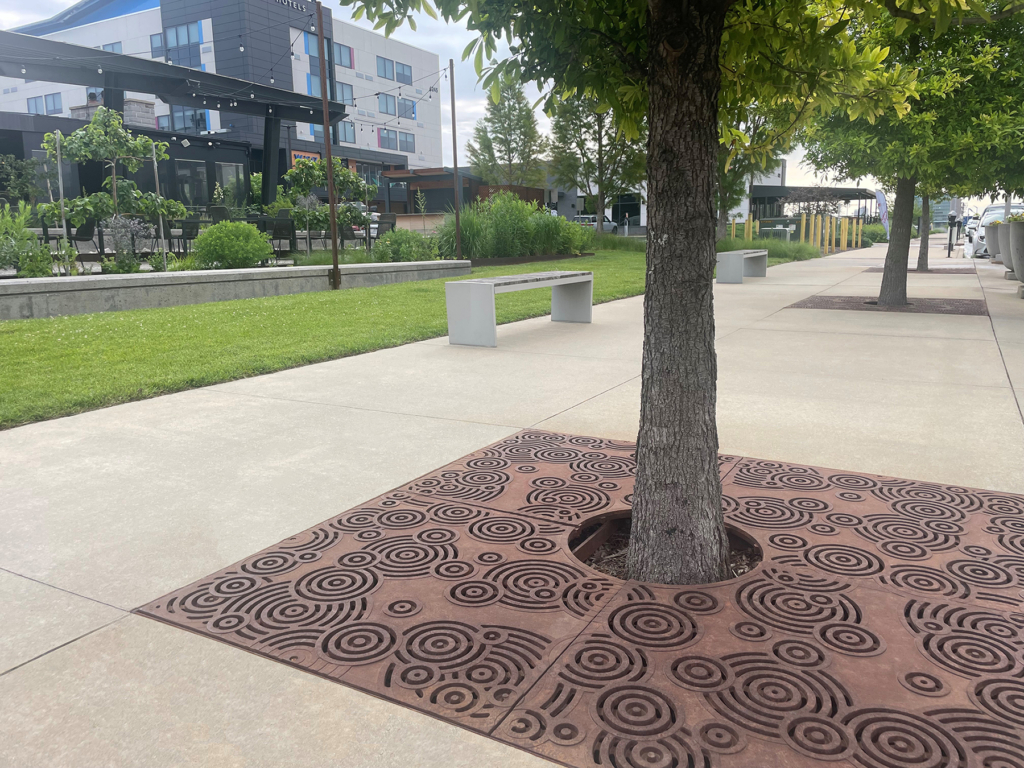

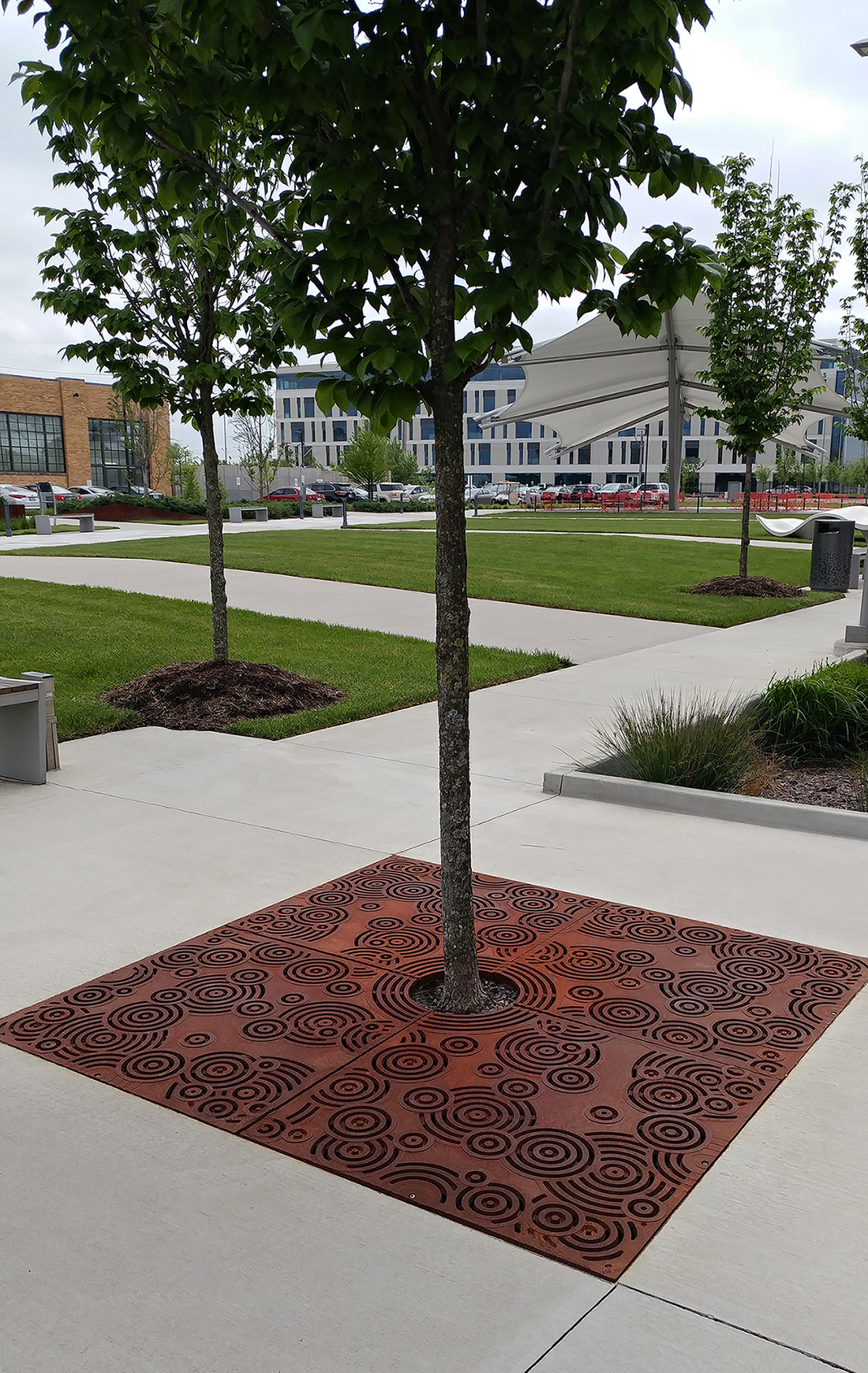

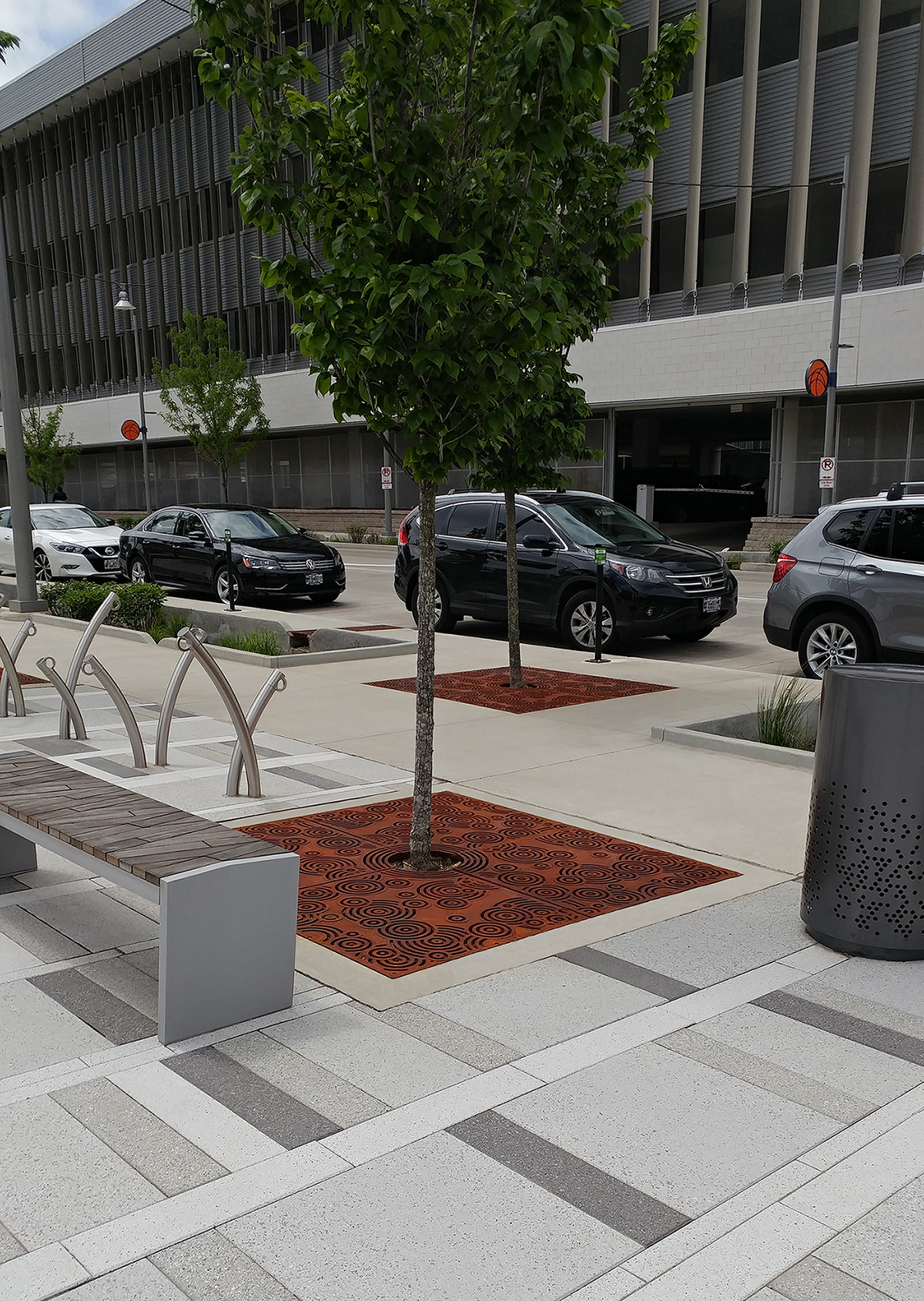

Oblio 6′ sq. tree grate, raw cast iron. DESIGN: SWT Design. PROJECT: Coretex Innovation Community. LOCATION: St. Louis, MO.

Download photo

Oblio 6′ sq. tree grate, raw cast iron. DESIGN: SWT Design. PROJECT: Coretex Innovation Community. LOCATION: St. Louis, MO.

Download photo

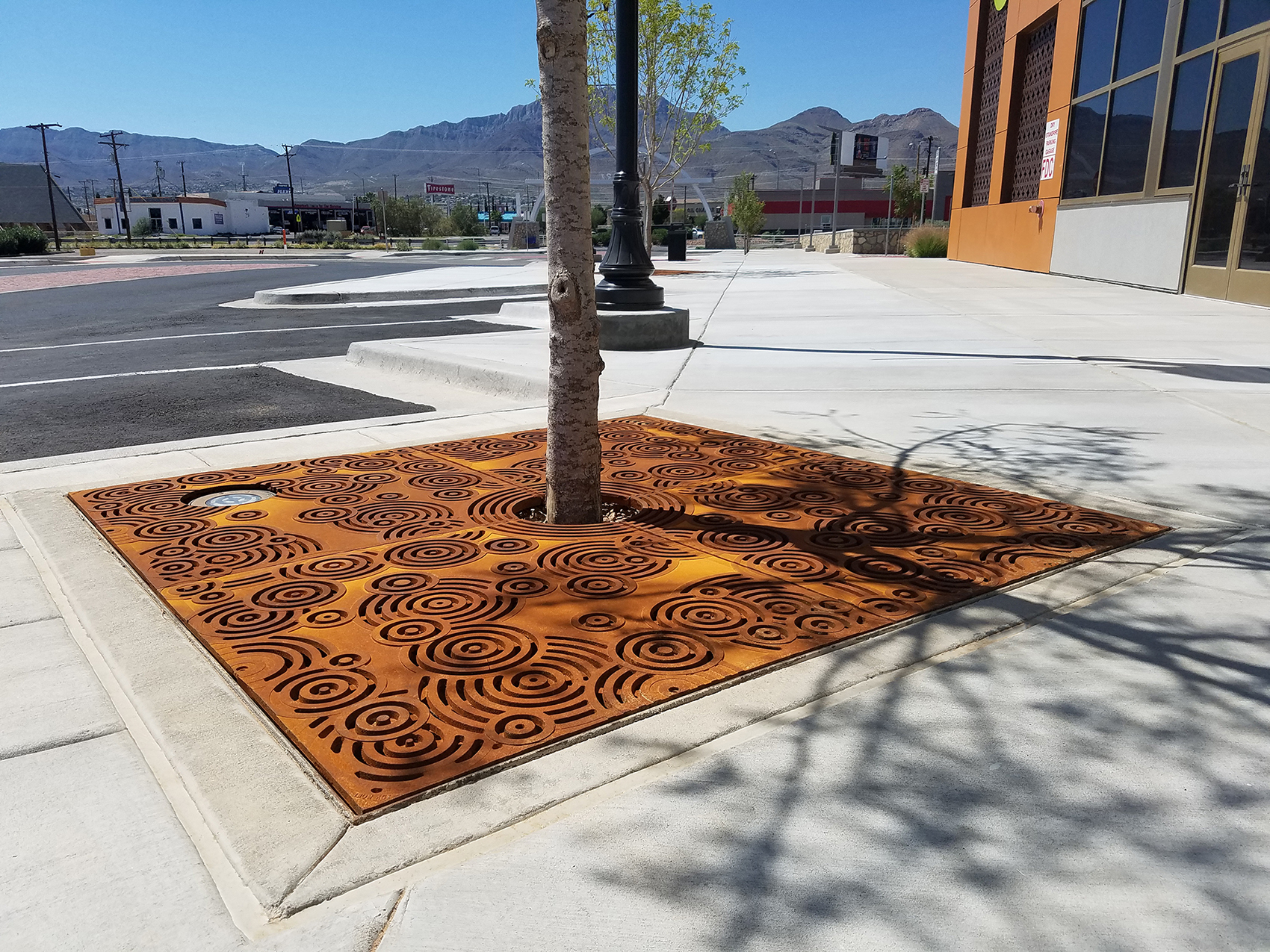

Oblio 6′ Sq. tree grate, raw cast iron. PROJECT: Metro 31. LOCATION: El Paso, TX.

Download photo

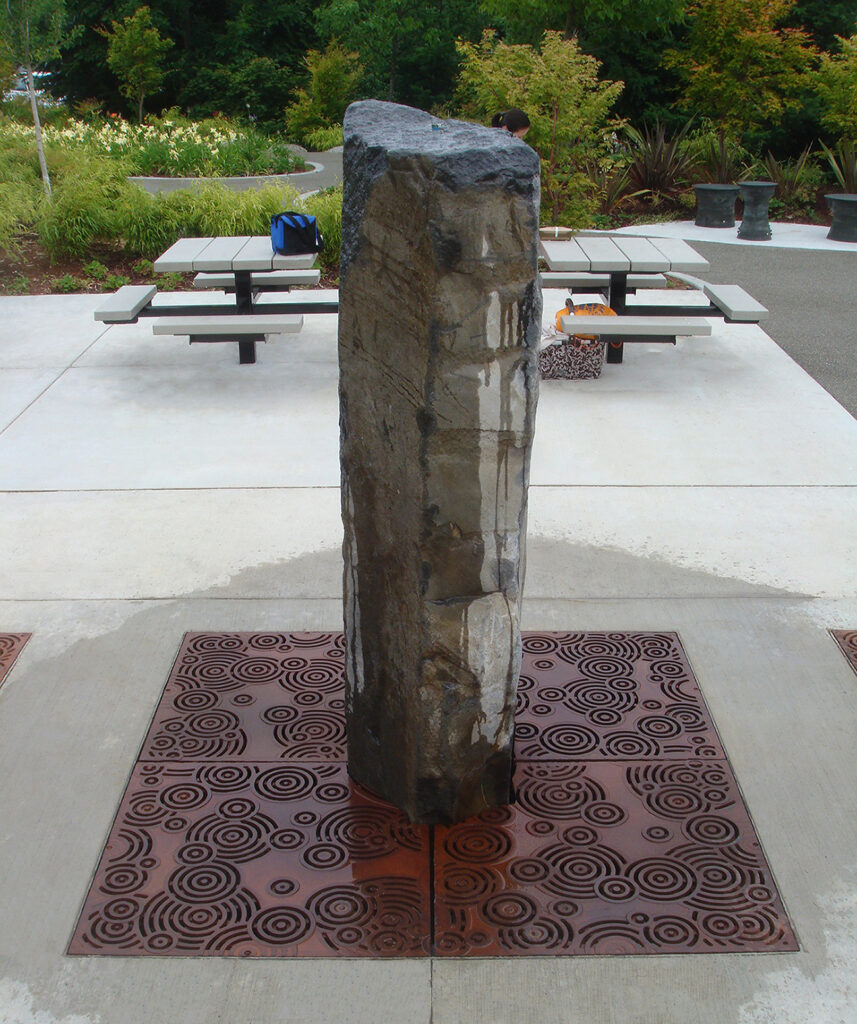

Oblio 6′ sq. tree grate. DESIGN: Richard Vandemark, Landscape Architect, Inc. PROJECT: Crossroads Community Park. LOCATION: Bellevue, WA.

Download photo

Oblio 6′ sq. tree grate. DESIGN: Richard Vandemark, Landscape Architect, Inc. PROJECT: Crossroads Community Park. LOCATION: Bellevue, WA.

Download photo

Oblio 6′ sq. tree grate, raw cast iron.

Download photo

Oblio 6′ sq. tree grate, raw cast iron. PROJECT: Kent Plaza. LOCATION: Kent, WA.

Download photo

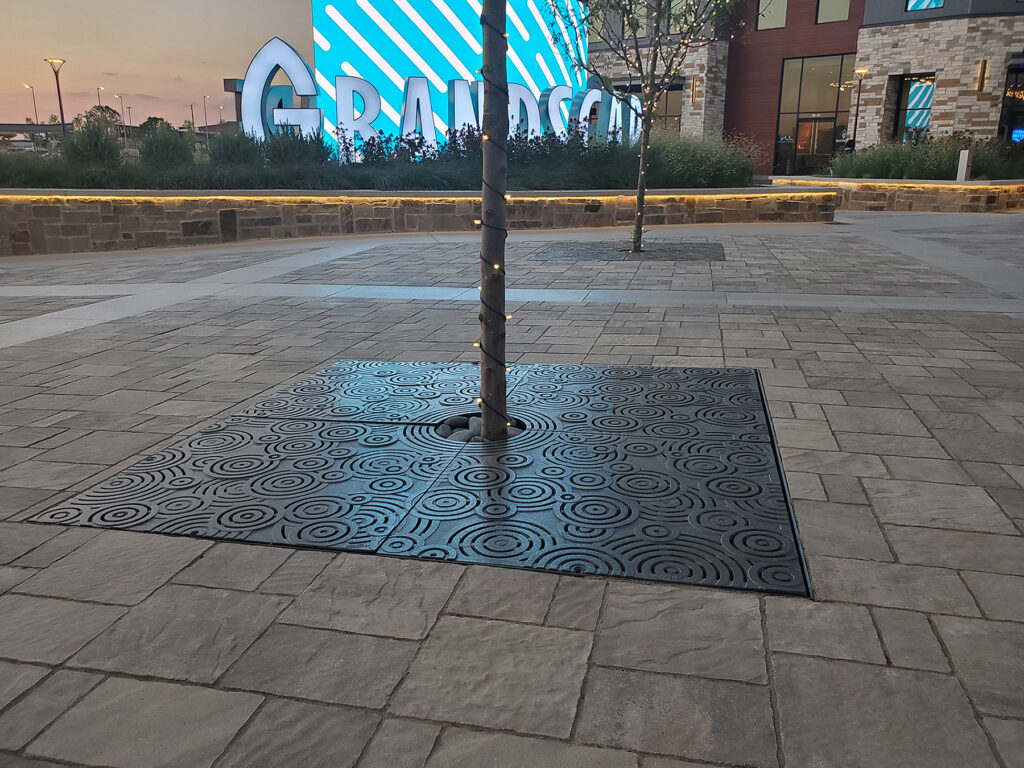

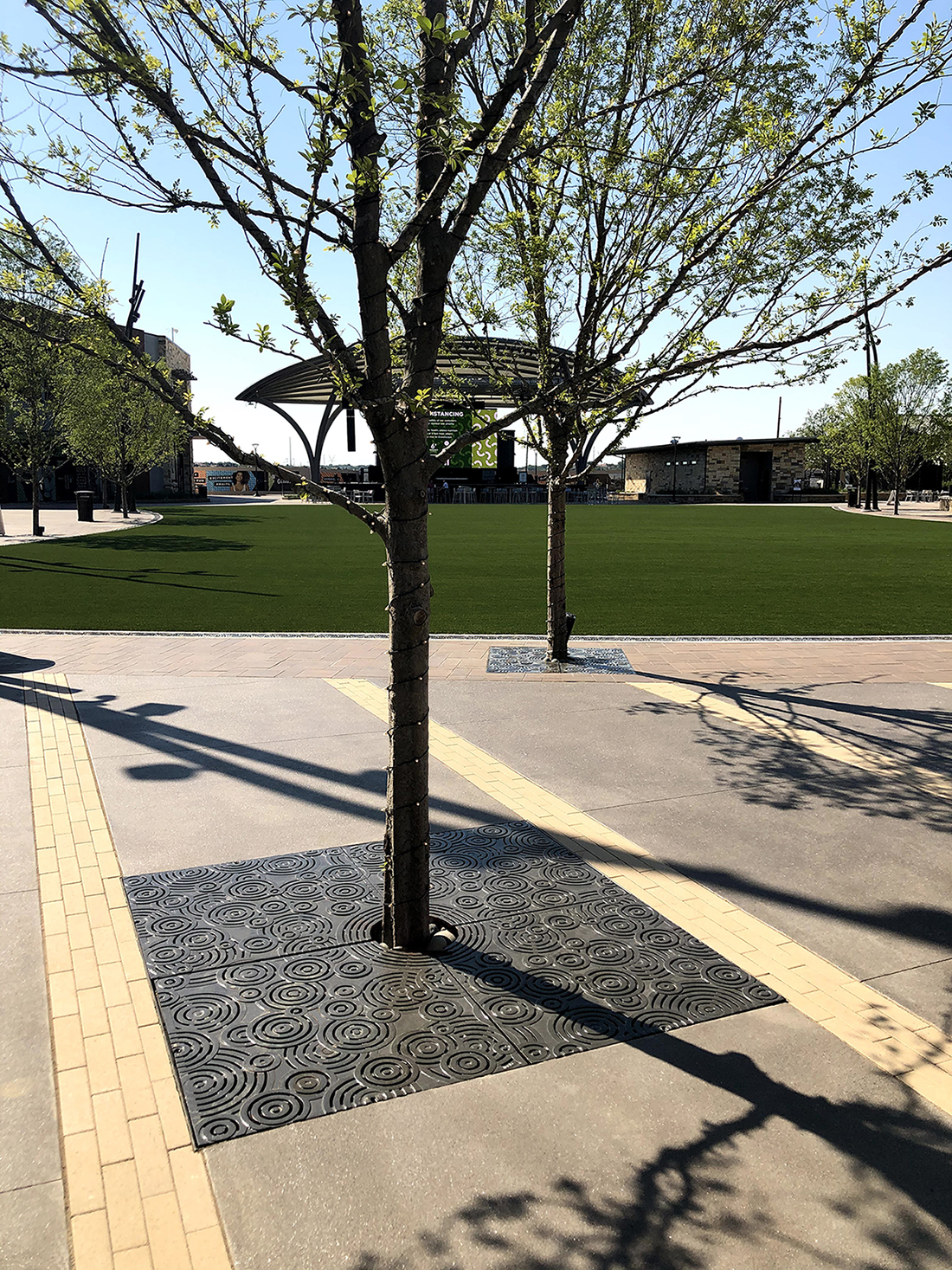

Oblio 6′ x 6′ heel-proof tree grate, cast iron with “antique bronze pearlescent” powder coat finish. DESIGN: The Olsson Studio. INSTALL: Superscapes. PROJECT: Grandscape. LOCATION: The Colony, TX.

Download photo

Oblio 6′ x 6′ heel-proof tree grate, cast iron with “antique bronze pearlescent” powder coat finish. DESIGN: The Olsson Studio. INSTALL: Superscapes. PROJECT: Grandscape. LOCATION: The Colony, TX.

Download photo
