Oblio

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Oblio 4" x 18" Heel Proof
Product ID	ON4-18I02HP
Dimensions	4.07" x 17.80" x .75"
Drain Manufacturer	NDS®
Fits	NDS® Spee-D® Channel
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	7.20
Free Drain Area	9.45%
Gallons Per Minute (GPM)	12.38
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-159-673

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Oblio 4" x 24" Heel Proof
Product ID	ON4-24D02HP
Dimensions	3.94" x 23.62" x .77"
Drain Manufacturer	NDS®
Fits	NDS® Spee-D® Channel
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	9
Free Drain Area	16.36%
Gallons Per Minute (GPM)	19.93
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 1-964-888

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Oblio 5" x 20"
Product ID	OA5-20I21
Dimensions	4.81" x 19.56" x .81"
Drain Manufacturer	ABT® ACO™ MEA®
Fits	ABT® PolyDrain® ACO™ K100, K100S, KS100 MEA® 1000 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	12
Free Drain Area	19.22%
Gallons Per Minute (GPM)	23.71
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-007-106

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Oblio 5" x 20" Heel Proof
Product ID	OA5-20I21HP
Dimensions	4.81" x 19.56" x .81"
Drain Manufacturer	ABT® ACO™ MEA®
Fits	ABT® PolyDrain® ACO™ K100, K100S, KS100 MEA® 1000 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	12.22
Free Drain Area	9.68%
Gallons Per Minute (GPM)	11.94
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-159-670

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Oblio 5.38" x 20"
Product ID	OZ5-20I32
Dimensions	5.38" x 19.81" x .81"
Drain Manufacturer	Zurn®
Fits	Zurn® Z806 Zurn® Z886
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	10
Free Drain Area	18%
Gallons Per Minute (GPM)	25.12
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	Pending

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

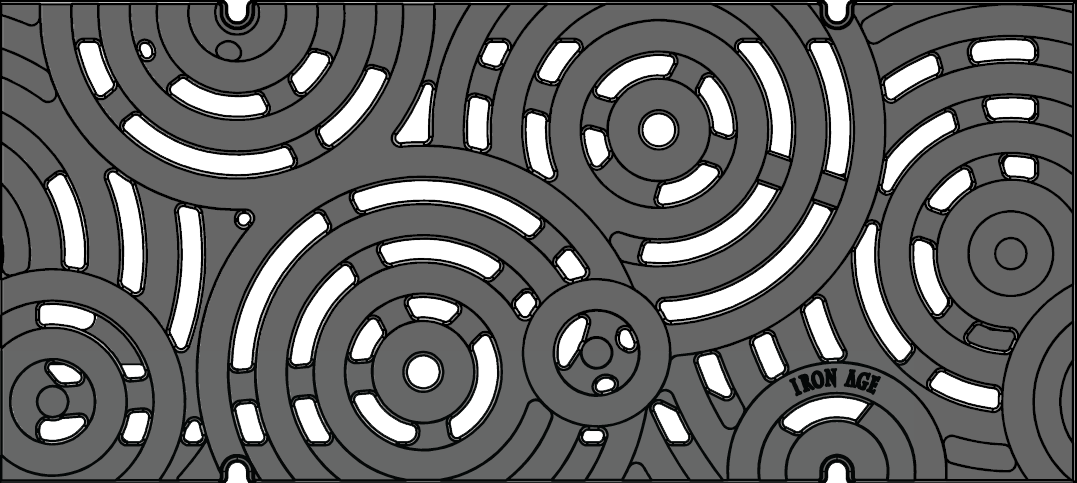

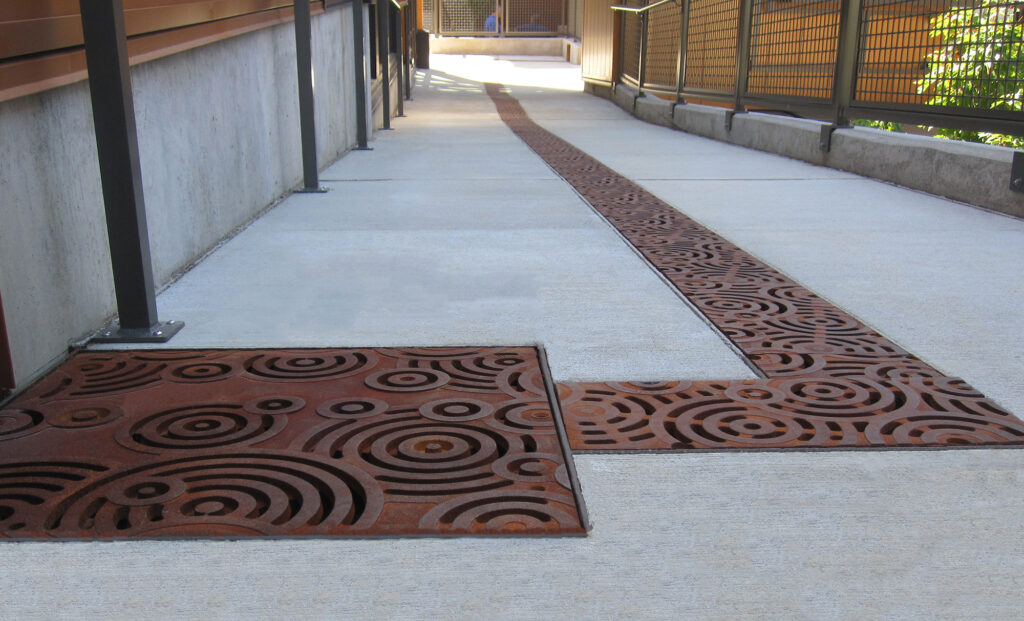

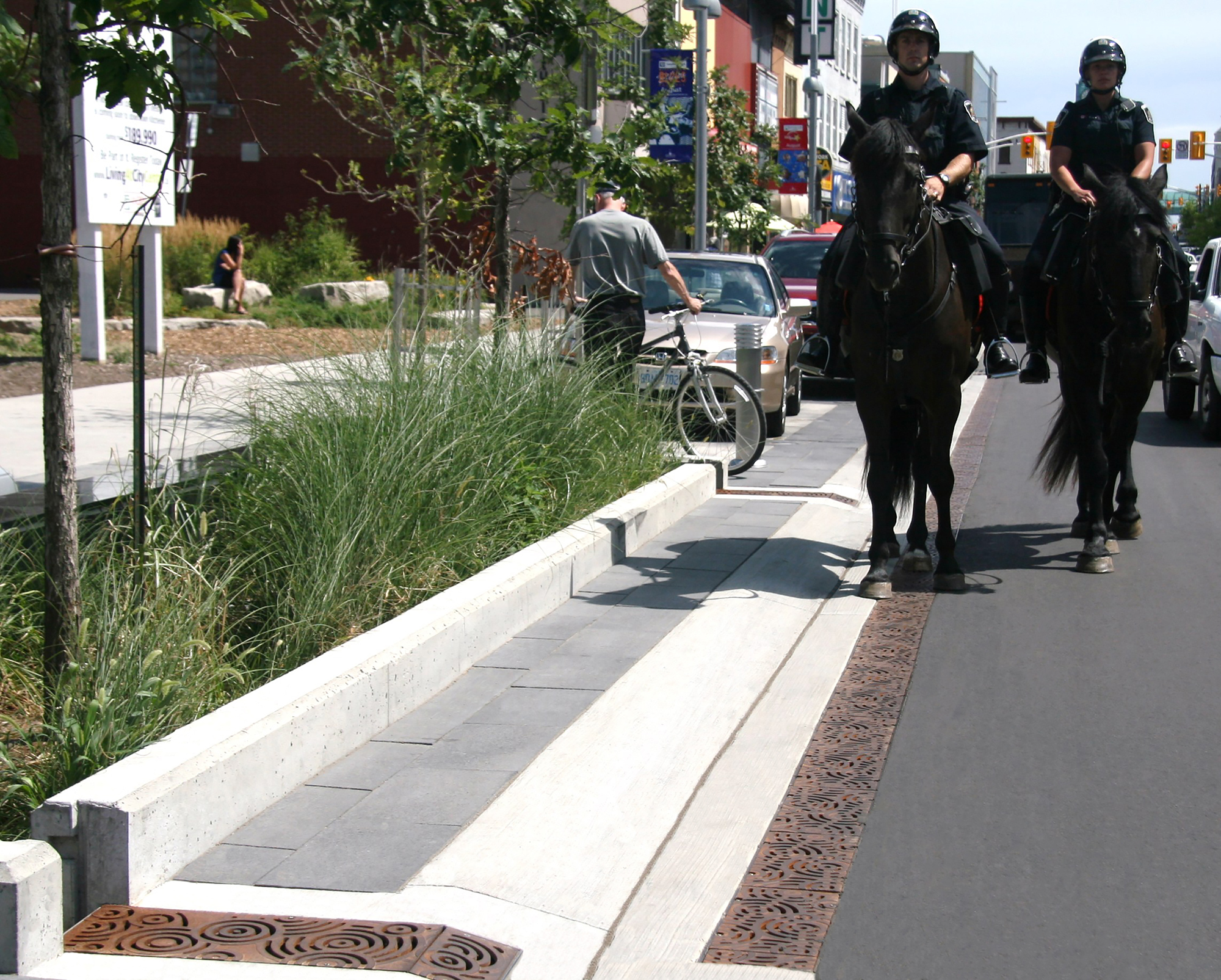

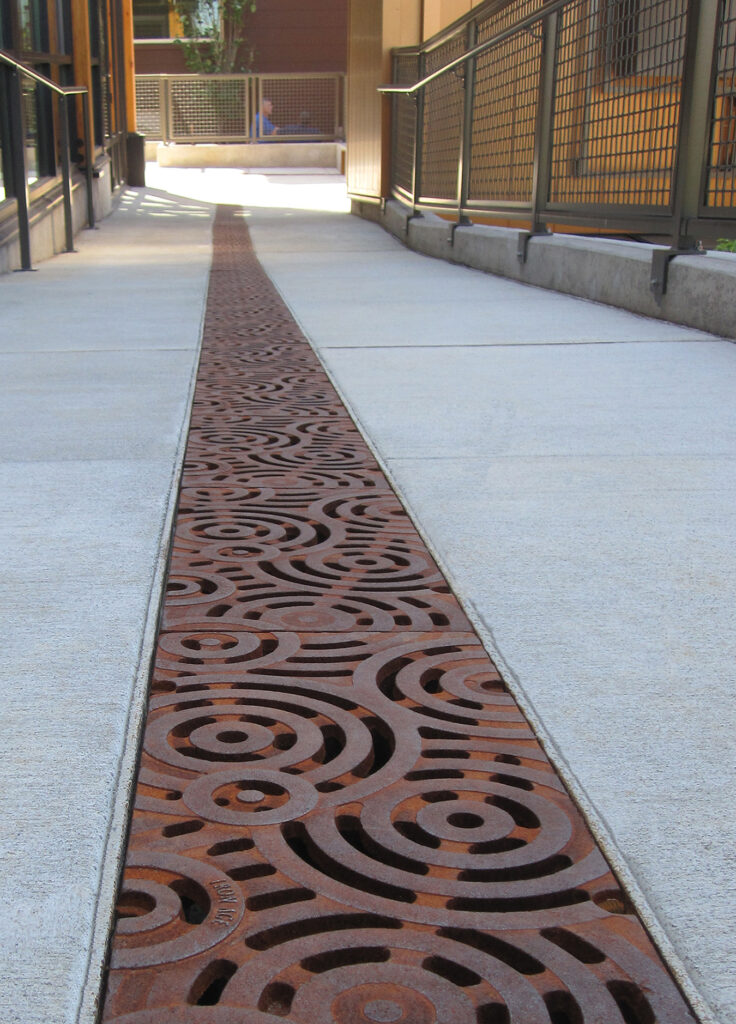

Name / Design	Oblio 9" x 20" FITS MEA
Product ID	OM9-20I22
Dimensions	8.78" x 19.61" x .79"
Drain Manufacturer	MEA®
Fits	MEA® EN2000
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	28.08
Free Drain Area	16.25%
Gallons Per Minute (GPM)	36.65
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 1-814-273

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Oblio 9" x 20"
Product ID	OX9-20I99
Dimensions	8.88" x 19.63" x .75"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	14.36
Free Drain Area	19.68%
Gallons Per Minute (GPM)	44.90
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-330-018

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

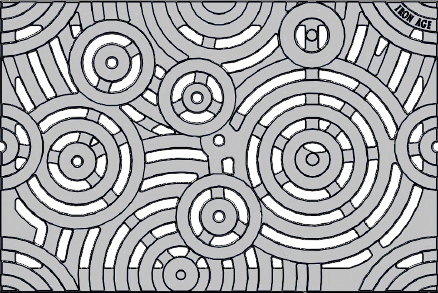

Name / Design	Oblio 12" x 18"
Product ID	OX12-18I99
Dimensions	11.87" x 17.88" x 1"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	23
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 1-964-354

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Oblio 12" x 24" Heel Proof
Product ID	OX12-24I99HP
Dimensions	11.88" x 23.88" x 1.00"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	27.45
Free Drain Area	9.87%
Gallons Per Minute (GPM)	36.65
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-330-311

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

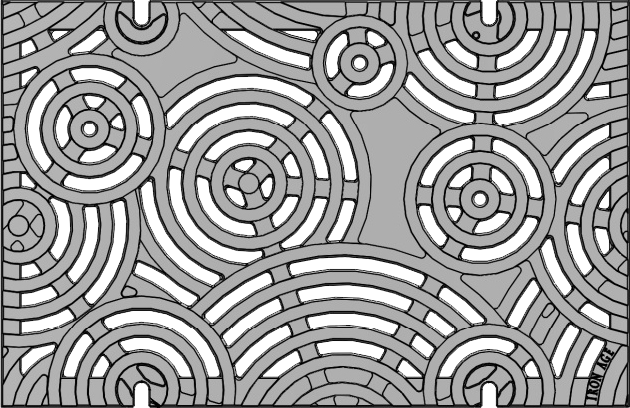

Name / Design	Oblio 13" x 20"
Product ID	OM13-20I25
Dimensions	12.72" x 19.59" x .87"
Drain Manufacturer	MEA®
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	47
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	Pending

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

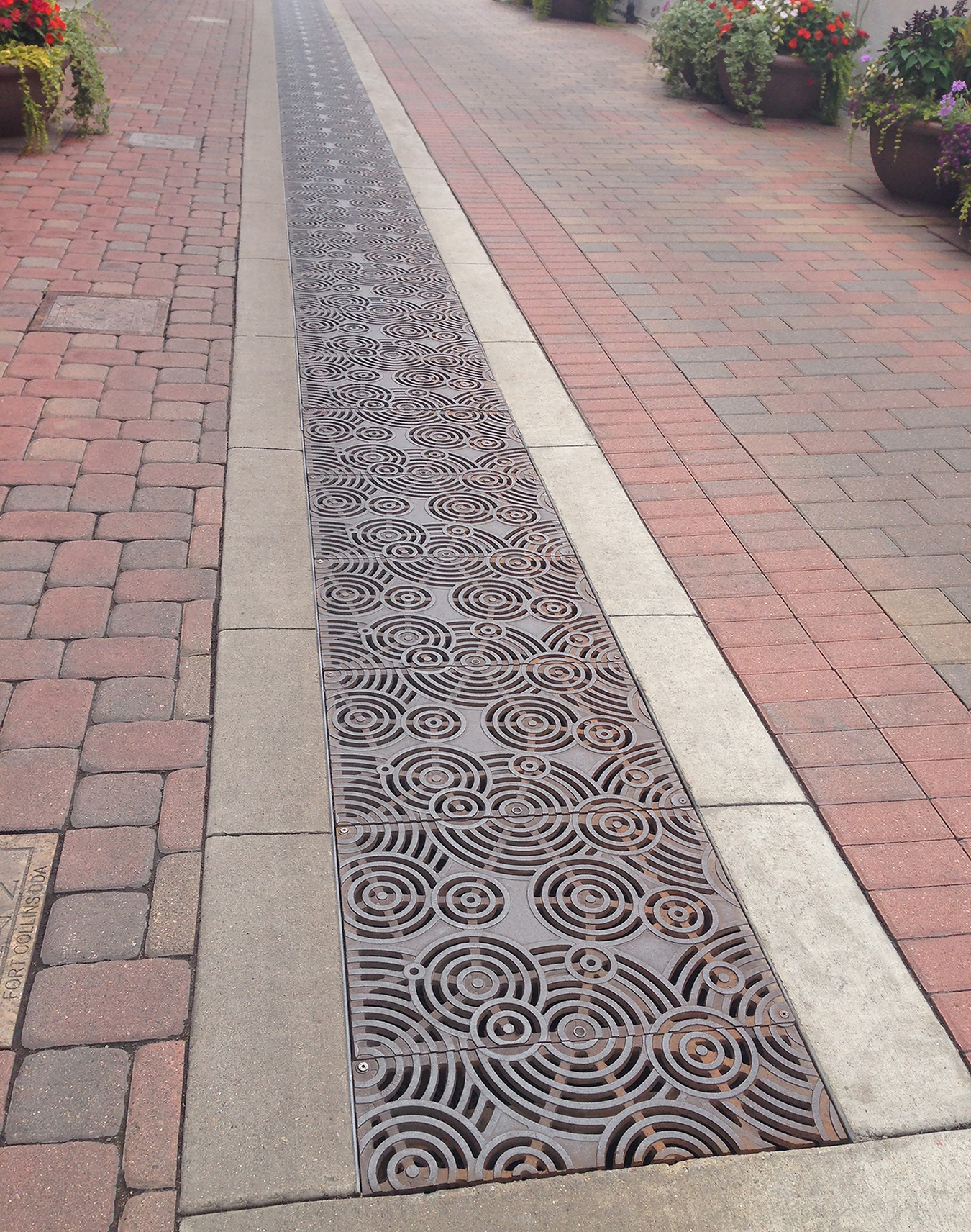

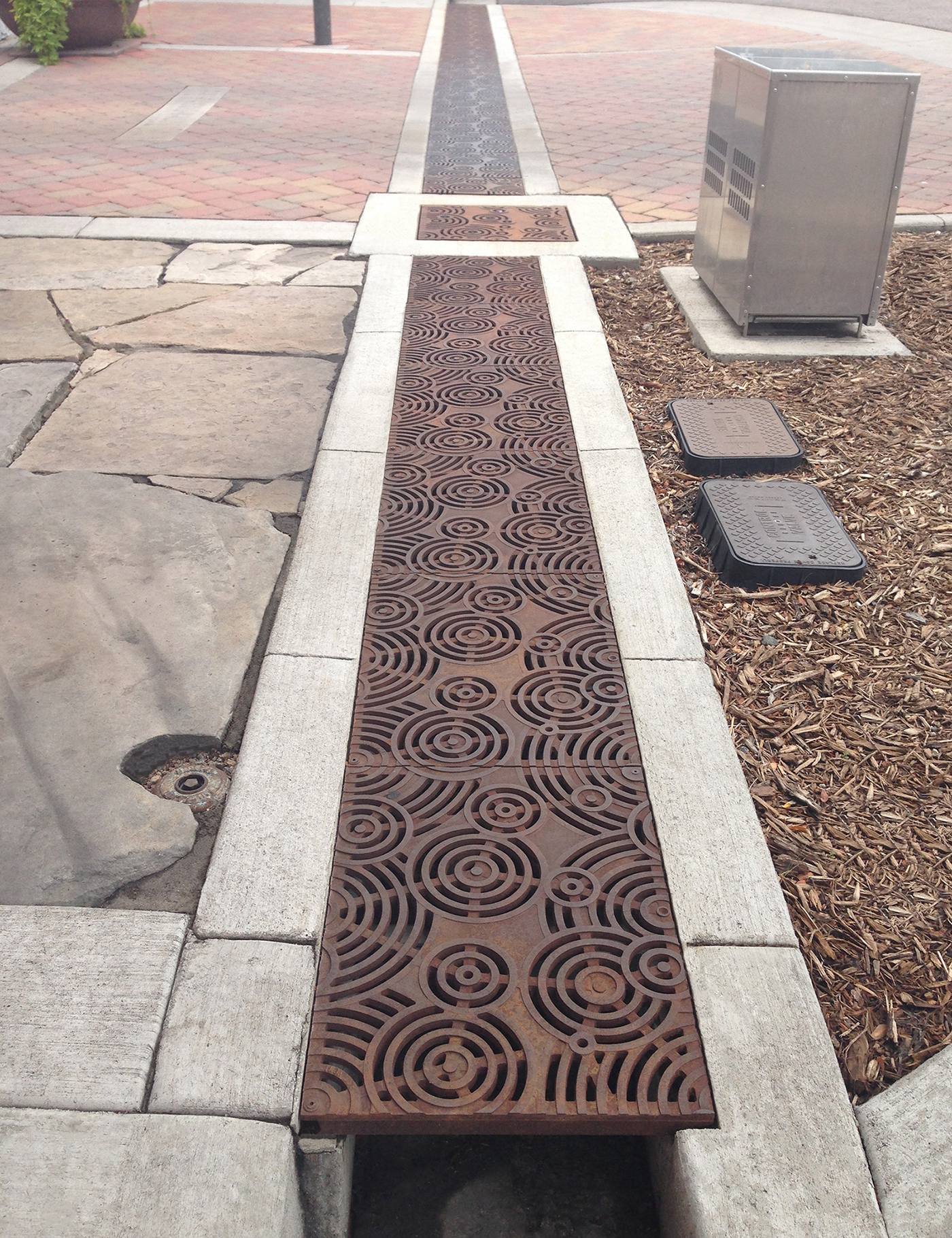

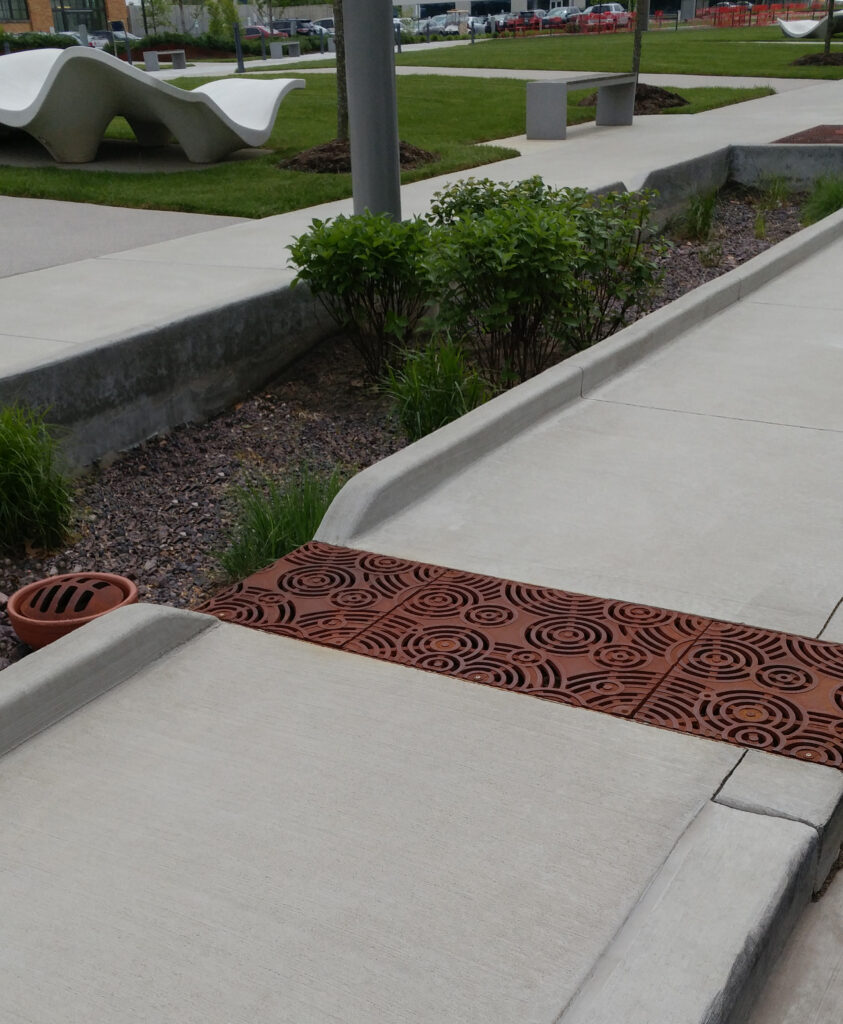

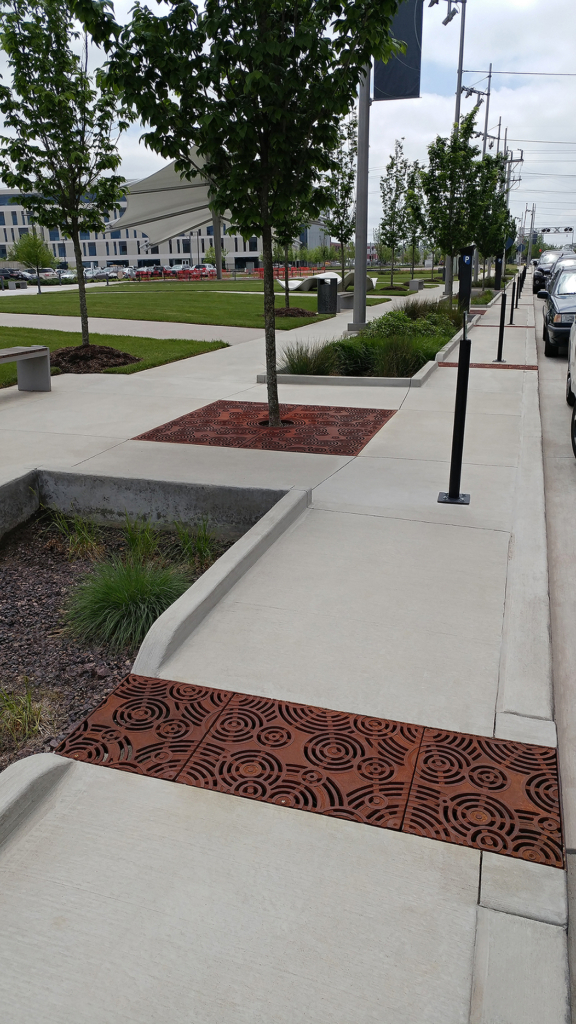

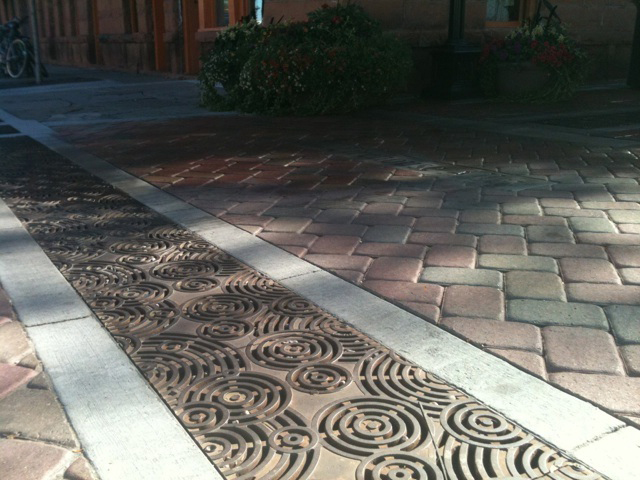

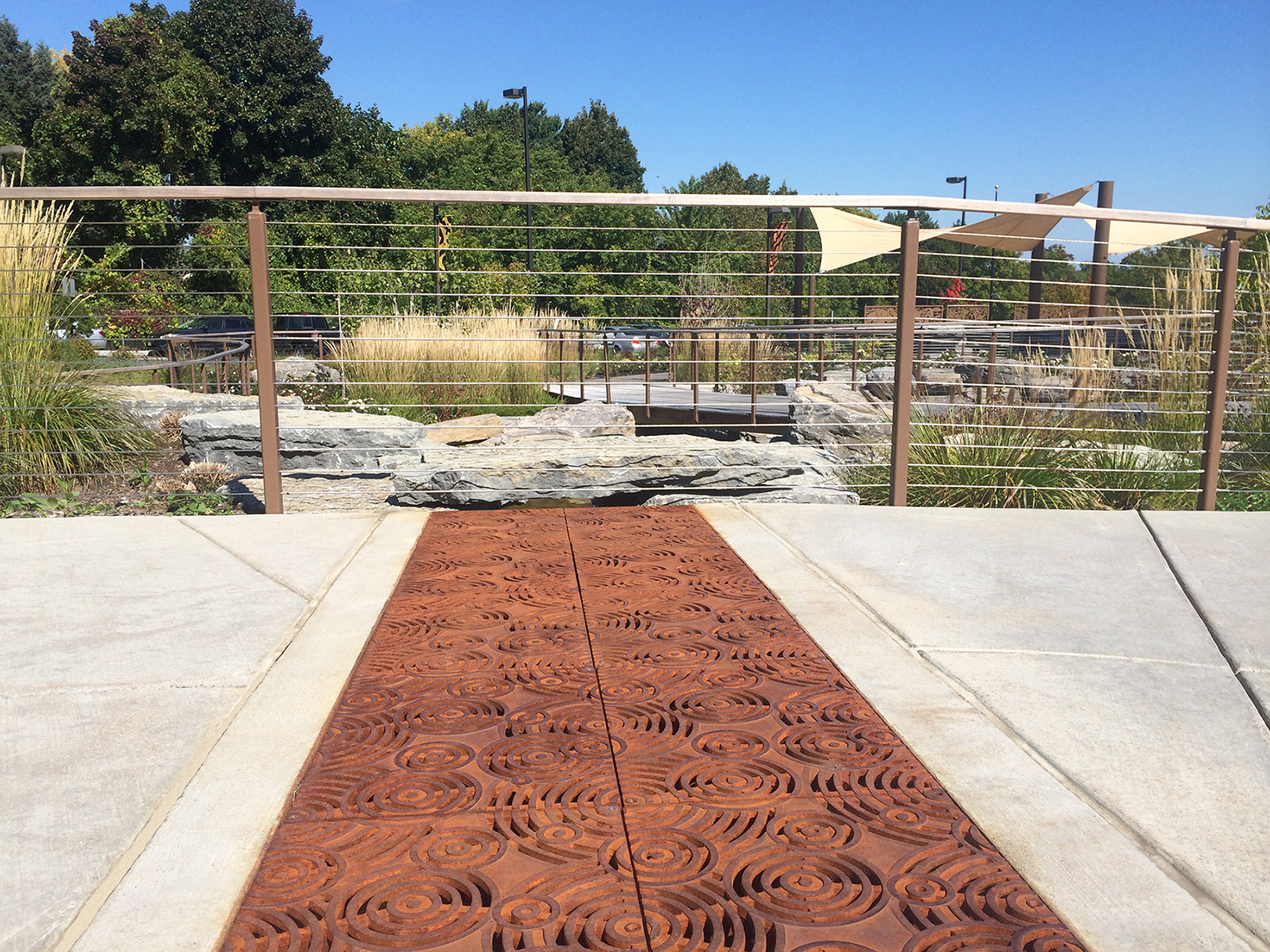

Name / Design	Oblio 18" x 24"
Product ID	OX18-24I61
Dimensions	17.81" x 23.81" x 1.5"
Drain Manufacturer	Type 1 Catch Basin
Fits	Type 1 Catch Basin - EJ™ 7700 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	67
Free Drain Area	23%
Gallons Per Minute (GPM)	130.16
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	Pending

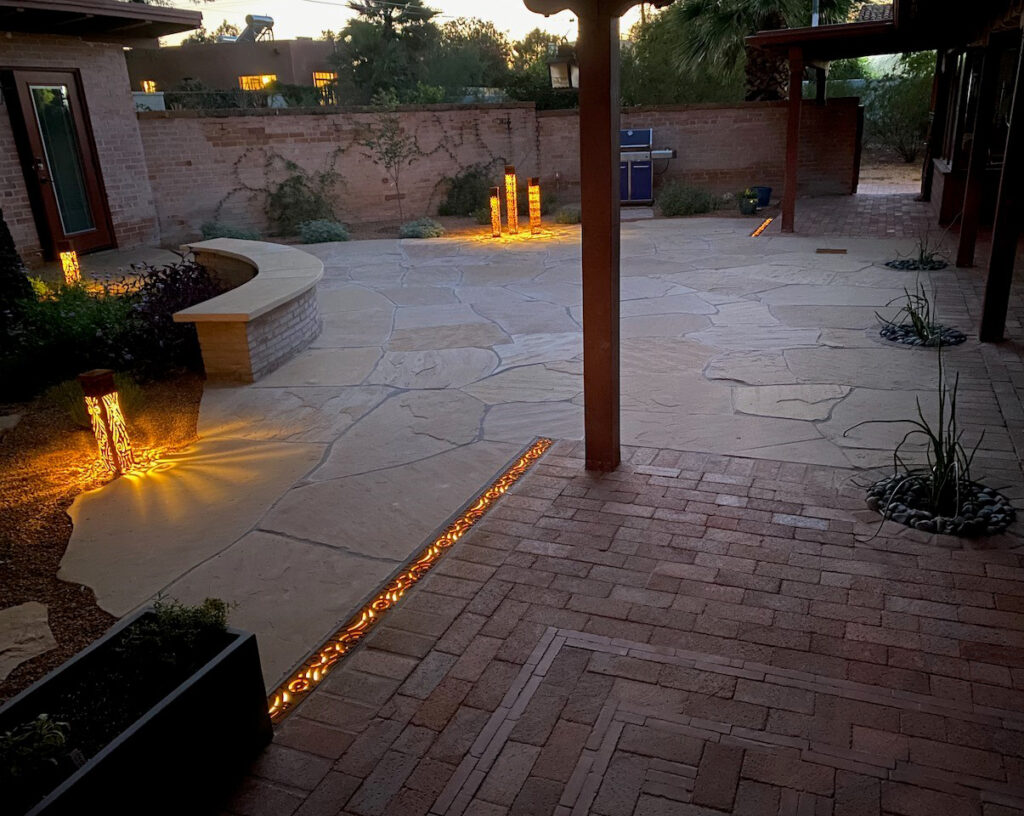

Decorative cast iron trench grate lit from below with LED lighting

Oblio 4″ x 18″ heel-proof trench grate, raw cast ductile iron. PHOTO CREDIT: Homeowner David Thompson sent us this photo showing his installation of waterproof low-voltage LED strips under the grates.

Download photo

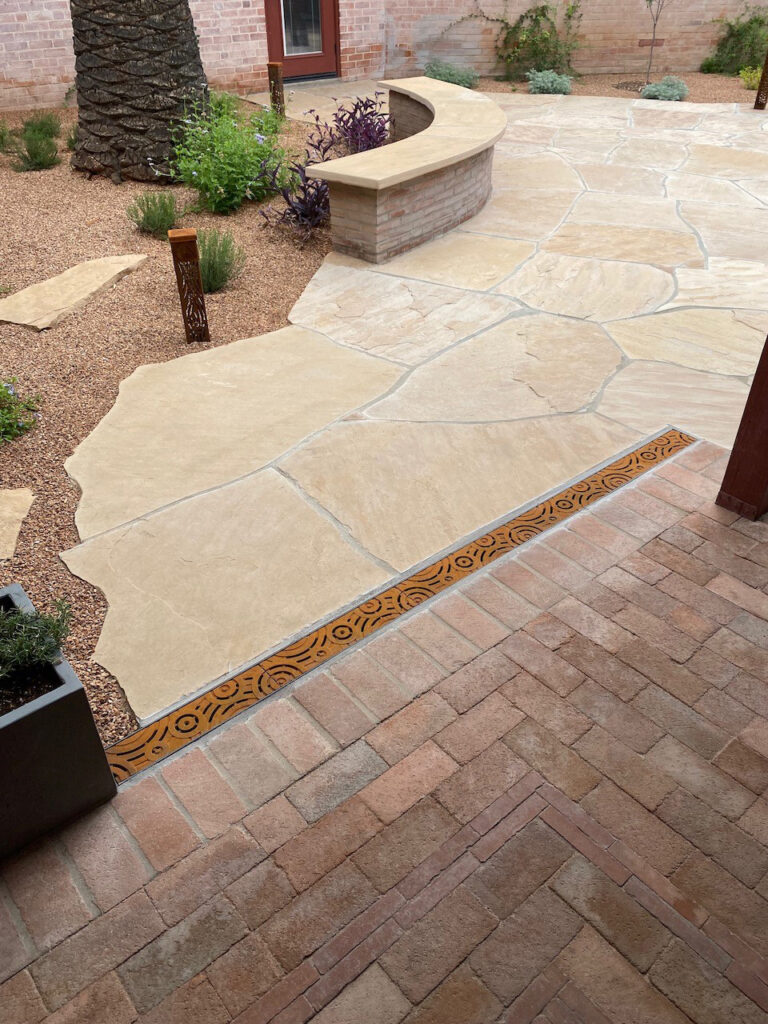

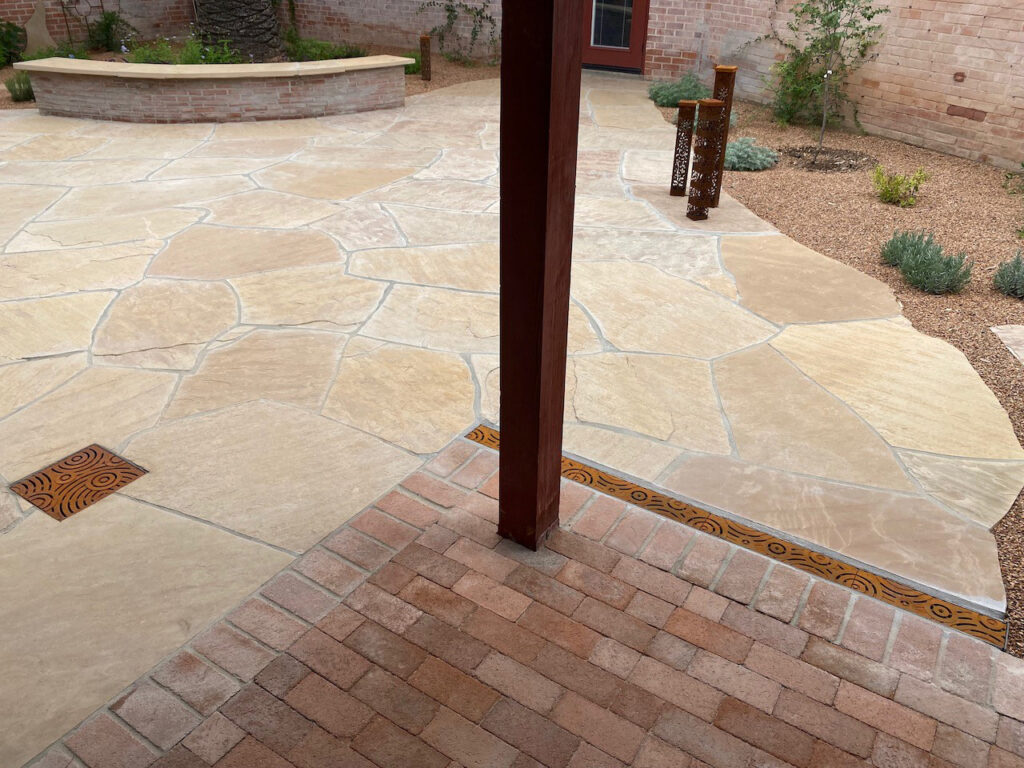

Decorative cast iron trench grate installed in paver patio

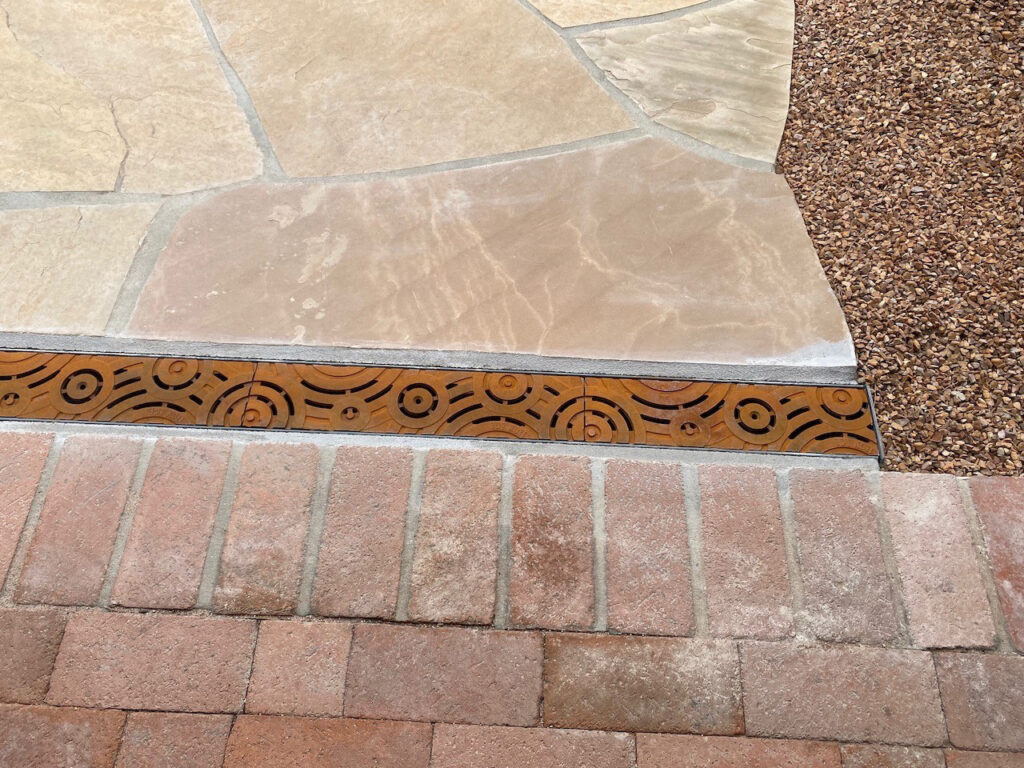

Oblio 4″ x 18″ heel-proof trench grate, raw cast ductile iron. PHOTO CREDIT: Homeowner David Thompson.

Download photo

Oblio 4″ x 18″ heel-proof trench grate, raw cast ductile iron. PHOTO CREDIT: Homeowner David Thompson.

Download photo

Oblio 4″ x 18″ heel-proof trench grate, raw cast ductile iron. PHOTO CREDIT: Homeowner David Thompson.

Download photo

Oblio 4″ x 24″ heel-proof trench grate, raw cast aluminum.

Download photo

Oblio 4″ x 24″ heel-proof trench grate, raw cast iron with baked-on-oil finish.

Download photo

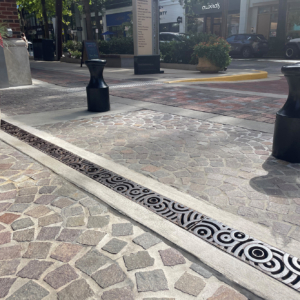

Cast iron trench grate in decorative Oblio pattern by Iron Age Designs. Streetscape installation.

Oblio 5″ x 20″ trench grate, raw cast iron, shown 7 years after installation. In areas like this with significant foot traffic, the high points of the pattern become “burnished”, providing a pleasing contrast to the more recessed areas of the grate. LOCATION: Bethesda, MD.

Download photo

Cast iron trench grates in Oblio pattern which suggests circular ripples on water

Oblio 5″ x 20″ trench grate, raw cast ductile iron. PROJECT/LOCATION: Assembly Row, Somerville, MA.

Download photo

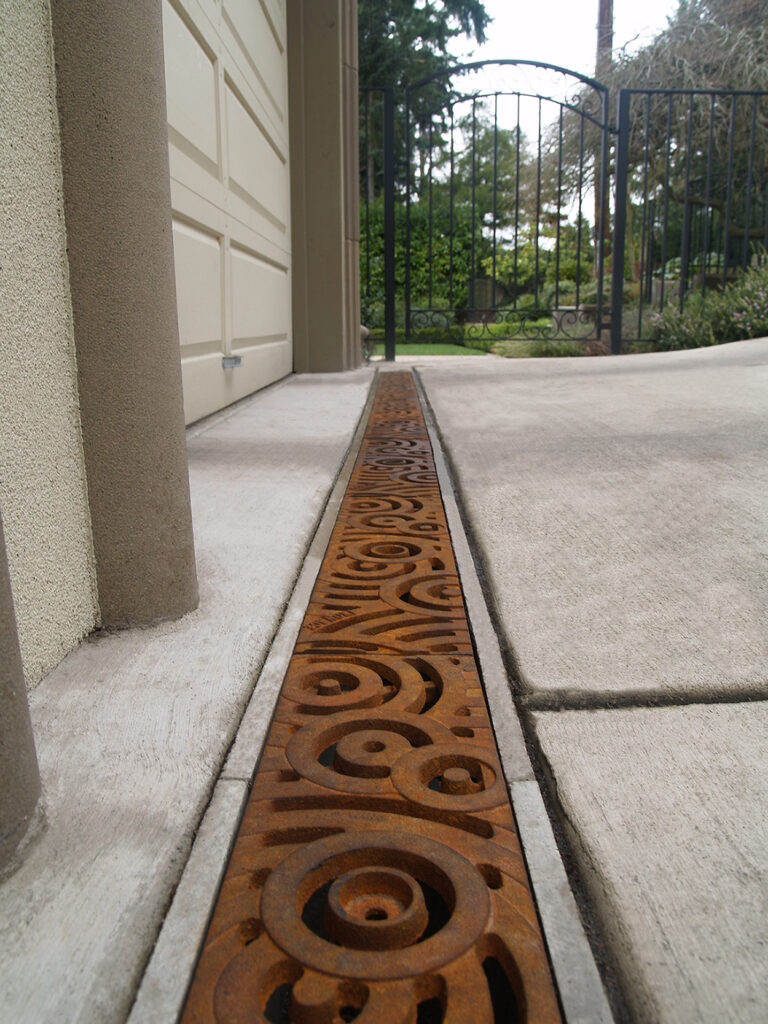

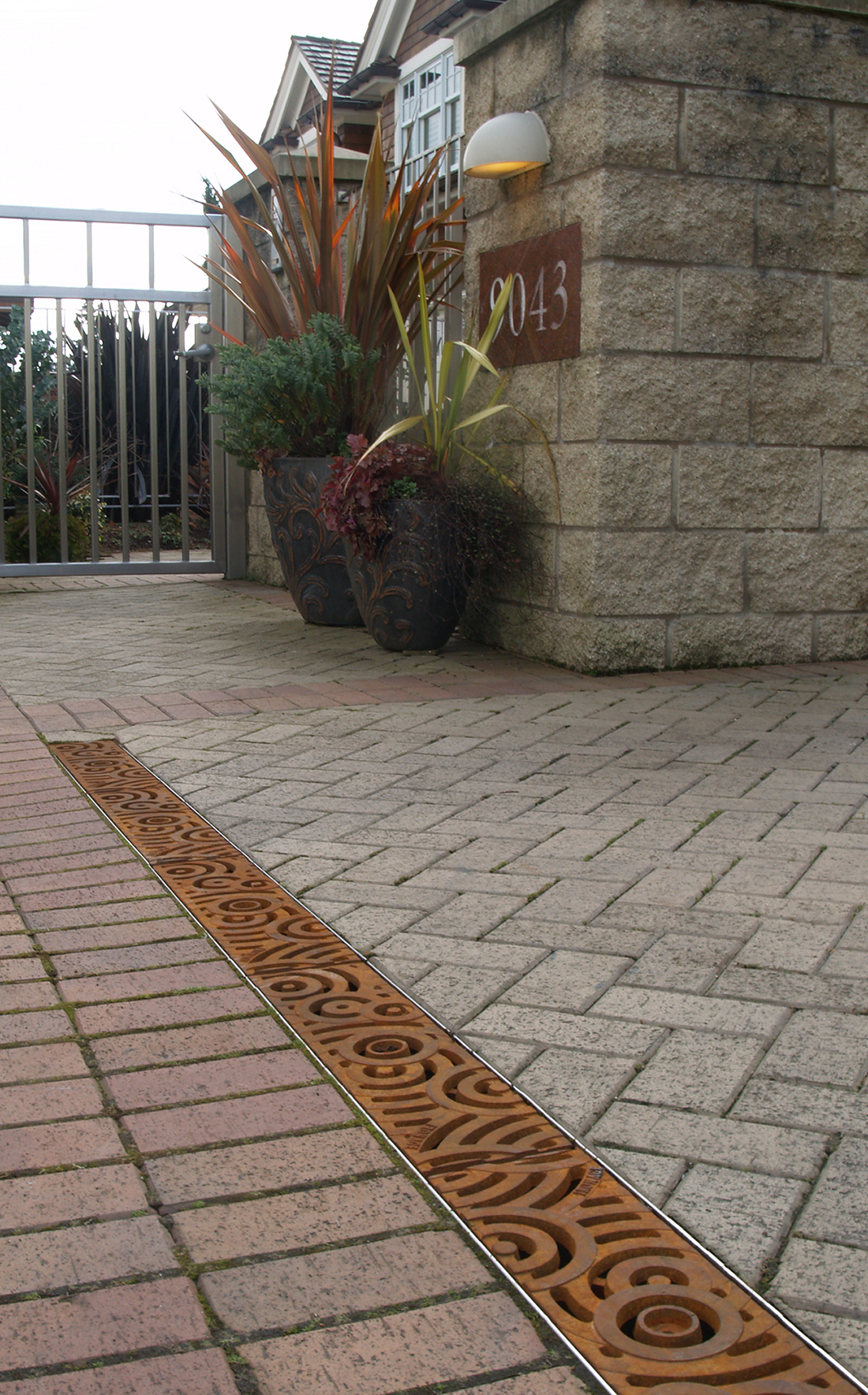

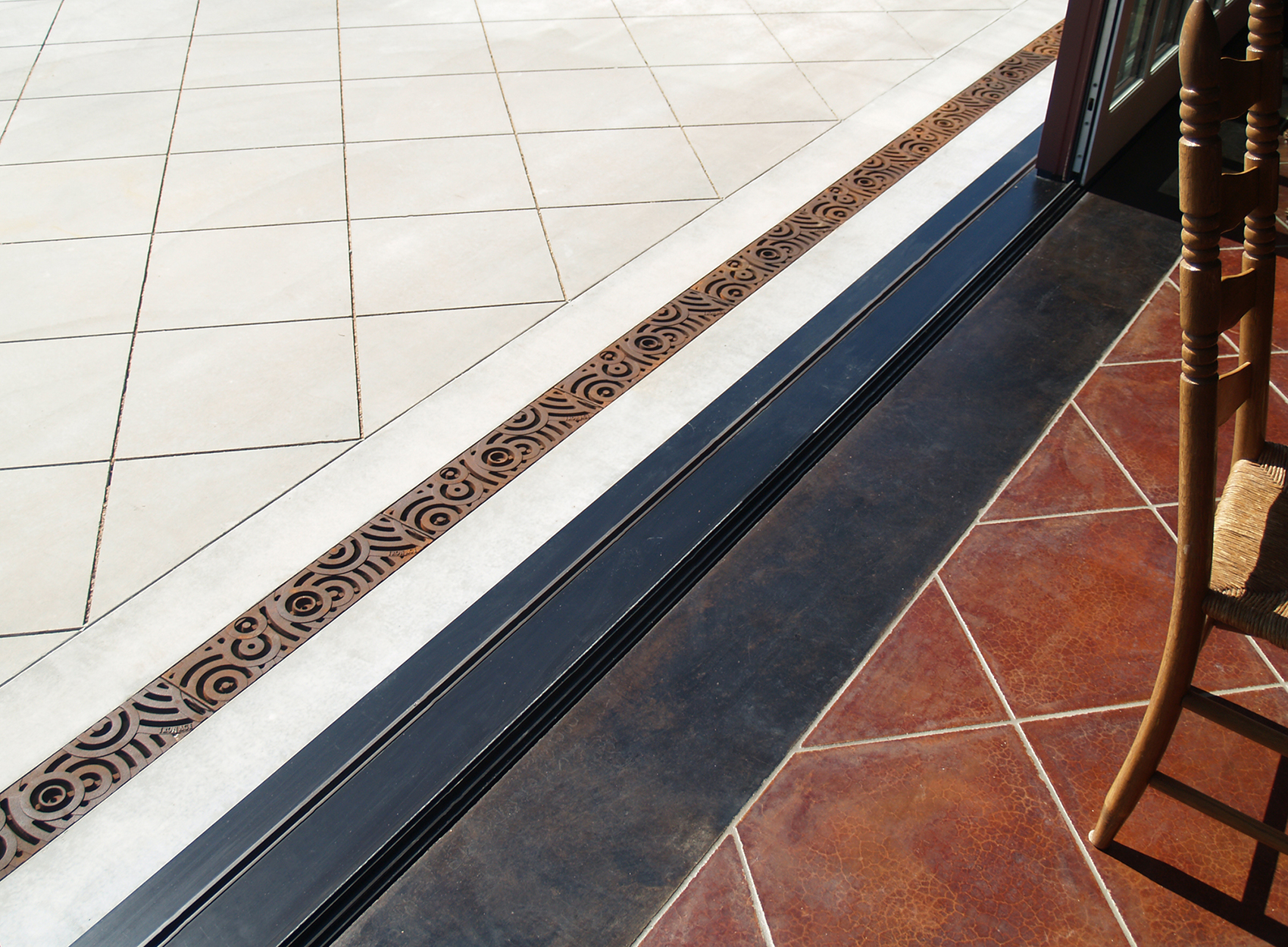

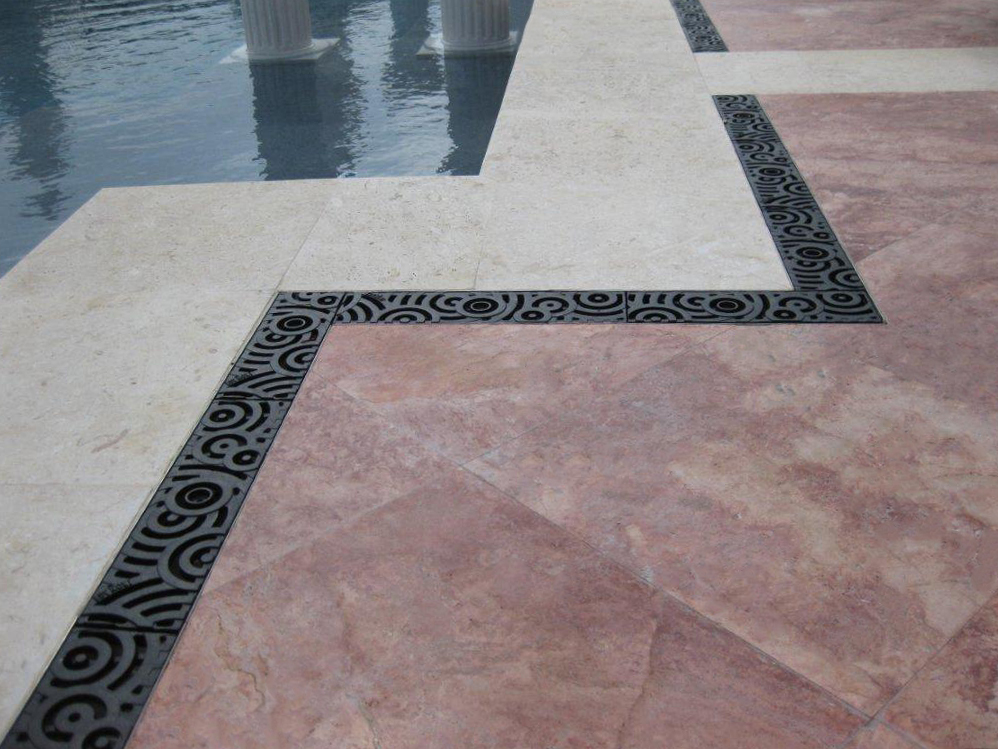

Oblio 5″ x 20″ trench grate, raw cast ductile iron.

Download photo

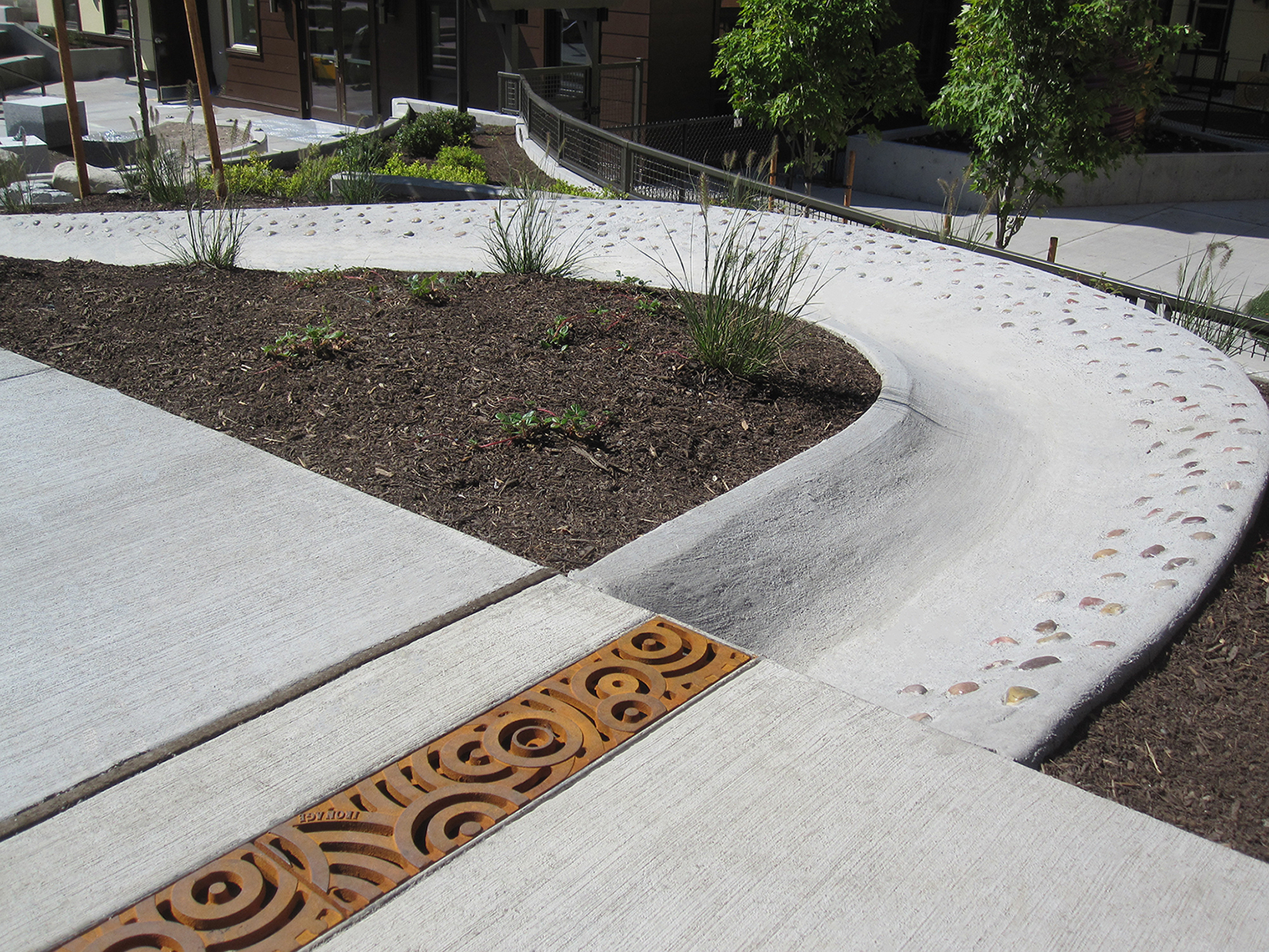

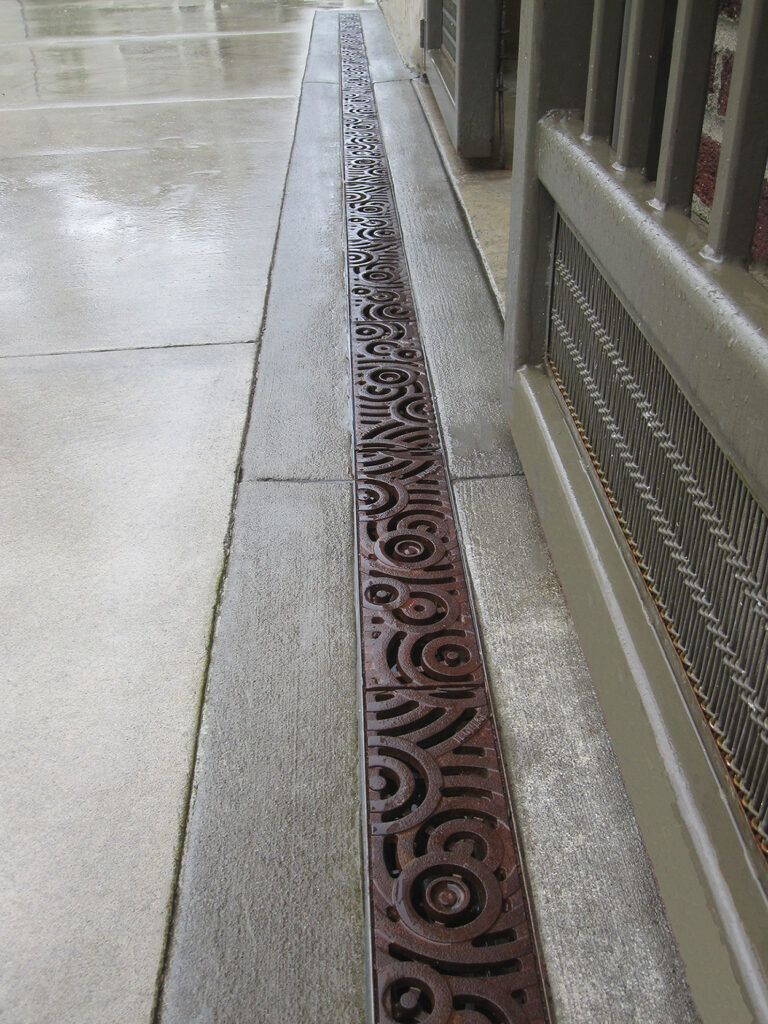

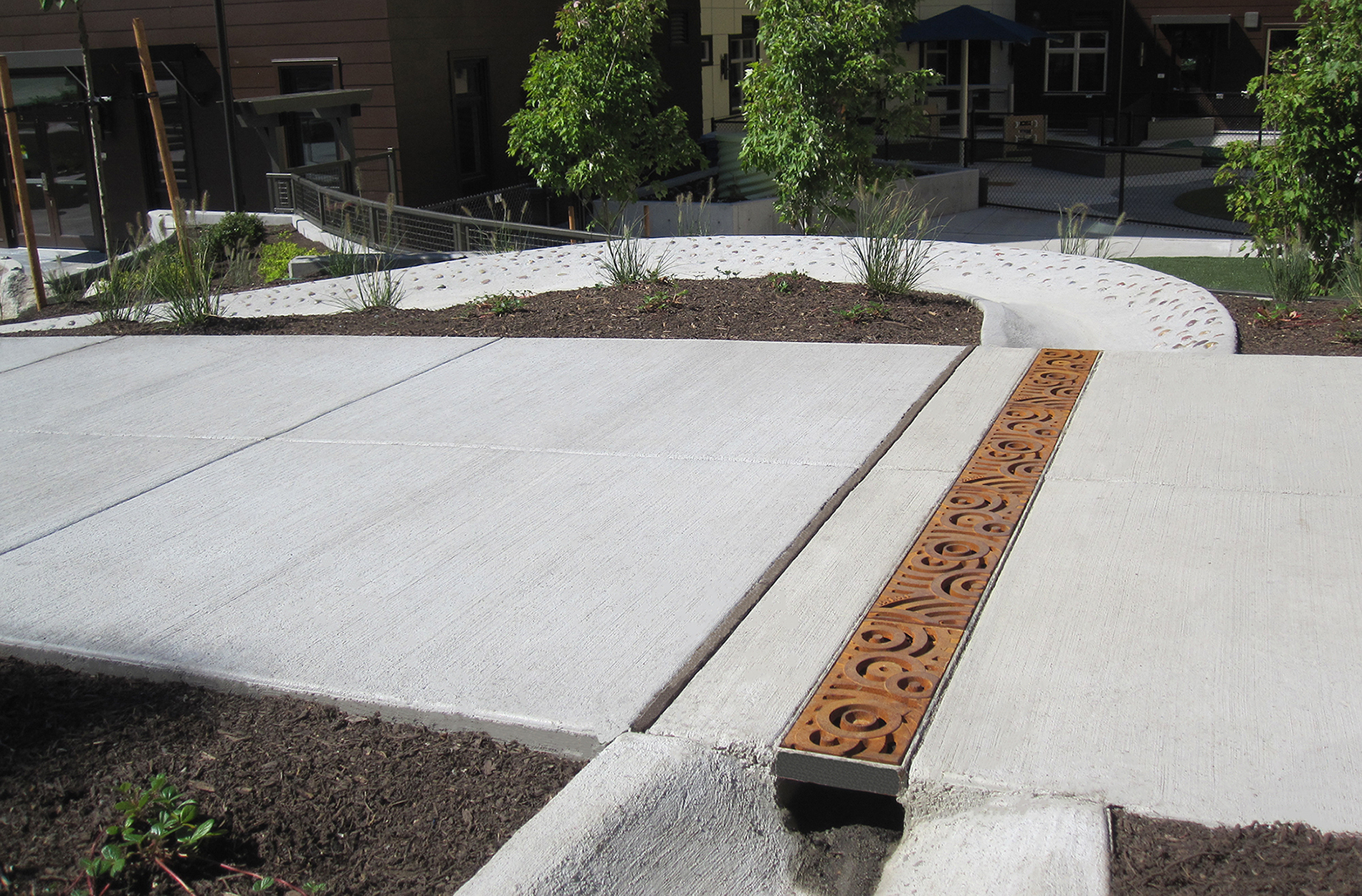

Oblio 5″ x 20″ trench grate, raw cast ductile iron. Project Location: Seattle, WA.

Download photo

Oblio 5″ x 20″ trench grate, raw cast ductile iron. Project Location: Seattle, WA.

Download photo

Oblio 5″ x 20″ trench grate, raw cast ductile iron.

Download photo

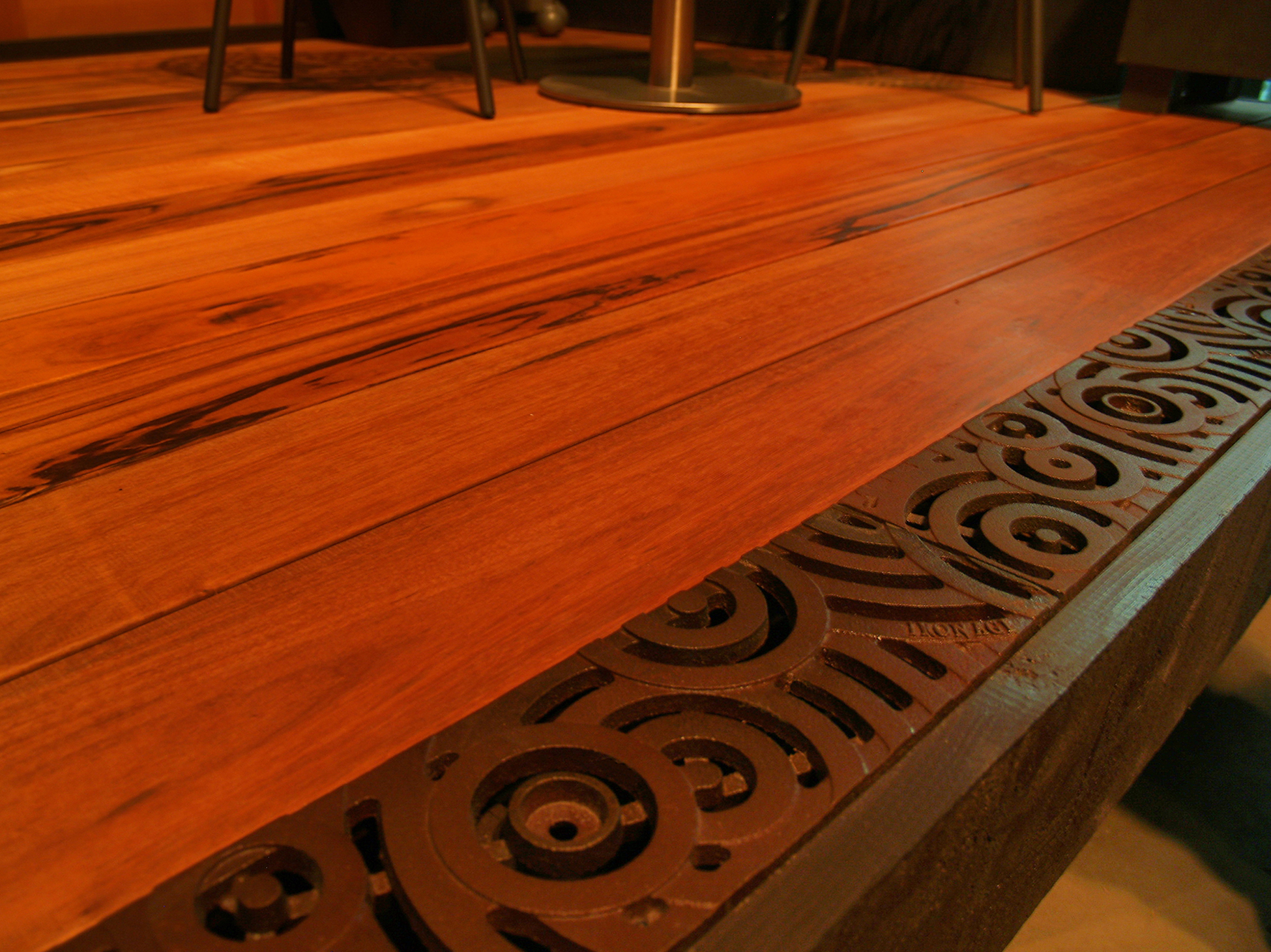

Oblio 5″ x 20″ trench grate, raw cast ductile iron.

Download photo

Oblio 5″ x 20″ trench grate, raw cast ductile iron.

Download photo

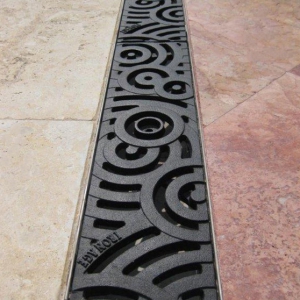

Oblio 5″ x 20″ trench grate, cast ductile iron with baked-on-oil finish.

Download photo

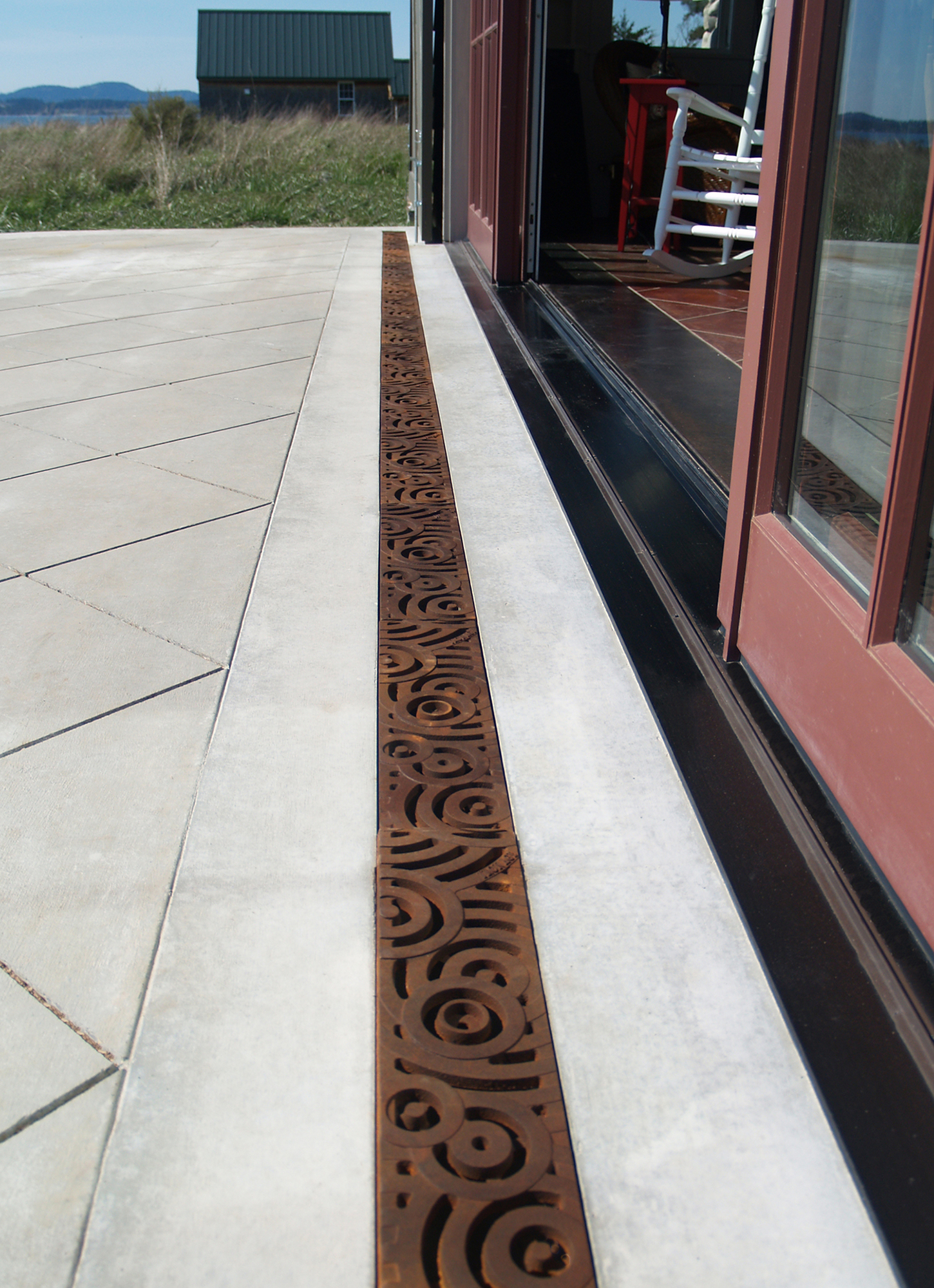

Oblio 5″ x 20″ trench grate, raw cast ductile iron. Project Location: Lopez Island, San Juan, WA.

Download photo

Oblio 5″ x 20″ trench grate, raw cast ductile iron. Project Location: Lopez Island, San Juan, WA.

Download photo

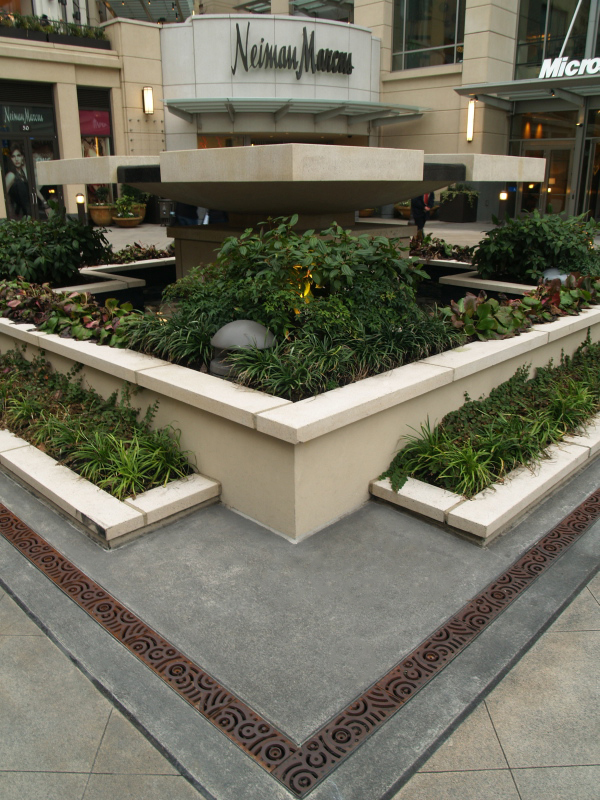

Oblio 5″ x 20″ trench grate, cast ductile iron with baked-on-oil finish. Project Location: Bravern Shopping Center, Bellevue, WA.

Download photo

Oblio 5″ x 20″ trench grate, cast ductile iron with black powder coat finish.

Download photo

Oblio 5″ x 20″ trench grate, cast ductile iron with black powder coat finish

Download photo

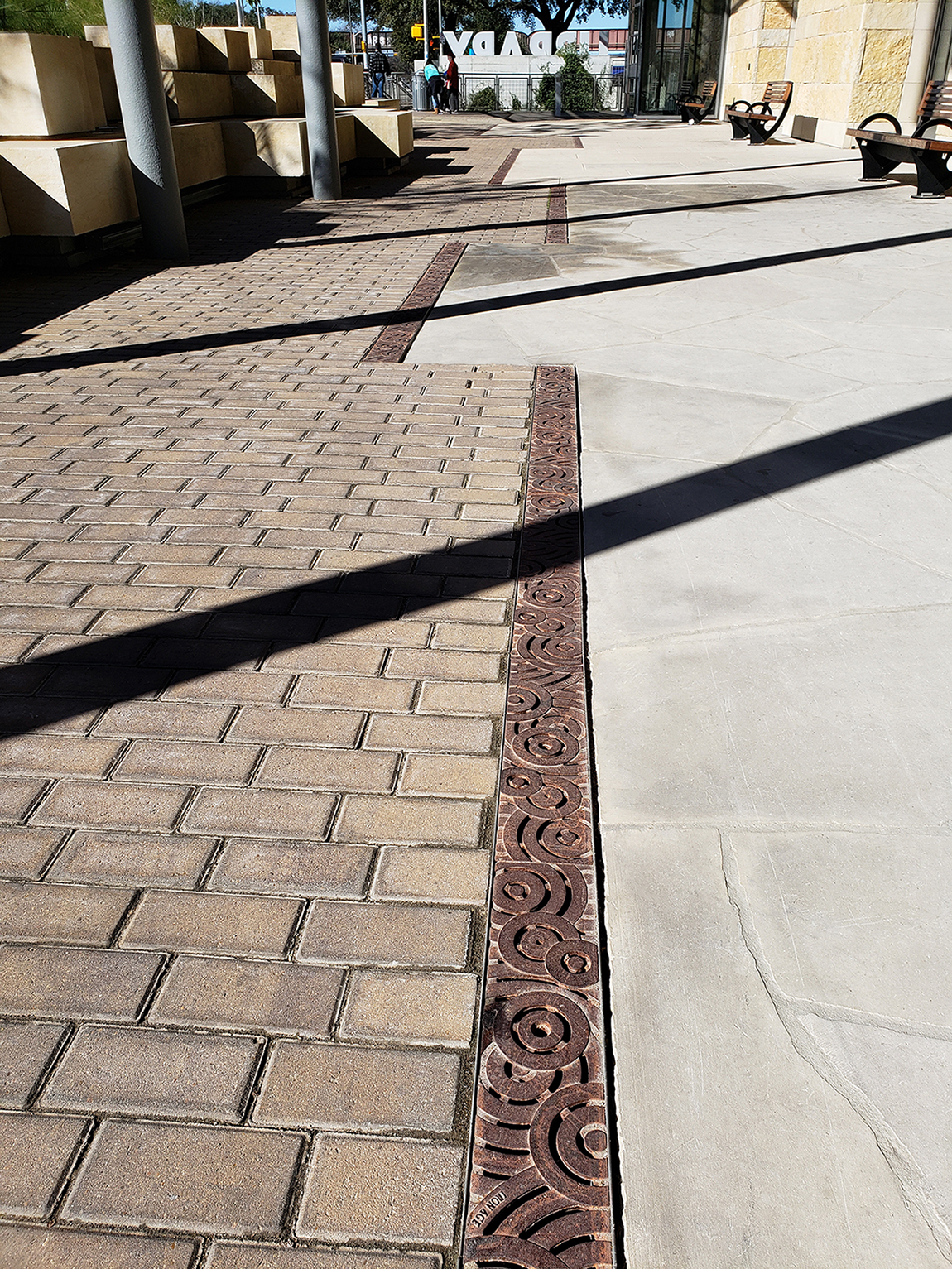

Oblio 5″ x 20″ heel-proof trench grate, raw cast ductile iron. Landscape Architect: Coleman & Associates. Project: Austin Central Library, Austin, TX.

Download photo

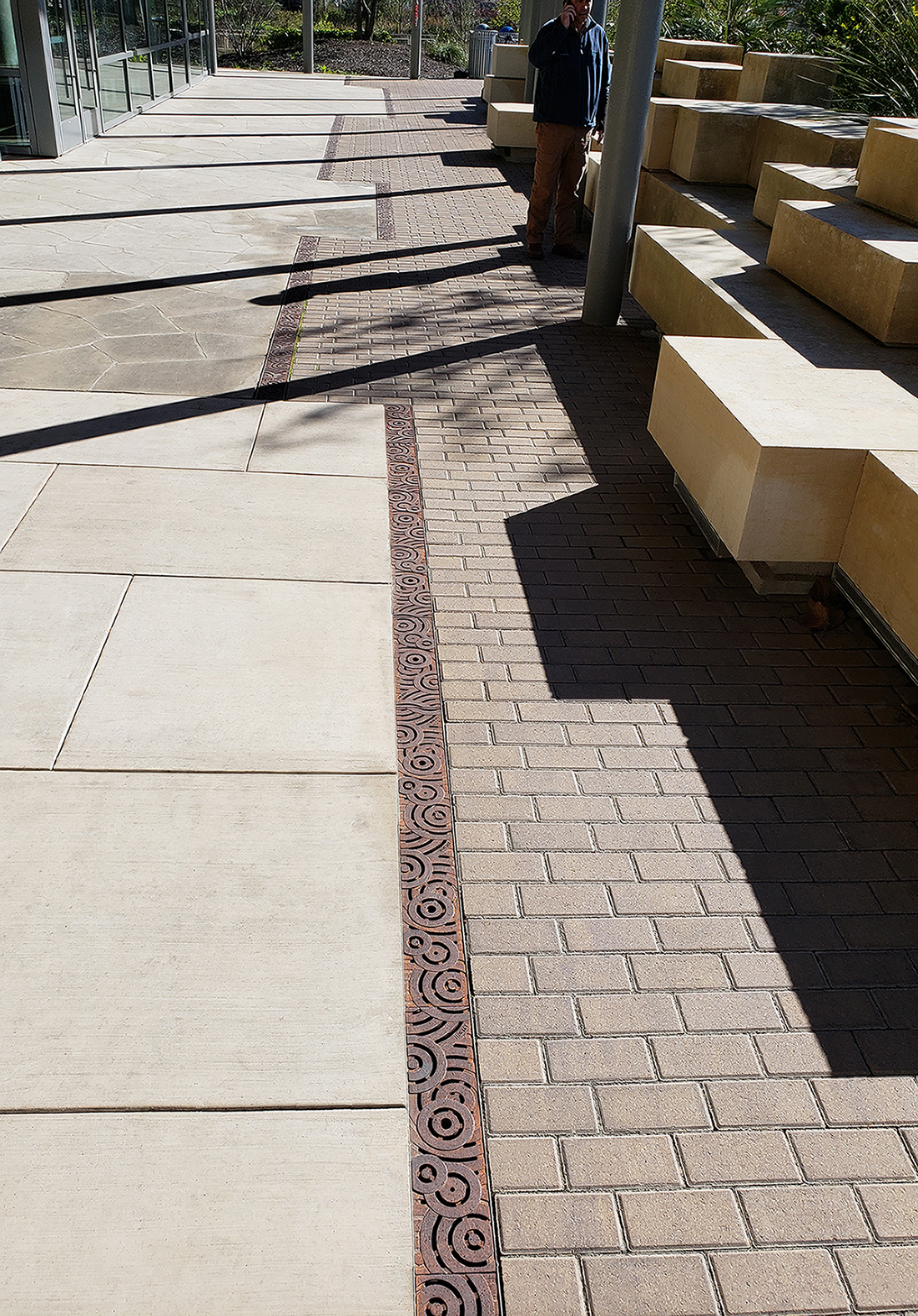

Oblio 5″ x 20″ heel-proof trench grate, raw cast ductile iron. Landscape Architect: Coleman & Associates. Project: Austin Central Library, Austin, TX.

Download photo

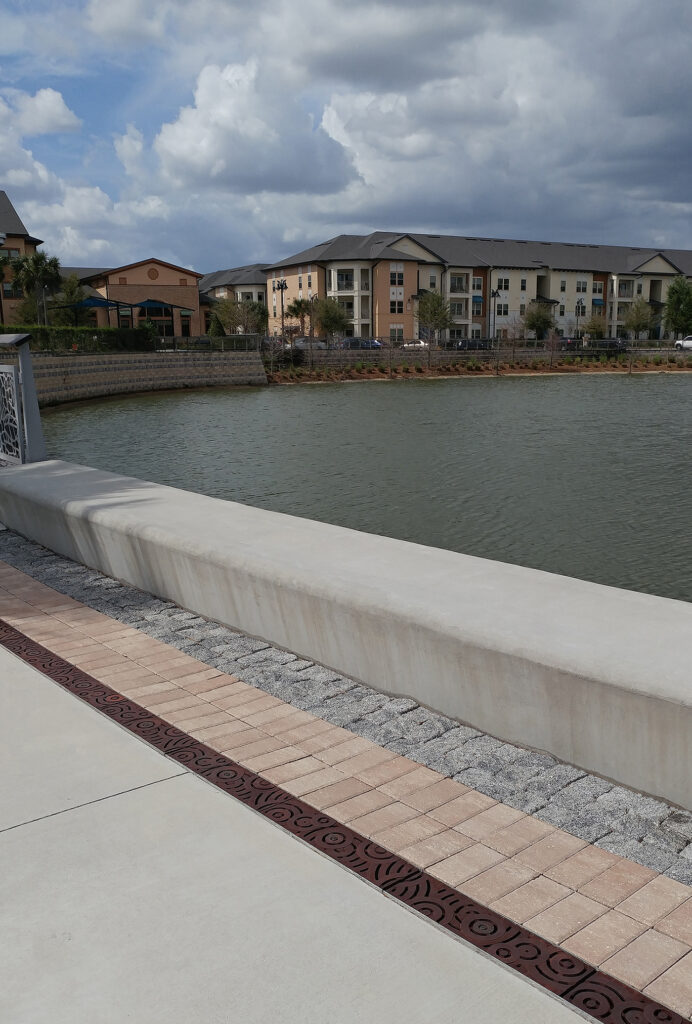

Project: Center Lake Park, Oviedo, FL Design: Dix.Hite + Partners Oblio 5" x 20" Heel Proof Trench Grate, cast iron with Baked-On-Oil Finish

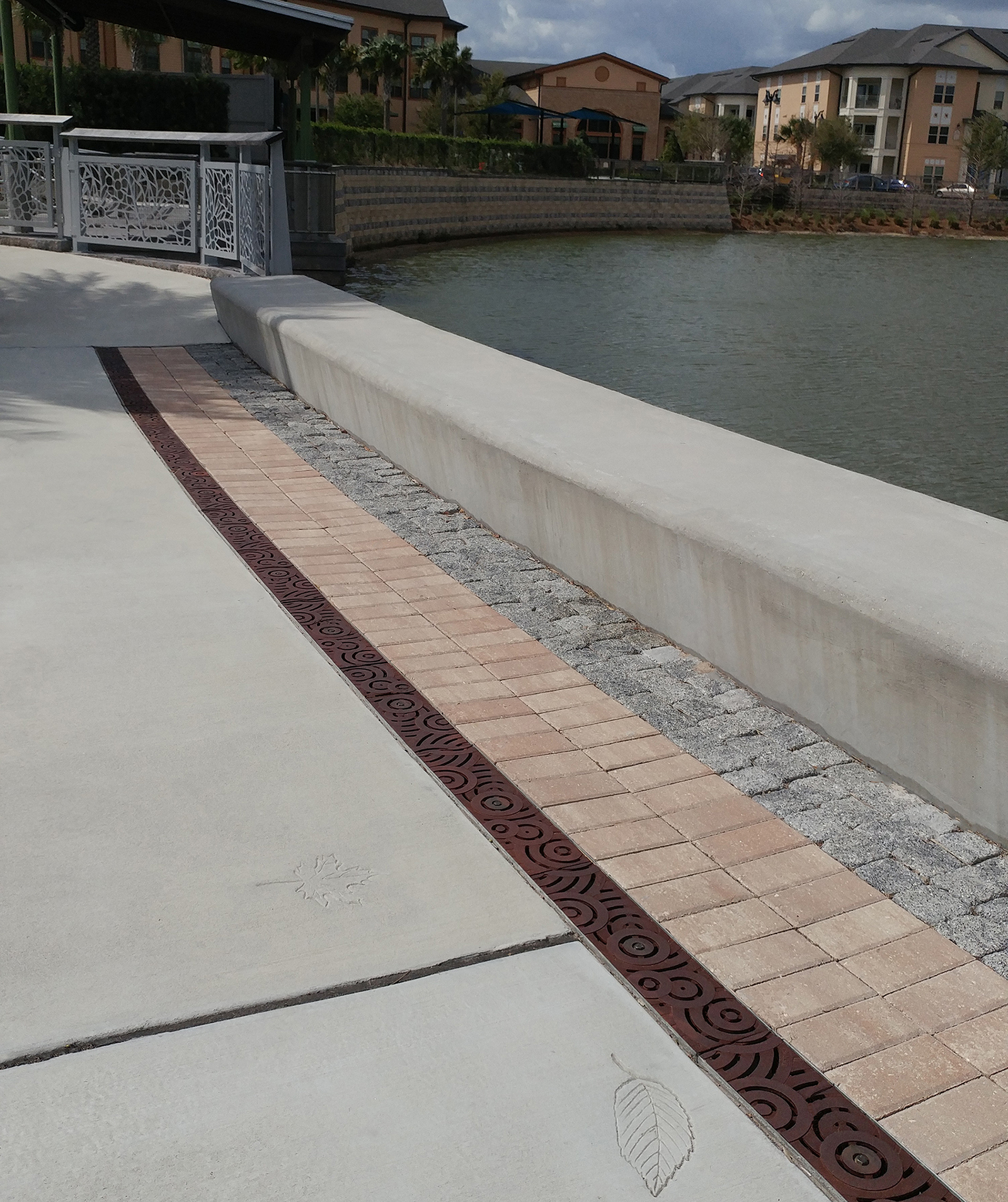

Oblio 5″ x 20″ heel-proof trench grate, cast ductile iron with baked-on-oil finish. DESIGN: Dix.Hite + Partners. PROJECT: Oviedo on the Park. LOCATION: Oviedo, FL.

Download photo

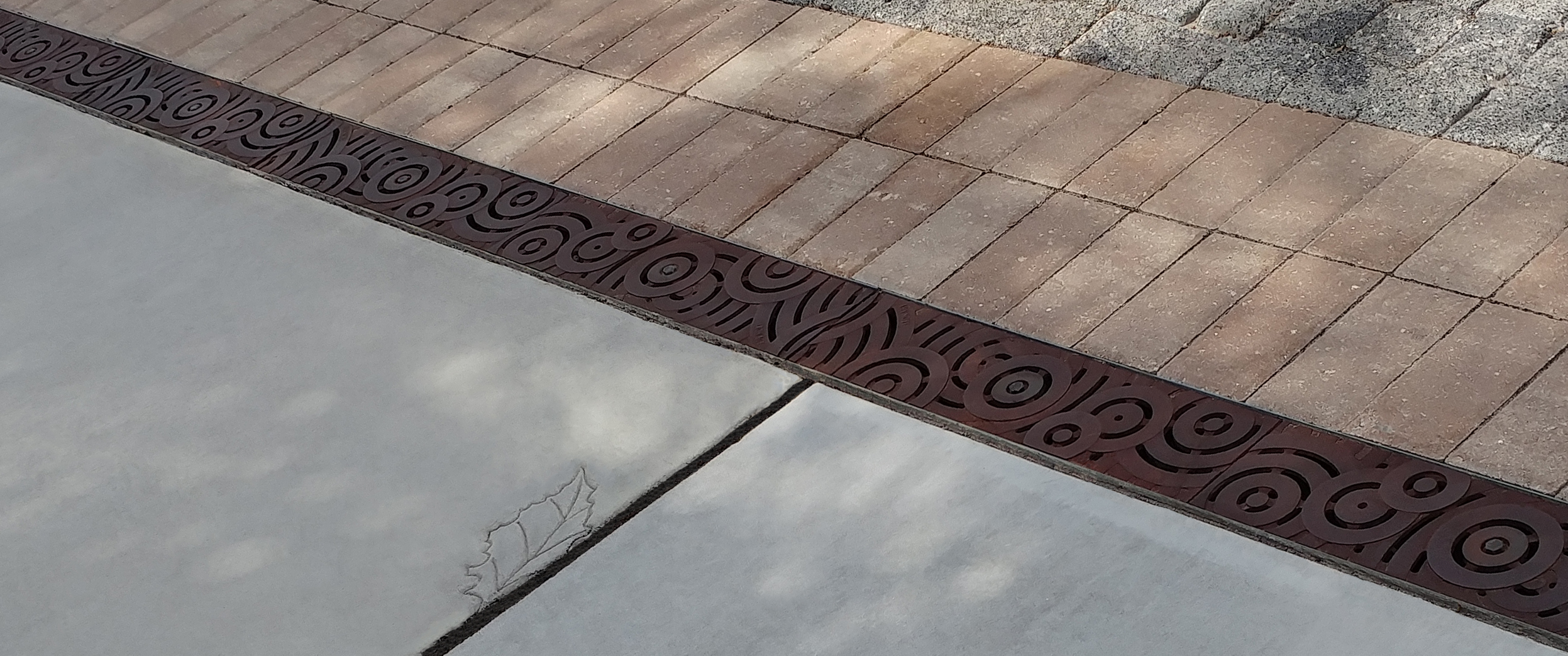

Oblio 5″ x 20″ heel-proof trench grate, cast ductile iron with baked-on-oil finish. DESIGN: Dix.Hite + Partners. PROJECT: Oviedo on the Park. LOCATION: Oviedo, FL.

Download photo

Oblio 5″ x 20″ heel-proof trench grate, cast ductile iron with baked-on-oil finish. DESIGN: Dix.Hite + Partners. PROJECT: Oviedo on the Park. LOCATION: Oviedo, FL.

Download photo

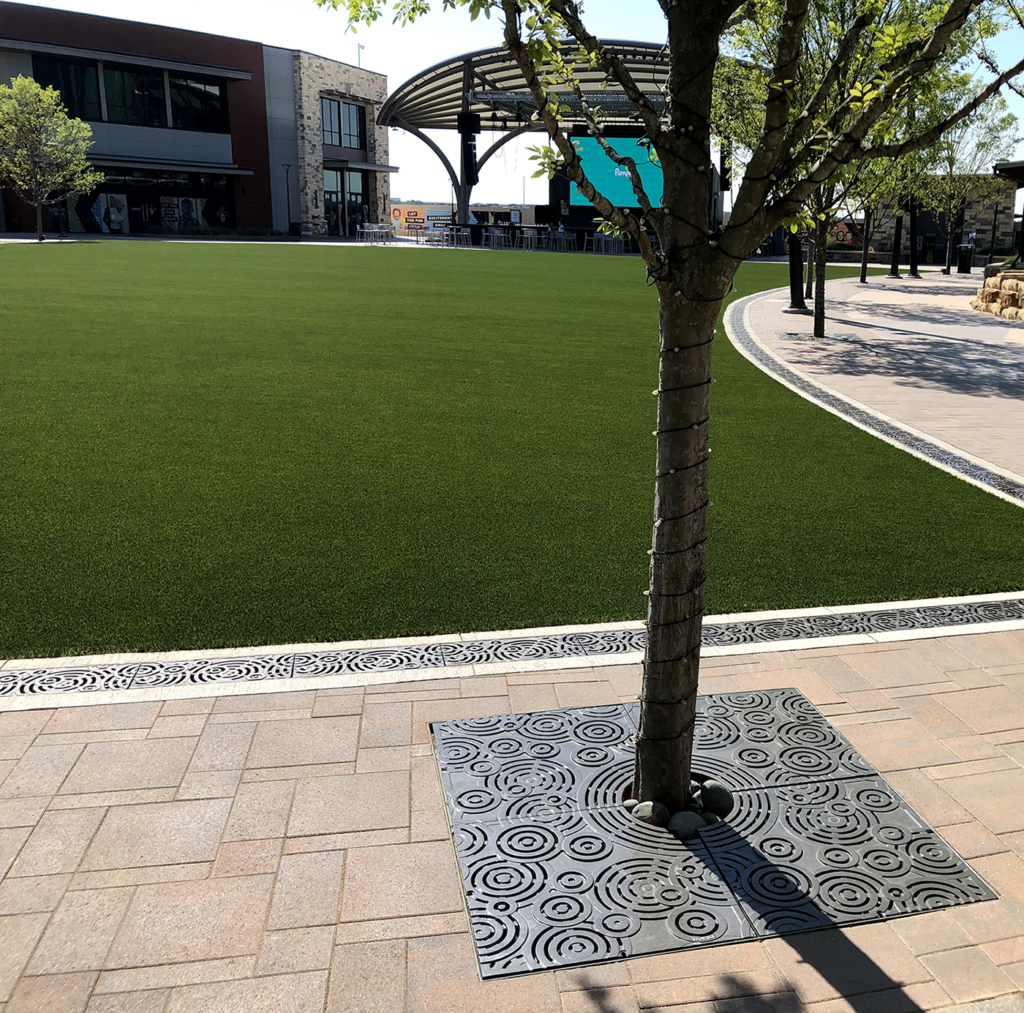

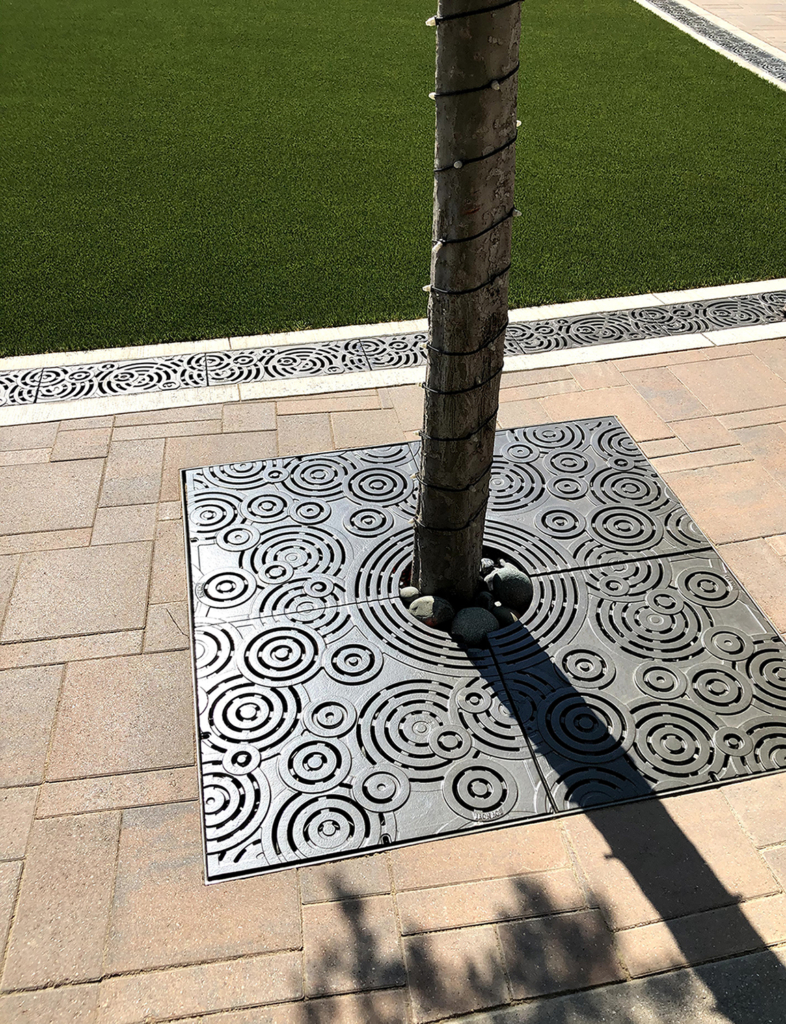

Oblio 9″ x 20″‘ trench grate (Oblio 4′ x 4’ heel-proof tree grate in foreground), cast iron with “antique bronze pearlescent” powder coat finish. DESIGN: The Olsson Studio. INSTALL: Superscapes. PROJECT: Grandscape. LOCATION: The Colony, TX.

Download photo

Oblio 9″ x 20″‘ trench grate (Oblio 4′ x 4’ heel-proof tree grate in foreground), cast iron with “antique bronze pearlescent” powder coat finish. DESIGN: The Olsson Studio. INSTALL: Superscapes. PROJECT: Grandscape. LOCATION: The Colony, TX.

Download photo

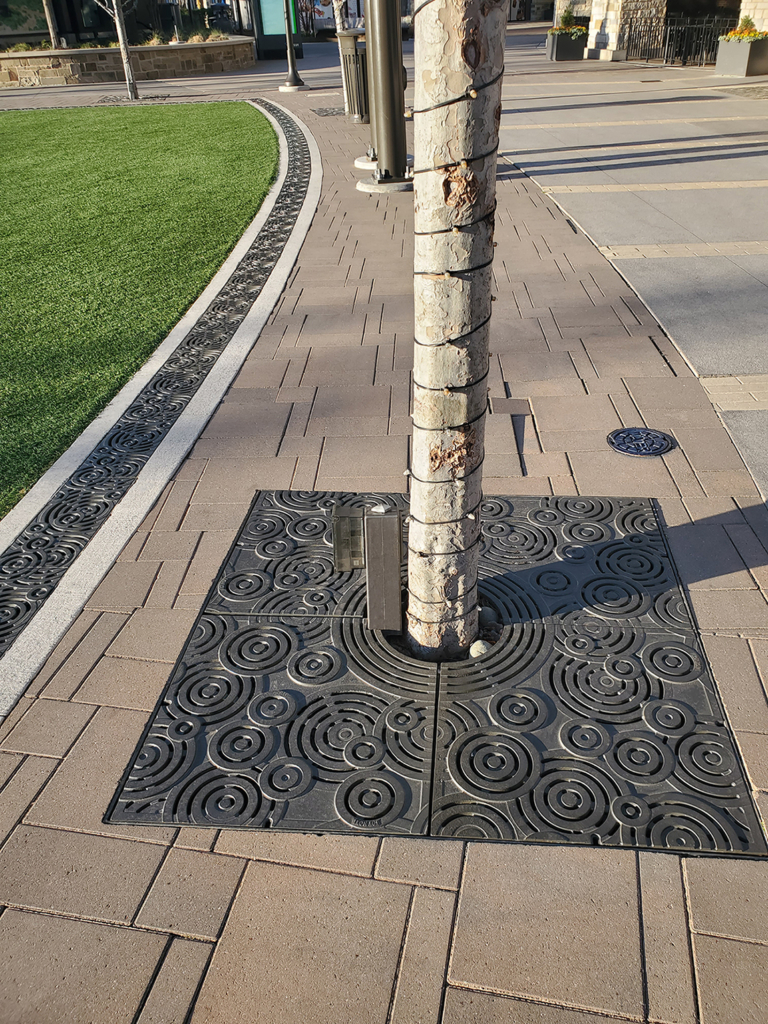

Cast iron radius trench grates and tree grate in Oblio pattern which suggests circular ripples on water

Oblio 9″ x 20″‘ trench grate (Oblio 4′ x 4’ heel-proof tree grate in foreground), cast iron with “antique bronze pearlescent” powder coat finish. DESIGN: The Olsson Studio. INSTALL: Superscapes. PROJECT: Grandscape. LOCATION: The Colony, TX.

Download photo

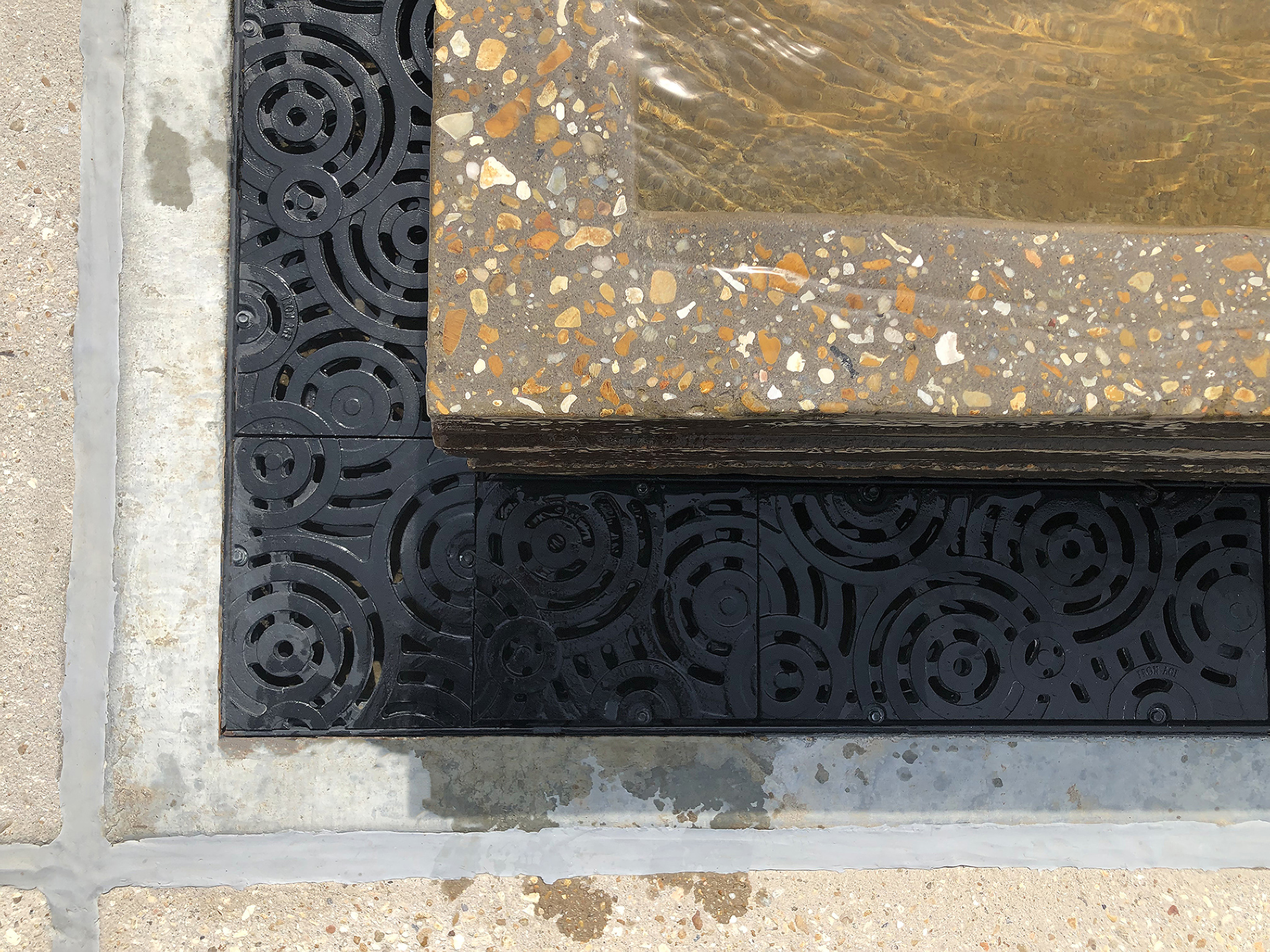

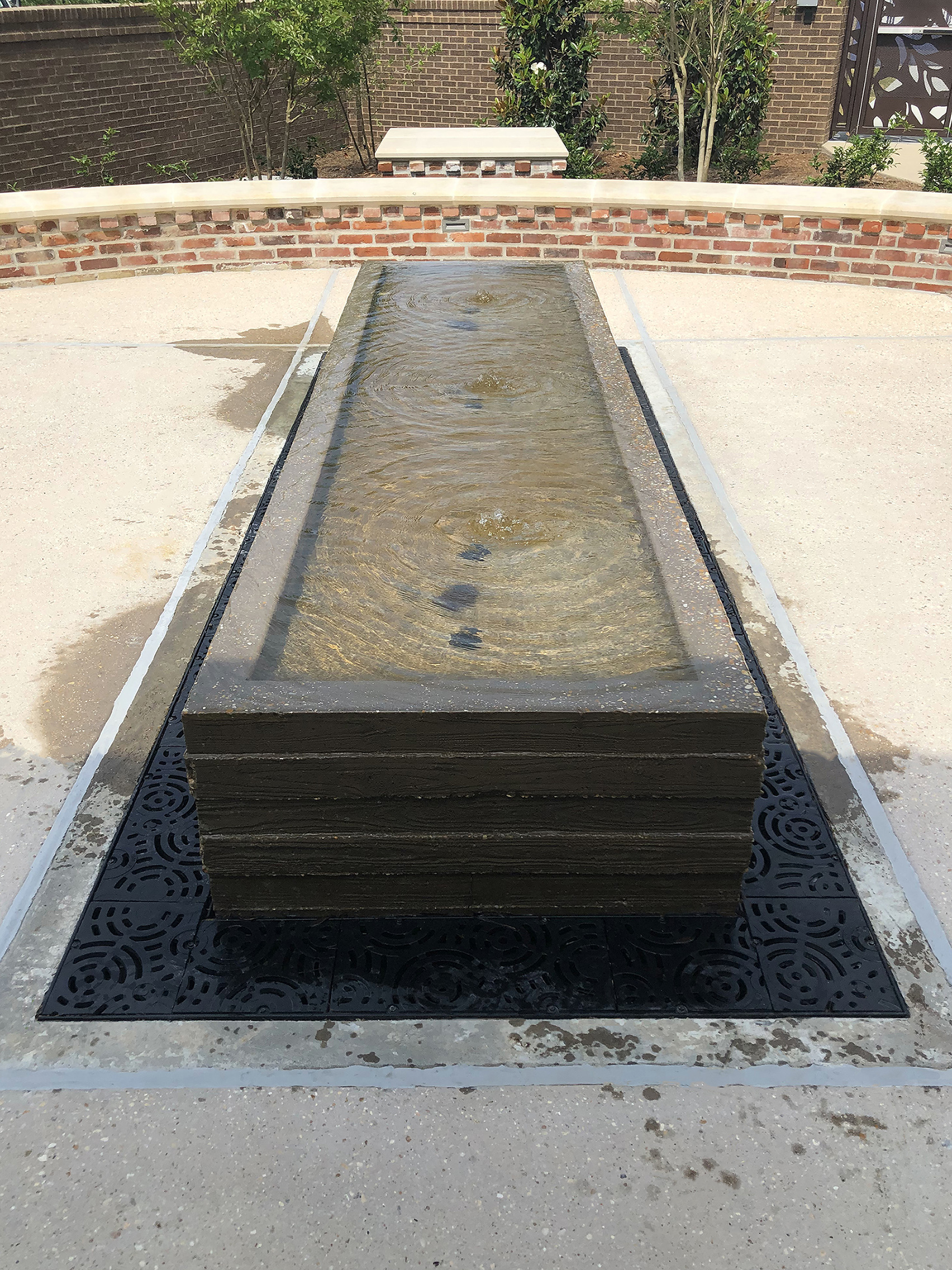

Oblio 9″ x 20″ trench grates, cast ductile iron with e-coat + black powder coat finishes. DESIGN: TBG Partners. INSTALLER: Rotolo Consultants (RCI). PROJECT: Our Lady of the Lake Children’s Hospital. LOCATION: Baton Rouge, LA.

Download photo

Oblio 9″ x 20″ trench grates, cast ductile iron with e-coat + black powder coat finishes. DESIGN: TBG Partners. INSTALLER: Rotolo Consultants (RCI). PROJECT: Our Lady of the Lake Children’s Hospital. LOCATION: Baton Rouge, LA.
