Oblio

Description:

With a pattern that suggests ripples forming on the surface of water, our trademark Oblio design will add distinctive style to a wide range of architectural applications.







Size Options:
Similar Products:

Detailed Specifications:

Name / Design Oblio 4" Dia. Heel Proof
Product ID OX4DiaI99PGHP
Dimensions 4.50" Dia.
Fits 3" & 4" SDR/PVC Pipe
Material Cast Ductile Iron
Standard Finish Baked On Oil Finish
Optional Finish
Powder Coat
Weight lb(s) 1
Free Drain Area 15.92%
Gallons Per Minute (GPM) 3.31
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA-1-964-887
Name / Design Oblio 6" Dia. Heel Proof
Product ID OS6DiaB43HP
Dimensions 5.57" Dia. x .16"
Drain Manufacturer
Jay R. Smith Mfg. Co.®
Fits Jay R. Smith® A06NB
Material Cast Bronze
Standard Finish Raw
Optional Finish
Patina
Weight lb(s) 1
Recycled Content 80%
ADA Compliant Yes
Copyright Registration No. Pending
Name / Design Oblio 10" Dia.
Product ID OA10diaI71
Dimensions 10.38" Dia. x .38"
Fits ADS® 8" Pipe
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 8.51
Free Drain Area 10.52%
Gallons Per Minute (GPM) 11.65
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-330-294
Name / Design Oblio 12" Sq. Heel Proof
Product ID ON12-12I12HP
Dimensions 11.69" x 11.69" x 1.13"
Drain Manufacturer
NDS®
Fits NDS® 1200 Series
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 13.64
Free Drain Area 13.41%
Gallons Per Minute (GPM) 24.00
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 1-814-259
Name / Design Oblio 12" Sq. "Tight" Heel Proof
Product ID OX12-12I99HP
Dimensions 11.89" x 11.89" x .81"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10.52
Free Drain Area 17.92%
Gallons Per Minute (GPM) 32.75
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Oblio 12" Sq. Heel Proof *FITS ZURN*
Product ID OZ12-12I34HP
Dimensions 10.88" x 10.88" x .30"
Drain Manufacturer
Zurn®
Fits Zurn® Z154
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 8.78
Free Drain Area 11.63%
Gallons Per Minute (GPM) 18.02
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-330-292
Name / Design Oblio 14" Dia.
Product ID OA14diaI73
Dimensions 14" Dia. x .38"
Fits ADS® 12" Pipe
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 14.31
Free Drain Area 14.01%
Gallons Per Minute (GPM) 28.25
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-330-288
Name / Design Oblio 18" Dia.
Product ID ONP18DiaI52
Dimensions 18.79" Dia. x .75"
Fits ADS® Nyloplast® Type C
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 30.90
Free Drain Area 12.98%
Gallons Per Minute (GPM) 47.30
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-330-169
Name / Design Oblio 18" x 24"
Product ID OX18-24I61
Dimensions 17.81" x 23.81" x 1.5"
Drain Manufacturer
Type 1 Catch Basin
Fits Type 1 Catch Basin - EJ™ 7700 Series
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 64.43
Free Drain Area 23.54%
Gallons Per Minute (GPM) 129.51
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-159-744
Name / Design Oblio 24" Sq.
Product ID ON24-24I14
Dimensions 23.81" x 23.81" x 2.00"
Drain Manufacturer
NDS®
Fits NDS® 2400 Series
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 112
Free Drain Area 19.04%
Gallons Per Minute (GPM) 141.35
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-159-782
Name / Design Oblio 24" Sq. Heel Proof
Product ID OX24-24I99HP
Dimensions 24" x 24" x 1.5"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 77.28
Free Drain Area 11.3%
Gallons Per Minute (GPM) 85.30
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 1-964-895
Name / Design Oblio 27" x 37"
Product ID OX27-37I99
Dimensions 27.00" x 36.69" x 1.25"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 125.40
Free Drain Area 17.24%
Gallons Per Minute (GPM) 223.73
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-330-123
Name / Design Oblio 27" x 47"
Product ID OX27-47I99
Dimensions 27.00" x 46.69" x 1.25"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 156.41
Free Drain Area 17.66%
Gallons Per Minute (GPM) 291.71
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-330-120

Photo Gallery:

oblio-4-dia-2-e

Oblio 4″ Dia. heel-proof pipe grate with baked-on-oil finish.


Download photo
oblio-4-dia-3-e

Oblio 4″ Dia. heel-proof pipe grate with baked-on-oil finish.


Download photo
Decorative 6 inch diameter drain grate in Iron Age Design's Oblio pattern

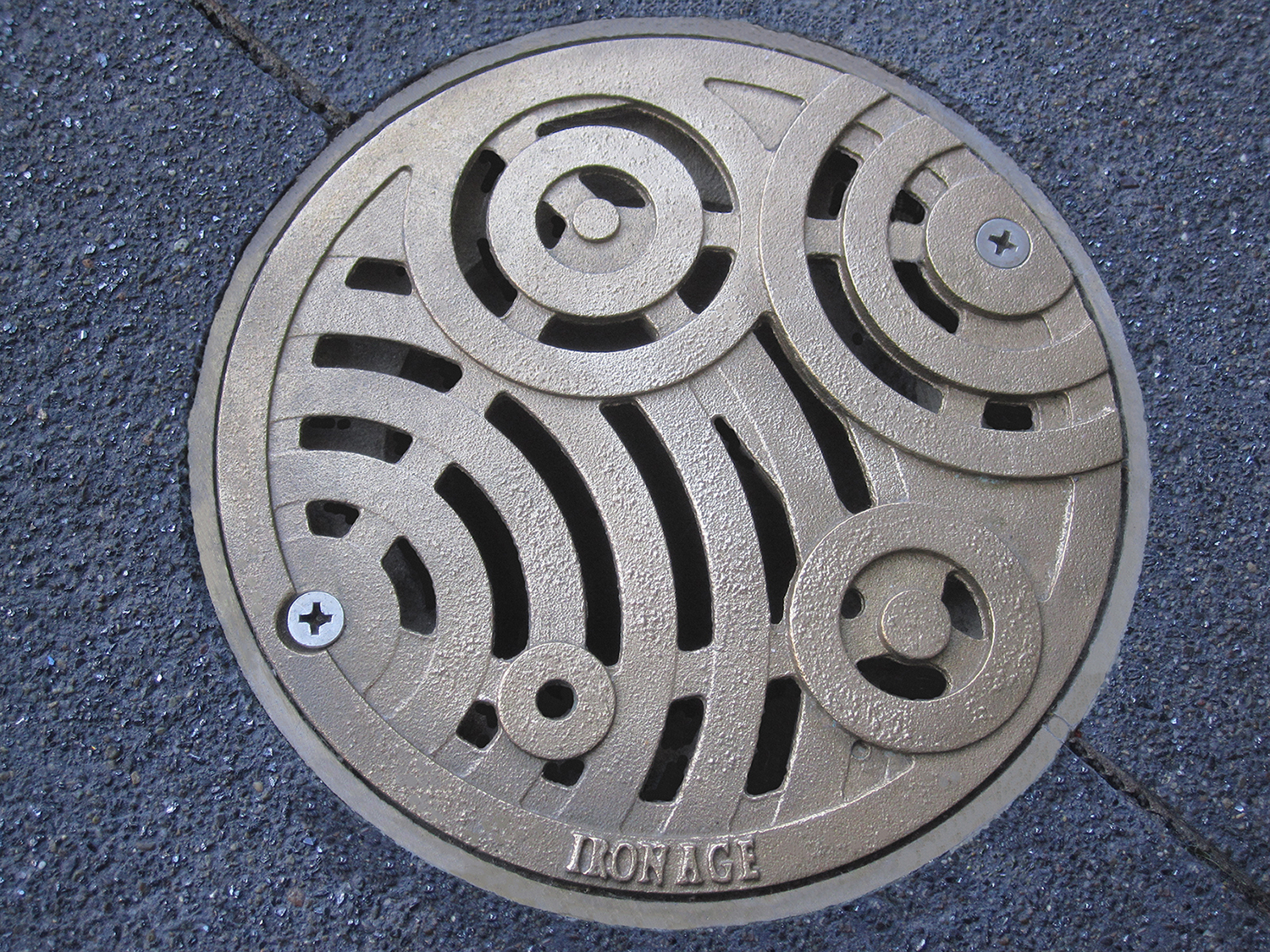

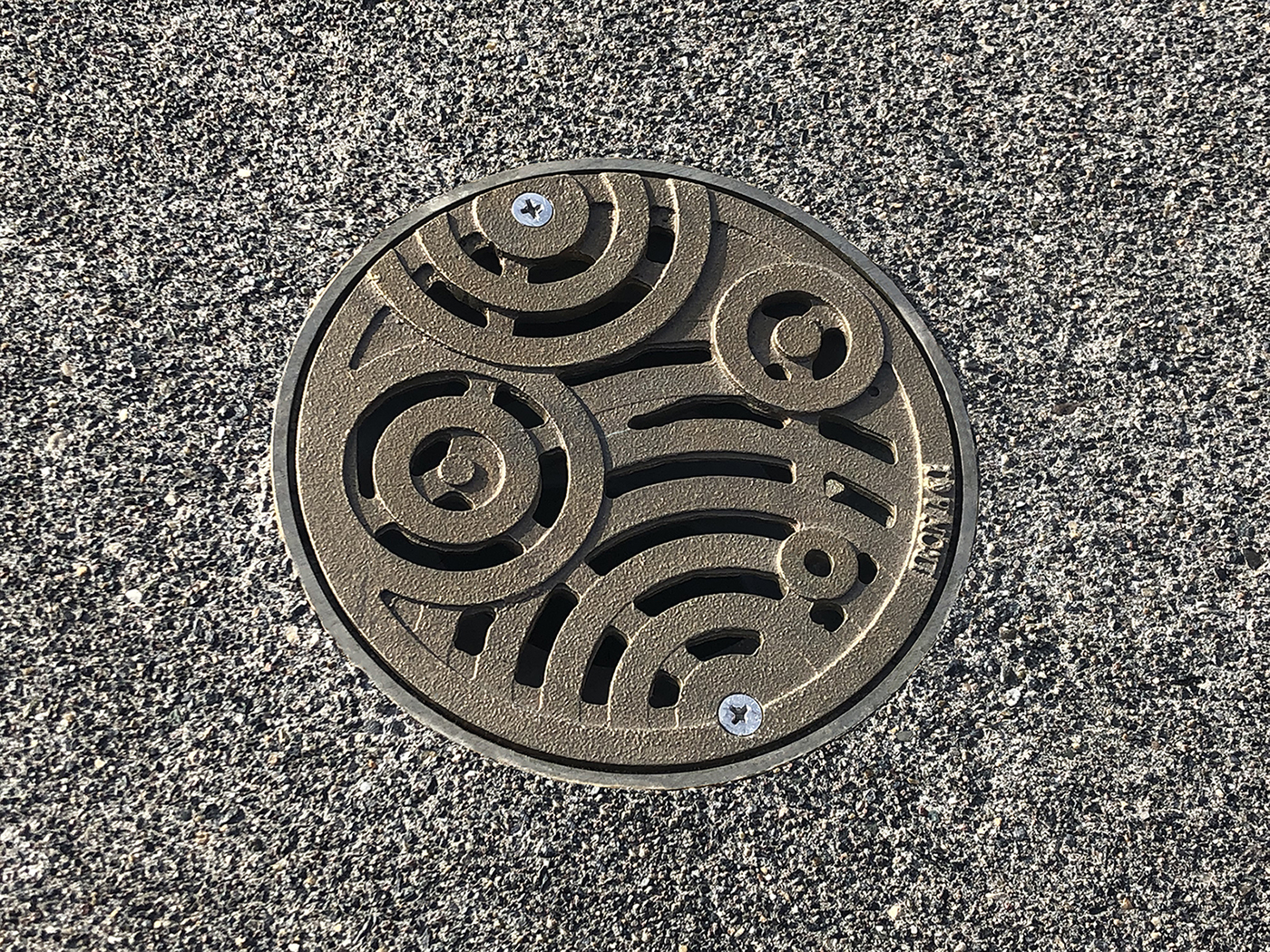

Oblio 6″ Dia. heel-proof catch basin grate, raw cast bronze.


Download photo
oblio-6-dia-hp-bronze-e

Oblio 6″ Dia. heel-proof catch basin grate, raw cast bronze.


Download photo
Oblio 12" x 12" heel proof catch basin grate

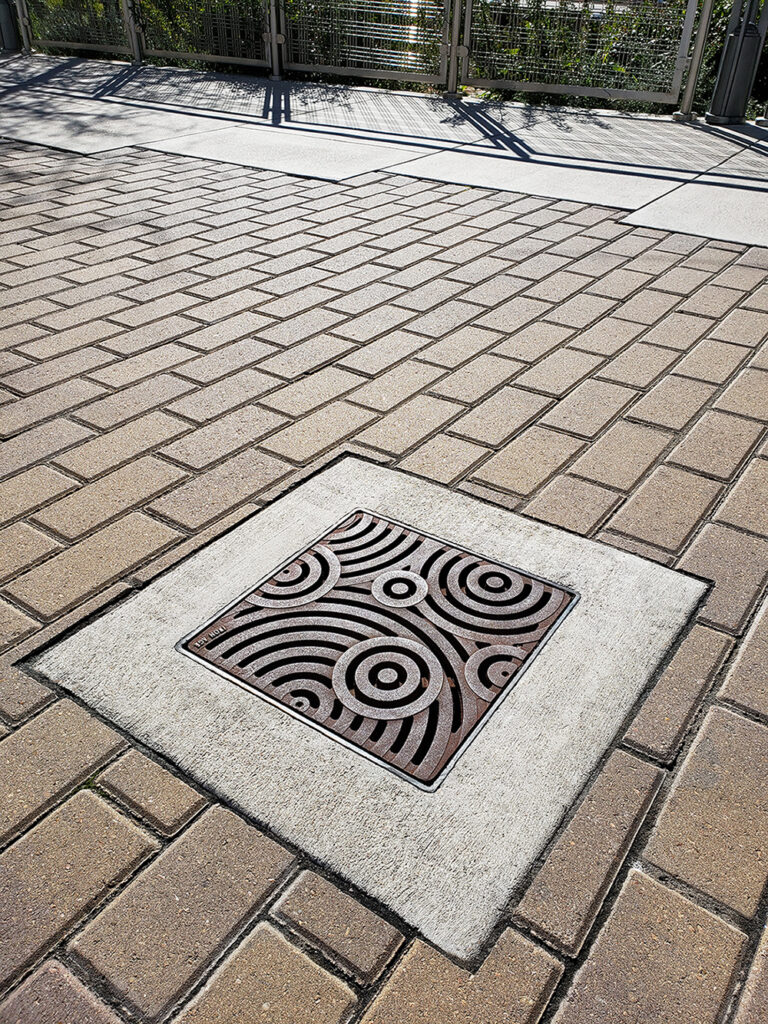

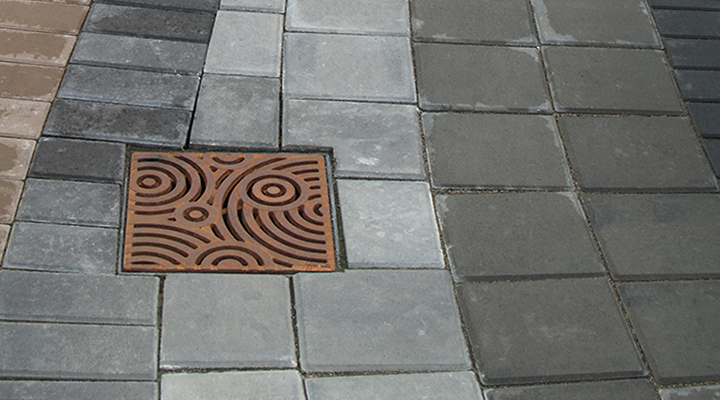

Oblio 12″ x 12″ heel-proof catch basin grate, raw cast ductile iron. DESIGN: Coleman & Associates. PROJECT: Austin Central Library. LOCATION: Austin, TX.


Download photo
OLYMPUS DIGITAL CAMERA

Oblio 12″ x 12″ heel-proof catch basin grate, raw cast iron.


Download photo
OLYMPUS DIGITAL CAMERA

Oblio 12″ x 12″ heel-proof catch basin grate, raw cast iron.


Download photo
oblio-12-x-12-hp-4-e

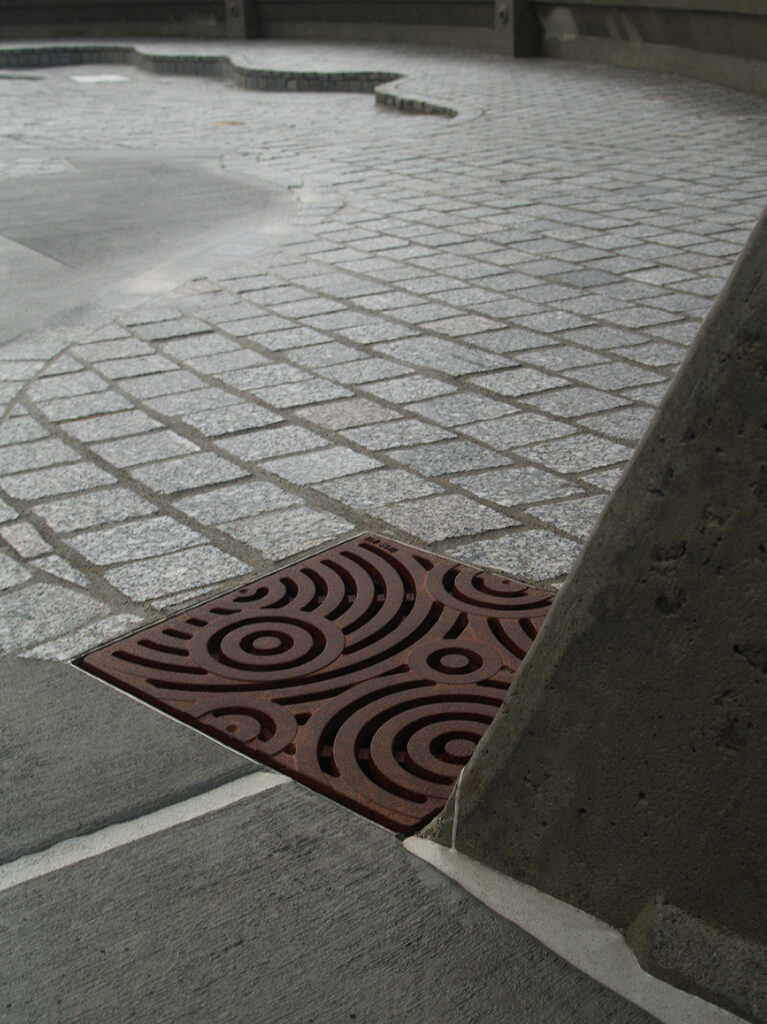

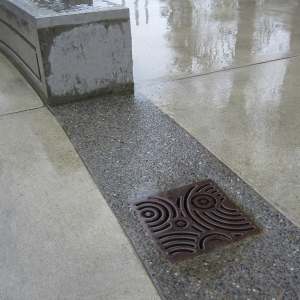

Oblio 12″ x 12″ heel-proof catch basin grate, cast iron with our baked-on-oil finish. DESIGN: SiteWorkshop Landscape Architecture. PROJECT: Wright Park. LOCATION: Tacoma, WA


Download photo
Decorative cast iron drain grate in Oblio pattern

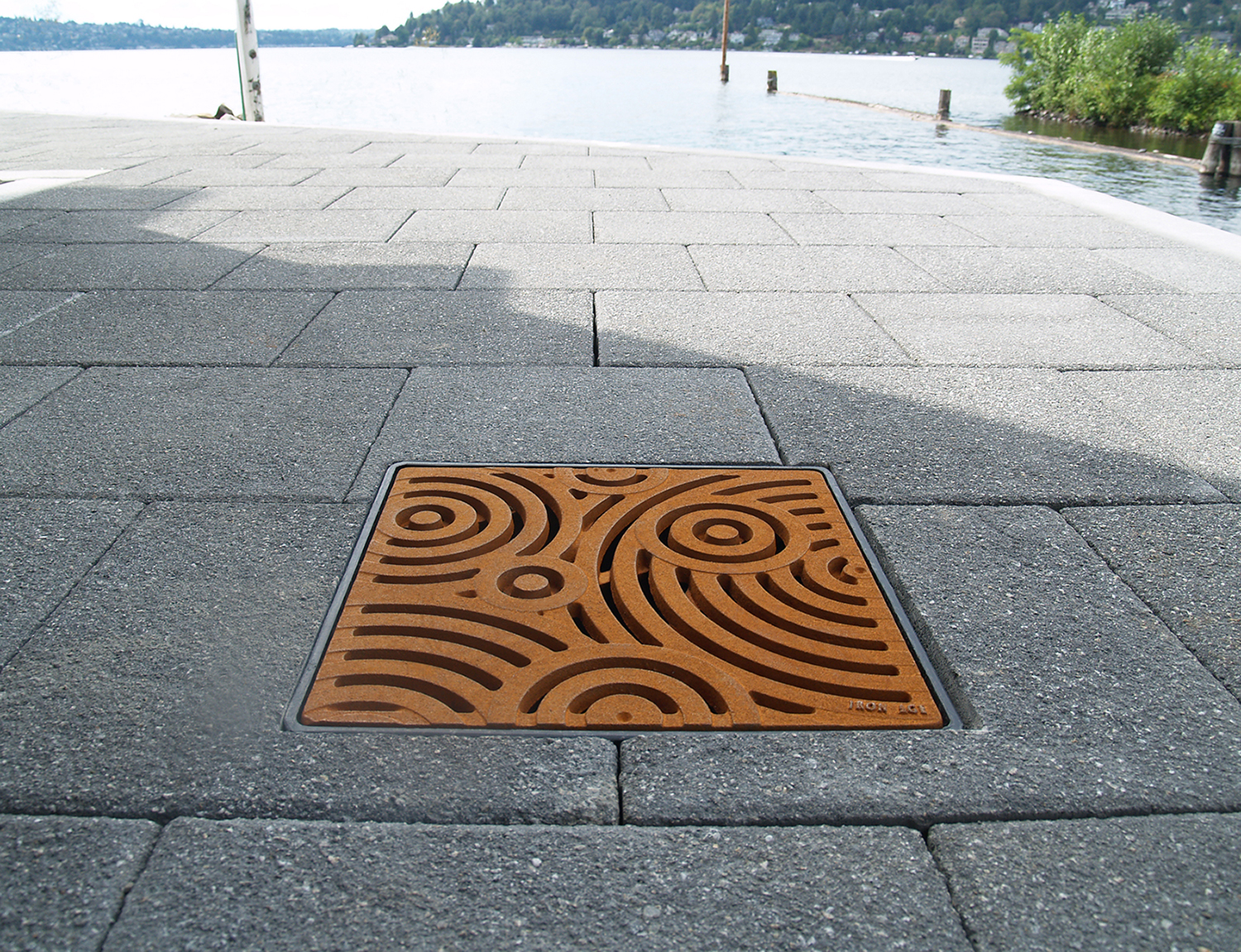

Oblio 12″ x 12″ heel-proof catch basin grate, raw cast iron. DESIGN: GGLO. PROJECT: Burien Town Center. LOCATION: Burien WA.


Download photo
oblio-18-x-24-2-e

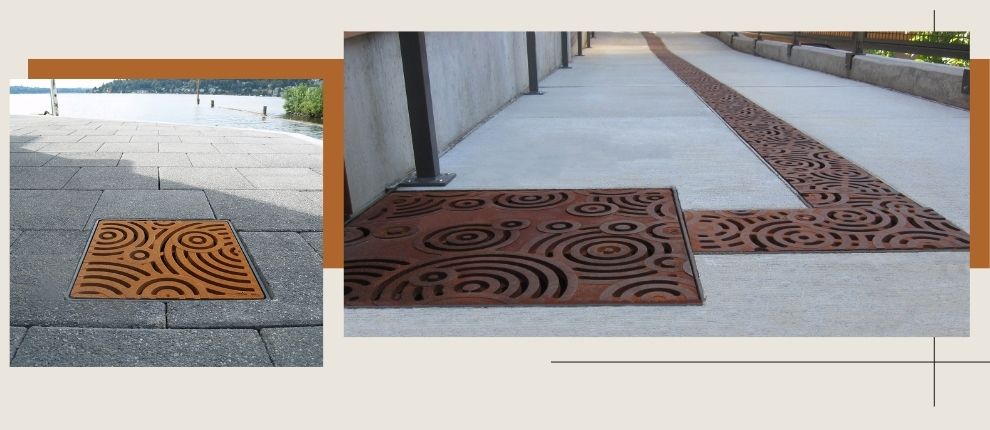

Oblio 18″ x 24″ catch basin grates (arrayed as trench grates), raw cast iron.


Download photo
OLYMPUS DIGITAL CAMERA

Oblio 18″ x 24″ (WSDOT ‘Type 1’) catch basin grate, raw cast iron. DESIGN: Miller Hayashi Architects. PROJECT: Greenbridge Early Learning Center. LOCATION: Seattle WA.


Download photo
oblio-18-x-24-4-e

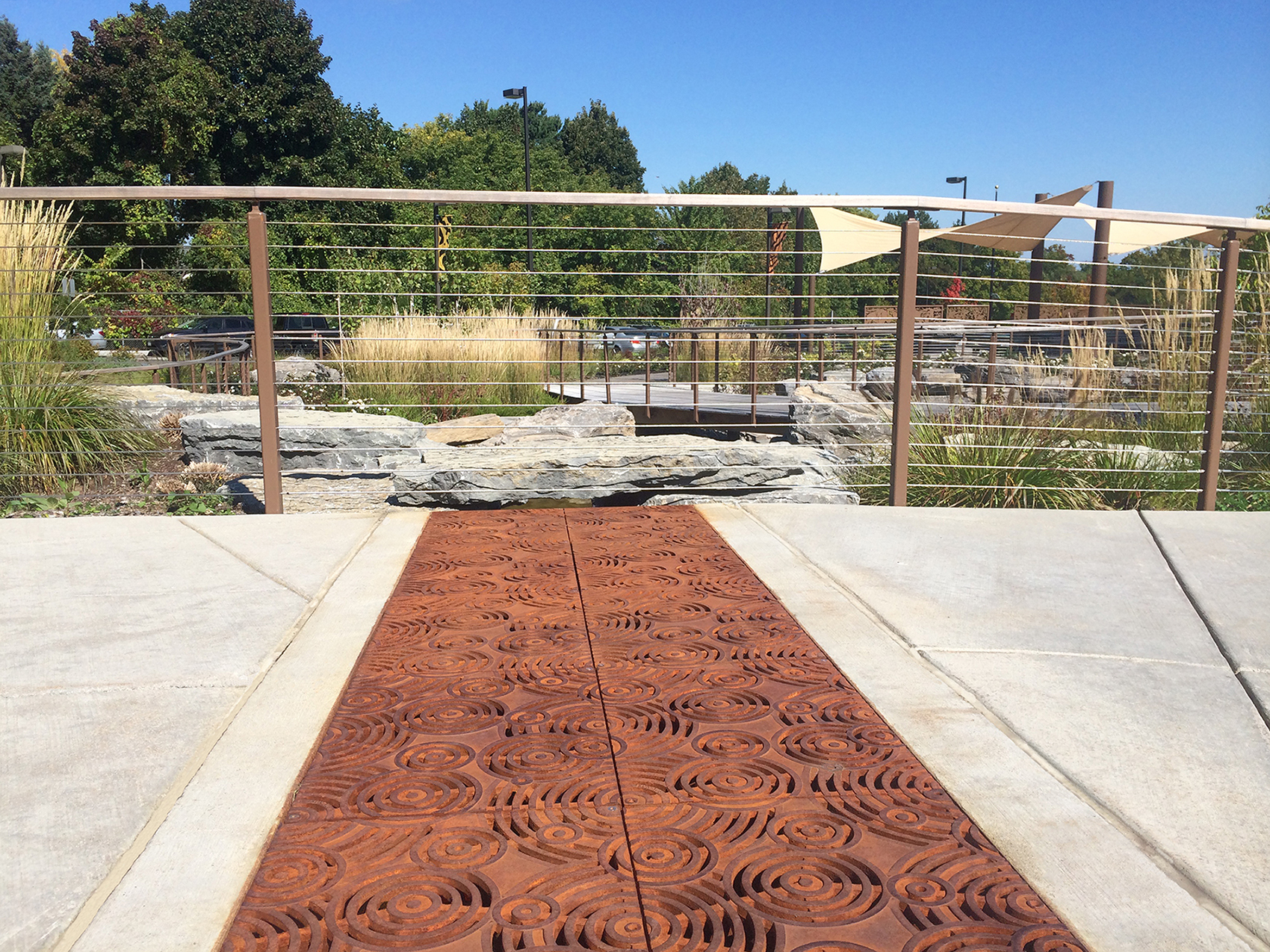

Oblio 18″ x 24″ catch basin grates, raw cast iron. Arrayed as trench/bioswale inlet grates. DESIGN: EDR. PROJECT: Rosamond Gifford Zoo South Entrance. LOCATION: Syracuse, NY.


Download photo
OLYMPUS DIGITAL CAMERA

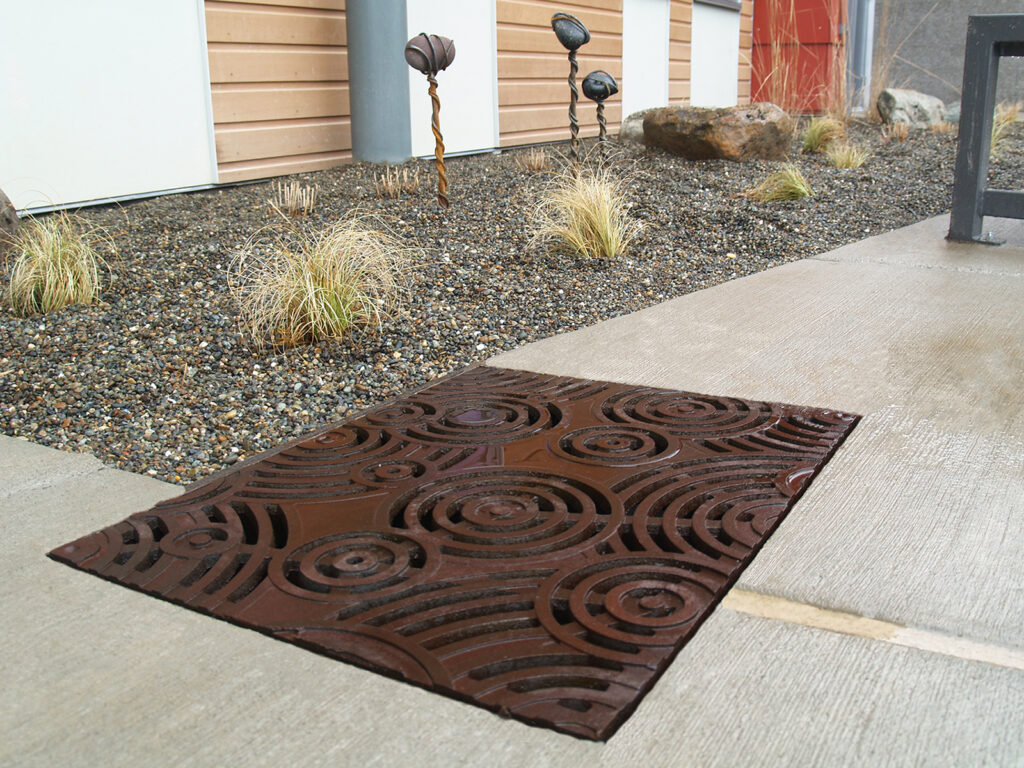

Oblio 18″ x 24″ catch basin grate, cast iron with baked-on-oil finish.


Download photo
oblio-24-x-24-2-e

Oblio 18″ x 24″ catch basin grate, raw cast iron, pictured with 9″ wide Oblio trench grates.


Download photo
Decorative cast iron drain grate in Oblio pattern

Oblio 24″ x 24″ catch basin grate, raw cast iron. DESIGN: Landwork Studio, LLC. PROJECT: The Community Library. LOCATION: Ketchum, ID.


Download photo
oblio-24-x-24-e

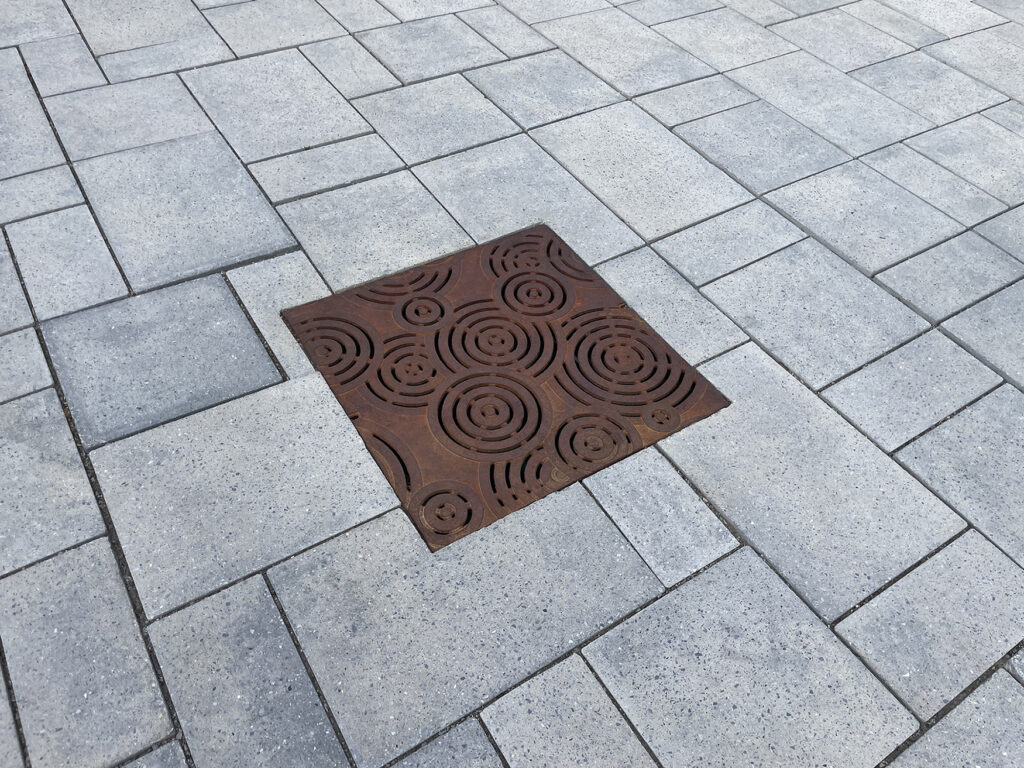

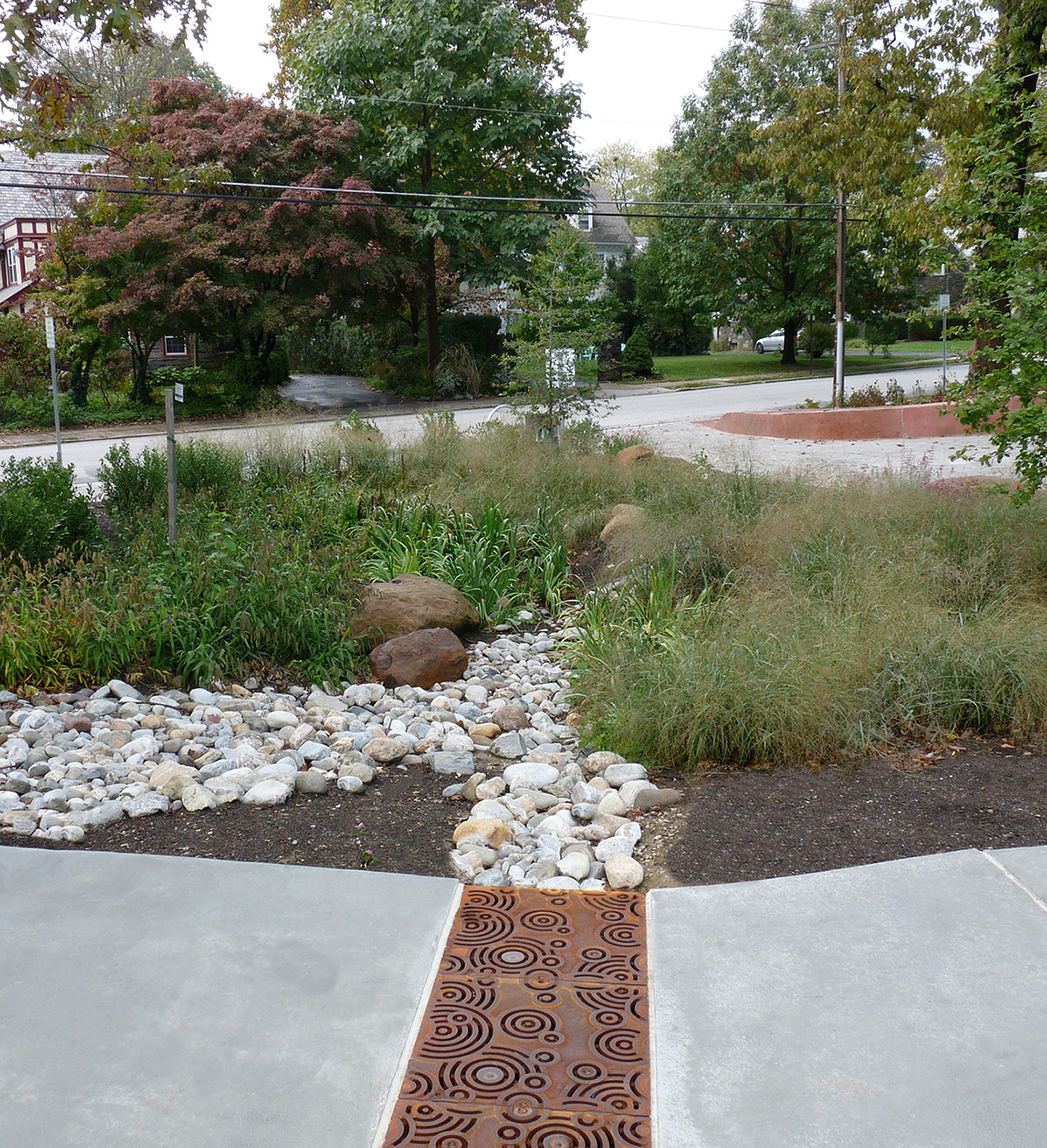

Oblio 24″ x 24″ catch basin grates, raw cast iron. Arrayed as trench/bioswale inlet grates.


Download photo
oblio-24-x-24-hp-e

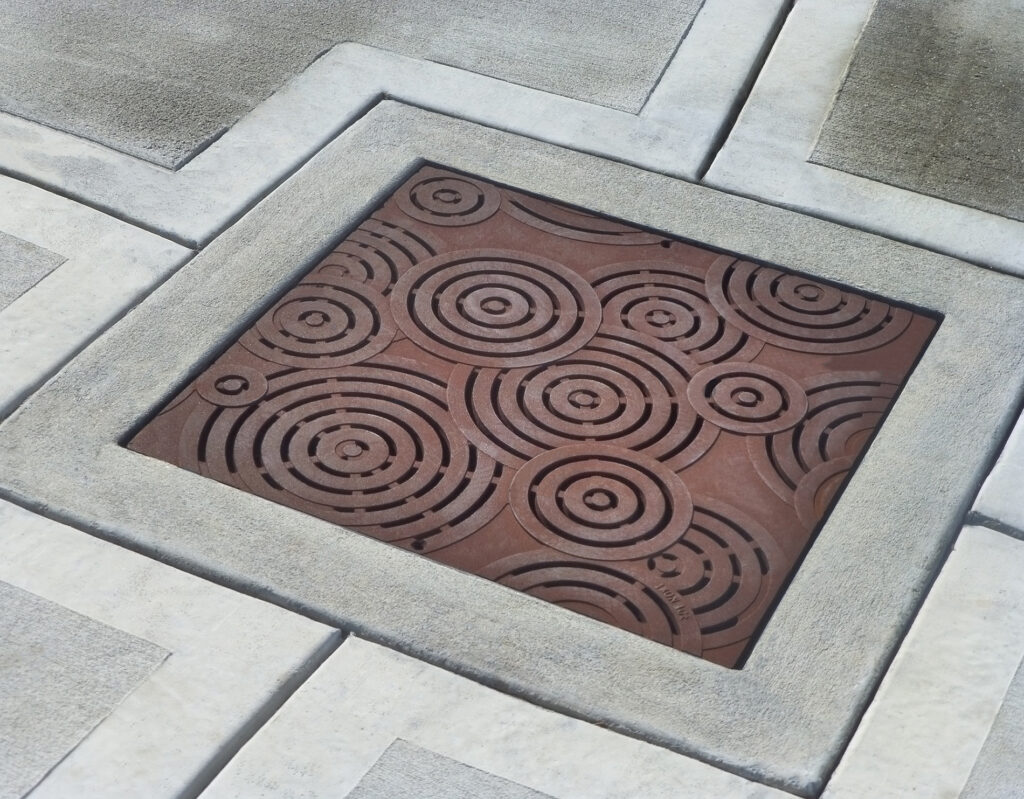

Oblio 24″ x 24″ heel-proof catch basin grate, raw cast iron.


Download photo
Oblio_27_x_37_(1)_E

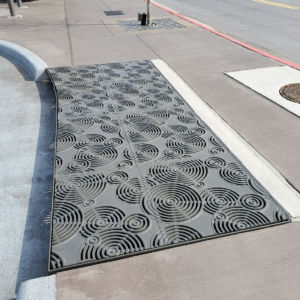

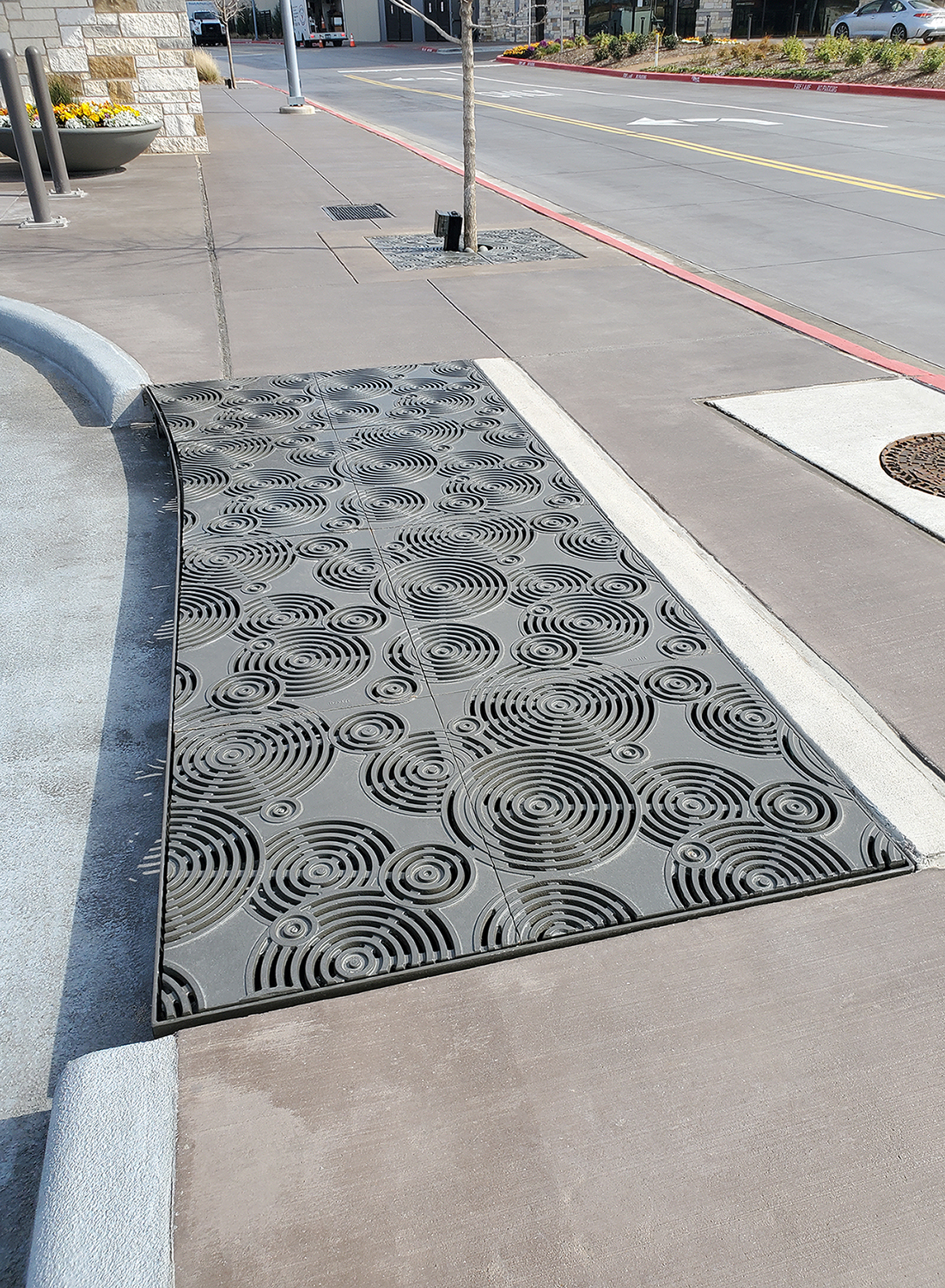

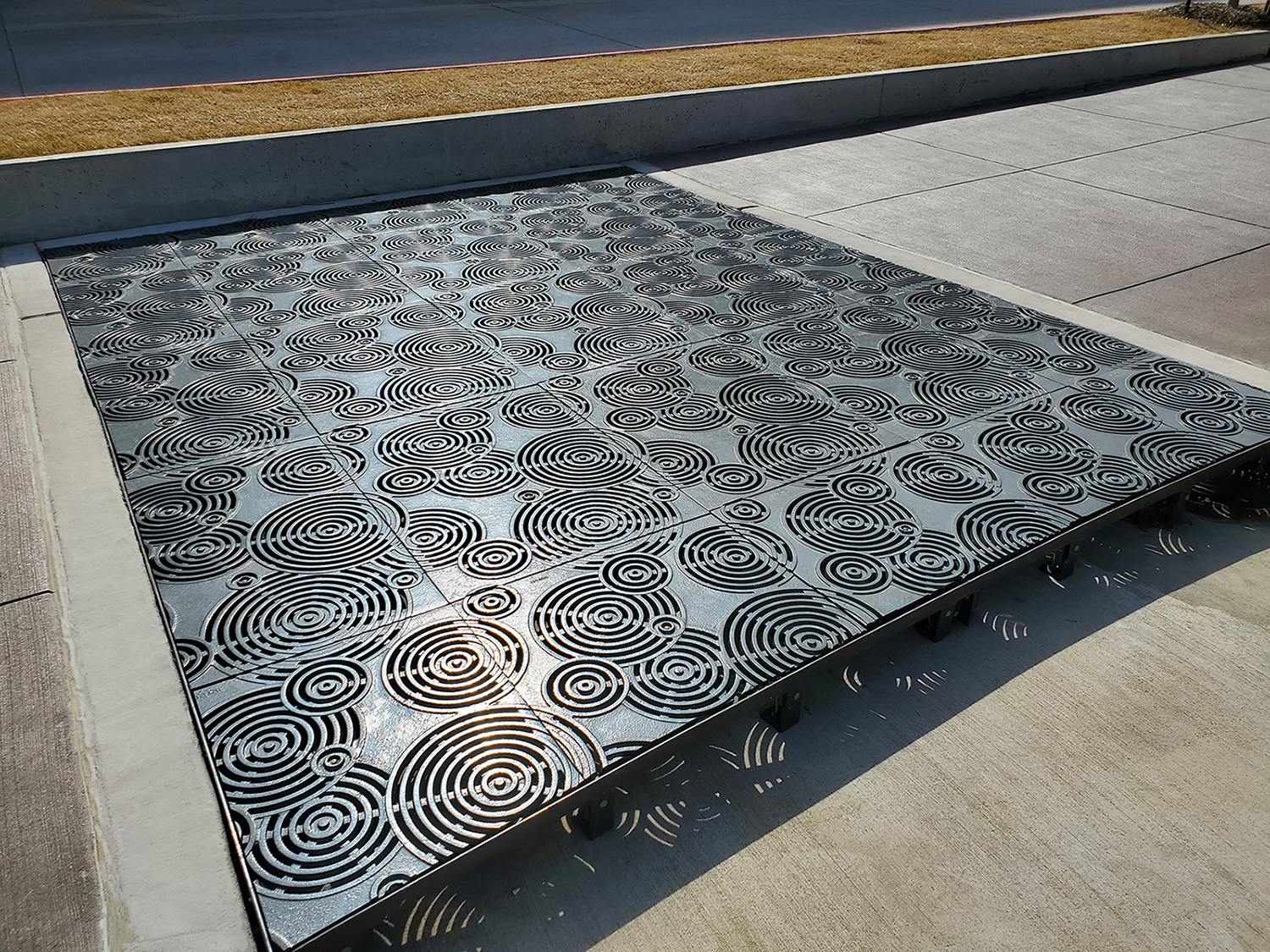

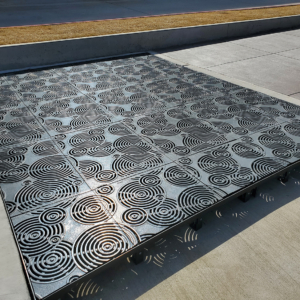

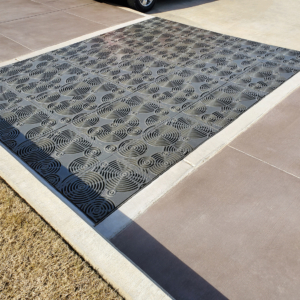

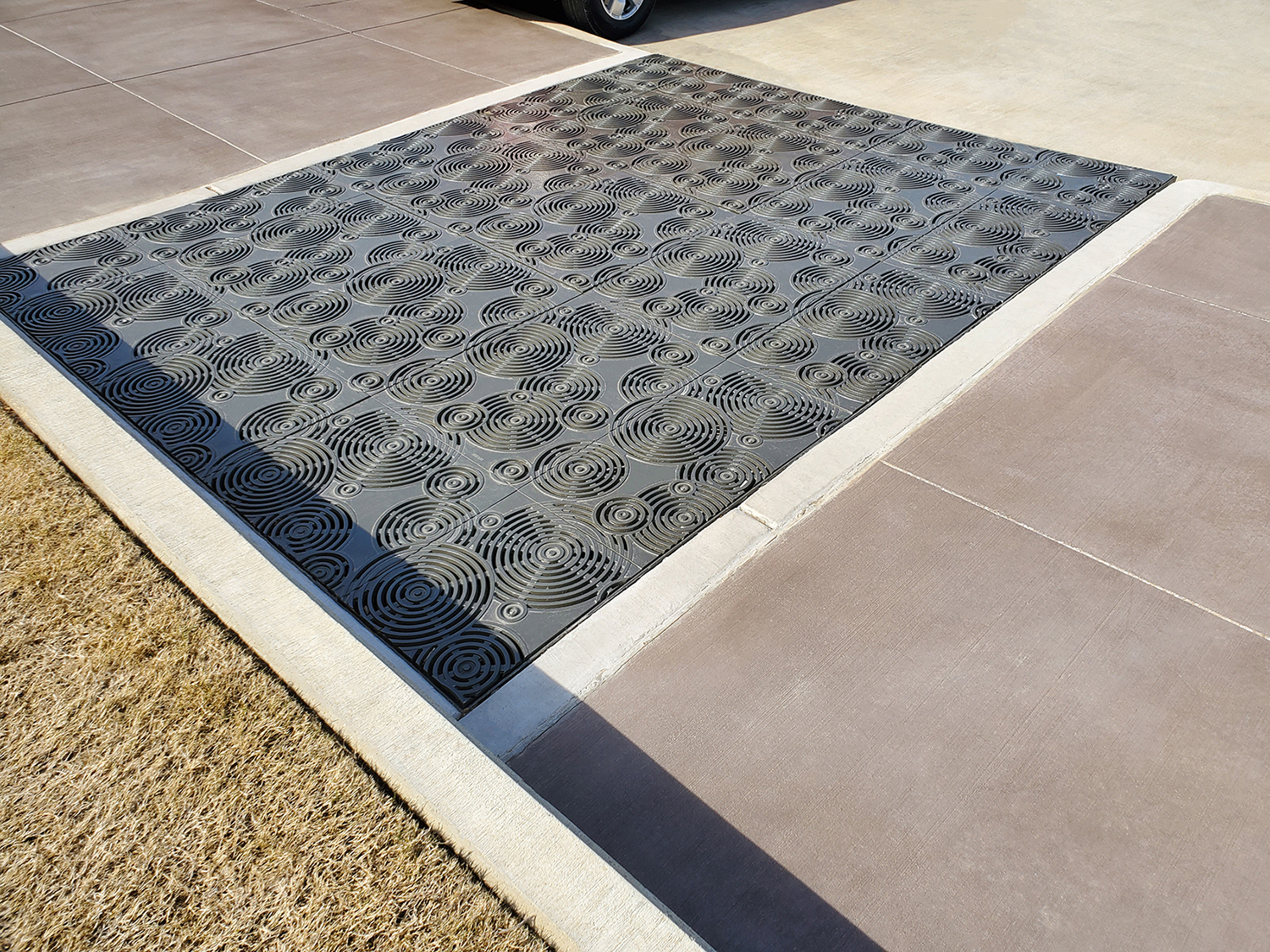

Large stormwater flumes topped with arrays of our Oblio 27″ x 37″ and 27″ x 47″ grates. Cast iron with “antique bronze pearlescent” powder coat finish. DESIGN: The Olsson Studio. PROJECT: Grandscape. LOCATION: The Colony, TX.


Download photo
Oblio_27_x_37_(2)_E

Large stormwater flumes topped with arrays of our Oblio 27″ x 37″ and 27″ x 47″ grates. Cast iron with “antique bronze pearlescent” powder coat finish. DESIGN: The Olsson Studio. PROJECT: Grandscape. LOCATION: The Colony, TX.


Download photo
Oblio_27_x_37_(3)_E

Large stormwater flumes topped with arrays of our Oblio 27″ x 37″ and 27″ x 47″ grates. Cast iron with “antique bronze pearlescent” powder coat finish. DESIGN: The Olsson Studio. PROJECT: Grandscape. LOCATION: The Colony, TX.


Download photo
Cast iron grates in decorative Oblio pattern by Iron Age Designs. Arrayed as large stormwater inlet.

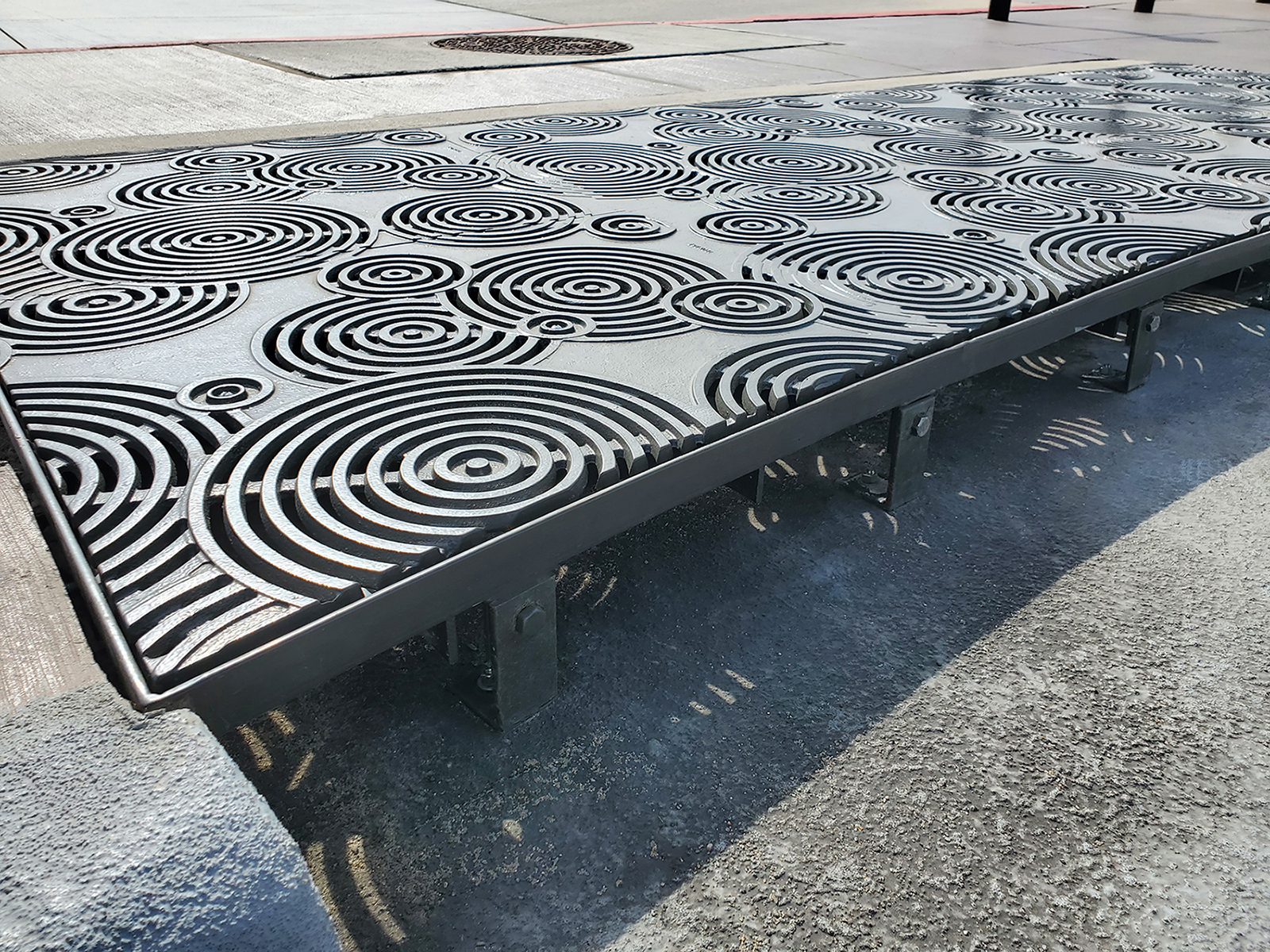

Large stormwater flumes topped with arrays of our Oblio 27″ x 37″ and 27″ x 47″ grates. Cast iron with “antique bronze pearlescent” powder coat finish. DESIGN: The Olsson Studio. PROJECT: Grandscape. LOCATION: The Colony, TX.


Download photo
Cast iron grates in decorative Oblio pattern by Iron Age Designs. Arrayed as large stormwater inlet.

Large stormwater flumes topped with arrays of our Oblio 27″ x 37″ and 27″ x 47″ grates. Cast iron with “antique bronze pearlescent” powder coat finish. DESIGN: The Olsson Studio. PROJECT: Grandscape. LOCATION: The Colony, TX.


Download photo
Cast iron grates in decorative Oblio pattern by Iron Age Designs. Arrayed as portion of backyard deck.

Oblio 27″ x 37″ catch basin grate in raw cast iron, repurposed as a unique transitional walkway between residential patio and garden. LOCATION: Burien, WA.


Download photo
