Radius Grates
Locust Radius Grates
The popularity of our Locust pattern points to a natural affinity for organic design elements. Available in a wide range of shapes and sizes, these signature grates are designed to be combined into any number of unique applications.
Select Size:
Detailed Specifications:
- Name / Design
- Locust 5" Wide, 25-2" CLR
- Product ID
- LR5-20I9925
- Dimensions
- 4.81" x 19.47" x 1"
- Drain Manufacturer
-
Iron Age Designs®
- Fits
-
Iron Age Custom Frame
- Material
- Cast Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 10
- Free Drain Area
- 19%
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Copyright Registration No.
- Pending
Photo Gallery:
Click image for high-res file and description

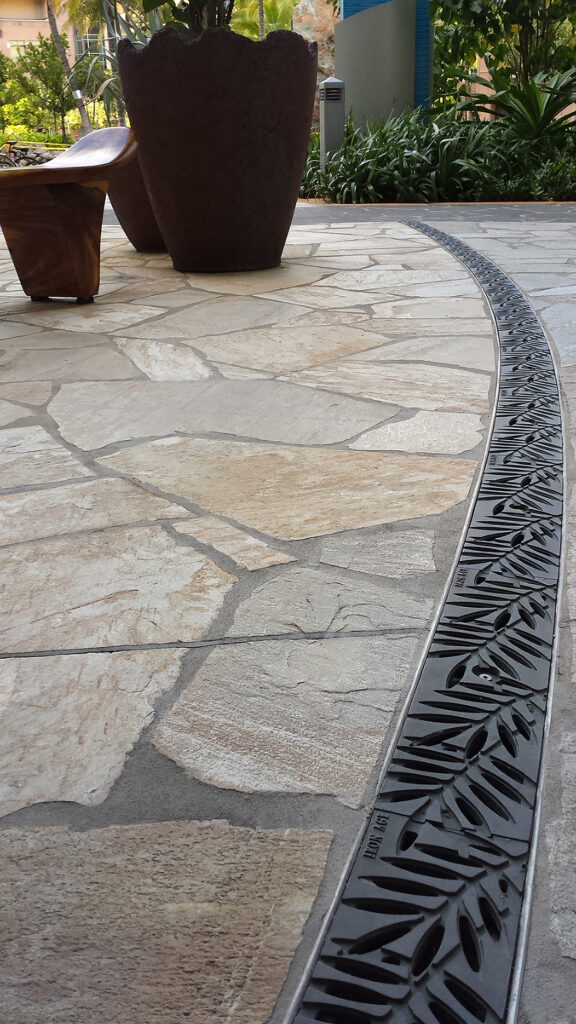

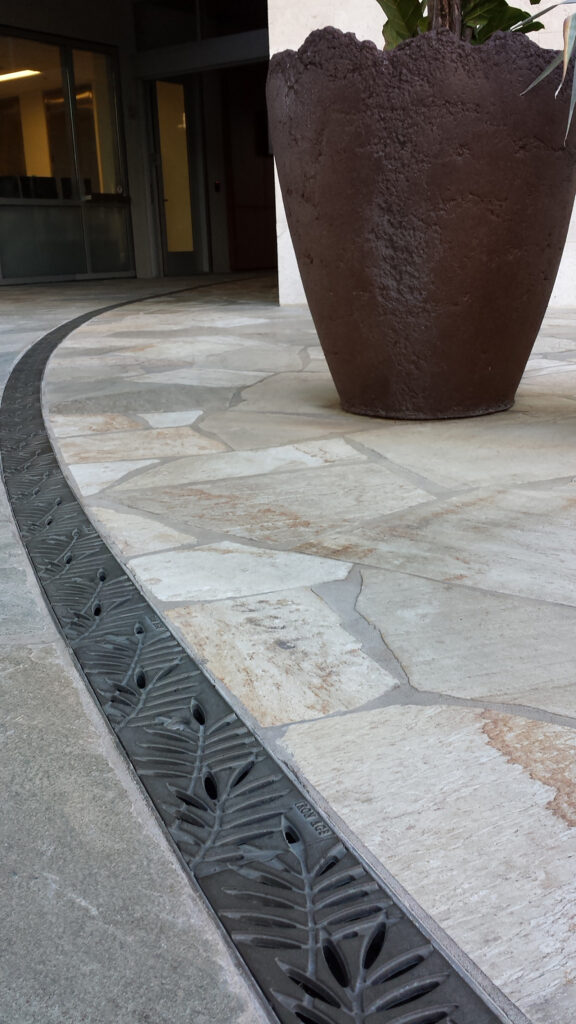

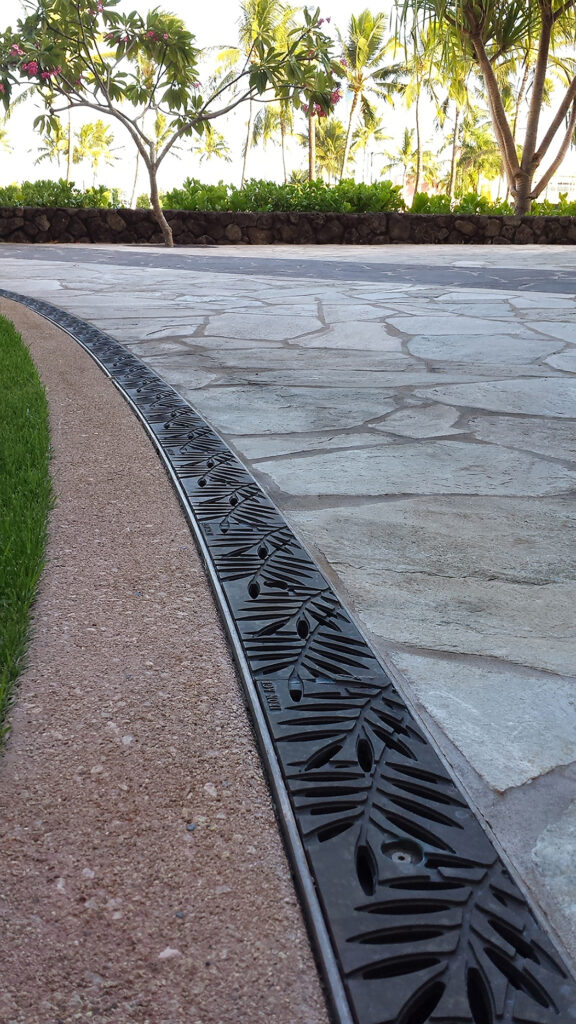

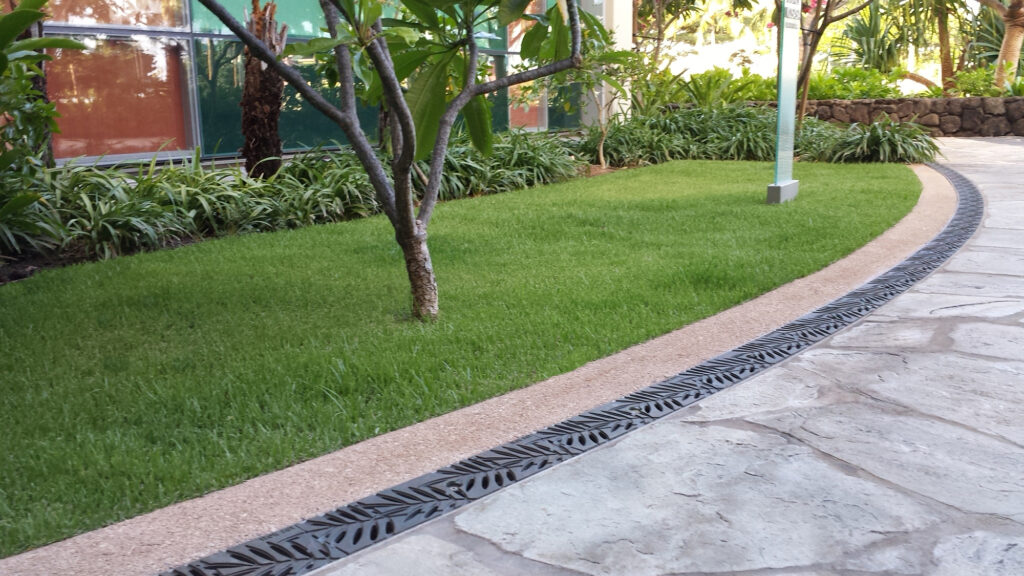

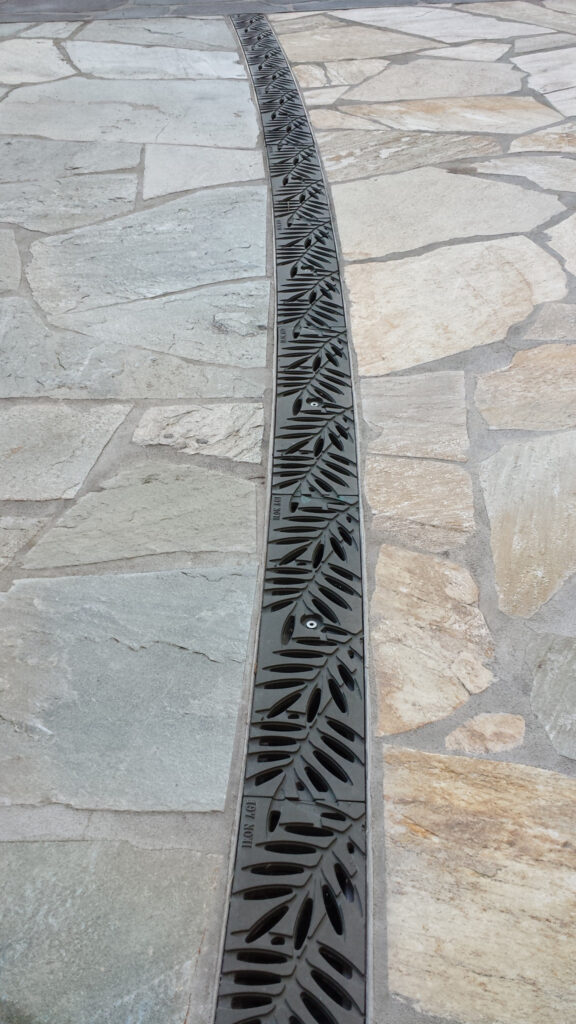

Locust 5″ wide radius trench grate, raw cast bronze. PROJECT: University of Hawaii Cancer Center. LOCATION: Honolulu, HI.
Locust 5″ wide radius trench grate, raw cast bronze. PROJECT: University of Hawaii Cancer Center. LOCATION: Honolulu, HI.
Locust 5″ wide radius trench grate, raw cast bronze. PROJECT: University of Hawaii Cancer Center. LOCATION: Honolulu, HI.
Locust 5″ wide radius trench grate, raw cast bronze. PROJECT: University of Hawaii Cancer Center. LOCATION: Honolulu, HI.
Locust 5″ wide radius trench grate, raw cast bronze. PROJECT: University of Hawaii Cancer Center. LOCATION: Honolulu, HI.
Locust 5″ wide radius trench grate, raw cast bronze. PROJECT: University of Hawaii Cancer Center. LOCATION: Honolulu, HI.

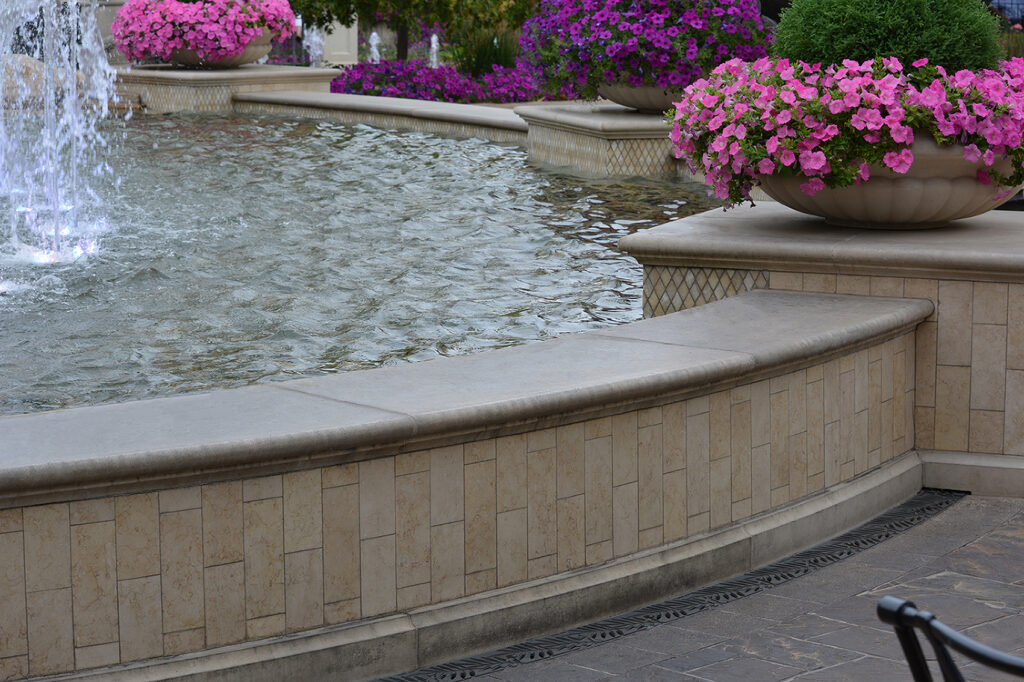

Locust 5″ wide radius trench grate, raw cast bronze. DESIGN: The Land Group. PROJECT: The Village at Meridian. LOCATION: Meridian, ID.
Locust 5″ wide radius trench grate, raw cast bronze. DESIGN: The Land Group. PROJECT: The Village at Meridian. LOCATION: Meridian, ID.
Locust 6″ wide radius trench grate, raw cast iron. PROJECT: Bristol Hospital. LOCATION: Bristol, CT.
Locust 6″ wide radius trench grate, raw cast iron. PROJECT: Bristol Hospital. LOCATION: Bristol, CT.
Locust 6″ wide radius trench grate, raw cast iron. PROJECT: Bristol Hospital. LOCATION: Bristol, CT.

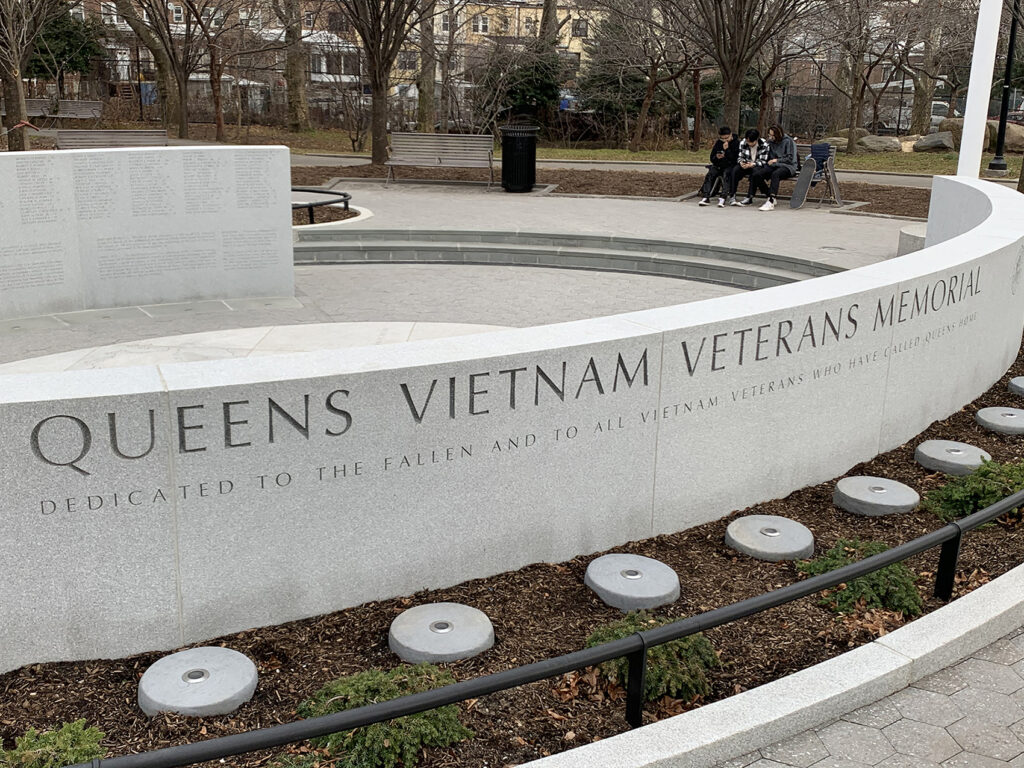

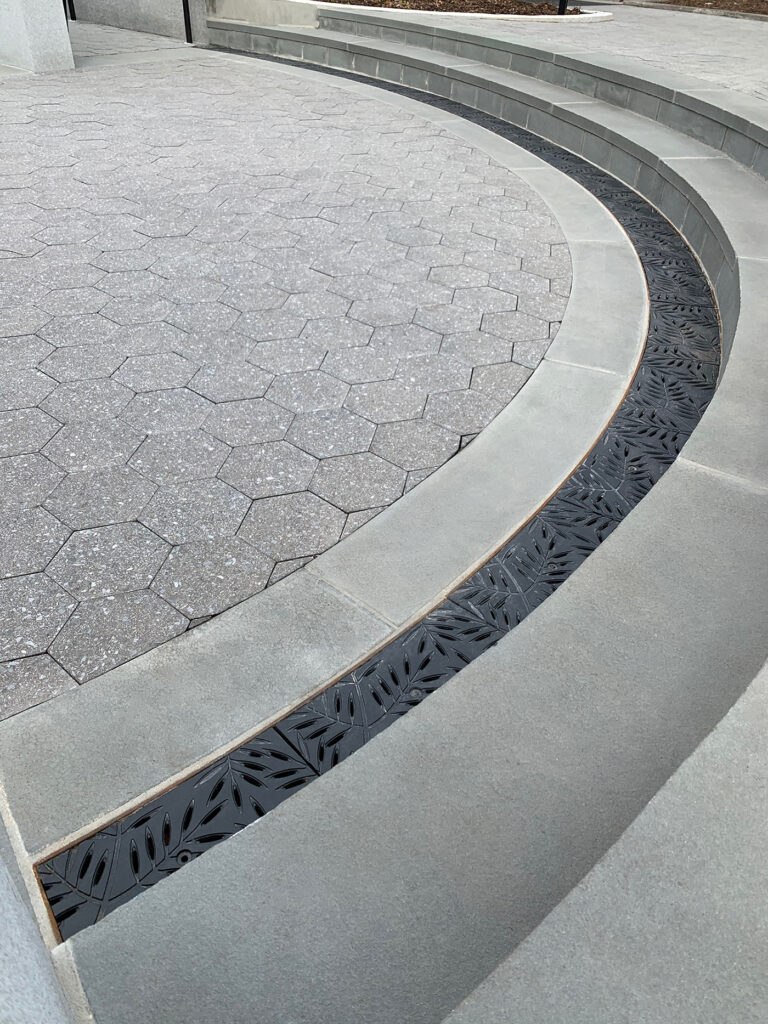

Locust 8″ wide radius trench grate, cast iron with black powder coat finish. DESIGN: NYC Parks. PROJECT: Queens Vietnam Veterans Memorial. LOCATION: Elmhurst Park, Queens, NY
Locust 8″ wide radius trench grate, cast iron with black powder coat finish. DESIGN: NYC Parks. PROJECT: Queens Vietnam Veterans Memorial. LOCATION: Elmhurst Park, Queens, NY
Locust 8″ wide radius trench grate, cast iron with black powder coat finish. DESIGN: NYC Parks. PROJECT: Queens Vietnam Veterans Memorial. LOCATION: Elmhurst Park, Queens, NY

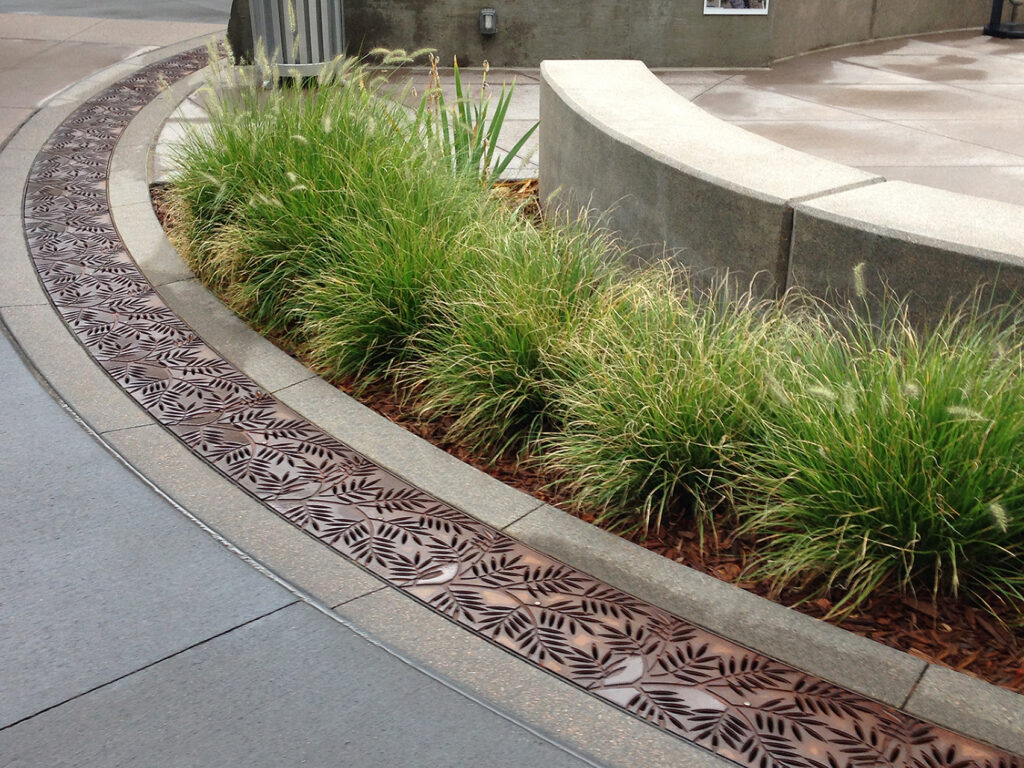

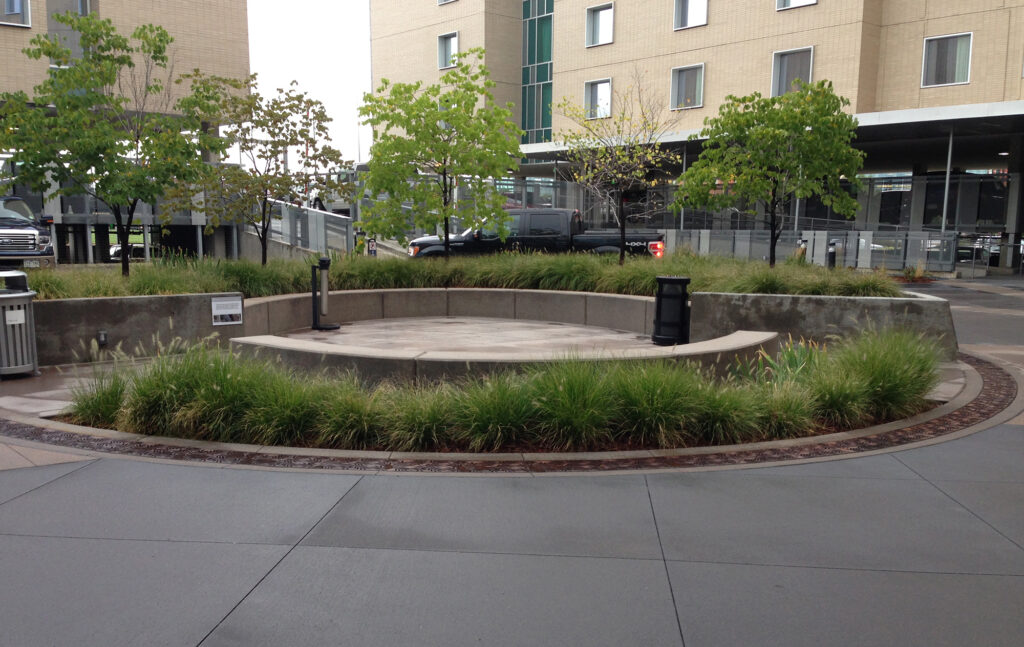

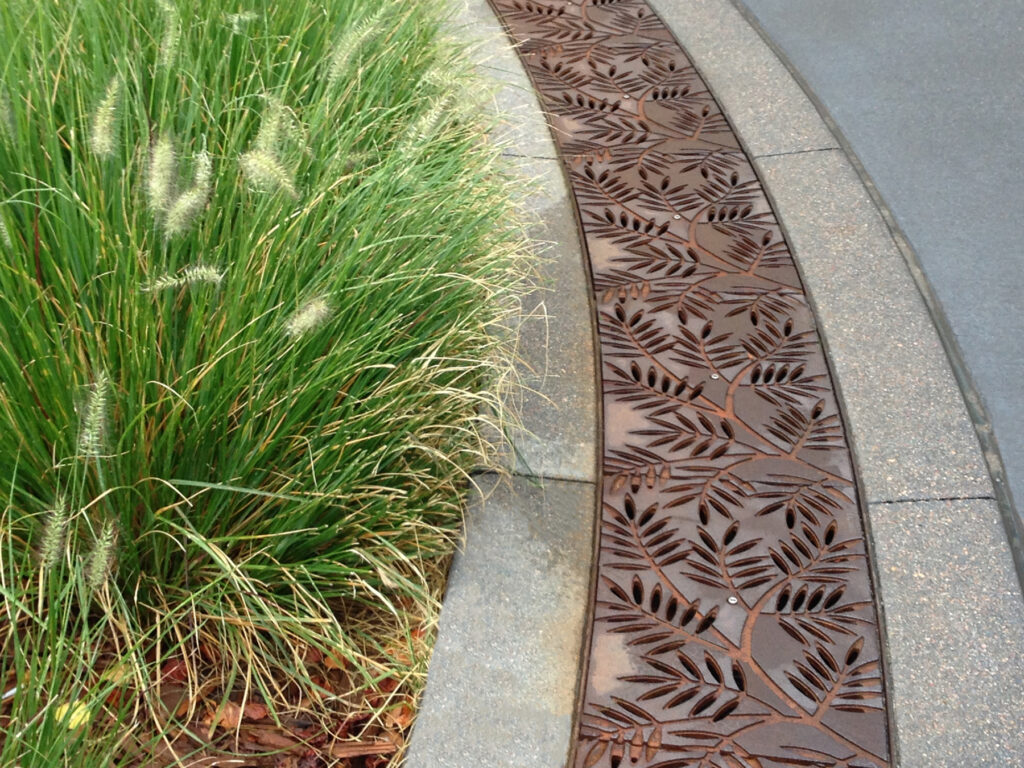

Locust 12″ wide radius trench grate, raw cast iron. PROJECT: Springhill Suites. LOCATION: Denver, CO.
Locust 12″ wide radius trench grate, raw cast iron. PROJECT: Springhill Suites. LOCATION: Denver, CO.
Locust 12″ wide radius trench grate, raw cast iron. PROJECT: Springhill Suites. LOCATION: Denver, CO.
Locust 12″ wide radius trench grate, raw cast iron. PROJECT: Springhill Suites. LOCATION: Denver, CO.

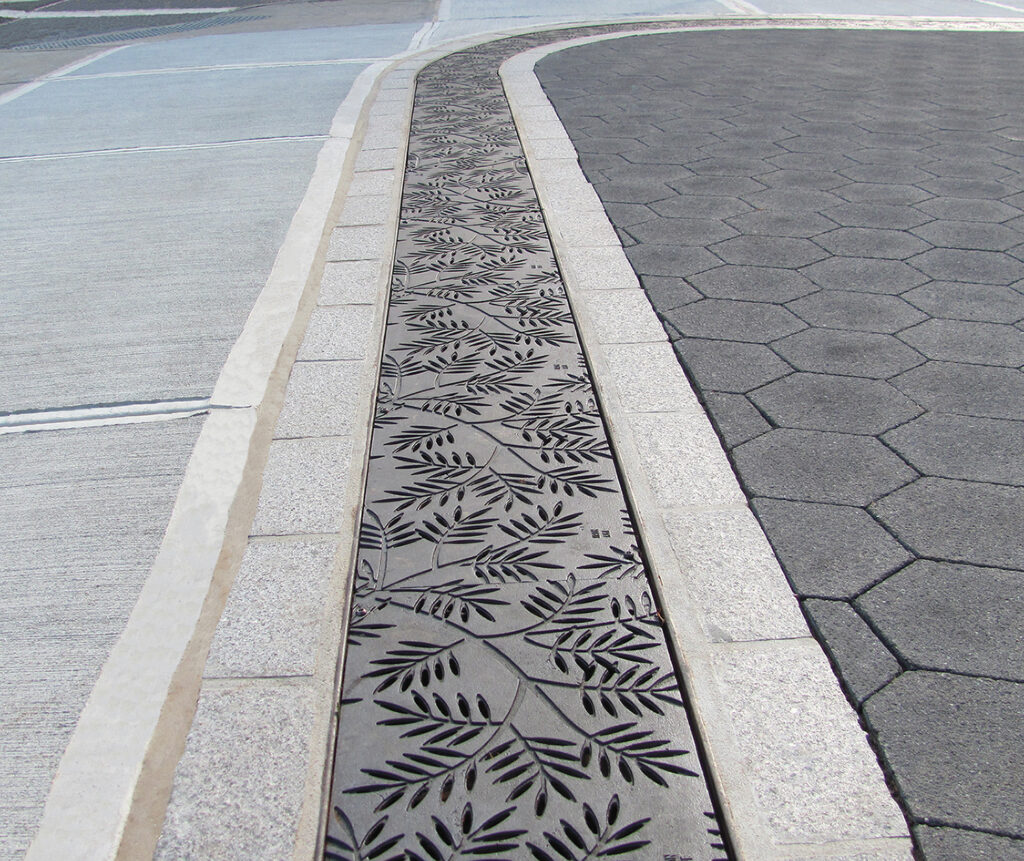

Locust 12″ wide radius trench grate, cast iron with black powder coat, arrayed with various radii. DESIGN: NYC Parks. PROJECT: Westerleigh Park. LOCATION: Staten Island, NY.
Locust 12″ wide radius trench grate, cast iron with black powder coat, arrayed with various radii. DESIGN: NYC Parks. PROJECT: Westerleigh Park. LOCATION: Staten Island, NY.
Locust 12″ wide radius trench grate, cast iron with black powder coat, arrayed with various radii. DESIGN: NYC Parks. PROJECT: Westerleigh Park. LOCATION: Staten Island, NY.

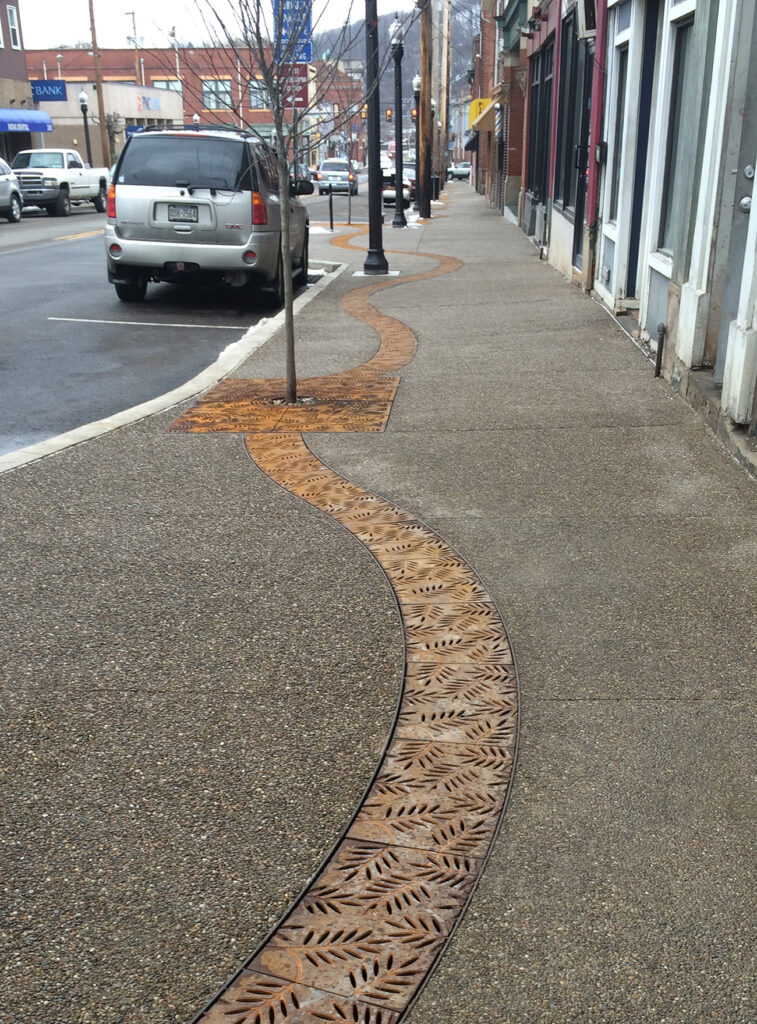

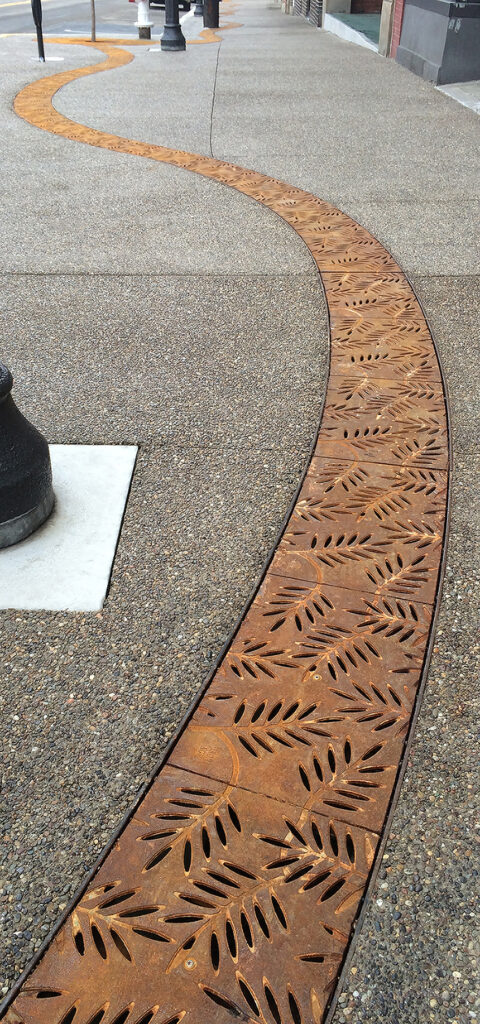

Locust 12″ wide radius trench grate, raw cast ductile iron, arrayed with various radii. DESIGN: Buchart Horn. PROJECT: Green Streetscape Project. LOCATION: Etna, PA.
Locust 12″ wide radius trench grate, raw cast ductile iron, arrayed with various radii. DESIGN: Buchart Horn. PROJECT: Green Streetscape Project. LOCATION: Etna, PA.
Locust 12″ wide radius trench grate, raw cast ductile iron, arrayed with various radii. DESIGN: Buchart Horn. PROJECT: Green Streetscape Project. LOCATION: Etna, PA.
Locust 12″ wide radius trench grate, raw cast ductile iron, arrayed with various radii. DESIGN: Buchart Horn. PROJECT: Green Streetscape Project. LOCATION: Etna, PA.
Locust 12″ wide radius trench grate, raw cast ductile iron, arrayed with various radii. DESIGN: Buchart Horn. PROJECT: Green Streetscape Project. LOCATION: Etna, PA.
Similar Products:
View additional products featuring the Locust design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
