Locust

Description:

The popularity of our Locust pattern points to a natural affinity for organic design elements. Available in a wide range of shapes and sizes, these signature grates are designed to be combined into any number of unique applications.













Size Options:
Similar Products:

Detailed Specifications:

Name / Design Locust 2" x 12"
Product ID LX2-12I99
Dimensions 1.98" x 11.79" x .33"
Drain Manufacturer
ADP
Fits ADP 2" Channel Drain
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 1.5
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Patent No. US D563,528 S
Name / Design Locust 3" x 12" Heel Proof
Product ID LN3-12I01
Dimensions 2.77" x 11.94" x .31"
Drain Manufacturer
NDS®
Fits NDS® Mini-Channel
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 2
Free Drain Area 12.02%
Gallons Per Minute (GPM) 5.20
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Patent No. US D563,528 S
Copyright Registration No. VA 1-814-267

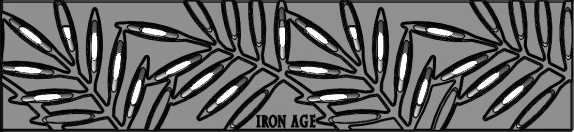

Name / Design Locust 4" x 18" Heel Proof
Product ID LN4-18I02HP
Dimensions 4.09" x 17.88" x .75"
Drain Manufacturer
NDS®
Fits NDS® Spee-D® Channel
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 8
Free Drain Area 4.18%
Gallons Per Minute (GPM) 5.48
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Patent No. US D563,528 S
Copyright Registration No. VA 2-159-545
Name / Design Locust 4" x 24"
Product ID LN4-24I02
Dimensions 4.06" x 23.94" x .75"
Drain Manufacturer
NDS®
Fits NDS® Spee-D® Channel
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 7.60
Free Drain Area 22.25%
Gallons Per Minute (GPM) 28.35
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Patent No. US D563,528 S
Copyright Registration No. VA 1-814-269
Name / Design Locust 4" x 24" Heel Proof
Product ID LN4-24D99HP
Dimensions 3.94" x 23.62" x .79"
Drain Manufacturer
NDS®
Fits NDS® Spee-D® Channel
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 9
Free Drain Area 10.48%
Gallons Per Minute (GPM) 12.77
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Patent No. US D563,528 S
Copyright Registration No. VA 1-814-269
Name / Design Locust 5" x 20"
Product ID LA5-20I21
Dimensions 4.81" x 19.56" x .81"
Drain Manufacturer
ABT®
ACO™
MEA®
Fits ABT® PolyDrain®
ACO™ K100, K100S, KS100
MEA® 1000 Series
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 12.36
Free Drain Area 11.23%
Gallons Per Minute (GPM) 13.88
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Patent No. US D563,528 S
Copyright Registration No. VA 1-814-265
Name / Design Locust 6" x 24"
Product ID LN6-24I03
Dimensions 5.88" x 23.94" x .81"
Drain Manufacturer
NDS®
Fits NDS® Dura Slope®
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 13.97
Free Drain Area 17.6%
Gallons Per Minute (GPM) 32.43
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Patent No. US D563,528 S
Copyright Registration No. VA 2-007-100

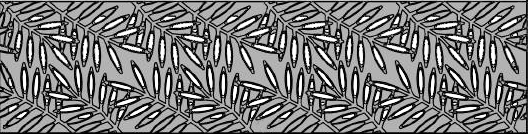

Name / Design Locust 6" x 24" Heel Proof
Product ID LX6-24I99HP
Dimensions 5.91" x 23.6" x .79"
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 15
Free Drain Area 11.5%
Gallons Per Minute (GPM) 21.1
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Patent No. US D563,528 S
Copyright Registration No. VA 1-970-689
Name / Design Locust 8" x 12" Heel Proof
Product ID LX8-12I99HP
Dimensions 7.88" x 11.88" x 1.00"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10.75
Free Drain Area 10.01%
Gallons Per Minute (GPM) 12.21
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Locust 9" x 20" Heel Proof
Product ID LM9-20I22HP
Dimensions 8.78" x 19.61" x .79"
Drain Manufacturer
MEA®
Fits MEA® EN2000
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 23
Free Drain Area 16.63%
Gallons Per Minute (GPM) 34.86
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 1-814-274
Name / Design Locust 12" x 20" Heel Proof
Product ID LX12-20I99HP
Dimensions 11.25" x 19.88" x .88"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 19.22
Free Drain Area 85%
Gallons Per Minute (GPM) 24.91
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 1-814-263
Name / Design Locust 13" x 20" Heel Proof Heavy-Duty
Product ID LX13-20I99HPHD
Dimensions 13.75" x 19.75" x 1.5"
Drain Manufacturer
ABT®
Fits ABT® TrenchFormer® TFX-12
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 26
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze

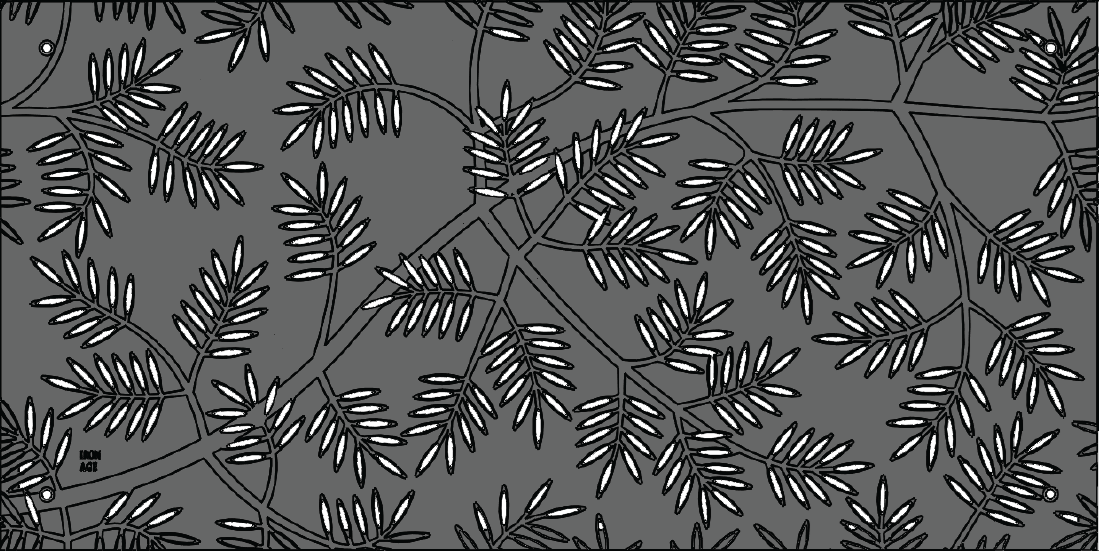

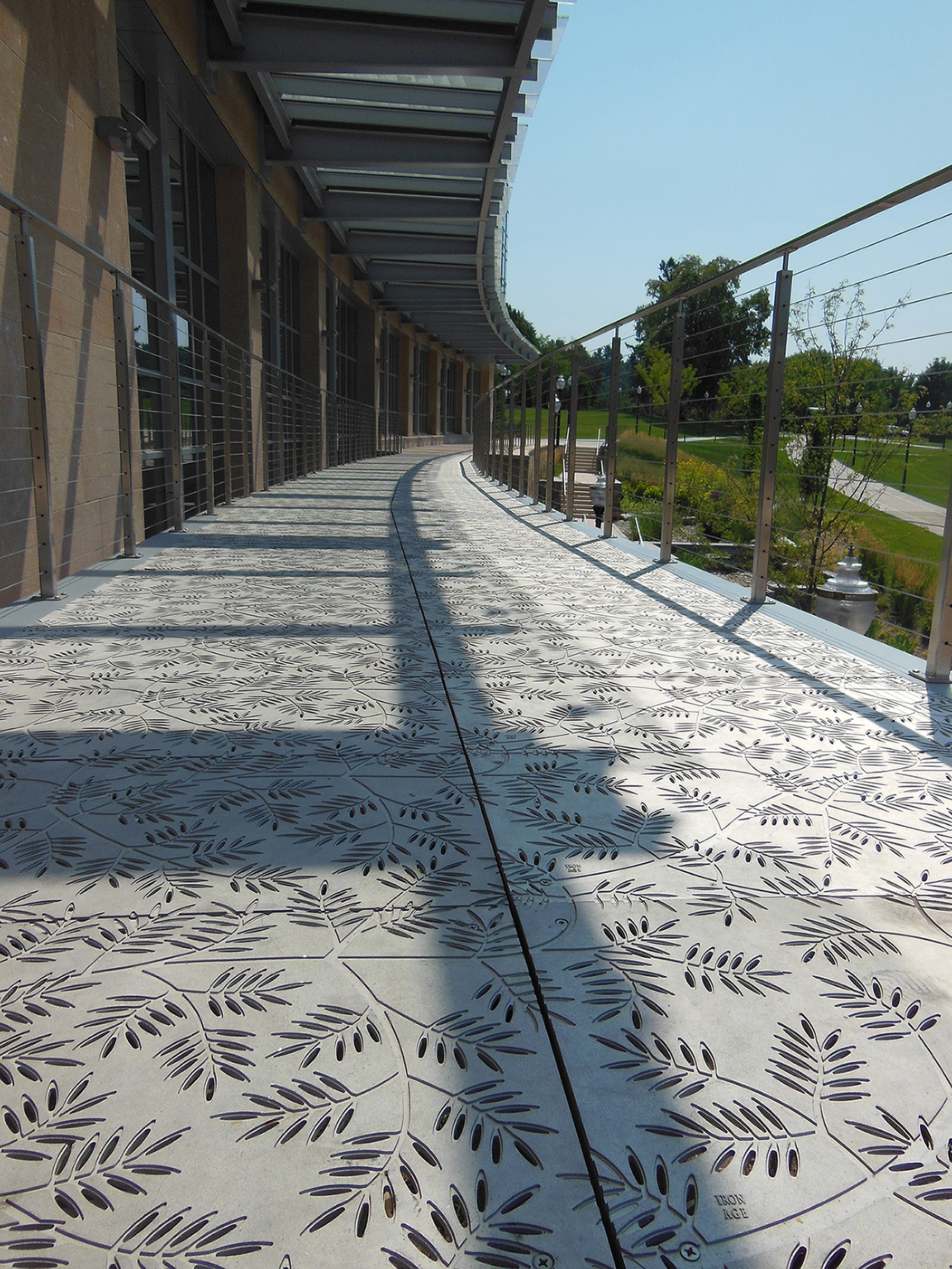

Name / Design Locust 20" x 40" Heel Proof, Pedestrian Load Only
Product ID LX20-40I99HP
Dimensions 19.87" x 40" x 1.25"
Fits Iron Age Custom Frame
Frame(s) Frame Types
"E" Frame Installation
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 80
Free Drain Area 8.4%
Gallons Per Minute (GPM) 87.46
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze

Photo Gallery:

locust-2-x-12-e

Locust 2″ x 12″ trench grate, raw ductile iron. PROJECT: Hollywood Hotel. LOCATION: Los Angeles, CA


Download photo
locust-2-x-12-2-e

Locust 2″ x 12″ trench grate, raw ductile iron. PROJECT: Hollywood Hotel. LOCATION: Los Angeles, CA


Download photo
locust-2-x-12-3-e

Locust 2″ x 12″ trench grate, raw ductile iron. PROJECT: Hollywood Hotel. LOCATION: Los Angeles, CA


Download photo
locust-3-x-12-e

Locust 3″ x 12″ trench grate, raw cast ductile iron. Photo credit: Lauchlin R. Bethune Associates.


Download photo
OLYMPUS DIGITAL CAMERA

Locust 4″ x 24″ trench grate, raw cast iron. Project: Street of Dreams, Seattle WA


Download photo
OLYMPUS DIGITAL CAMERA

Locust 4″ x 24″ trench grate, raw cast iron. Project: Street of Dreams, Seattle WA


Download photo
OLYMPUS DIGITAL CAMERA

Locust 4″ x 24″ trench grate, raw cast iron. Project: Street of Dreams, Seattle WA


Download photo
OLYMPUS DIGITAL CAMERA

Locust 4″ x 24″ trench grate, raw cast iron. Project: Street of Dreams, Seattle WA


Download photo
OLYMPUS DIGITAL CAMERA

Locust 4″ x 24″ trench grate, raw cast iron. Project: Street of Dreams, Seattle WA


Download photo
OLYMPUS DIGITAL CAMERA

Locust 4″ x 24″ trench grate, raw cast iron. Project: Street of Dreams, Seattle WA


Download photo
locust-4-x-24-7-e

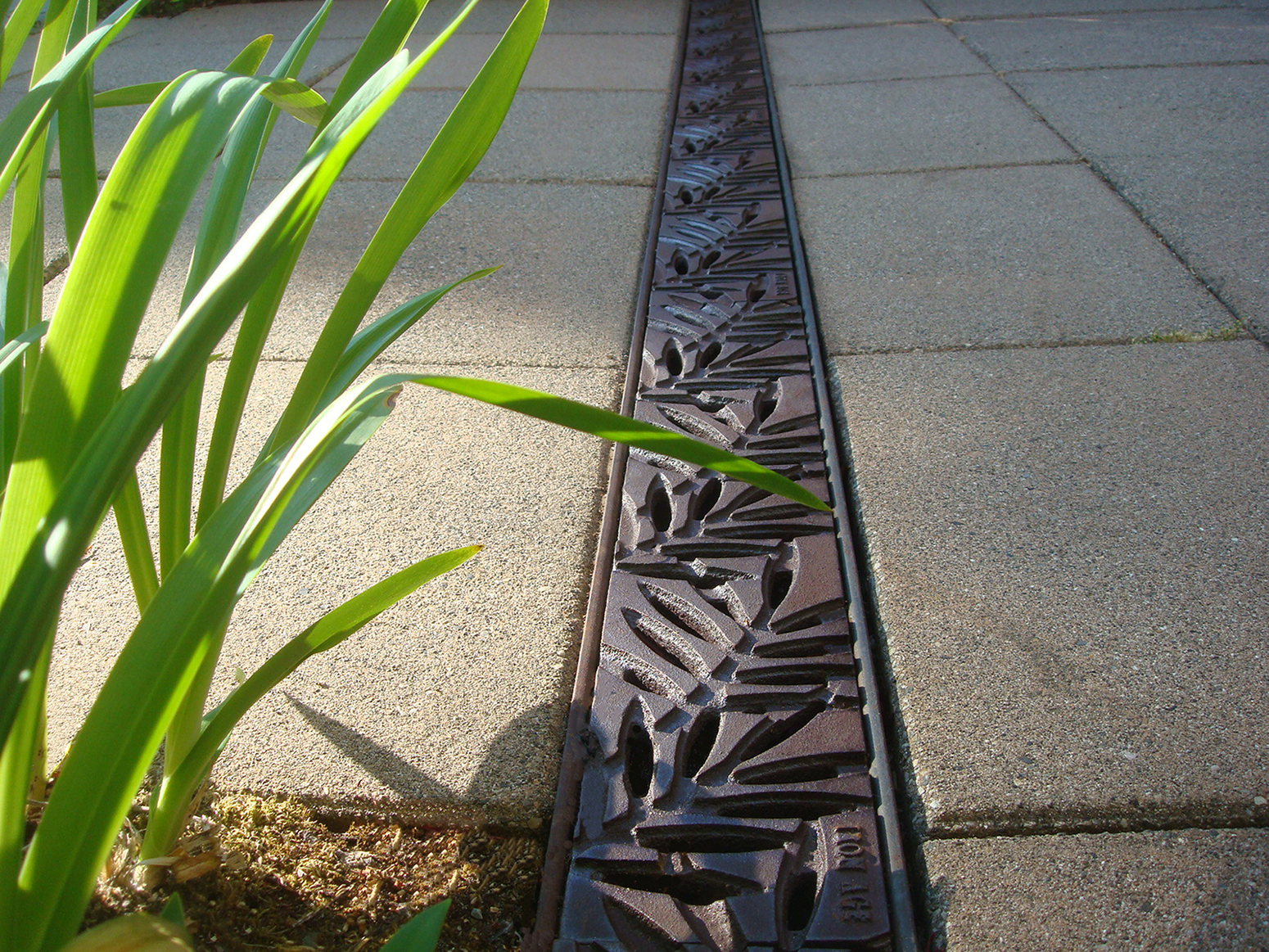

Locust 4″ x 24″ trench grate, cast iron with baked-on-oil finish.


Download photo
locust-4-x-24-8-e

Locust 4″ x 24″ trench grate, cast iron with baked-on-oil finish.


Download photo
OLYMPUS DIGITAL CAMERA

Locust 4″ x 24″ trench grate, raw cast iron. Project Location: Residence, Seattle Washington.


Download photo
OLYMPUS DIGITAL CAMERA

Locust 4″ x 24″ trench grate, raw cast iron. Project Location: Residence, Bellevue Washington.


Download photo

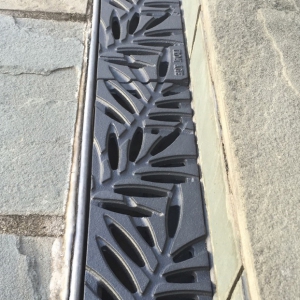

locust-4-x-24-wo-2-e

Locust 4″ x 24″ trench grate, cast iron with baked-on-oil finish.


Download photo
locust-4-x-24-wo-e

Locust 4″ x 24″ trench grate, cast iron with black powder coat finish.


Download photo
Decorative cast iron trench grates with Locust leaf pattern

Locust 5″ x 20″ trench grates, cast ductile iron with baked-on-oil finish. Project Location: Residential driveway, Burien, WA.


Download photo
Decorative cast iron trench grates with Locust leaf pattern

Locust 5″ x 20″ trench grates in raw cast ductile iron, installed in residential driveway.


Download photo
Cast iron trench drain grates with decorative Locust pattern, installed in driveway with pavers

Locust 5″ x 20″ trench grates in raw cast ductile iron. LOCATION: Miami, FL.


Download photo
?????????????????????????????????????????????????????????????????????????????????????????????????????????????????????

Locust 5″ x 20″ trench grate, raw cast bronze. PHOTO CREDIT/INSTALLER: Gulfstream Pools. PROJECT: Colony Hotel. LOCATION: Delray Beach, FL.


Download photo
OLYMPUS DIGITAL CAMERA

Locust 5″ x 20″ trench grate, raw cast ductile iron. PROJECT: Residential installation. LOCATION: Lopez Island, San Juan, WA.


Download photo
OLYMPUS DIGITAL CAMERA

Locust 5″ x 20″ trench grate, raw cast ductile iron. PROJECT: Residential installation. LOCATION: Lopez Island, San Juan, WA.


Download photo
OLYMPUS DIGITAL CAMERA

Locust 5″ x 20″ trench grate, raw cast ductile iron. PROJECT: Residential installation. LOCATION: Lopez Island, San Juan, WA.


Download photo
locust-5-x-20-2-e

Locust 5″ x 20″ trench grate, raw cast bronze. DESIGN: The Land Group. PROJECT: The Village at Meridian. LOCATION: Meridian, ID.


Download photo
locust-5-x-20-3-e

Locust 5″ x 20″ trench grate, raw cast bronze. DESIGN: The Land Group. PROJECT: The Village at Meridian. LOCATION: Meridian, ID.


Download photo
locust-5-x-20-4-e

Locust 5″ x 20″ trench grate, raw cast bronze. DESIGN: The Land Group. PROJECT: The Village at Meridian. LOCATION: Meridian, ID.


Download photo

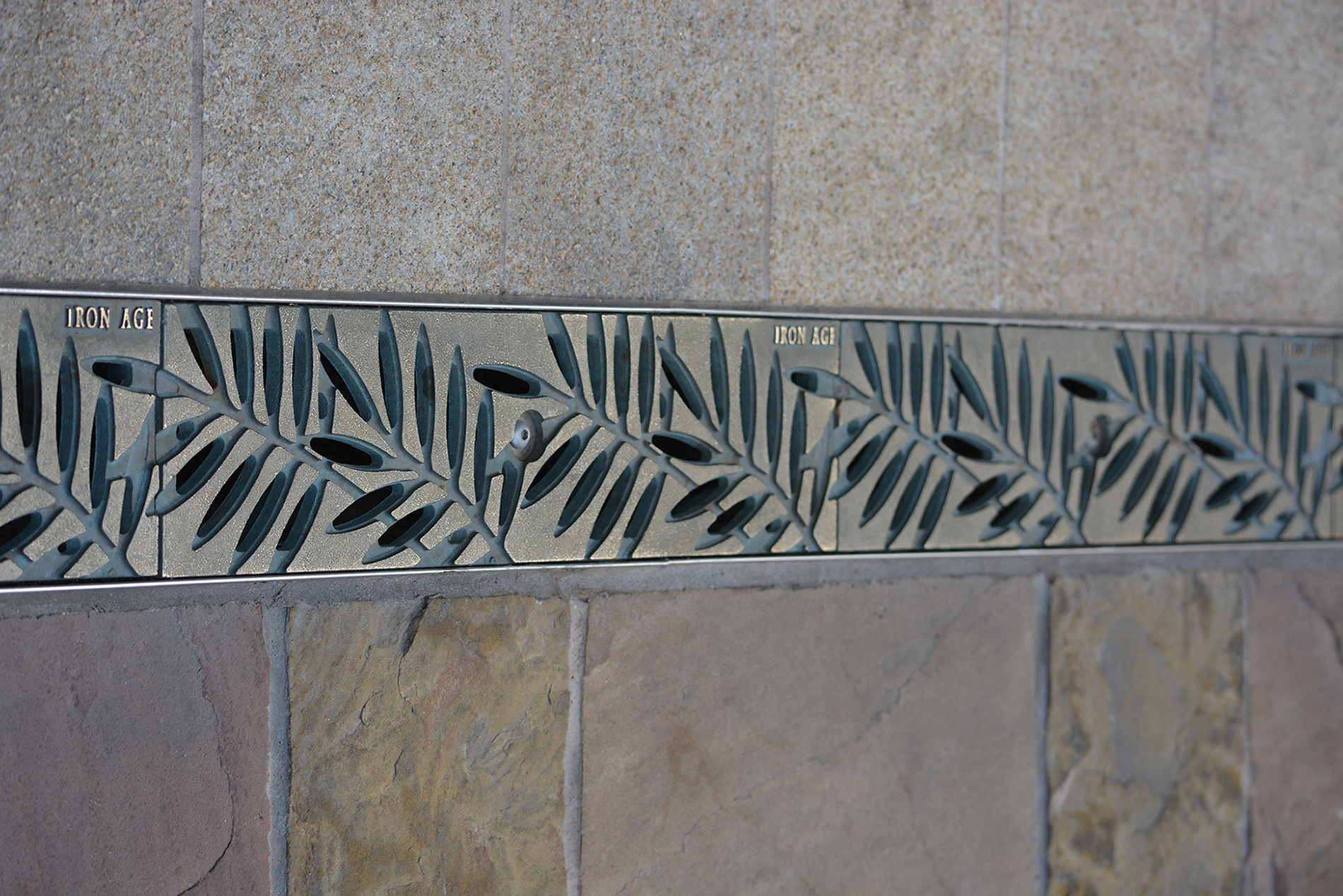

locust-5-x-20-e

Locust 5″ x 20″ trench grate, raw cast bronze. DESIGN: The Land Group. PROJECT: The Village at Meridian. LOCATION: Meridian, ID.


Download photo

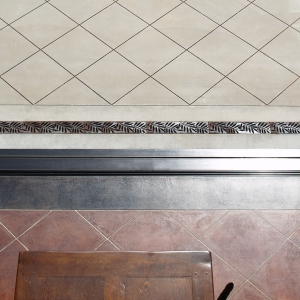

Locust 5" x 20" trench grate

Locust 5″ x 20″ trench grate, raw cast iron. PROJECT: Pike & Rose. LOCATION: North Bethesda, MD.


Download photo

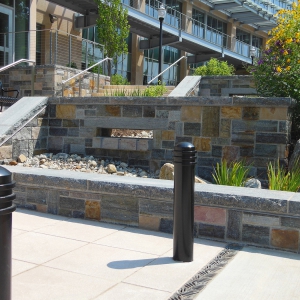

locust-5-x-20-8-e

Locust 5″ x 20″ trench grate, raw cast ductile iron. PROJECT: UMASS Amherst Life Science Laboratories. LOCATION: Amherst, MA


Download photo

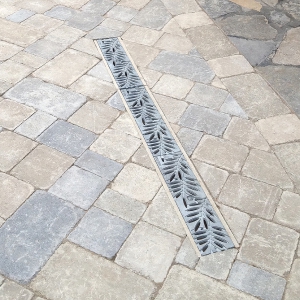

locust-5-x-20-5-e

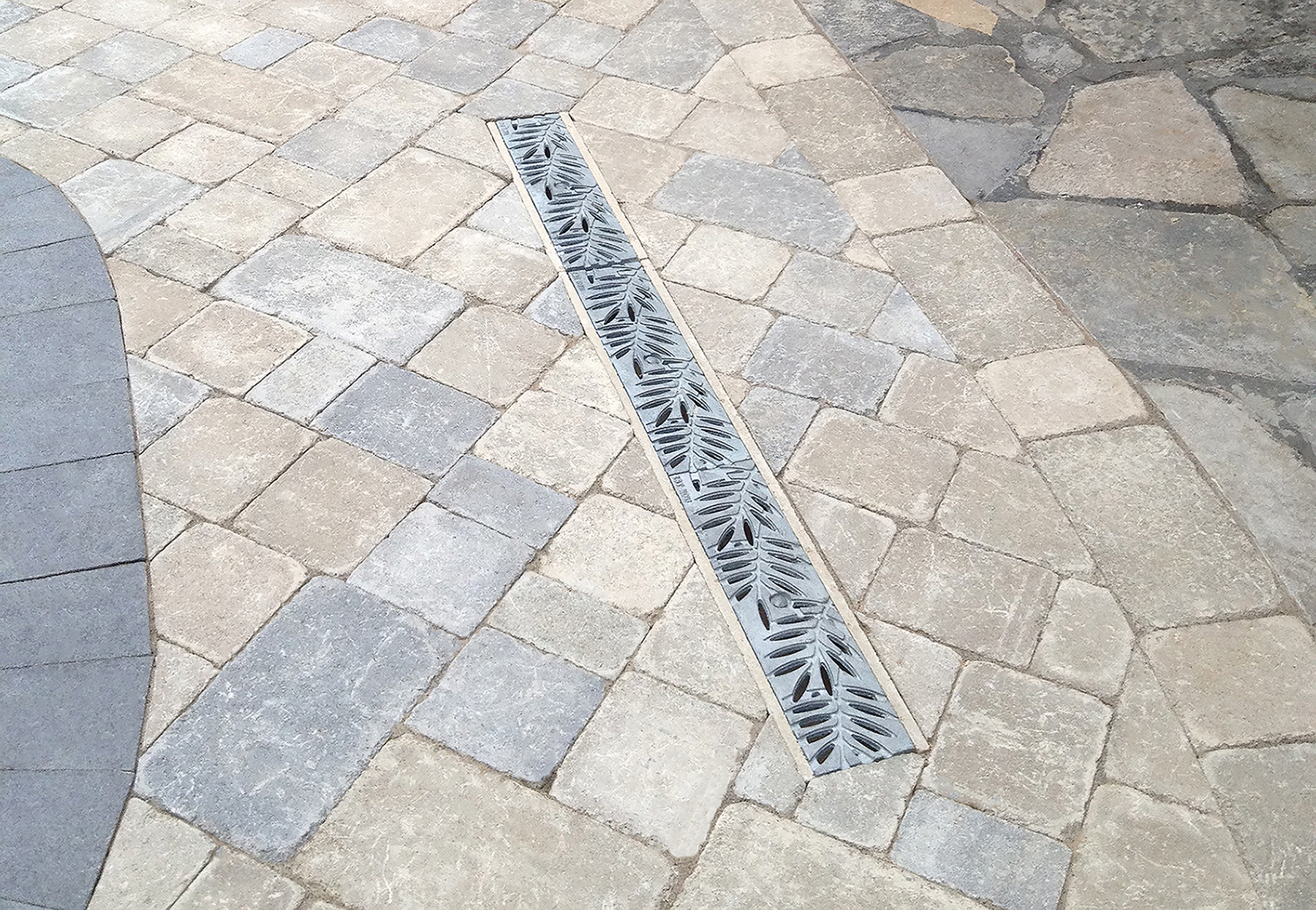

Locust 5″ x 20″ trench grate, cast ductile iron with powder coat finish.


Download photo
OLYMPUS DIGITAL CAMERA

Locust 5″ x 20″ trench grate, raw cast ductile iron. PROJECT: Residential driveway installation.


Download photo
OLYMPUS DIGITAL CAMERA

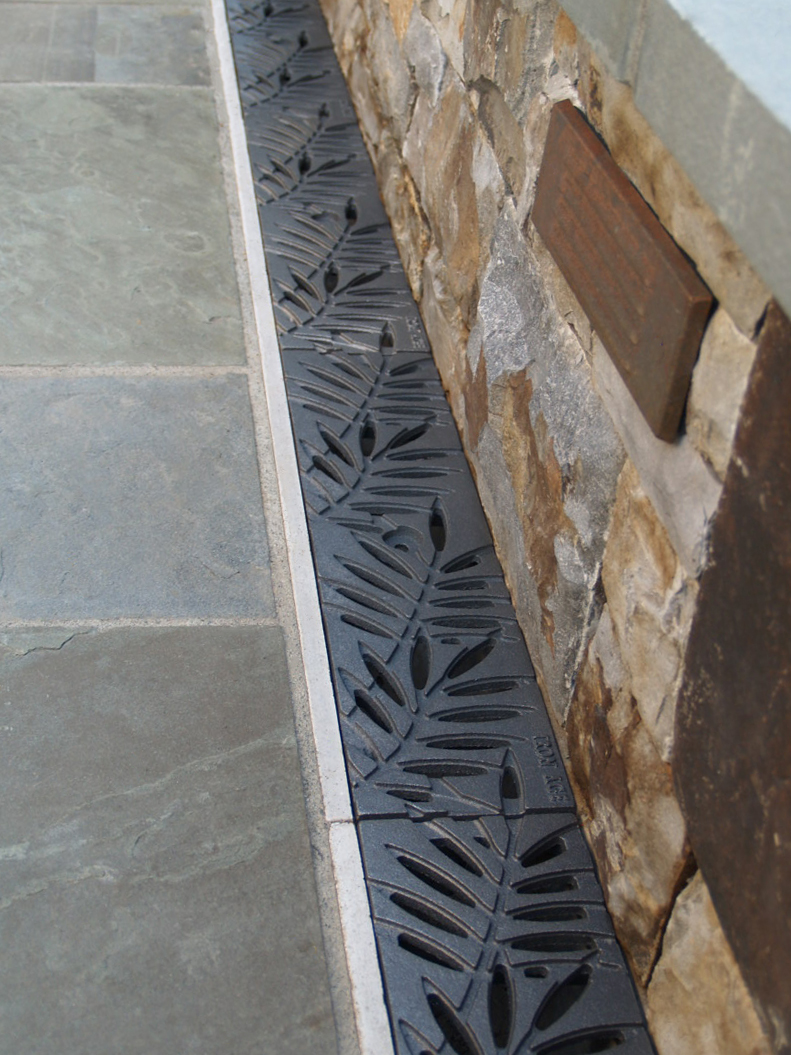

Locust 5″ x 20″ trench grate, cast ductile iron with black powder coat finish. PROJECT: Residential installation.


Download photo
OLYMPUS DIGITAL CAMERA

Locust 5″ x 20″ trench grate, cast ductile iron with black powder coat finish. PROJECT: Residential installation.


Download photo
OLYMPUS DIGITAL CAMERA

Locust 5″ x 20″ trench grate, cast ductile iron with black powder coat finish. PROJECT: Residential installation.


Download photo
Decorative cast iron trench grates with Locust leaf pattern

Locust 6″ x 24″ trench grate, raw cast ductile iron. DESIGN: Laurie Keffer, Landscape Architect. PROJECT: Residential driveway.  LOCATION: Edmond, OK.


Download photo
Decorative cast iron trench grates with Locust leaf pattern

Locust 6″ x 24″ trench grate, raw cast ductile iron. DESIGN: Laurie Keffer, Landscape Architect. PROJECT: Residential driveway.  LOCATION: Edmond, OK.


Download photo
Decorative cast iron trench grates with Locust leaf pattern

Locust 6″ x 24″ trench grate, raw cast ductile iron. DESIGN: Laurie Keffer, Landscape Architect. PROJECT: Residential driveway.  LOCATION: Edmond, OK.


Download photo
Decorative cast iron trench grates with Locust leaf pattern

Locust 6″ x 24″ trench grate, raw cast ductile iron. PROJECT: Assembly Row. LOCATION: Somerville, MA.


Download photo
Locust 6 x 24 (1) E

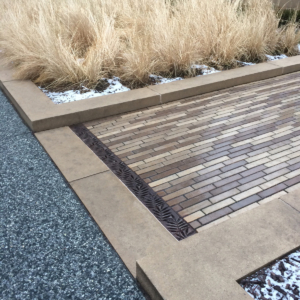

Locust 6″ x 24″ trench grate, raw cast iron. PROJECT: Residential installation. LOCATION: Kirkland WA.


Download photo
Locust 6 x 24 (2) E

Locust 6″ x 24″ trench grate, raw cast iron. PROJECT: Residential application.


Download photo
OLYMPUS DIGITAL CAMERA

Locust 6″ x 24″ trench grate, cast iron with our baked on oil finish. PROJECT: Residential application.


Download photo
OLYMPUS DIGITAL CAMERA

Locust 6″ x 24″ trench grate, raw cast iron. PROJECT: Residential application.


Download photo
Locust 6 x 24 (5) E

Locust 6″ x 24″ trench grate, raw cast iron. DESIGN: Copley Wolff Design Group. PROJECT: Liberty Mutual Streetscape and Linear Park. LOCATION: Boston, MA.


Download photo
Locust 6 x 24 (6) E

Locust 6″ x 24″ trench grate, raw cast iron. DESIGN: Copley Wolff Design Group. PROJECT: Liberty Mutual Streetscape and Linear Park. LOCATION: Boston, MA.


Download photo
Locust 6 x 24 (7) E

Locust 6″ x 24″ trench grate, raw cast iron. DESIGN: Copley Wolff Design Group. PROJECT: Liberty Mutual Streetscape and Linear Park. LOCATION: Boston, MA.


Download photo
locust-6-x-24-wo-e

Locust 6″ x 24″ trench grate, raw cast iron.


Download photo
Cast iron trench grates in decorative Locust pattern by Iron Age Designs. Installed in colorful pedestrian plaza.

Locust 6″ x 24″ heel proof trench grates, cast ductile iron with baked-on-oil finish. DESIGN: Los Angeles Department of Transportation. PROJECT: Lankershim Plaza. LOCATION: Los Angeles, CA.


Download photo
Cast iron trench grates in decorative Locust pattern by Iron Age Designs. Installed in colorful pedestrian plaza.

Locust 6″ x 24″ heel proof trench grates, cast ductile iron with baked-on-oil finish. DESIGN: Los Angeles Department of Transportation. PROJECT: Lankershim Plaza. LOCATION: Los Angeles, CA.


Download photo
????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????

Locust 9″ x 20″ heel proof trench grate, cast iron with baked-on-oil finish. DESIGN: Arterial. CONTRACTOR: Flanagan’s Contracting Group. PROJECT: Millburn Streetscape. LOCATION: Millburn, NJ.


Download photo
locust-12-x-20-heelproof-3-e

Locust 12″ x 20″ trench grate, raw ductile iron.


Download photo
Locust 12 x 20 HP (2) E rev

Locust 12″ x 20″ trench grate, raw ductile iron. PROJECT: Residential installation. LOCATION: Ontario, Canada.


Download photo
locust-12-x-20-heelproof-4-e

Locust 12″ x 20″ trench grate, raw ductile iron. PROJECT: Residential installation. LOCATION: Ontario, Canada.


Download photo
locust-12-x-20-heelproof-e

Locust 12″ x 20″ trench grate, raw ductile iron. PROJECT: Residential installation. LOCATION: Ontario, Canada.


Download photo
Locust 12 x 20 HP (5)

Locust 12″ x 20″ trench grates, baked-on-oil finish. Shown as pedestrian bridge deck stairs. DESIGN: Hord Coplan Macht. PROJECT: Loyola University Baltimore Campus. LOCATION: Baltimore, MD.


Download photo
Locust 20x40 HP Trench BOOF (6) E

Locust 20″ x 40″ Heel Proof trench grate, cast iron with baked-on-oil finish. Shown as pedestrian bridge deck. DESIGN: Hord Coplan Macht. PROJECT: Loyola University Baltimore Campus. LOCATION: Baltimore, MD.


Download photo
Locust 20x40 HP Trench BOOF (7) E

Locust 20″ x 40″ Heel Proof trench grate, cast iron with baked-on-oil finish. Shown as pedestrian bridge deck. DESIGN: Hord Coplan Macht. PROJECT: Loyola University Baltimore Campus. LOCATION: Baltimore, MD.


Download photo
Locust 20x40 HP Trench BOOF (8) E

Locust 20″ x 40″ Heel Proof trench grate, cast iron with baked-on-oil finish. Shown as pedestrian bridge deck. DESIGN: Hord Coplan Macht. PROJECT: Loyola University Baltimore Campus. LOCATION: Baltimore, MD.


Download photo
Locust 20x40 Trench BOOF (2) E

Locust 20″ x 40″ heel-proof trench grate, cast iron with baked-on-oil finish. PROJECT: Conservation Park. LOCATION: Ontario, CA.


Download photo
Locust 20x40 Trench BOOF (3) E

Locust 20″ x 40″ heel-proof trench grate, cast iron with baked-on-oil finish. PROJECT: Conservation Park. LOCATION: Ontario, CA.


Download photo
Locust 20x40 Trench BOOF (4) E

Locust 20″ x 40″ heel-proof trench grate, cast iron with baked-on-oil finish. PROJECT: Conservation Park. LOCATION: Ontario, CA.


Download photo
Locust 20x40 Trench BOOF (5) E

Locust 20″ x 40″ heel-proof trench grate, cast iron with baked-on-oil finish. PROJECT: Conservation Park. LOCATION: Ontario, CA.


Download photo
Locust 20x40 Trench BOOF E

Locust 20″ x 40″ heel-proof trench grate, cast iron with baked-on-oil finish. PROJECT: Conservation Park. LOCATION: Ontario, CA.


Download photo
Locust 20x40 HP BOOF (9) E REV

Locust 20″ x 40″ heel-proof trench grates, cast iron with baked-on-oil finish. Arrayed as a pedestrian bridge with decorative laser-cut hand rail.




Download photo
Locust 20x40 HP Trench BOOF (10) E

Locust 20″ x 40″ heel-proof trench grates, cast iron with baked-on-oil finish. Arrayed as a pedestrian bridge with decorative laser-cut hand rail.




Download photo
Locust 20x40 HP Trench BOOF (11) E

Locust 20″ x 40″ heel-proof trench grate, raw cast aluminum, arrayed as a pedestrian bridge. LANDSCAPE ARCHITECT: Towers|Golde. PROJECT: Life Science Laboratories, University of Massachusetts – Amherst. LOCATION: Amherst, MA


Download photo
Locust 20x40 HP Trench BOOF (12) E

Locust 20″ x 40″ heel-proof trench grate, raw cast aluminum, arrayed as a pedestrian bridge. LANDSCAPE ARCHITECT: Towers|Golde. PROJECT: Life Science Laboratories, University of Massachusetts – Amherst. LOCATION: Amherst, MA


Download photo
Locust 20x40 HP Trench BOOF (13) E

Locust 20″ x 40″ heel-proof trench grate, raw cast aluminum, arrayed as a pedestrian bridge. LANDSCAPE ARCHITECT: Towers|Golde. PROJECT: Life Science Laboratories, University of Massachusetts – Amherst. LOCATION: Amherst, MA


Download photo
Locust 20x40 HP Trench BOOF (14) E

Locust 20″ x 40″ heel-proof trench grate, raw cast aluminum, arrayed as a pedestrian bridge. LANDSCAPE ARCHITECT: Towers|Golde. PROJECT: Life Science Laboratories, University of Massachusetts – Amherst. LOCATION: Amherst, MA


Download photo
Filter Products
  • By Category
  • By Design
  • By Size
  • By Drain System
Reset Filters

Contact Us Or, Find a Rep Near You

We Do Custom Learn more

Questions about pricing? See Our FAQ

Standard Finish

For details, see Materials and Finish Options under Resources.

Optional Finish

For details, see Materials and Finish Options under Resources.

Optional Material Upgrades

Call for pricing and lead time.
