Locust - Iron Age Designs

Detailed Specifications:

		Download Spec Sheet
Name / Design	Locust 3' x 6'
Product ID	LX36-72I99TG
Dimensions	36" x 72" x 1.25"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Frame(s)	3' x 6' "E" Frame Frame Types "E" Frame Installation
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powdercoating
Weight	265
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 1-970-779

	Download Spec Sheet
Name / Design	Locust 44" x 48"
Product ID	LX44-48I99TG
Dimensions	44" x 48" x 1"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Frame(s)	Frame Types "E" Frame Installation
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powdercoating
Weight	154
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Download Spec Sheet

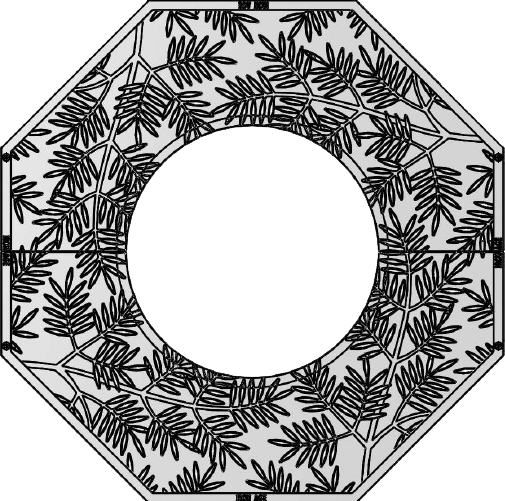

Name / Design	Locust 4' Octagon
Product ID	LX48-OCTI99TG
Dimensions	48" Octogon
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Frame(s)	Frame Types "E" Frame Installation
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powdercoating
Weight	220
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Download Spec Sheet
Name / Design	Locust 4' x 4' Heel Proof
Product ID	LX48-48I99TGHP
Dimensions	48" x 48" x 1"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Frame(s)	4' Sq. "E" Frame-For 2 piece tree grate Frame Types "E" Frame Installation
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powdercoating
Weight	248
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Download Spec Sheet
Name / Design	Locust 4' x 6'
Product ID	LX48-72I99TG
Dimensions	48" x 72" x 1.25"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Frame(s)	4' x 6' "E" Frame Frame Types "E" Frame Installation
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powdercoating
Weight	400
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Download Spec Sheet
Name / Design	Locust 4' x 8' Heel Proof
Product ID	LX48-96I99TGHP
Dimensions	48" x 96" x 1"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Frame(s)	Frame Types "E" Frame Installation
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powdercoating
Weight	510
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Download Spec Sheet
Name / Design	Locust 6' Dia.
Product ID	LX72DiaI99TG
Dimensions	72" Dia. x 1.25"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Frame(s)	6' Dia. "E" Frame Frame Types "E" Frame Installation
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powdercoating
Weight	470
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

Photo Gallery:

Locust 3′ x 6′ tree grate, raw cast iron. Project: Auburn Streetscape, Citrus Heights, CA.

Locust 3′ x 6′ tree grate, raw cast iron. Project: Auburn Streetscape, Citrus Heights, CA.

Locust 4′ Sq. tree grate, cast iron. Project: Maryland Live Casino, Hanover, MD.

Locust 4′ Sq. tree grate, cast iron. Project: Maryland Live Casino, Hanover, MD.

Locust 4′ Sq. tree grate, raw cast iron. Calder Avenue, Beaumont, TX.

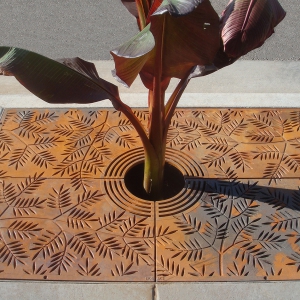

Locust 4′ x 6′ tree grate, raw cast iron. Project Location: City of San Rafael, CA.

Locust 4′ x 6′ tree grate, raw cast iron. Project Location: City of San Rafael, CA.

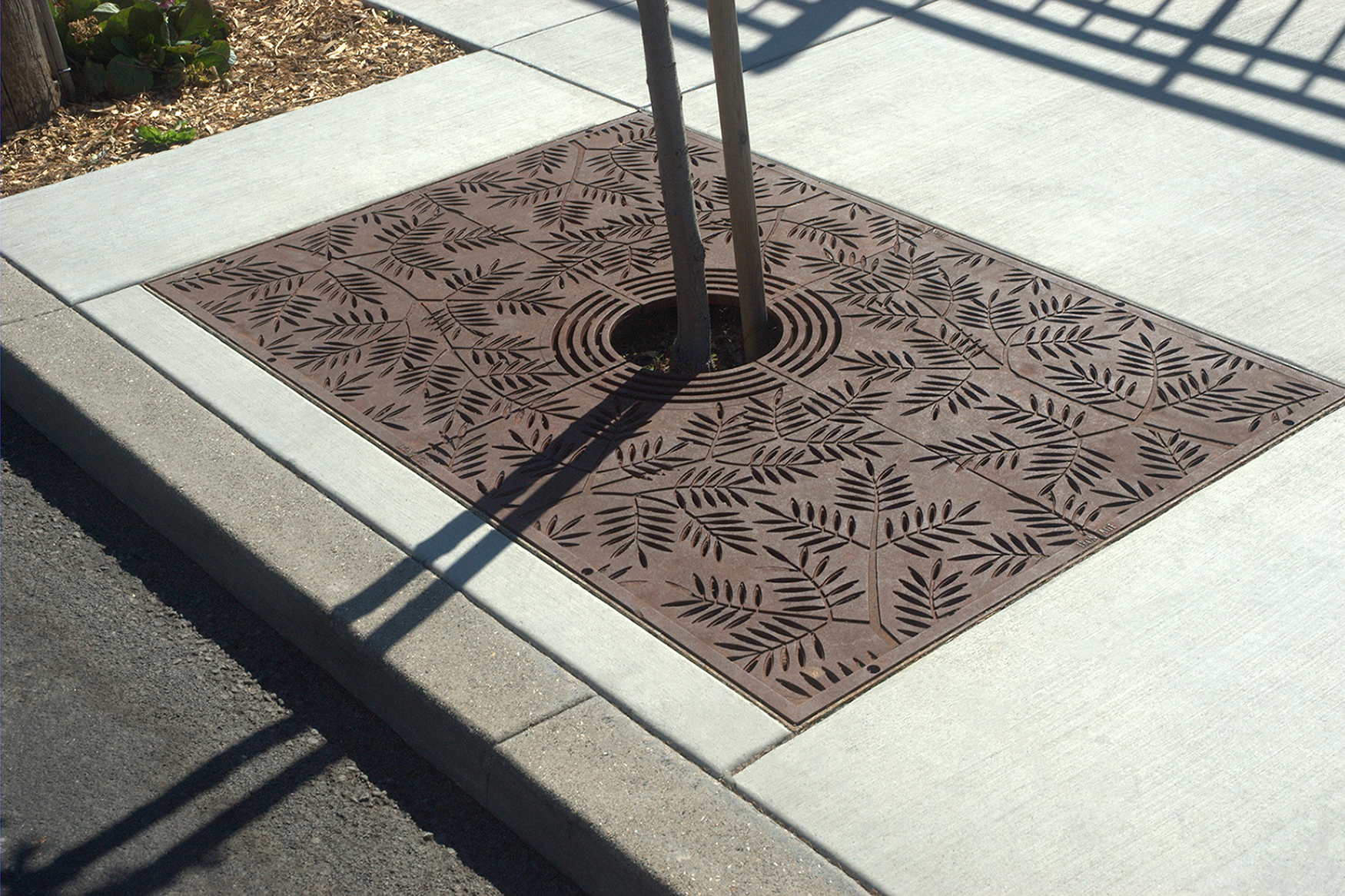

Locust 4′ x 6′ tree grate, cast iron with our baked on oil finish. Project Location: Goleta, CA

Locust 4′ x 6′ tree grate, cast iron with our baked on oil finish. Project Location: Goleta, CA

Locust 4′ x 6′ tree grate, cast iron with our baked on oil finish. Project Location: Goleta, CA

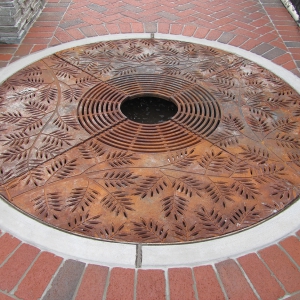

Locust 6′ Dia. tree grate, raw cast iron. Project Location: Union City High School, Union City, NJ.

Locust 6′ Dia. tree grate, raw cast iron. Project Location: Union City High School, Union City, NJ.

Locust 6′ Dia. tree grate, raw cast iron. Project Location: Union City High School, Union City, NJ.
