Locust

Description:

The popularity of our Locust pattern points to a natural affinity for organic design elements. Available in a wide range of shapes and sizes, these signature grates are designed to be combined into any number of unique applications.



Detailed Specifications:

Name / Design Locust 5" Wide, 25-2" CLR
Product ID LR5-20I9925
Dimensions 4.81" x 19.47" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 10
Free Drain Area 19%
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Locust 5" Wide, 50'-0" CLR
Product ID LR5-20I9950
Dimensions 4.81" x 19.44" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Locust 6" Wide, 4'-9" CLR
Product ID LR6-18I995
Dimensions 5.88" x 18" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 13
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending

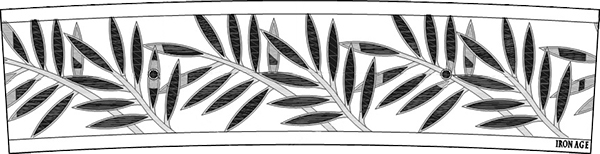

Name / Design Locust 6" Wide, 16'-5" CLR
Product ID LR6-24I9916
Dimensions 5.88" x 24.31" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 15
Free Drain Area 15%
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Locust 6" Wide, 20'-2" CLR
Product ID LR6-24I9920
Dimensions 5.88" x 24" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 15
Free Drain Area 15%
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending

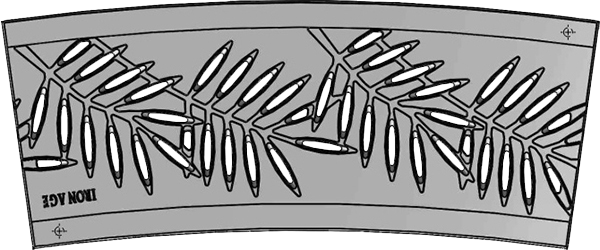

Name / Design Locust 8" Wide, 6'-0" CLR
Product ID LR8-20I996
Dimensions 8" x 19.73" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 16
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Locust 12" Wide, 5'-0" CLR
Product ID LR12-19I995
Dimensions 11.88" x 17.85" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 18
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Locust 12" Wide Heel Proof, 5'-7" CLR
Product ID LR12-20I996HP
Dimensions 11.25" x 18.16" x .94"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 21
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Locust 12" Wide, 13'-0" CLR
Product ID LR12-19I9913
Dimensions 11.88" x 19.18" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 18
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Locust 12" Wide, 20'-5" CLR
Product ID LR12-20I9920
Dimensions 11.88" x 19.58" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 20
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Locust 12" Wide, 22'-0" CLR
Product ID LR12-19I9922
Dimensions 11.88" x 19.48" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 19
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending

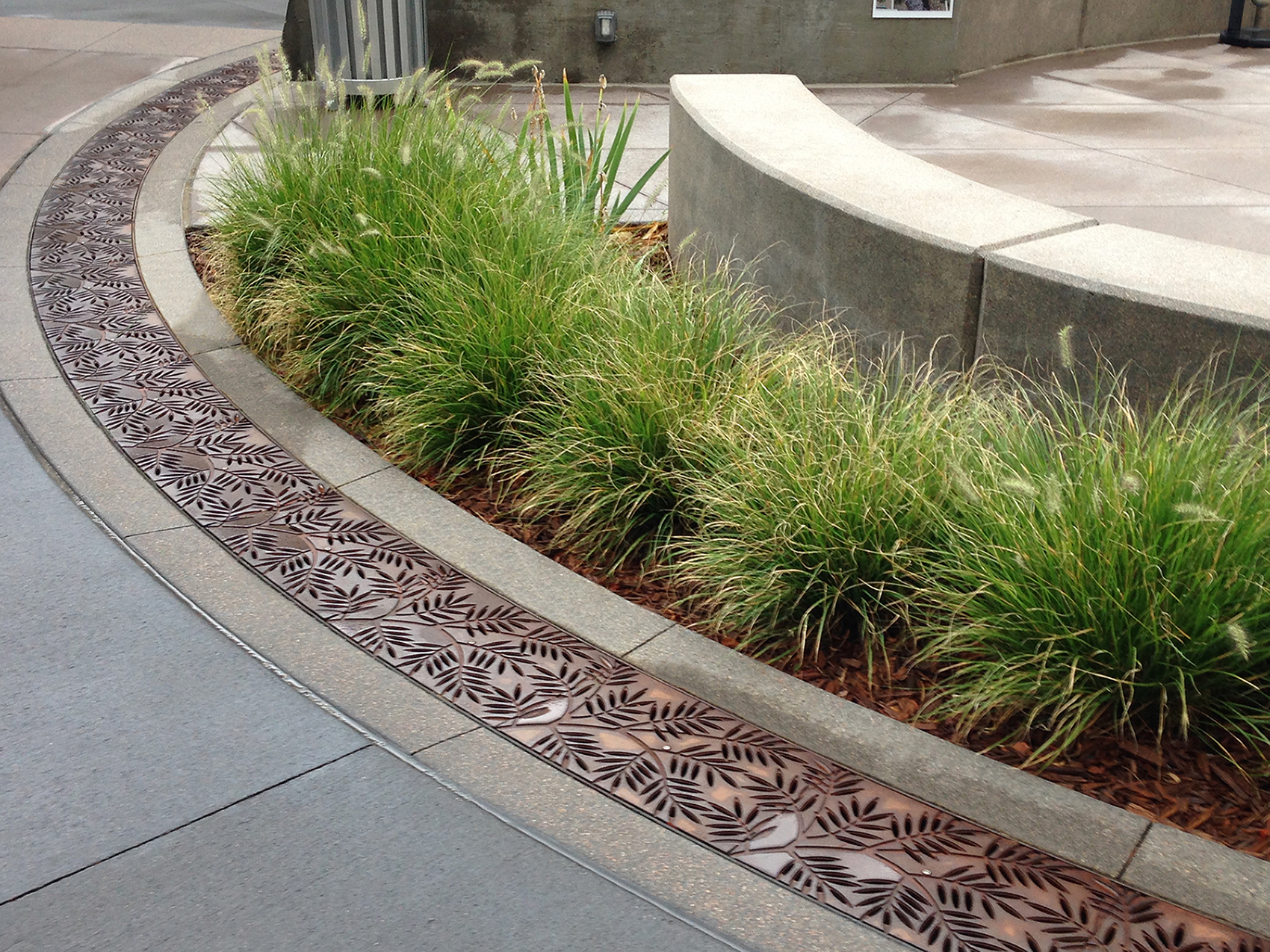

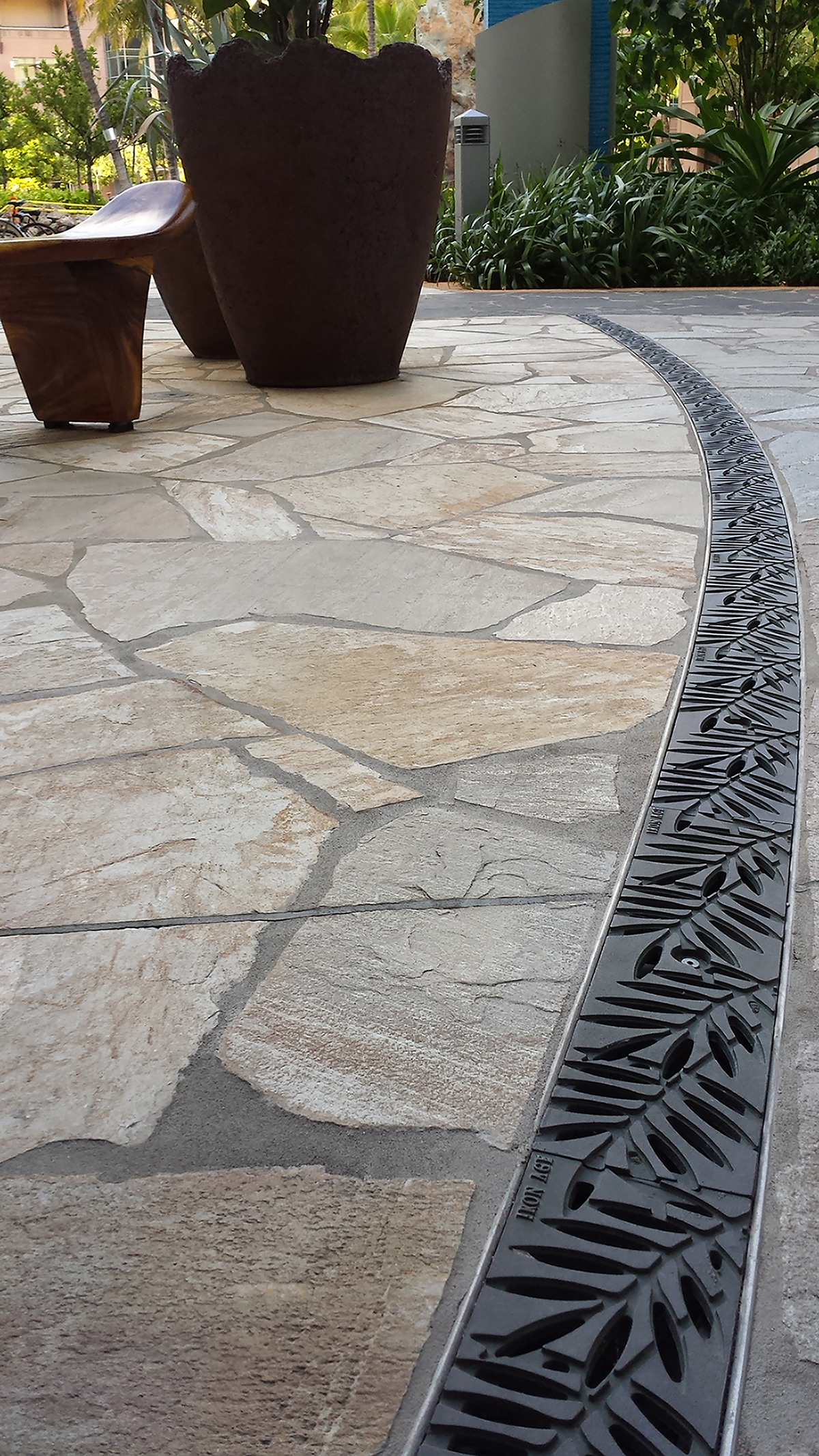

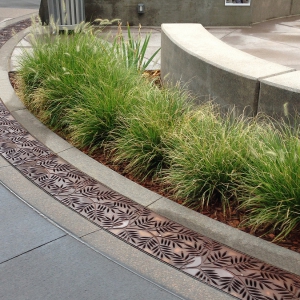

Photo Gallery:

Standard Finish

For details, see Materials and Finish Options under Resources.

Optional Finish

For details, see Materials and Finish Options under Resources.

Optional Material Upgrades

Call for pricing and lead time.
