Large Grate Array Panels
Oblio Large Grate Array Panels
With a pattern that suggests ripples forming on the surface of water, our trademark Oblio design will add distinctive style to a wide range of architectural applications.
Select Size:
Detailed Specifications:
- Name / Design
- Oblio 12" x 48" Heel-Proof - Left PEDESTRIAN LOAD ONLY
- Product ID
- OX12-48I99HPML
- Dimensions
- 11.97" x 47.72" x 1.25"
- Fits
-
Iron Age Custom Frame
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 65.27
- Free Drain Area
- 6.18%
- Gallons Per Minute (GPM)
- 40.63
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
Photo Gallery:
Click image for high-res file and description

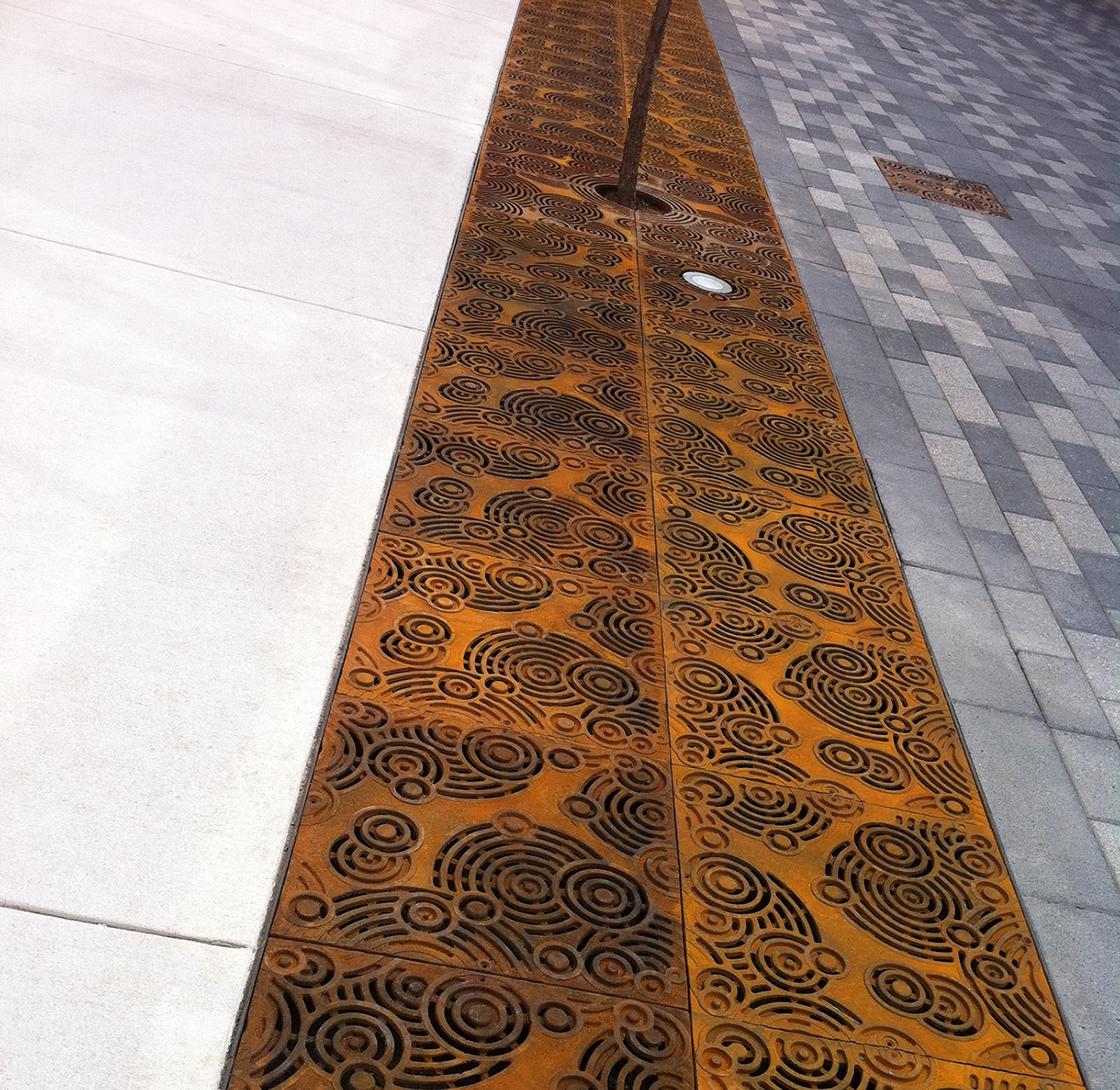

Oblio 4′ x 4′ tree grates used in conjunction with 24″ x 24″ Oblio grate panels to create a 4′ x 96′ tree grate array; raw cast iron.
Oblio 27″ x 37″ grate panel in raw cast iron, repurposed as a unique transitional walkway between residential patio and garden. LOCATION: Burien, WA.
Large stormwater flumes topped with arrays of our Oblio 27″ x 37″ and 27″ x 47″ grates. Cast iron with “antique bronze pearlescent” powder coat finish. DESIGN: The Olsson Studio. PROJECT: Grandscape. LOCATION: The Colony, TX.
Large stormwater flumes topped with arrays of our Oblio 27″ x 37″ and 27″ x 47″ grates. Cast iron with “antique bronze pearlescent” powder coat finish. DESIGN: The Olsson Studio. PROJECT: Grandscape. LOCATION: The Colony, TX.
Large stormwater flumes topped with arrays of our Oblio 27″ x 37″ and 27″ x 47″ grates. Cast iron with “antique bronze pearlescent” powder coat finish. DESIGN: The Olsson Studio. PROJECT: Grandscape. LOCATION: The Colony, TX.
Large stormwater flumes topped with arrays of our Oblio 27″ x 37″ and 27″ x 47″ grates. Cast iron with “antique bronze pearlescent” powder coat finish. DESIGN: The Olsson Studio. PROJECT: Grandscape. LOCATION: The Colony, TX.
Large stormwater flumes topped with arrays of our Oblio 27″ x 37″ and 27″ x 47″ grates. Cast iron with “antique bronze pearlescent” powder coat finish. DESIGN: The Olsson Studio. PROJECT: Grandscape. LOCATION: The Colony, TX.
Similar Products:
View additional products featuring the Oblio design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
