Que

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

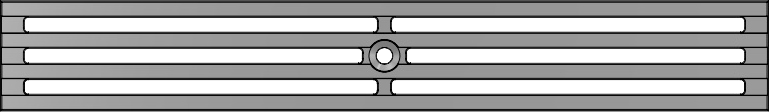

Name / Design	Que 2" x 12" Heel Proof
Product ID	QUX2-12B99HP
Dimensions	1.72" x 12" x .25"
Fits	Iron Age Custom Frame
Material	Cast Bronze
Standard Finish	Raw
Optional Finish	Patina
Weight lb(s)	1
Free Drain Area	31.6%
Gallons Per Minute (GPM)	9.6
Recycled Content	80%
ADA Compliant	Yes

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 3" x 12" Heel Proof
Product ID	QUN3-12I01HP
Dimensions	2.74" x 11.94" x .38"
Drain Manufacturer	NDS®
Fits	NDS® Mini-Channel
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	2
Free Drain Area	17.34%
Gallons Per Minute (GPM)	7.41
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

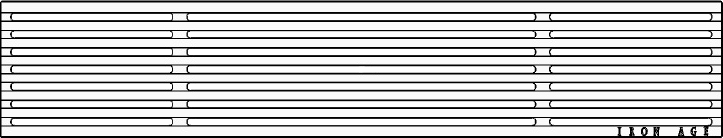

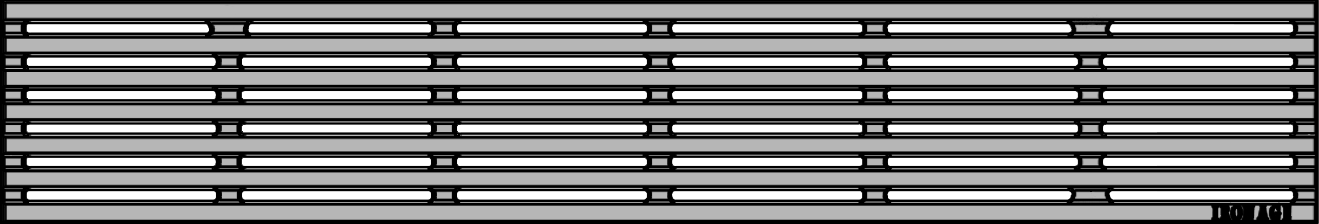

Name / Design	Que 4.5" x 24" Heel Proof
Product ID	QUX4-24I99HP
Dimensions	4.5" x 23.87" x .75"
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	15
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 5" x 20" Heel Proof
Product ID	QUA5-20I21HP
Dimensions	4.81" x 19.56" x .81"
Drain Manufacturer	ABT® ACO™ MEA®
Fits	ABT® PolyDrain® ACO™ K100, K100S, KS100 MEA® 1000 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	13.71
Free Drain Area	16.41%
Gallons Per Minute (GPM)	20.24
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 6.75" x 36" Heel Proof
Product ID	QUX6-36I99HP
Dimensions	6.81" x 36.18" x .76"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	16.88
Free Drain Area	34.45%
Gallons Per Minute (GPM)	110.45
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

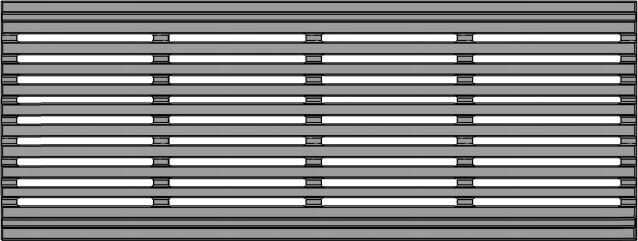

Name / Design	Que 7.5" x 20" Heel Proof
Product ID	QUX7-20I99HP
Dimensions	7.5" x 19.87" x 1.25"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	14.5
Free Drain Area	23.5%
Gallons Per Minute (GPM)	46.17
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 8" x 18"
Product ID	QUX8-18NI99
Dimensions	7.93" x 18.06" x .81"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	14.43
Free Drain Area	21.5%
Gallons Per Minute (GPM)	40.35
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 8" x 20" Heel Proof, Heavy Duty — FITS NDS®
Product ID	QUN8-20I04HPHD
Dimensions	7.88" x 19.63" x .75"
Drain Manufacturer	NDS®
Fits	NDS® 8" Pro Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	19
Free Drain Area	20.66%
Gallons Per Minute (GPM)	41.83
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

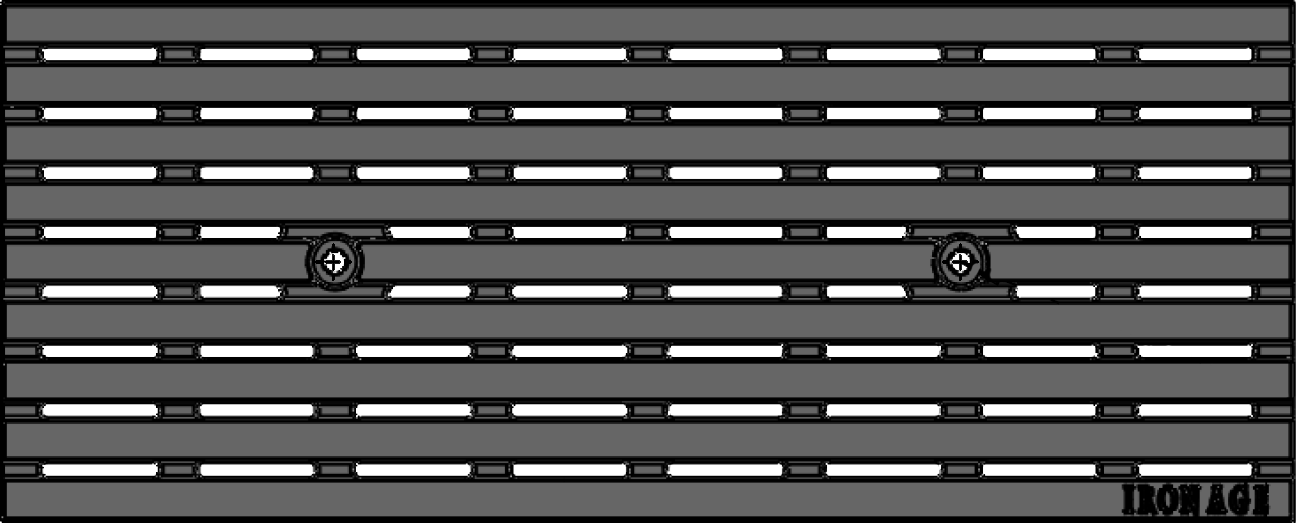

Name / Design	Que 8" x 20" Heel Proof, Heavy Duty
Product ID	QUX8-20I99HPHD
Dimensions	7.93" x 19.76" x 1.50"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	35.09
Free Drain Area	15.18%
Gallons Per Minute (GPM)	31.16
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 9" x 18" Heel Proof, Heavy Duty
Product ID	QUX9-18I99HPHD
Dimensions	8.75" x 17.94" x 1.00"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	25.87
Free Drain Area	14.42%
Gallons Per Minute (GPM)	29.65
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 10" x 20" Heel Proof
Product ID	QUX10-20I99HP
Dimensions	10.10" x 20.12" x 1.38"
Drain Manufacturer	ABT®
Fits	ABT® PolyDrain® PDX-8
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	26.47
Free Drain Area	23.44%
Gallons Per Minute (GPM)	62.37
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 10" x 20" Heel Proof, Heavy Duty
Product ID	QUA10-20I24HPHD
Dimensions	9.41" x 19.63" x 1.19"
Drain Manufacturer	ACO™
Fits	ACO™ K200
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	31.00
Free Drain Area	21.51%
Gallons Per Minute (GPM)	52.03
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

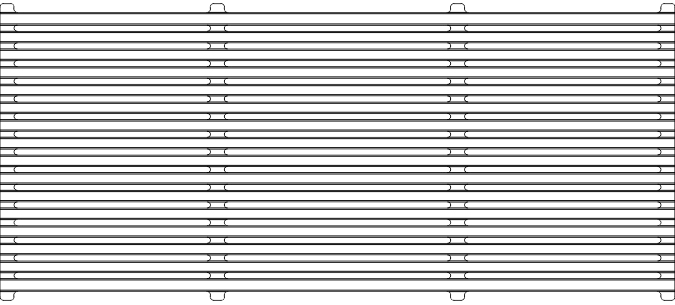

Name / Design	Que 10" x 24" Heel Proof
Product ID	QUX10-24I99HP
Dimensions	10.5" x 23.87" x .75"
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	16
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 11" x 20" Heel-Proof
Product ID	QUX11-20I99HP
Dimensions	10.50" x 19.60" x 1.00"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	19.82
Free Drain Area	22.6%
Gallons Per Minute (GPM)	60.93
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 12" x 18" Heel Proof, Heavy Duty
Product ID	QUX12-18I99HPHD
Dimensions	11.88" x 17.88" x 1.25"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	38.31
Free Drain Area	28.33%
Gallons Per Minute (GPM)	78.80
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 12" x 20" Heel Proof, Heavy Duty
Product ID	QUA12-20AM99HPHD
Dimensions	11.88" x 19.63" x 1.50"
Fits	Iron Age Custom Frame
Material	Cast Aluminum
Standard Finish	Raw
Optional Finish	Powder Coat
Weight lb(s)	19.54
Free Drain Area	15.3%
Gallons Per Minute (GPM)	46.71
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Bronze Cast Ductile Iron

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 12" x 24" Heel Proof
Product ID	QUX12-24I99HP
Dimensions	11.88" x 23.88" x 1.00"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	28.88
Free Drain Area	27.55%
Gallons Per Minute (GPM)	102.35
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

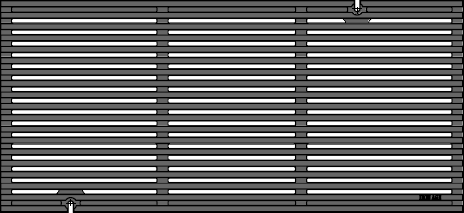

Name / Design	Que 12" x 26" Heel Proof
Product ID	QUX12-26I99HP
Dimensions	11.88" x 25.88" x 1.00"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	30.96
Free Drain Area	27.82%
Gallons Per Minute (GPM)	112.00
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

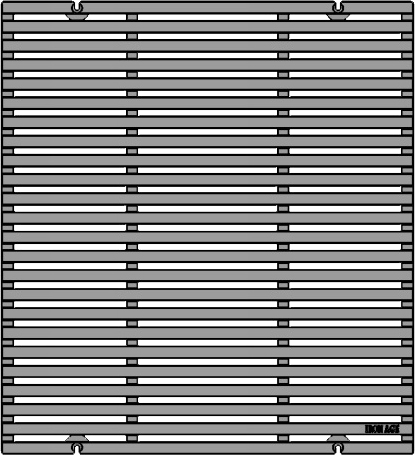

Name / Design	Que 30" x 33"
Product ID	QUX30-33I99
Dimensions	30" x 33" x 1.5"
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	39
Free Drain Area	28.5%
Gallons Per Minute (GPM)	370
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

Que 3″ x 12″ heel proof trench grate, cast iron with baked-on oil finish.

Download photo

Cast bronze trench grates in water feature, aged 7 years, showing verdigris finish. Que pattern by Iron Age Designs.

Que 3″ x 12″ heel proof trench grate, raw cast bronze shown 7 years after installation (see newly installed grates below). PROJECT: University of Virginia’s Rotunda. Water garden design by Laurie Olin. LOCATION: Charlottesville, VA.

Download photo

Photo Credit: Jon Lutton Project: University of Virginia's Rotunda.Water garden design by Laurie Olin. Que 3" x 12", Cast Silicon Bronze https://news.virginia.edu/content/thomas-jefferson-medalist-reimagines-rotunda-s-landscape

Que 3″ x 12″ heel proof trench grate, raw cast bronze. PROJECT: University of Virginia’s Rotunda. Water garden design by Laurie Olin. LOCATION: Charlottesville, VA.

Download photo

Que 3″ x 12″ heel proof trench grate, raw cast bronze shown 7 years after installation (see newly installed grates below). PROJECT: University of Virginia’s Rotunda. Water garden design by Laurie Olin. LOCATION: Charlottesville, VA.

Download photo

Que 3″ x 12″ heel proof trench grate, raw cast bronze. PROJECT: University of Virginia’s Rotunda. Water garden design by Laurie Olin. LOCATION: Charlottesville, VA.

Download photo

Que 3″ x 12″ heel proof trench grate, raw cast bronze. PROJECT: University of Virginia’s Rotunda. Water garden design by Laurie Olin. LOCATION: Charlottesville, VA.

Download photo

Cast bronze trench drain grate shown overlooking Punchbowl Monument in Honolulu HI

Que 4.5″ x 24″ heel proof trench grate, raw cast bronze. Shown ten years after installation. PROJECT: National Memorial Cemetery of the Pacific (“Punchbowl”). LOCATION: Honolulu, HI.

Download photo

Que 4.5″ x 24″ heel proof trench grate, cast iron with black powder coat finish. DESIGN: NYC Parks. INSTALL: Saab Construction. PROJECT: Highland Park. LOCATION: Brooklyn, NY.

Download photo

Que 4.5″ x 24″ heel proof trench grate, cast iron with black powder coat finish. DESIGN: NYC Parks. INSTALL: Saab Construction. PROJECT: Highland Park. LOCATION: Brooklyn, NY.

Download photo

Que 5″ x 20″ heel proof trench grate, cast ductile iron, powder coat finish. DESIGN: NYC Parks. PROJECT: Garrison Playground. LOCATION: Bronx, NY.

Download photo

Que 5″ x 20″ heel proof trench grate, cast ductile iron, powder coat finish. DESIGN: NYC Parks. PROJECT: Garrison Playground. LOCATION: Bronx, NY.

Download photo

Que 8″ x 18″ trench grate, raw cast bronze. PROJECT: Peter Minuet Plaza. LOCATION: Staten Island, New York, NY.

Download photo

Que 8″ x 18″ trench grate, raw cast bronze. PROJECT: Peter Minuet Plaza. LOCATION: Staten Island, New York, NY.

Download photo

Que 8″ x 18″ trench grate, raw cast bronze. PROJECT: Peter Minuet Plaza. LOCATION: Staten Island, New York, NY.

Download photo

Cast aluminum trench drain grates in sleek, linear Que pattern, installed in concrete plaza.

Que 10″ x 24″ heel proof trench grate, raw cast aluminum. DESIGN: Durante Kreuk. PROJECT: 475 West Georgia Street. LOCATION: Vancouver, BC.

Download photo

Cast iron Que trench grates by Iron Age Designs installed next to directional wayfinding tiles.

Que 12″ x 18″ heel proof heavy-duty (H20 load) trench grates in raw cast ductile iron, newly installed. DESIGN: MPFP. INSTALLATION: Steven Dubner Landscaping. PROJECT: 44-01 Northern Blvd. LOCATION: Queens, NY.

Download photo

Que 12″ x 18″ heel proof heavy-duty (H20 load) trench grates in raw cast ductile iron, newly installed. DESIGN: MPFP. INSTALLATION: Steven Dubner Landscaping. PROJECT: 44-01 Northern Blvd. LOCATION: Queens, NY.

Download photo

Que 12″ x 18″ heel proof heavy-duty (H20 load) trench grates in raw cast ductile iron, newly installed. DESIGN: MPFP. INSTALLATION: Steven Dubner Landscaping. PROJECT: 44-01 Northern Blvd. LOCATION: Queens, NY.

Download photo

Cast iron Que trench grates by Iron Age Designs installed near building entryway.

Que 12″ x 18″ heel proof heavy-duty (H20 load) trench grates in raw cast ductile iron, newly installed. DESIGN: MPFP. INSTALLATION: Steven Dubner Landscaping. PROJECT: 44-01 Northern Blvd. LOCATION: Queens, NY.

Download photo

Que 12″ x 24″ heel proof trench grate, cast iron with baked-on oil finish. DESIGN: MPFP Architects. INSTALL: Steven Dubner Landscaping. PROJECT: 25 Kent Street. LOCATION: Brooklyn, NY.

Download photo

Que 12″ x 24″ heel proof trench grate, cast iron with baked-on oil finish. DESIGN: MPFP Architects. INSTALL: Steven Dubner Landscaping. PROJECT: 25 Kent Street. LOCATION: Brooklyn, NY.

Download photo

Que 12″ x 24″ heel proof trench grate, cast iron with baked-on oil finish. DESIGN: MPFP Architects. INSTALL: Steven Dubner Landscaping. PROJECT: 25 Kent Street. LOCATION: Brooklyn, NY.

Download photo

Que 12″ x 24″ heel proof trench grate, cast iron with baked-on oil finish. DESIGN: MPFP Architects. INSTALL: Steven Dubner Landscaping. PROJECT: 25 Kent Street. LOCATION: Brooklyn, NY.
