Catch Basin Grates
Locust Catch Basin Grates
The popularity of our Locust pattern points to a natural affinity for organic design elements. Available in a wide range of shapes and sizes, these signature grates are designed to be combined into any number of unique applications.
Select Size:
Detailed Specifications:
- Name / Design
- Locust 4" Dia.
- Product ID
- LX4DiaI99PG
- Dimensions
- 4.50" Dia.
- Fits
-
3" & 4" SDR/PVC Pipe
- Material
- Cast Ductile Iron
- Standard Finish
- Baked On Oil Finish
- Optional Finishes
-
- Powder Coat
- Weight lb(s)
- 1
- Free Drain Area
- 21.5%
- Gallons Per Minute (GPM)
- 4.47
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Copyright Registration No.
- VA-1-964-891
Photo Gallery:
Click image for high-res file and description
Locust 4″ dia. pipe grate, cast ductile iron with baked-on-oil finish.
Locust 4″ dia. pipe grate, raw cast bronze.
Locust 6″ dia. heel-proof catch basin grate, cast iron with baked-on-oil finish.

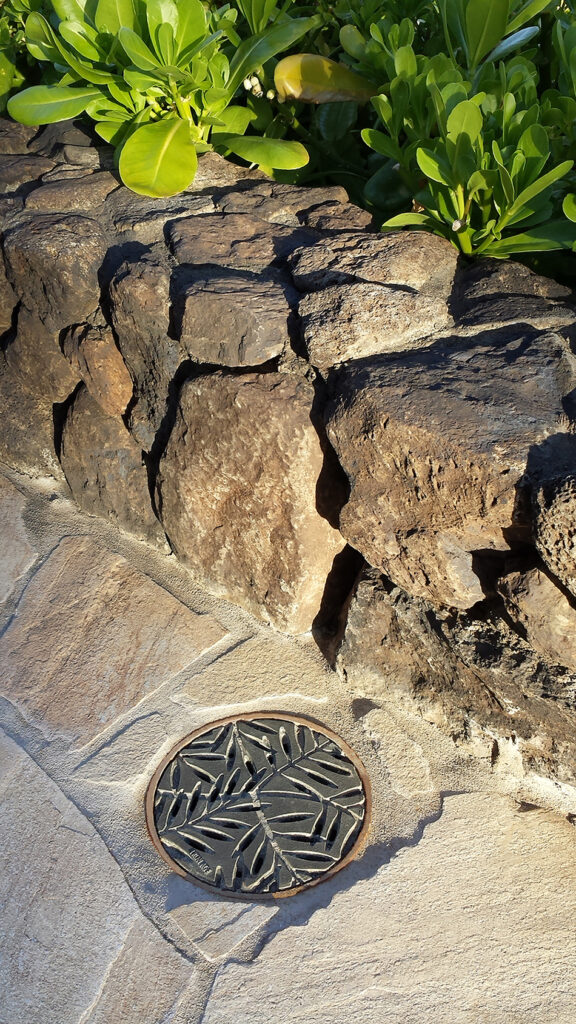

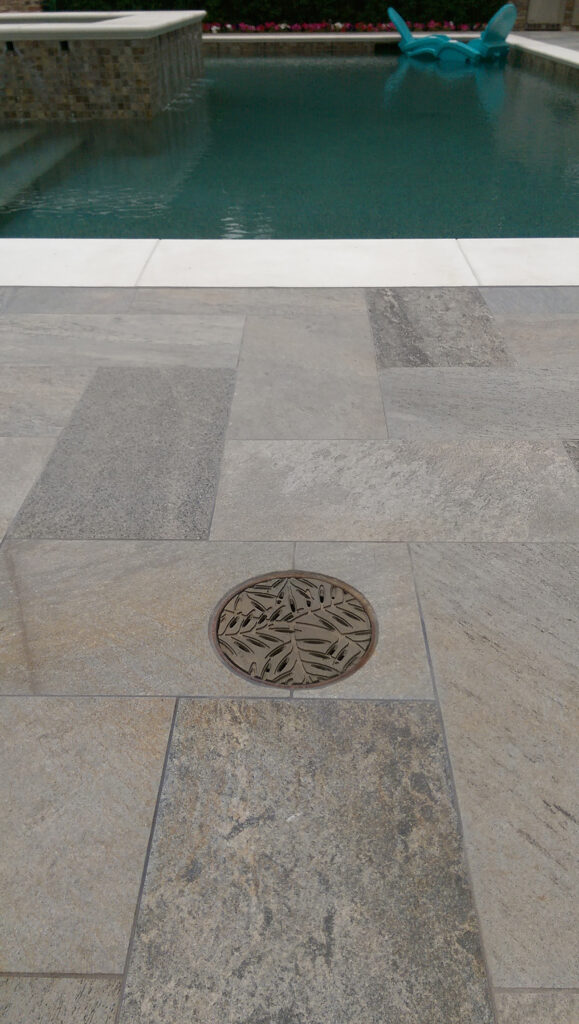

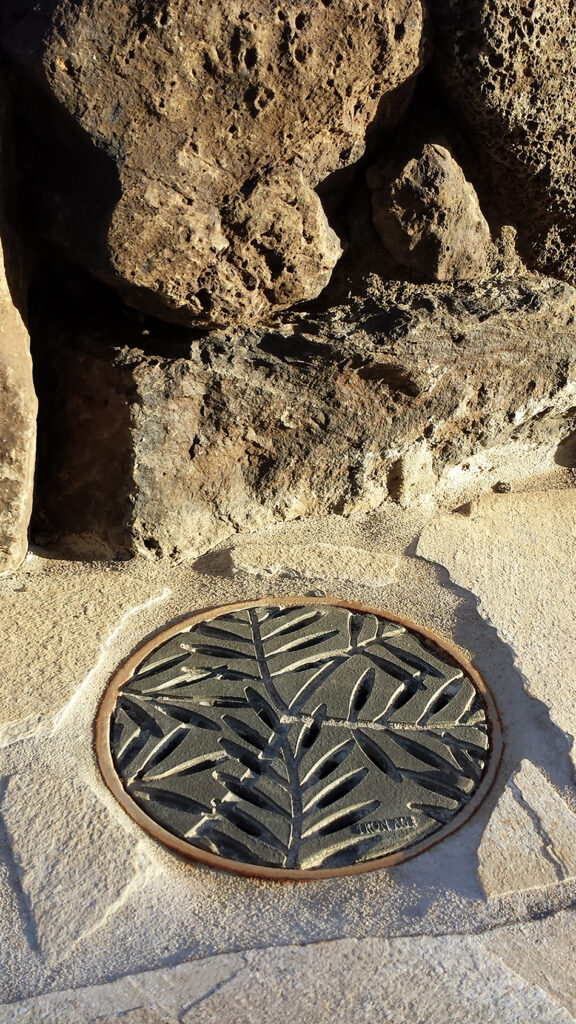

Locust 8″ dia. heel-proof catch basin grate, raw cast bronze.
Locust 8″ dia. heel-proof catch basin grate, raw cast bronze.
Locust 8″ dia. heel-proof catch basin grates, raw cast bronze.
Locust 8″ dia. heel-proof catch basin grates, raw cast bronze.

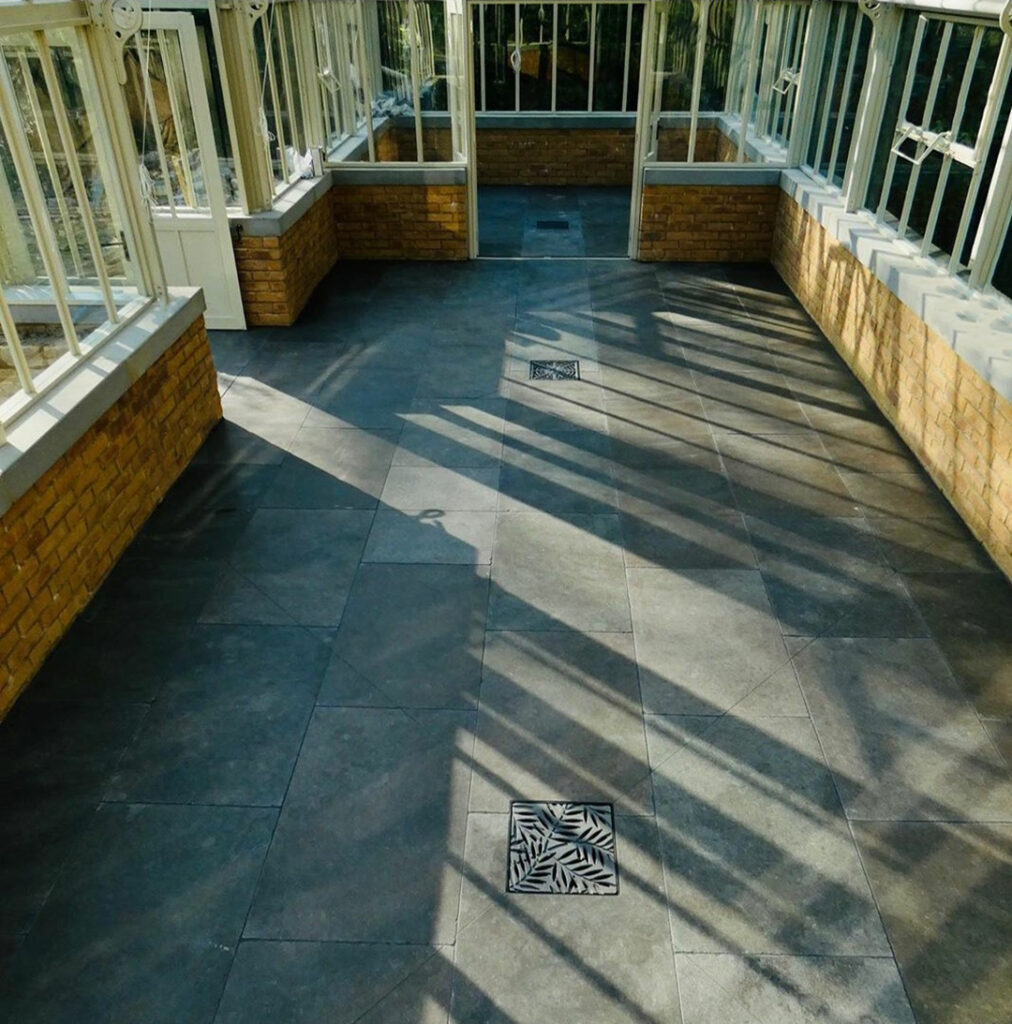

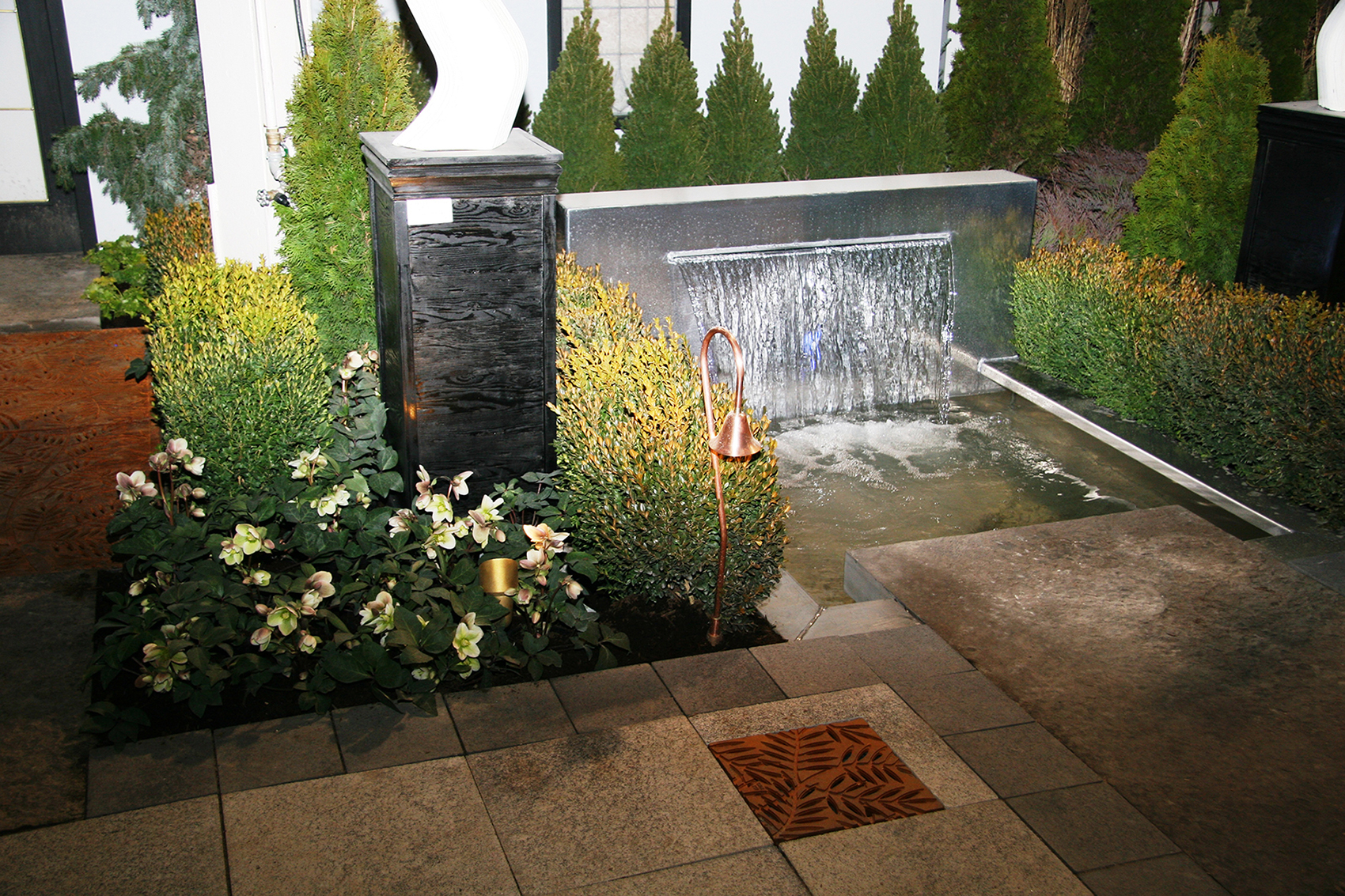

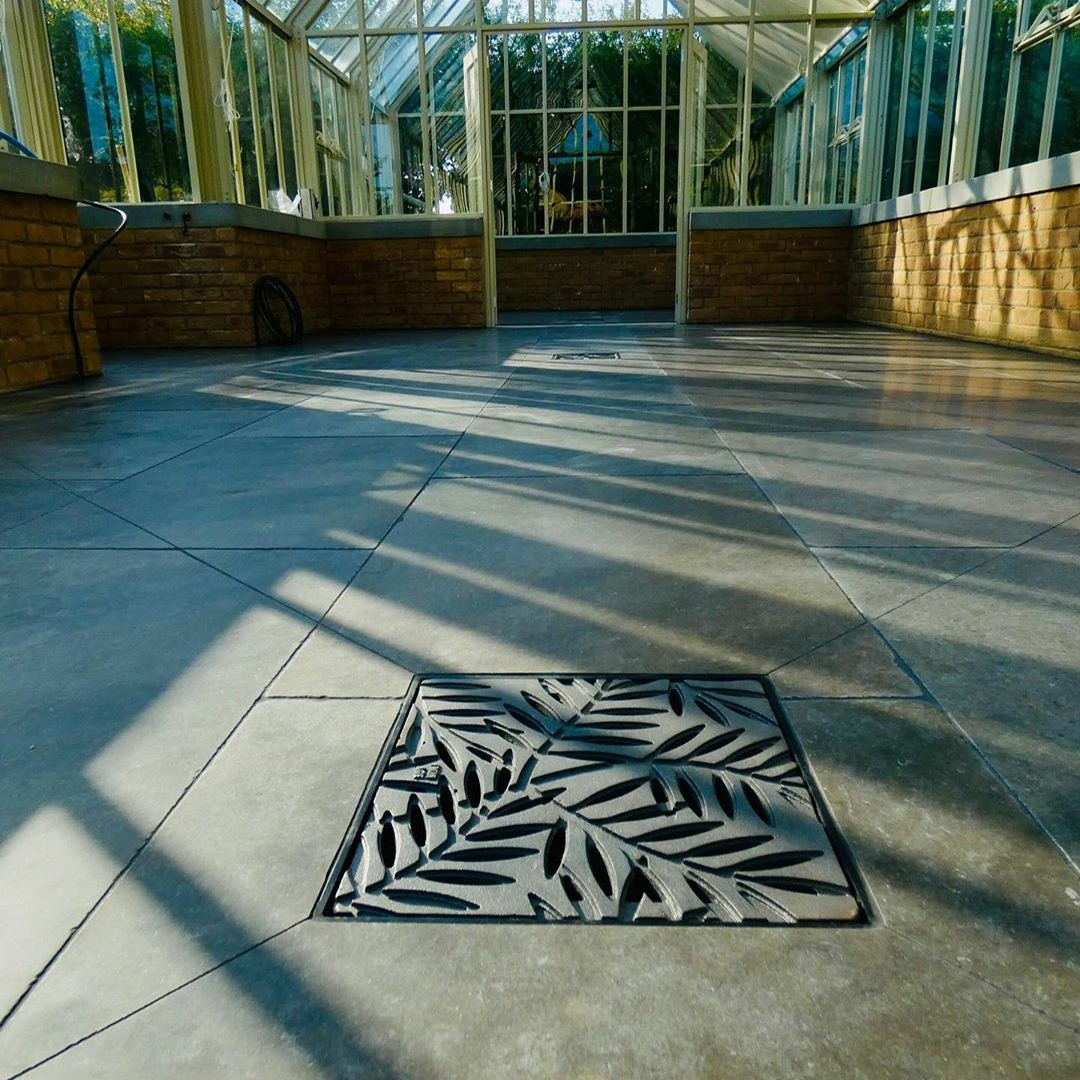

Locust 12″ x 12″ catch basin grate, raw cast ductile iron. PHOTO CREDIT: UK-based Abode Creations.
Locust 12″ x 12″ catch basin grate, raw cast ductile iron. PHOTO CREDIT: UK-based Abode Creations.
Locust 12″ x 12″ catch basin grates, raw cast ductile iron. Residential installation.

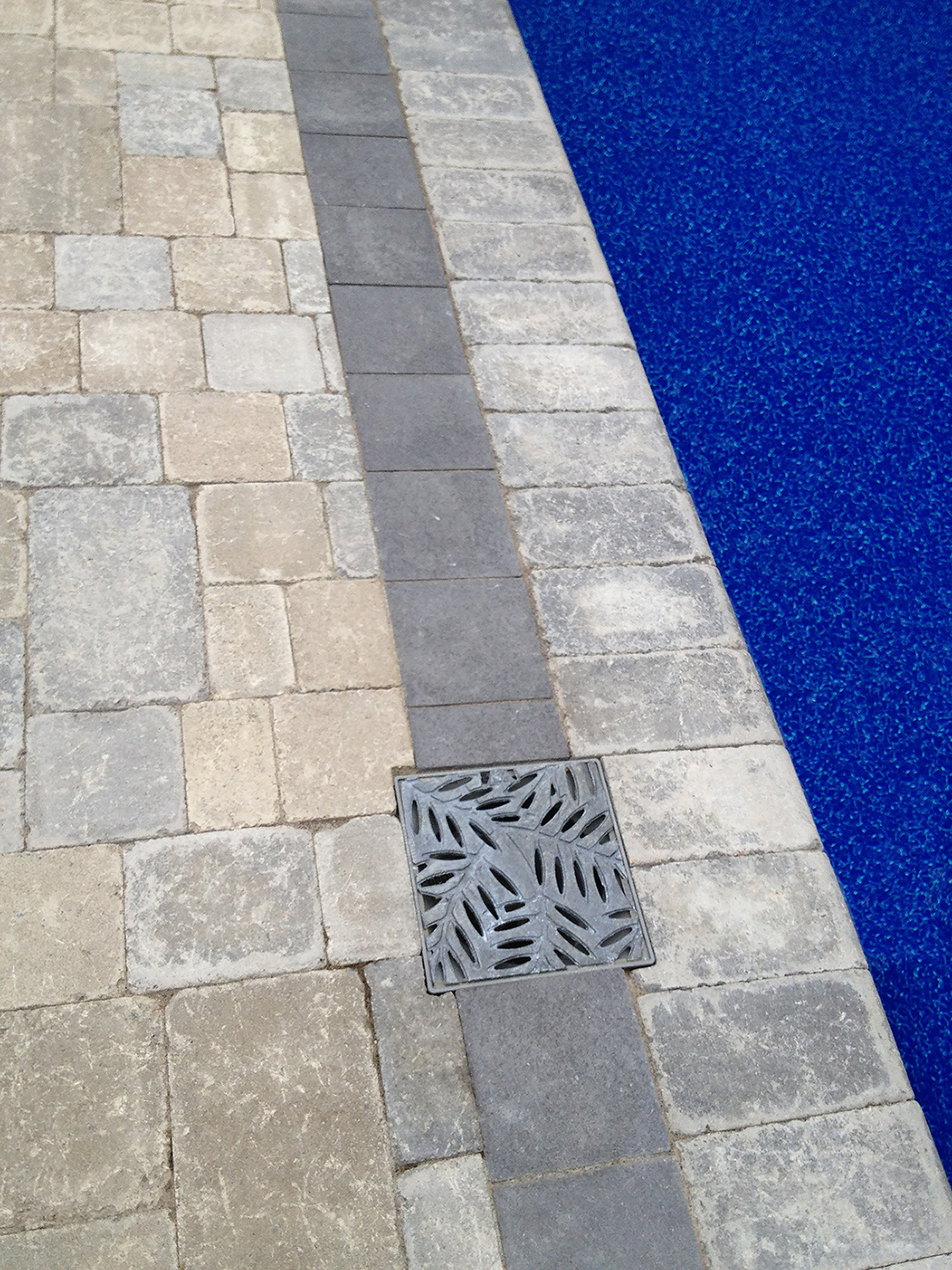

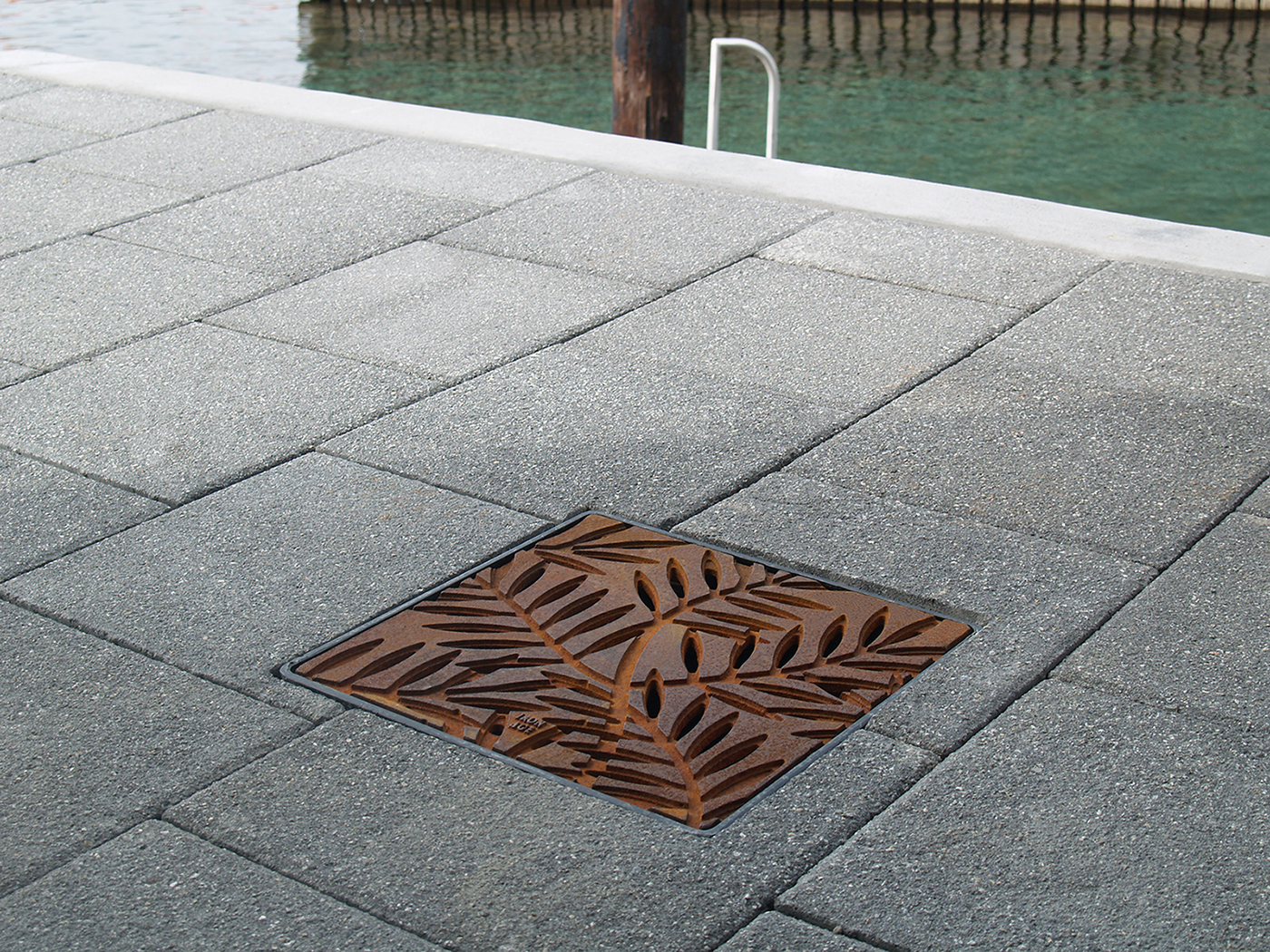

Locust 12″ x 12″ catch basin grate, raw cast ductile iron.

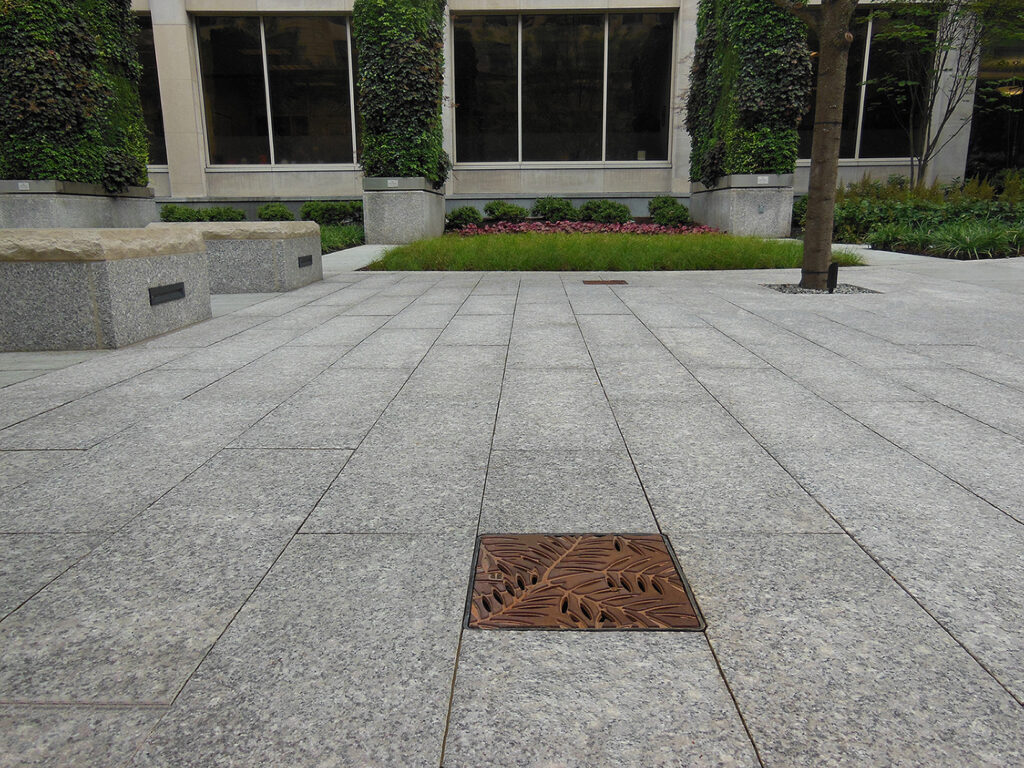

Locust 12″ x 12″ catch basin grate, raw cast ductile iron. DESIGN: Copley Wolff Design Group. PROJECT: Liberty Mutual Streetscape and Linear Park. LOCATION: Boston, MA.
Locust 12″ x 12″ catch basin grate, raw cast bronze. PROJECT: Royal Botanical Garden. LOCATION: Toronto, Canada.
Locust 12″ x 12″ catch basin grate, cast ductile iron with powder coat finish.

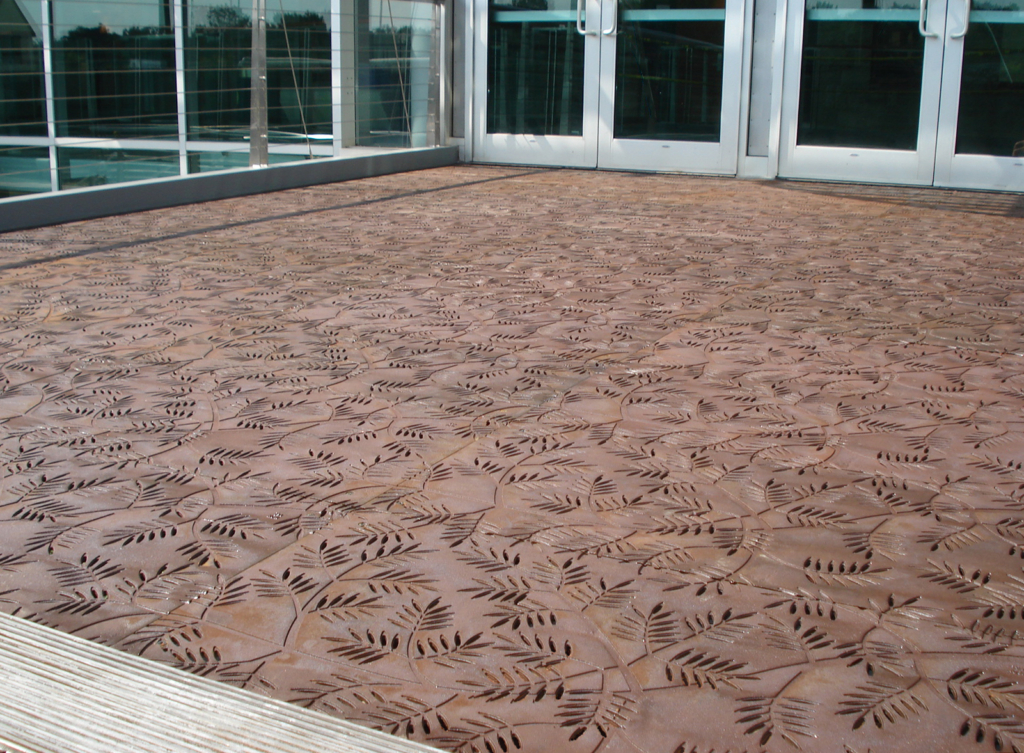

Locust 20″ x 40″ heel-proof grate, cast iron with baked-on-oil finish. Shown arrayed as pedestrian bridge deck. DESIGN: Hord Coplan Macht. PROJECT: Loyola University Baltimore Campus. LOCATION: Baltimore, MD.Â
Locust 20″ x 40″ heel-proof grate, raw cast aluminum, arrayed as a pedestrian bridge. LANDSCAPE ARCHITECT: Towers|Golde. PROJECT: Life Science Laboratories, University of Massachusetts – Amherst. LOCATION: Amherst, MA
Locust 20″ x 40″ heel-proof grate, cast iron with baked-on-oil finish. PROJECT: Conservation Park. LOCATION: Ontario, CA.

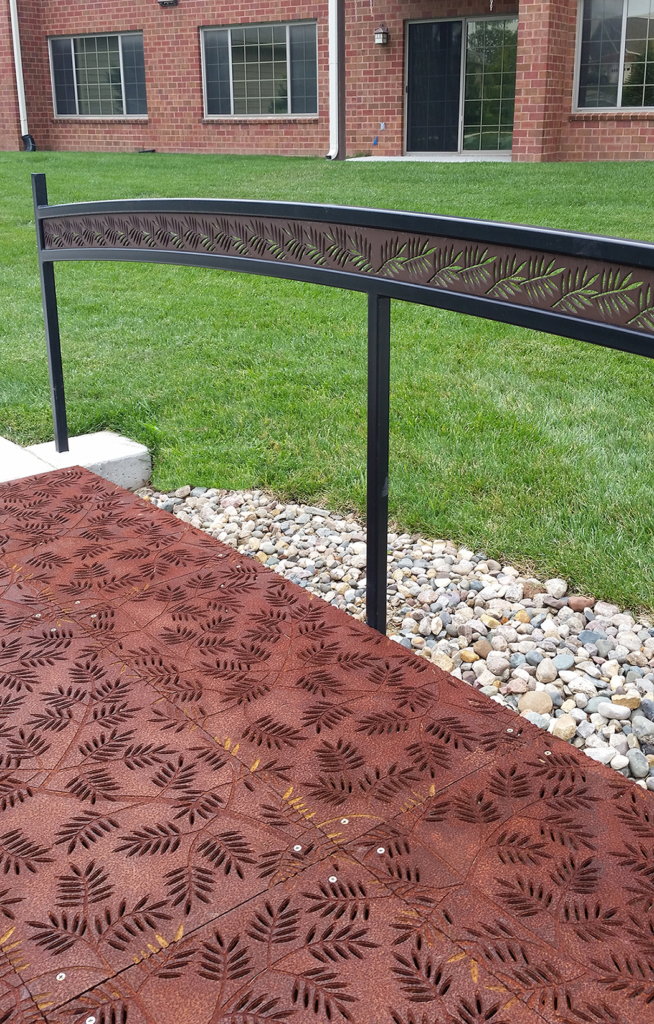

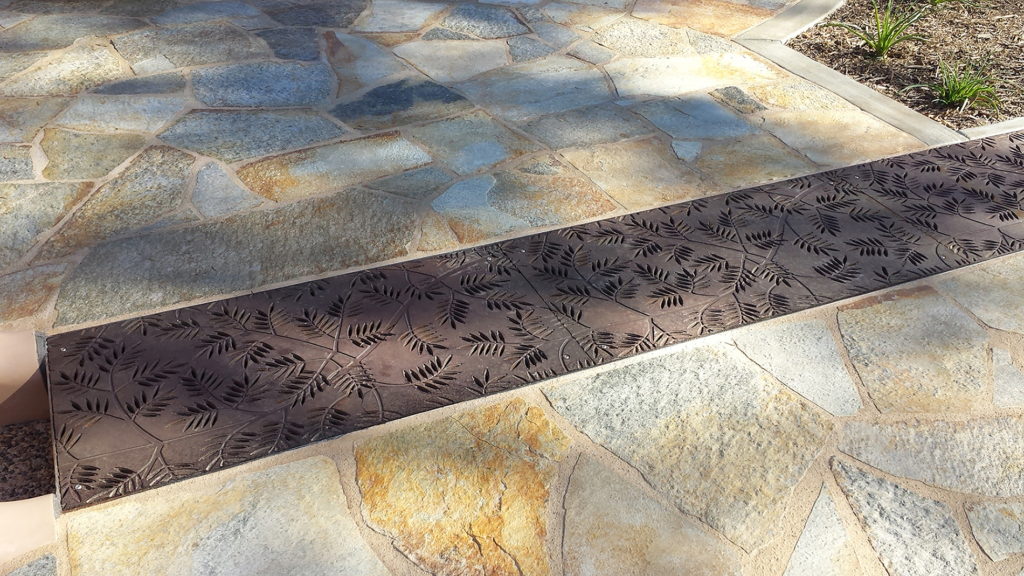

Locust 20″ x 40″ heel-proof grate, cast iron with baked-on-oil finish. Arrayed as a pedestrian bridge with matching laser-cut hand rail.Â

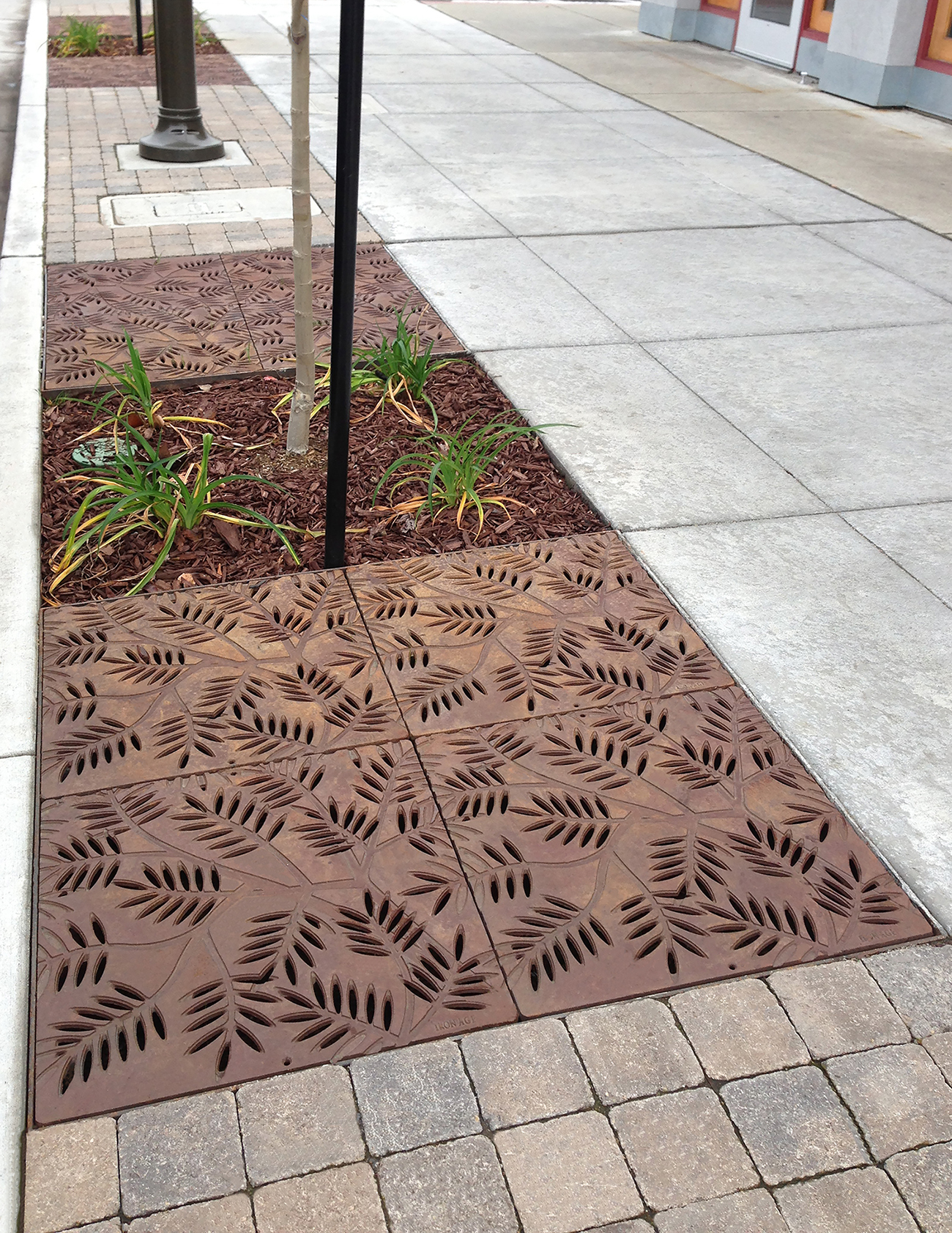

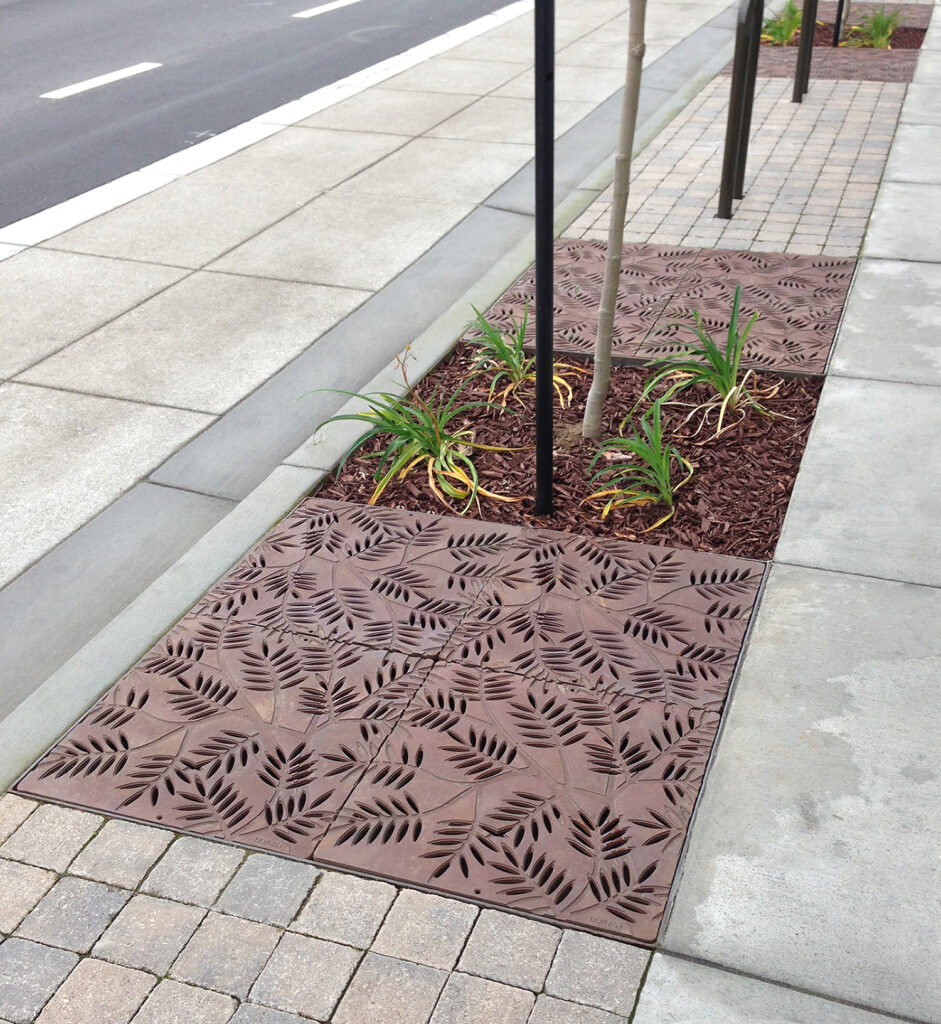

Locust 24″ x 24″ catch basin grate, cast iron with baked-on-oil finish, arrayed to 4′ sq. planter beds.
Locust 24″ x 24″ catch basin grate, cast iron with baked-on-oil finish, arrayed to 4′ sq. planter beds.
Similar Products:
View additional products featuring the Locust design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
