Argo

Detailed Specifications:

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Argo 5" x 20" Heel-Proof
Product ID	AA5-20I21HP
Dimensions	4.81" x 19.57" x .81"
Drain Manufacturer	ABT® ACO™ MEA®
Fits	ABT® PolyDrain® ACO™ K100, K100S, KS100 MEA® 1000 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	11.32
Free Drain Area	13.37%
Gallons Per Minute (GPM)	16.50
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-007-074

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Argo 6" x 24
Product ID	AN6-24I03
Dimensions	5.88" x 23.88" x .79"
Drain Manufacturer	NDS®
Fits	NDS® Dura Slope®
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	14.54
Free Drain Area	20.23%
Gallons Per Minute (GPM)	37.17
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-329-981

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

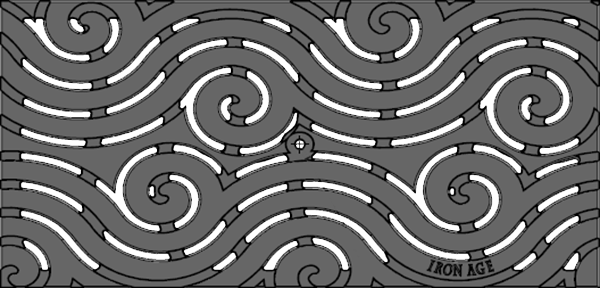

Name / Design	Argo 10" x 20" Heavy Duty
Product ID	AA10-20I24HD
Dimensions	9.41" x 19.66" x 1.18"
Drain Manufacturer	ACO™
Fits	ACO™ K200
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	26.37
Free Drain Area	14.6%
Gallons Per Minute (GPM)	35.38
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-246-539

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

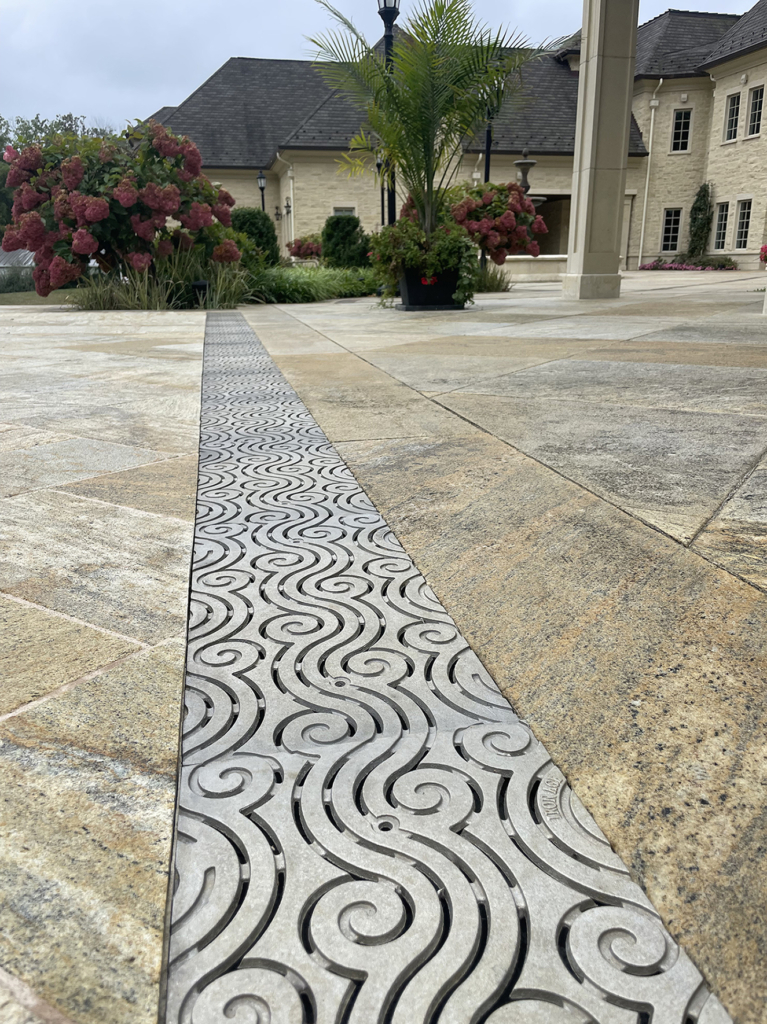

Name / Design	Argo 11" x 24" Heel-Proof
Product ID	AX11-24I99HP
Dimensions	10.88" x 23.50" x 1.25"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	31.83
Free Drain Area	11.92%
Gallons Per Minute (GPM)	39.92
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-330-320

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Argo 12" x 20" Heel-Proof
Product ID	AX12-20I99HP
Dimensions	11.88" x 19.88" x 1.00"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	25.92
Free Drain Area	11.97%
Gallons Per Minute (GPM)	37.13
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-330-315

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

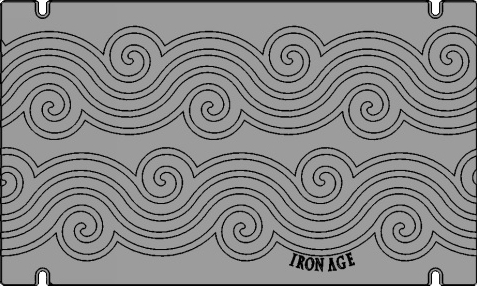

Name / Design	Argo 12" x 20" Solid
Product ID	AX12-20I99S
Dimensions	11.88" x 19.88" x 1"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	33
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	Pending

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Argo 15" x 24"
Product ID	AX15-24I99HP
Dimensions	14.50" x 24.00" x 2.00"
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	40.18
Free Drain Area	12.36%
Gallons Per Minute (GPM)	56.38
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze Cast Ductile Iron
Copyright Registration No.	VA 2-330-302

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

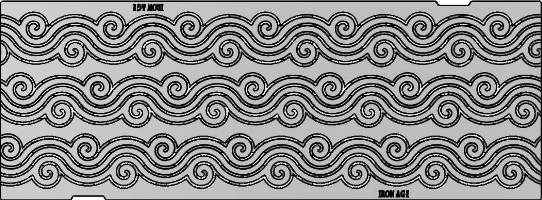

Name / Design	Argo 19" x 51" Heavy-Duty
Product ID	AX19-51I99HD
Dimensions	18.69" x 50.75" x 5"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	307
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	Pending

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

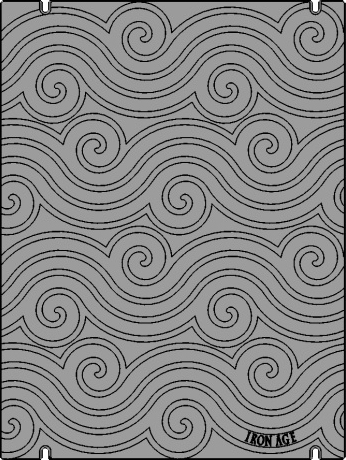

Name / Design	Argo 24" x 18" Solid
Product ID	AX24-18I99S
Dimensions	23.88" x 17.98" x 1"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	53
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	Pending

Photo Gallery:

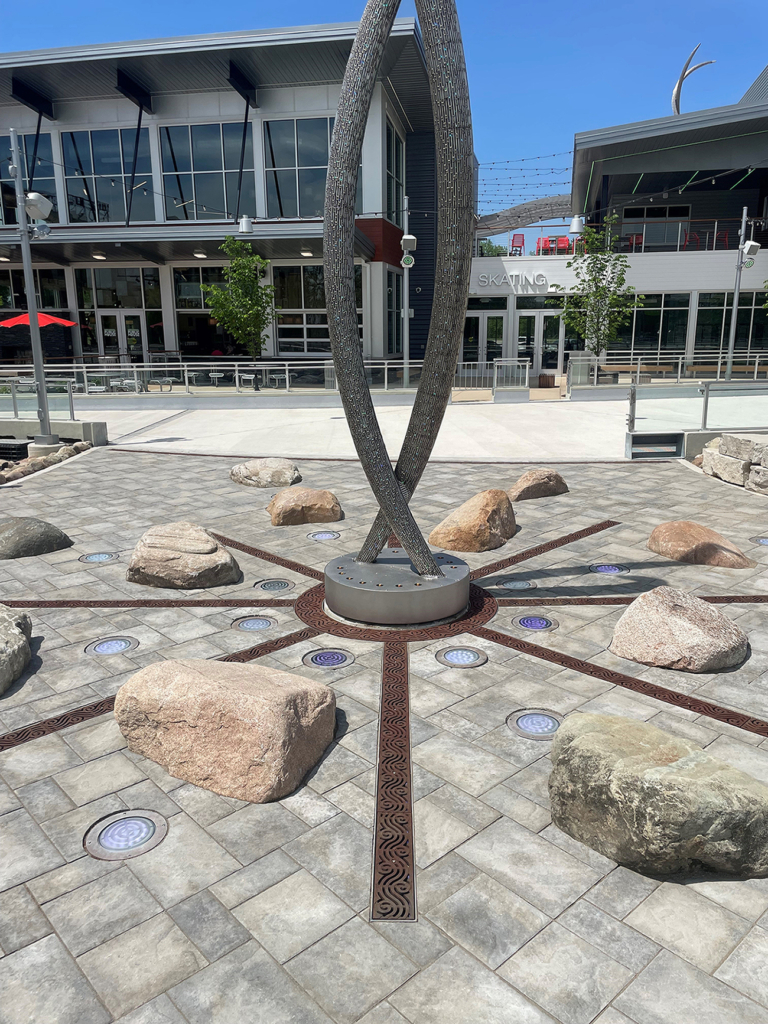

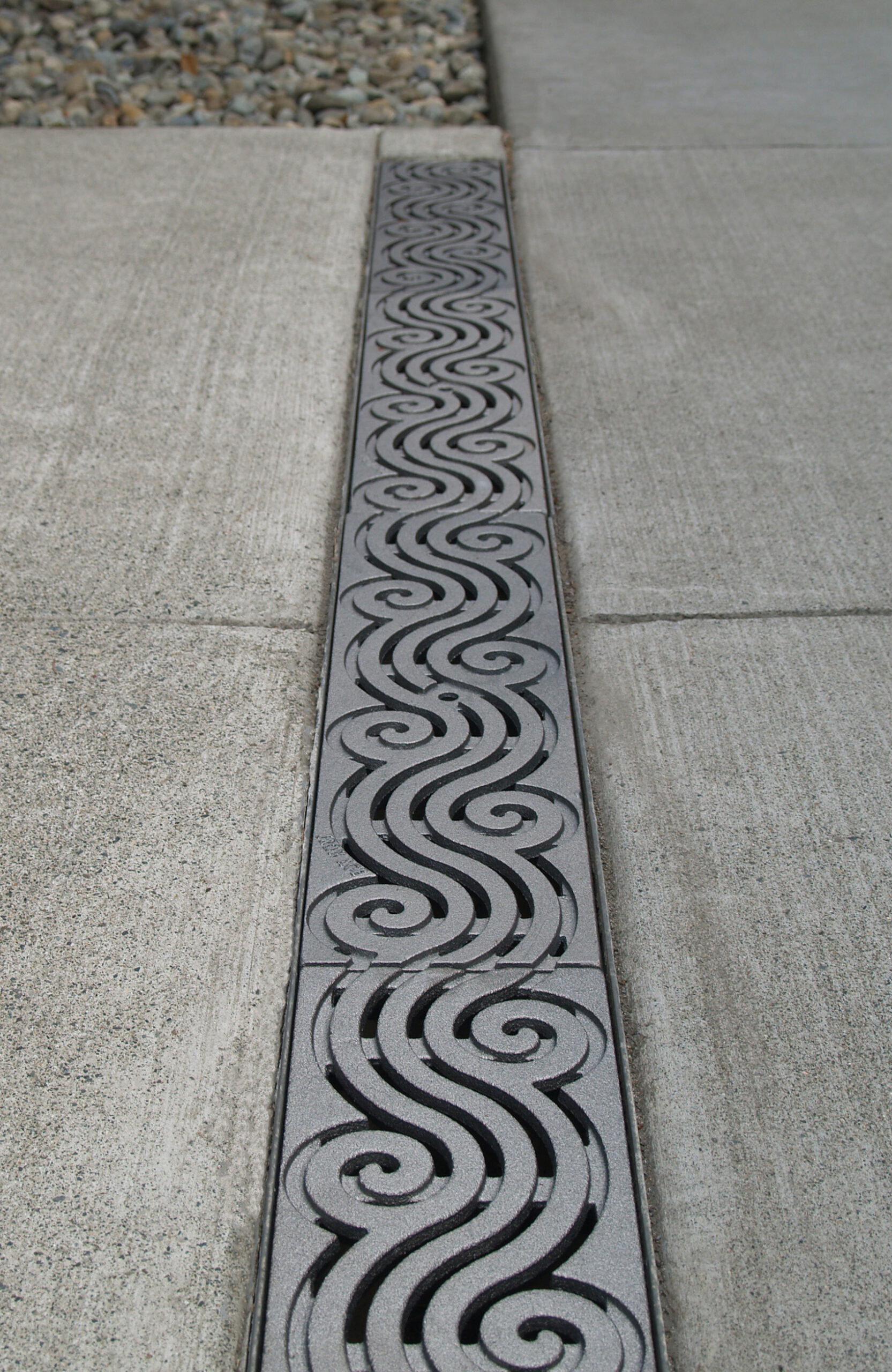

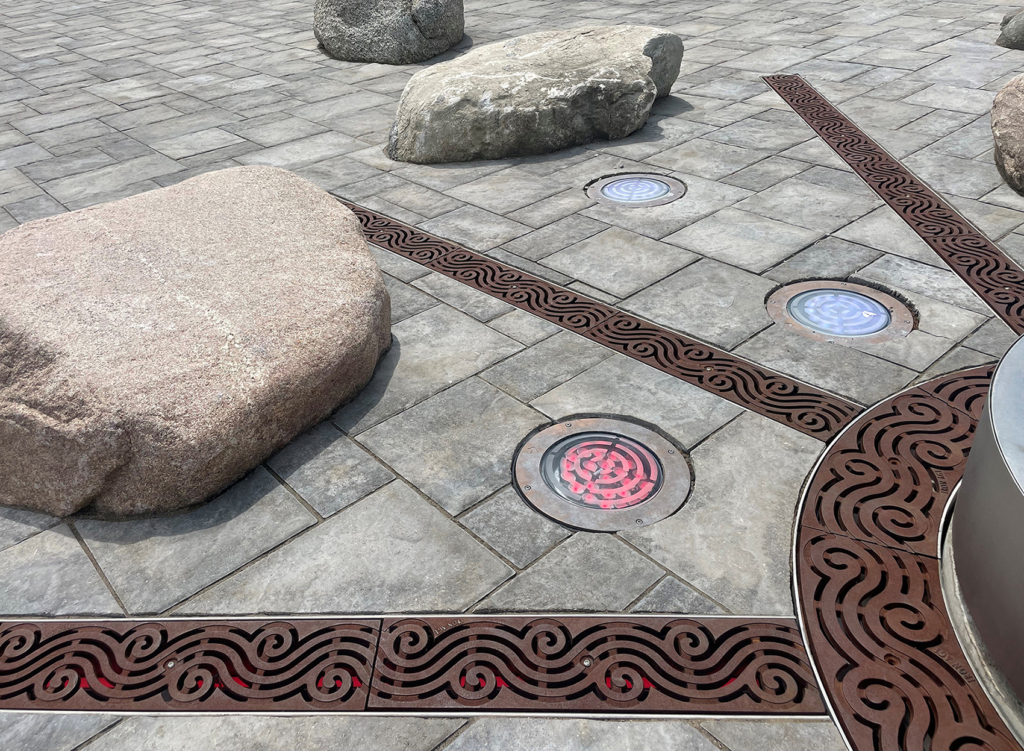

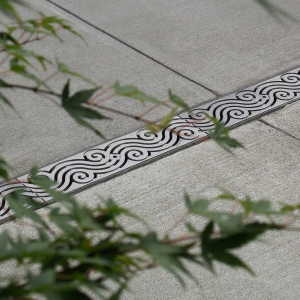

Argo 5″x 20″ heel proof trench grate, raw cast ductile iron. Project: Plaza shopping center, Seattle WA.

Download photo

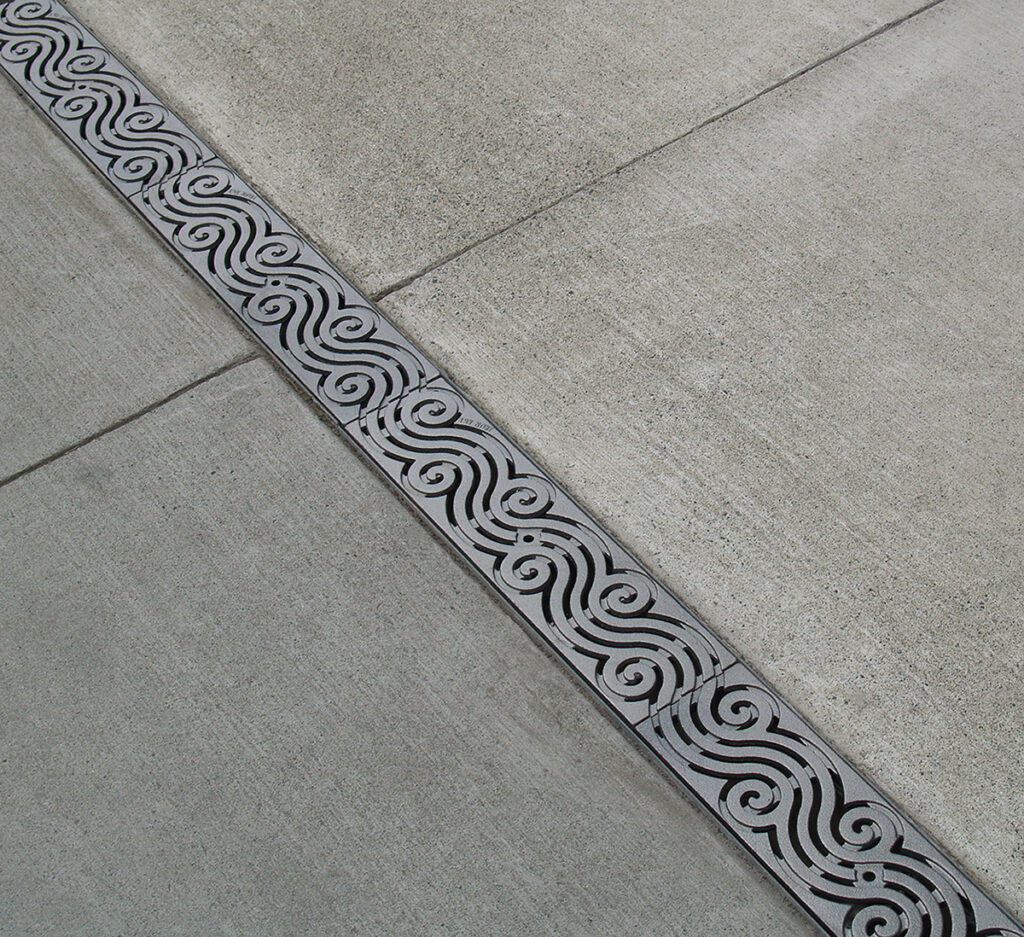

Argo 5″x 20″ heel proof trench grate, raw cast ductile iron. Project: Church Plaza, Seattle Washington.

Download photo

Argo 5″x 20″ heel proof trench grate, raw cast ductile iron, driveway application, Church Plaza, Seattle Washington.

Download photo

Argo 5″ x 20″ heel proof trench grate, raw cast ductile iron, Project: O’Donnell Lake, Waldorf Maryland

Download photo

Argo 5″x 20″ heel proof trench grate, cast ductile iron with our baked-on oil finish. Project Location: Anaheim, CA.

Download photo

Argo 5″x 20″ heel proof trench grate, cast ductile iron with our baked-on oil finish. Project Location: Anaheim, CA.

Download photo

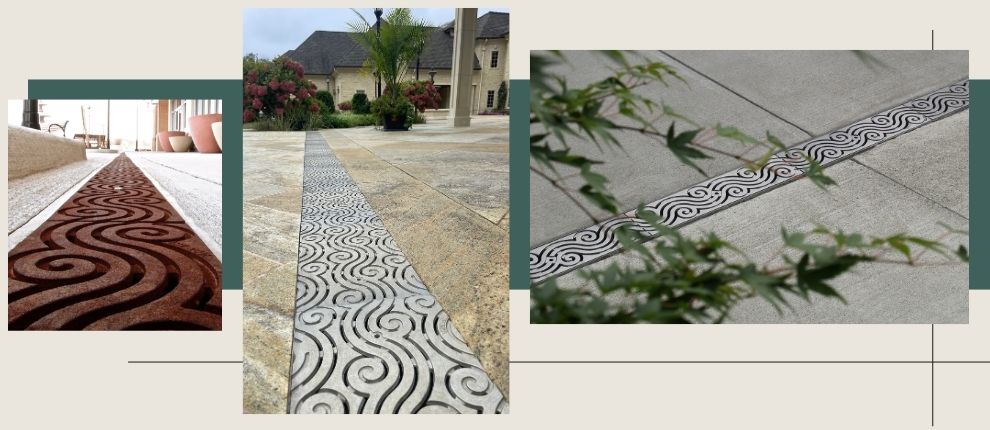

Decorative cast iron trench grates with rolling wave Argo pattern.

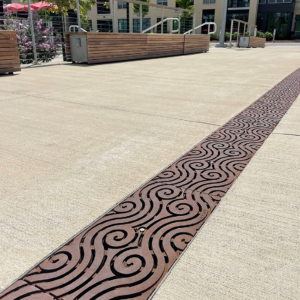

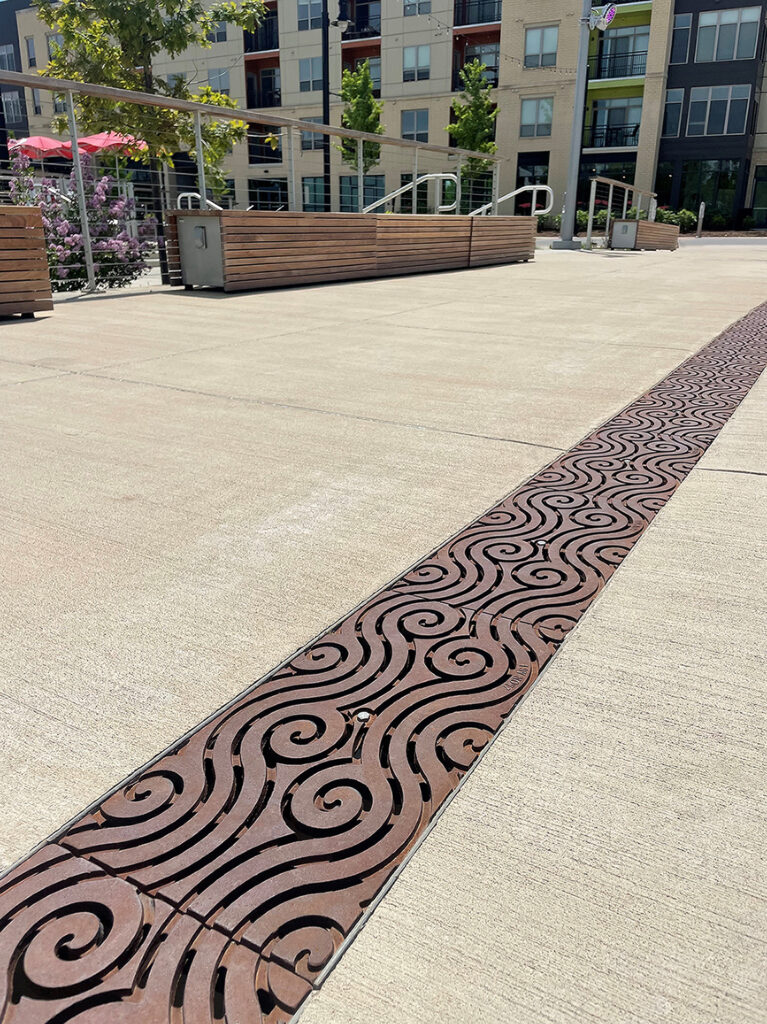

Argo 10″ x 20″ heavy-duty trench grate, raw cast iron. DESIGN: Munoz. INSTALLER: Sundt. PROJECT: San Pedro Creek Culture Park. LOCATION: San Antonio, TX.

Download photo

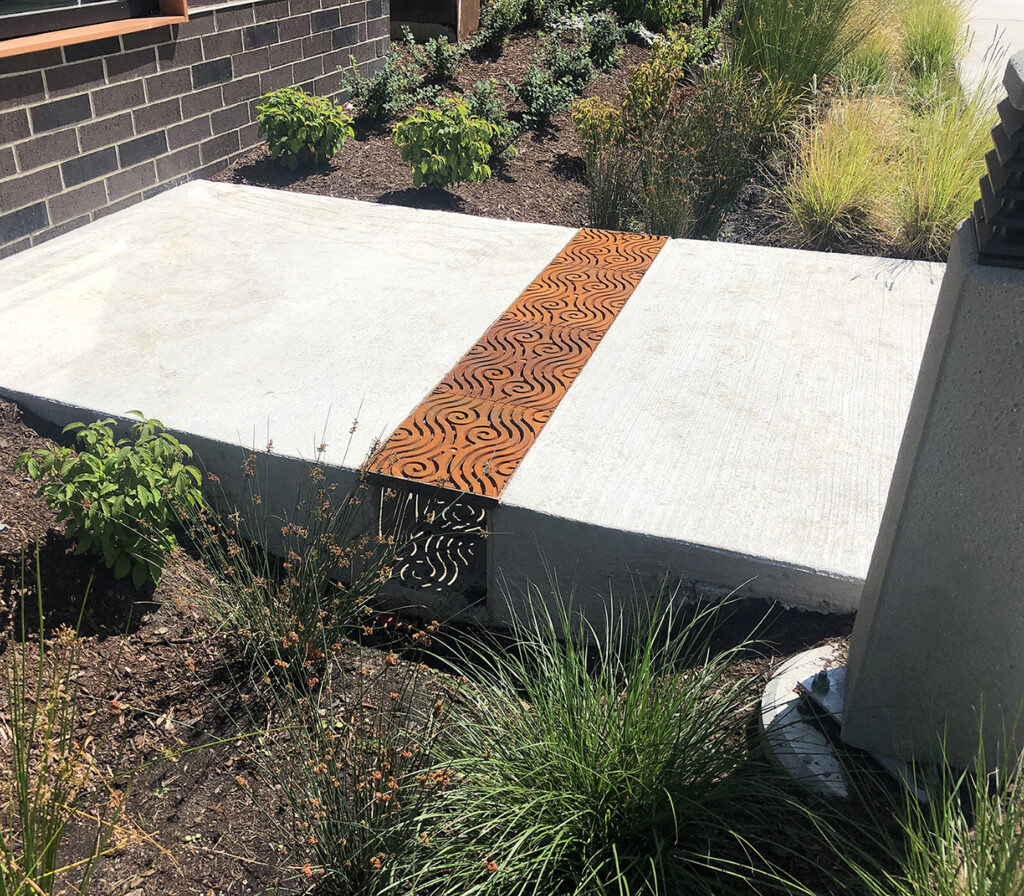

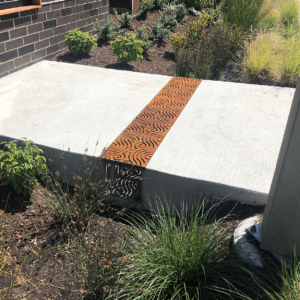

Argo 12″ x 20″ heel proof trench grate, raw cast iron. Landscape architect: GreenWorks Portland. Contractor: Interwest. Project: Windjammer Park, Oak Harbor, WA.

Download photo

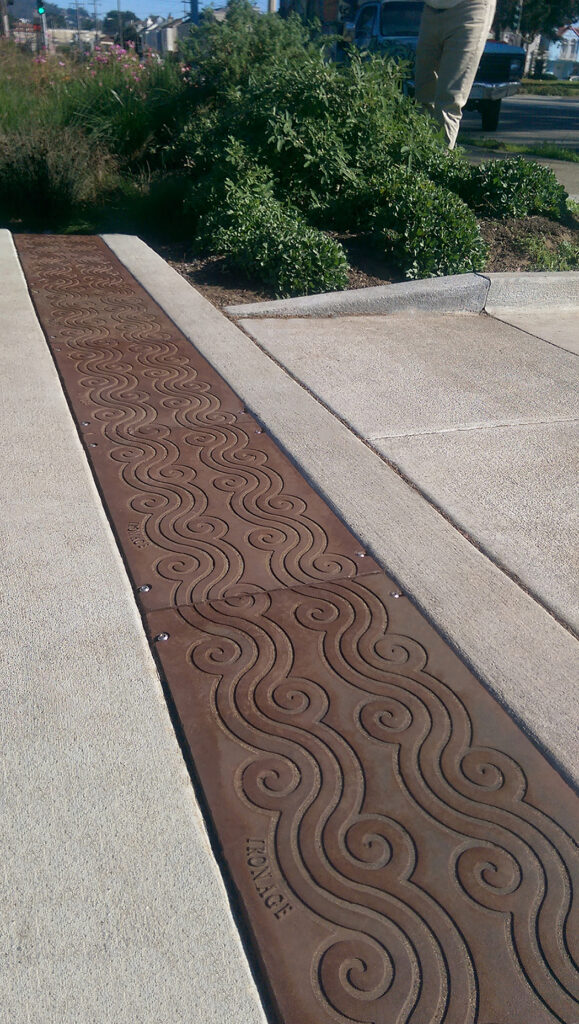

Argo 12″ x 20″, Solid, cast ductile iron with our baked on oil finish: Project Location: San Francisco, CA.

Download photo

Argo 24″ x 18″, Solid, cast ductile iron with our baked-on-oil finish: Project Location: San Francisco, CA.

Download photo

Bioswale drain channel with decorative, cast iron Argo solid covers.

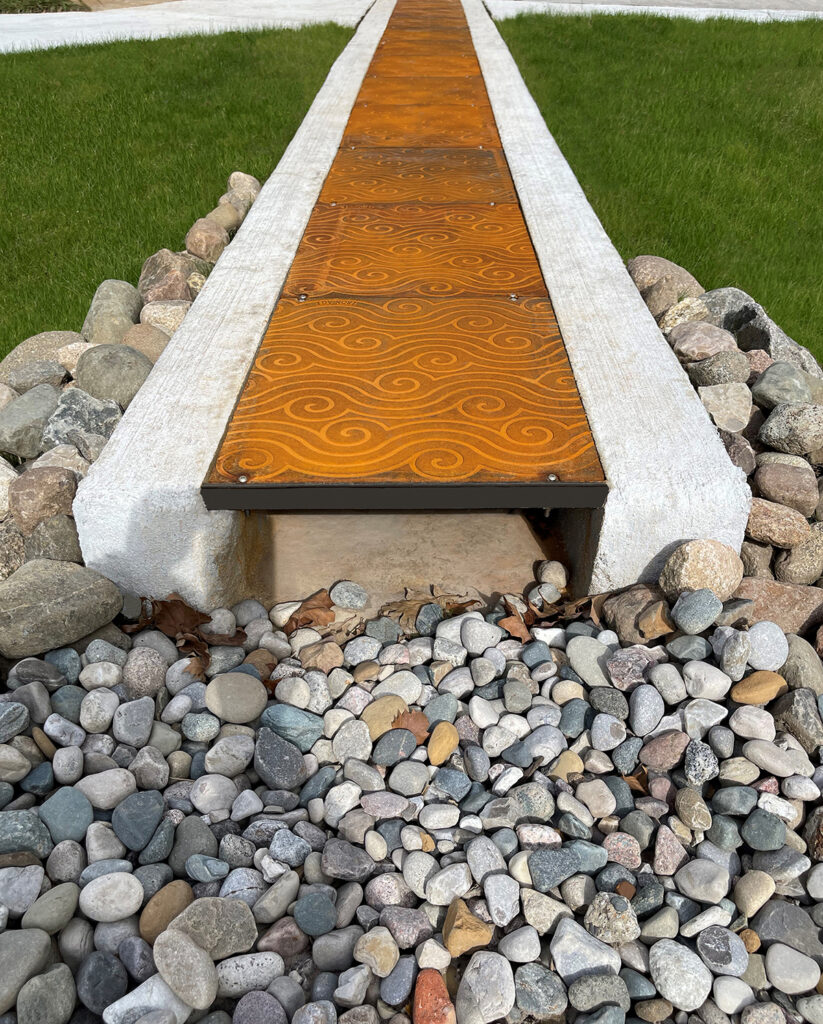

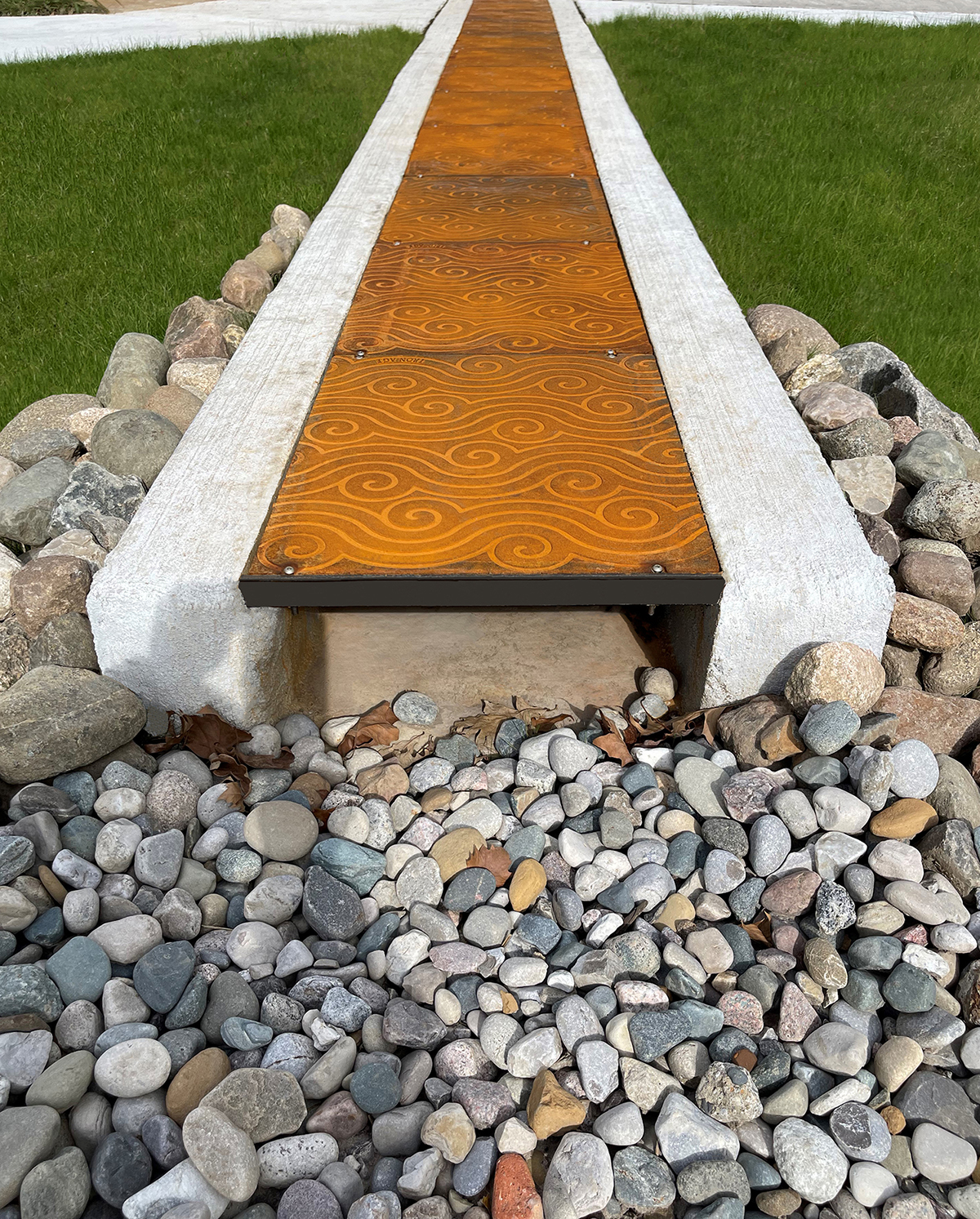

Street curb inlets drain into a large rain garden/bioswale. Each inlet is covered with our Argo 24″ x 18″ solid castings in raw cast ductile iron. The bioswale ends are surrounded by rocks and gravel to slow erosion of the sloped, grass-covered surface. Project Location: Detroit, MI.

Download photo

Street curb inlets drain into a large rain garden/bioswale. Each inlet is covered with our Argo 24″ x 18″ solid castings in raw cast ductile iron. Project Location: Detroit, MI.

Download photo

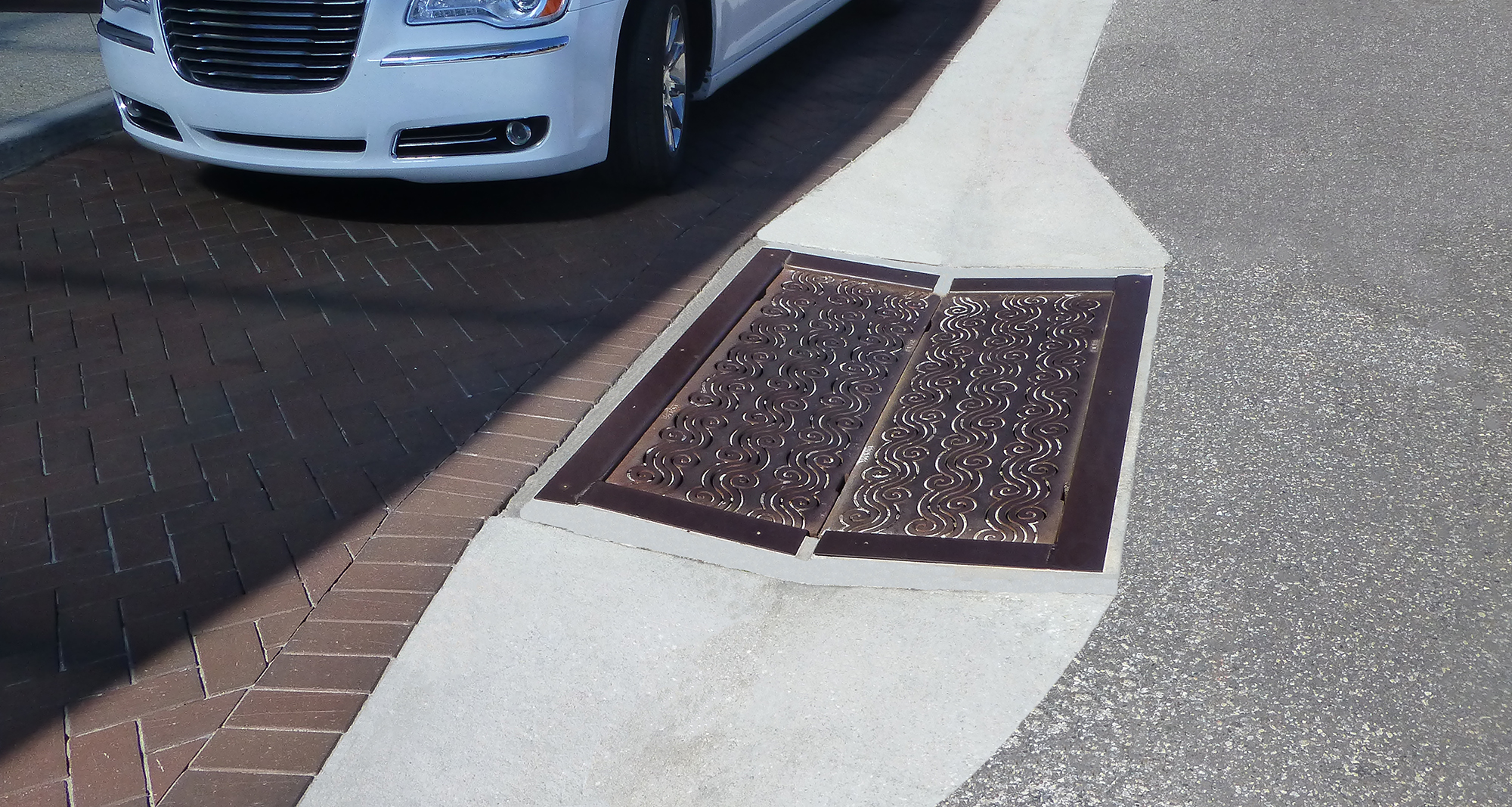

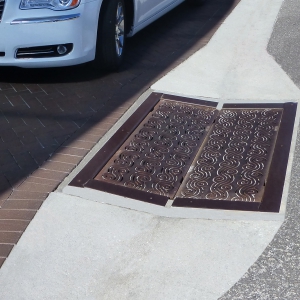

Argo 19″ x 51″ trench grate, raw ductile iron. Project: Hyatt Regency Aqualea, Clearwater Beach, FL.

Download photo
