Argo

Description:

Inspired by ancient tales of the mythical ship, Argo’s rolling-wave pattern suggests moving currents of water and wind.



Size Options:
Similar Products:

Detailed Specifications:

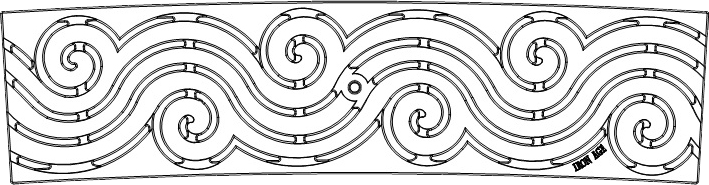

Name / Design Argo 5" Wide, Heel Proof, 13'-9" CLR
Product ID AR5-20I9913HP
Dimensions 4.81" x 19.44" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Argo 5" Wide Heel Proof, 16'-11" CLR
Product ID AR5-20I9917HP
Dimensions 4.81" x 19.21" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Argo 5" Wide Heel Proof, 22'-3" CLR
Product ID AR5-20I9922HP
Dimensions 4.81" x 19.21" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Argo 5" Wide Heel Proof, 27'-6" CLR
Product ID AR5-20I9927HP
Dimensions 4.81" x 19.44" x .81"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Argo 5" Wide Heel Proof, 61'-1" CLR
Product ID AR5-20I9961HP
Dimensions 4.81" x 19.44" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Argo 5.5" Wide Heel Proof, 20'-0" CLR
Product ID AR5-19I9920HP
Dimensions 5.50" x 19.43" x .78"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10.81
Free Drain Area 18.47%
Gallons Per Minute (GPM) 25.60
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Argo 6" Wide, 57'-6" CLR
Product ID AR6-24I9958
Dimensions 5.88" x 24.02" x .79"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 14.73
Free Drain Area 20.12%
Gallons Per Minute (GPM) 37.04
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Argo 8" Wide, 2'-2" CLR
Product ID AR8-20I992
Dimensions 7.88" x 20.45" x .79"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 15.22
Free Drain Area 15.08%
Gallons Per Minute (GPM) 28.20
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Argo 10" Wide Heavy Duty, 13'-3" CLR
Product ID AR10-19I9913
Dimensions 9.88" x 19.78" x 1.00"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 25.05
Free Drain Area 17.43%
Gallons Per Minute (GPM) 43.26
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Argo 12" Wide Heel Proof 30'-6" CLR
Product ID AR12-20I99HP31
Dimensions 11.88" x 19.76" x 1"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 25.37
Free Drain Area 11.96%
Gallons Per Minute (GPM) 36.17
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Argo 15" Wide Heel Proof, Heavy Duty, 61'-6" CLR
Product ID AR15-20I99HPHD62
Dimensions 15.25" x 19.90" x 1.75"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 52.35
Free Drain Area 10.61%
Gallons Per Minute (GPM) 41.76
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze

Photo Gallery:

Argo 5in Radius (6) E

Argo 5″ wide radiused trench grate, cast ductile iron with our baked-on-oil finish. DESIGN: Context Design. PROJECT: Ironworks Plaza & Rink. LOCATION: Mishawaka, IN.


Download photo
Argo 5in Radius (7) E

Argo 5″ wide radiused trench grate, cast ductile iron with our baked-on-oil finish. DESIGN: Context Design. PROJECT: Ironworks Plaza & Rink. LOCATION: Mishawaka, IN.


Download photo
Argo 5in Radius (5) E

Argo 5″ wide radiused trench grate, cast ductile iron with our baked-on-oil finish. DESIGN: Context Design. PROJECT: Ironworks Plaza & Rink. LOCATION: Mishawaka, IN.


Download photo
Argo 5in Radius (8) E

Argo 5″ wide radiused trench grate, cast ductile iron with our baked-on-oil finish. DESIGN: Context Design. PROJECT: Ironworks Plaza & Rink. LOCATION: Mishawaka, IN.


Download photo
argo-5-in-radius-3-e

Argo 5″ radiused trench grate, raw cast iron.


Download photo
argo-5in-radius-aluminum-e

Argo 5″ wide radiused trench grate, raw cast aluminum. Project: Centavos Hills City Hall


Download photo
argo-5-in-radius-2-e

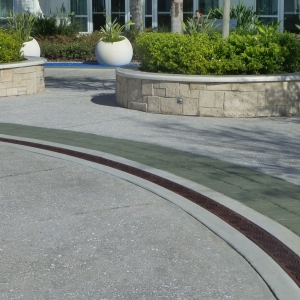

Argo 5.5″ wide radiused trench grate, cast ductile iron with our baked-on-oil finish. DESIGN: ITEC Entertainment. PROJECT: Hilton Event Lawn. LOCATION: Orlando, FL.


Download photo
argo-5in-radius-e

Argo 5.5″ wide radiused trench grate, cast ductile iron with our baked-on-oil finish. DESIGN: ITEC Entertainment. PROJECT: Hilton Event Lawn. LOCATION: Orlando, FL.


Download photo
Argo 12in Radius (1) E

Argo 12″ wide, heel-proof, radiused trench grate, raw cast iron. DESIGN: GreenWorks. INSTALLER: Interwest. PROJECT: Windjammer Park. LOCATION: Oak Harbor, WA.


Download photo
Argo 12in Radius (2) E

Argo 12″ wide, heel-proof, radiused trench grate, raw cast iron. DESIGN: GreenWorks. INSTALLER: Interwest. PROJECT: Windjammer Park. LOCATION: Oak Harbor, WA.


Download photo
Argo 15in Radius (2) E

Argo 15″ wide, heel-proof, radiused trench grate, raw cast iron. DESIGN: GreenWorks. INSTALLER: Interwest. PROJECT: Windjammer Park. LOCATION: Oak Harbor, WA.


Download photo
Argo 15in Radius (1) E

Argo 15″ wide, heel-proof, radiused trench grate, raw cast iron. DESIGN: GreenWorks. INSTALLER: Interwest. PROJECT: Windjammer Park. LOCATION: Oak Harbor, WA.


Download photo
