Description:
A pattern of sculpted, flowing lines gives our Minnione design an organic rhythm and imparts a lifelike, natural energy to any outdoor space.
Minnione
Size Options:
Similar Products:
Detailed Specifications:
 |
||
| Name / Design | Minnione 4' x 4' | |
|---|---|---|
| Product ID | MX48-48I99TG | |
| Dimensions | 47.88" x 47.88" x 1.00" | |
| Fits |
Iron Age Custom Frame |
|
| Frame(s) |
Frame Types "E" Frame Installation |
|
| Material | Cast Iron | |
| Standard Finish | Raw | |
| Optional Finish |
Baked On Oil Finish
Powder Coat
|
|
| Weight lb(s) | 168 | |
| Free Drain Area | 24.46% | |
| Gallons Per Minute (GPM) | 698.24 | |
| Recycled Content | 80% | |
| ADA Compliant | Yes | |
| Optional Material Upgrades |
Cast Aluminum
Cast Bronze
|
|
| Copyright Registration No. | VA 2-159-792 | |
Photo Gallery:

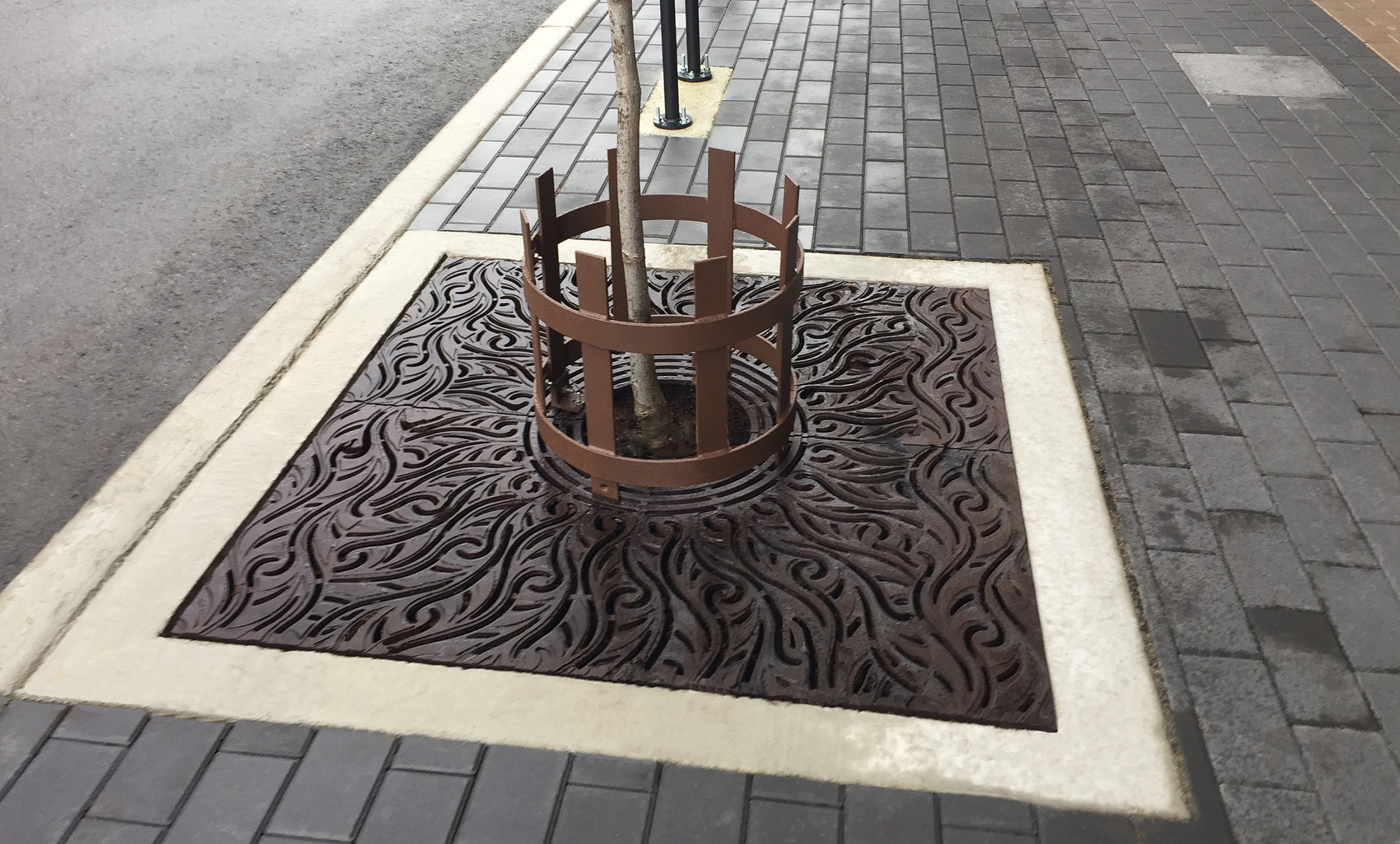

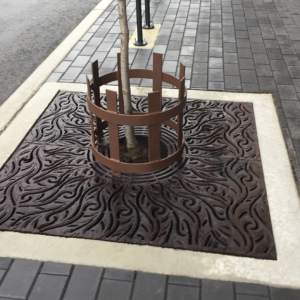

Minnione 4′ x 4′ tree grate, cast iron with baked-on-oil finish. Pictured with Basic tree guard, steel with powder coat finish. Project: Northwoods Village, North Vancouver, BC; Connect Landscape Architecture.
Download photo
Minnione 4′ x 4′ tree grate, cast iron with baked-on-oil finish. Pictured with Basic tree guard, steel with powder coat finish. Project: Northwoods Village, North Vancouver, BC; Connect Landscape Architecture.
Download photo
Minnione 4′ x 4′ tree grate, cast iron with baked-on-oil finish. Pictured with Basic tree guard, steel with powder coat finish. Project: Northwoods Village, North Vancouver, BC; Connect Landscape Architecture.
Download photo

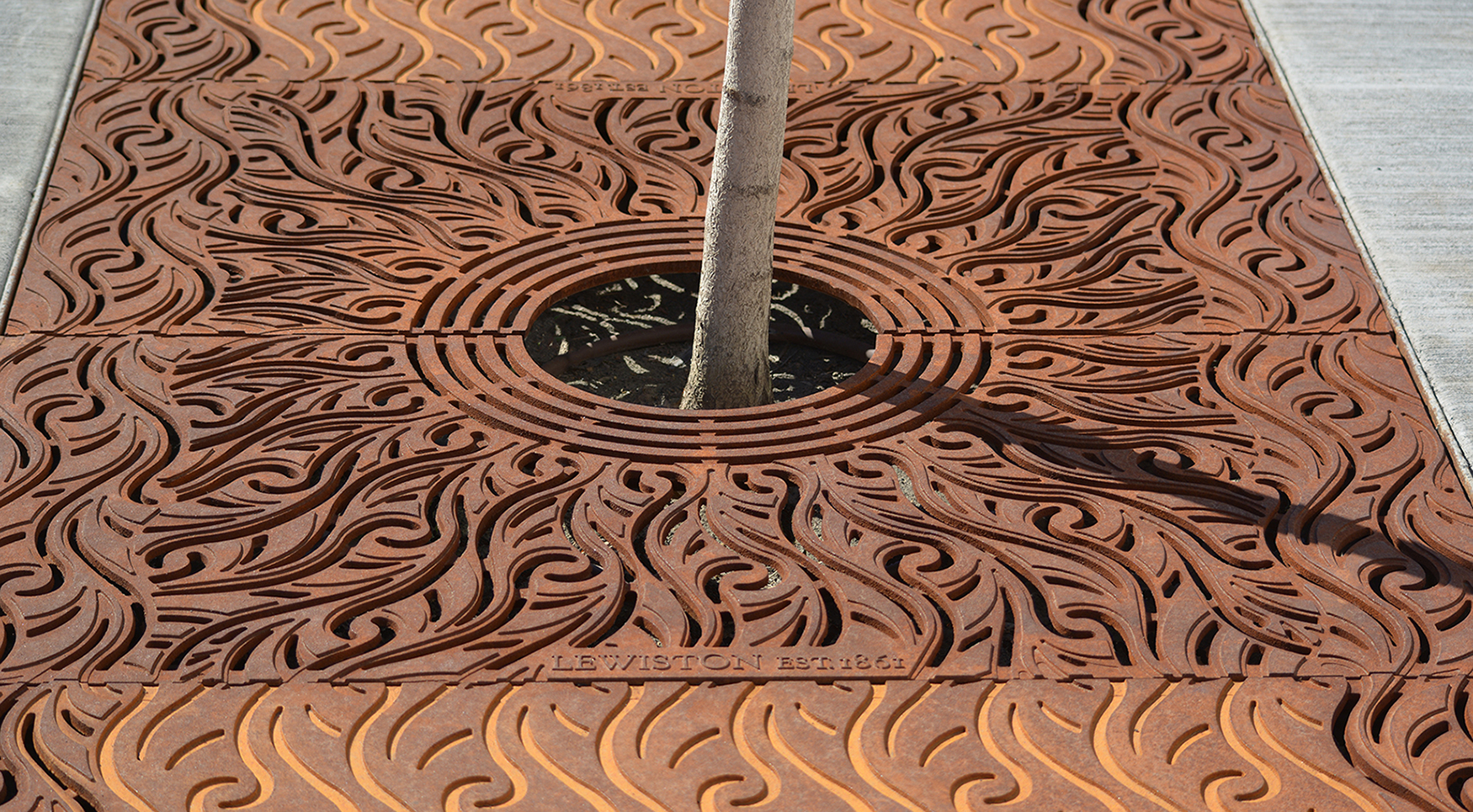

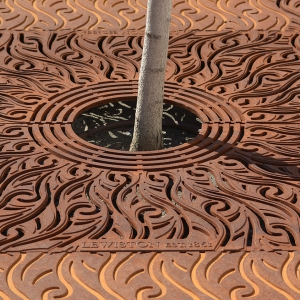

Minnione 4′ Sq. tree grate, raw cast iron. Project Location: Lewiston, ID
Download photo
Minnione 4′ Sq. tree grate, raw cast iron. Project Location: Lewiston, ID
Download photo

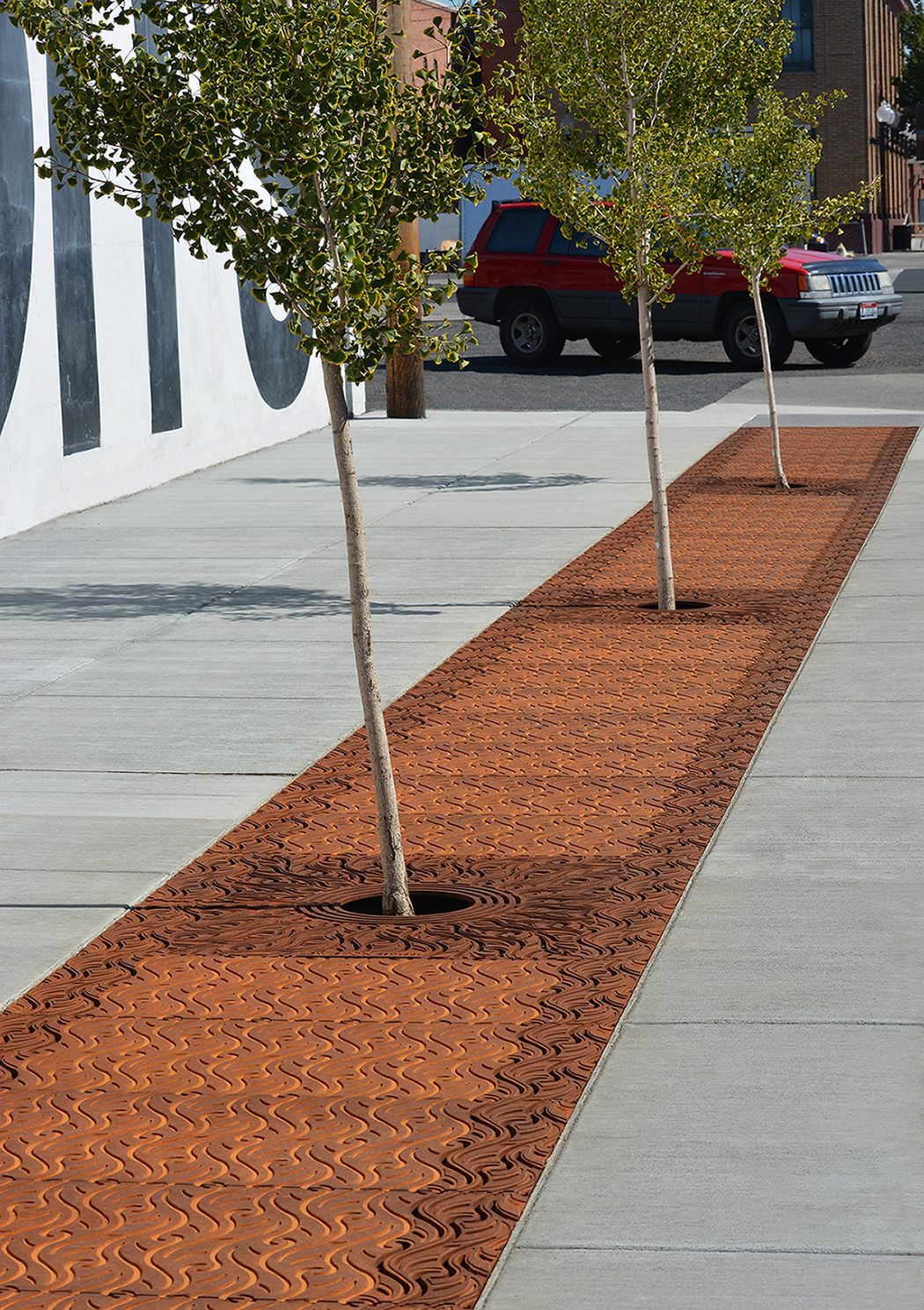

Minnione 4′ Sq. tree grate arrayed with 2′ x 4′ extension panels, raw cast iron. Project Location: Lewiston, ID
Download photo
Minnione 4′ Sq. tree grate arrayed with 2′ x 4′ extension panels, raw cast iron. Project Location: Lewiston, ID
Download photo
Minnione 4′ Sq. tree grate arrayed with 2′ x 4′ extension panels, raw cast iron. Project Location: Lewiston, ID
Download photo

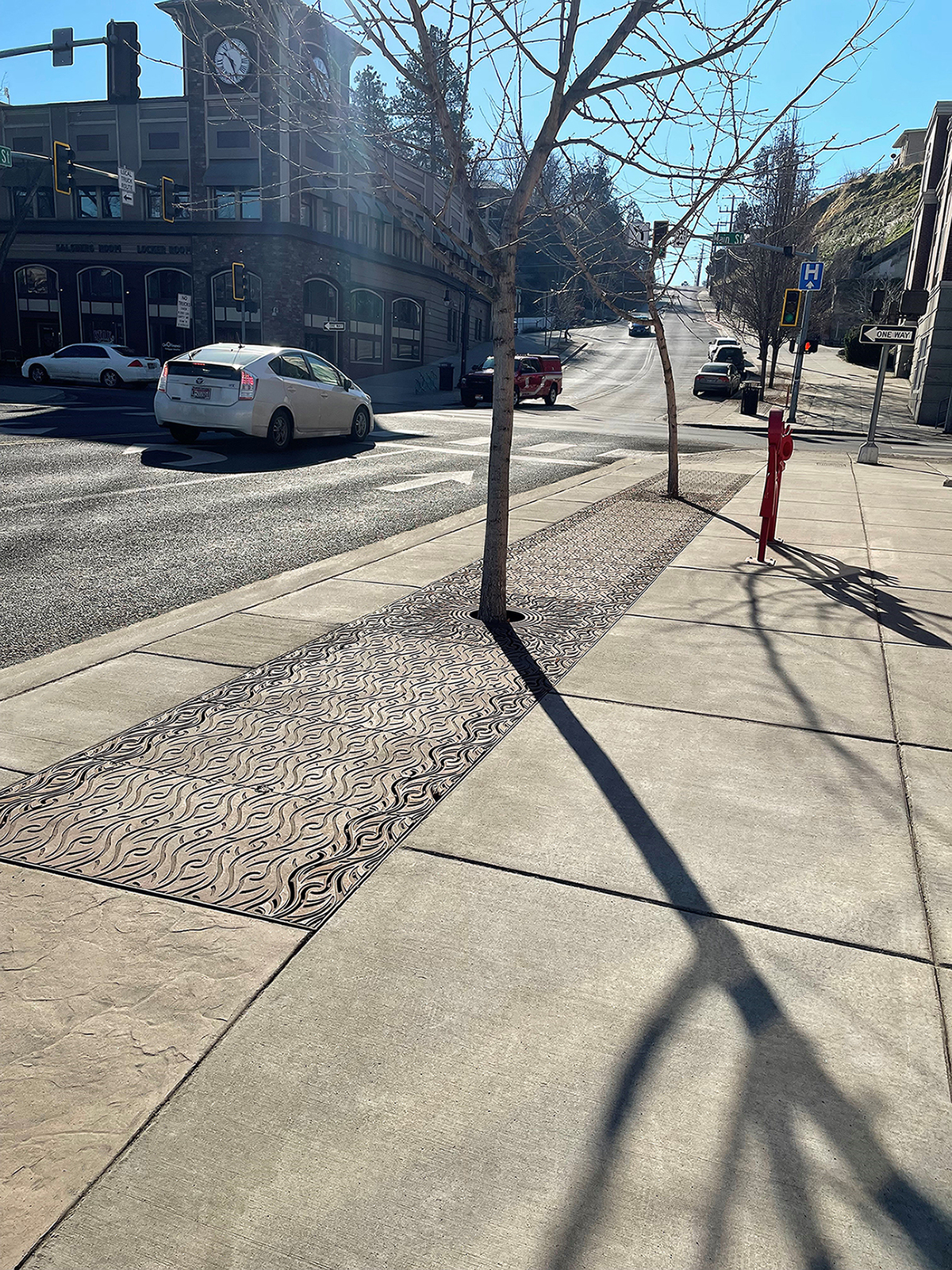

Minnione 4′ Sq. tree grate arrayed with 2′ x 4′ extension panels, raw cast iron. This photo was taken almost 10 years after installation. (Preceding photos are of newly installed grates). Project Location: Lewiston, ID
Download photo
Minnione 4′ x 6′ tree grate, cast iron with baked-on-oil finish. (Custom tree guard with laser-cut Minnione pattern also shown.) PHOTO CREDIT: Chad Carlstrom, Urban Systems DESIGN: Urban Systems PROJECT/LOCATION: Downtown Fort St. John, BC, Canada.
Download photo
Minnione 4′ x 6′ tree grate, cast iron with baked-on-oil finish. (Custom tree guard and bench with laser-cut Minnione pattern also shown.) PHOTO CREDIT: Chad Carlstrom, Urban Systems DESIGN: Urban Systems PROJECT/LOCATION: Downtown Fort St. John, BC, Canada.
Download photo

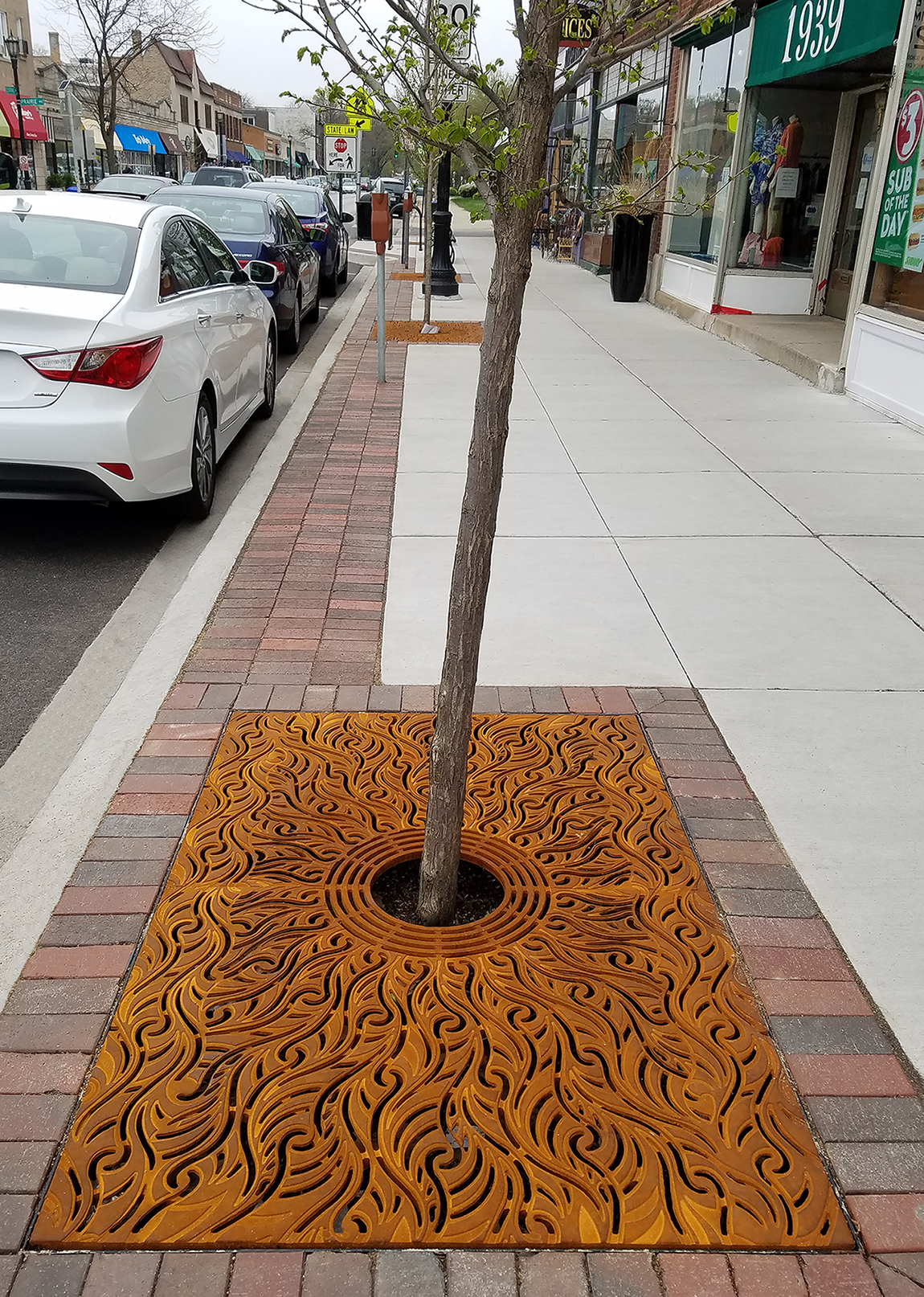

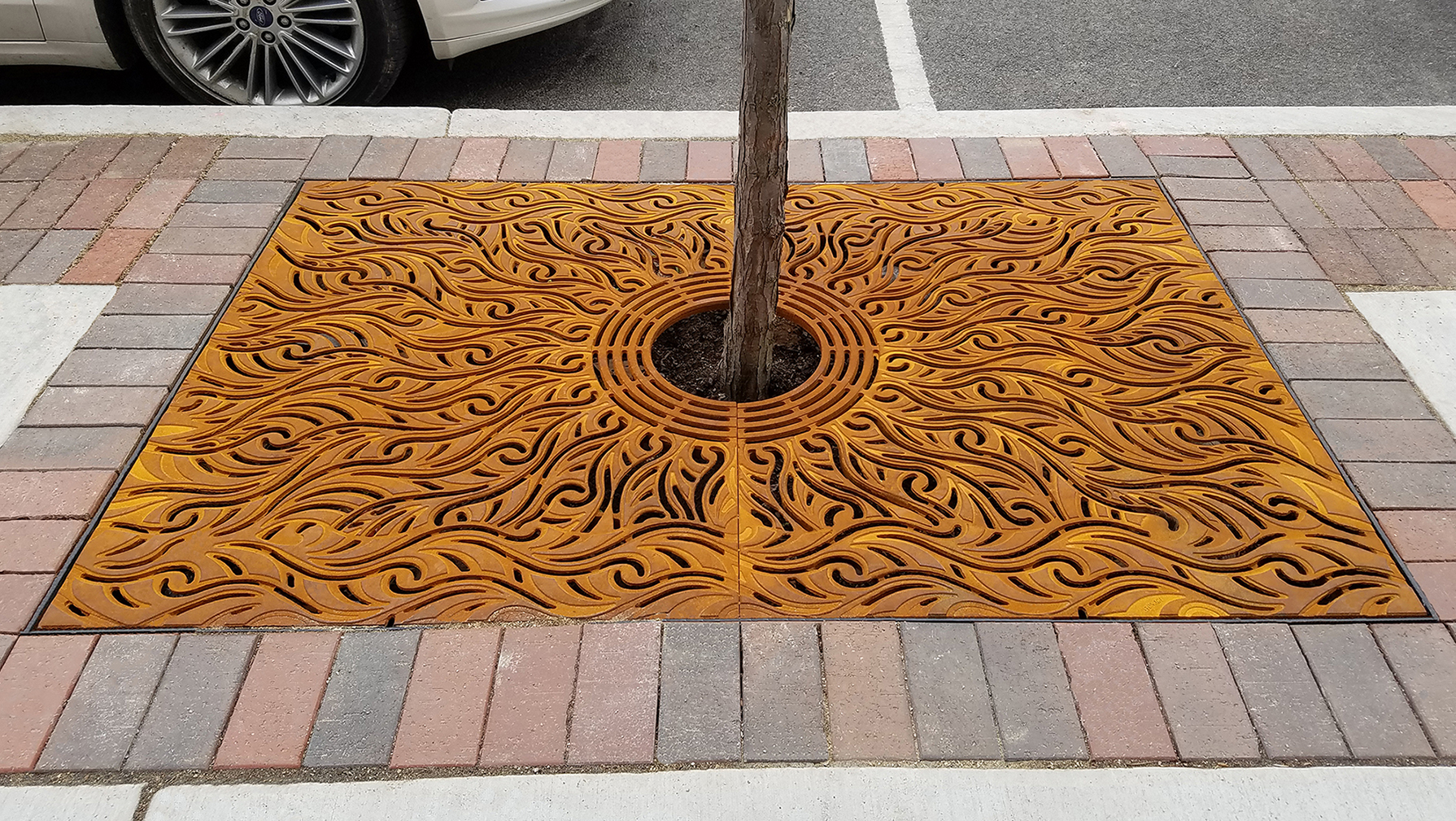

Minnione 4′ x 6′ tree grate, raw cast iron. Project: Central Streetscape, IL.
Download photo
Minnione 4′ x 6′ tree grate, raw cast iron. Project: Central Streetscape, IL.
Download photo
Minnione 4′ x 8′ tree grate, raw cast iron. DESIGN: Teska Associates. PROJECT: Winnetka Downtown Streetscape. LOCATION: Winnetka, IL.
Download photo
Minnione 4′ x 8′ tree grate, raw cast iron. DESIGN: Teska Associates. PROJECT: Winnetka Downtown Streetscape. LOCATION: Winnetka, IL.
Download photo
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
