Detailed Specifications:

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Minnione 3" x 12"
Product ID	MN3-12I01
Dimensions	2.81" x 11.88" x .25"
Drain Manufacturer	NDS®
Fits	NDS® Mini-Channel
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	2
Free Drain Area	17%
Gallons Per Minute (GPM)	8.02
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Patent No.	US D587,346 S
Copyright Registration No.	VA 2-007-086

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Minnione 5" x 20"
Product ID	MA5-20B21
Dimensions	4.81" x 19.44" x .75"
Drain Manufacturer	ABT® ACO™ MEA®
Fits	ABT® PolyDrain® ACO™ K100, K100S, KS100 MEA® 1000 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	8.62
Free Drain Area	12.69%
Gallons Per Minute (GPM)	14.68
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Patent No.	US D587,346 S
Copyright Registration No.	VA 1-970-733

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Minnione 24" x 44" Heavy Duty
Product ID	MX24-44I99HD
Dimensions	23.94" x 44.13" x 2.3"
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	170
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

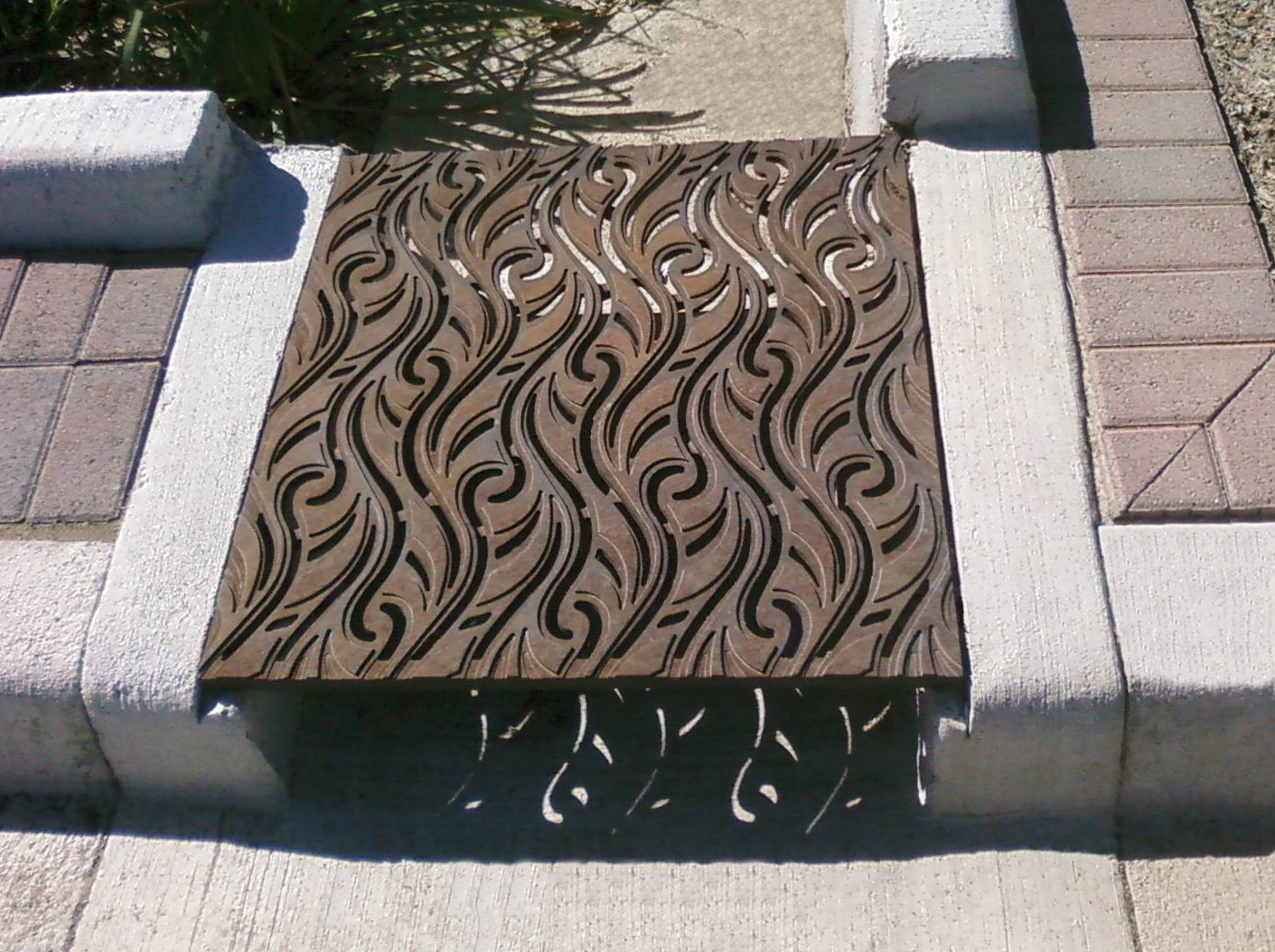

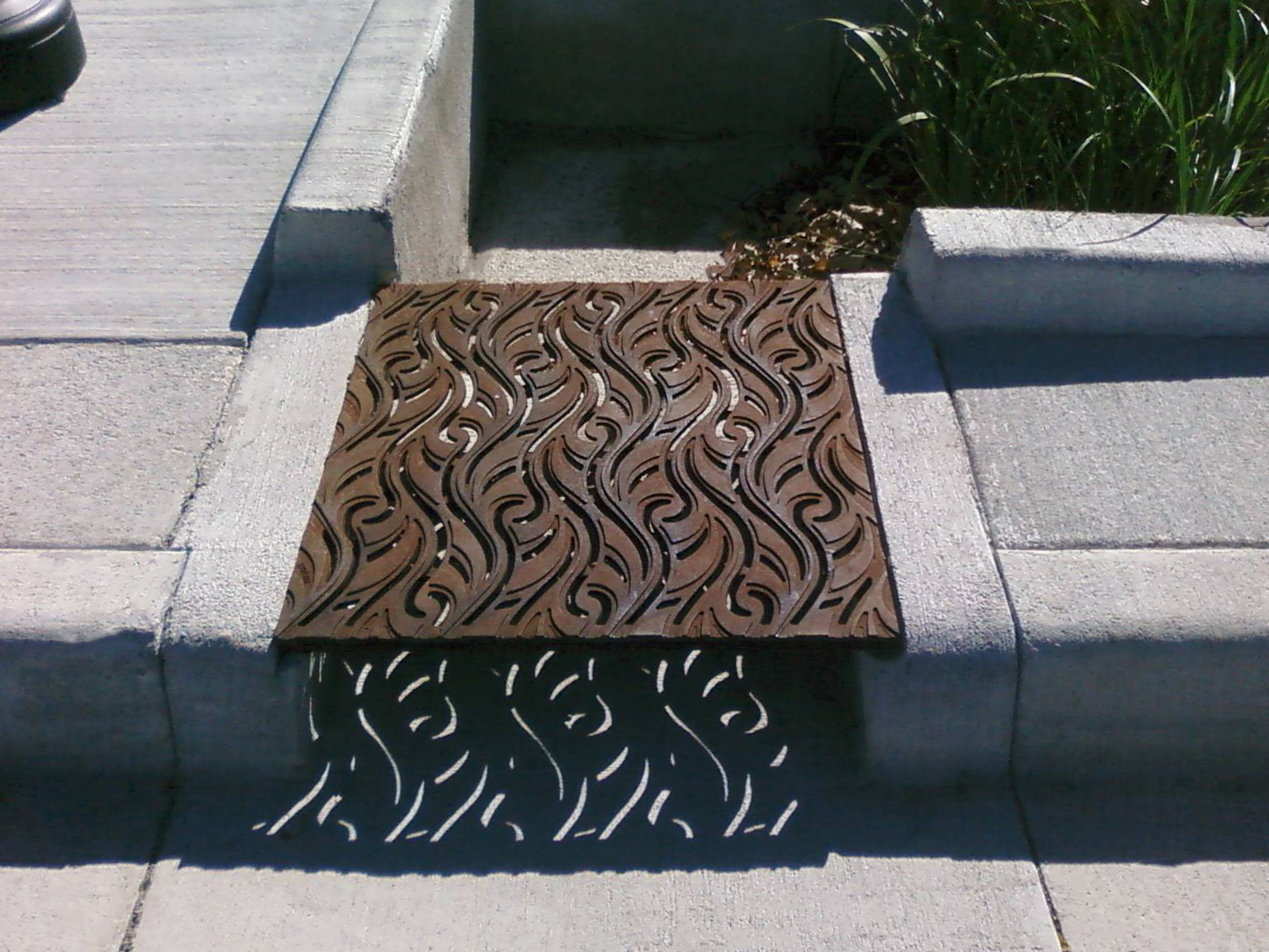

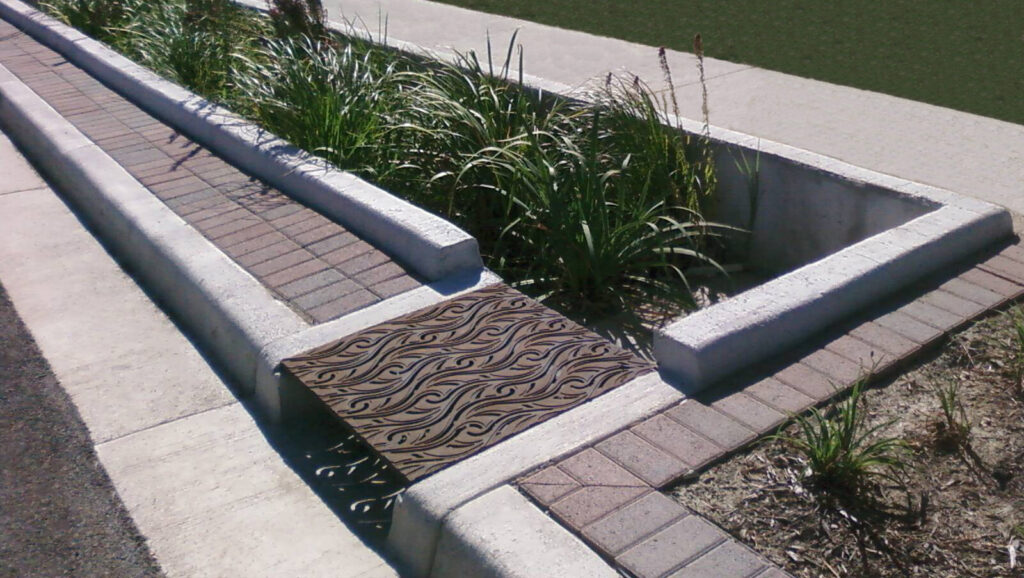

Name / Design	Minnione 26" x 28", PEDESTRIAN LOAD ONLY
Product ID	MX26-28I99
Dimensions	26" x 28" x 1"
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	77
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 1-964-893

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

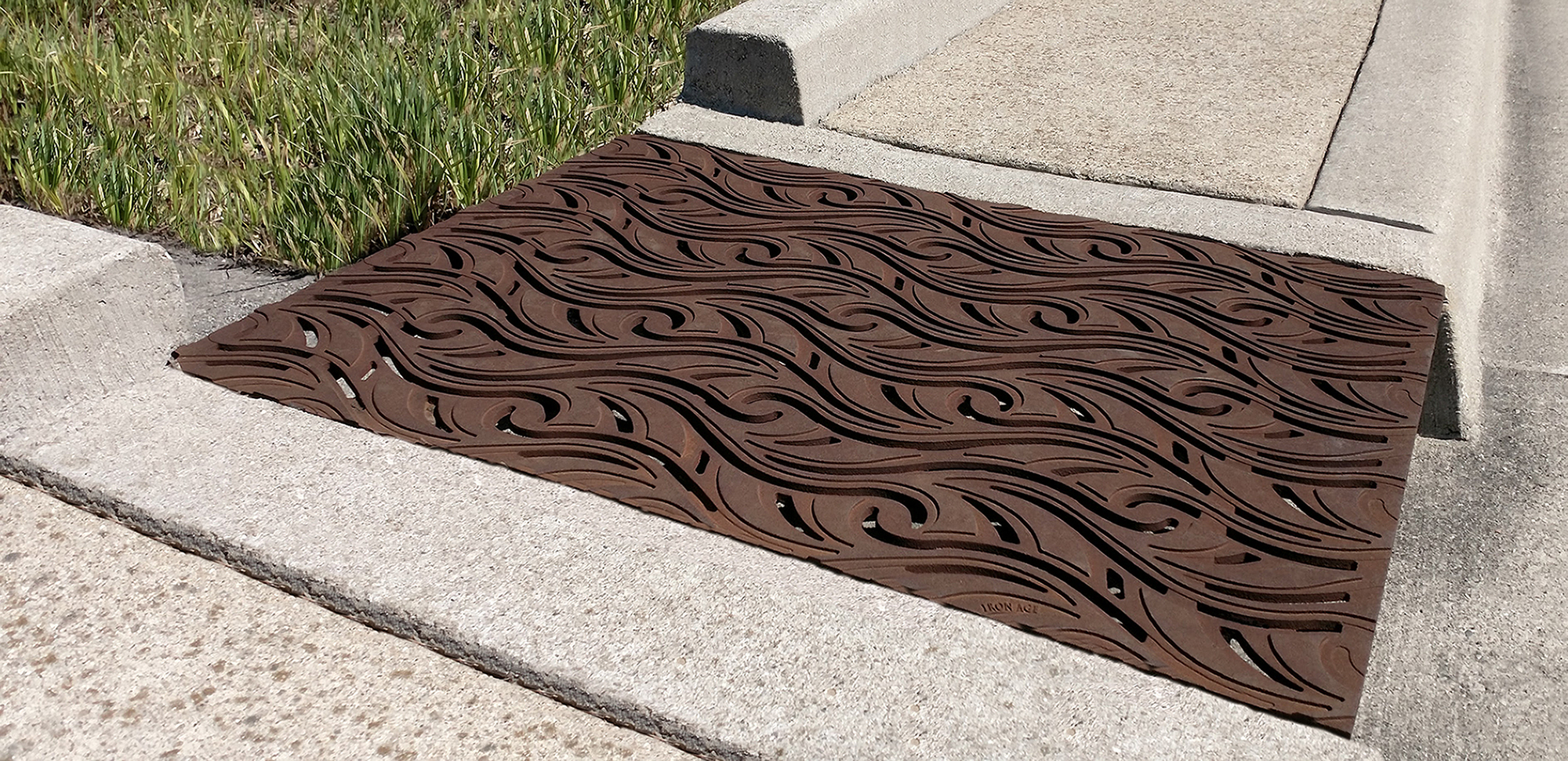

Name / Design	Minnione 26" x 36", PEDESTRIAN LOAD ONLY
Product ID	MX26-36I99
Dimensions	26" x 36" x 1"
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	100
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

Photo Gallery:

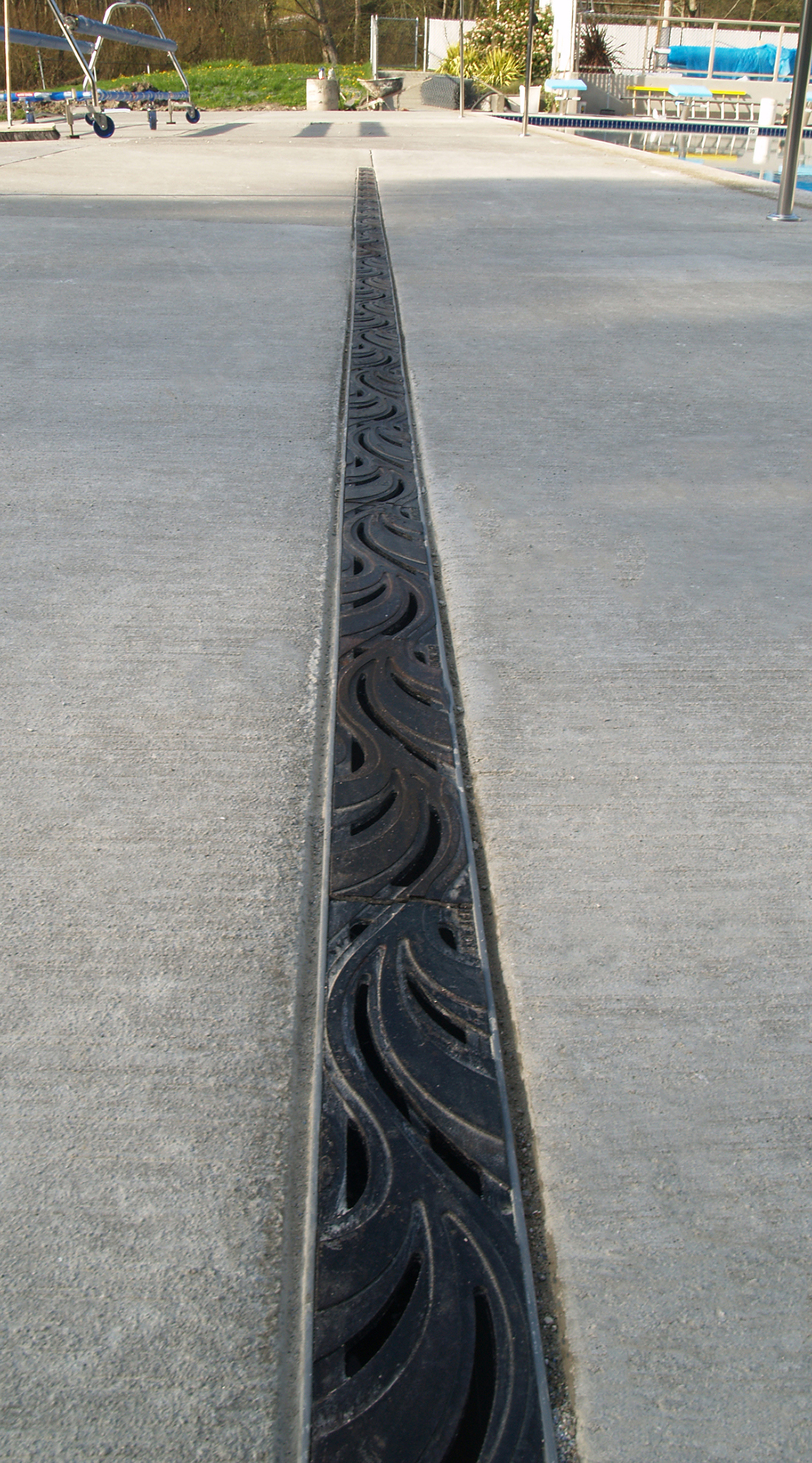

Minnione 3″ x 12″ trench grate, cast iron with baked-on-oil finish.

Download photo

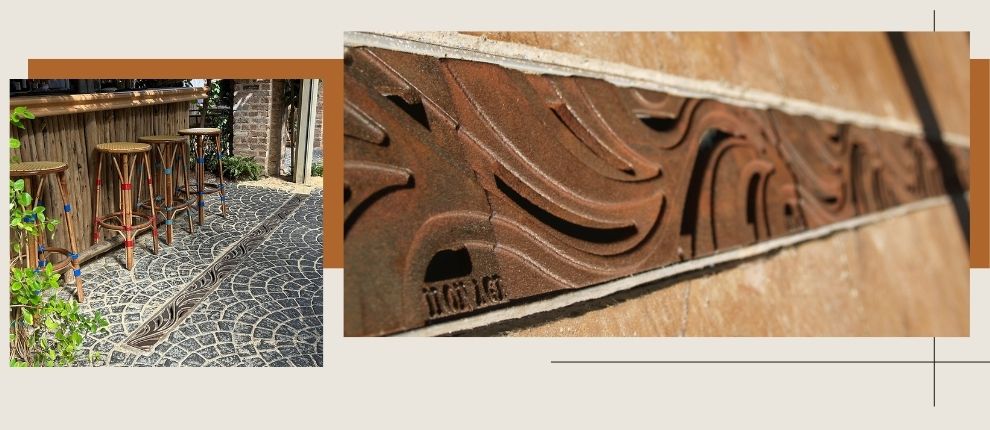

Minnione 3″ x 12″ trench grate, cast ductile iron with our baked on oil finish. Project: French Laundry Restaurant, CA..

Download photo

Minnione 3″ x 12″ trench grate, cast ductile iron with our baked on oil finish. Project: French Laundry Restaurant, CA..

Download photo

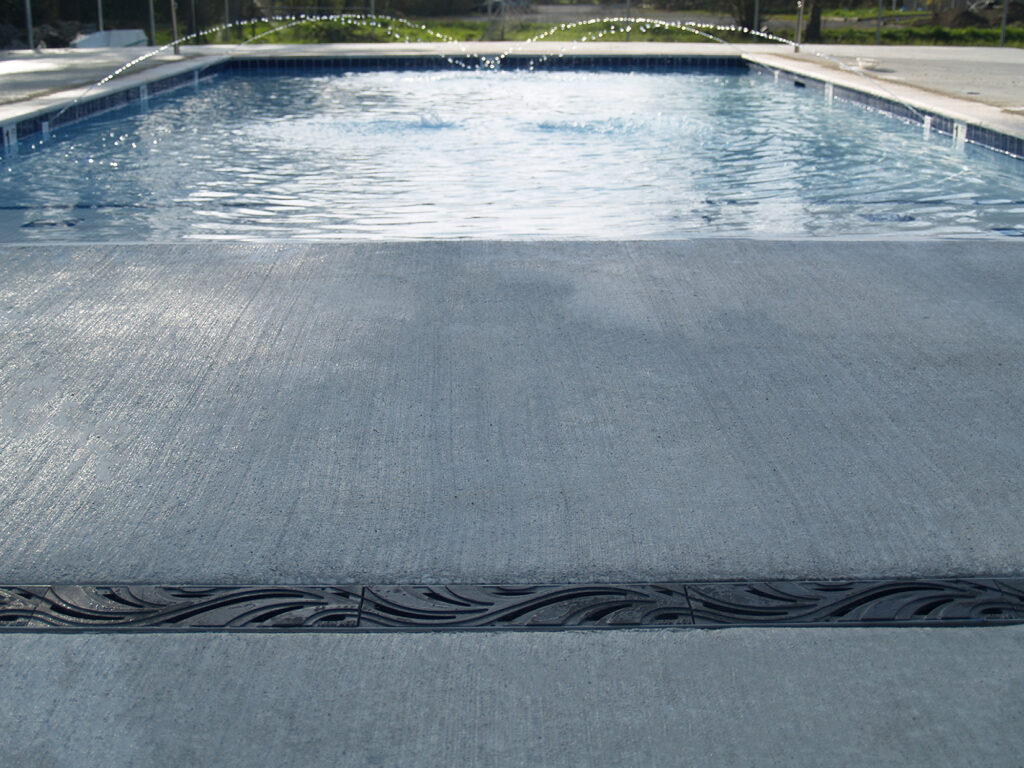

Minnione 3″ x 12″ trench grate, cast ductile iron with our baked on oil finish.

Download photo

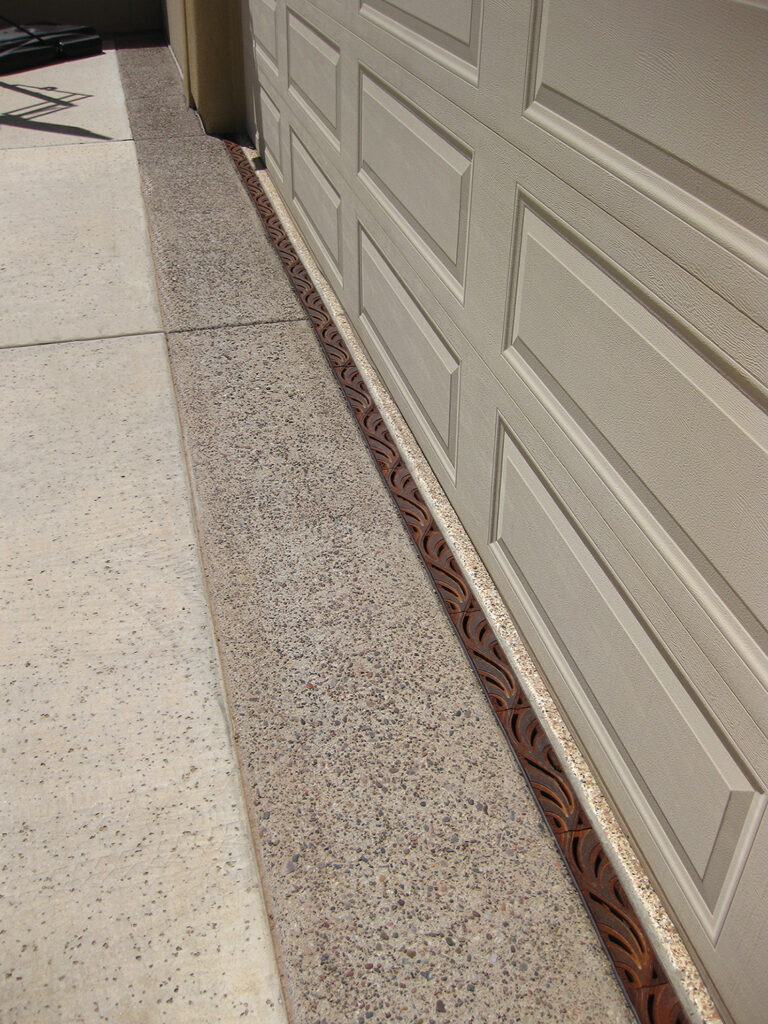

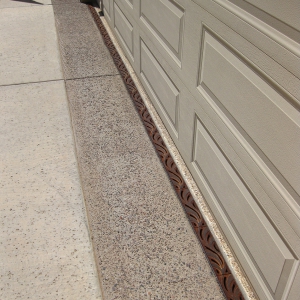

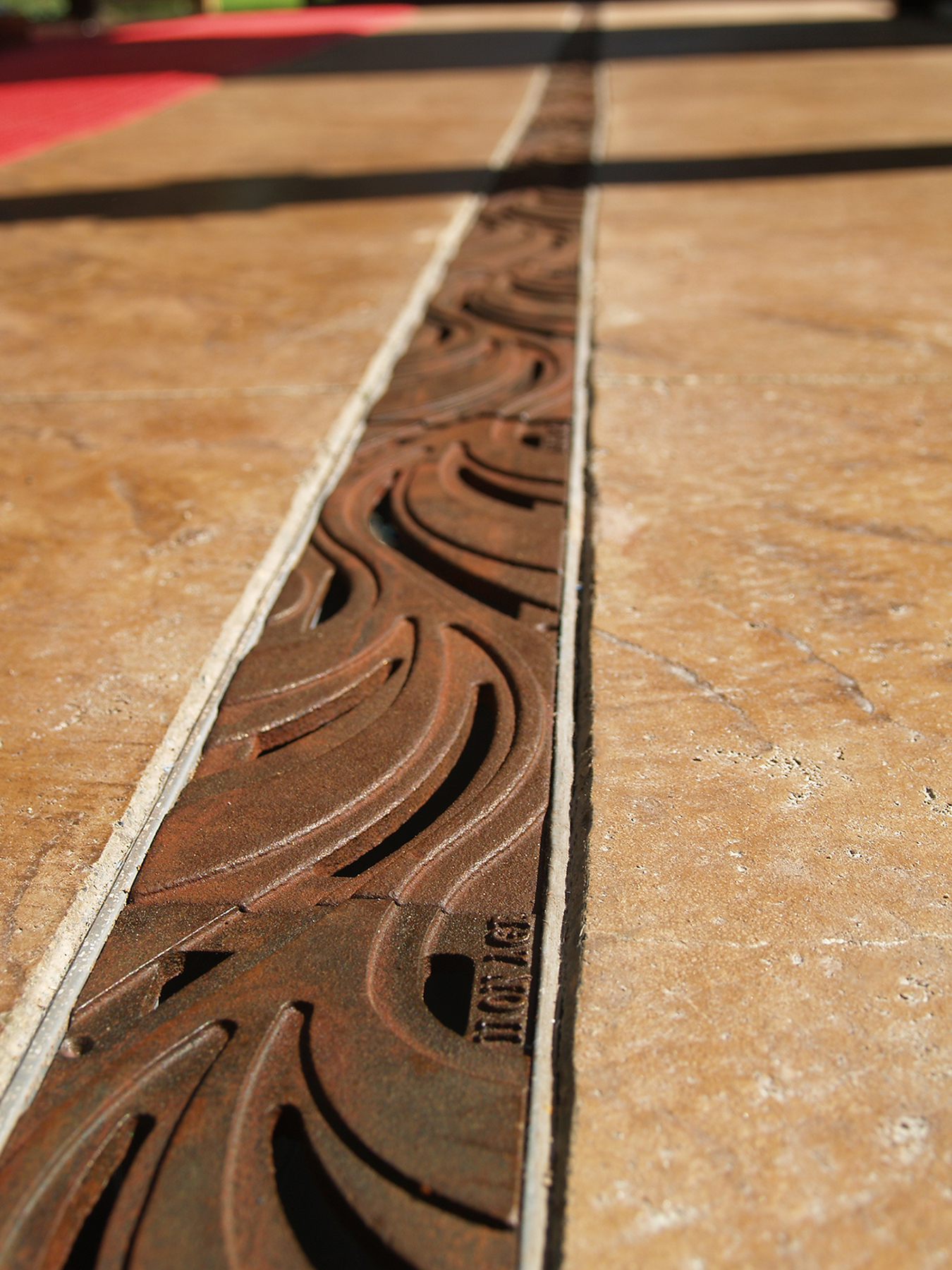

Minnione 3″ x 12″ trench grate, raw cast ductile iron. Project Location: AZ

Download photo

Minnione 3″ x 12″ trench grate, raw cast bronze.

Download photo

Minnione 3″ x 12″ trench grate, raw cast bronze.

Download photo

Minnione 3″ x 12″ trench grate, raw cast ductile iron, pictured along side a standard plastic NDS grate.

Download photo

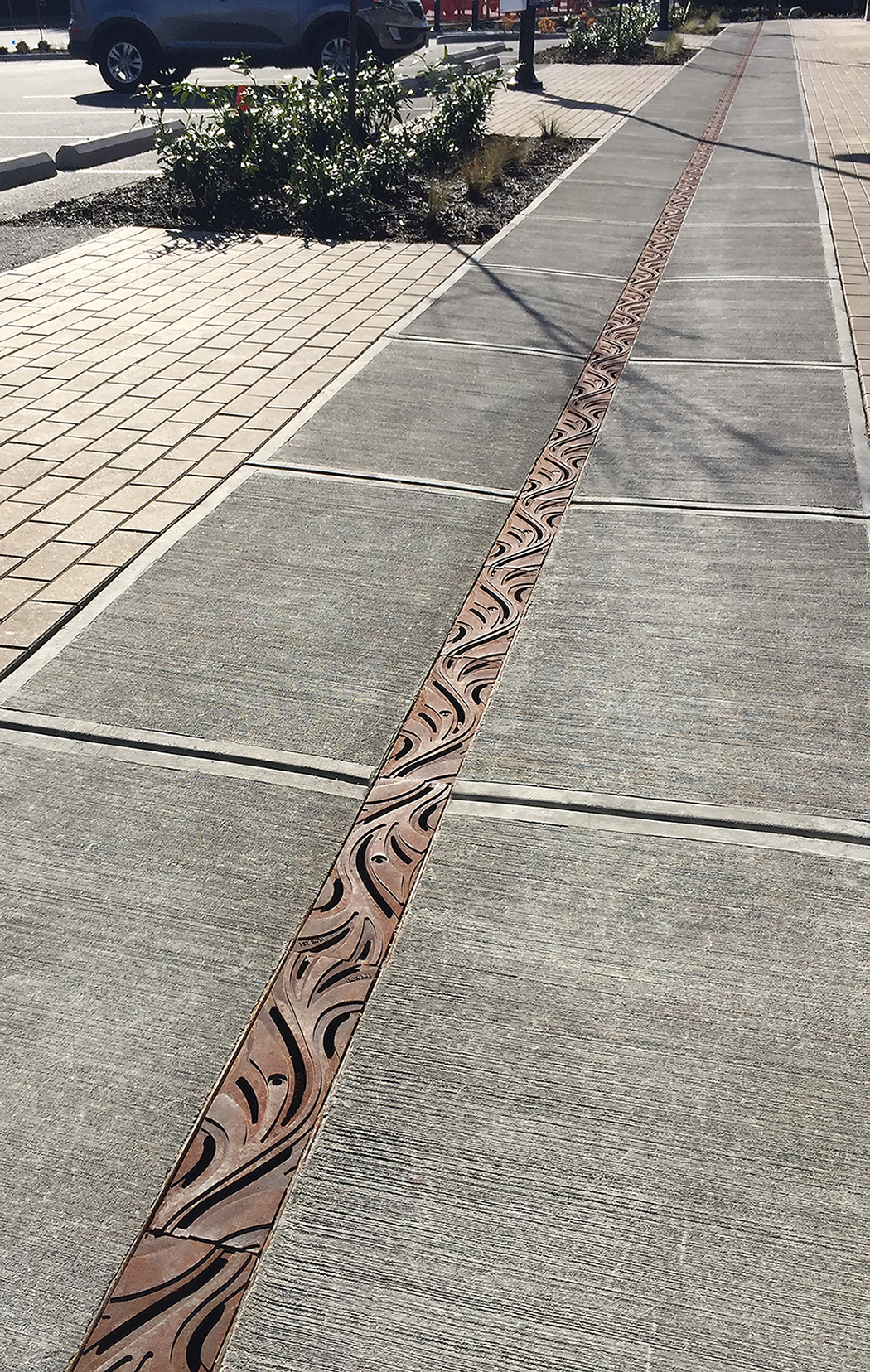

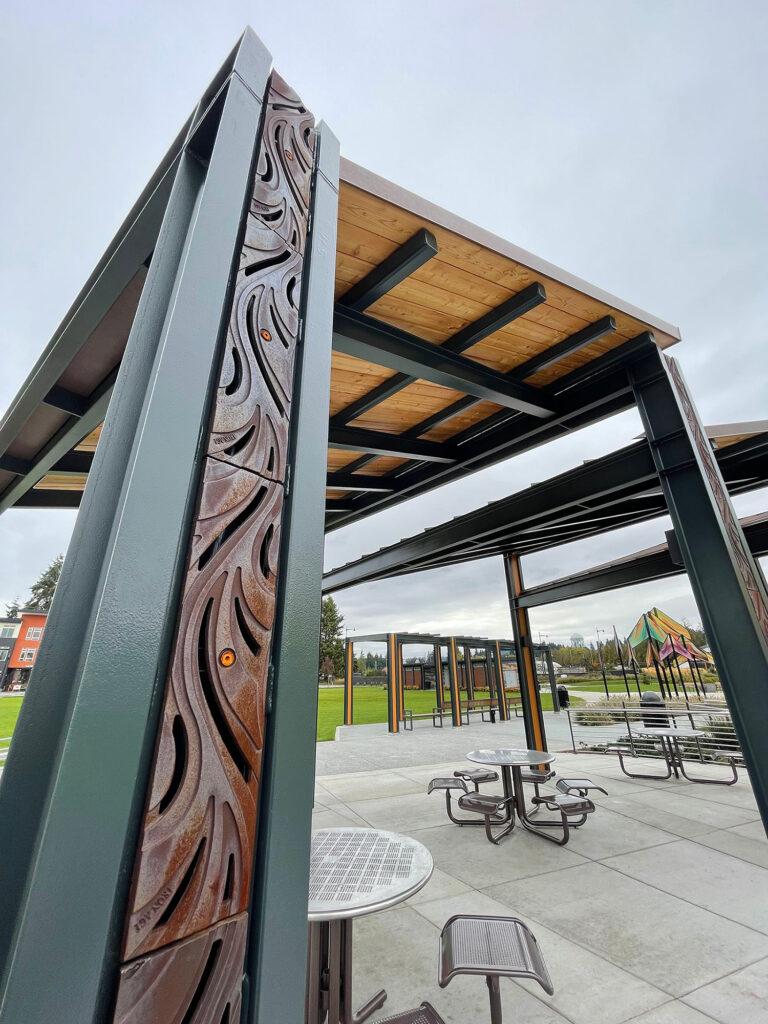

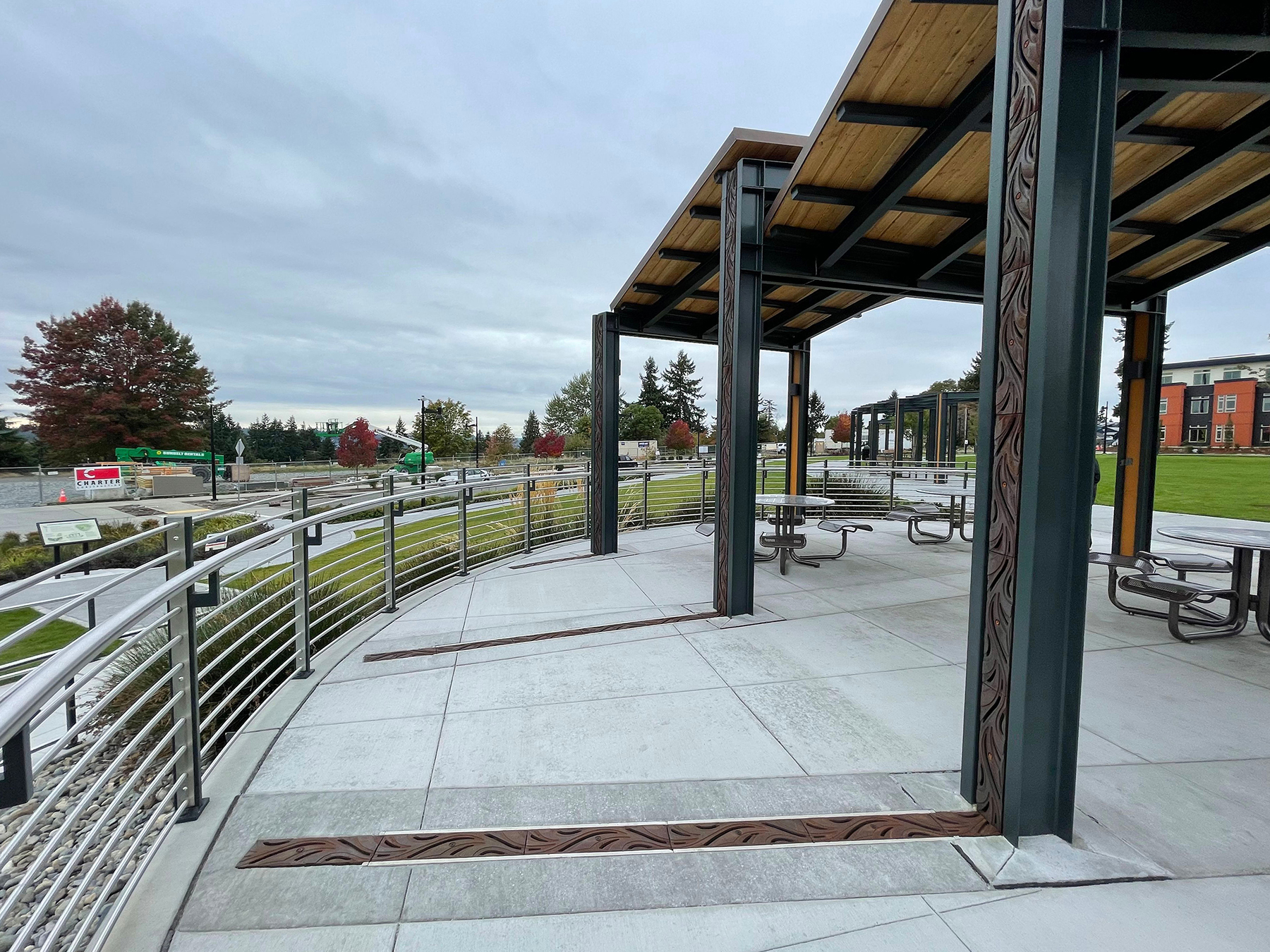

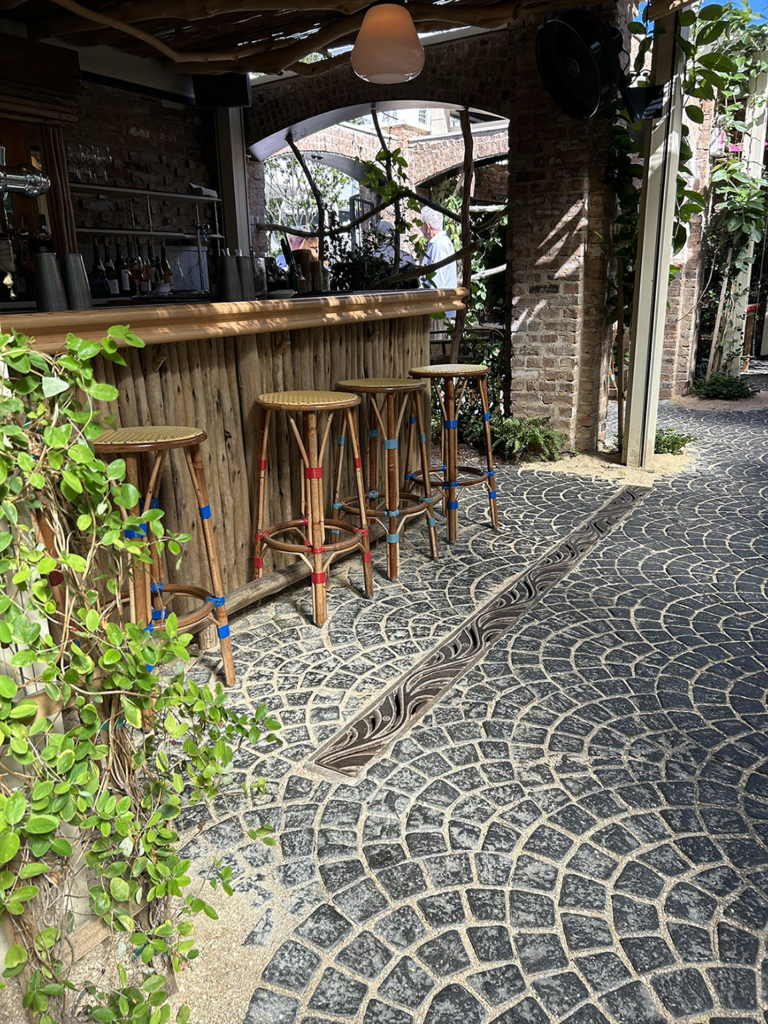

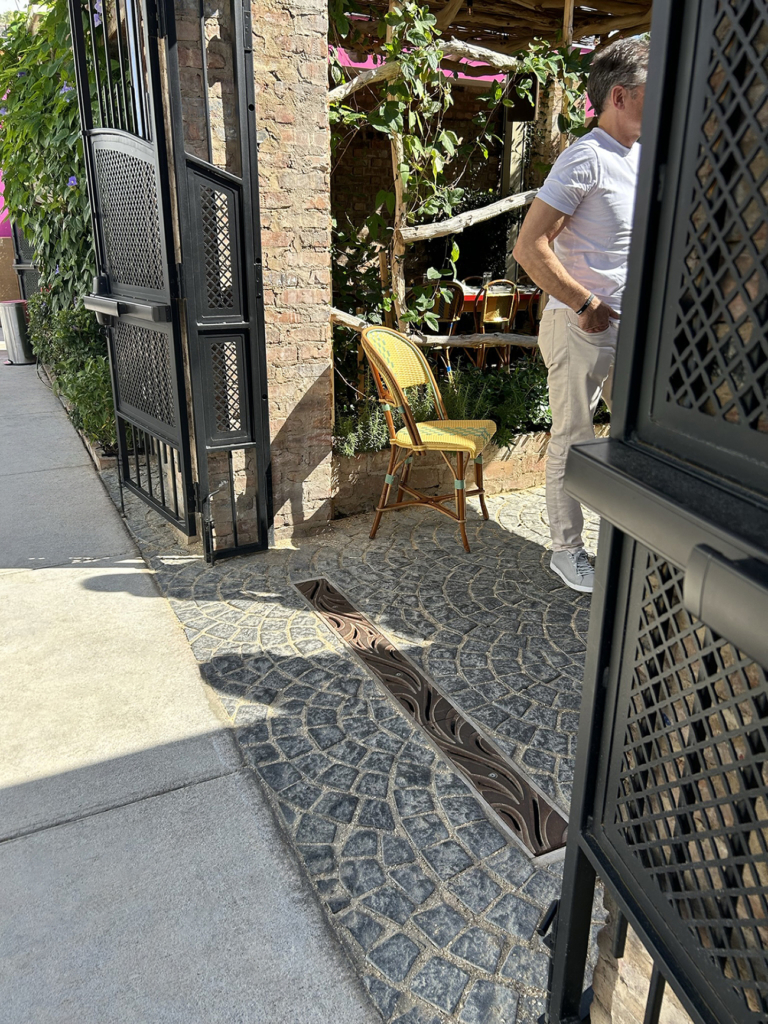

Minnione 5″ x 20″ trench grate, raw cast ductile iron.

Download photo

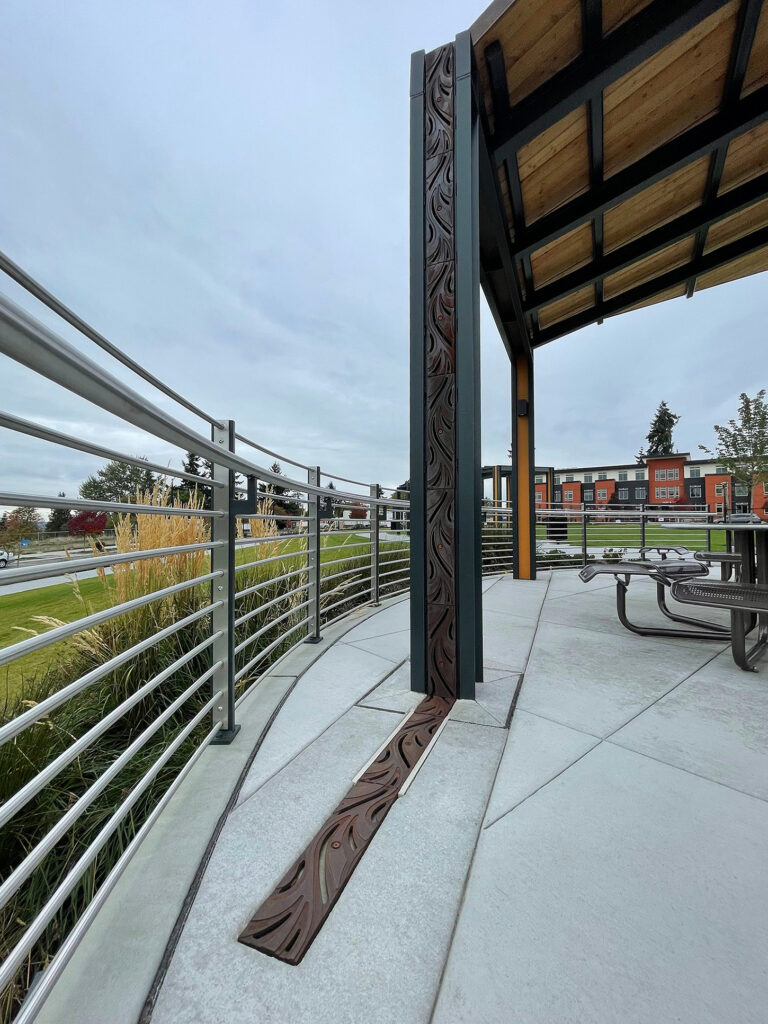

Minnione 5″ x 20″ trench grate, raw cast ductile iron.

Download photo

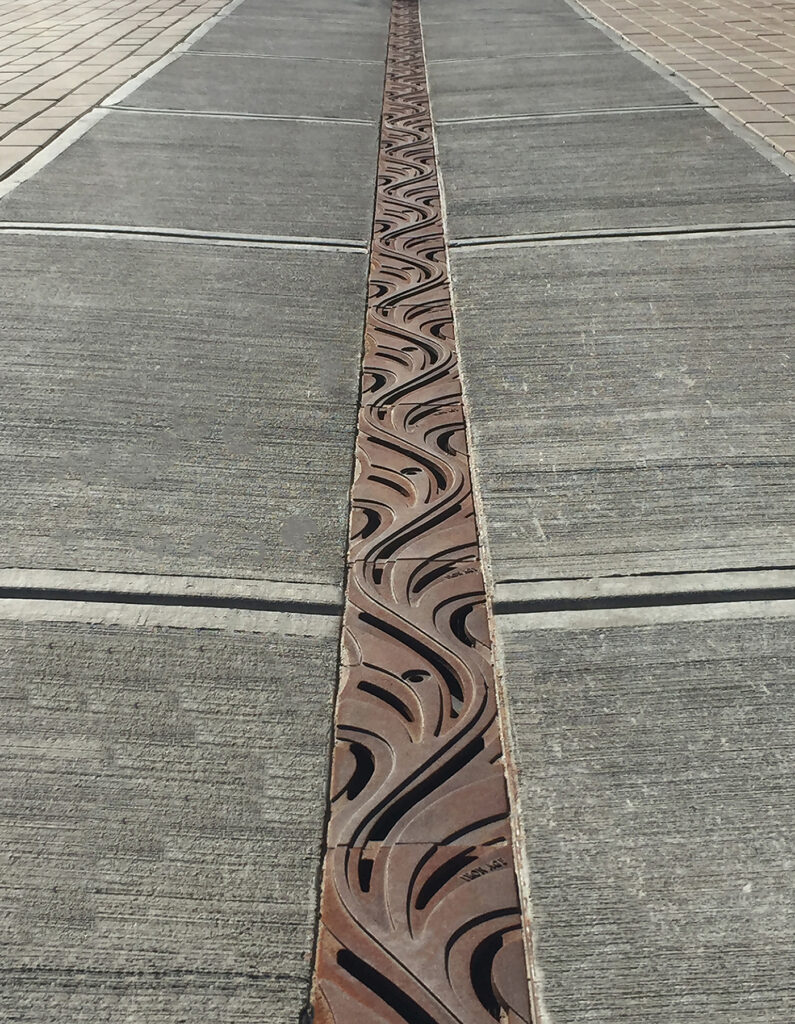

Minnione 5″ x 20″ trench grate, raw cast ductile iron.

Download photo

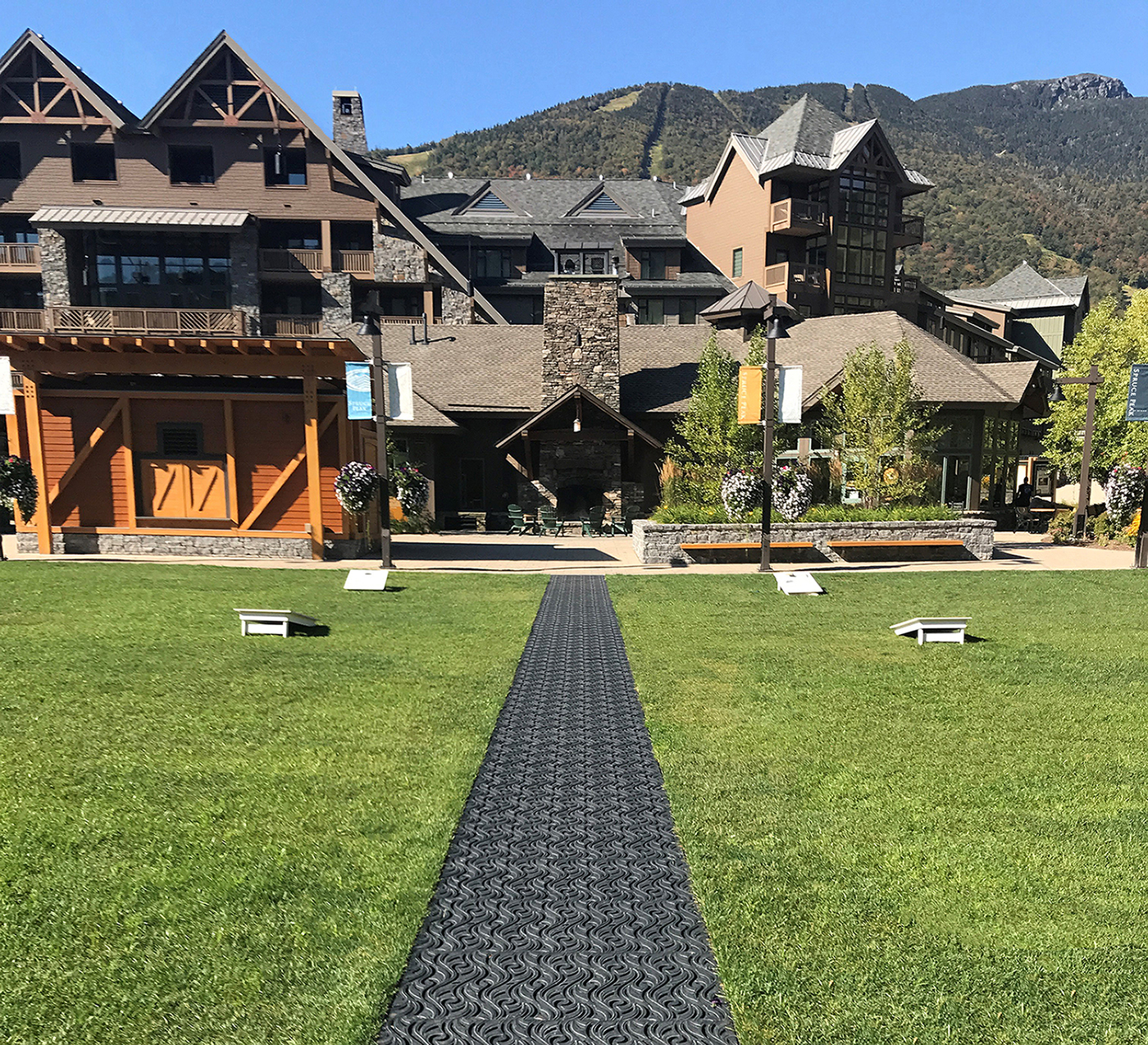

Minnione 24″ x 44″ heavy-duty trench grate, cast iron with powder coat finish. Project: Spruce Peak Village Center at Stowe Mountain Resort, Stowe, VT. Design: SE Group. Photo Credit/Installation: Josh Goldstein, Stonewall Hardscapes.
