Radius Grates
Que Radius Grates
We took the ordinary vertical lines of a traditional slotted grate and turned them sideways, giving our Que pattern a long, lean look with eye-catching depth and dimension.
Select Size:
Detailed Specifications:
- Name / Design
- Que 5" Wide Heel-Proof, Heavy-Duty, 34"-10.75" CLR - ALUMINUM
- Product ID
- QUR5-20A9935HPHD
- Dimensions
- 4.81" x 19.87" x 1.25"
- Fits
-
Iron Age Custom Frame
- Material
- Cast Aluminum
- Standard Finish
- Raw
- Optional Finishes
-
- Powder Coat
- Weight lb(s)
- 8.09
- Free Drain Area
- 13.61%
- Gallons Per Minute (GPM)
- 16.95
- Recycled Content
- 80%
- ADA Compliant
- Yes
Photo Gallery:
Click image for high-res file and description

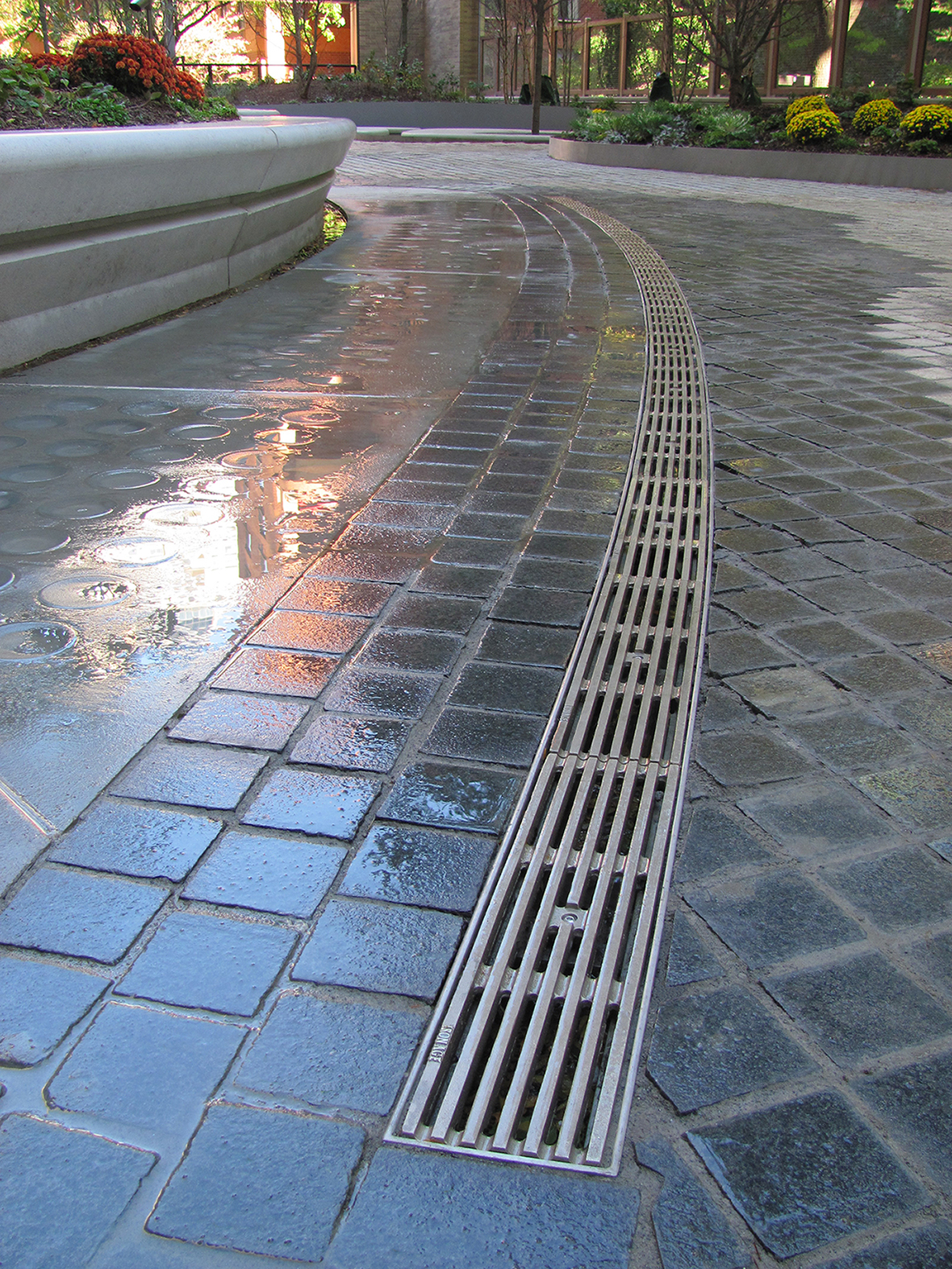

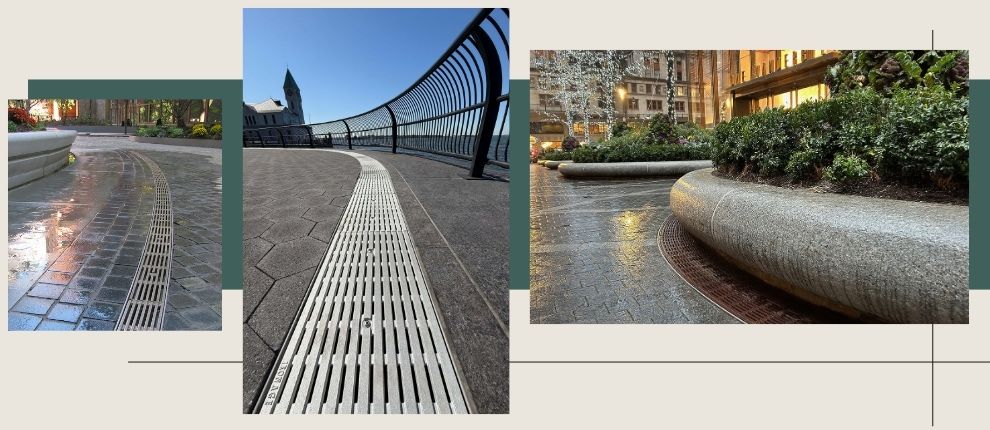

Que 5″ radius trench grate, raw nickel bronze, arrayed with various radii. DESIGN: Starr Whitehouse PROJECT: E92nd Street Bonus Plaza and Terraces. LOCATION: New York, NY.
Que 5″ radius trench grate, raw nickel bronze, arrayed with various radii. DESIGN: Starr Whitehouse PROJECT: E92nd Street Bonus Plaza and Terraces. LOCATION: New York, NY.
Que 5″ radius trench grate, raw nickel bronze, arrayed with various radii. DESIGN: Starr Whitehouse PROJECT: E92nd Street Bonus Plaza and Terraces. LOCATION: New York, NY.
Que 5″ radius trench grate, raw nickel bronze, arrayed with various radii. DESIGN: Starr Whitehouse PROJECT: E92nd Street Bonus Plaza and Terraces. LOCATION: New York, NY.
Que 5″ wide radius trench grates, cast iron with powder coat finish. DESIGN: NYC Parks. PROJECT: Playground 52, Kelly Street. LOCATION: Bronx, NY.
Que 10″ wide radius heel-proof trench grate, cast ductile iron with baked-on-oil finish. DESIGN: PWP Landscape Architecture. INSTALLER: Posillico. PROJECT: One Vanderbilt. LOCATION: New York, NY.
Que 10″ wide radius heel-proof trench grate, cast ductile iron with baked-on-oil finish. DESIGN: PWP Landscape Architecture. INSTALLER: Posillico. PROJECT: One Vanderbilt. LOCATION: New York, NY.
Que 10″ wide radius heel-proof trench grate, cast ductile iron with baked-on-oil finish. DESIGN: PWP Landscape Architecture. INSTALLER: Posillico. PROJECT: One Vanderbilt. LOCATION: New York, NY.
Que 10″ wide radius heel-proof trench grate, cast ductile iron with baked-on-oil finish. DESIGN: PWP Landscape Architecture. INSTALLER: Posillico. PROJECT: One Vanderbilt. LOCATION: New York, NY.
Que 10″ wide radius heel-proof trench grate, cast ductile iron with baked-on-oil finish. Shown three years after installation. DESIGN: PWP Landscape Architecture. INSTALLER: Posillico. PROJECT: One Vanderbilt. LOCATION: New York, NY.
Que 10″ wide radius heel-proof trench grate, cast ductile iron with baked-on-oil finish. Shown three years after installation. DESIGN: PWP Landscape Architecture. INSTALLER: Posillico. PROJECT: One Vanderbilt. LOCATION: New York, NY.
Que 10″ wide radius heel-proof trench grate, cast ductile iron with baked-on-oil finish. Shown three years after installation. DESIGN: PWP Landscape Architecture. INSTALLER: Posillico. PROJECT: One Vanderbilt. LOCATION: New York, NY.
Que 10″ wide radius heel-proof trench grate, cast ductile iron with baked-on-oil finish. Shown three years after installation. DESIGN: PWP Landscape Architecture. INSTALLER: Posillico. PROJECT: One Vanderbilt. LOCATION: New York, NY.
Que 12″ wide radius trench grate, cast ductile iron with e-coat plus black powder coat finish. DESIGN: TBG Partners. INSTALLATION: Rotolo Consultants (RCI). PROJECT: Our Lady of the Lake Children’s Hospital. LOCATION: Baton Rouge, LA.
Que 12″ wide radius trench grate, cast ductile iron with e-coat plus black powder coat finish. DESIGN: TBG Partners. INSTALLATION: Rotolo Consultants (RCI). PROJECT: Our Lady of the Lake Children’s Hospital. LOCATION: Baton Rouge, LA.
Que 12″ wide radius trench grate, cast ductile iron with e-coat plus black powder coat finish. DESIGN: TBG Partners. INSTALLATION: Rotolo Consultants (RCI). PROJECT: Our Lady of the Lake Children’s Hospital. LOCATION: Baton Rouge, LA.

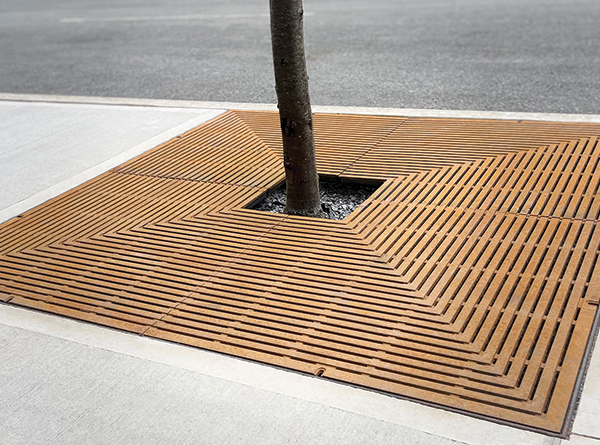

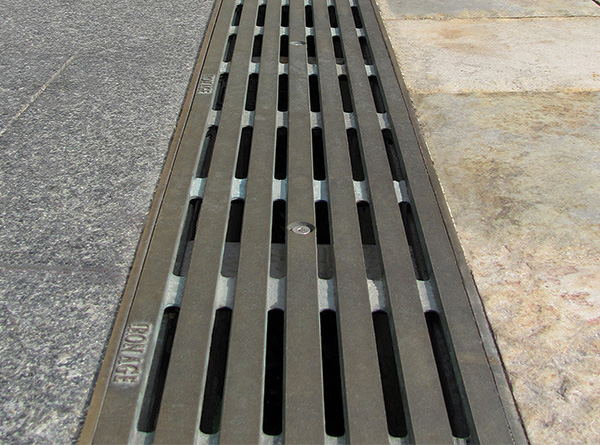

Similar Products:
