Que

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 3" Wide, 18'-0" CLR
Product ID	QUR3-20I9918
Dimensions	2.94" x 20.06" x .5"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	2
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 4" Wide, 7'-4" CLR
Product ID	QUR4-20I9988
Dimensions	4.00" x 20.10" x .75"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	6.55
Free Drain Area	31.74%
Gallons Per Minute (GPM)	32.69
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 5" Wide Heel Proof, 12'-3" CLR
Product ID	QUR5-20I9912HP
Dimensions	4.74" x 19.94" x .81"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	11
Free Drain Area	25.7%
Gallons Per Minute (GPM)	31.32
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	Pending

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 5" Wide Heel Proof, 17'-7" CLR
Product ID	QUR5-20I9918HP
Dimensions	4.81" x 19.85" x .81"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	11
Free Drain Area	25.29%
Gallons Per Minute (GPM)	31.30
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 8" Wide, 7'-6" CLR
Product ID	QUR8-20I9990
Dimensions	8.00" x 19.62" x .75"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	12.46
Free Drain Area	31.87%
Gallons Per Minute (GPM)	62.75
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 8" Wide, 40'-6" CLR
Product ID	QUR8-18I9941
Dimensions	7.88" x 17.94" x .81"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	18
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	Pending

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 9" Wide, 30'-6" CLR
Product ID	QUR9-19D9931HP
Dimensions	8.75" x 19.33" x 1"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	26.75
Free Drain Area	15.07%
Gallons Per Minute (GPM)	33.01
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 10" Wide Heel Proof, Heavy-Duty, 9'-8" CLR
Product ID	QUR10-18I9910HPHD
Dimensions	10.13" x 19.19" x 1.00"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	20.35
Free Drain Area	18.6%
Gallons Per Minute (GPM)	45.40
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 12" Wide Heel Proof, 2'-7" CLR
Product ID	QUR12-16I993HP
Dimensions	11.88" x 19.02" x 1"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	13.91
Free Drain Area	27.6%
Gallons Per Minute (GPM)	68.44
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 12" Wide Heel Proof, Heavy Duty, 23'-9" CLR
Product ID	QUR12-19AM9924HPHD
Dimensions	11.88" x 19.02" x 1.50"
Fits	Iron Age Custom Frame
Material	Cast Aluminum
Standard Finish	Raw
Optional Finish	Powder Coat
Weight lb(s)	18.71
Free Drain Area	14.93%
Gallons Per Minute (GPM)	43.28
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Bronze Cast Ductile Iron

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 12" Wide Heel Proof, Heavy Duty, 37'-6" CLR
Product ID	QUR12-18I9938HPHD
Dimensions	11.88" x 17.87" x 1.25"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	22.08
Free Drain Area	29.24%
Gallons Per Minute (GPM)	80.26
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Que 12" Wide Heel Proof, Heavy Duty, 49'-0" CLR
Product ID	QUR12-18 I9949HPHD
Dimensions	11.88" x 17.91" x 1.25"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	27
Free Drain Area	26%
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze Cast Ductile Iron

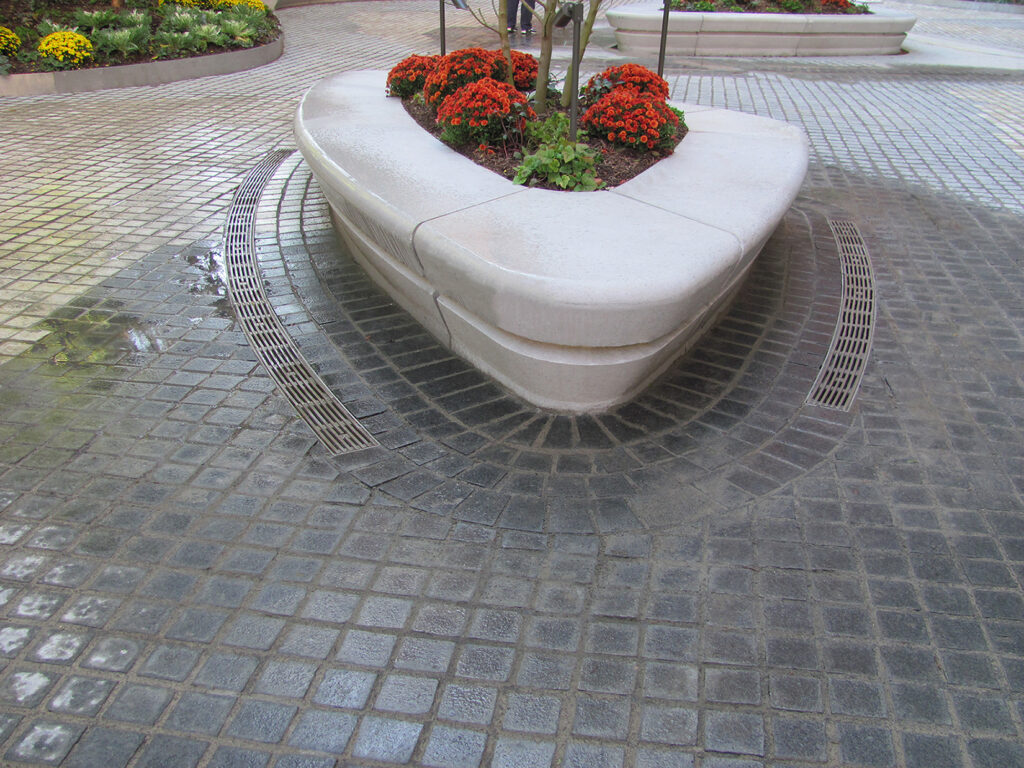

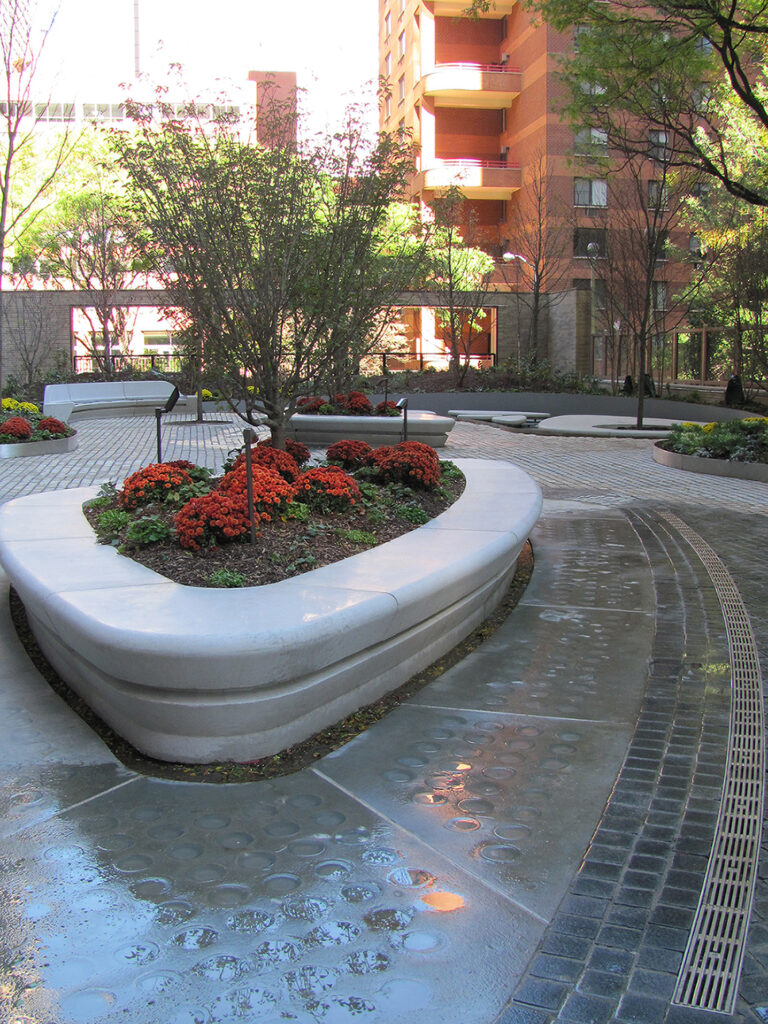

Que 5″ radiused trench grate, raw nickel bronze, arrayed with various radii. DESIGN: Starr Whitehouse PROJECT: E92nd Street Bonus Plaza and Terraces. LOCATION: New York, NY.

Download photo

Que 5″ radiused trench grate, raw nickel bronze, arrayed with various radii. DESIGN: Starr Whitehouse PROJECT: E92nd Street Bonus Plaza and Terraces. LOCATION: New York, NY.

Download photo

Que 5″ radiused trench grate, raw nickel bronze, arrayed with various radii. DESIGN: Starr Whitehouse PROJECT: E92nd Street Bonus Plaza and Terraces. LOCATION: New York, NY.

Download photo

Que 5″ radiused trench grate, raw nickel bronze, arrayed with various radii. DESIGN: Starr Whitehouse PROJECT: E92nd Street Bonus Plaza and Terraces. LOCATION: New York, NY.

Download photo

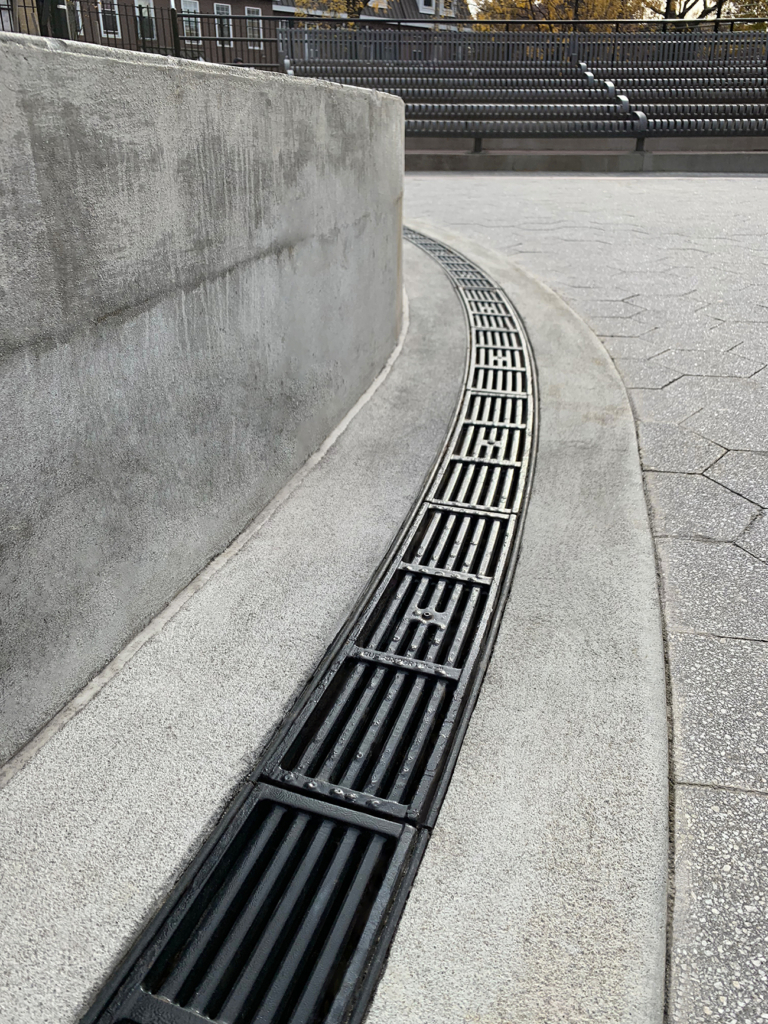

Cast iron radius trench drain grates in a linear Que pattern, black powder coat finish.

Que 5″ wide radiused trench grates, cast iron with powder coat finish. DESIGN: NYC Parks. PROJECT: Playground 52, Kelly Street. LOCATION: Bronx, NY.

Download photo

Decorative cast bronze radius trench grates in Que pattern surrounding circular planter in front of One Vanderbilt building

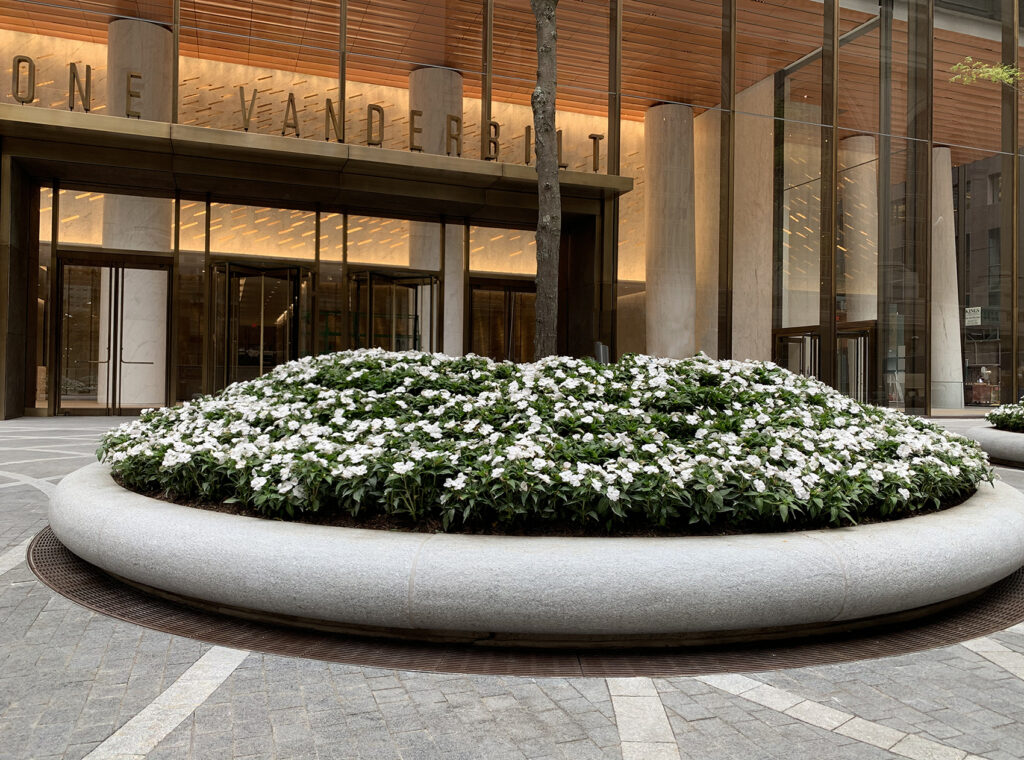

Que 10″ wide radius heel-proof trench grate, cast ductile iron with baked-on-oil finish. DESIGN: PWP Landscape Architecture. INSTALLER: Posillico. PROJECT: One Vanderbilt. LOCATION: New York, NY.

Download photo

Que 10″ wide radius heel-proof trench grate, cast ductile iron with baked-on-oil finish. DESIGN: PWP Landscape Architecture. INSTALLER: Posillico. PROJECT: One Vanderbilt. LOCATION: New York, NY.

Download photo

Decorative cast bronze radius trench grates in Que pattern surrounding circular planter

Que 10″ wide radius heel-proof trench grate, cast ductile iron with baked-on-oil finish. DESIGN: PWP Landscape Architecture. INSTALLER: Posillico. PROJECT: One Vanderbilt. LOCATION: New York, NY.

Download photo

Que 10″ wide radius heel-proof trench grate, cast ductile iron with baked-on-oil finish. DESIGN: PWP Landscape Architecture. INSTALLER: Posillico. PROJECT: One Vanderbilt. LOCATION: New York, NY.

Download photo

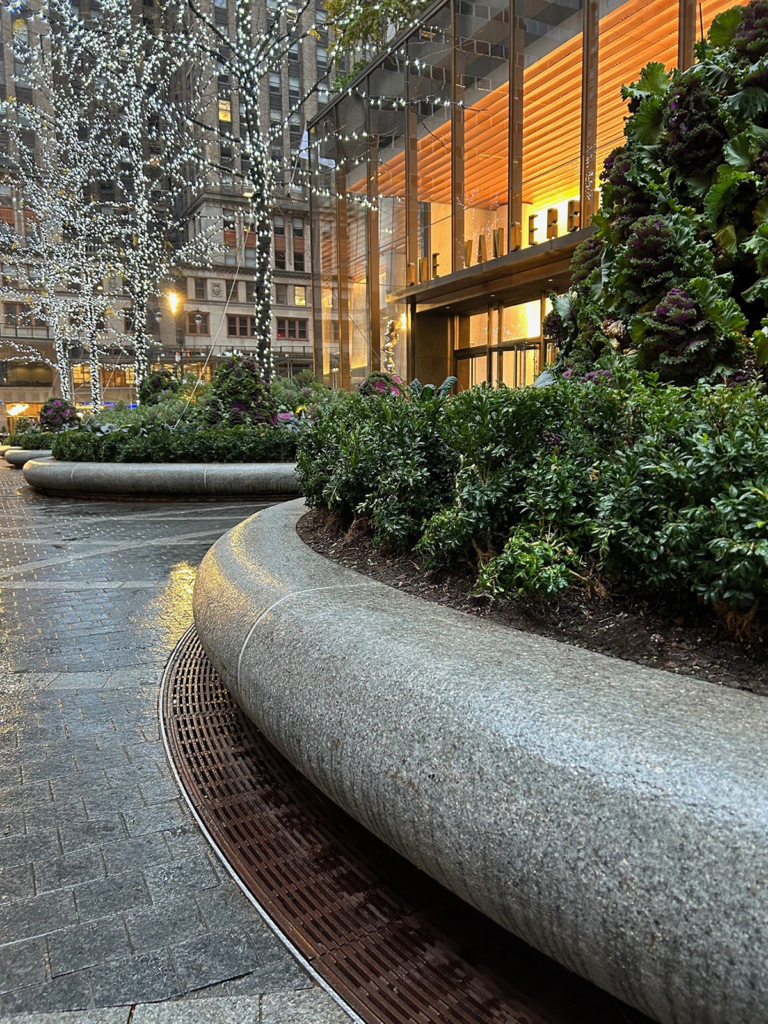

Cast iron radius drain grate in linear Que pattern, shown at base of large planters in One Vanderbilt Plaza

Que 10″ wide radius heel-proof trench grate, cast ductile iron with baked-on-oil finish. Shown three years after installation. DESIGN: PWP Landscape Architecture. INSTALLER: Posillico. PROJECT: One Vanderbilt. LOCATION: New York, NY.

Download photo

Que 10″ wide radius heel-proof trench grate, cast ductile iron with baked-on-oil finish. Shown three years after installation. DESIGN: PWP Landscape Architecture. INSTALLER: Posillico. PROJECT: One Vanderbilt. LOCATION: New York, NY.

Download photo

Que 10″ wide radius heel-proof trench grate, cast ductile iron with baked-on-oil finish. Shown three years after installation. DESIGN: PWP Landscape Architecture. INSTALLER: Posillico. PROJECT: One Vanderbilt. LOCATION: New York, NY.

Download photo

Que 10″ wide radius heel-proof trench grate, cast ductile iron with baked-on-oil finish. Shown three years after installation. DESIGN: PWP Landscape Architecture. INSTALLER: Posillico. PROJECT: One Vanderbilt. LOCATION: New York, NY.

Download photo

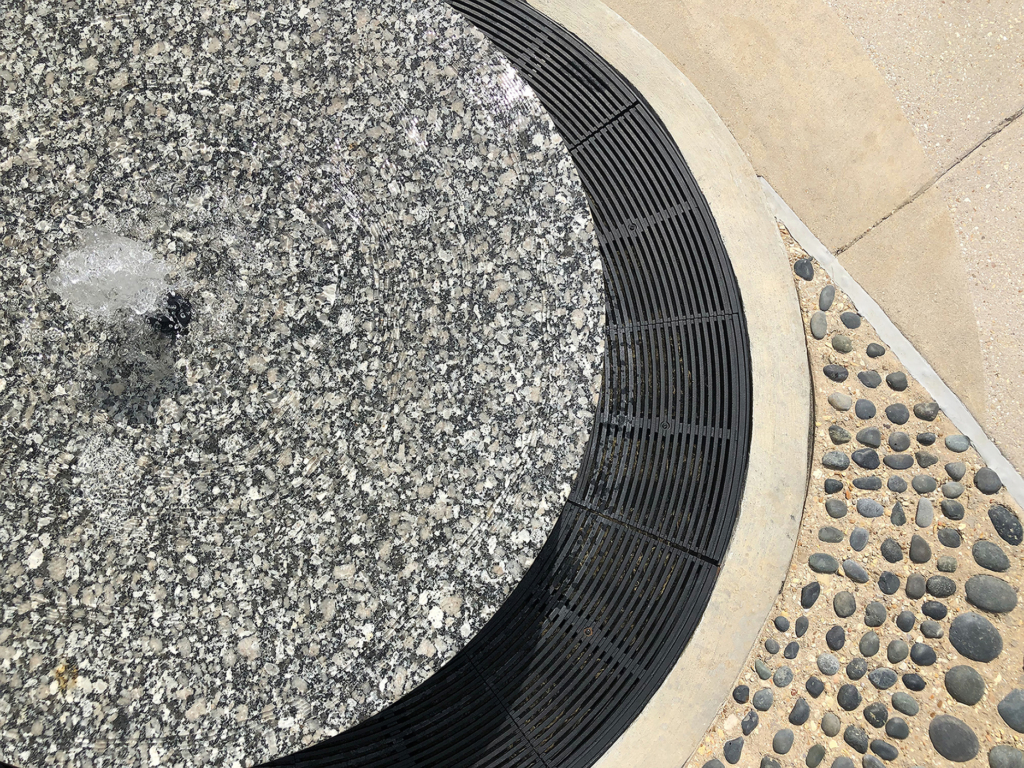

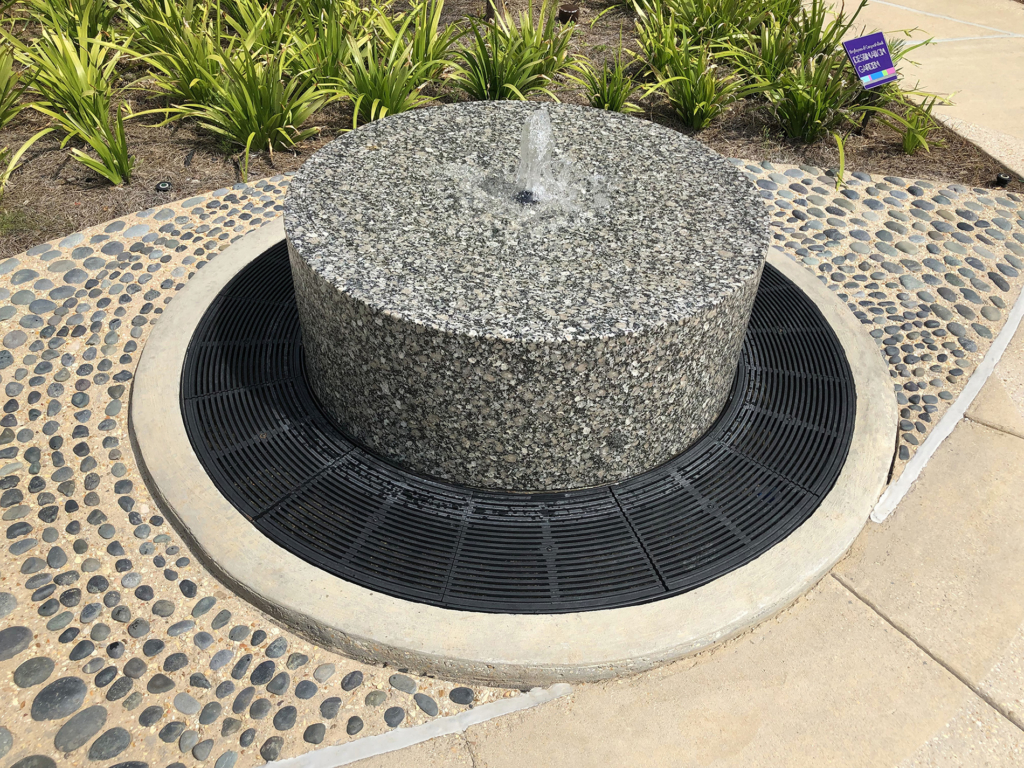

Que 12″ wide radius trench grate, cast ductile iron with e-coat plus black powder coat finish. Design: TBG Partners. Installer: Rotolo Consultants (RCI). Project: Our Lady of the Lake Children’s Hospital, Baton Rouge, LA.

Download photo

Que 12″ wide radius trench grate, cast ductile iron with e-coat plus black powder coat finish. Design: TBG Partners. Installer: Rotolo Consultants (RCI). Project: Our Lady of the Lake Children’s Hospital, Baton Rouge, LA.

Download photo

Que 12″ wide radius trench grate, cast ductile iron with e-coat plus black powder coat finish. Design: TBG Partners. Installer: Rotolo Consultants (RCI). Project: Our Lady of the Lake Children’s Hospital, Baton Rouge, LA.

Download photo
