Radius Grates
Interlaken Radius Grates
A classically-inspired circle and diamond pattern gives our signature Interlaken design a timeless appeal, along with the ability to complement a wide variety of architectural applications.
Select Size:
Detailed Specifications:
- Name / Design
- Interlaken 12" Wide, 4'-7" CLR
- Product ID
- IR12-17I995
- Dimensions
- 11.99" x 18.94" x 1"
- Fits
-
Iron Age Custom Frame
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 22.85
- Free Drain Area
- 15.69%
- Gallons Per Minute (GPM)
- 42.03
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
Photo Gallery:
Click image for high-res file and description

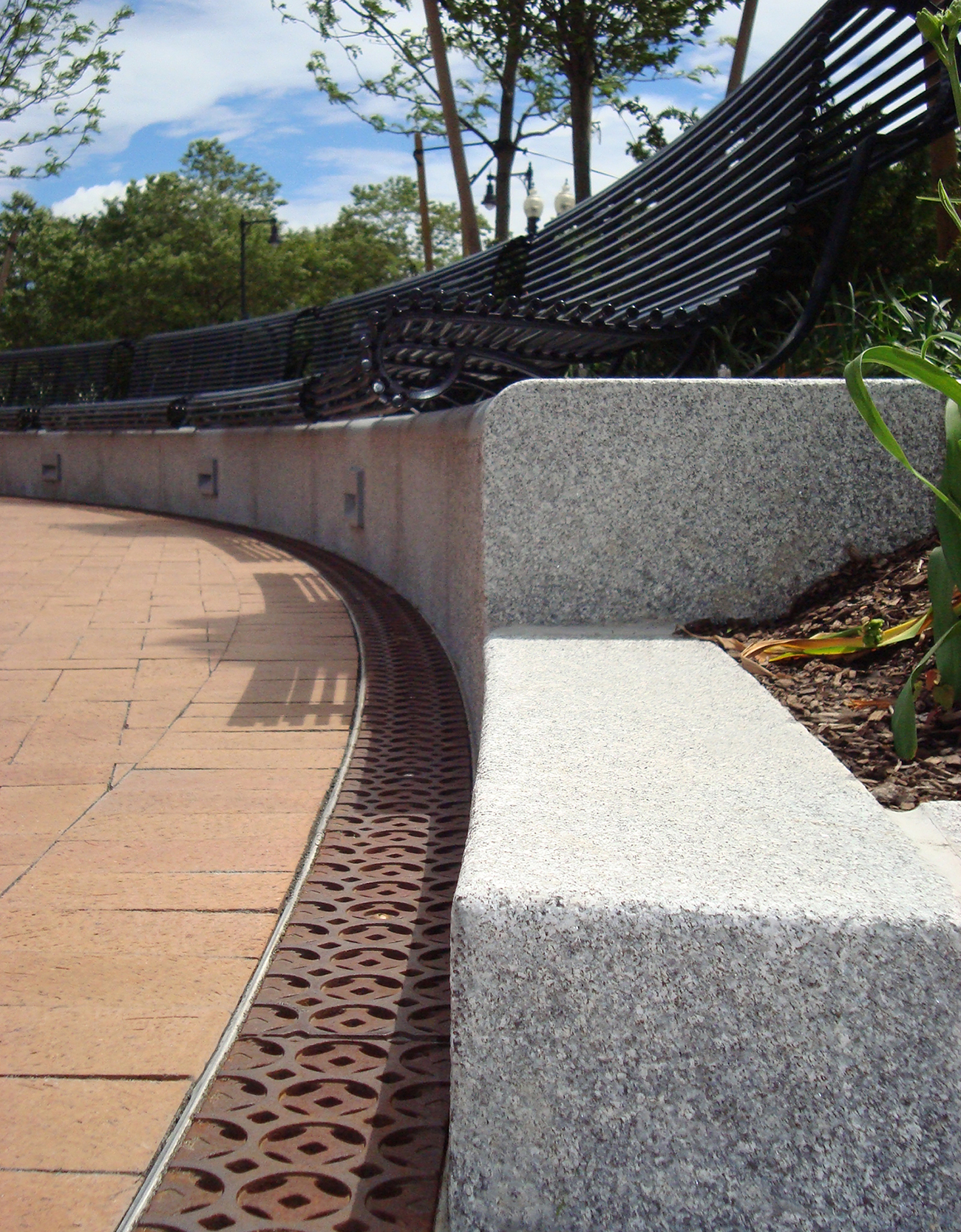

Interlaken 5″ wide radiused trench grate, cast iron with baked-on-oil finish. PROJECT: Armenian Heritage Park. LOCATION: Boston, MA.
Interlaken 5″ wide radiused trench grate, cast iron with baked-on-oil finish. PROJECT: Armenian Heritage Park. LOCATION: Boston, MA.
Interlaken 5″ wide radiused trench grate, cast iron with baked-on-oil finish. PROJECT: Armenian Heritage Park. LOCATION: Boston, MA.
Interlaken 5″ wide radiused trench grate, cast iron with baked-on-oil finish. PROJECT: Armenian Heritage Park. LOCATION: Boston, MA.
Interlaken 5″ wide radiused trench grate, cast iron with baked-on-oil finish. PROJECT: Armenian Heritage Park. LOCATION: Boston, MA.

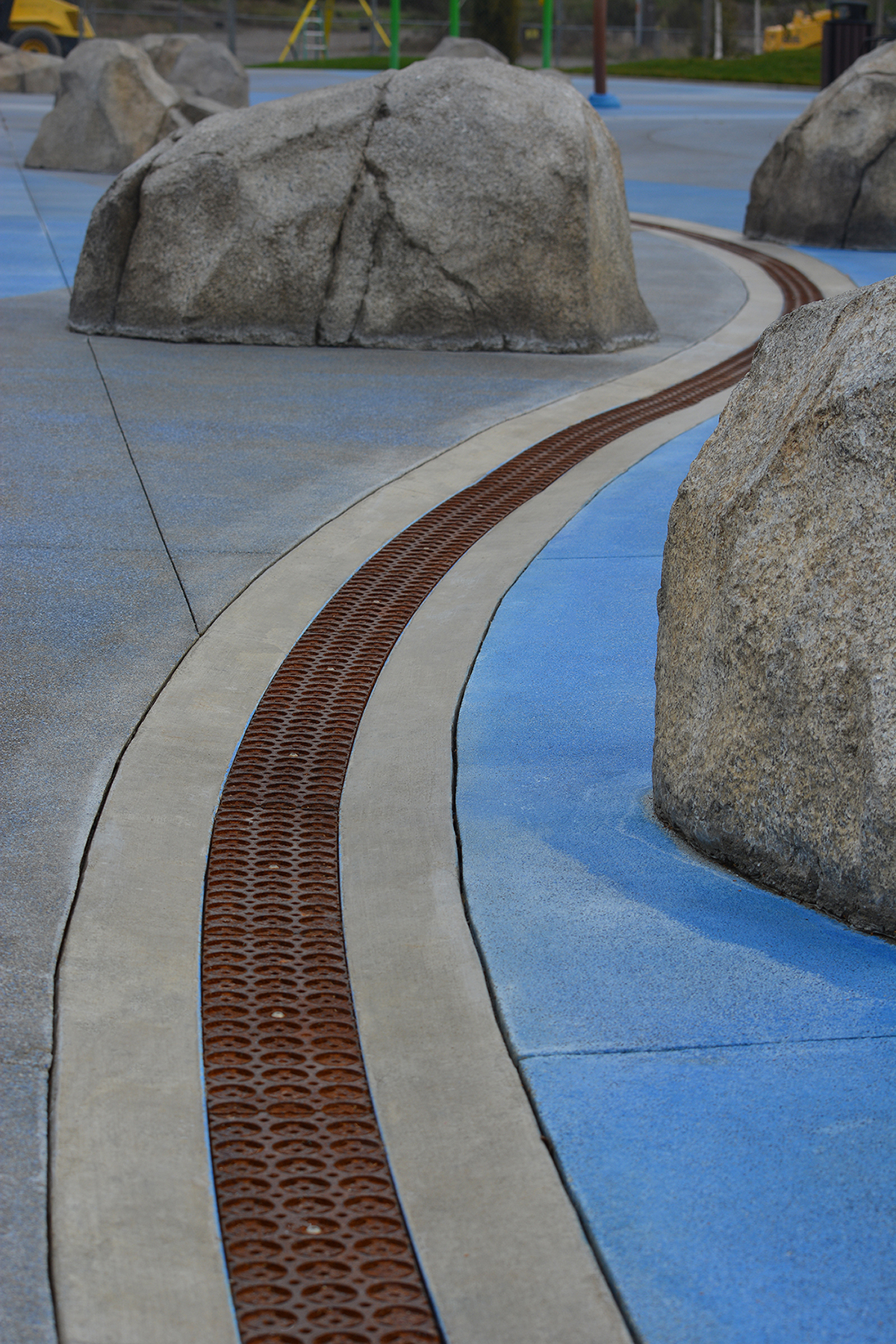

Interlaken 5″ wide radiused trench grate, raw cast iron. PROJECT: South End Recreational Area Campus. LOCATION: Tacoma, WA.
Interlaken 5″ wide radiused trench grate, raw cast iron. PROJECT: South End Recreational Area Campus. LOCATION: Tacoma, WA.
Interlaken 5″ wide heel-proof radius trench grate, raw cast aluminum. DESIGN: The West Studio. INSTALLATION: Rickenbach Construction, Inc. PROJECT: Astoria Nordic Heritage Park. LOCATION: Astoria, OR.
Interlaken 5″ wide heel-proof radius trench grate, raw cast aluminum. DESIGN: The West Studio. INSTALLATION: Rickenbach Construction, Inc. PROJECT: Astoria Nordic Heritage Park. LOCATION: Astoria, OR.
Interlaken 5″ wide heel-proof radius trench grate, raw cast aluminum. DESIGN: The West Studio. INSTALLATION: Rickenbach Construction, Inc. PROJECT: Astoria Nordic Heritage Park. LOCATION: Astoria, OR.
Interlaken 6″ wide radiused trench grate, raw cast iron. PROJECT: Elysian Hotel. LOCATION: Chicago, IL.
Interlaken 6″ wide radiused trench grate, cast iron with baked-on-oil finish. DESIGN: AECOM-San Diego. LOCATION: Mercado District, Escondido, CA.

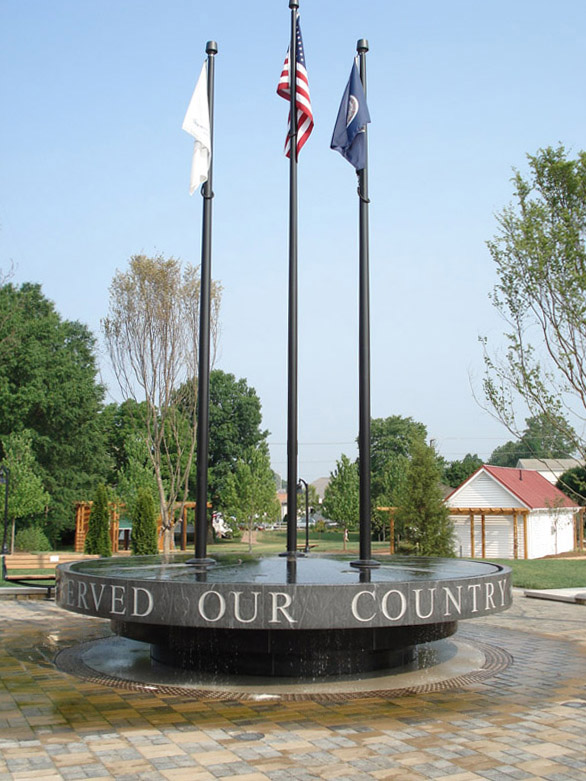

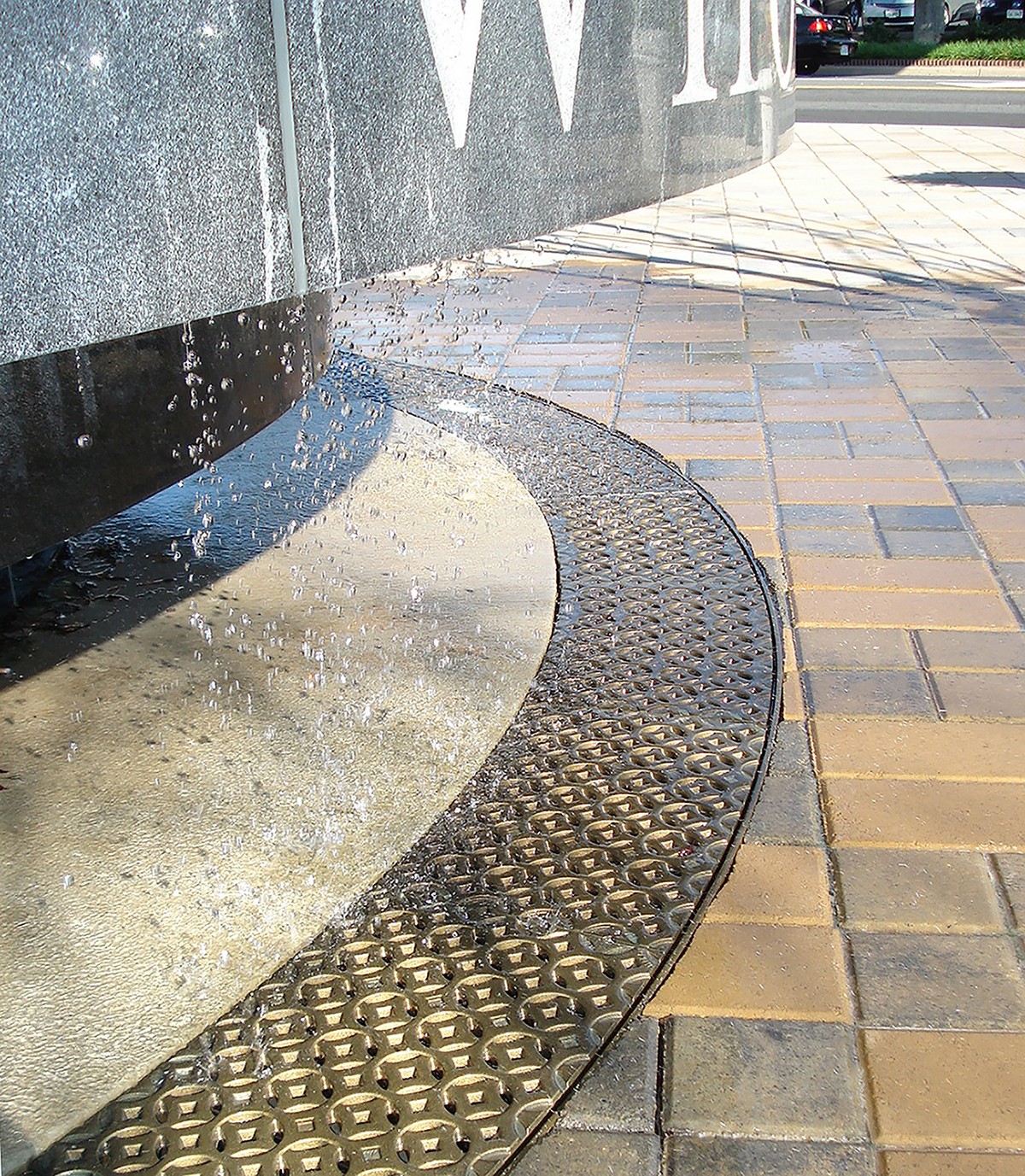

Interlaken 11″ wide radiused trench grate, raw cast bronze. DESIGN: Lardner/Klein Landscape Architects. PROJECT: Vienna Town Green. LOCATION: Vienna, VA.
Interlaken 11″ wide radiused trench grate, raw cast bronze. DESIGN: Lardner/Klein Landscape Architects. PROJECT: Vienna Town Green. LOCATION: Vienna, VA.
Interlaken 11″ wide radiused trench grate, raw cast bronze. DESIGN: Lardner/Klein Landscape Architects. PROJECT: Vienna Town Green. LOCATION: Vienna, VA.

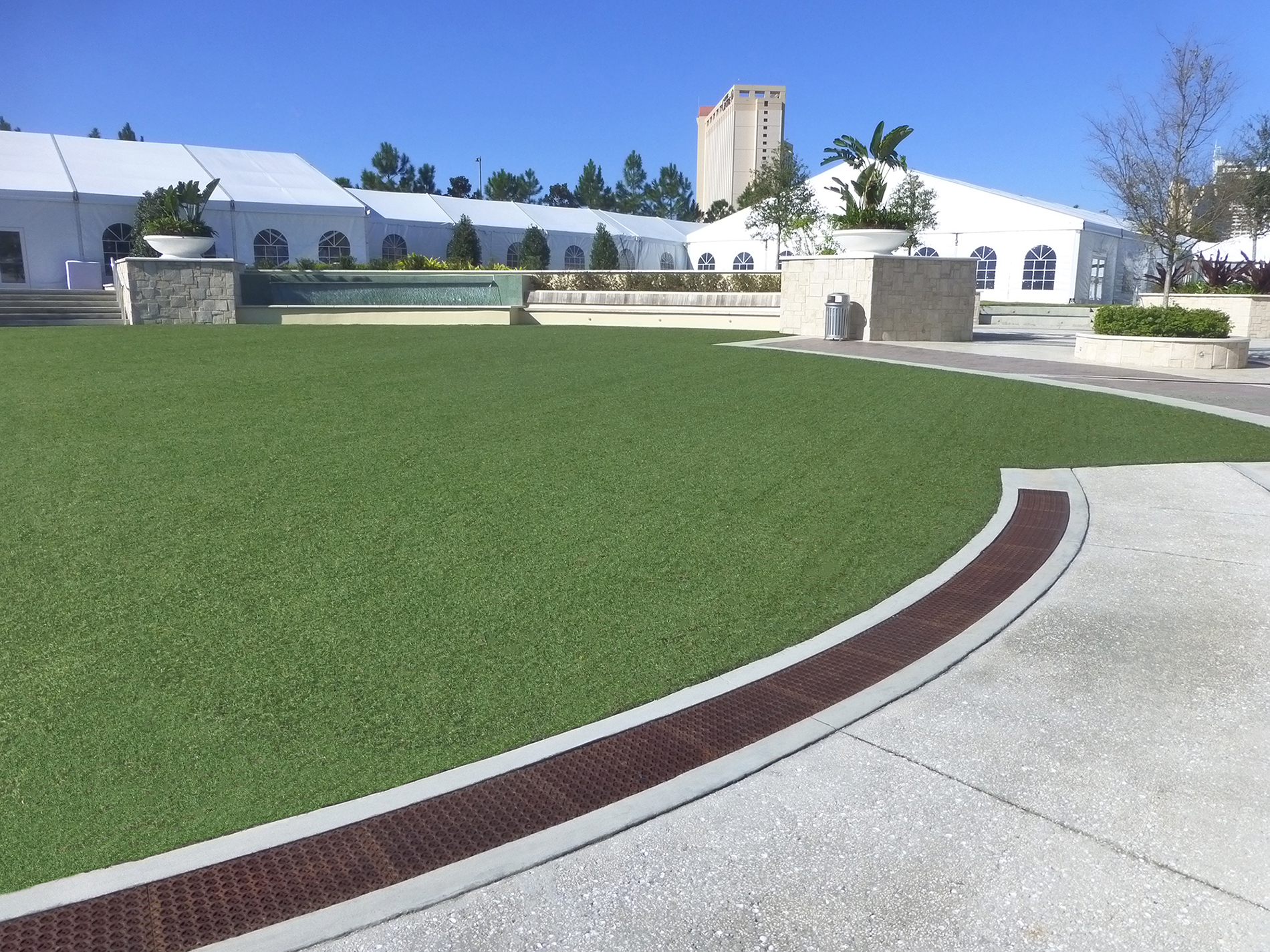

Interlaken 12″ wide heel-proof radiused trench grate, raw cast ductile iron. PROJECT: Hilton Orlando’s outdoor event space, The Promenade. LOCATION: Orlando, FL
Similar Products:

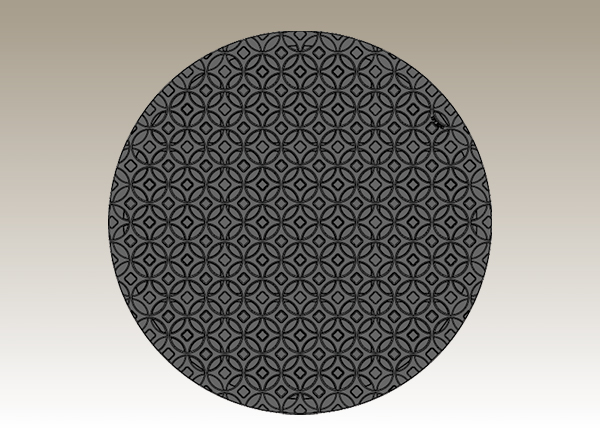

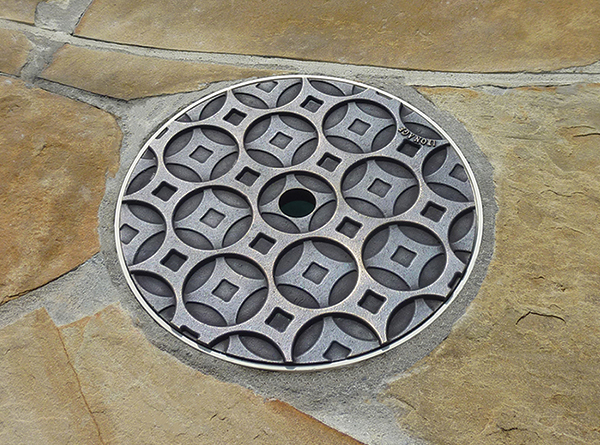

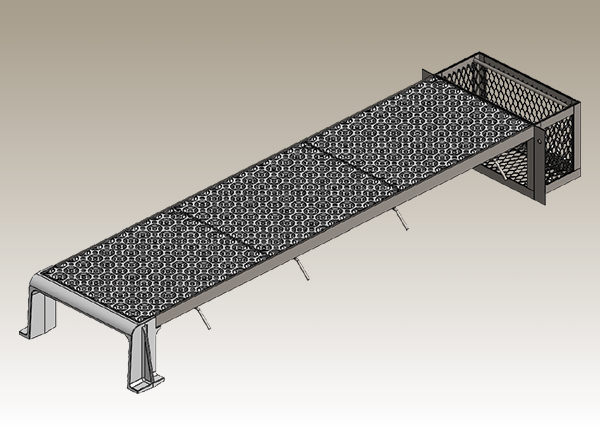

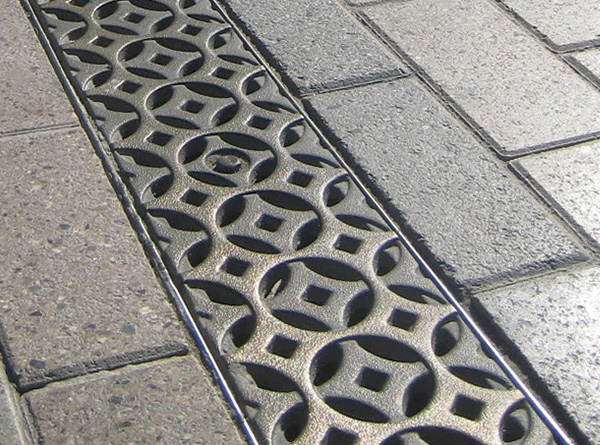

View additional products featuring the Interlaken design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
