Interlaken

Description:

A classically-inspired circle and diamond pattern gives our signature Interlaken design a timeless appeal, along with the ability to complement a wide variety of architectural applications.









Detailed Specifications:

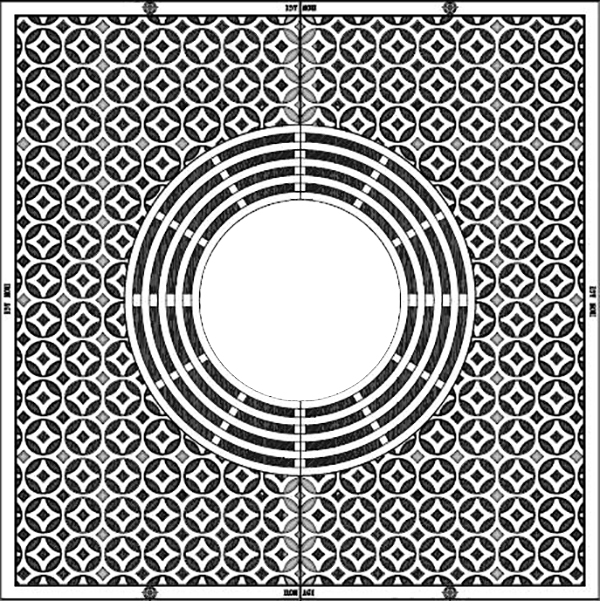

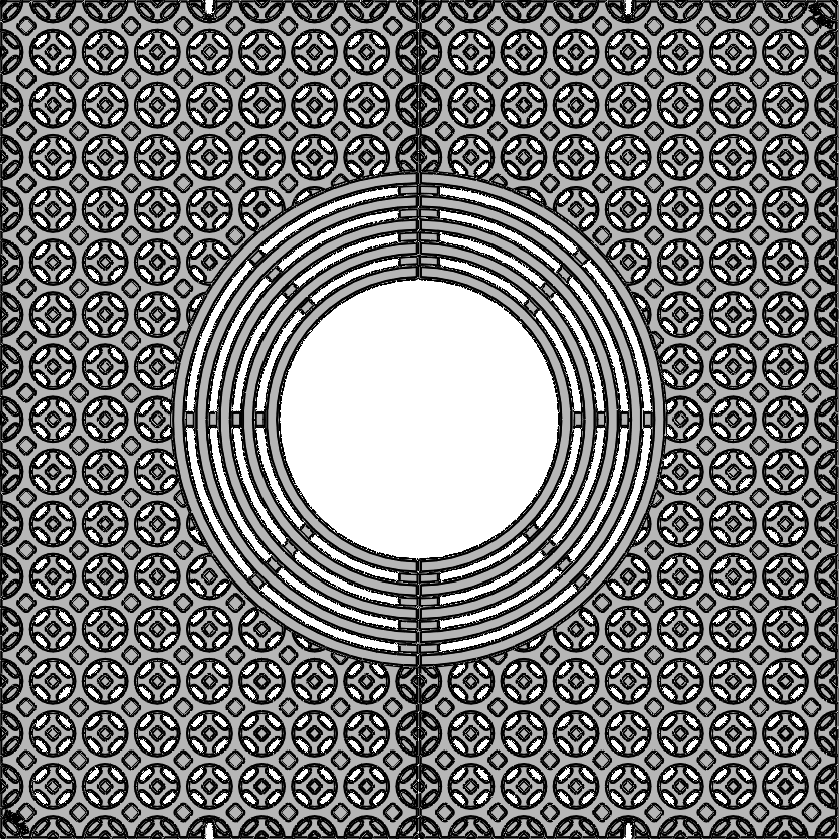

Name / Design Interlaken 3' x 3'
Product ID IX36-36I99TG
Dimensions 36" x 36" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Frame(s) Frame Types
"E" Frame Installation
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 144
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Patent No. US D575,881 S
Name / Design Interlaken 4' x 4'
Product ID IX48-48I99TG
Dimensions 47.88" x 47.88" x 1.00"
Fits Iron Age Custom Frame
Frame(s) Frame Types
"E" Frame Installation
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 255
Free Drain Area 22.29%
Gallons Per Minute (GPM) 635.78
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Patent No. US D575,881 S
Copyright Registration No. VA 2-159-773

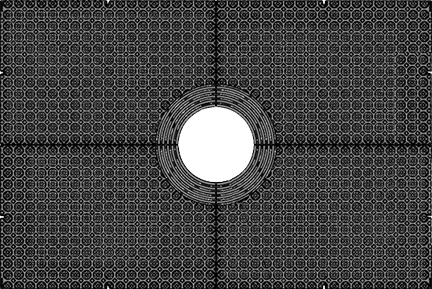

Name / Design Interlaken 4' x 6' Heel Proof
Product ID IX48-72I99TGHP
Dimensions 48" x 72" x 1.25"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Frame(s) Frame Types
"E" Frame Installation
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 376
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Patent No. US D575,881 S
Copyright Registration No. VA 1-970-785

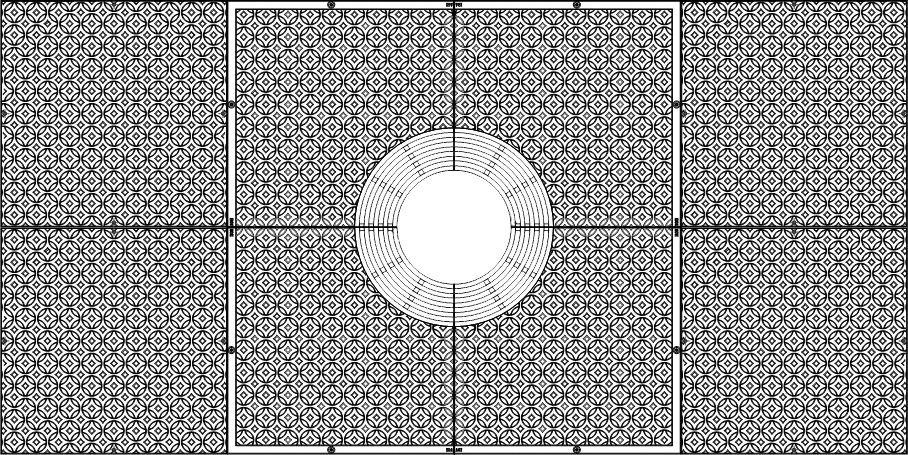

Name / Design Interlaken 4' x 8'
Product ID IX48-96I99TG
Dimensions 48" x 96" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Frame(s) Frame Types
"E" Frame Installation
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Patent No. US D575,881 S
Name / Design Interlaken 5' x 5'
Product ID IX60-60I99TG
Dimensions 59.88" x 59.88" x 1.25"
Fits Iron Age Custom Frame
Frame(s) Frame Types
"E" Frame Installation
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 342.72
Free Drain Area 19.08%
Gallons Per Minute (GPM) 868.00
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Patent No. US D575,881 S

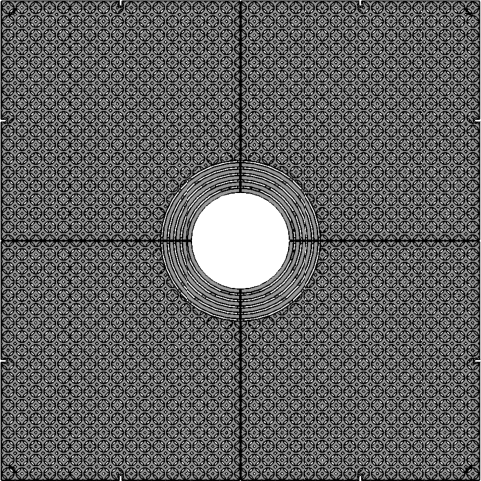

Name / Design Interlaken 5' x 5' Heel Proof
Product ID IX60-60I99TGHP
Dimensions 60" x 60" x 1.25"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Frame(s) Frame Types
"E" Frame Installation
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 360
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Patent No. US D575,881 S
Name / Design Interlaken 6' x 6'
Product ID IX72-72I99TG
Dimensions 71.88" x 71.88" x 1.25"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Frame(s) Frame Types
"E" Frame Installation
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 563.28
Free Drain Area 19.41%
Gallons Per Minute (GPM) 1285.10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Patent No. US D575,881 S
Copyright Registration No. VA 1-970-784

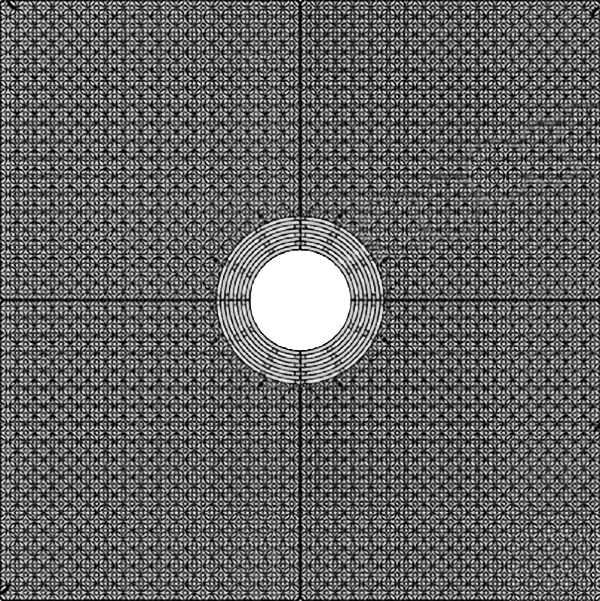

Name / Design Interlaken 7' x 7'
Product ID IX84-84I99TG
Dimensions 84" x 84" x 1.25"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Frame(s) Frame Types
"E" Frame Installation
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 811
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Patent No. US D575,881 S
Copyright Registration No. VA 1-964-347

Photo Gallery:

Standard Finish

For details, see Materials and Finish Options under Resources.

Optional Finish

For details, see Materials and Finish Options under Resources.

Optional Material Upgrades

Call for pricing and lead time.
