Tree Grates
Rain Tree Grates
Intermittent breaks in the linear surface not only evoke the precipitation Seattle is famous for, but give our Rain grates a clean, sophisticated look and heel-proof design.
Select Size:
Detailed Specifications:
- Name / Design
- Rain 42" x 42" Heel Proof
- Product ID
- RNX42-42I99TGHP
- Dimensions
- 41.88" x 41.88" x 1.00"
- Fits
-
Iron Age Custom Frame
- Frame(s)
-
"E" Frame Installation
Frame Types
- Material
- Cast Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 170
- Free Drain Area
- 16.59%
- Gallons Per Minute (GPM)
- 349.98
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Cast Ductile Iron
- Copyright Registration No.
- Pending
Photo Gallery:
Click image for high-res file and description
Rain 42″ x 42″ heel-proof tree grate with center hole laser-cut to accommodate a large, mature tree. Raw cast iron.
Rain 4′ x 4′ heel-proof trench grates, cast iron with baked-on-oil finish. ARCHITECTURE: Populous. LANDSCAPE ARCHITECTURE: Shrewsberry & Associates . PROJECT: Gainbridge Fieldhouse Expansion. LOCATION: Indianapolis, IN.

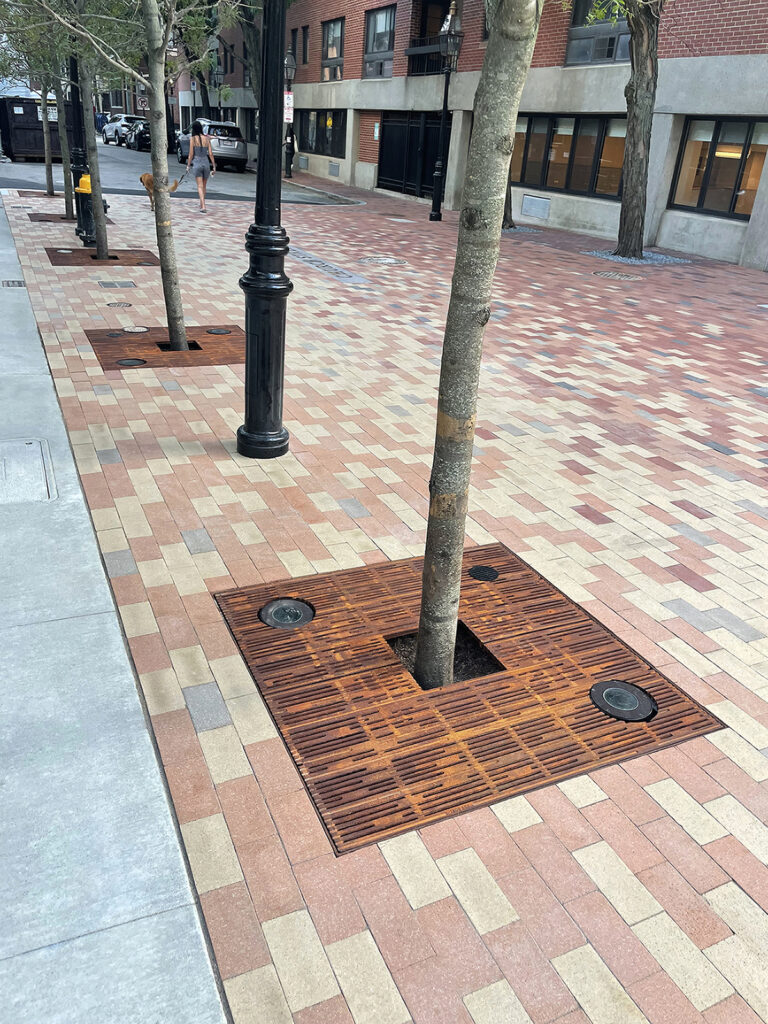

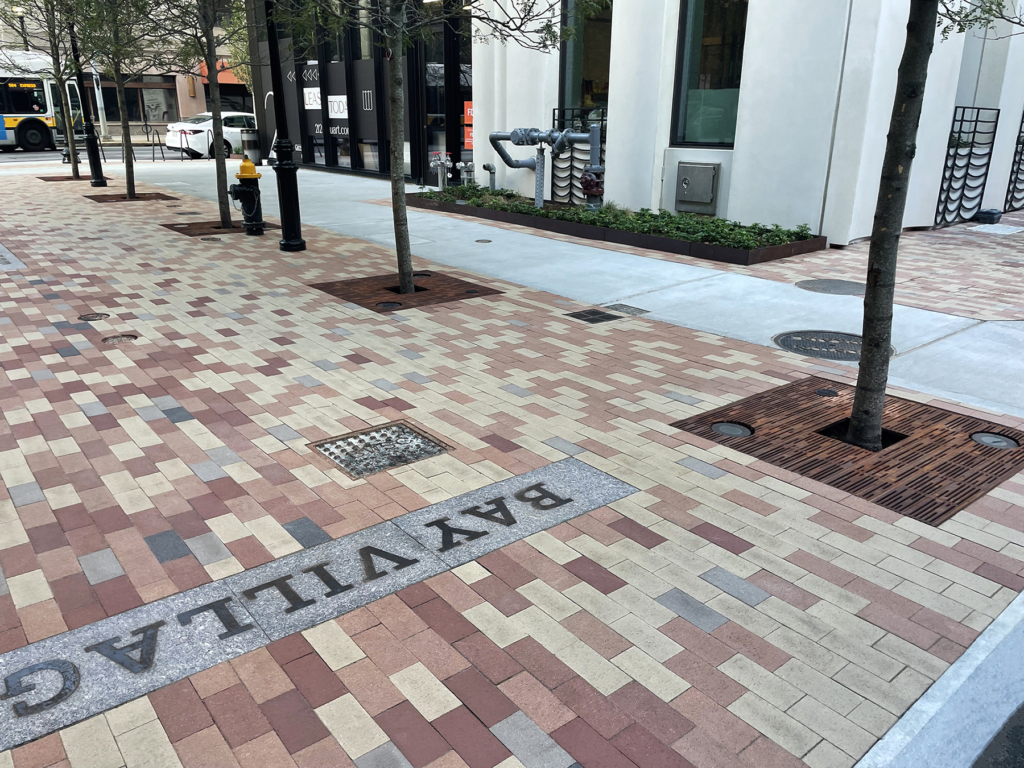

Rain 4′ x 4′ heel-proof tree grates with light hole cut-outs, raw cast iron. DESIGN: Sasaki Associates. PROJECT: 212 Stuart Street. LOCATION: Boston, MA.
Rain 4′ x 4′ heel-proof tree grates with light hole cut-outs, raw cast iron. DESIGN: Sasaki Associates. PROJECT: 212 Stuart Street. LOCATION: Boston, MA.

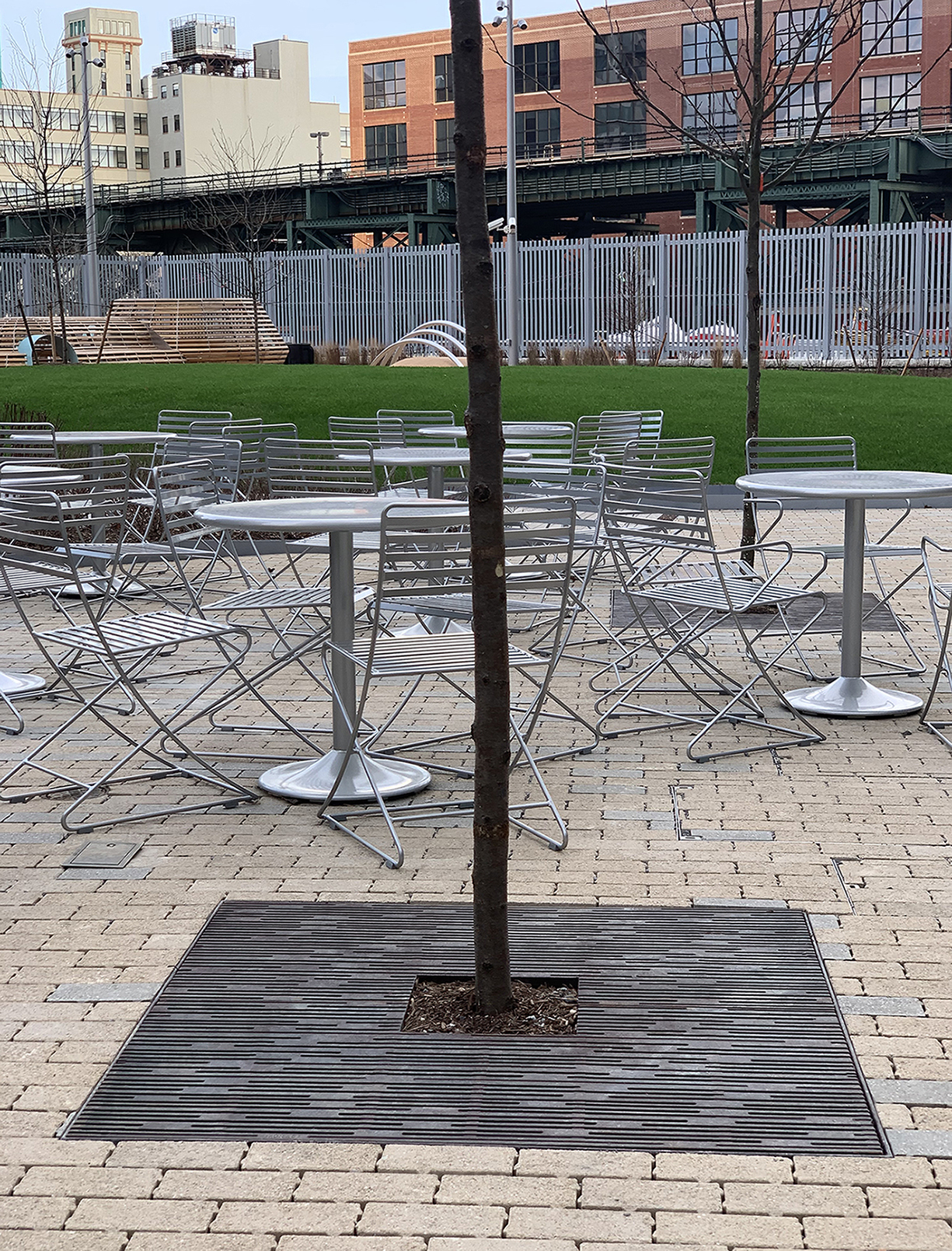

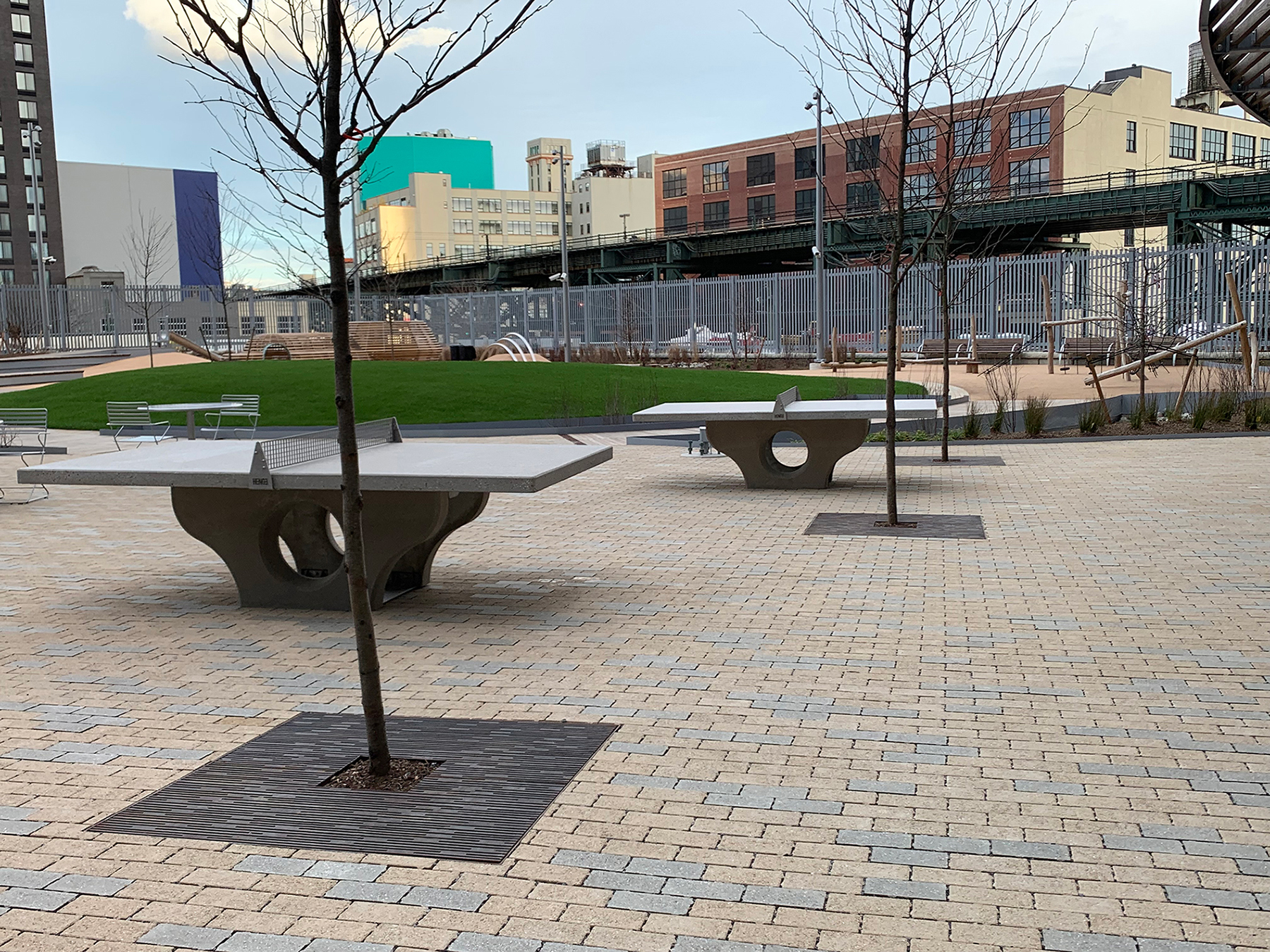

Rain 4′ x 4′ heel-proof tree grates, cast iron with baked-on-oil finish. DESIGN: Starr Whitehouse. INSTALLER: Let It Grow. PROJECT: Queens Plaza Park. LOCATION: Queens, NY.
Rain 4′ x 4′ heel-proof tree grates, cast iron with baked-on-oil finish. DESIGN: Starr Whitehouse. INSTALLER: Let It Grow. PROJECT: Queens Plaza Park. LOCATION: Queens, NY.

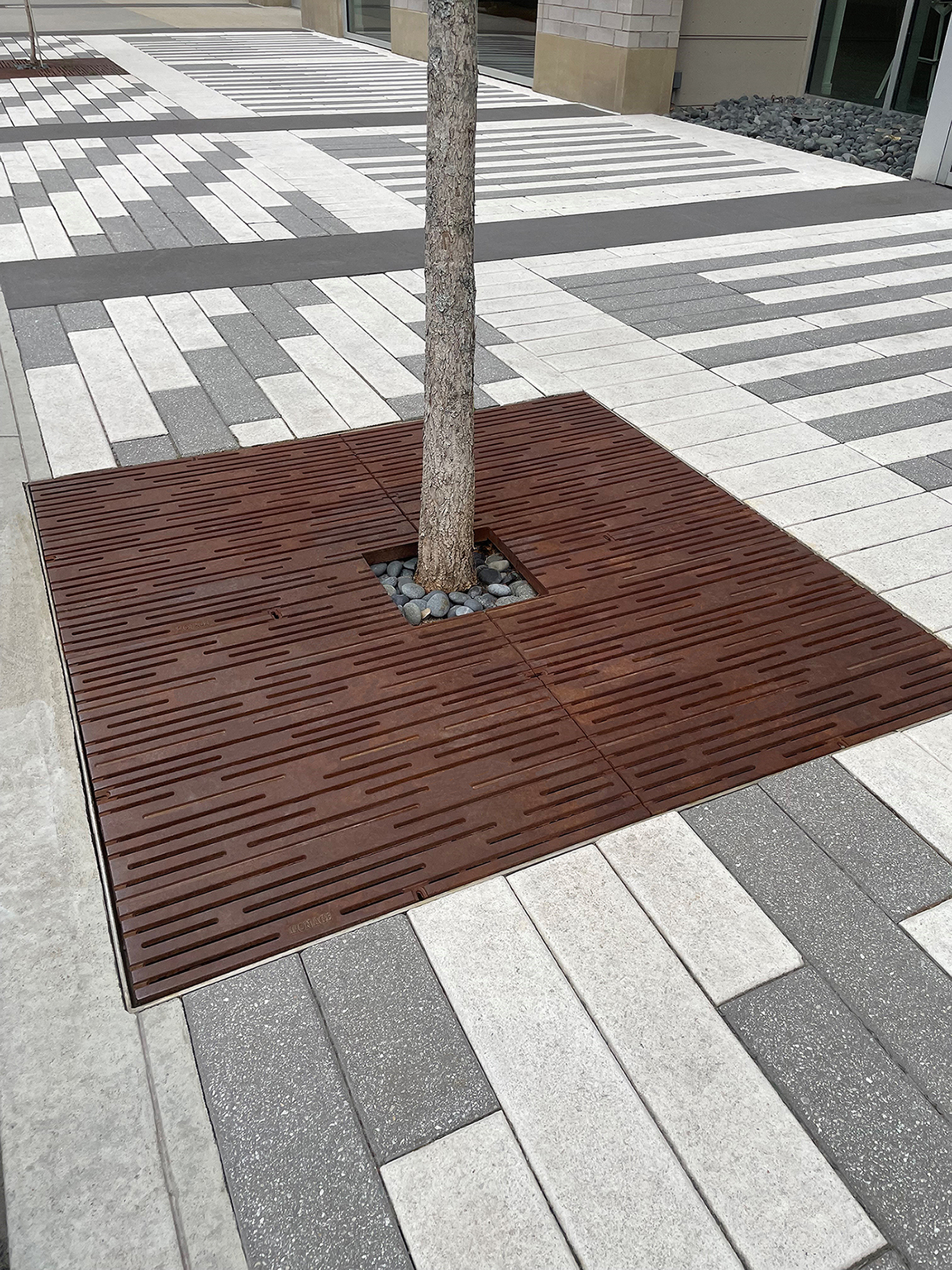

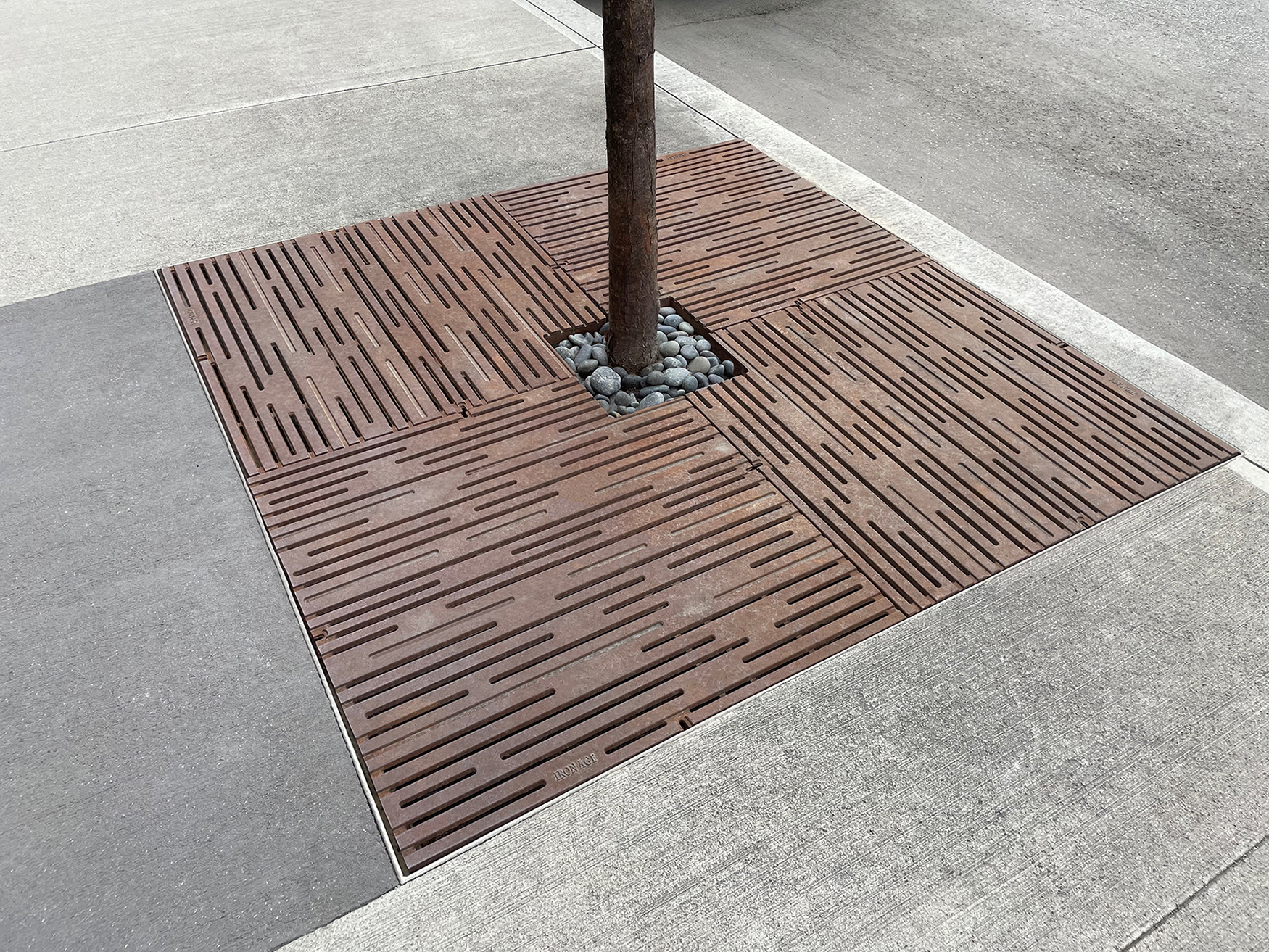

Rain 4′ x 4′ heel-proof tree grate, cast ductile iron with baked-on-oil finish. LOCATION: Indianapolis, IN.
Rain 4′ x 4′ heel-proof tree grate, cast ductile iron with baked-on-oil finish. LOCATION: Indianapolis, IN.

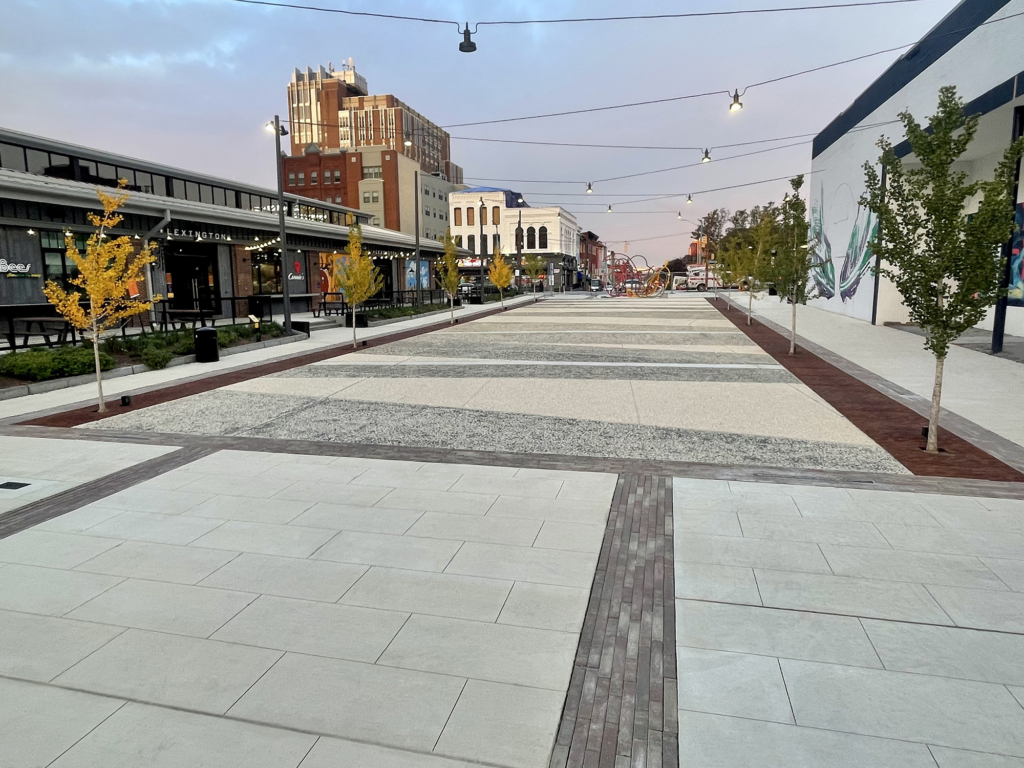

Large tree grate array consisting of Rain 4′ x 4′ heel-proof tree grates and 24″ x 48″ Rain large grate array panels; raw cast iron. DESIGN: Floura Teeter. PROJECT: Lexington Market. LOCATION: Baltimore, MD.
Large tree grate array consisting of Rain 4′ x 4′ heel-proof tree grates and 24″ x 48″ Rain large grate array panels; raw cast iron. DESIGN: Floura Teeter. PROJECT: Lexington Market. LOCATION: Baltimore, MD.
Large tree grate array consisting of Rain 4′ x 4′ heel-proof tree grates and 24″ x 48″ Rain large grate array panels; raw cast iron. DESIGN: Floura Teeter. PROJECT: Lexington Market. LOCATION: Baltimore, MD.

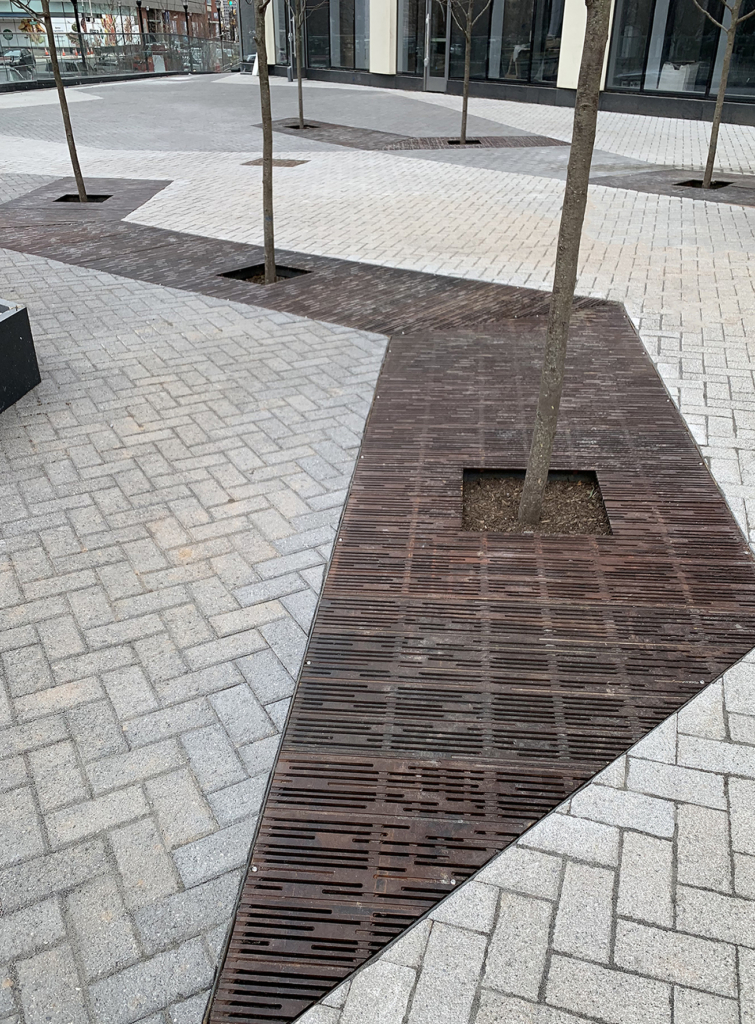

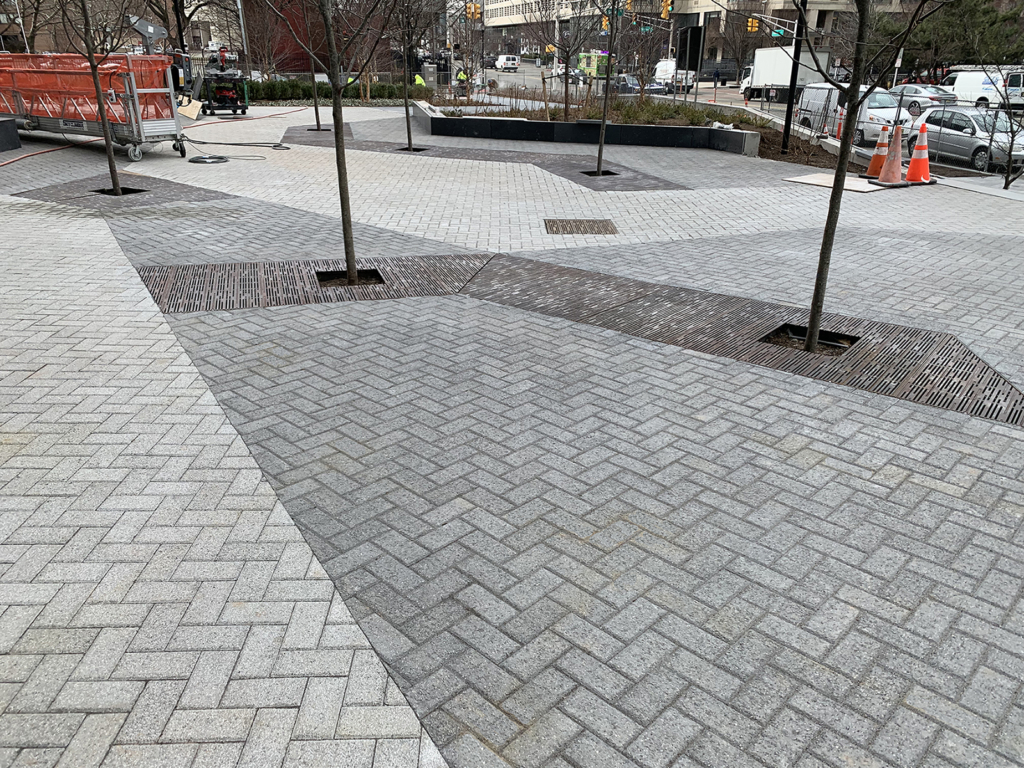

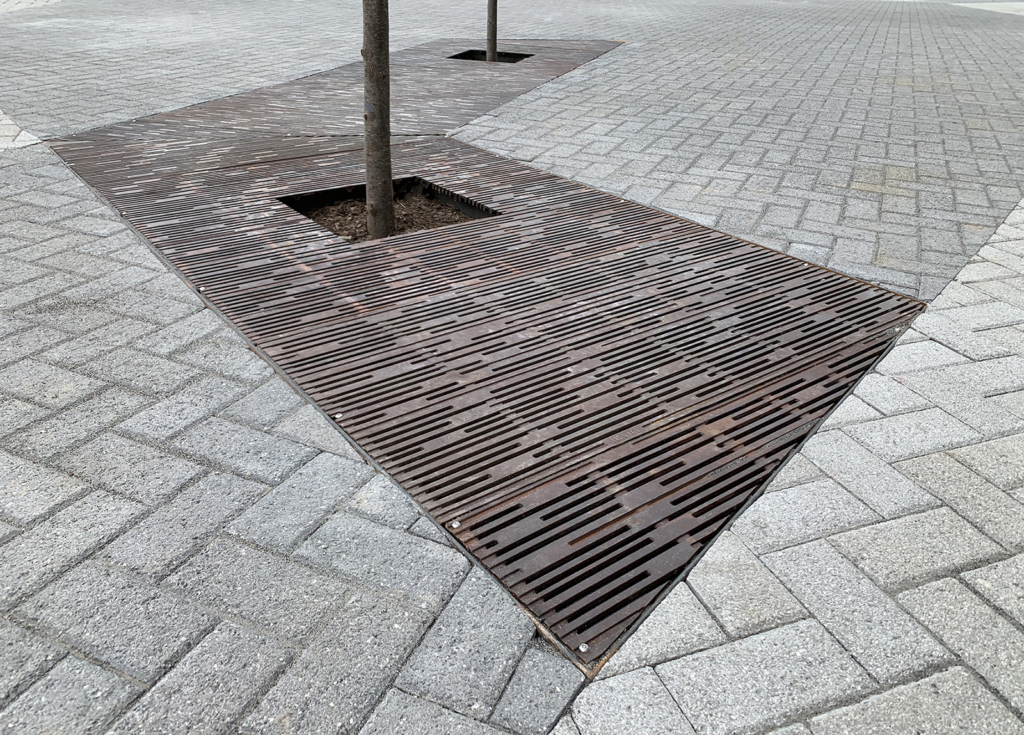

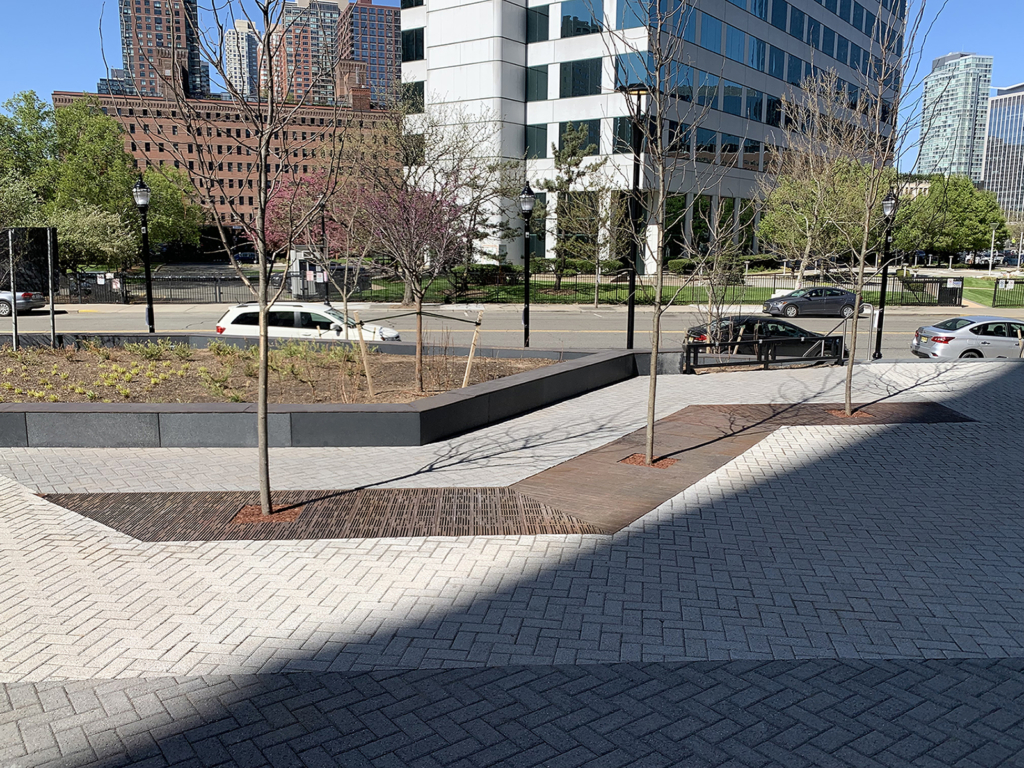

Custom waterjet cut angled tree grate array consisting of Rain 4′ x 4′ heel-proof tree grates and 24″ x 48″ Rain large grate array panels; cast iron with baked-on-oil finish. DESIGN: Melillo • Bauer • Carman Landscape Architecture. CONTRACTOR: Twin Resources. PROJECT: Haus25. LOCATION: 25 Christopher Columbus Drive, Jersey City, NJ.
Custom waterjet cut angled tree grate array consisting of Rain 4′ x 4′ heel-proof tree grates and 24″ x 48″ Rain large grate array panels; cast iron with baked-on-oil finish. DESIGN: Melillo • Bauer • Carman Landscape Architecture. CONTRACTOR: Twin Resources. PROJECT: Haus25. LOCATION: 25 Christopher Columbus Drive, Jersey City, NJ.
Custom waterjet cut angled tree grate array consisting of Rain 4′ x 4′ heel-proof tree grates and 24″ x 48″ Rain large grate array panels; cast iron with baked-on-oil finish. DESIGN: Melillo • Bauer • Carman Landscape Architecture. CONTRACTOR: Twin Resources. PROJECT: Haus25. LOCATION: 25 Christopher Columbus Drive, Jersey City, NJ.
Custom waterjet cut angled tree grate array consisting of Rain 4′ x 4′ heel-proof tree grates and 24″ x 48″ Rain large grate array panels; cast iron with baked-on-oil finish. DESIGN: Melillo • Bauer • Carman Landscape Architecture. CONTRACTOR: Twin Resources. PROJECT: Haus25. LOCATION: 25 Christopher Columbus Drive, Jersey City, NJ.

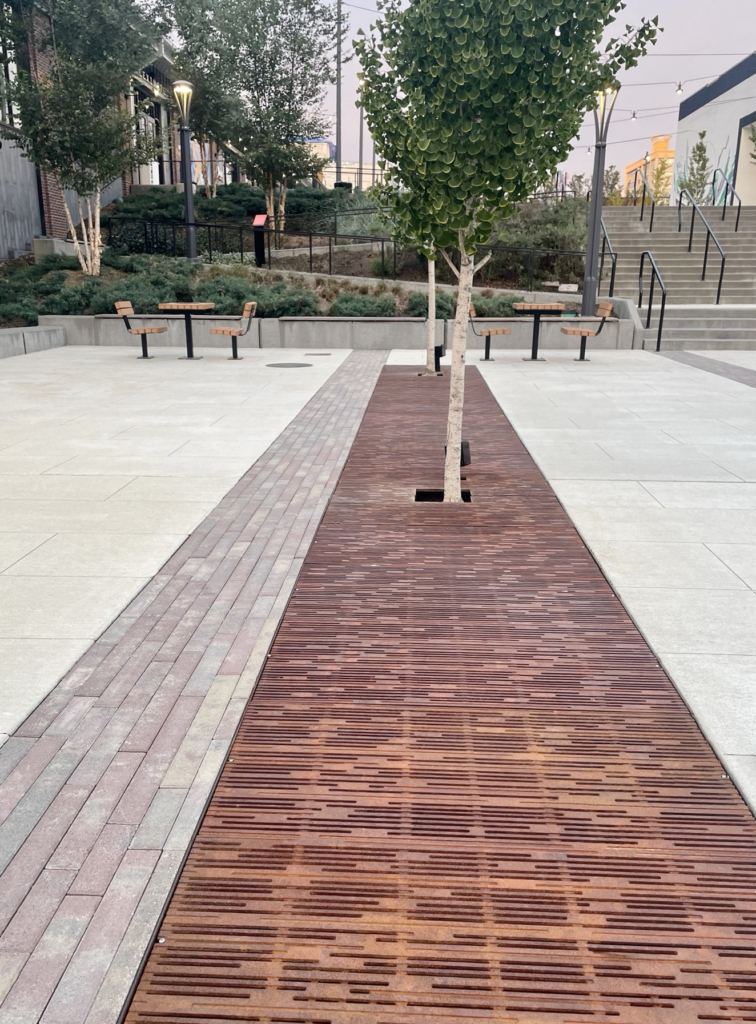

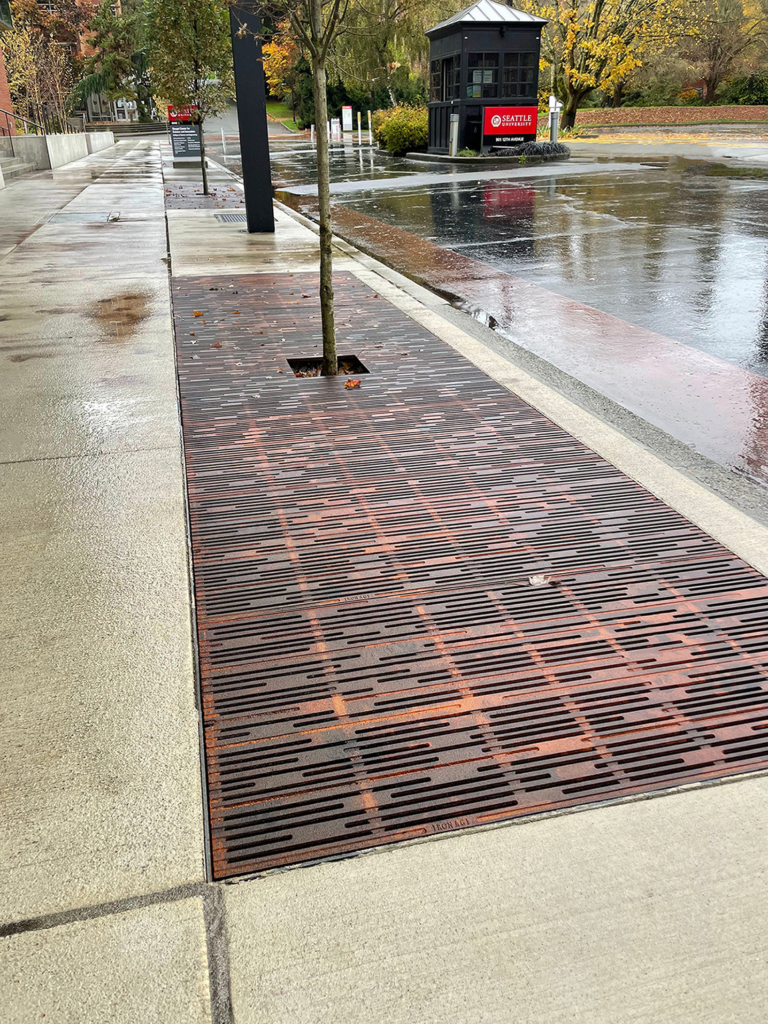

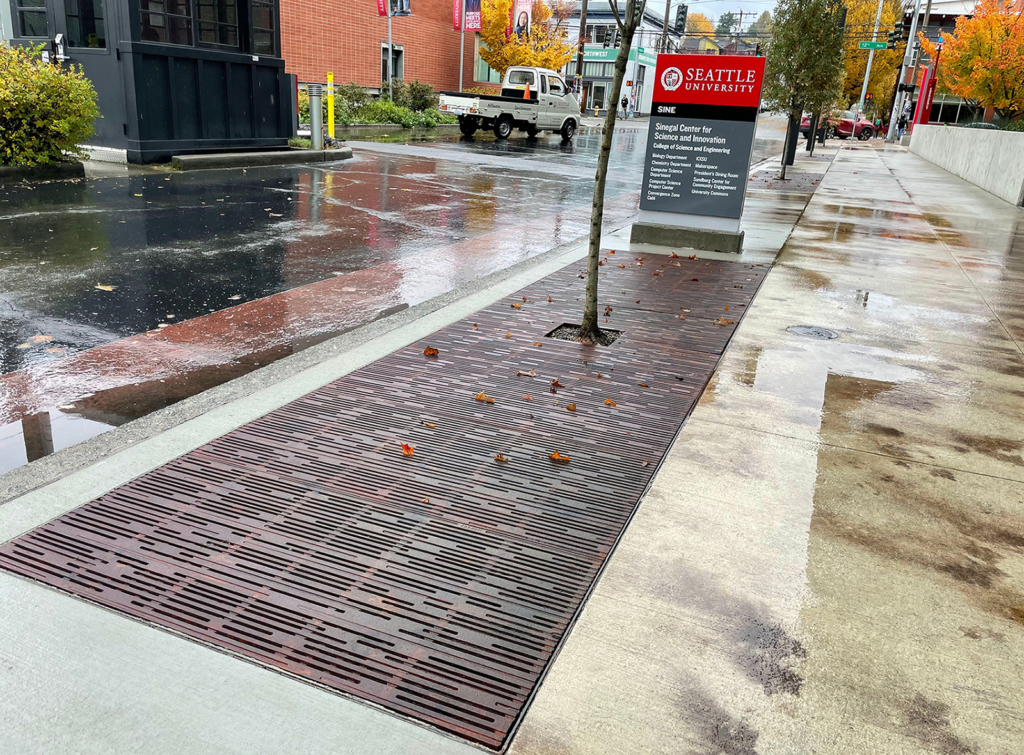

Large tree grate array consisting of Rain 4′ x 4′ heel-proof tree grates and 24″ x 48″ Rain large grate array panels; raw cast iron. DESIGN: Mithun. PROJECT: Seattle University Sinegal Center for Science and Innovation. LOCATION: Seattle, WA.
Large tree grate array consisting of Rain 4′ x 4′ heel-proof tree grates and 24″ x 48″ Rain large grate array panels; raw cast iron. DESIGN: Mithun. PROJECT: Seattle University Sinegal Center for Science and Innovation. LOCATION: Seattle, WA.

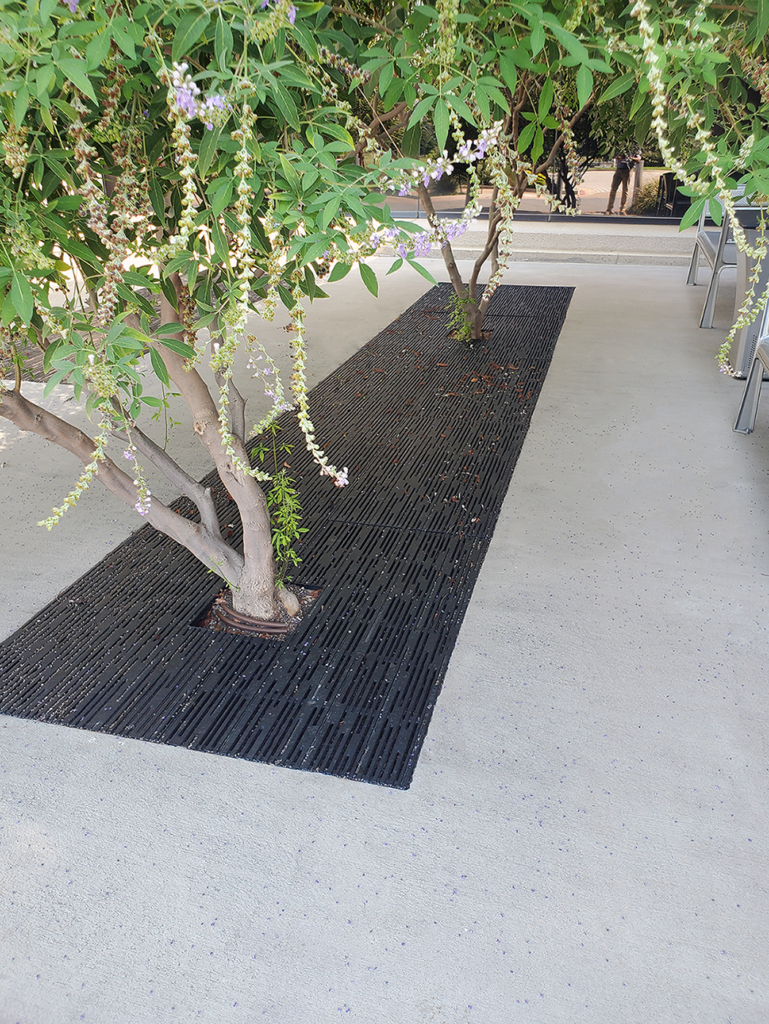

Large tree grate array consisting of Rain 4′ x 4′ heel-proof tree grates and 24″ x 48″ Rain large grate array panels; cast iron with black powder coat finish. DESIGN: Pacheco Koch. PROJECT: Entry Plaza at 1925 W. John Carpenter Fwy. LOCATION: Irving, TX.
Large tree grate array consisting of Rain 4′ x 4′ heel-proof tree grates and 24″ x 48″ Rain large grate array panels; cast iron with black powder coat finish. DESIGN: Pacheco Koch. PROJECT: Entry Plaza at 1925 W. John Carpenter Fwy. LOCATION: Irving, TX.

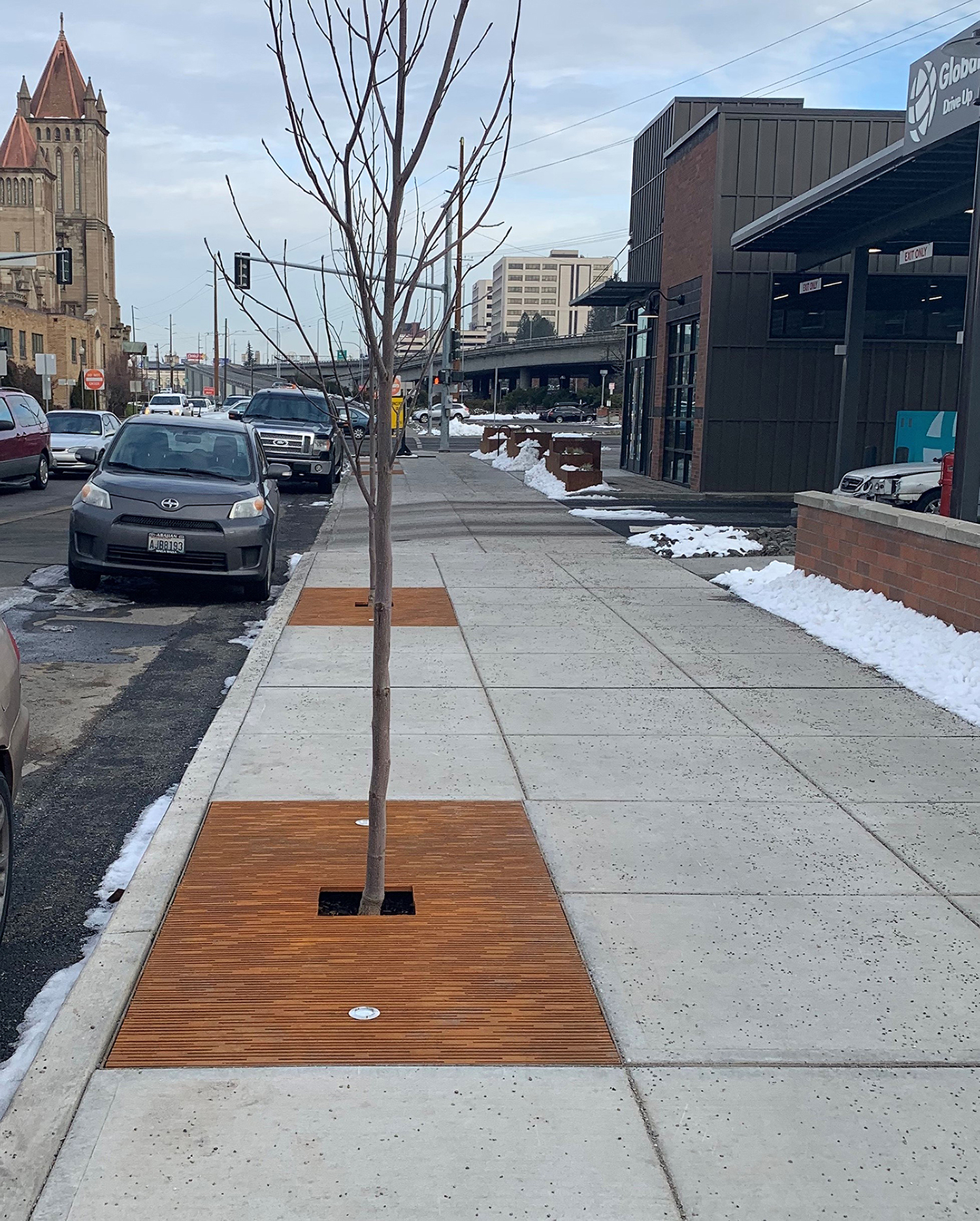

Rain 4′ x 8′ heel-proof tree grate with uplighting, raw cast iron. DESIGN: Â SPVV Landscape Architects. PROJECT: Global Credit Union. LOCATION: Spokane, WA. (Photo credit: Rich Kilen)

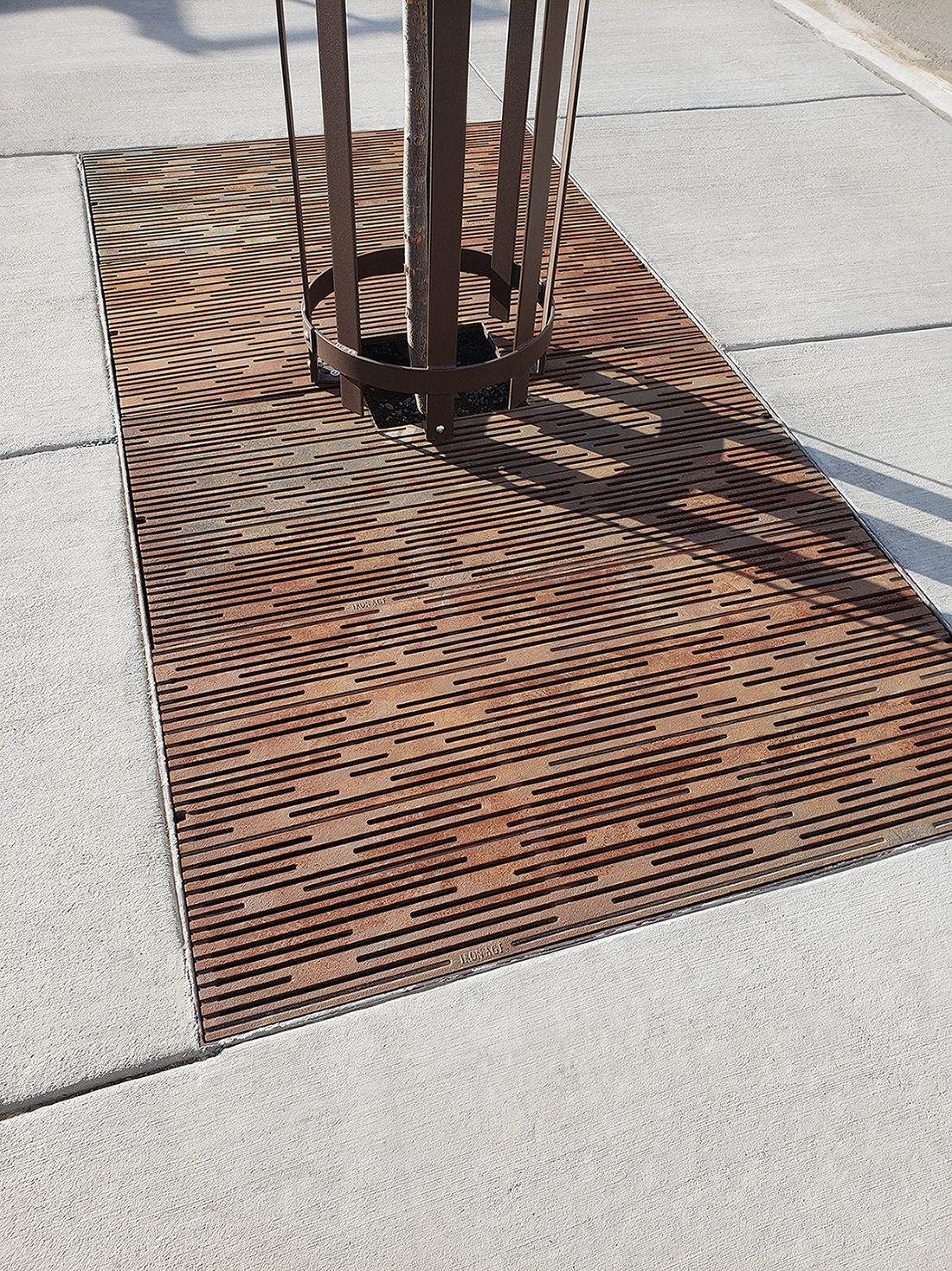

Rain 4′ x 8′ heel-proof tree grate, raw cast iron. Basic tree guard, steel with powder coat finish. DESIGN: Gates + Associates. PROJECT: Boulevard. LOCATION: Dublin, CA.

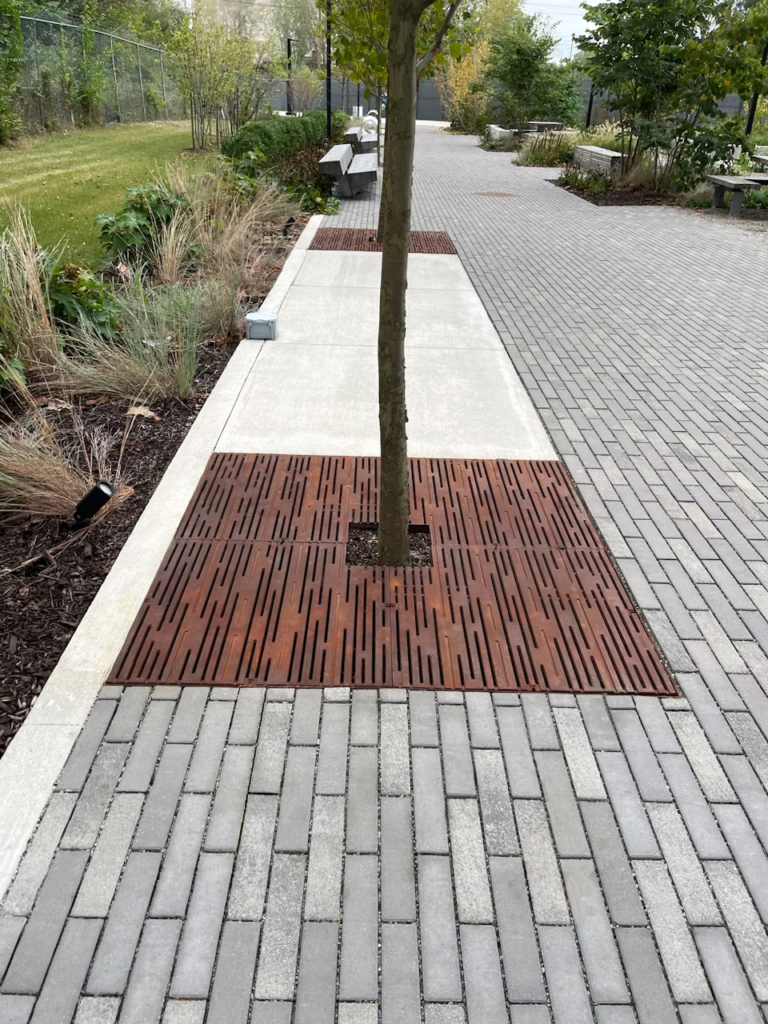

Rain 5′ x 5′ heel-proof tree grate, cast ductile iron with baked-on-oil finish. DESIGN: Giffels Webster. PROJECT: Cork Town. LOCATION: Detroit, MI.
Rain 5′ x 5′ heel-proof tree grate, cast aluminum 535 (Almag) with clear anodized finish. DESIGN: HOK. PROJECT: St. Louis City SC Energizer Park. LOCATION: St. Louis, MO.

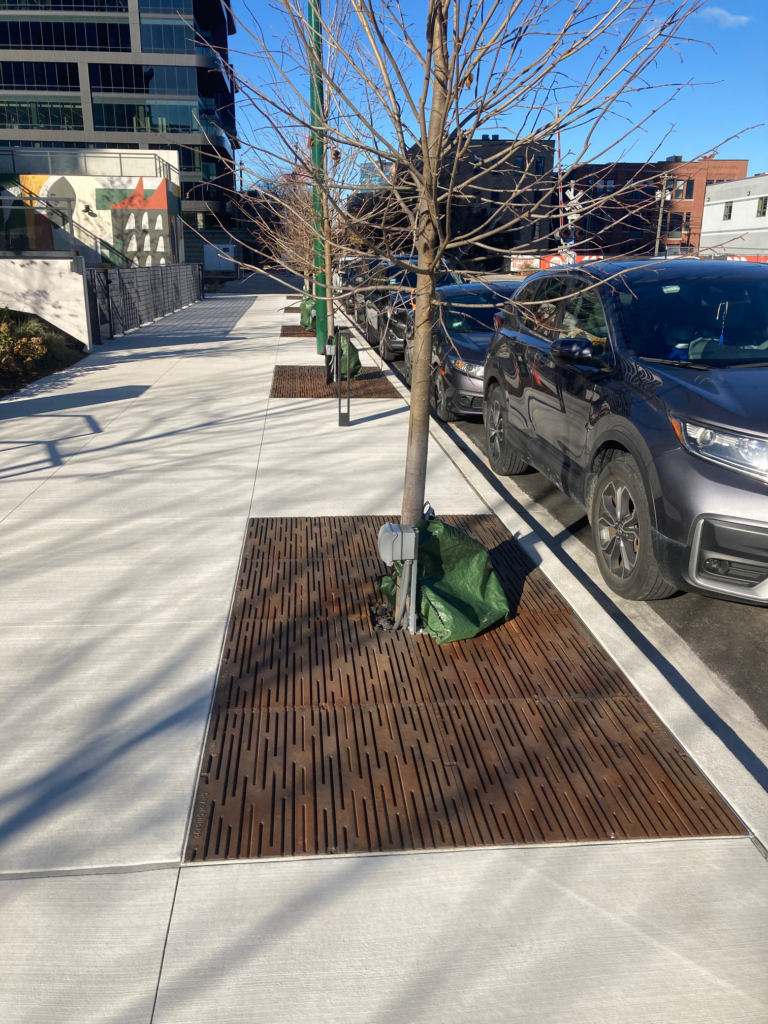

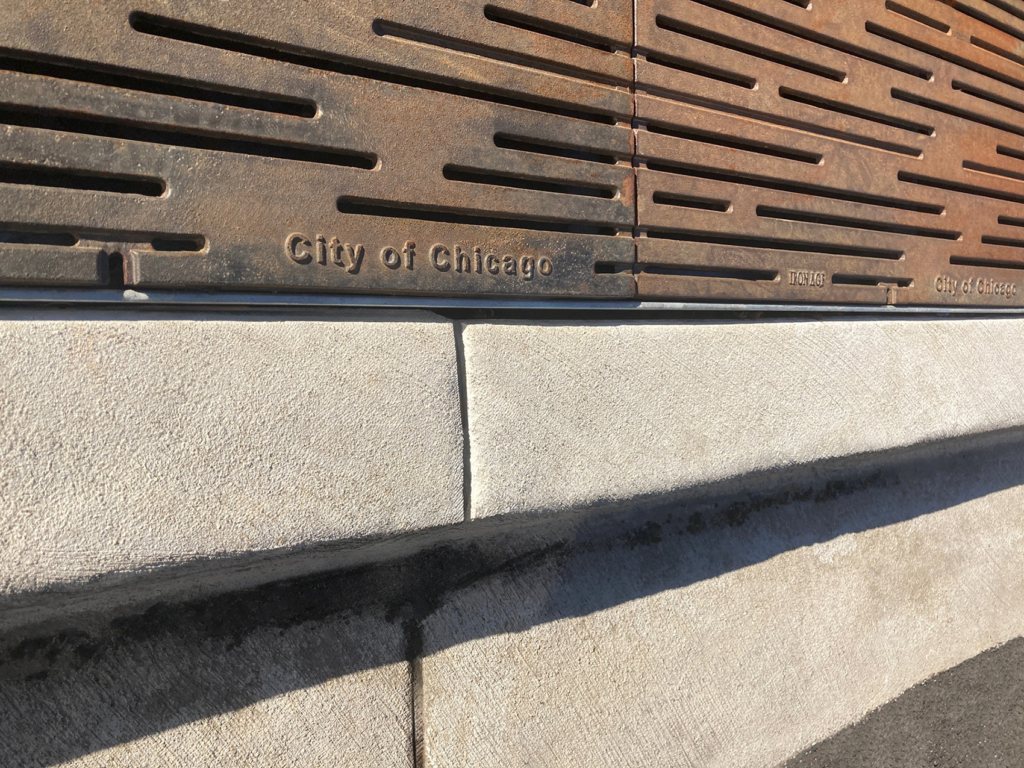

Rain 5′ x 10′ heel-proof tree grate, customized with “City of Chicago” branding. Cast iron with baked-on-oil finish. DESIGN: ESG Architecture & Design. INSTALLATION: Christie Webber Landscapes. PROJECT: 1114 West Carroll Ave. LOCATION: Chicago, IL.
Rain 5′ x 10′ heel-proof tree grate, customized with “City of Chicago” branding. Cast iron with baked-on-oil finish. DESIGN: ESG Architecture & Design. INSTALLATION: Christie Webber Landscapes. PROJECT: 1114 West Carroll Ave. LOCATION: Chicago, IL.

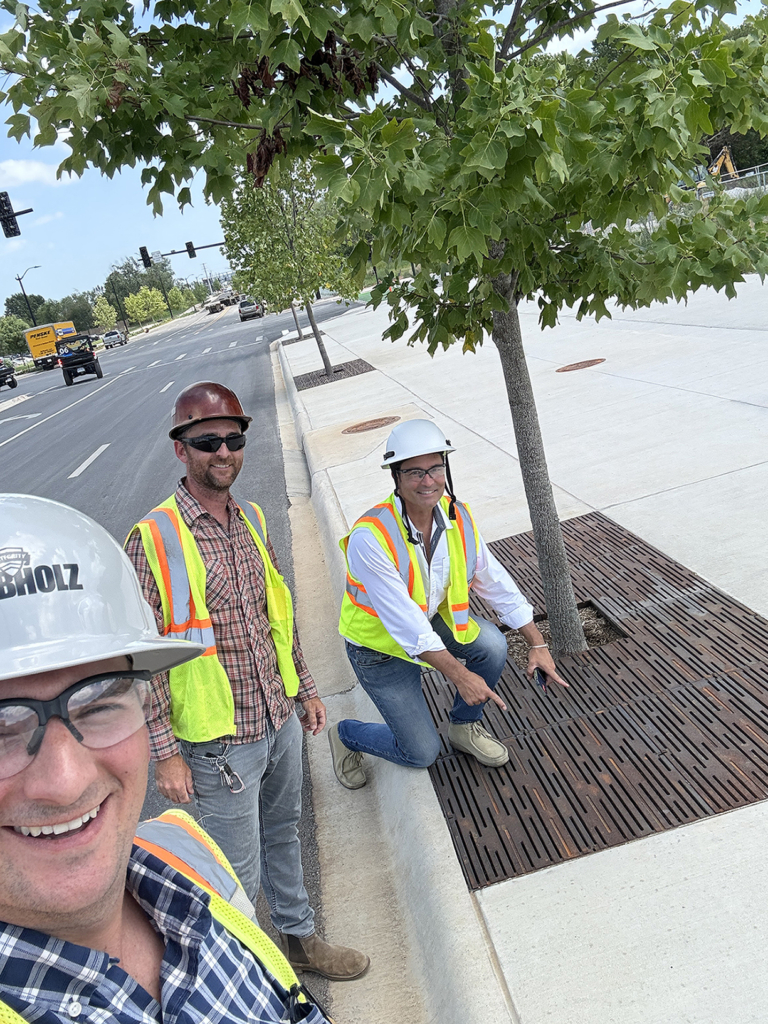

Rain 5′ x 10′ heel-proof tree grate, cast iron with baked-on-oil finish. DESIGN: SWA / Los Angeles. INSTALLATION: Frank Sharum Landscape & Design. PROJECT: Walmart Home Office Campus. LOCATION:

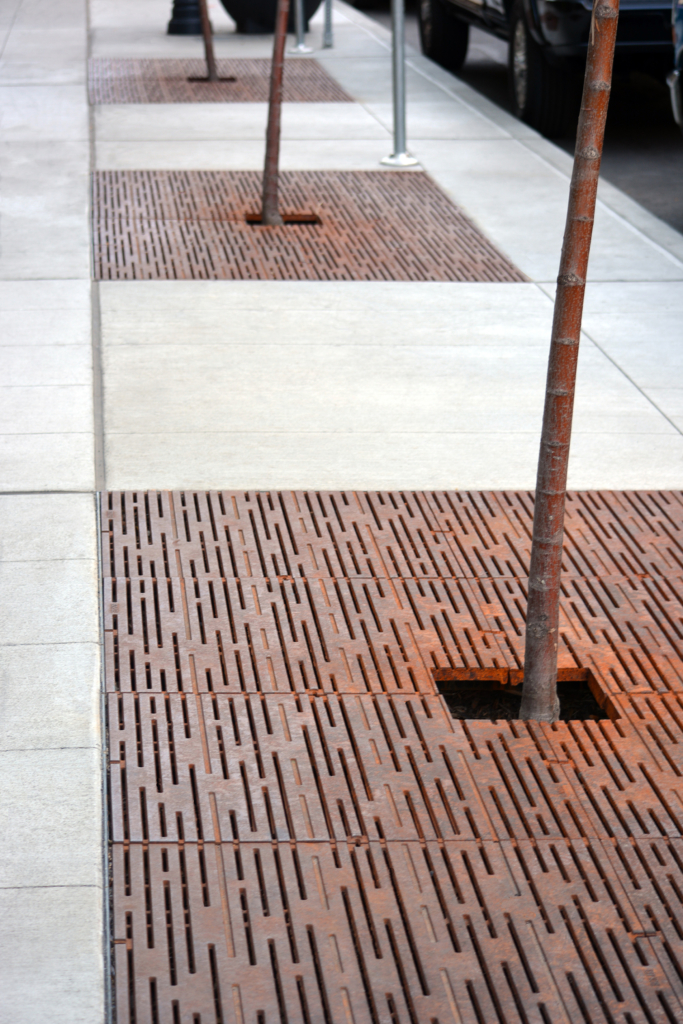

Rain 5′ x 10′ heel-proof tree grate, raw cast iron. DESIGN: SPVV Landscape Architects. PROJECT: Macy’s Redevelopment. LOCATION: Spokane, WA.

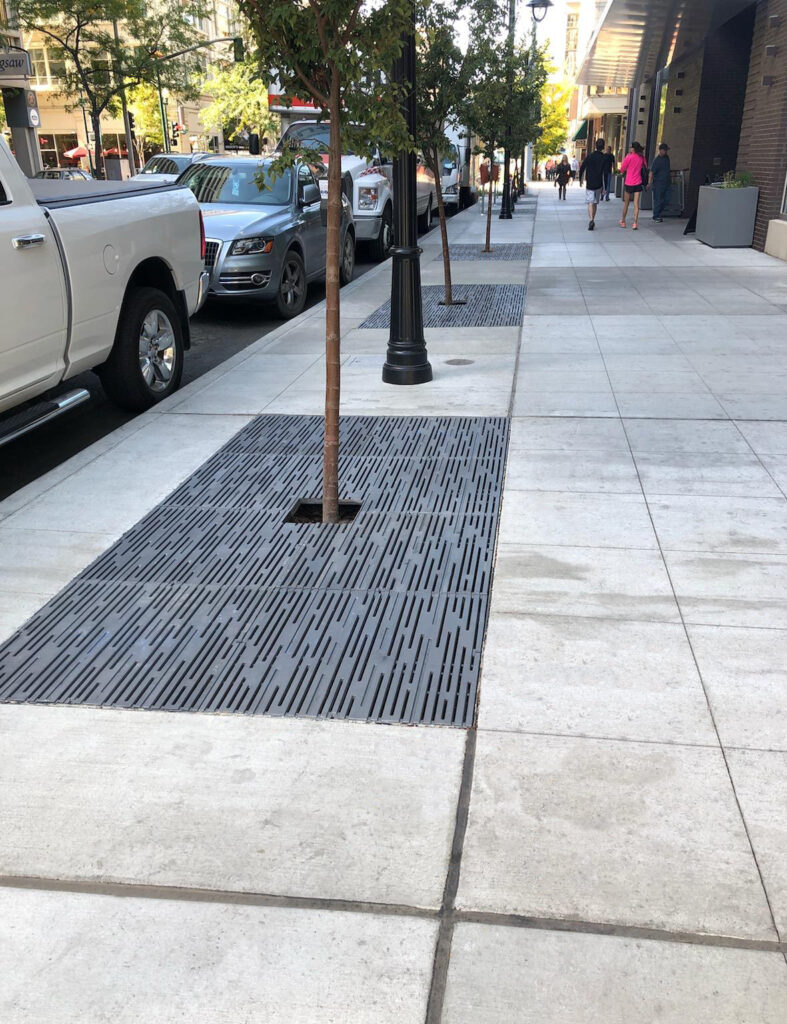

Rain 5′ x 10′ heel-proof tree grate, raw cast iron (newly installed). PROJECT: The M Apartments. LOCATION: Spokane, WA. (Photo credit: Walker Construction)
Rain 6′ x 6′ heel-proof tree grate, raw cast aluminum. DESIGN: Coleman & Associates. PROJECT: Victory Plaza. LOCATION: Austin, TX.

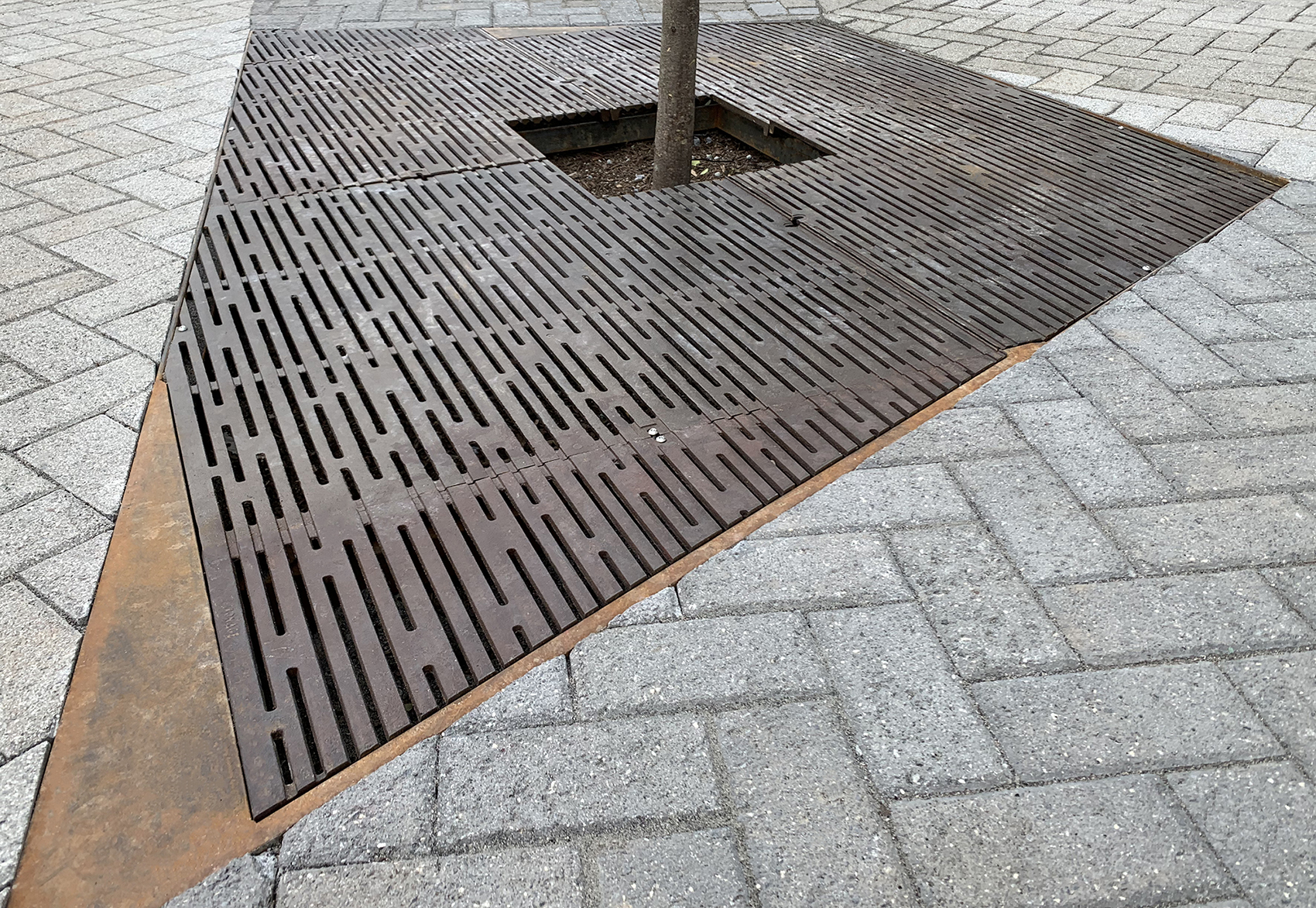

Custom waterjet cut angled tree grate array consisting of Rain 6′ x 6′ heel-proof tree grates and 24″ x 48″ Rain large grate array panels; cast iron with baked-on-oil finish. DESIGN: Melillo • Bauer • Carman Landscape Architecture. CONTRACTOR: Twin Resources. PROJECT: Haus25. LOCATION: 25 Christopher Columbus Drive, Jersey City, NJ.
Custom waterjet cut angled tree grate array consisting of Rain 6′ x 6′ heel-proof tree grates and 24″ x 48″ Rain large grate array panels; cast iron with baked-on-oil finish. DESIGN: Melillo • Bauer • Carman Landscape Architecture. CONTRACTOR: Twin Resources. PROJECT: Haus25. LOCATION: 25 Christopher Columbus Drive, Jersey City, NJ.

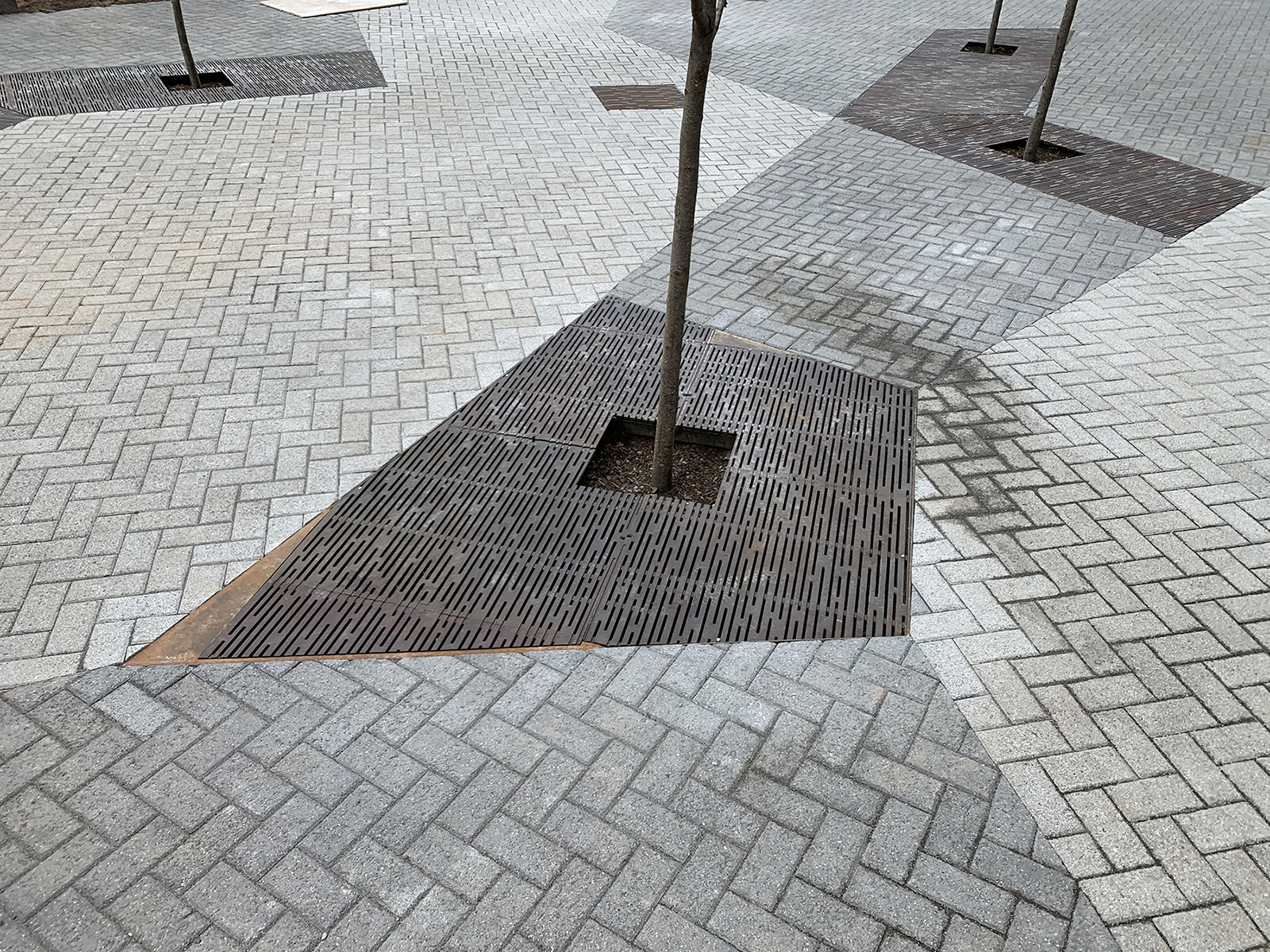

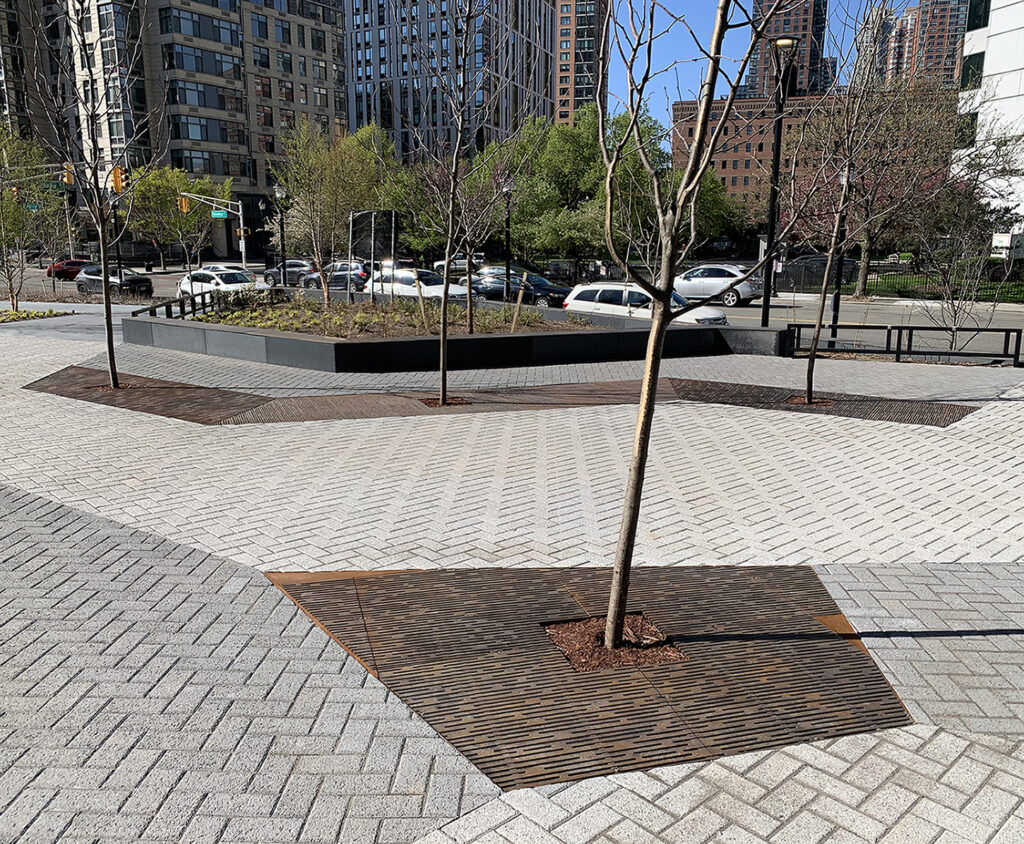

Custom waterjet cut angled tree grate arrays consisting of Rain 6′ x 6′ (foreground) and 4′ x 4′ (background) heel-proof tree grates and 24″ x 48″ Rain large grate array panels; cast iron with baked-on-oil finish. DESIGN: Melillo • Bauer • Carman Landscape Architecture. CONTRACTOR: Twin Resources. PROJECT: Haus25. LOCATION: 25 Christopher Columbus Drive, Jersey City, NJ.
Custom waterjet cut angled tree grate arrays consisting of Rain 6′ x 6′ (foreground) and 4′ x 4′ (background) heel-proof tree grates and 24″ x 48″ Rain large grate array panels; cast iron with baked-on-oil finish. DESIGN: Melillo • Bauer • Carman Landscape Architecture. CONTRACTOR: Twin Resources. PROJECT: Haus25. LOCATION: 25 Christopher Columbus Drive, Jersey City, NJ.
