Rain

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

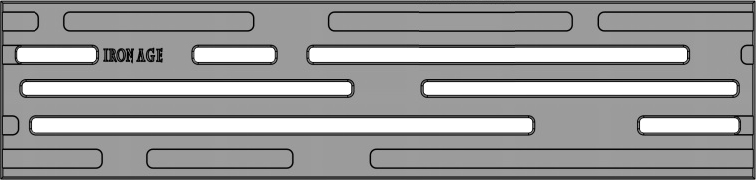

Name / Design	Rain 3" x 12" Heel Proof
Product ID	RNN3-12I01HP
Dimensions	2.77" x 11.94" x .32"
Drain Manufacturer	NDS®
Fits	NDS® Mini-Channel
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	1.57
Free Drain Area	19.31%
Gallons Per Minute (GPM)	8.36
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-112-756

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

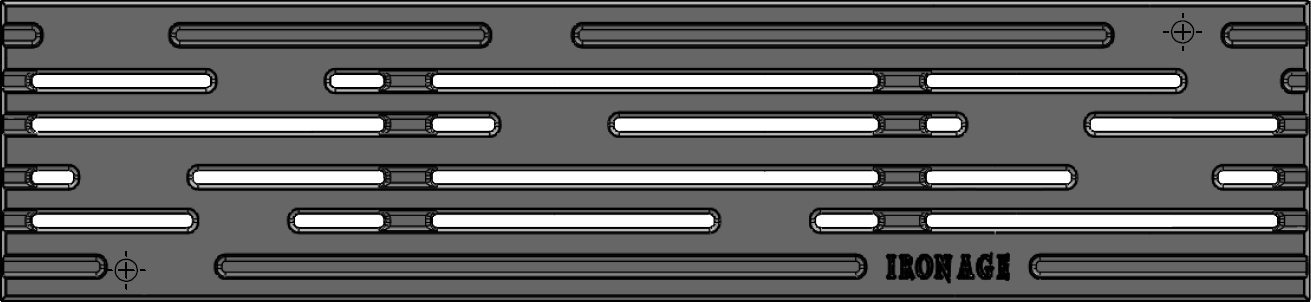

Name / Design	Rain 4" x 18" Heel Proof
Product ID	RNN4-18I02HP
Dimensions	4.09" x 17.88" x .75"
Drain Manufacturer	NDS®
Fits	NDS® Spee-D® Channel
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	8.00
Free Drain Area	12.75%
Gallons Per Minute (GPM)	12.22
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	Pending

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

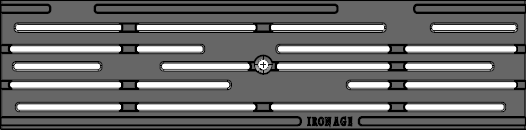

Name / Design	Rain 5" x 20" Heel Proof
Product ID	RNA5-20I21HP
Dimensions	4.81" x 19.56" x .81"
Drain Manufacturer	ABT® ACO™ MEA®
Fits	ABT® PolyDrain® ACO™ K100, K100S, KS100 MEA® 1000 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	11.35
Free Drain Area	13.74%
Gallons Per Minute (GPM)	16.94
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 1-990-521

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

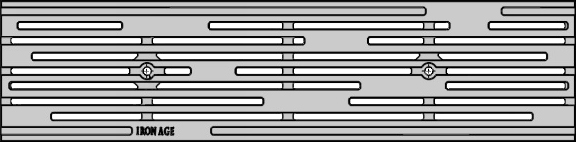

Name / Design	Rain 6" x 24" Heel Proof
Product ID	RNN6-24I03HP
Dimensions	5.88" x 23.94" x .81"
Drain Manufacturer	NDS®
Fits	NDS® Dura Slope®
Material	Cast Ductile Iron
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	11.13
Free Drain Area	20.97%
Gallons Per Minute (GPM)	38.63
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-112-777

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Rain 8" x 20" Heel Proof Heavy Duty
Product ID	RNN8-20I04HPHD
Dimensions	7.88" x 19.61" x .75
Drain Manufacturer	NDS®
Fits	NDS® 8" Pro Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	18.00
Free Drain Area	18.77%
Gallons Per Minute (GPM)	37.96
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-330-016

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

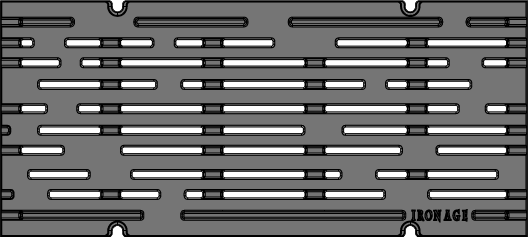

Name / Design	Rain 9" x 20" Heel Proof
Product ID	RNM9-20I22HP
Dimensions	8.78" x 19.61" x .79"
Drain Manufacturer	MEA®
Fits	MEA® EN2000
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	18.45
Free Drain Area	13.37%
Gallons Per Minute (GPM)	30.16
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-330-029

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

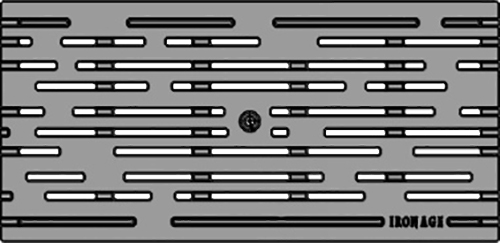

Name / Design	Rain 10" x 20" Heel Proof, Heavy Duty
Product ID	RNA10-20I24HPHD
Dimensions	9.41" x 19.61" x 1.18"
Drain Manufacturer	ACO™
Fits	ACO™ K200
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	21.88
Free Drain Area	12%
Gallons Per Minute (GPM)	29.01
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-112-778

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

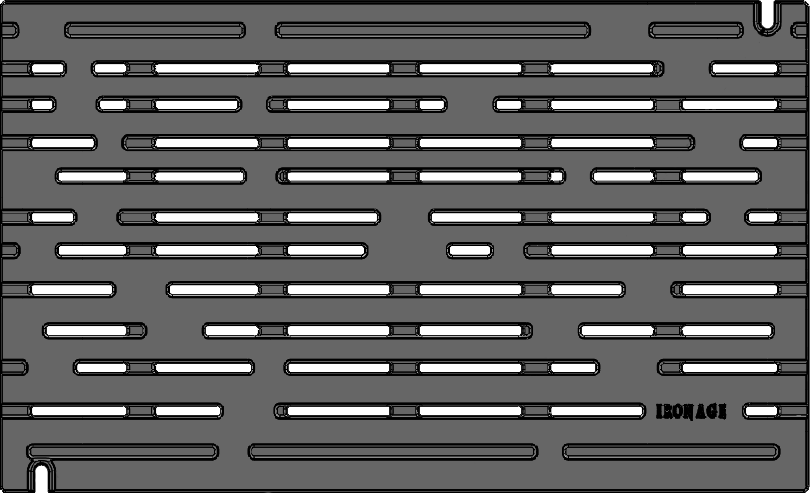

Name / Design	Rain 12" x 20" Heel Proof
Product ID	RNX12-20I99HP
Dimensions	11.88" x 19.63" x 1.00"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	30.82
Free Drain Area	16.21%
Gallons Per Minute (GPM)	49.27
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	Pending

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

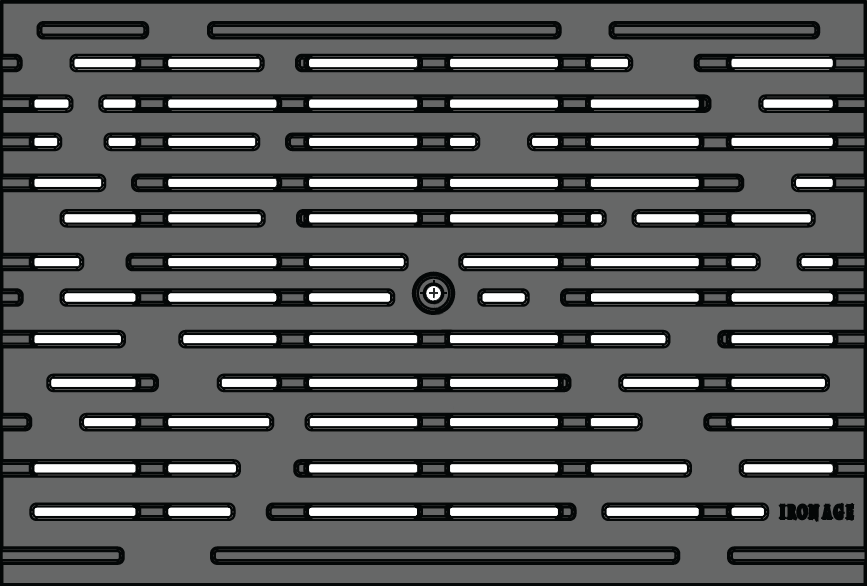

Name / Design	Rain 13" x 20" Heel Proof, Heavy Duty
Product ID	RNA13-20I24HPHD
Dimensions	13.31" x 19.69" x 1.18"
Drain Manufacturer	ACO™
Fits	ACO™ K300
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	39
Free Drain Area	13.06%
Gallons Per Minute (GPM)	44.84
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	Pending

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec CAD Details Spec

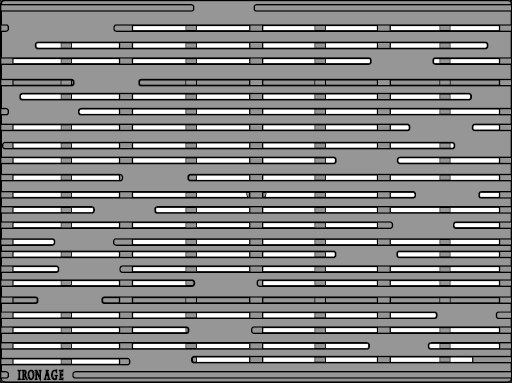

Name / Design	Rain 18" x 24" Heel Proof
Product ID	RNX18-24I61HP
Dimensions	17.81" x 23.71" x 1.5"
Drain Manufacturer	EJ™
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	65
Free Drain Area	13.22%
Gallons Per Minute (GPM)	73.45
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-112-780

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Rain 21" x 20" Heel Proof
Product ID	RNX21-20I99HP
Dimensions	20.38" x 19.46" x .75"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	30.78
Free Drain Area	18.43%
Gallons Per Minute (GPM)	95.74
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

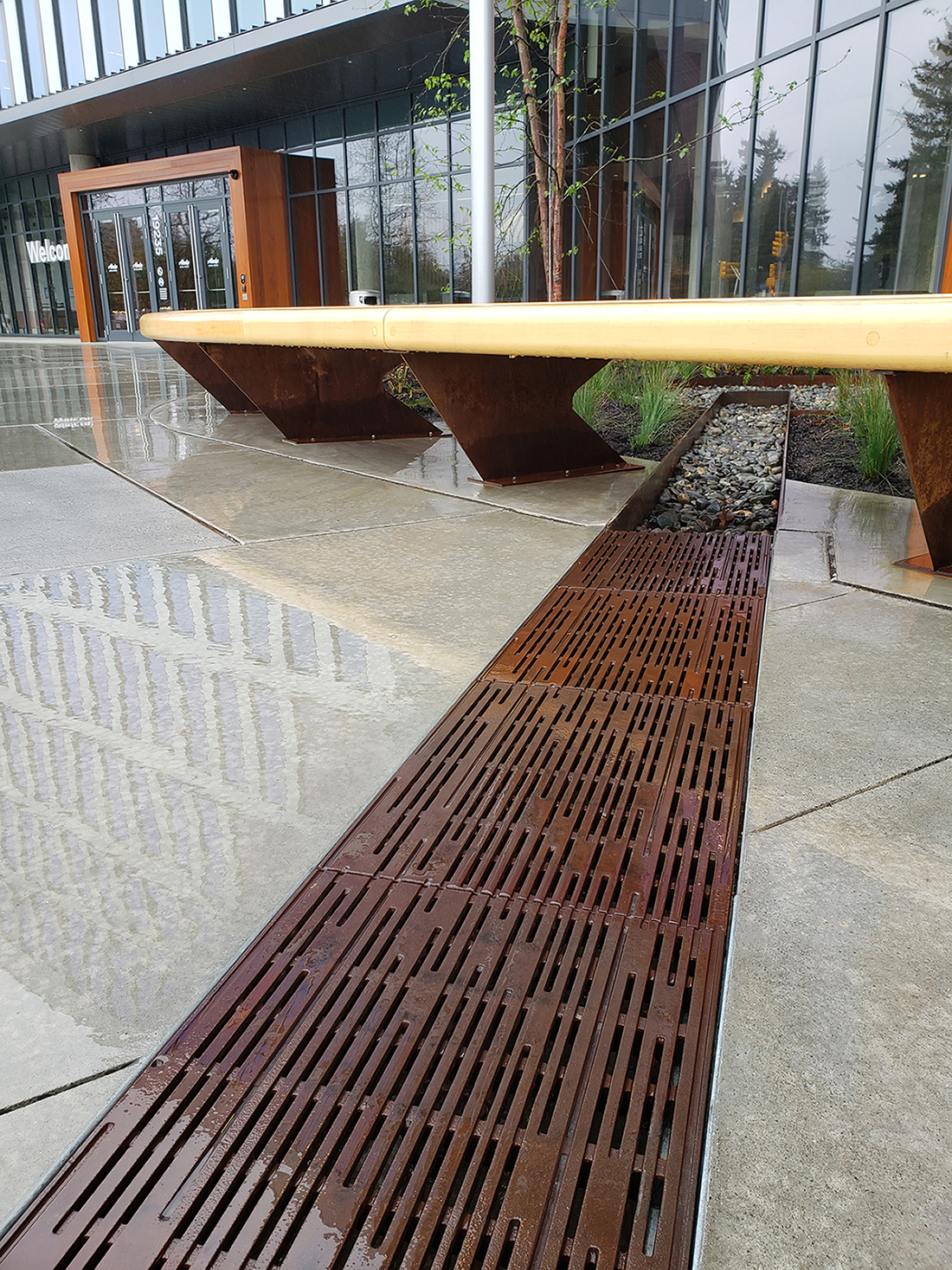

Cast iron trench drain grates with decorative Rain pattern alongside bollards on one side and grey pavers on the other

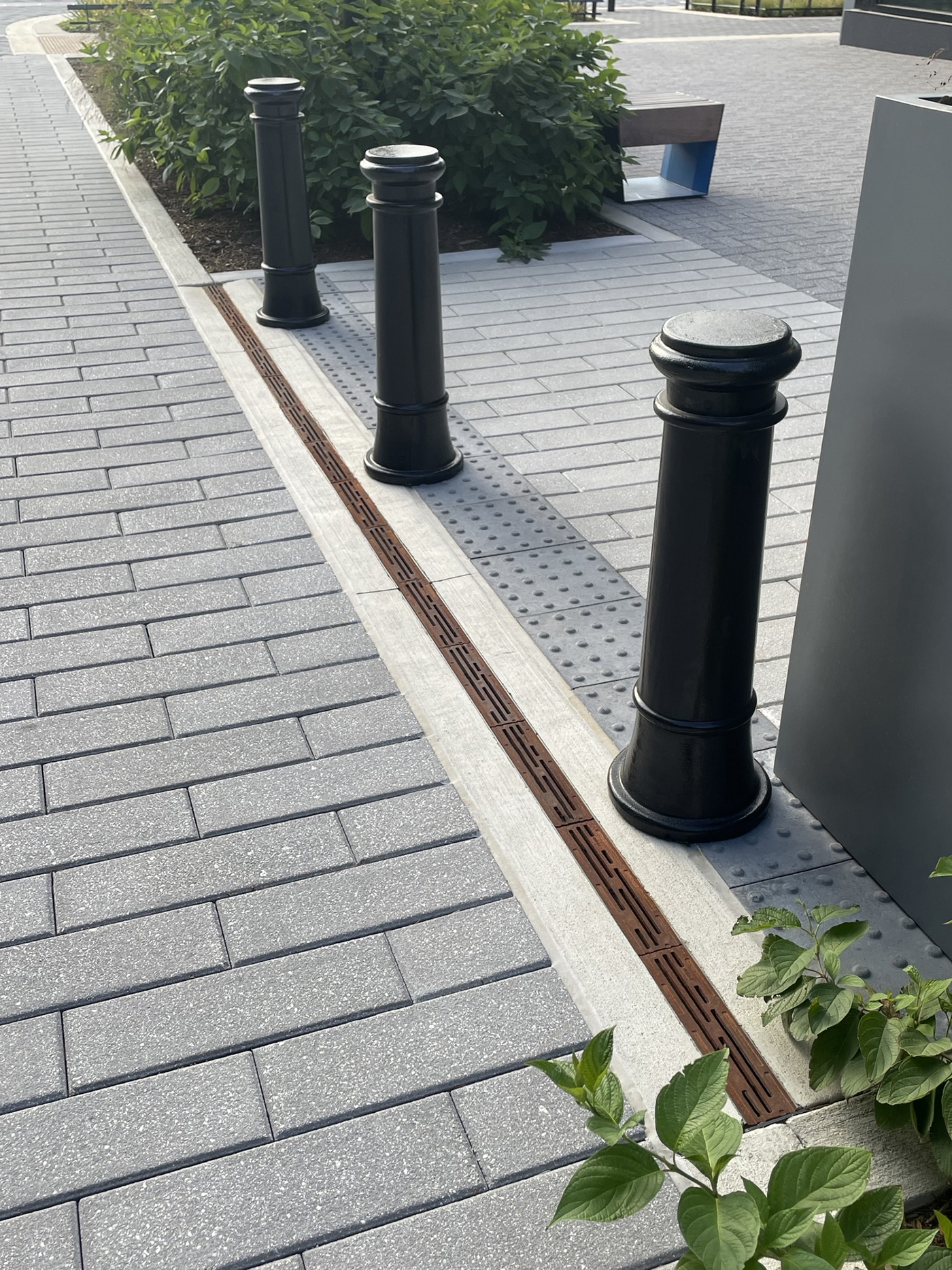

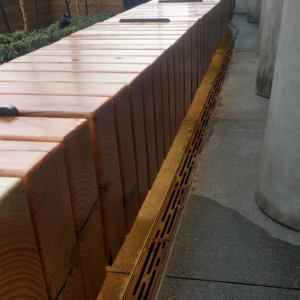

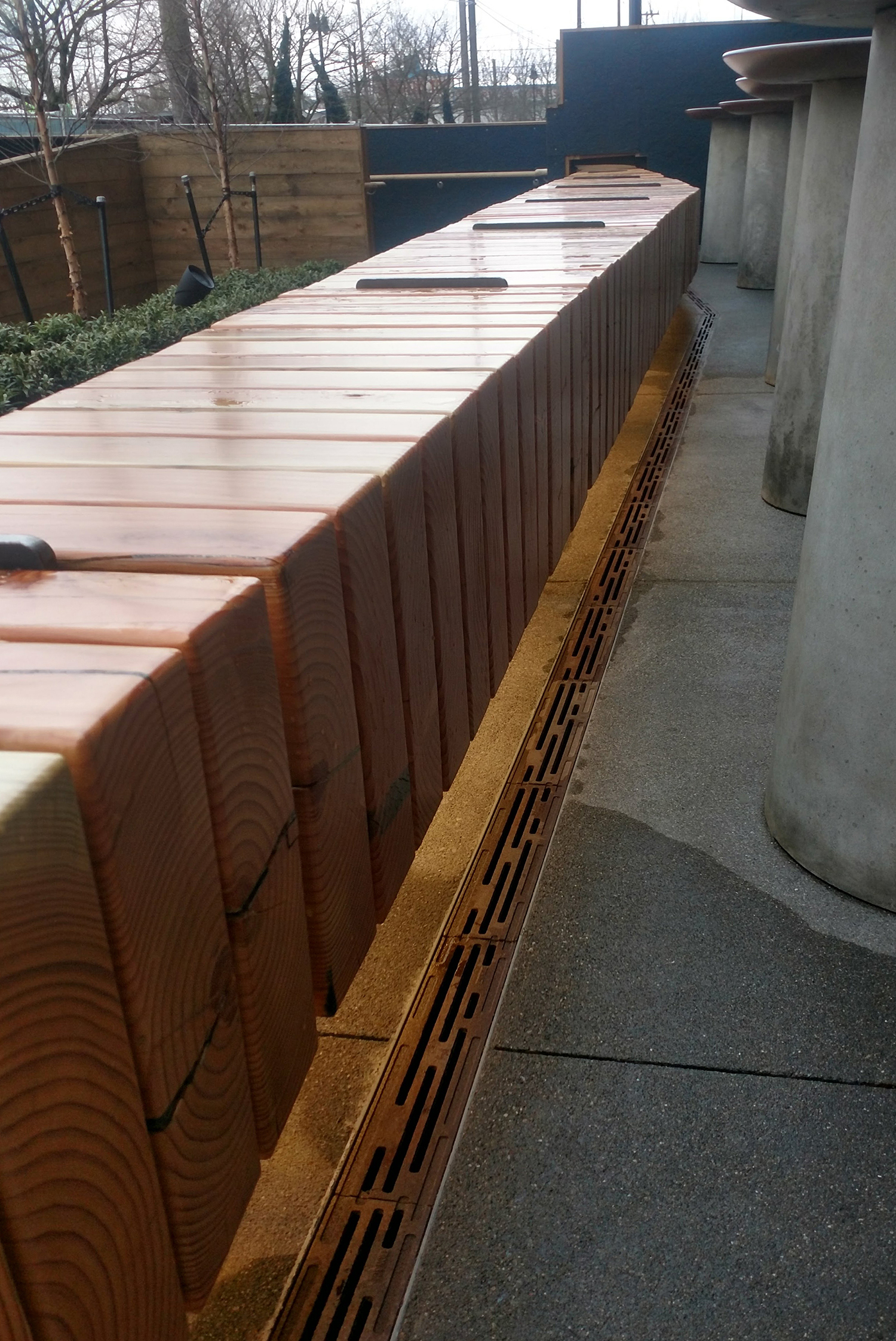

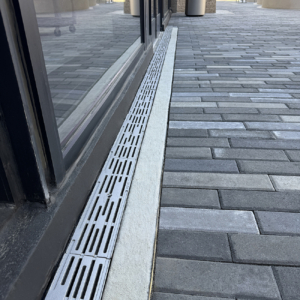

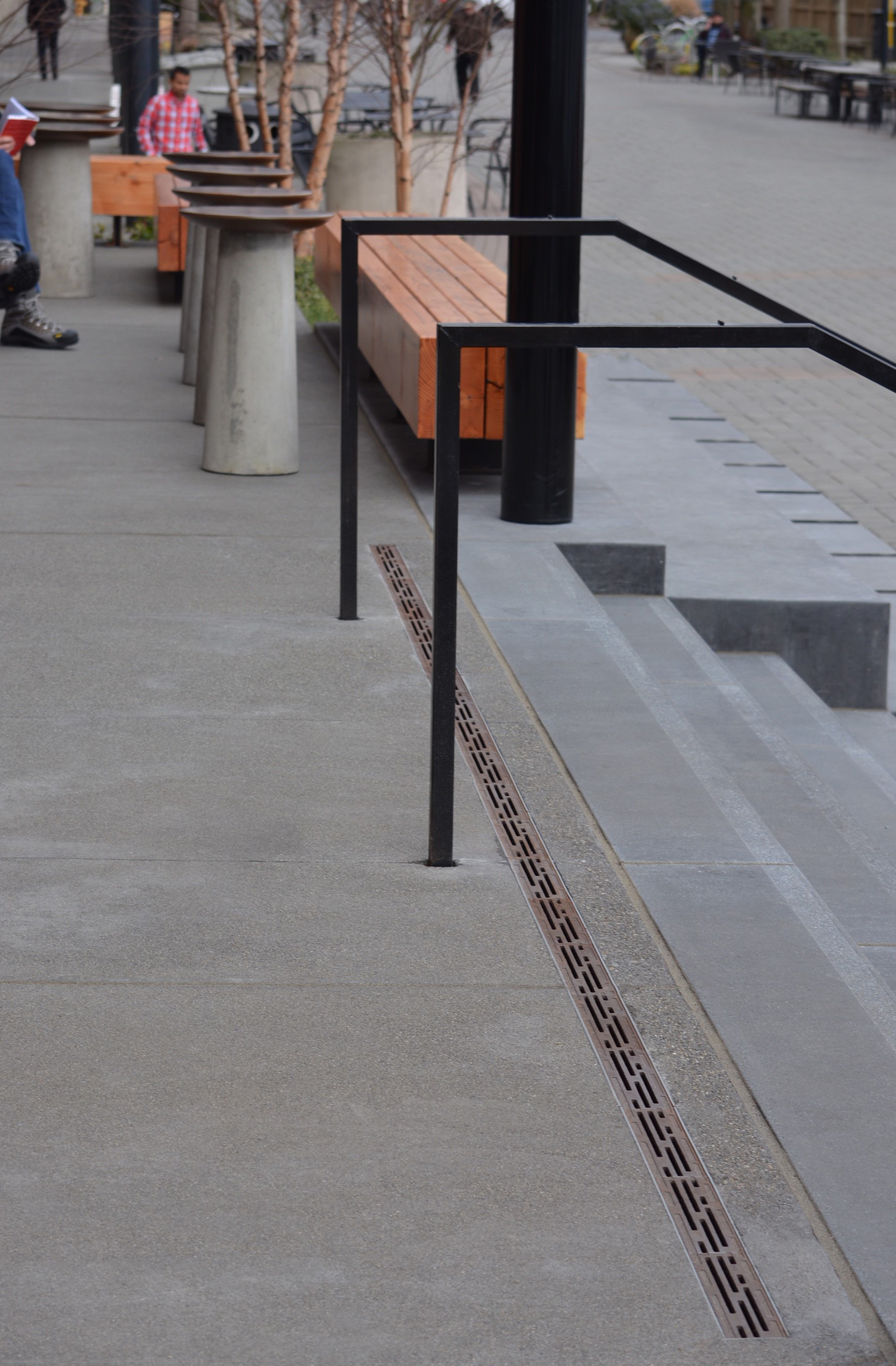

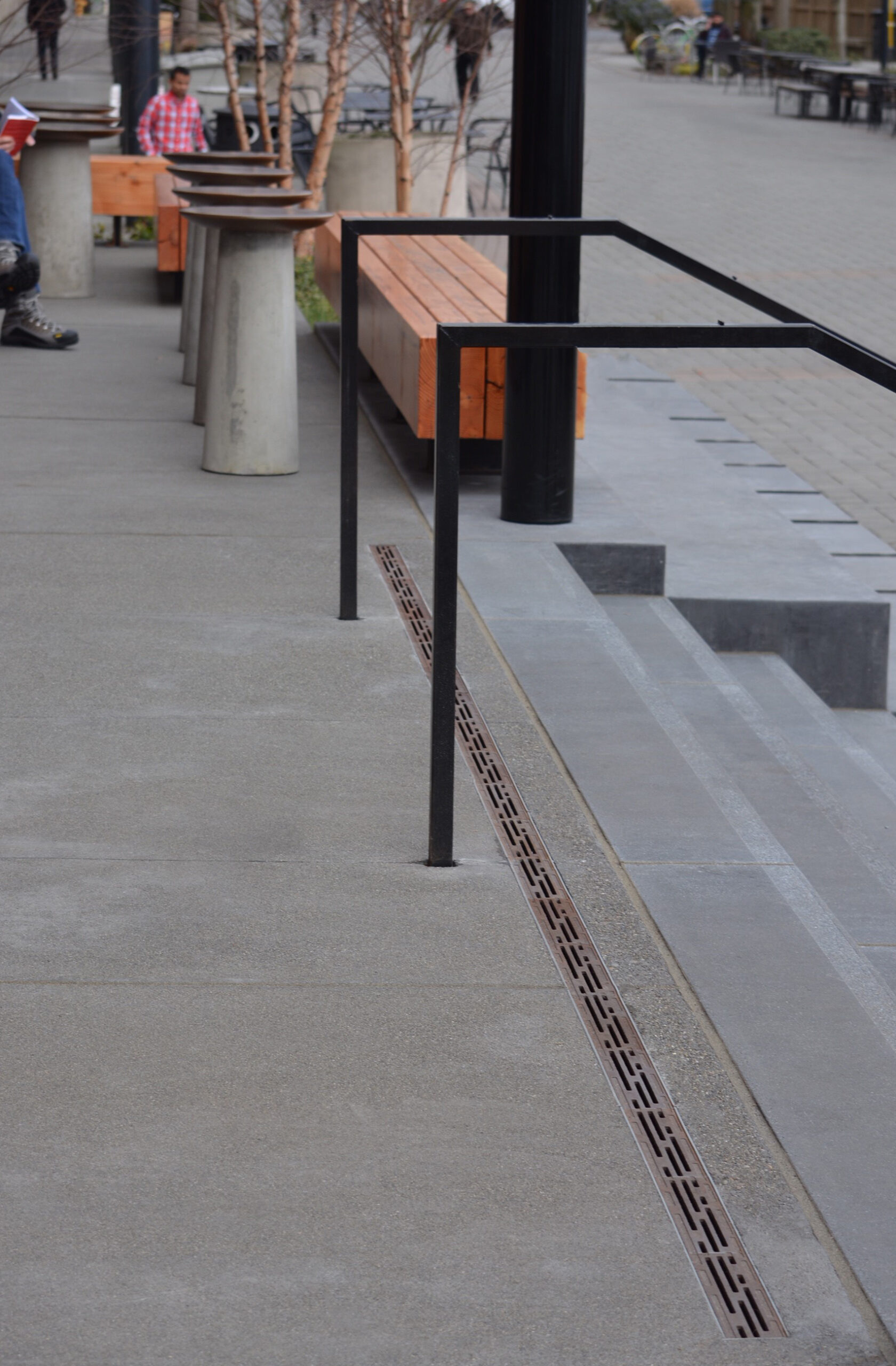

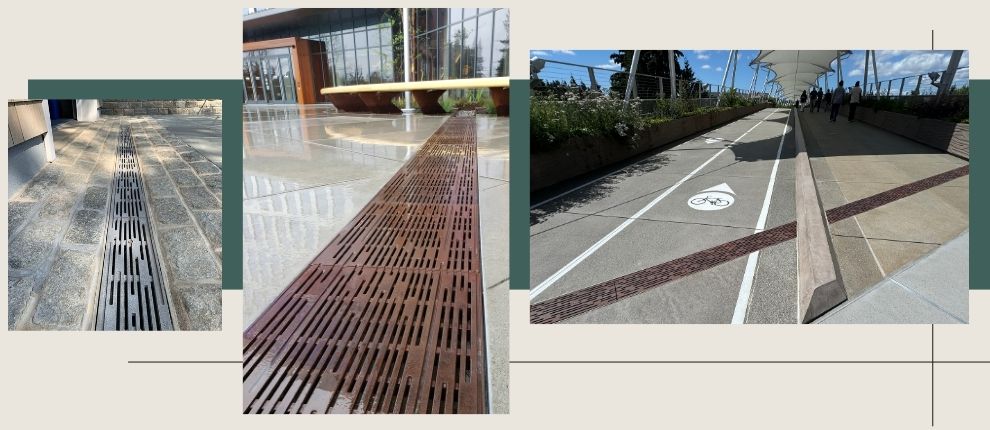

Rain 3″ x 12″ heel-proof trench grate, cast iron with baked-on oil finish. DESIGN: Floura Teeter Landscape Architects. PROJECT: Rye Street. LOCATION: Baltimore, MD.

Download photo

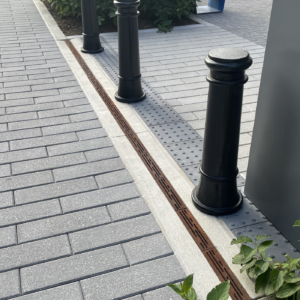

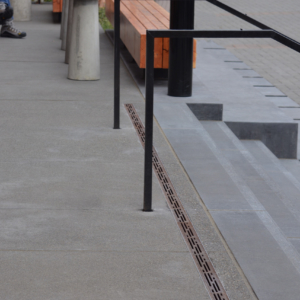

Rain 3″ x 12″ heel-proof trench grate, cast iron with baked-on oil finish. DESIGN: Swift Company. INSTALLER: Lease Crutcher Lewis. PROJECT: Starbucks Support Center Entry (HQ and Reserve Store). LOCATION: Seattle, WA.

Download photo

Rain 3″ x 12″ heel-proof trench grate, cast iron with baked-on oil finish. DESIGN: Swift Company. INSTALLER: Lease Crutcher Lewis. PROJECT: Starbucks Support Center Entry (HQ and Reserve Store). LOCATION: Seattle, WA.

Download photo

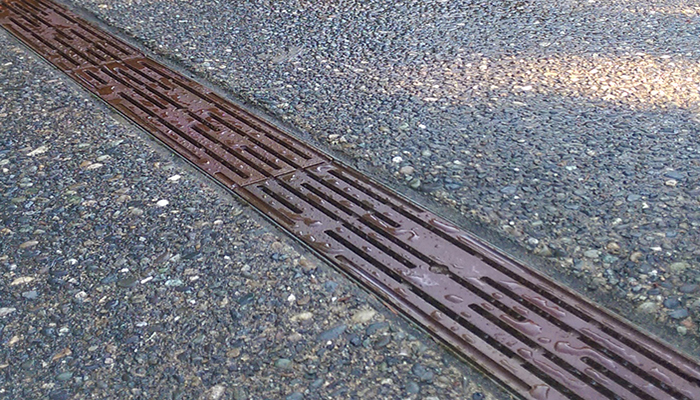

Cast iron trench grate in decorative Rain pattern from Iron Age Designs. Installed in building entryway.

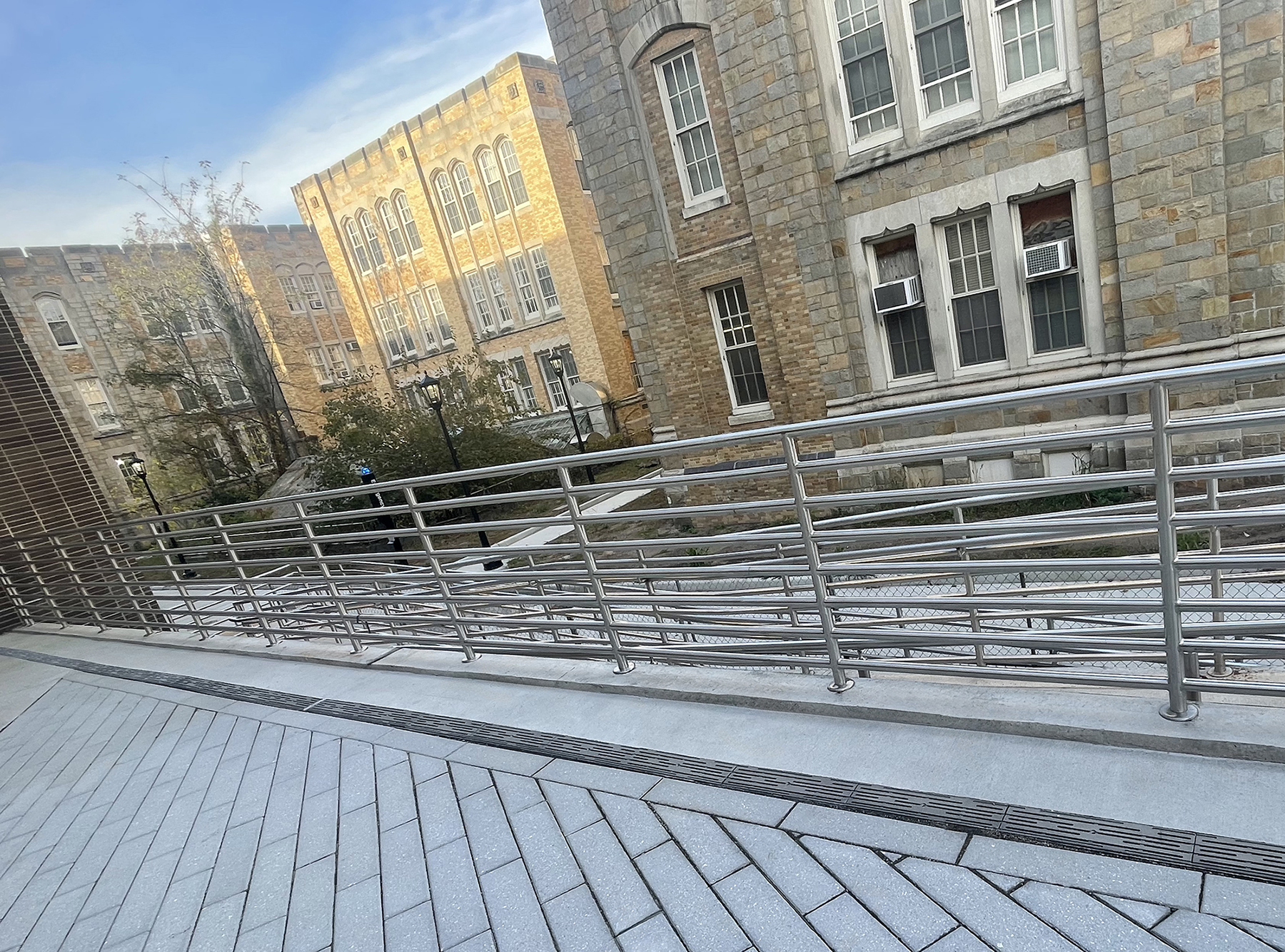

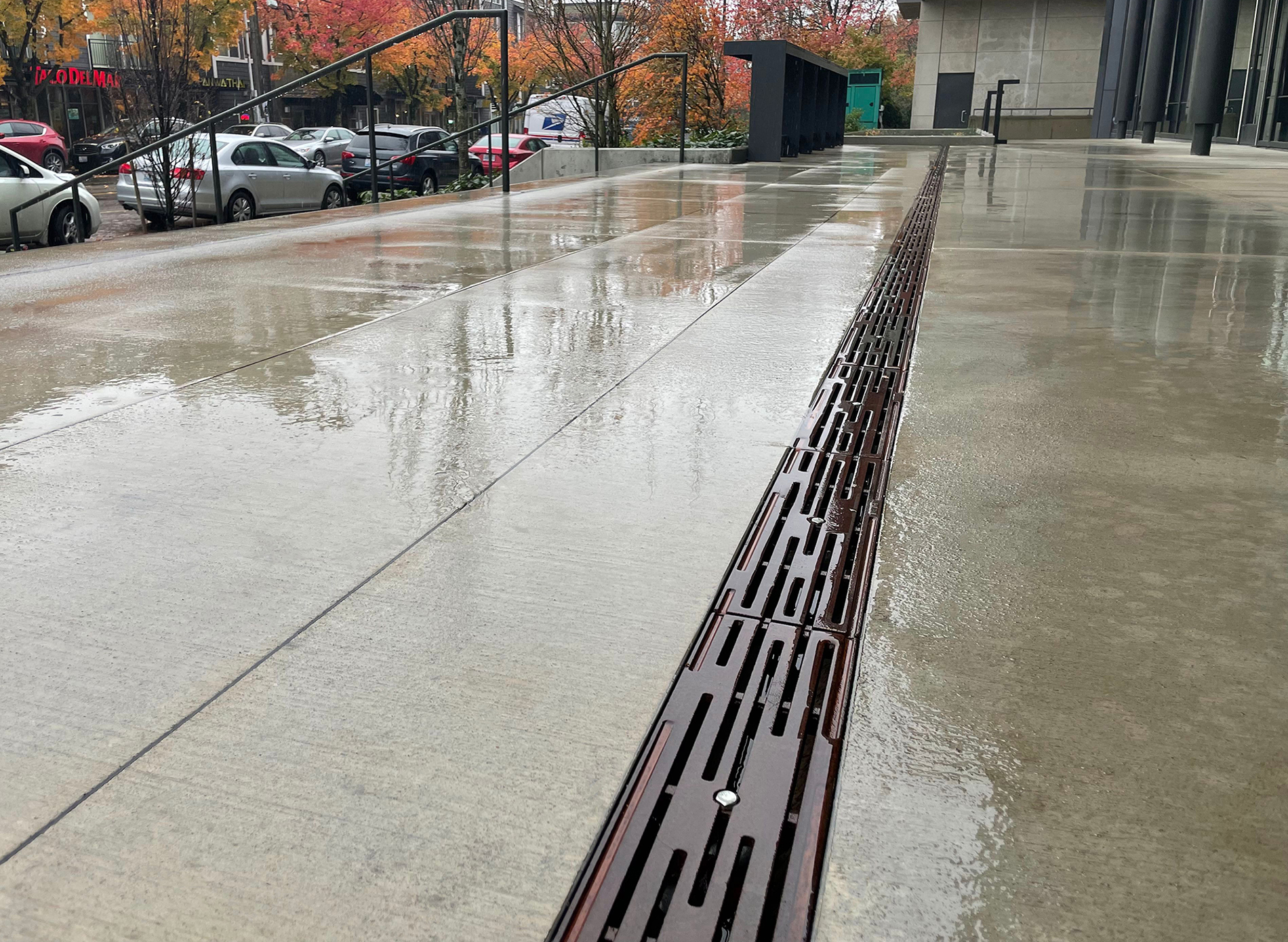

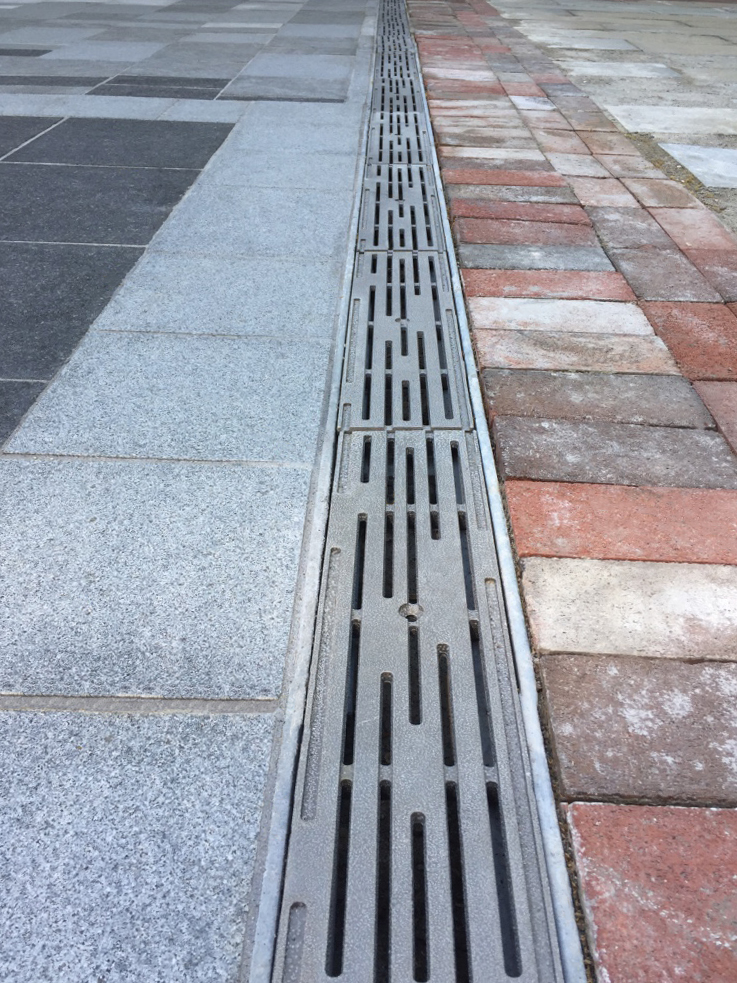

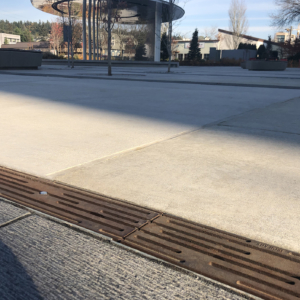

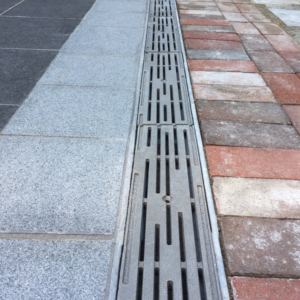

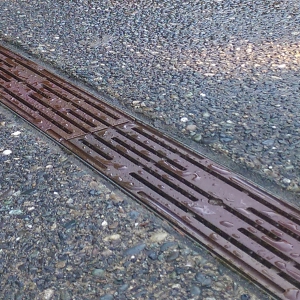

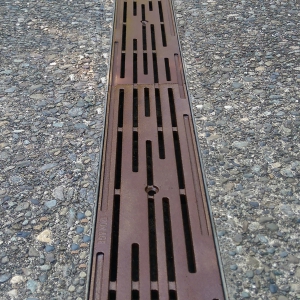

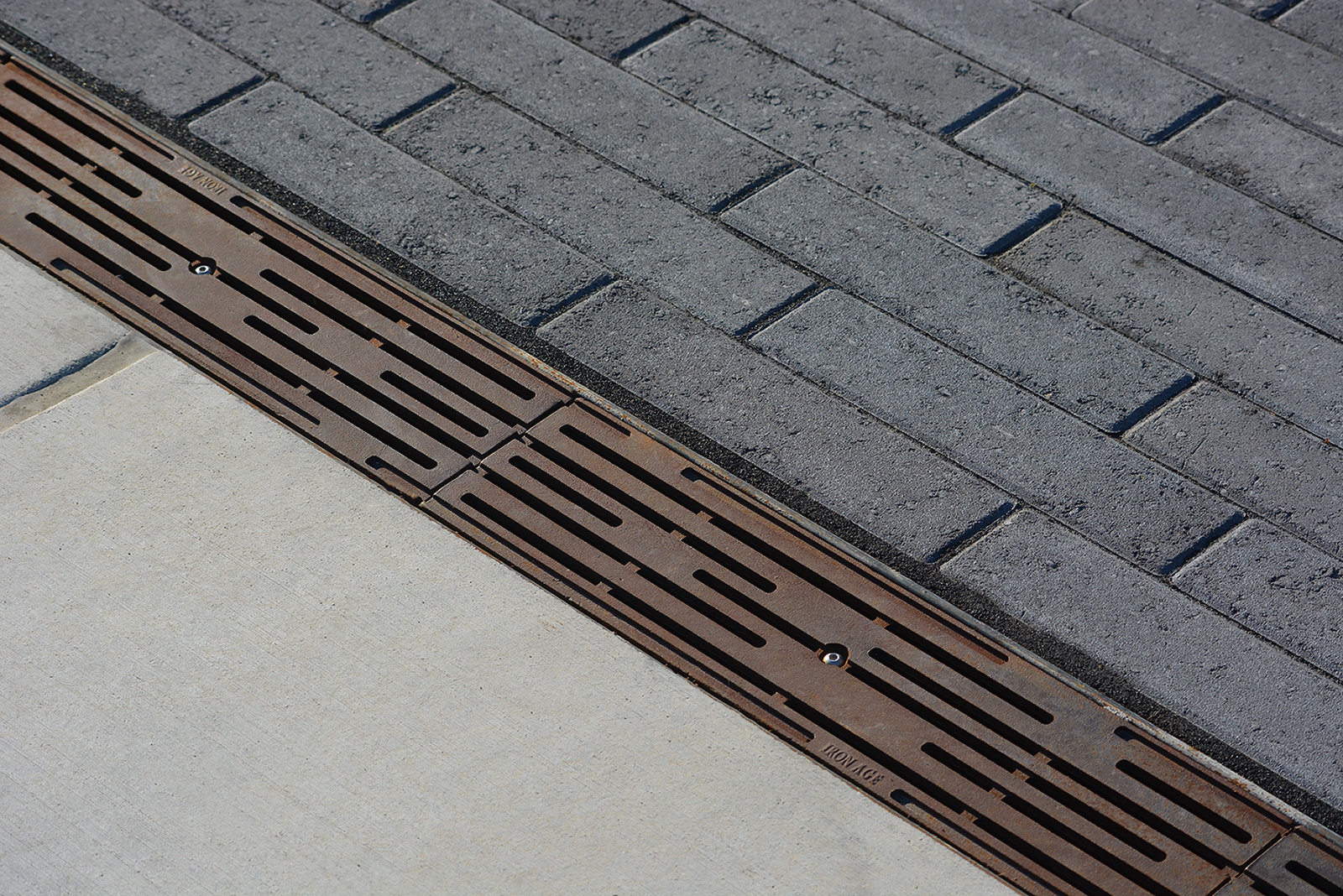

Rain 5″ x 20″ heel proof trench grate, raw cast ductile iron (newly installed, prior to start of oxidation process). DESIGN: Joseph Furr Design Studio. INSTALLATION: The Lemoine Company. PROJECT: Rivermark Center. LOCATION: Baton Rouge, LA.

Download photo

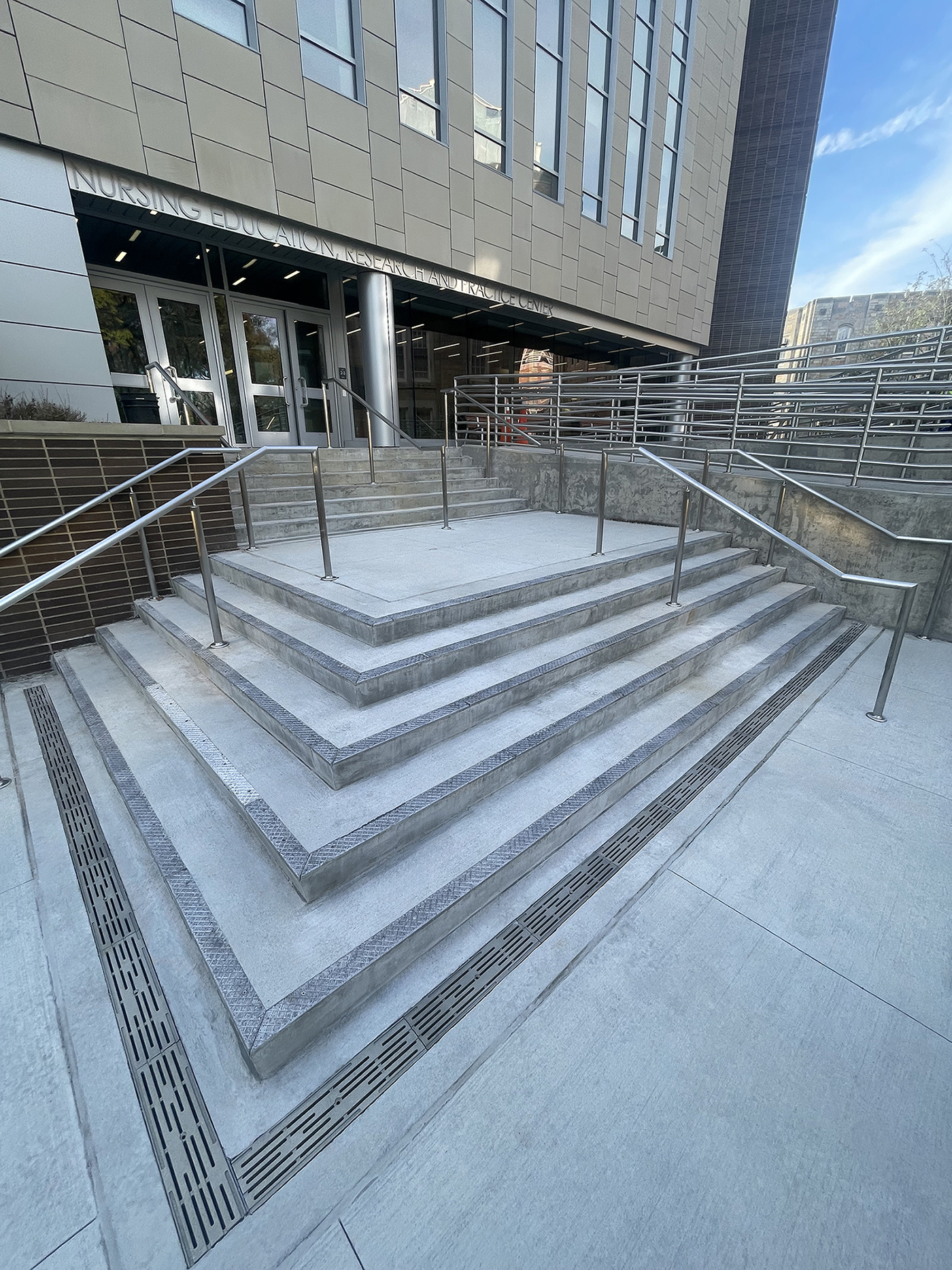

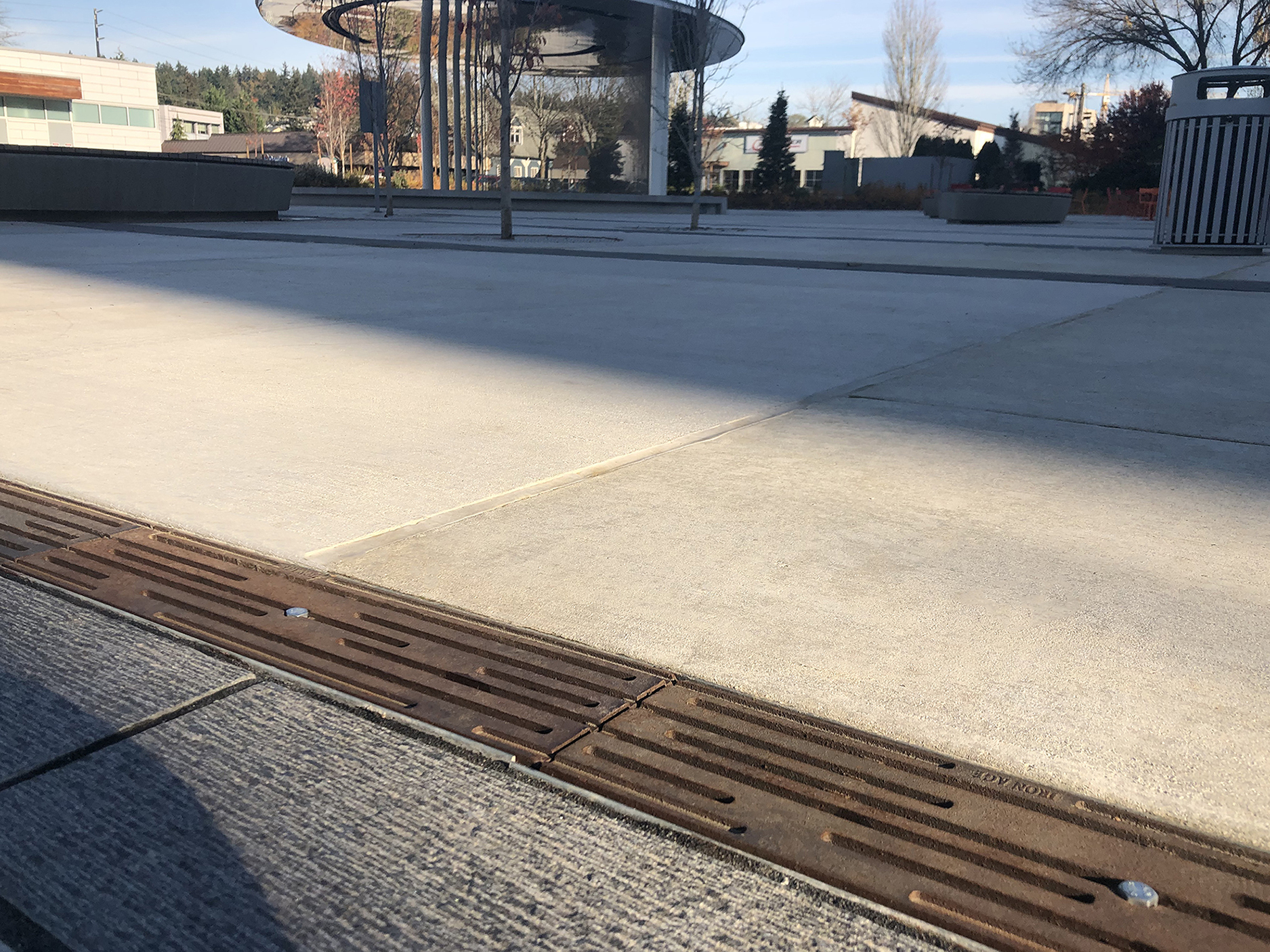

Rain 5″ x 20″ heel proof trench grate, raw cast ductile iron (newly installed, prior to start of oxidation process). DESIGN: Joseph Furr Design Studio. INSTALLATION: The Lemoine Company. PROJECT: Rivermark Center. LOCATION: Baton Rouge, LA.

Download photo

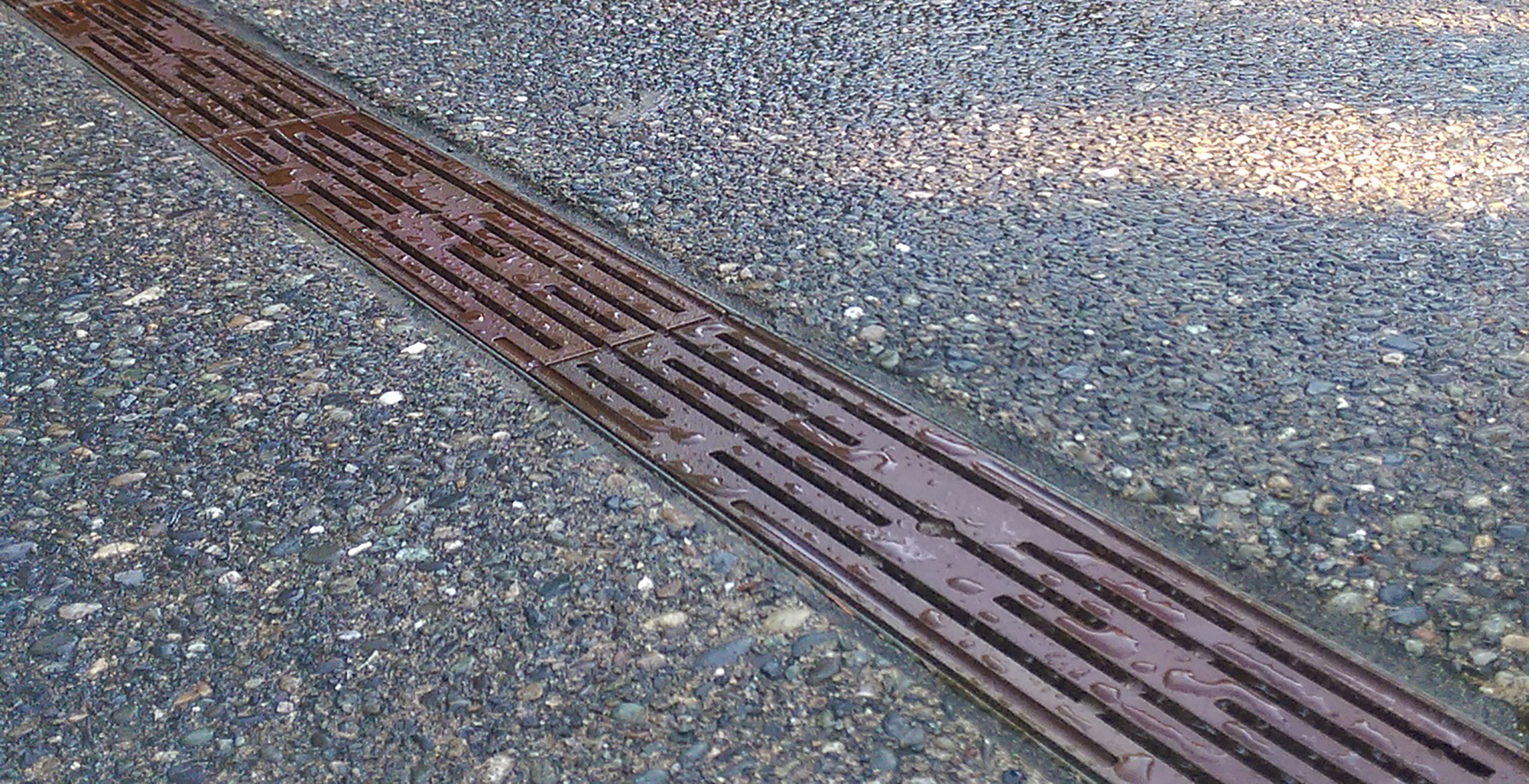

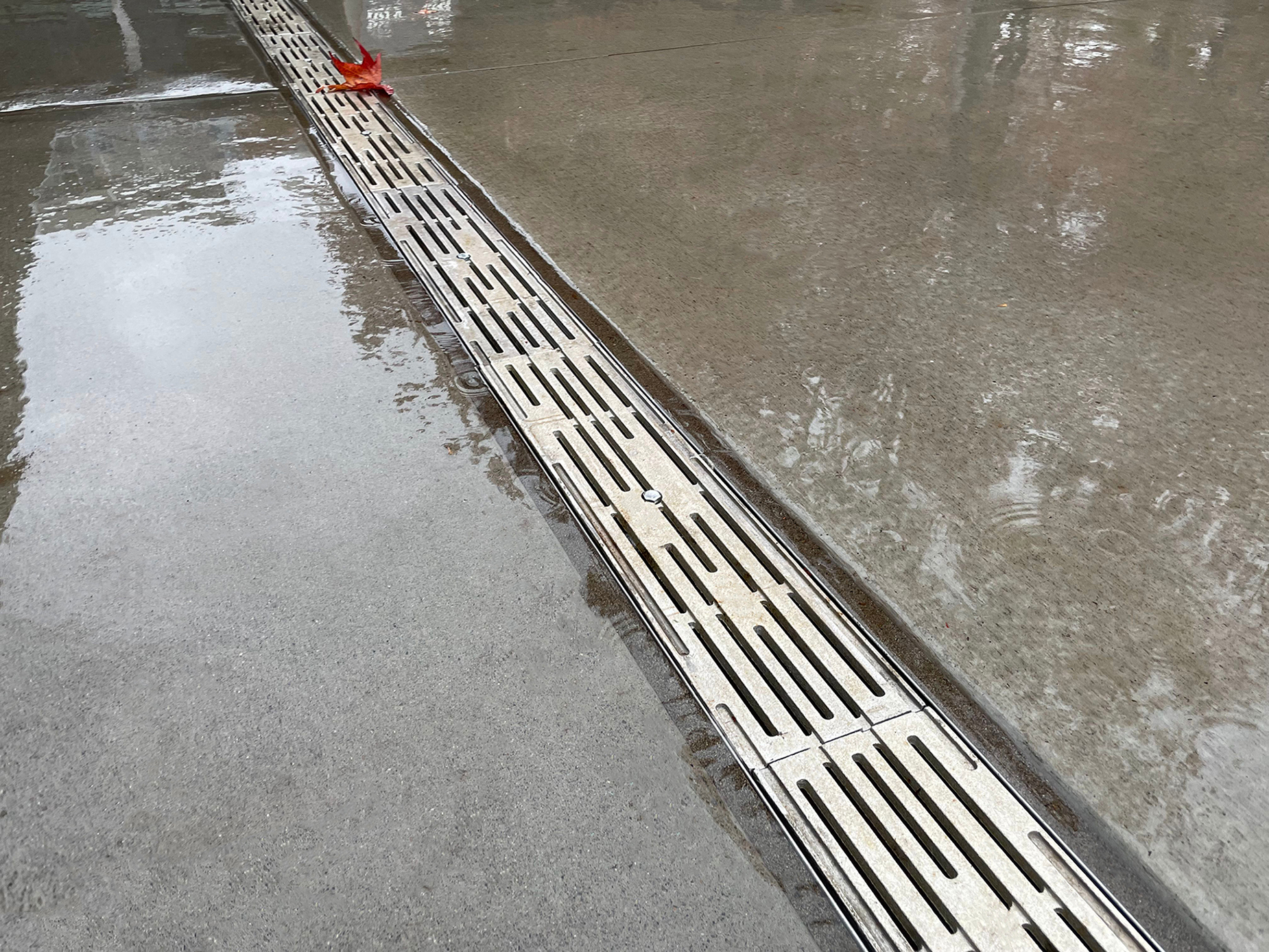

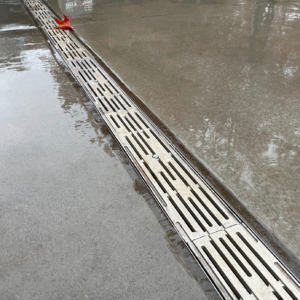

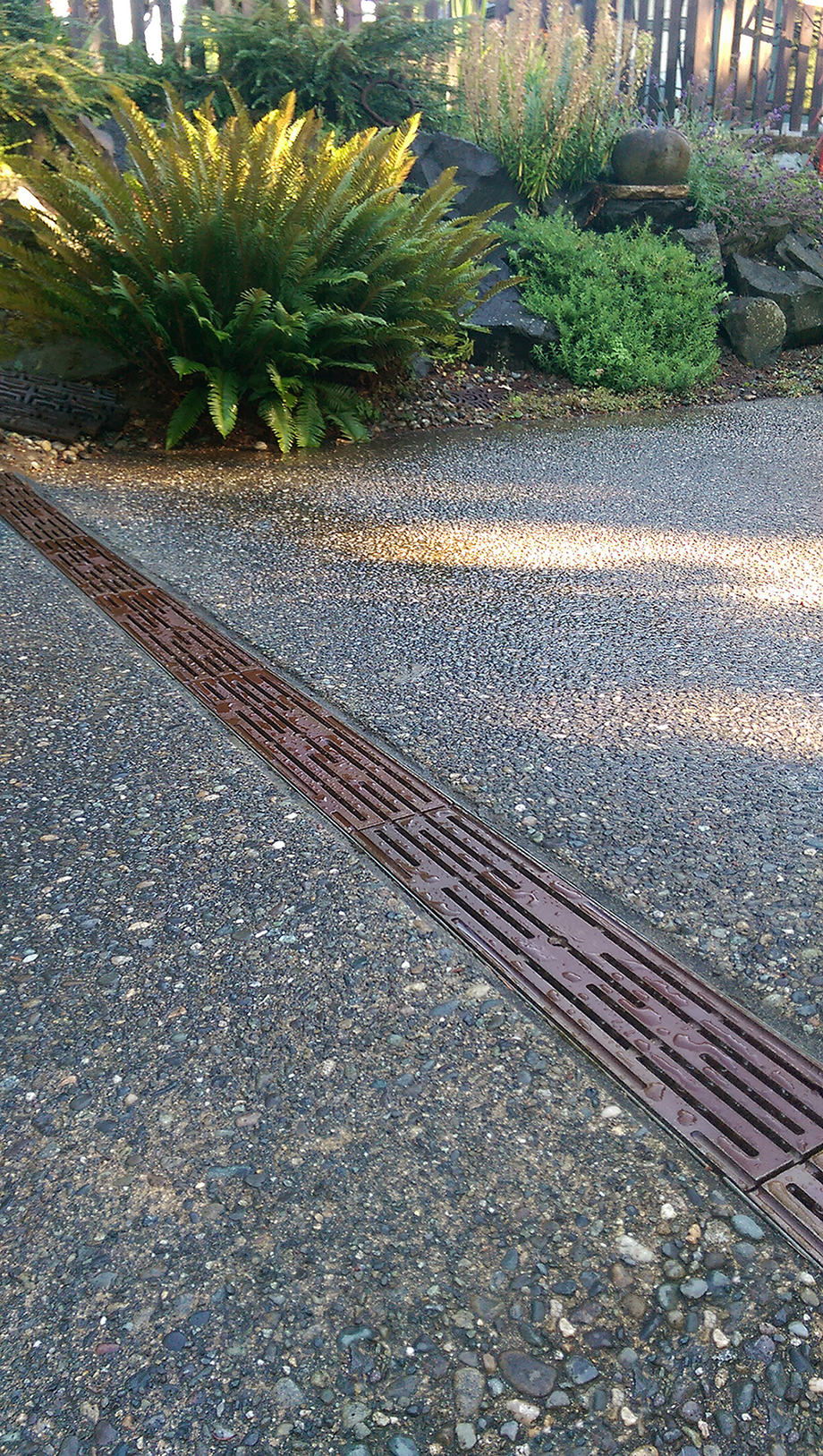

Cast aluminum decorative trench grates in Rain pattern from Iron Age Designs in college courtyard.

Rain 5″x 20″ heel proof trench grate, raw cast aluminum 356, heat treated to T6. ENGINEER: Langan. LANDSCAPE ARCHITECT: Edgewater Design. PROJECT: The City University of New York’s Lehman College – Nursing Education, Research and Practice Center. LOCATION: Bronx, NY.

Download photo

Rain 5″x 20″ heel proof trench grate, raw cast aluminum 356, heat treated to T6. ENGINEER: Langan. LANDSCAPE ARCHITECT: Edgewater Design. PROJECT: The City University of New York’s Lehman College – Nursing Education, Research and Practice Center. LOCATION: Bronx, NY.

Download photo

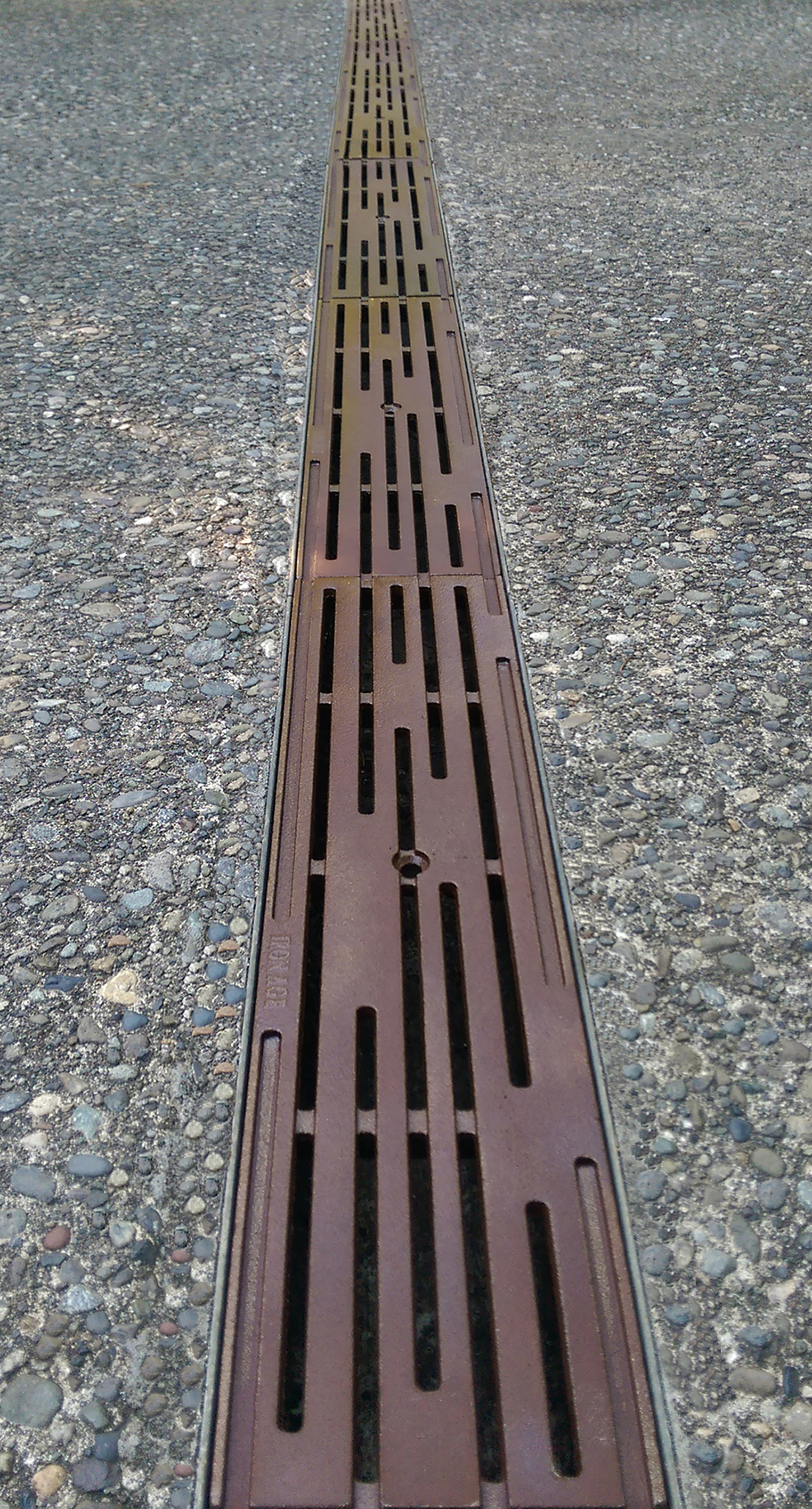

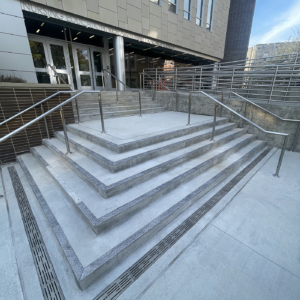

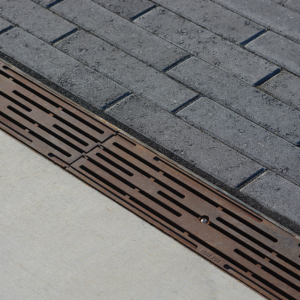

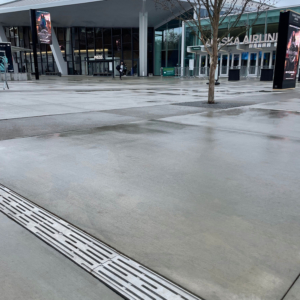

Cast iron trench drain grates with decorative Rain pattern

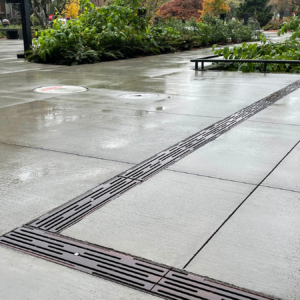

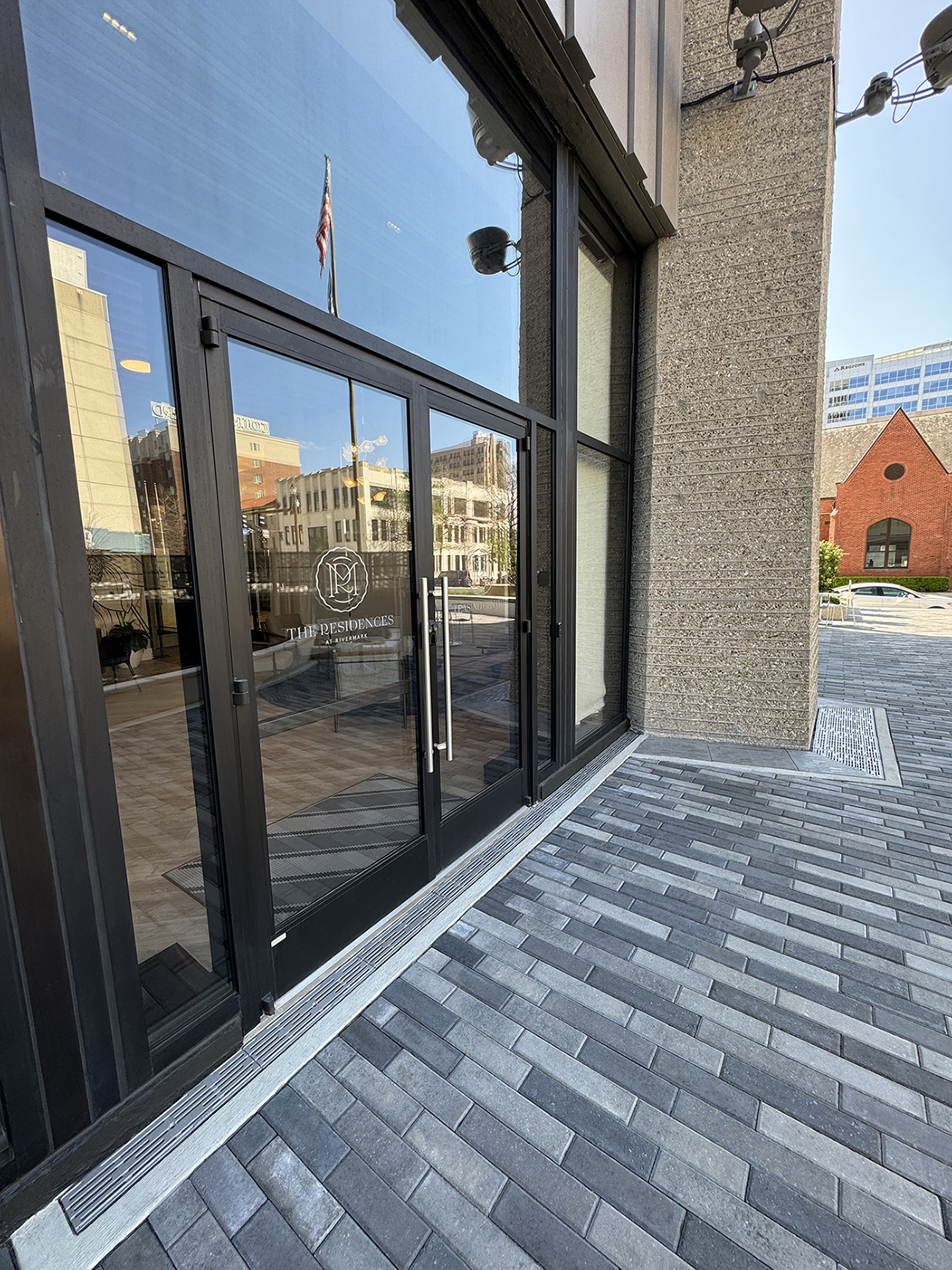

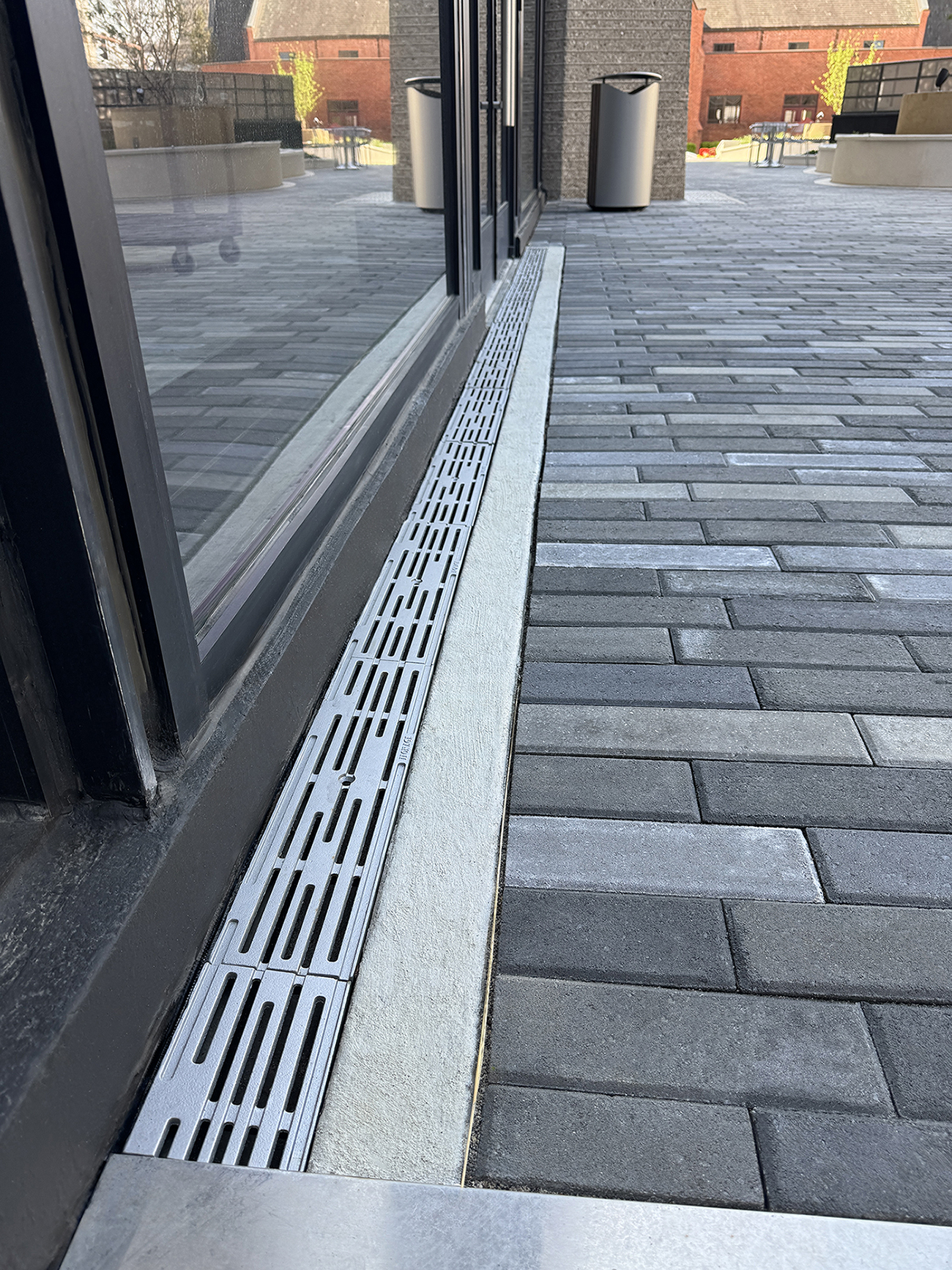

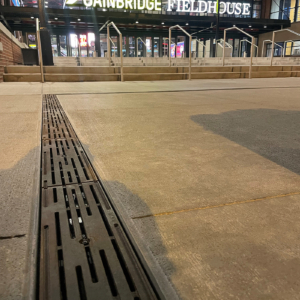

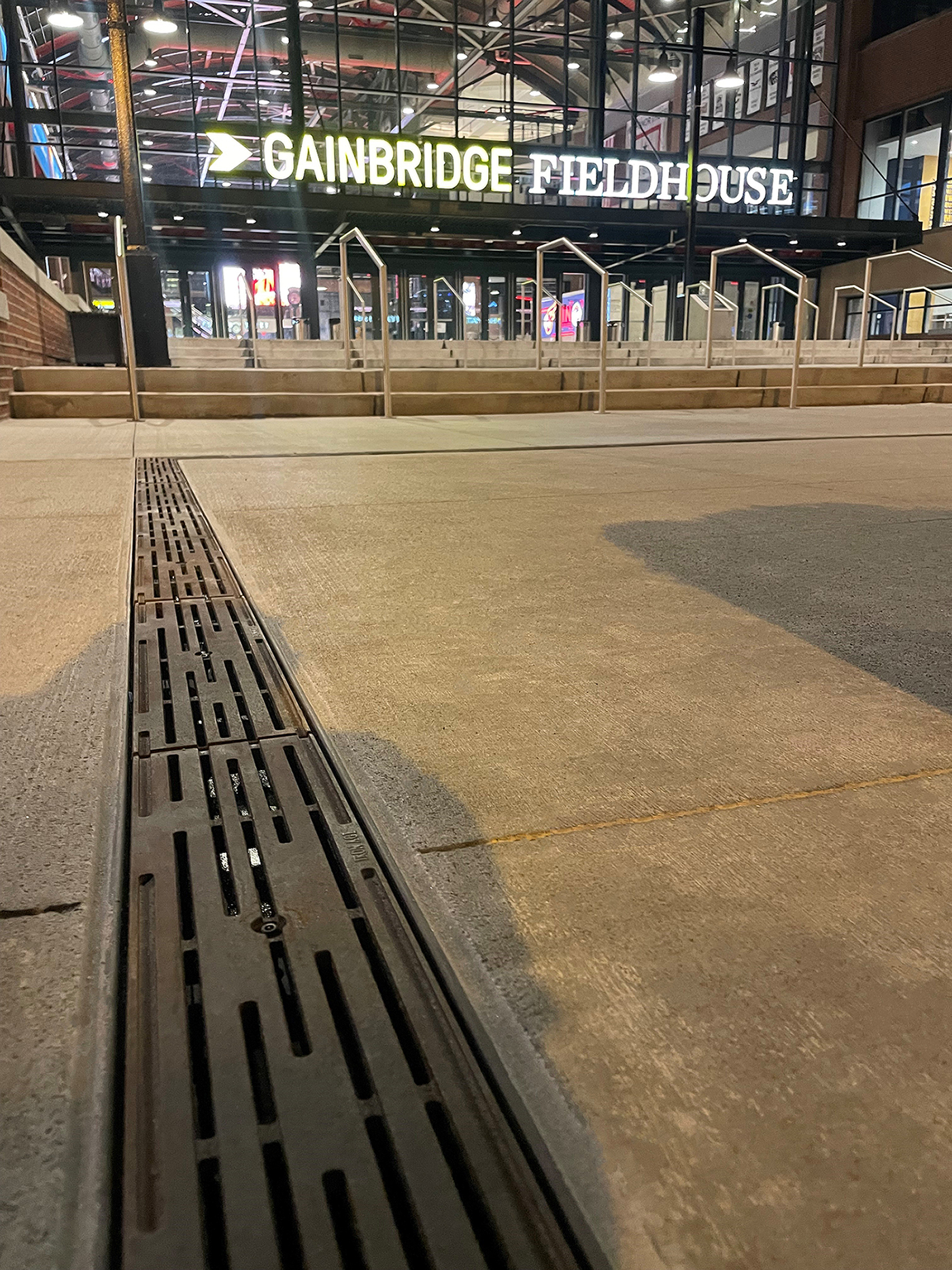

Rain 5″ x 20″ heel-proof trench grates, cast iron with baked-on-oil finish. ARCHITECTURE: Populous. LANDSCAPE ARCHITECTURE: Shrewsberry & Associates . PROJECT: Gainbridge Fieldhouse Expansion. LOCATION: Indianapolis, IN.

Download photo

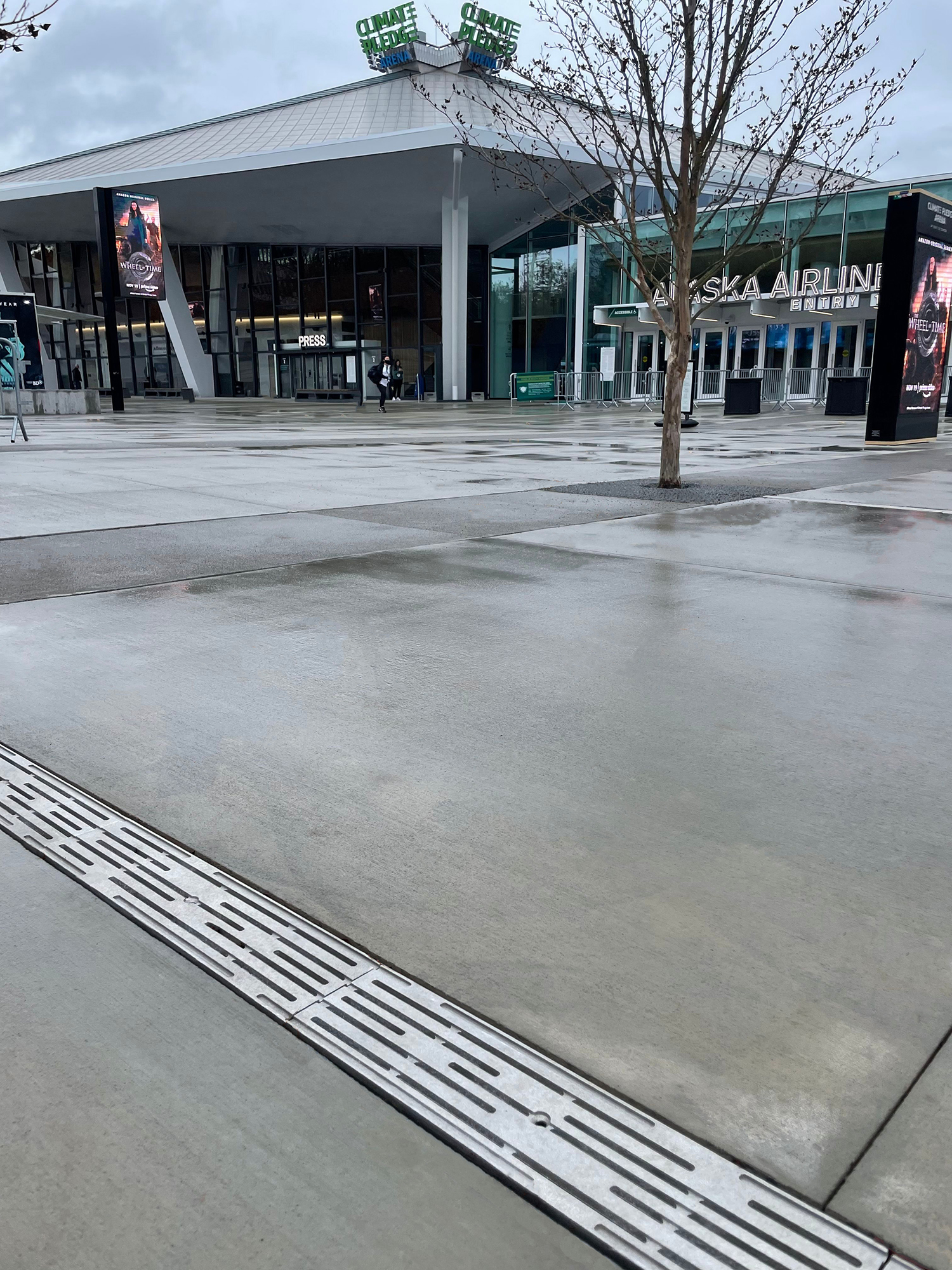

Cast aluminum decorative trench grate installed in entry plaza to Climate Pledge Arena

Rain 5″ x 20″ heel-proof trench grate, raw cast aluminum. DESIGN: Swift Company. PROJECT: Climate Pledge Arena. LOCATION: Seattle, WA.

Download photo

Rain 5″ x 20″ heel-proof trench grate, raw cast aluminum. DESIGN: Swift Company. PROJECT: Climate Pledge Arena. LOCATION: Seattle, WA.

Download photo

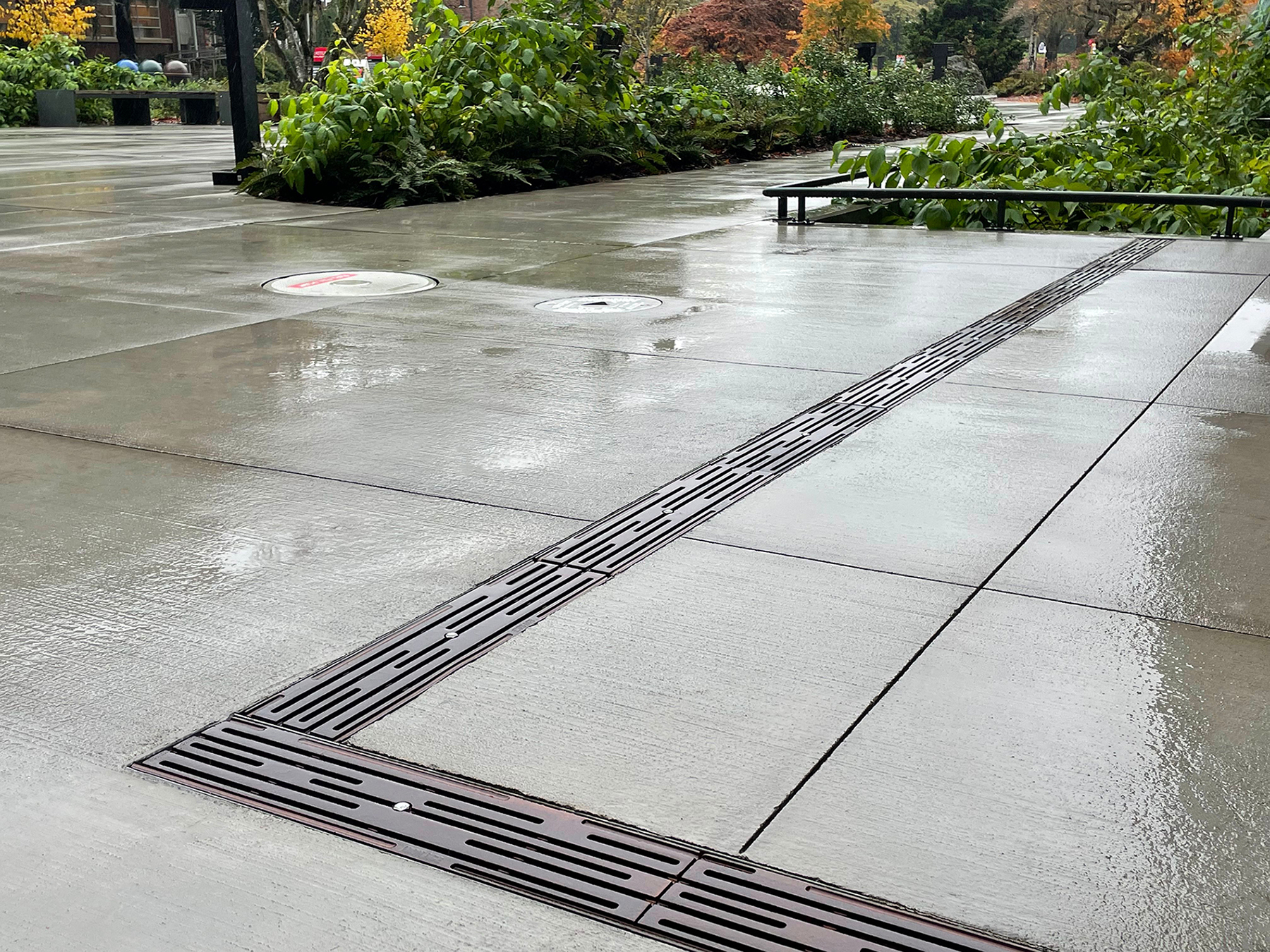

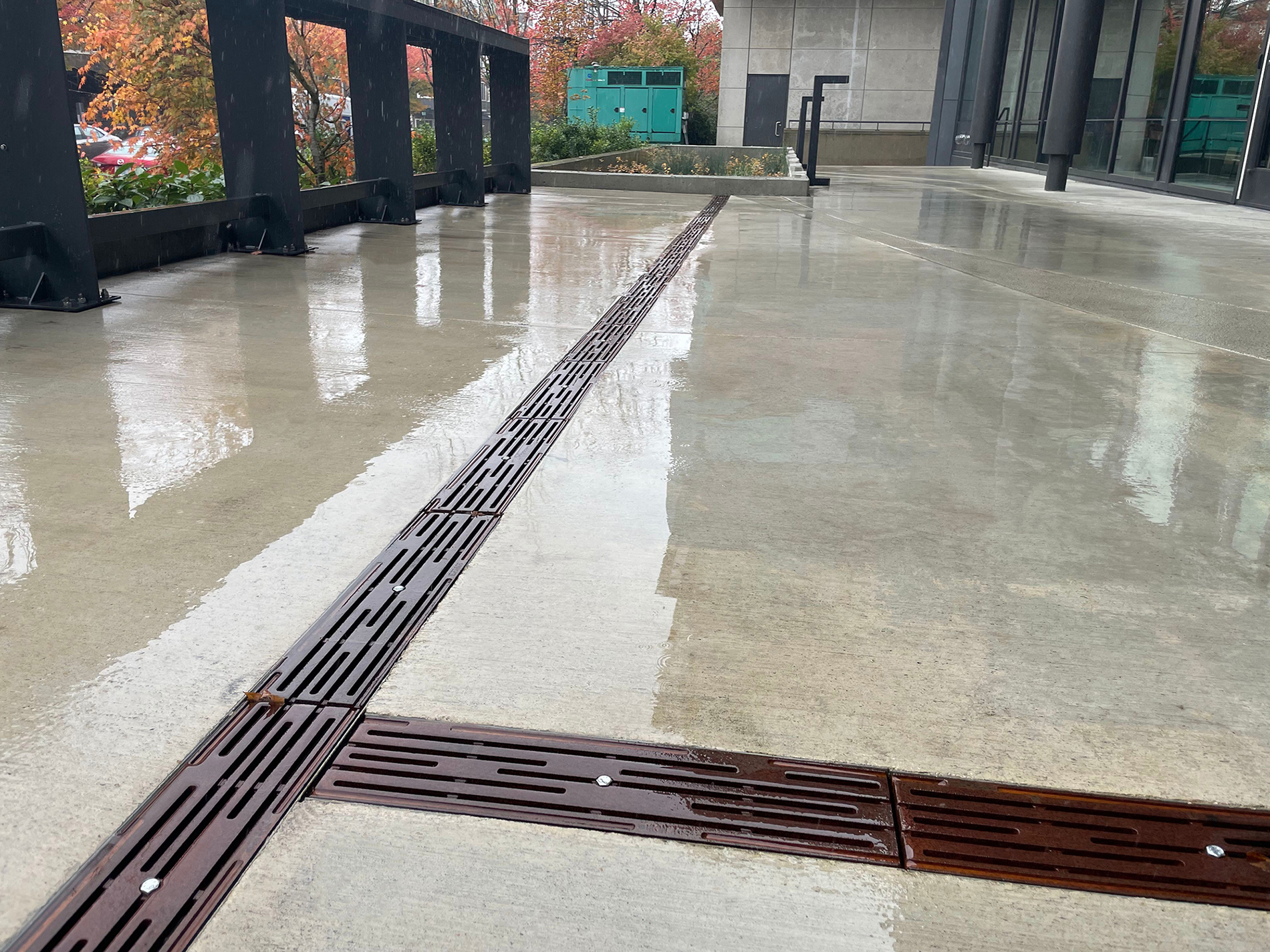

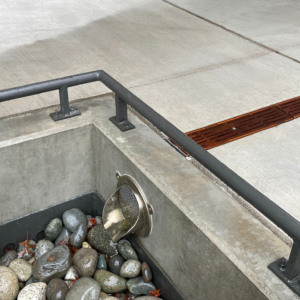

Decorative cast iron trench grate in Rain pattern

Rain 5″ x 20″ heel-proof trench grates, raw cast iron. DESIGN: Mithun. PROJECT: Seattle University Sinegal Center for Science and Innovation. LOCATION: Seattle, WA.

Download photo

Rain 5″ x 20″ heel-proof trench grates, raw cast iron. DESIGN: Mithun. PROJECT: Seattle University Sinegal Center for Science and Innovation. LOCATION: Seattle, WA.

Download photo

Rain 5″ x 20″ heel-proof trench grates, raw cast iron. DESIGN: Mithun. PROJECT: Seattle University Sinegal Center for Science and Innovation. LOCATION: Seattle, WA.

Download photo

Rain 5″ x 20″ heel-proof trench grates, raw cast iron. DESIGN: Mithun. PROJECT: Seattle University Sinegal Center for Science and Innovation. LOCATION: Seattle, WA.

Download photo

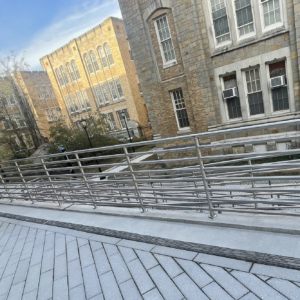

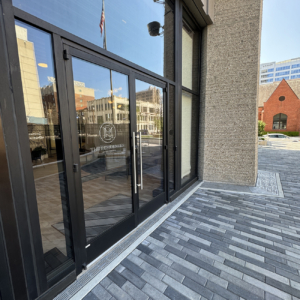

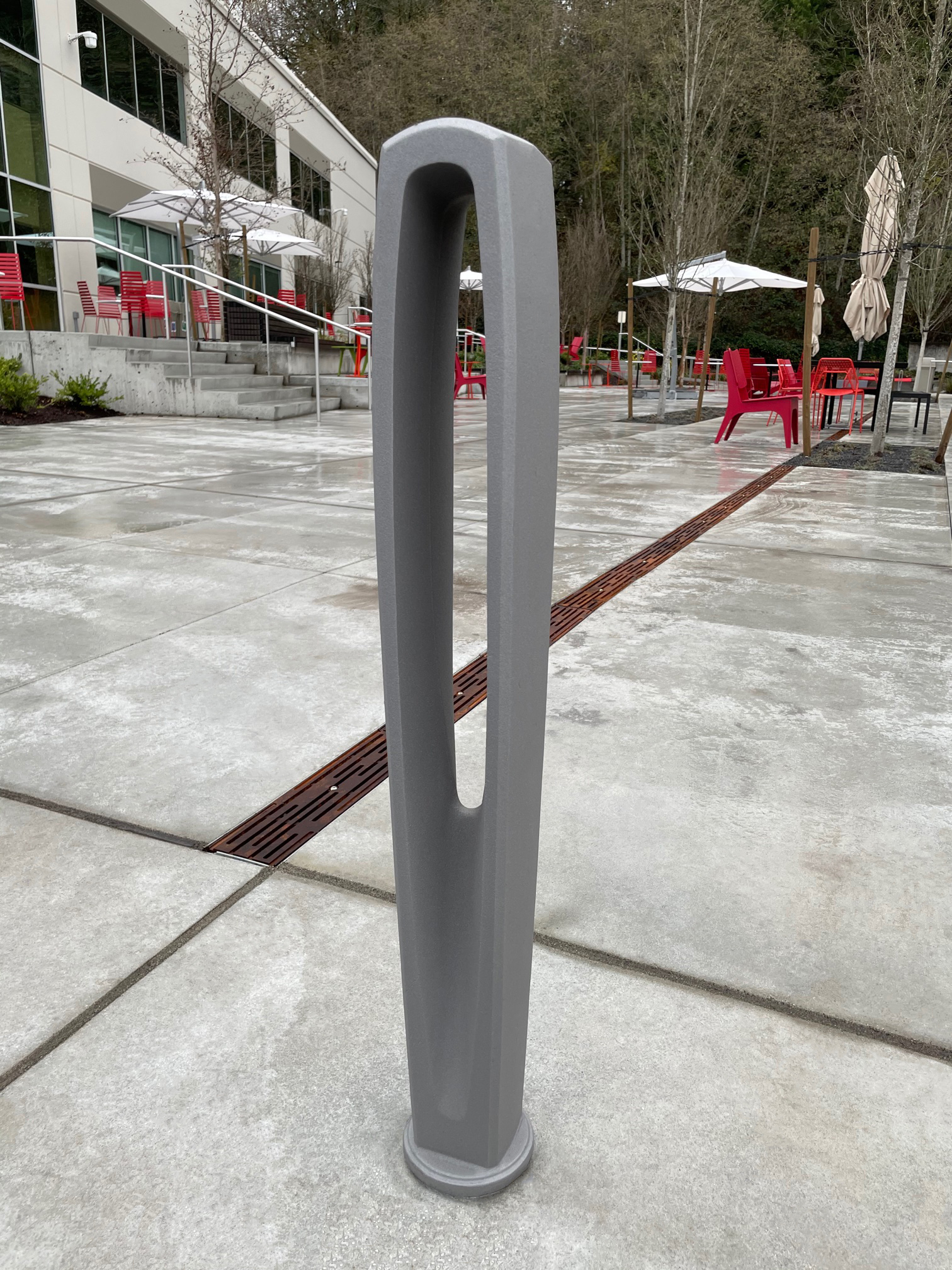

Rain 5″ x 20″ heel-proof trench grates, cast iron with baked-on oil finish. (Our Needle Bollard with removable “mousetrap” design in forefront of the picture.) DESIGN: Swift Company. INSTALLER: Lease Crutcher Lewis. PROJECT: Seagen Inc. LOCATION: Bothell, WA.

Download photo

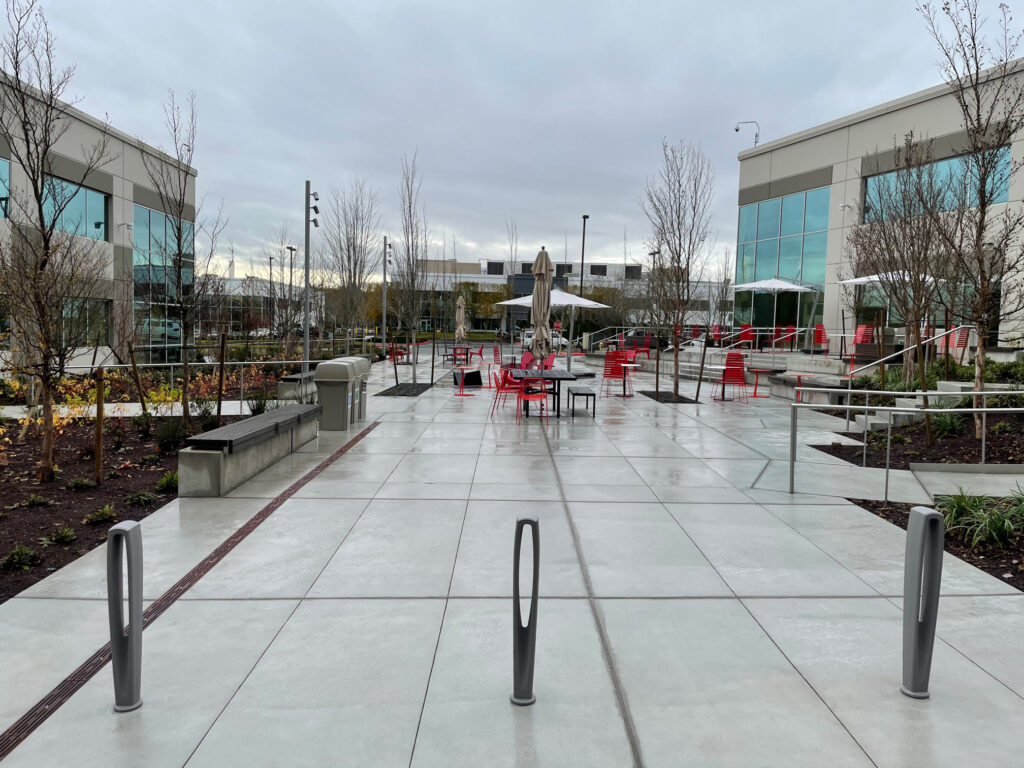

Rain 5″ x 20″ heel-proof trench grates, cast iron with baked-on oil finish. (Our Needle Bollard with removable “mousetrap” design in forefront of the picture.) DESIGN: Swift Company. INSTALLER: Lease Crutcher Lewis. PROJECT: Seagen Inc. LOCATION: Bothell, WA.

Download photo

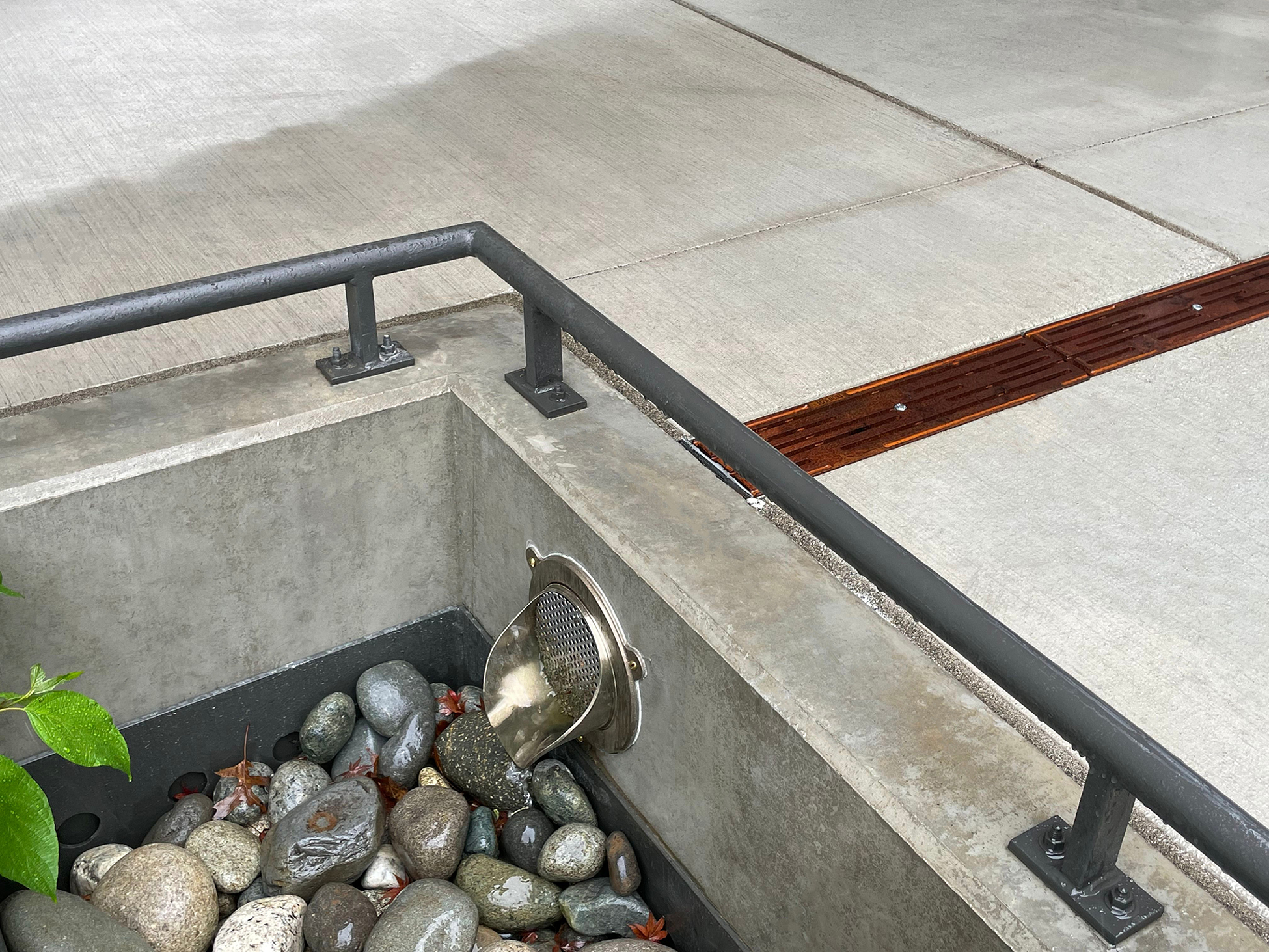

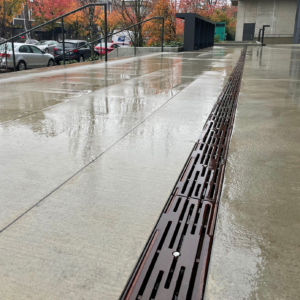

Rain 5″ x 20″ heel-proof trench grate, raw cast aluminum. DESIGN: Mahan Rykiel Associates. PROJECT: The Collection. LOCATION: Chevy Chase, MD.

Download photo

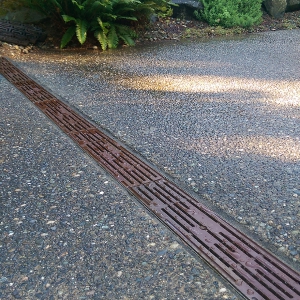

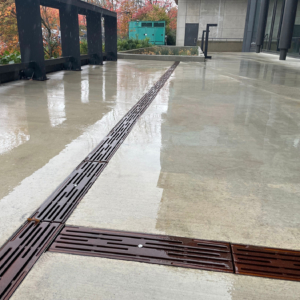

Rain 5″ x 20″ heel-proof trench grate, cast ductile iron with baked-on-oil finish. DESIGN: PFS Studio PROJECT: Redmond Downtown Park LOCATION: Redmond, WA.

Download photo

Rain 5″ x 20″ heel-proof trench grate, cast ductile iron with baked-on-oil finish. DESIGN: PFS Studio PROJECT: Redmond Downtown Park LOCATION: Redmond, WA.

Download photo

Rain 5″ x 20″ heel-proof trench grate, cast ductile iron with baked-on-oil finish. LOCATION: Seattle, WA.

Download photo

Rain 5″ x 20″ heel-proof trench grate, cast ductile iron with baked-on-oil finish. LOCATION: Seattle, WA.

Download photo

Rain 5″ x 20″ heel-proof trench grate, cast ductile iron with baked-on-oil finish. LOCATION: Seattle, WA.

Download photo

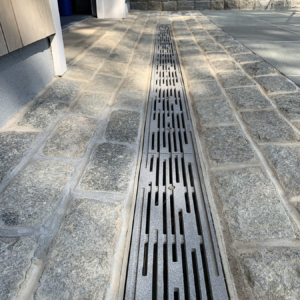

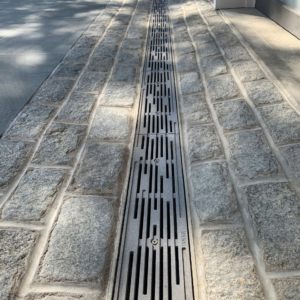

Raw cast aluminum trench grate in decorative Rain pattern from Iron Age Designs. Residential driveway installation.

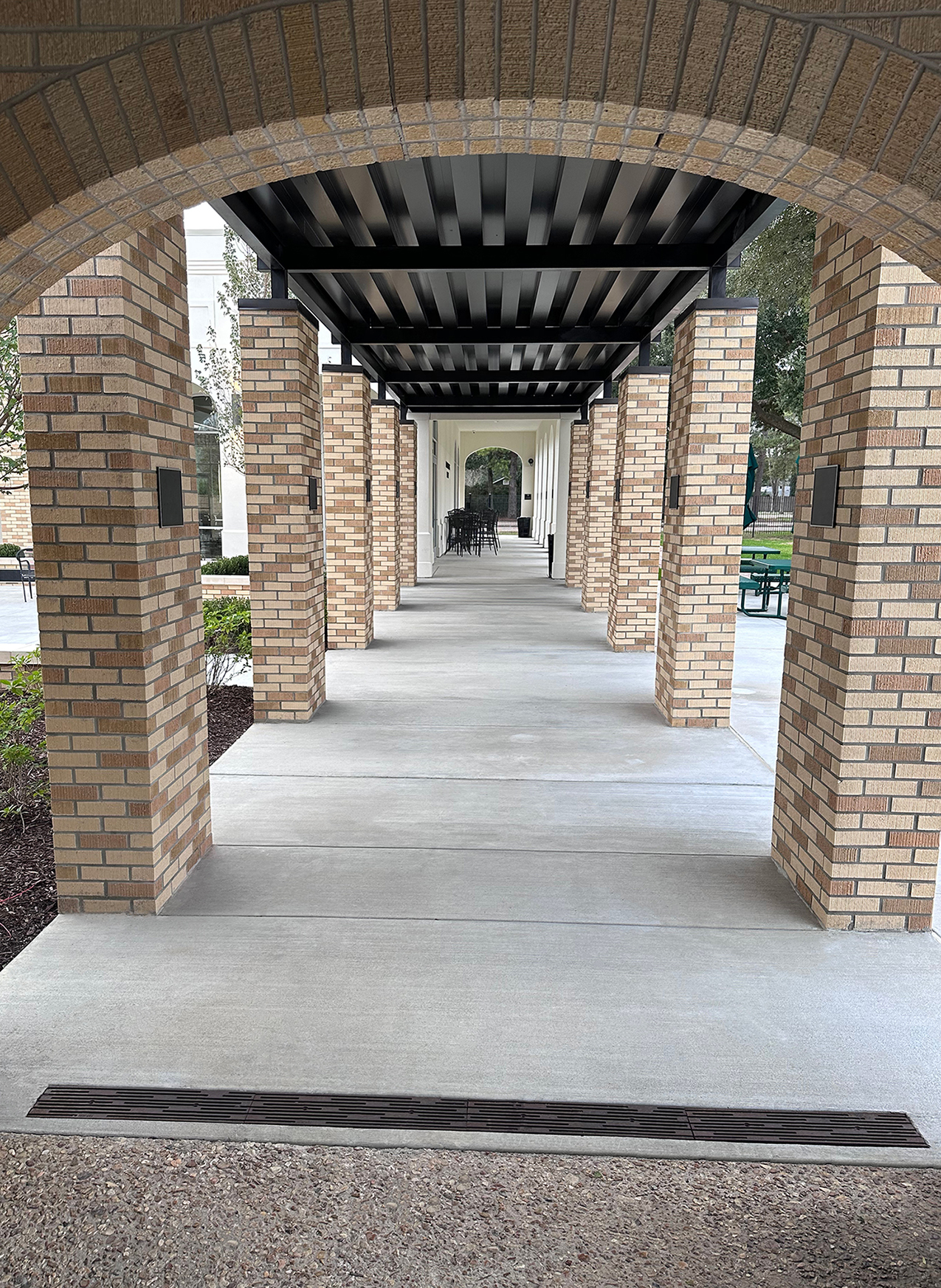

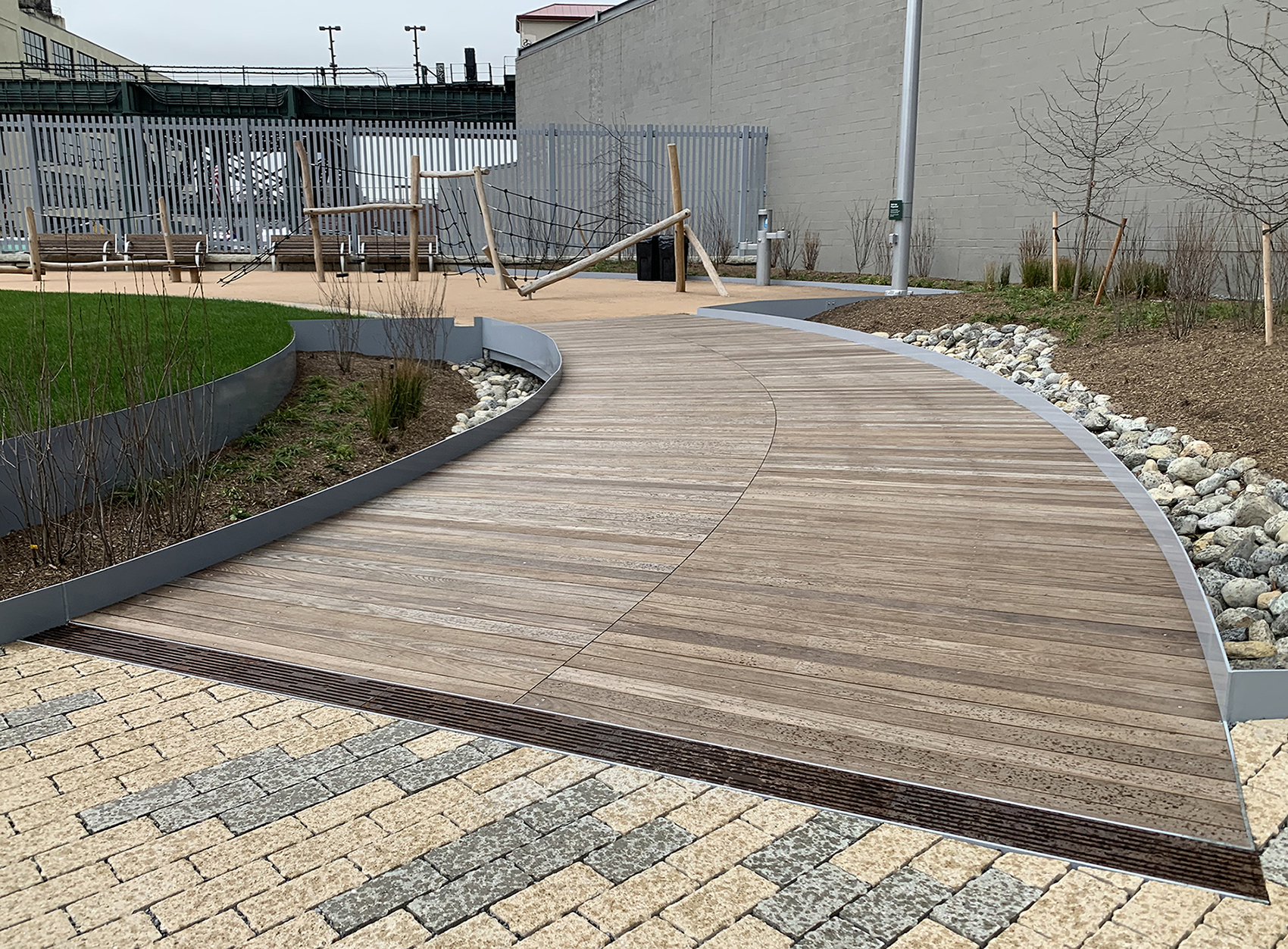

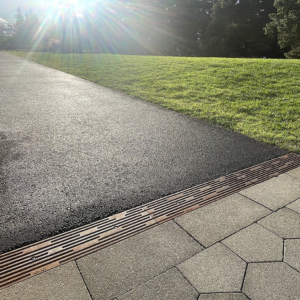

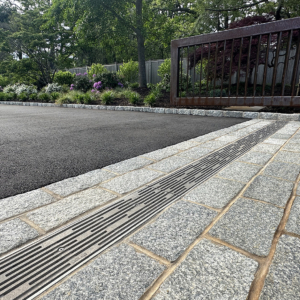

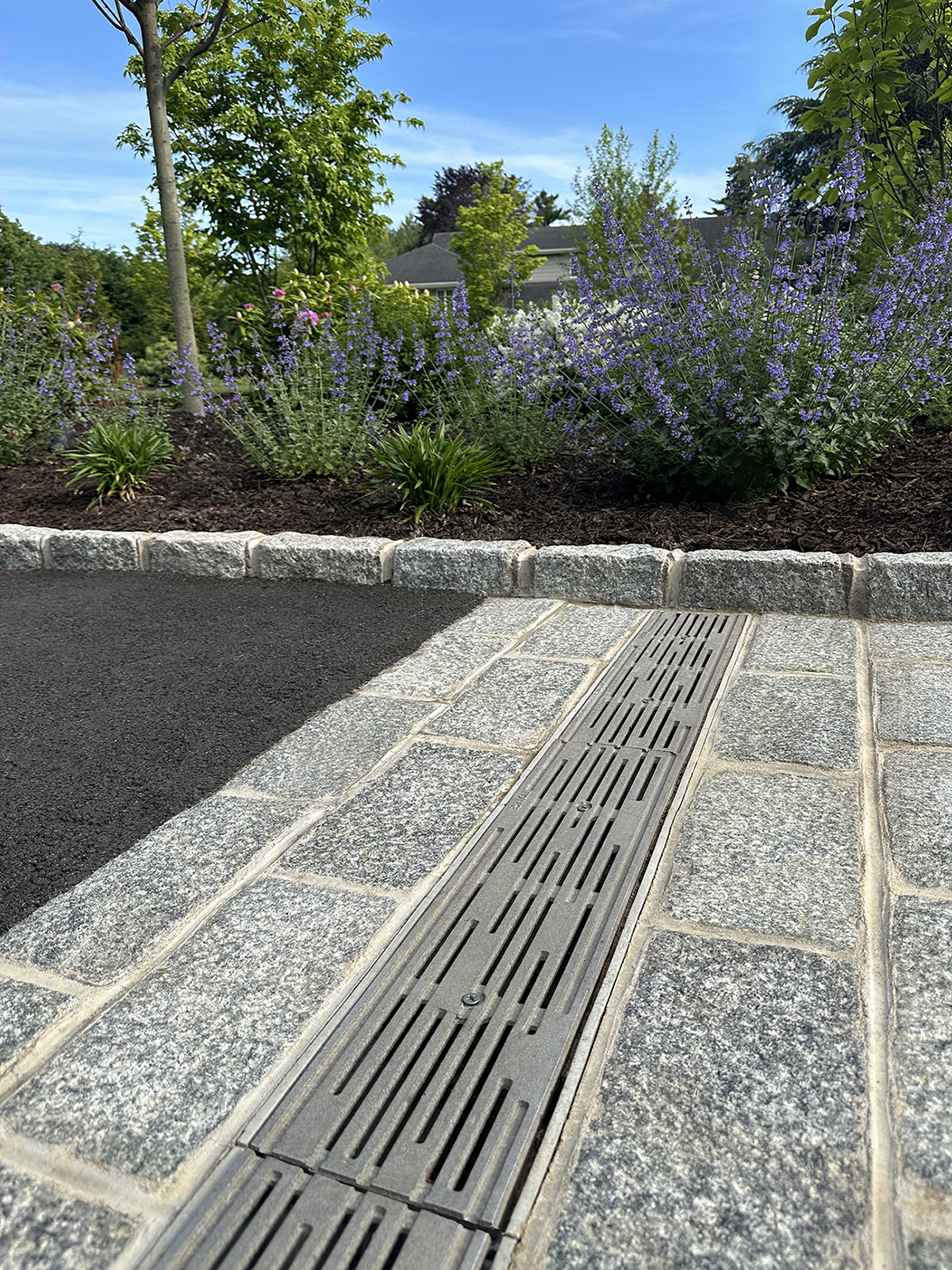

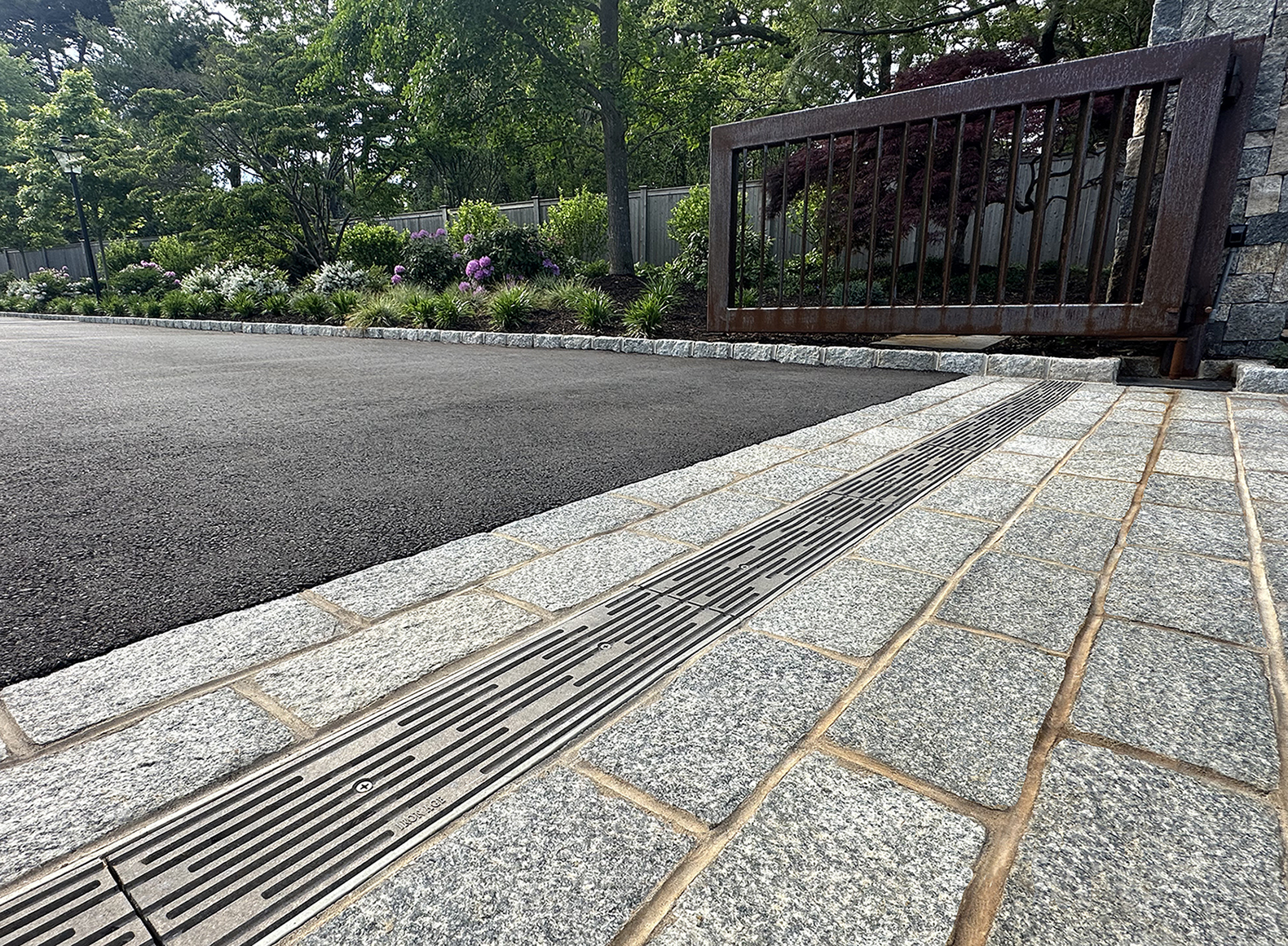

Rain 6″ x 24″ heel-proof trench grate, raw cast aluminum 356, heat-treated to T6. DESIGN: Louis Fusco Landscape Architects. INSTALLATION: Monarc Creative Group. PROJECT: Residential driveway. LOCATION: Hewlett Harbor, NY.

Download photo

Rain 6″ x 24″ heel-proof trench grate, raw cast aluminum 356, heat-treated to T6. DESIGN: Louis Fusco Landscape Architects. INSTALLATION: Monarc Creative Group. PROJECT: Residential driveway. LOCATION: Hewlett Harbor, NY.

Download photo

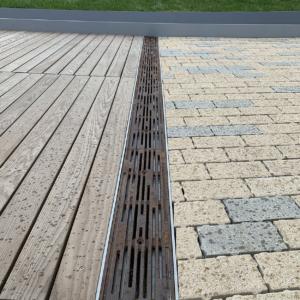

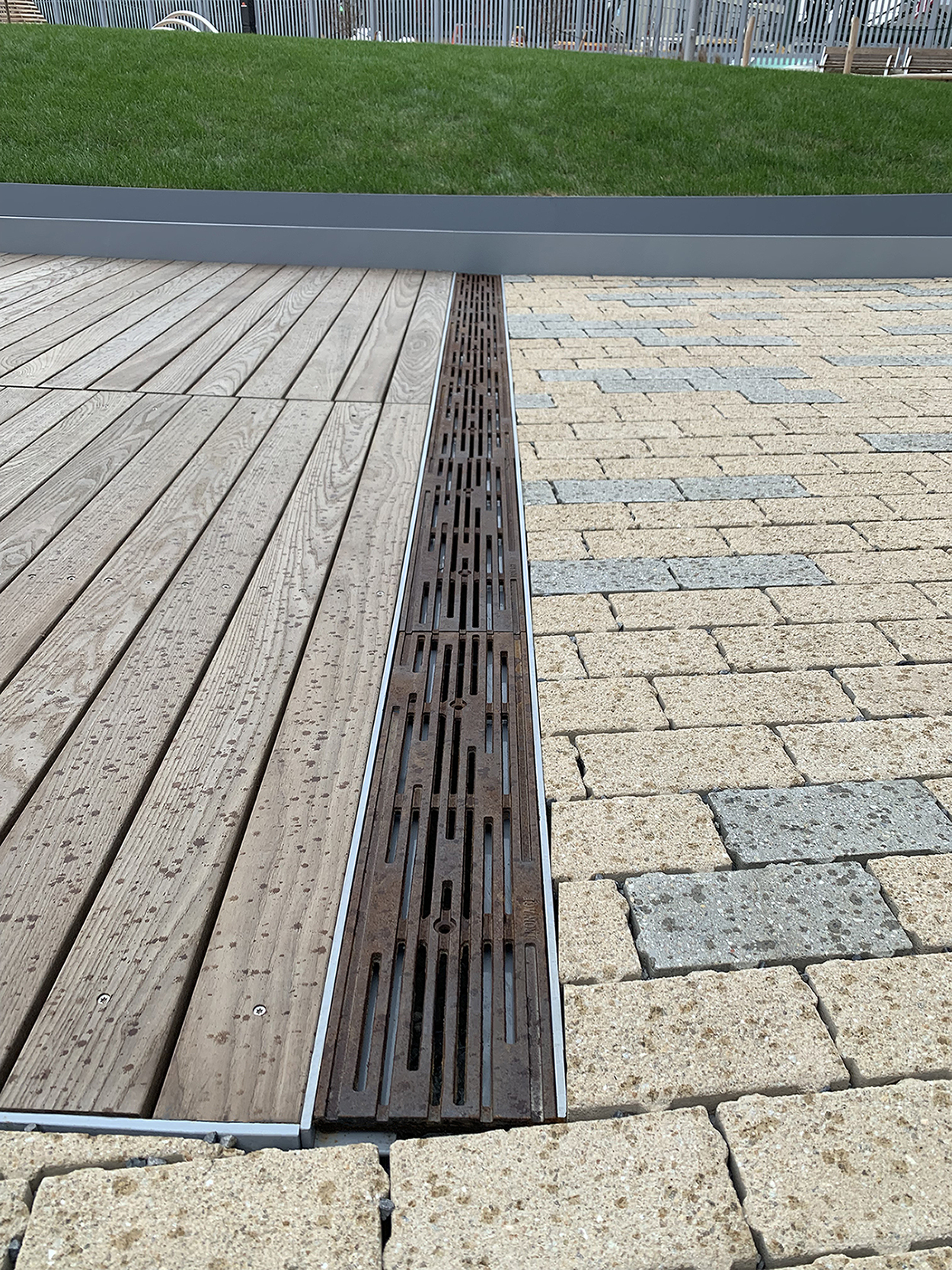

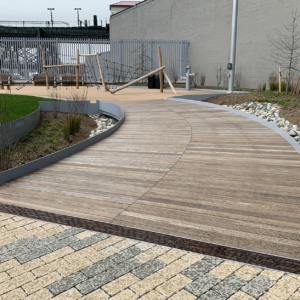

Cast iron trench drain grates with decorative Rain pattern, installed between wooden boardwalk on one side and blond/grey pavers on the other side.

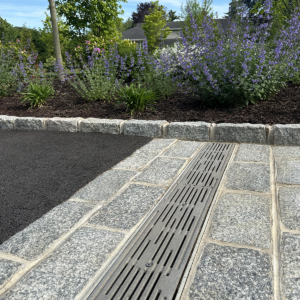

Rain 6″ x 24″ heel-proof trench grates, cast iron with baked-on-oil finish. DESIGN: Starr Whitehouse. INSTALLER: Let It Grow. PROJECT: Queens Plaza Park. LOCATION: Queens, NY.

Download photo

Rain 6″ x 24″ heel-proof trench grates, cast iron with baked-on-oil finish. DESIGN: Starr Whitehouse. INSTALLER: Let It Grow. PROJECT: Queens Plaza Park. LOCATION: Queens, NY.

Download photo

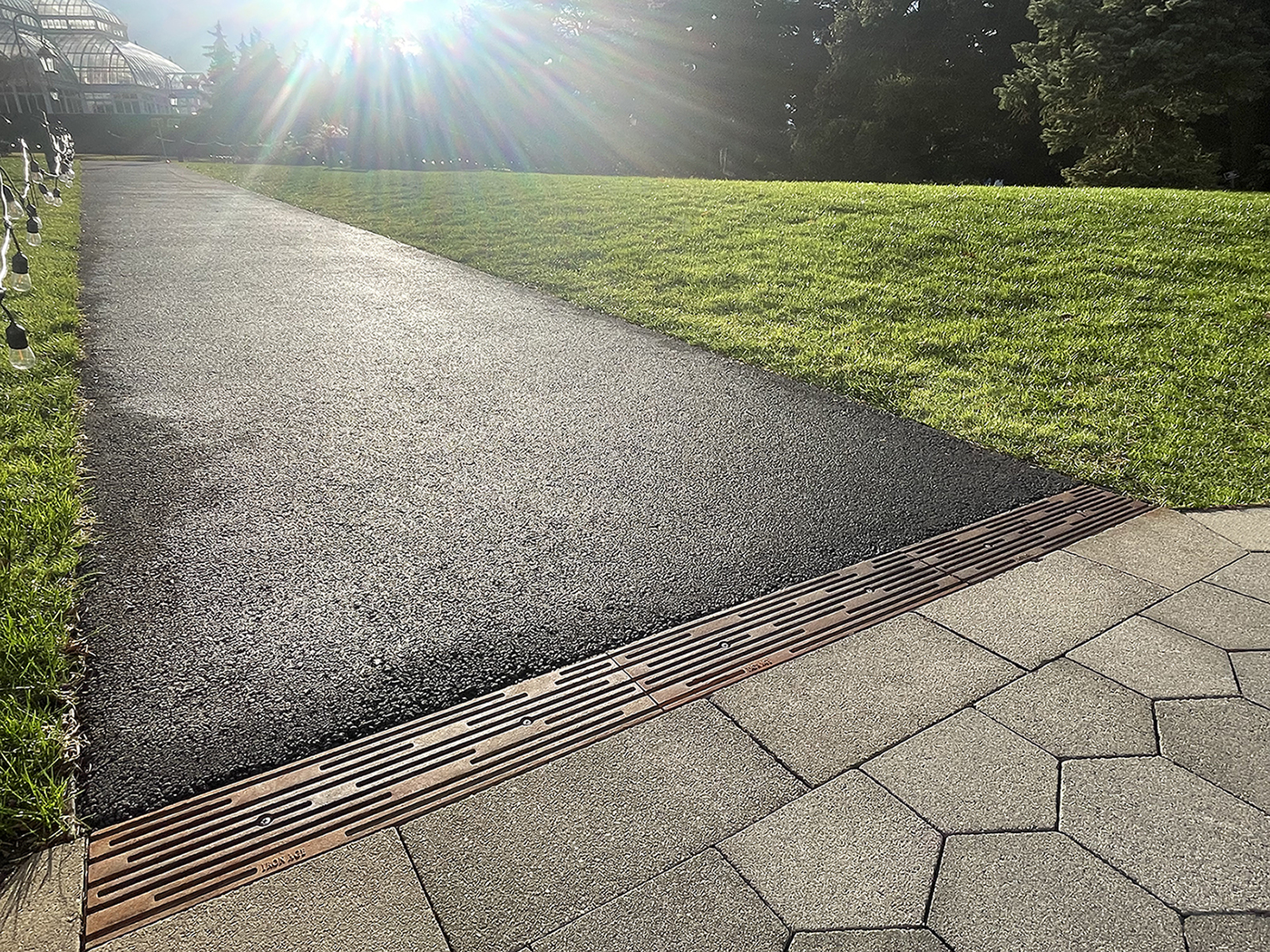

Cast iron trench drain grates with decorative Rain pattern, installed between asphalt walkway and grass on one side and hexagonal pavers on the other side.

Rain 6″ x 24″ heel-proof trench grates, cast iron with baked-on-oil finish. PROJECT: New York Botanical Garden. LOCATION: Bronx, NY.

Download photo

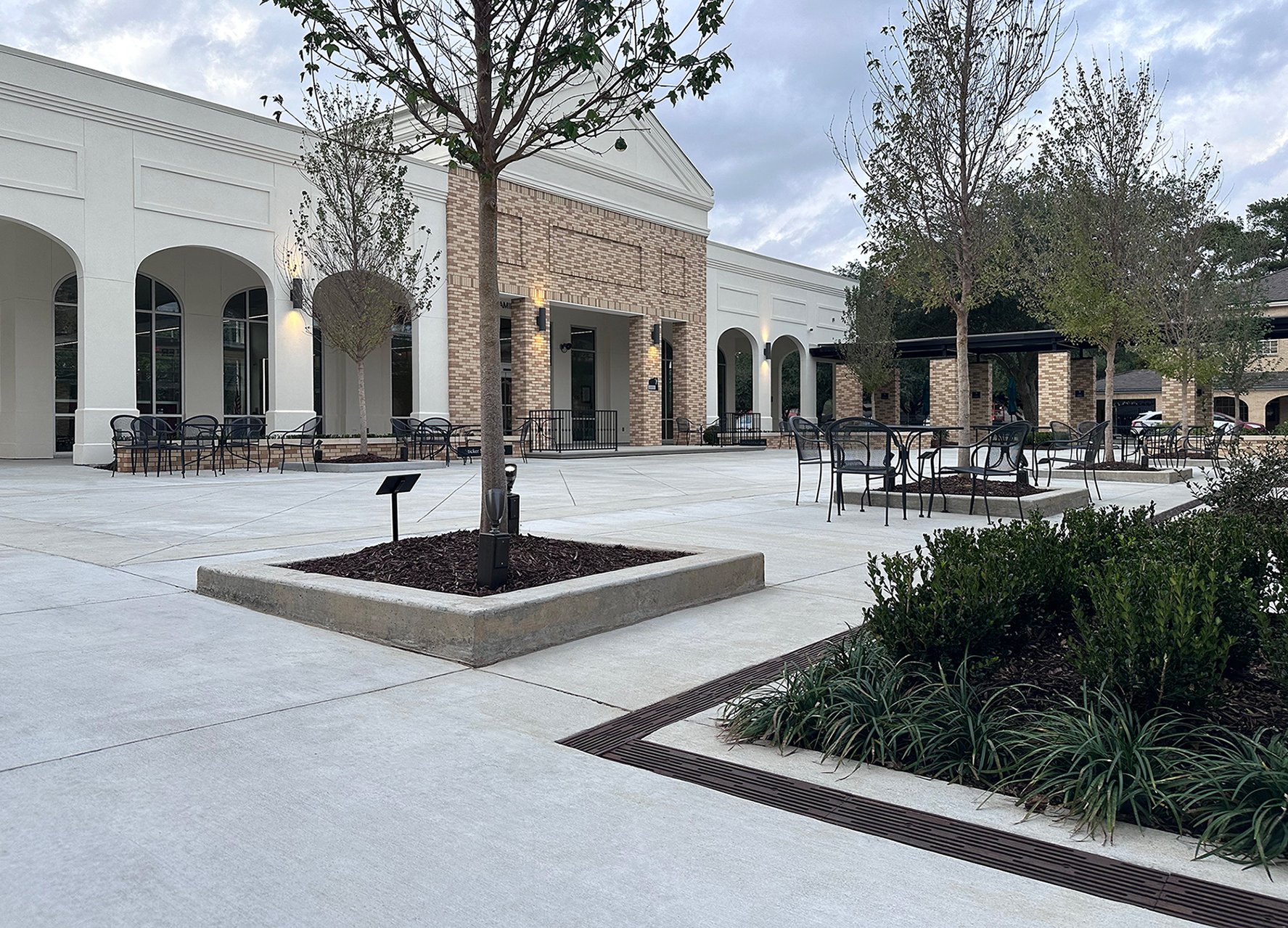

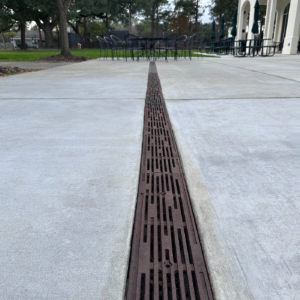

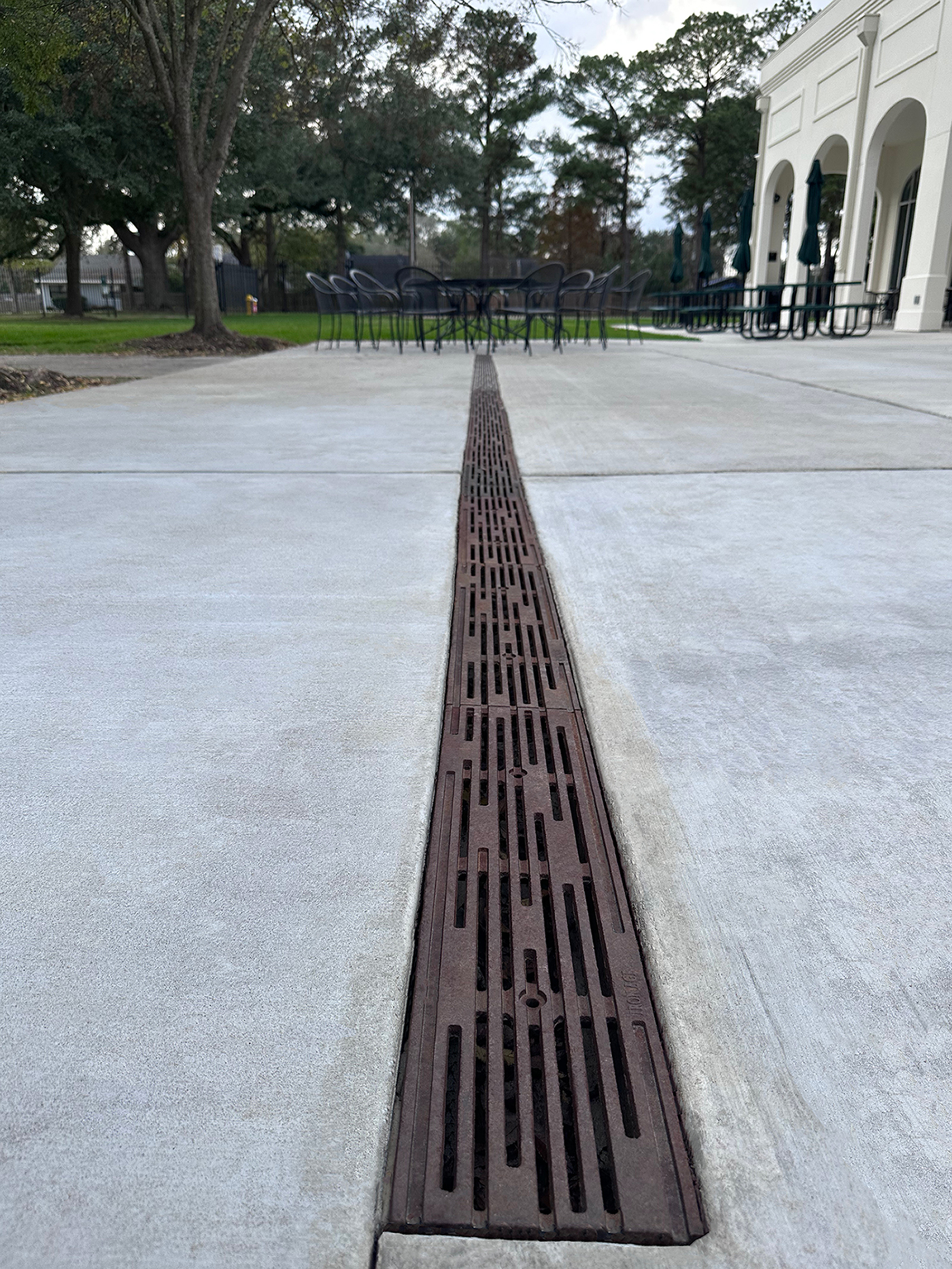

Rain 6″ x 24″ heel-proof trench grate, raw cast ductile iron. DESIGN: McKnight Landscape Architects. INSTALLER: Arkel Constructors.

Download photo

Rain 6″ x 24″ heel-proof trench grate, raw cast ductile iron. DESIGN: McKnight Landscape Architects. INSTALLER: Arkel Constructors.

Download photo

Rain 6″ x 24″ heel-proof trench grate, raw cast ductile iron. DESIGN: McKnight Landscape Architects. INSTALLER: Arkel Constructors.

Download photo

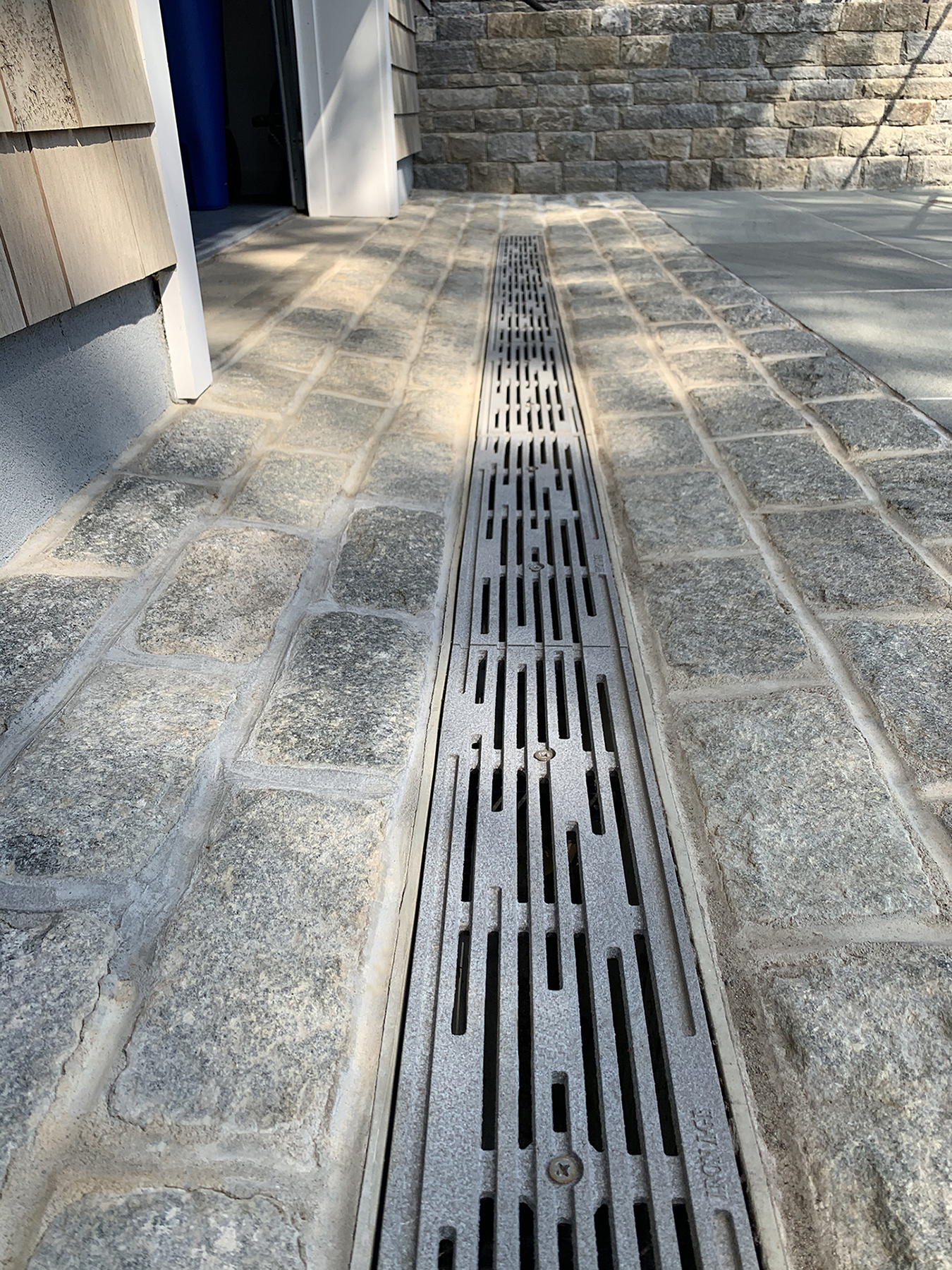

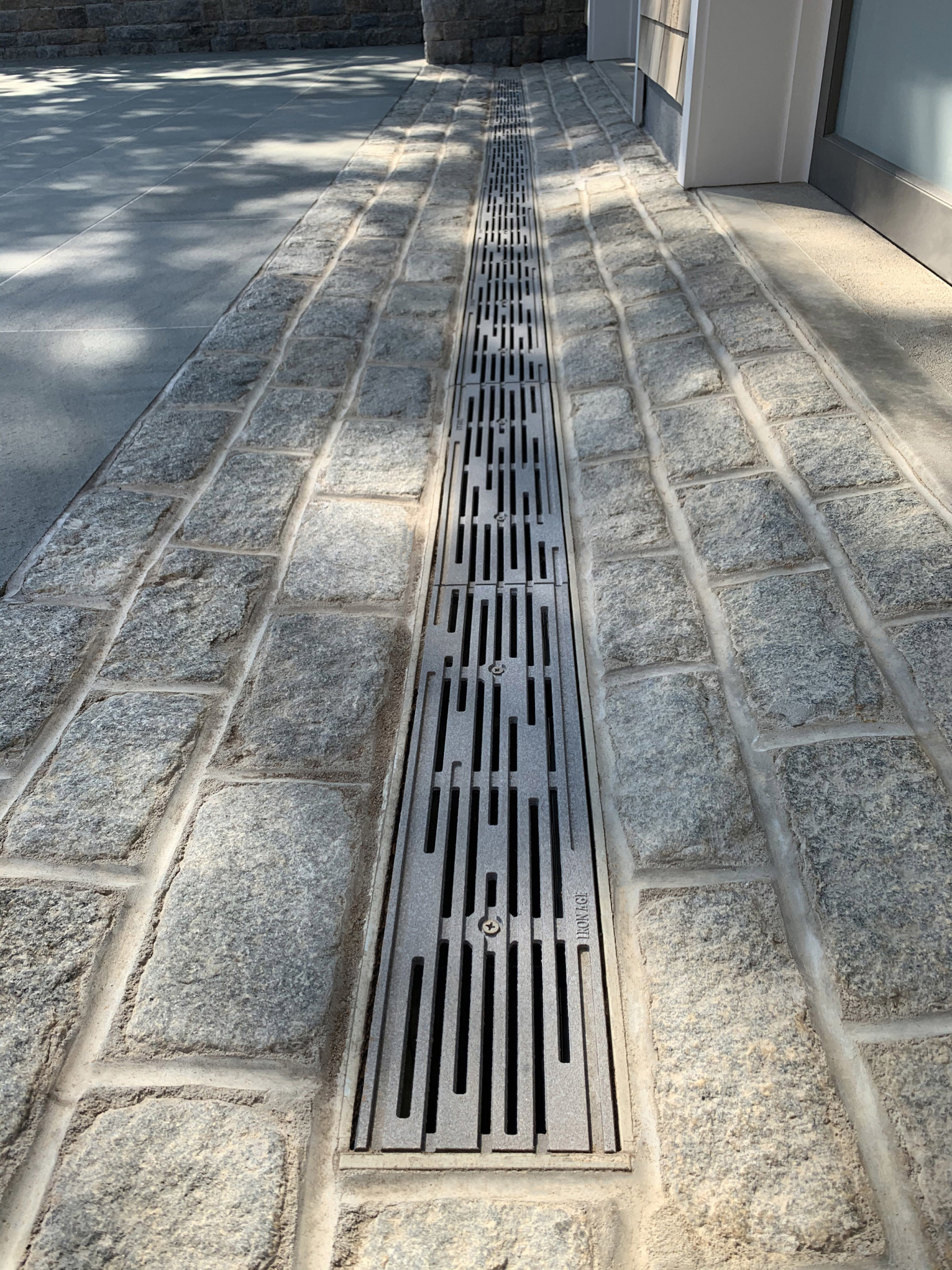

Rain 6″ x 24″ heel-proof trench grate, raw cast aluminum 356, heat-treated to T6. DESIGN: Marshall Paetzel Architects. PROJECT: Residence. LOCATION: Mattituck, NY.

Download photo

Rain 6″ x 24″ heel-proof trench grate, raw cast aluminum 356, heat-treated to T6. DESIGN: Marshall Paetzel Architects. PROJECT: Residence. LOCATION: Mattituck, NY.

Download photo

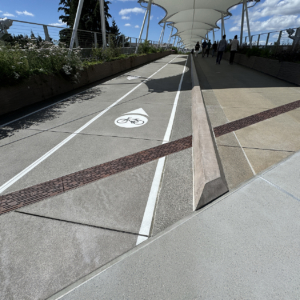

Raw cast iron trench grate in decorative Rain pattern from Iron Age Designs. Transit center installation.

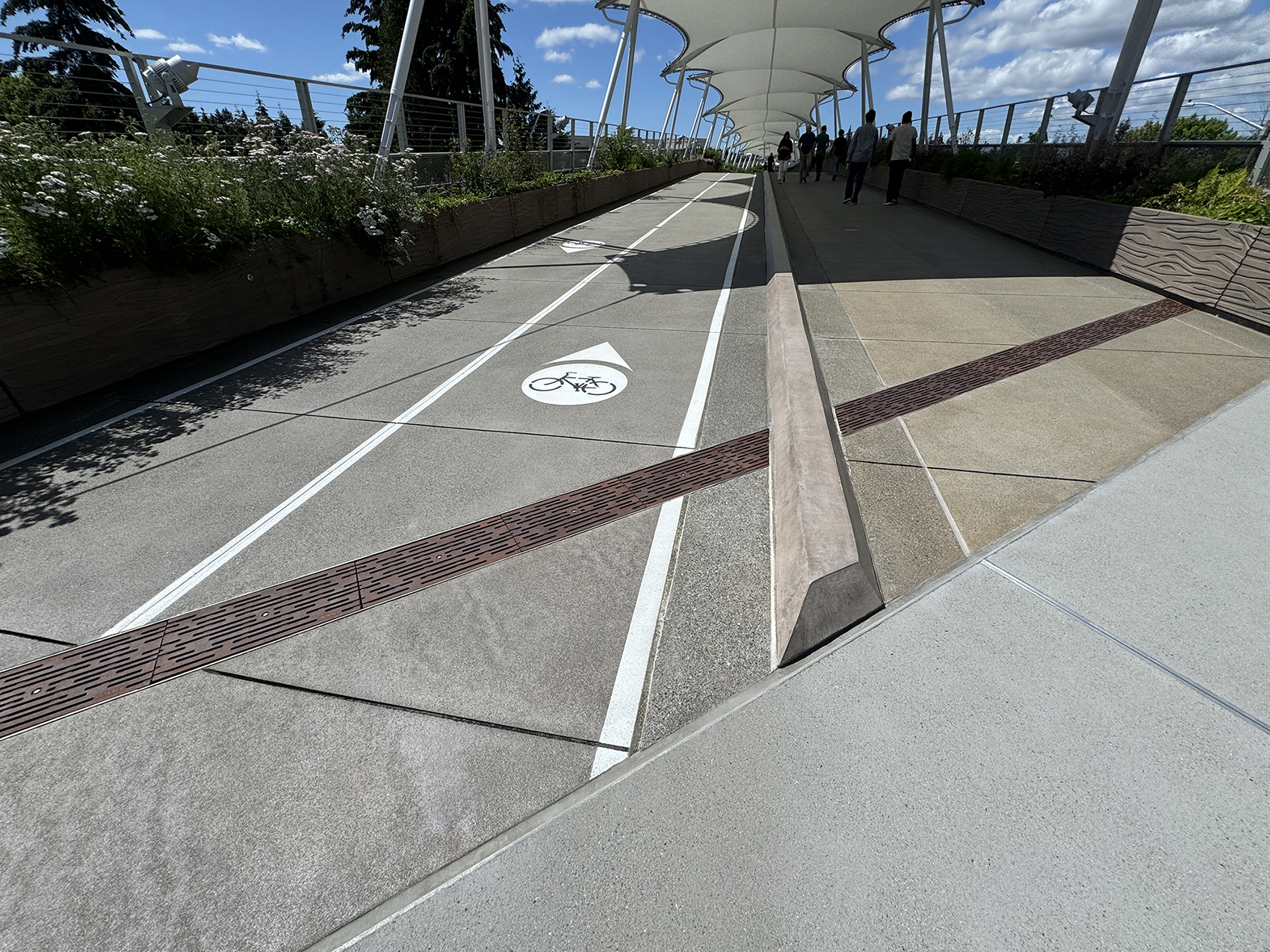

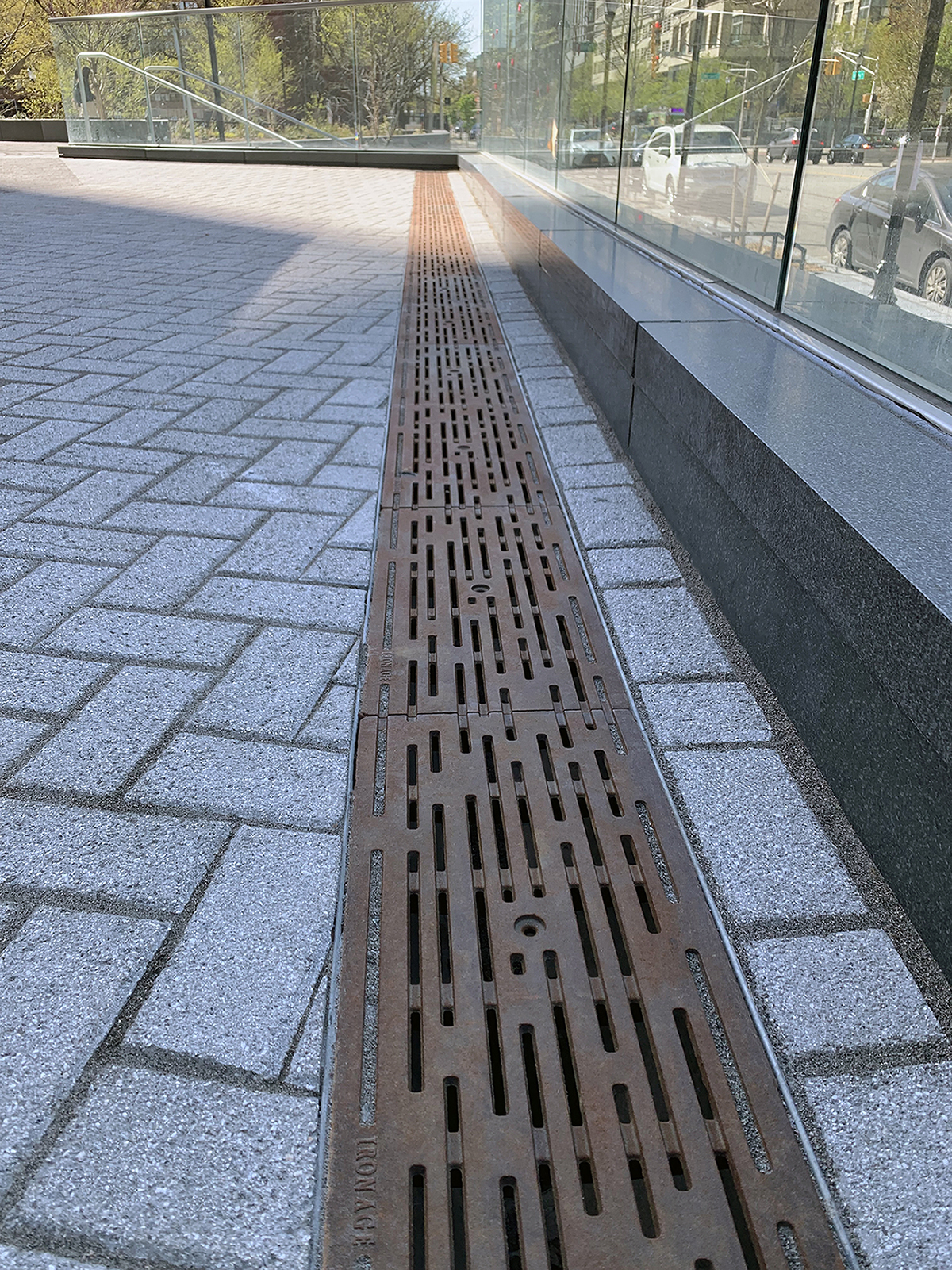

Rain 10″ x 20″ heel-proof, heavy-duty trench grate, raw cast ductile iron. DESIGN: AECOM. ENGINEERING: Kiewit . PROJECT: Redmond Technology Station Bridge – Sound Transit, City of Redmond. LOCATION: Redmond, WA.

Download photo

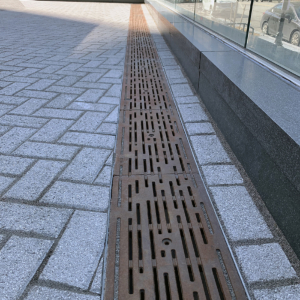

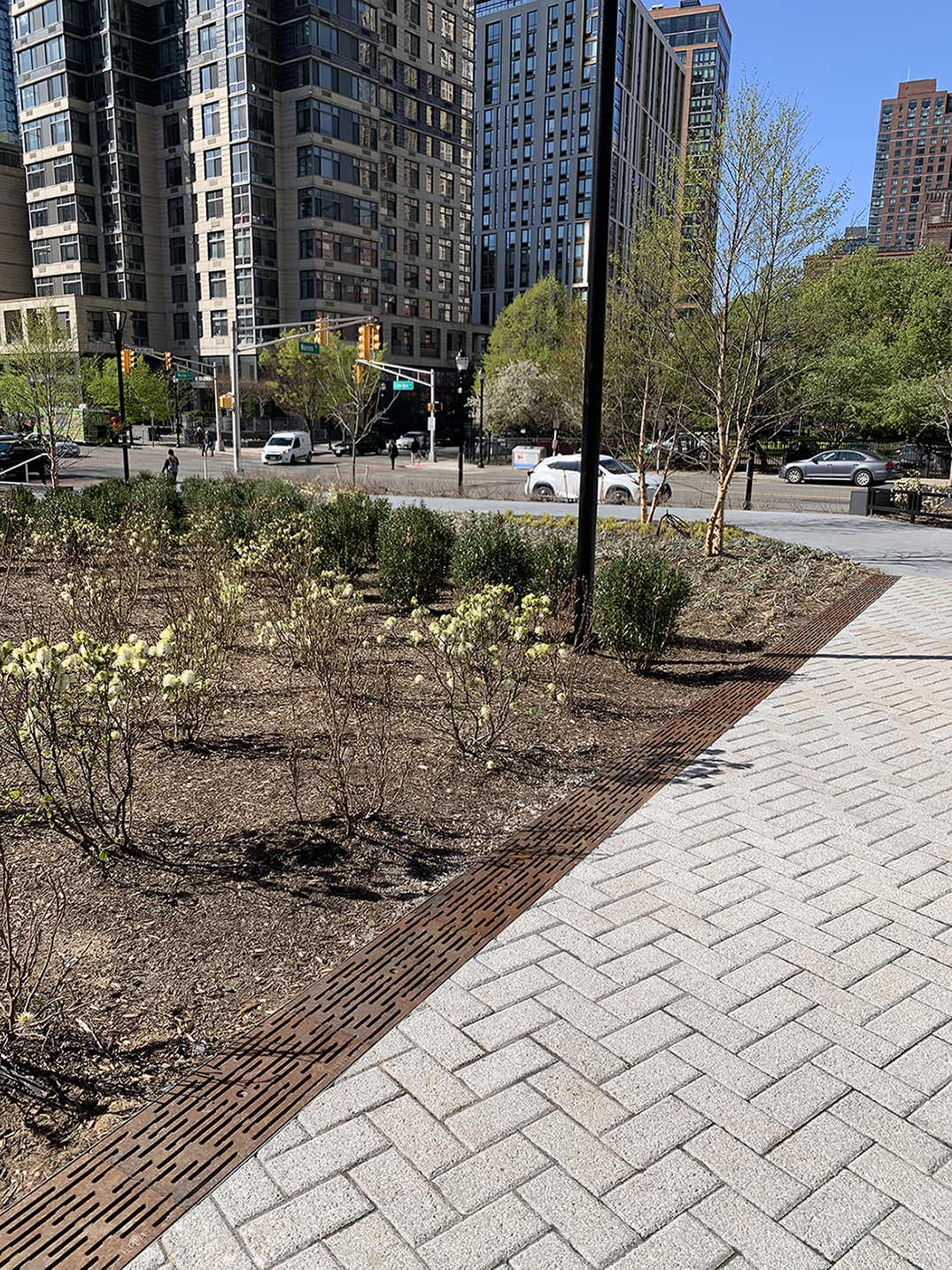

Rain 10″ x 20″ heel-proof, heavy-duty trench grate, cast iron with baked-on-oil finish. DESIGN: Melillo • Bauer • Carman Landscape Architecture. CONTRACTOR: Twin Resources. PROJECT: Haus25. LOCATION: 25 Christopher Columbus Drive, Jersey City, NJ.

Download photo

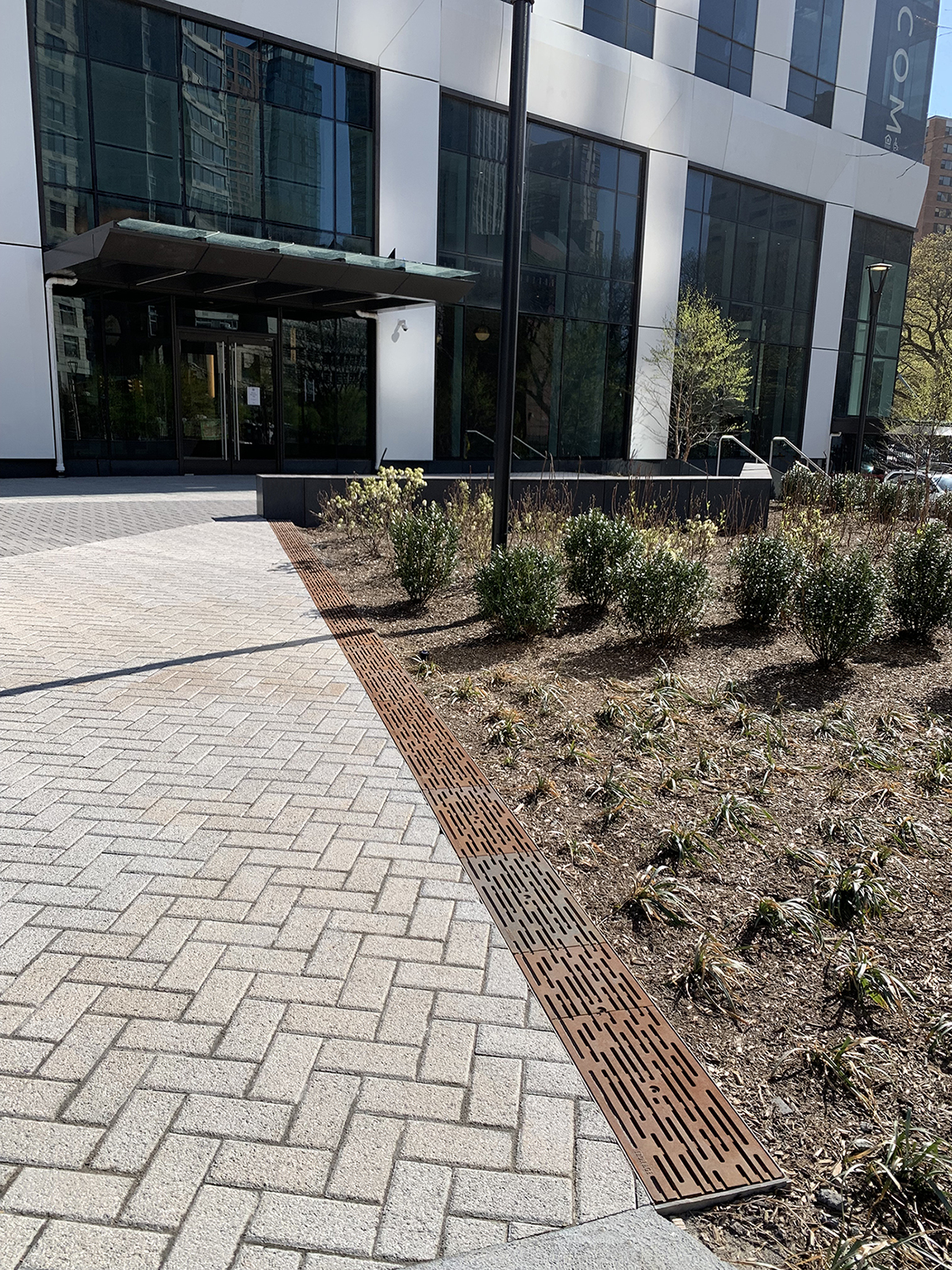

Rain 10″ x 20″ heel-proof, heavy-duty trench grate, cast iron with baked-on-oil finish. DESIGN: Melillo • Bauer • Carman Landscape Architecture. CONTRACTOR: Twin Resources. PROJECT: Haus25. LOCATION: 25 Christopher Columbus Drive, Jersey City, NJ.

Download photo

Rain 10″ x 20″ heel-proof, heavy-duty trench grate, cast iron with baked-on-oil finish. DESIGN: Melillo • Bauer • Carman Landscape Architecture. CONTRACTOR: Twin Resources. PROJECT: Haus25. LOCATION: 25 Christopher Columbus Drive, Jersey City, NJ.

Download photo

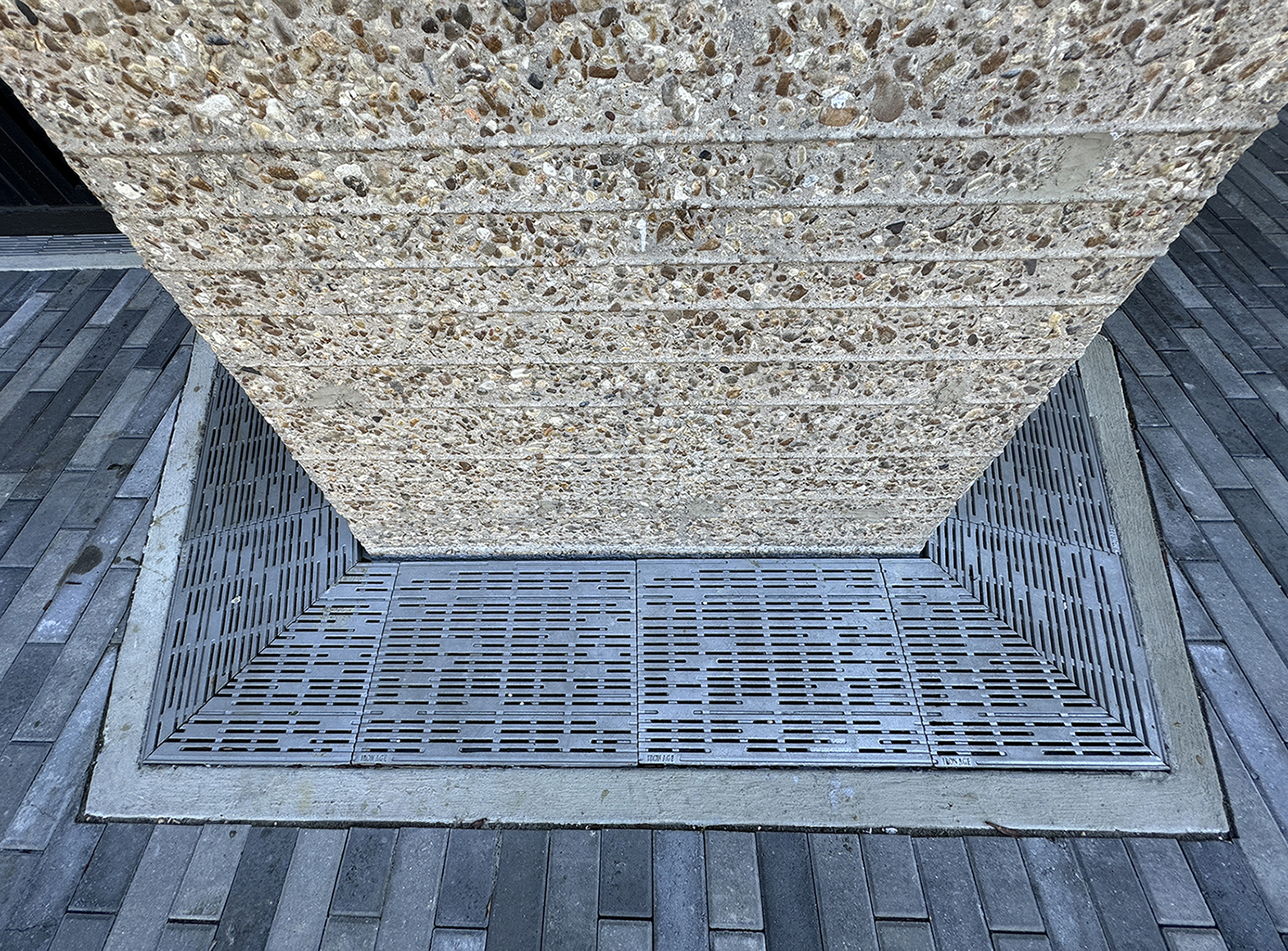

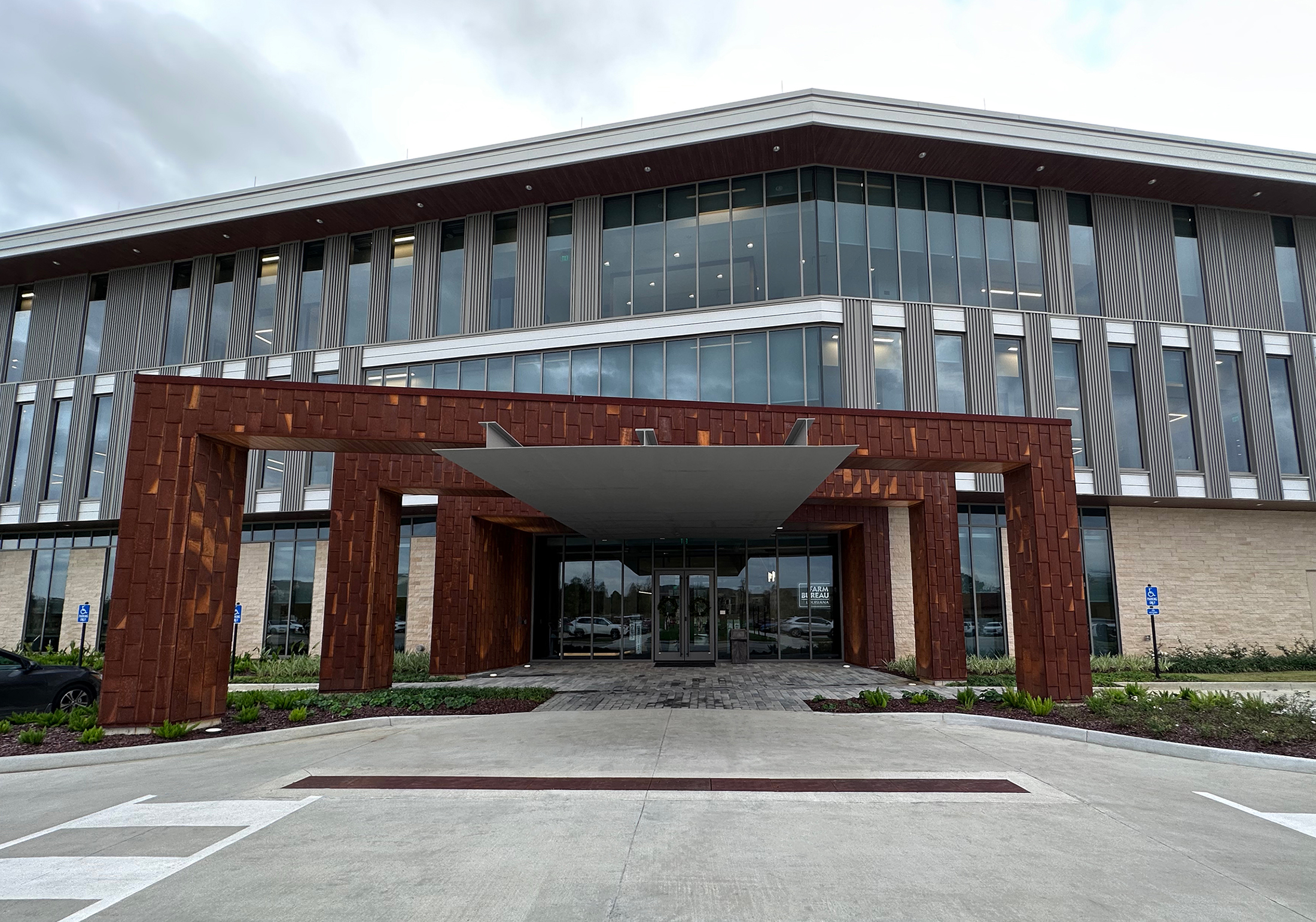

Rain 18″ x 24″ heel proof trench grate, raw cast ductile iron (newly installed, prior to start of oxidation process). DESIGN: Joseph Furr Design Studio. INSTALLATION: The Lemoine Company. PROJECT: Rivermark Center. LOCATION: Baton Rouge, LA.

Download photo

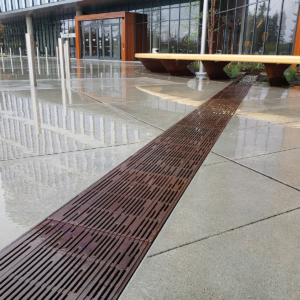

Rain 18″ x 24″ heel proof trench grate, raw cast ductile iron (newly installed, prior to start of oxidation process). DESIGN: Joseph Furr Design Studio. INSTALLATION: The Lemoine Company. PROJECT: Rivermark Center. LOCATION: Baton Rouge, LA.

Download photo

Rain 18″ x 24″ heel proof trench grate, raw cast ductile iron (newly installed, prior to start of oxidation process). DESIGN: Joseph Furr Design Studio. INSTALLATION: The Lemoine Company. PROJECT: Rivermark Center. LOCATION: Baton Rouge, LA.

Download photo

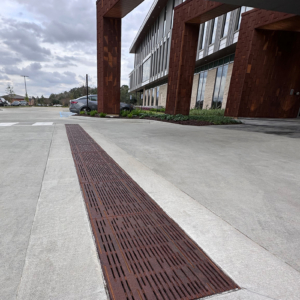

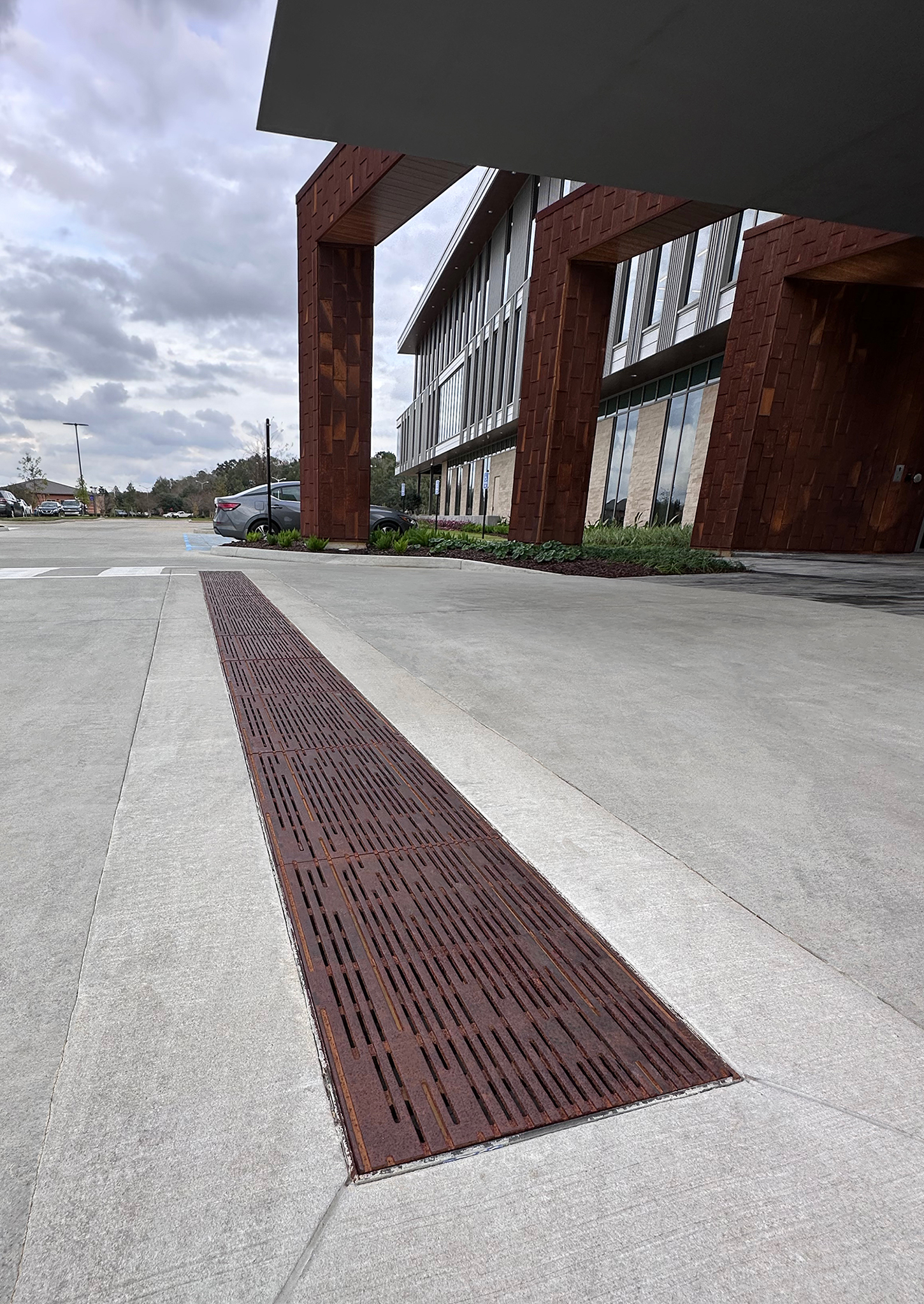

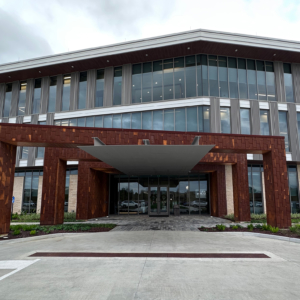

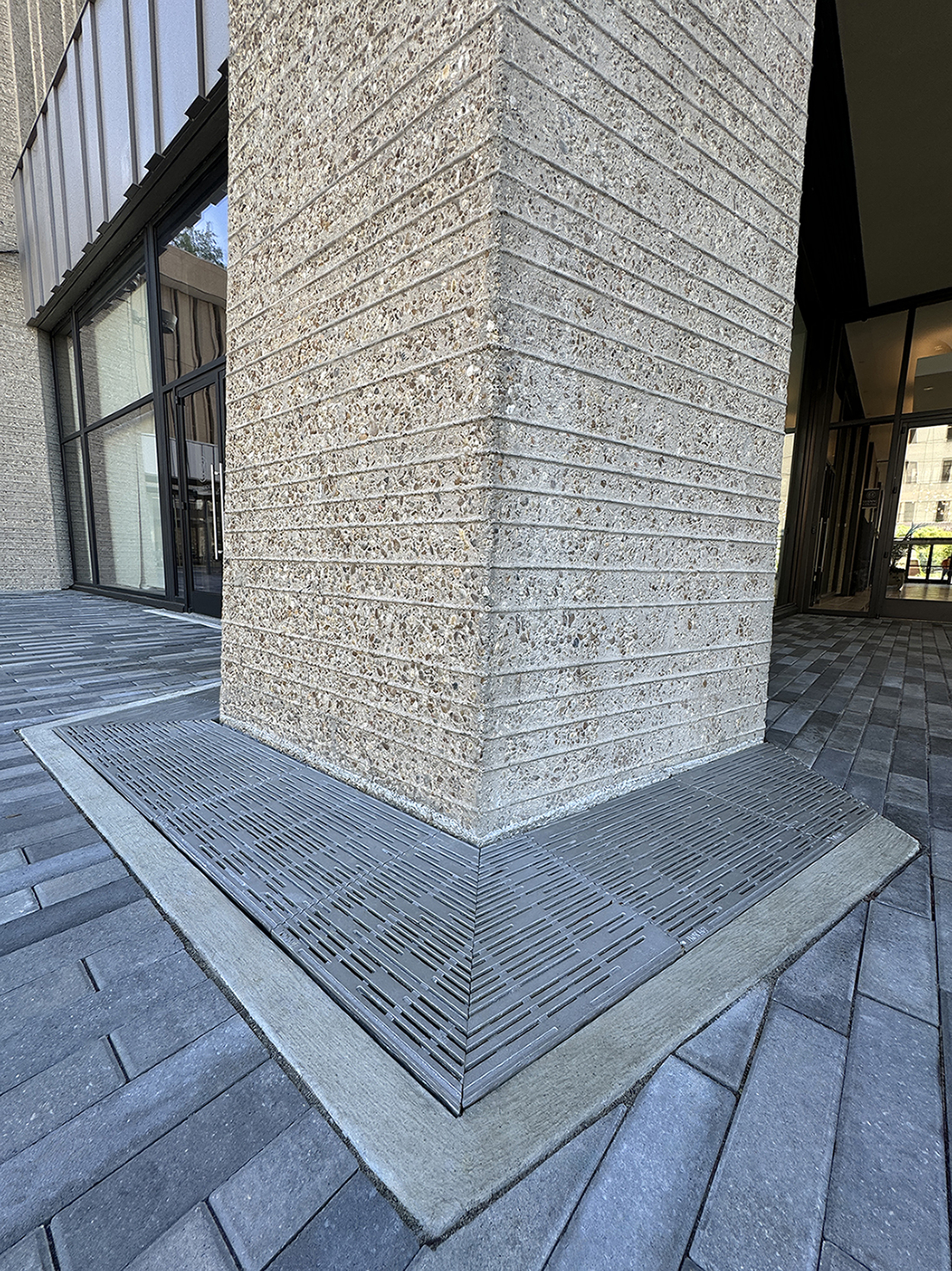

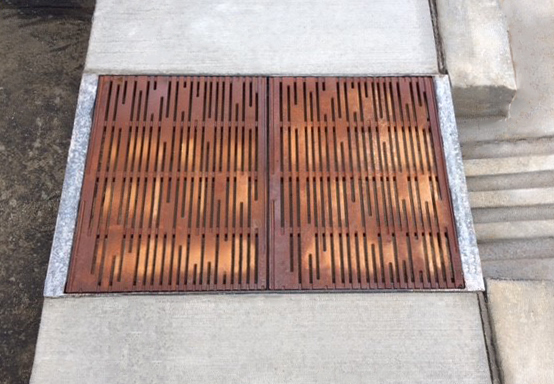

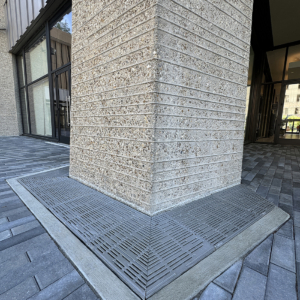

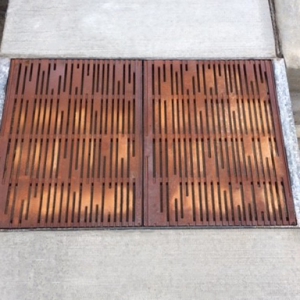

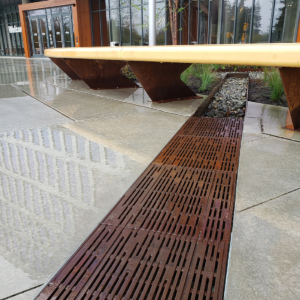

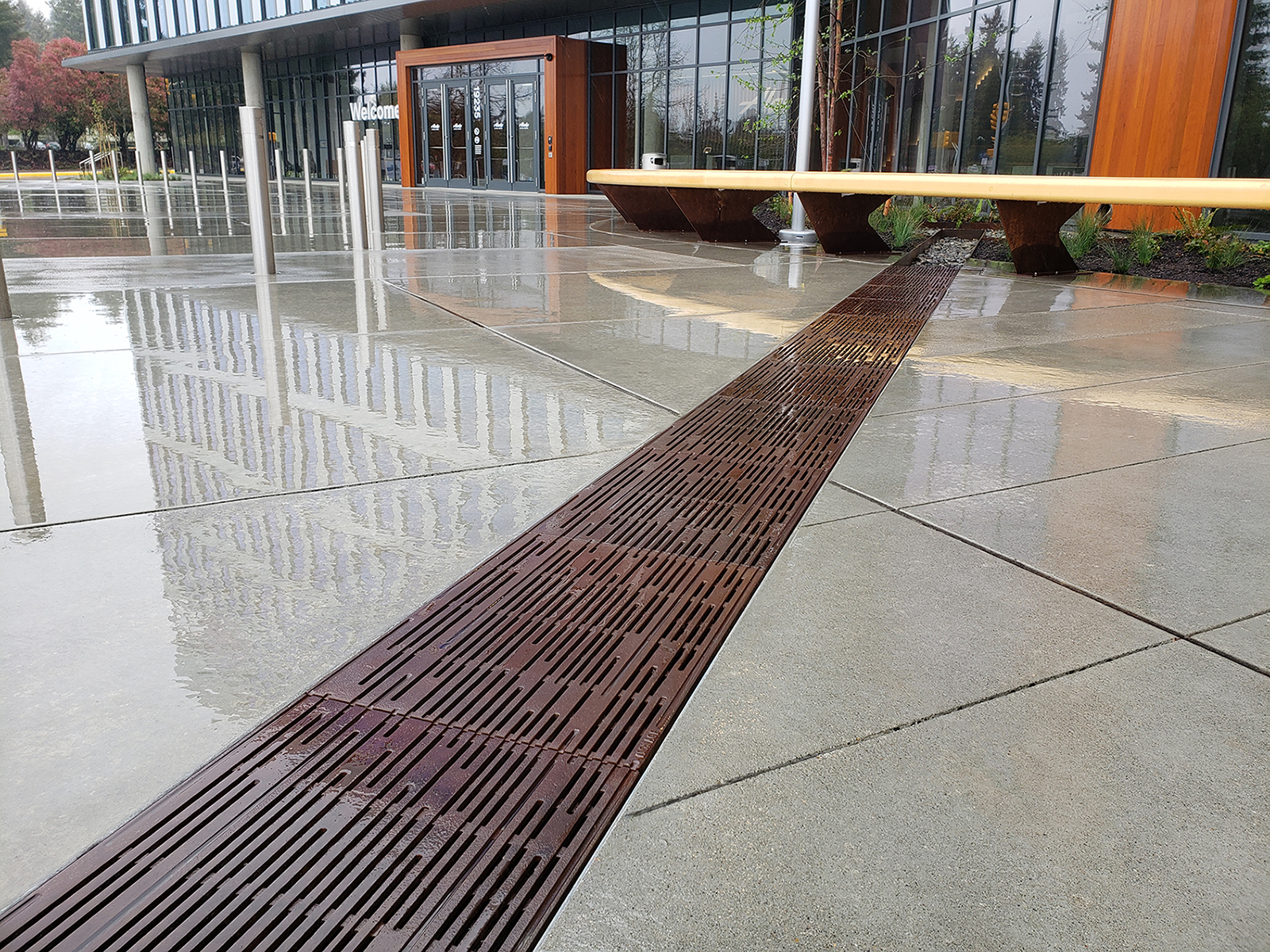

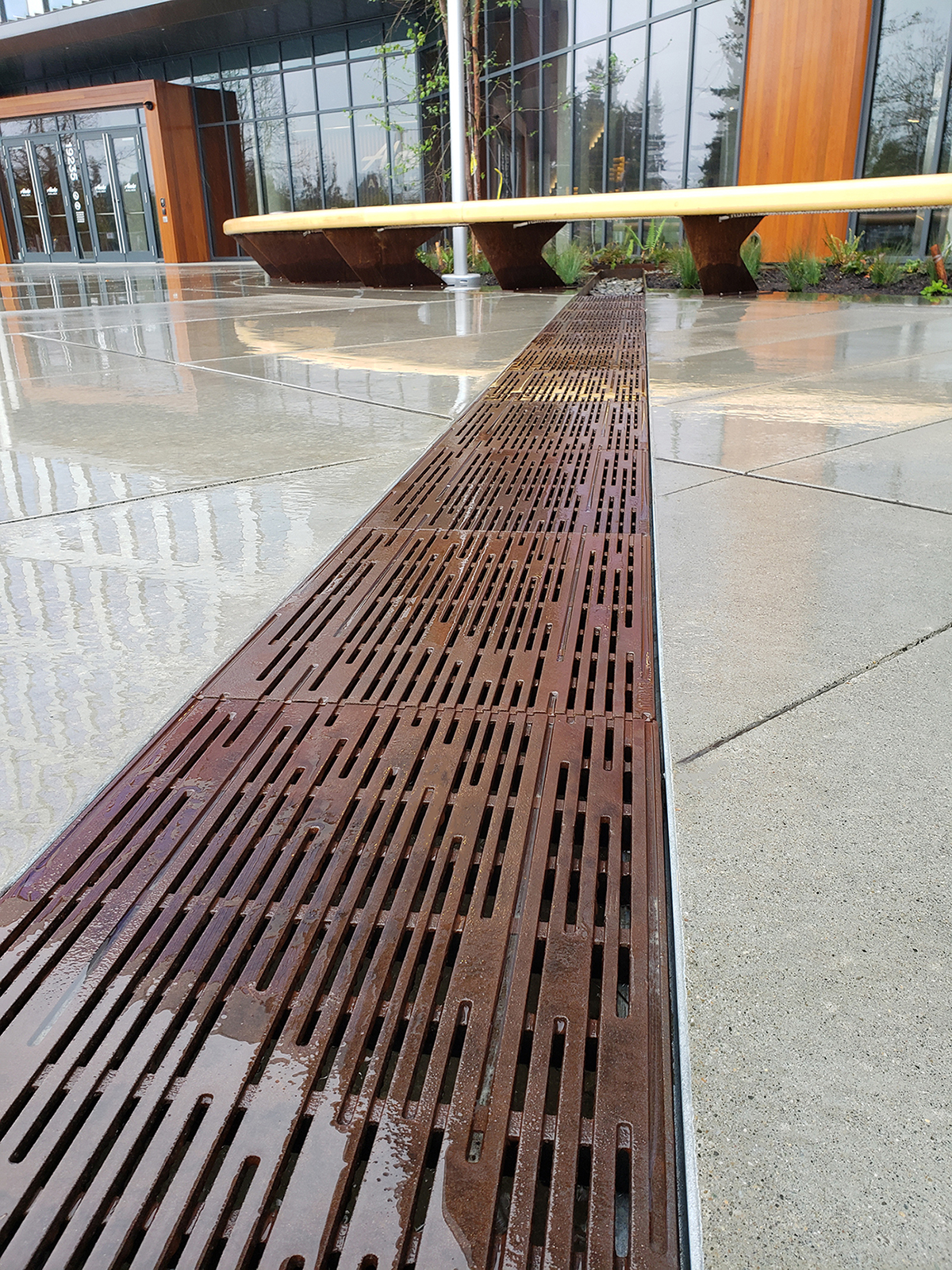

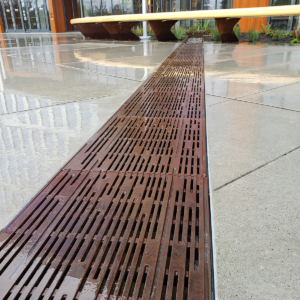

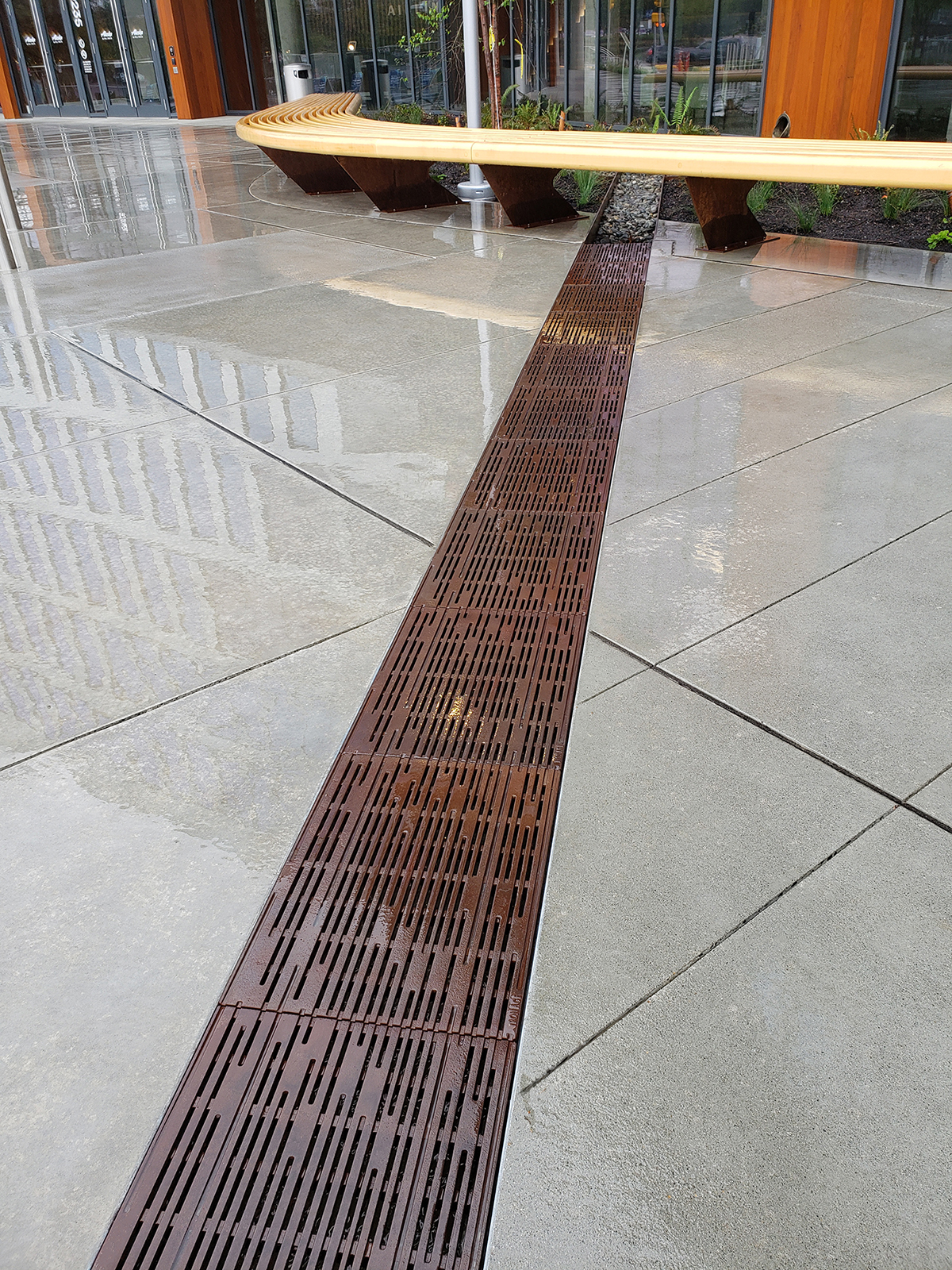

Rain 18″ x 24″ heel-proof trench grate, cast iron with baked-on-oil finish. DESIGN: NBBJ. LANDSCAPE ARCHITECT: Berger Partnership. PROJECT: Alaska Airlines HQ Copper River Project. LOCATION: SeaTac, WA.

Download photo

Rain 18″ x 24″ heel-proof trench grate, cast iron with baked-on-oil finish. DESIGN: NBBJ. LANDSCAPE ARCHITECT: Berger Partnership. PROJECT: Alaska Airlines HQ Copper River Project. LOCATION: SeaTac, WA.

Download photo

Rain 18″ x 24″ heel-proof trench grate, cast iron with baked-on-oil finish. DESIGN: NBBJ. LANDSCAPE ARCHITECT: Berger Partnership. PROJECT: Alaska Airlines HQ Copper River Project. LOCATION: SeaTac, WA.

Download photo

Rain 18″ x 24″ heel-proof trench grate, cast iron with baked-on-oil finish. DESIGN: NBBJ. LANDSCAPE ARCHITECT: Berger Partnership. PROJECT: Alaska Airlines HQ Copper River Project. LOCATION: SeaTac, WA.

Download photo

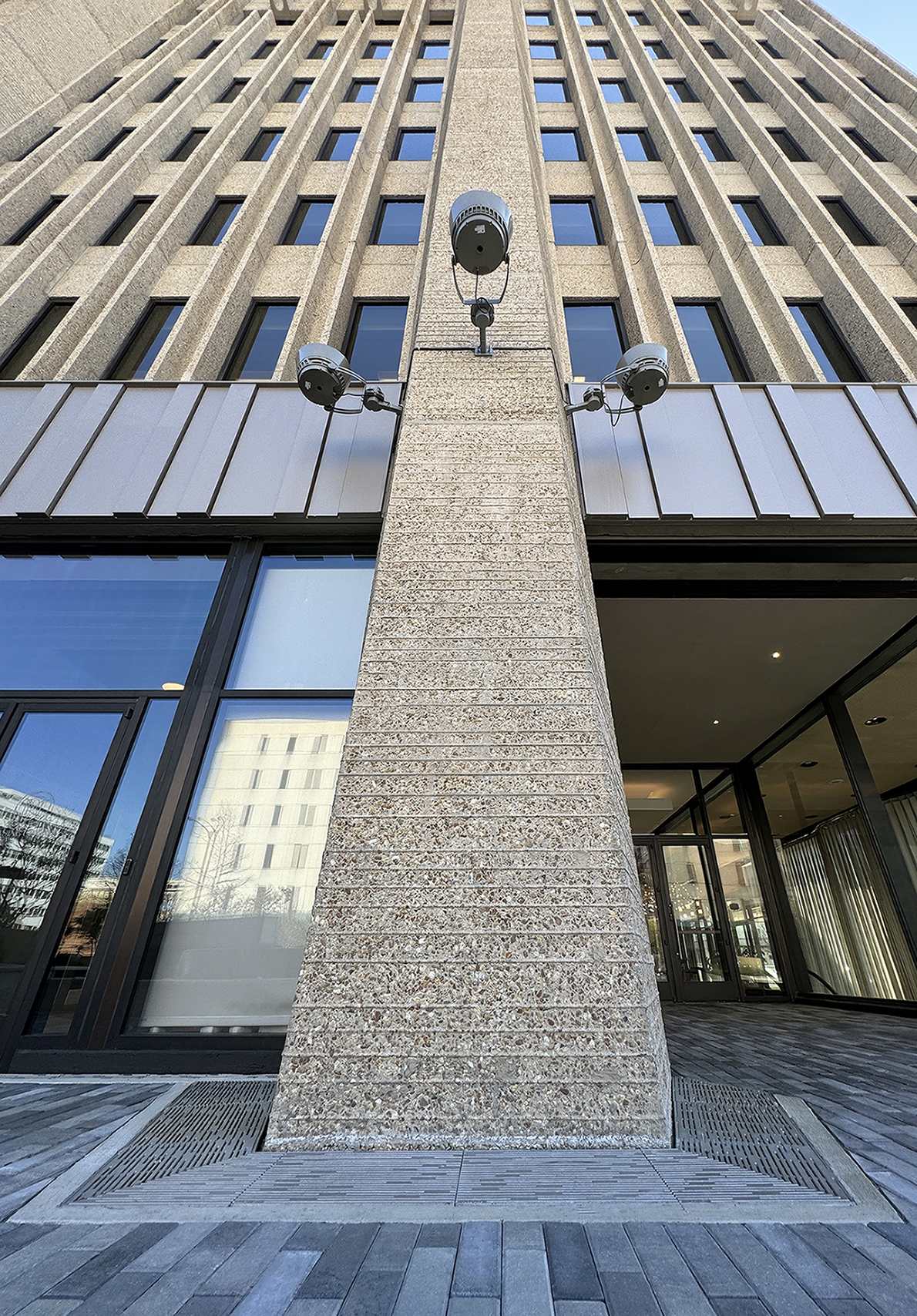

Rain 18″ x 24″ heel-proof trench grates, raw cast ductile iron. DESIGN: McKnight Landscape Architects. INSTALLER: Arkel Constructors. PROJECT: Louisiana Farm Bureau. LOCATION: Baton Rouge, LA.
