Tree Grates
Argo Tree Grates
Inspired by ancient tales of the mythical ship, Argo’s rolling-wave pattern suggests moving currents of water and wind.
Select Size:
Detailed Specifications:
- Name / Design
- Argo 3' x 3' Heel-Proof
- Product ID
- AX36-36I99TGHP
- Dimensions
- 36" x 36" x 1.25"
- Fits
-
Iron Age Custom Frame
- Frame(s)
-
Frame Types
"E" Frame Installation
- Material
- Cast Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 262
- Free Drain Area
- 16.65%
- Gallons Per Minute (GPM)
- 249.42
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Copyright Registration No.
- VA 1-970-731
Photo Gallery:
Click image for high-res file and description

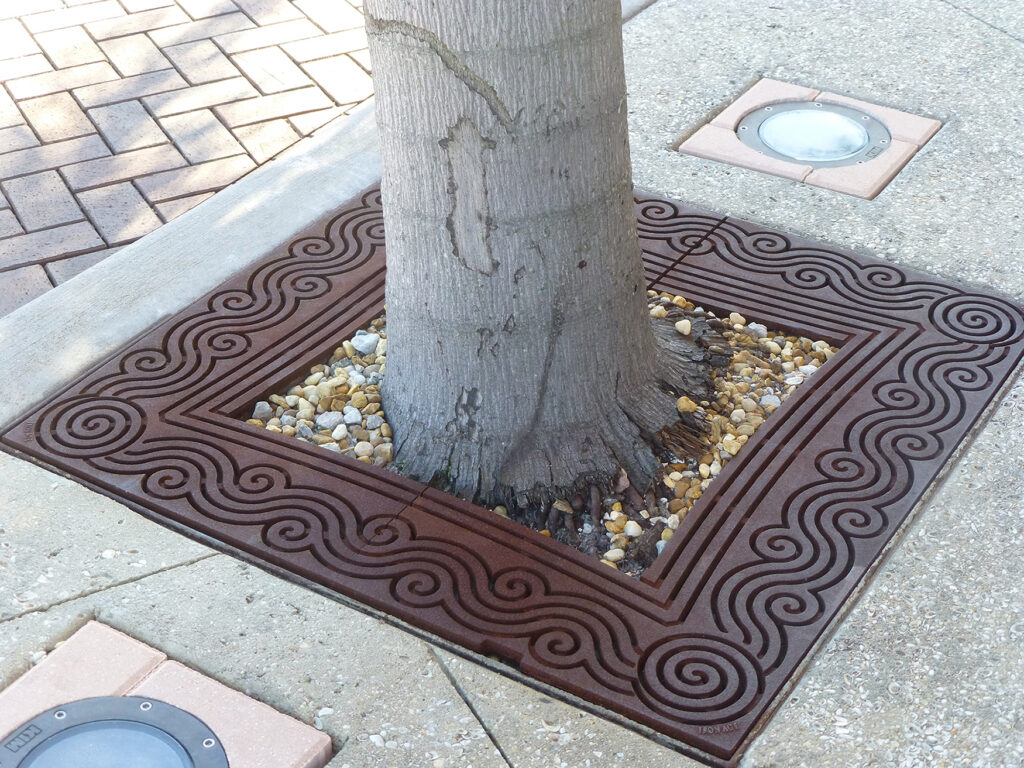

Argo 3′ x 3′ heel-proof tree grate, cast iron with baked-on-oil finish. PROJECT: Hyatt Regency Aqualea. LOCATION: Clearwater, FL.

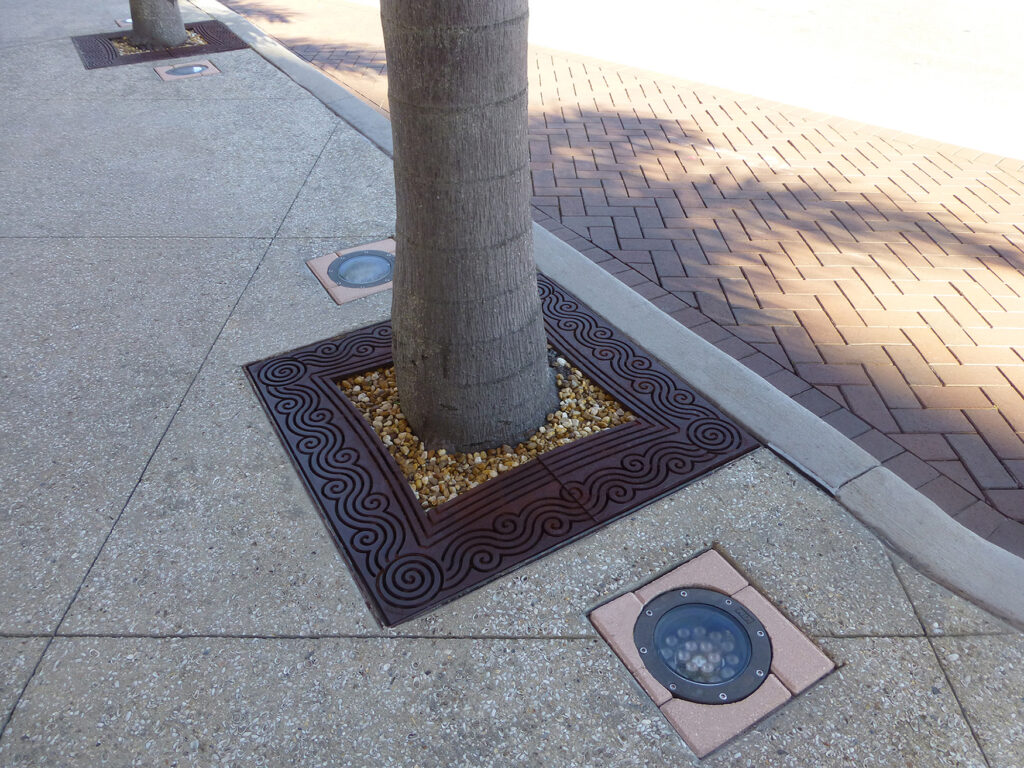

Argo 3′ x 3′ heel-proof tree grate, cast iron with baked-on-oil finish. PROJECT: Hyatt Regency Aqualea. LOCATION: Clearwater, FL.

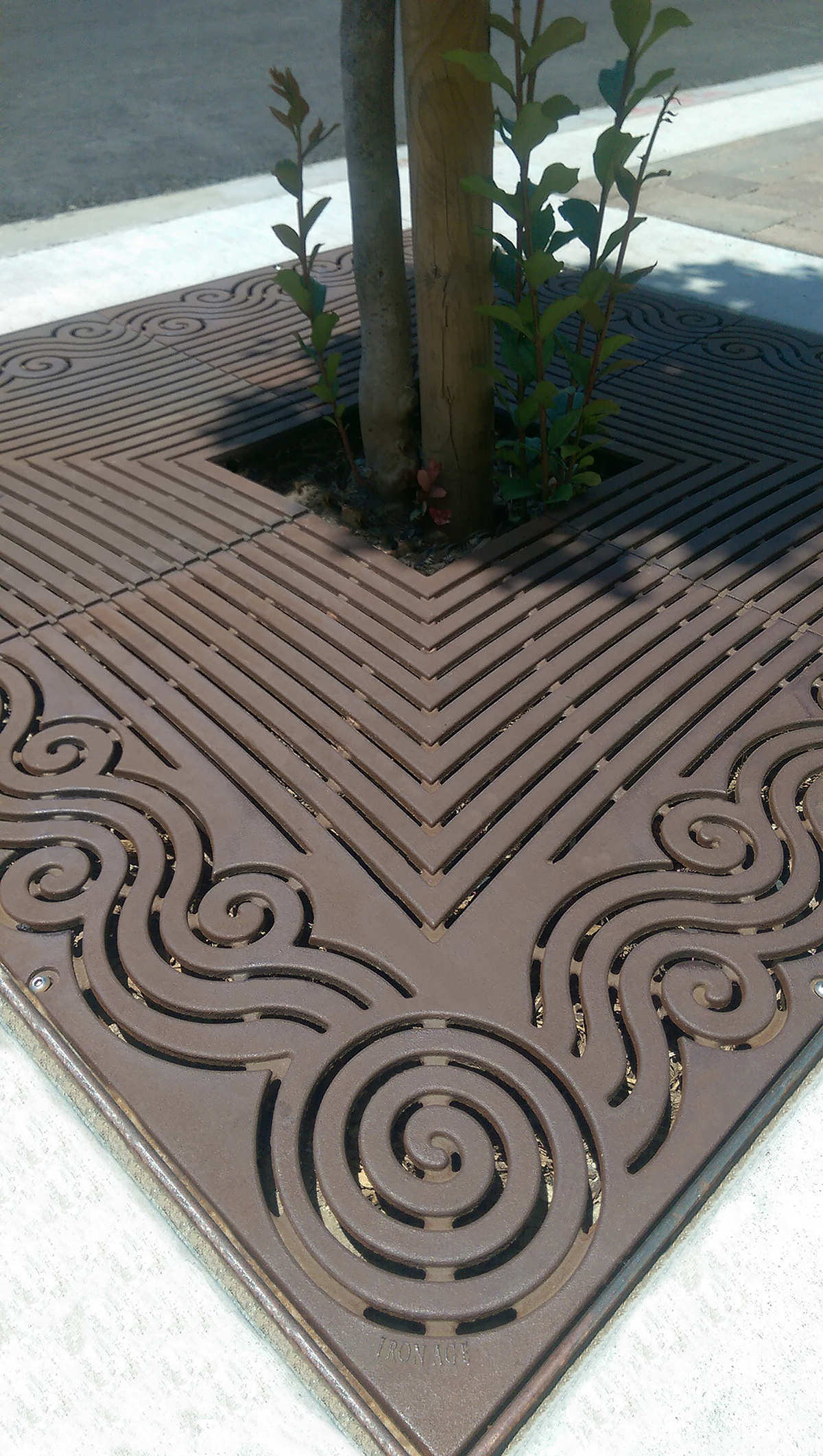

Argo 4′ x 4′ heel-proof tree grate, cast iron with baked-on-oil finish. PROJECT: Pioneer Boulevard. LOCATION: Sante Fe Spring, CA.

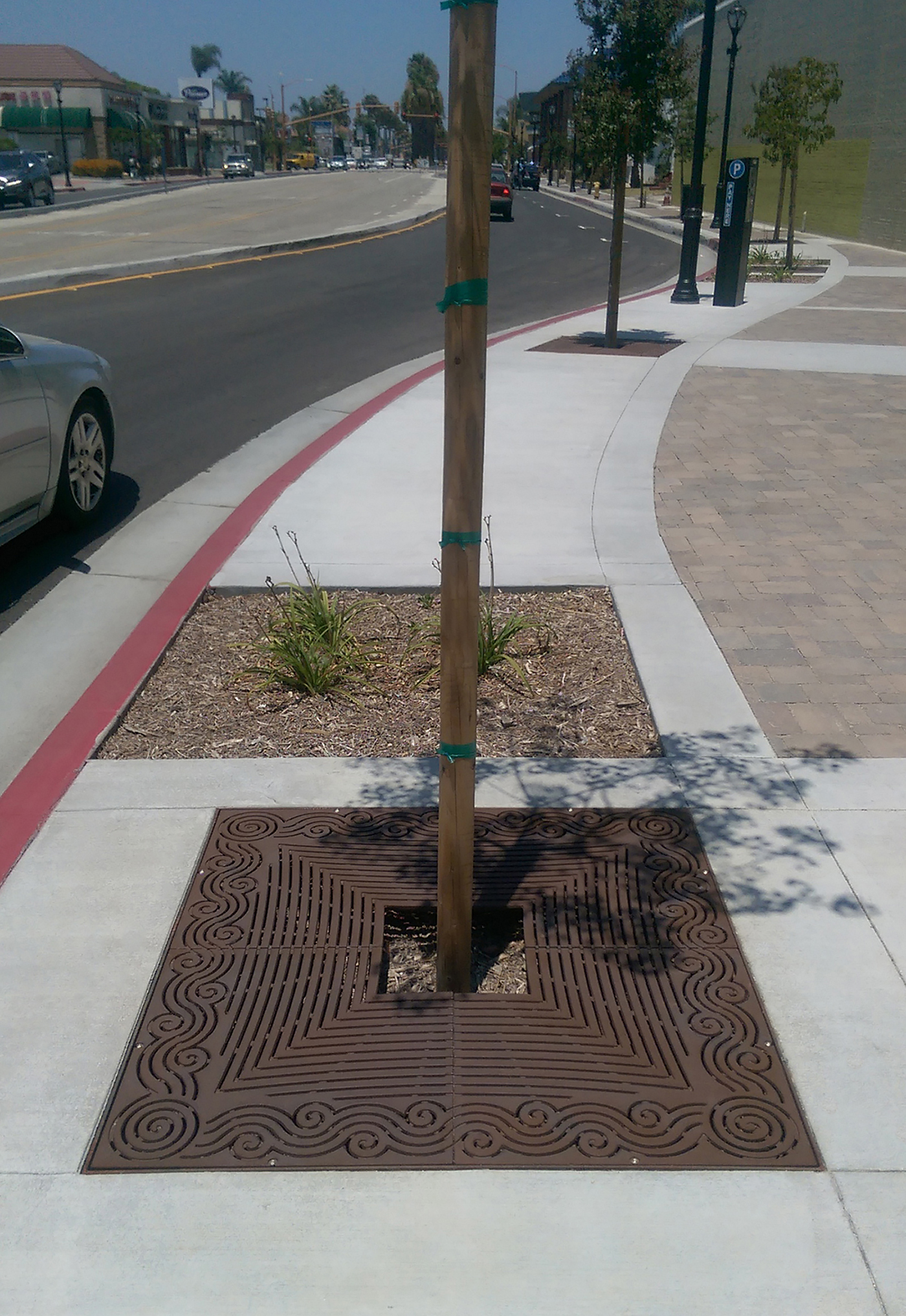

Argo 4′ x 4′ heel-proof tree grate, cast iron with baked-on-oil finish. PROJECT: Pioneer Boulevard. LOCATION: Sante Fe Spring, CA.
Argo 4′ x 4′ heel-proof tree grate, cast iron with baked-on-oil finish. PROJECT: Pioneer Boulevard. LOCATION: Sante Fe Spring, CA.
Argo 6′ dia. heel-proof tree grate, raw cast iron. DESIGN: Context Design. PROJECT: Ironworks Plaza & Rink. LOCATION: Mishawaka, IN.
Similar Products:
View additional products featuring the Argo design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
