Janis Tree Grates
The organic arrangement and beautifully sculptured surface of our Janis pattern evokes river rocks and flowing water, adding a natural vitality to any landscape design.
Select Size:
Detailed Specifications:
- Name / Design
- Janis 3' x 6'
- Product ID
- JX36-72I99TG
- Dimensions
- 35.88" x 71.88" x 1.25"
- Fits
-
Iron Age Custom Frame
- Frame(s)
-
Frame Types
"E" Frame Installation
- Material
- Cast Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 244.58
- Free Drain Area
- 15.19%
- Gallons Per Minute (GPM)
- 490.69
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Copyright Registration No.
- VA 1-970-782
Photo Gallery:
Click image for high-res file and description

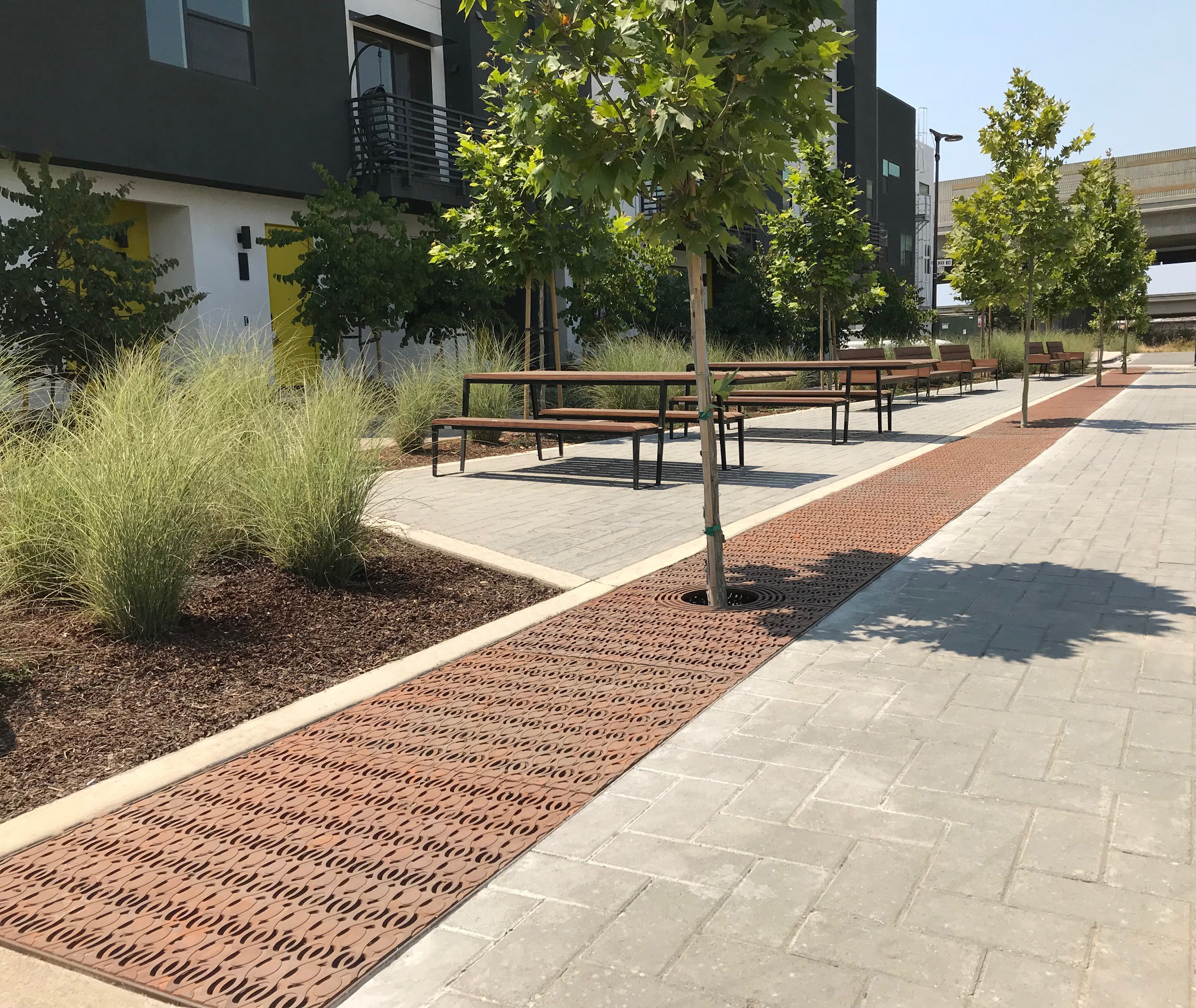

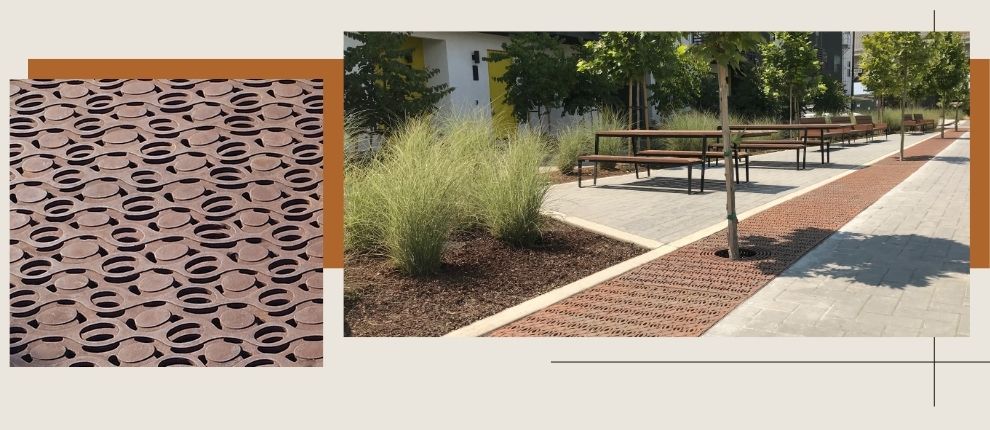

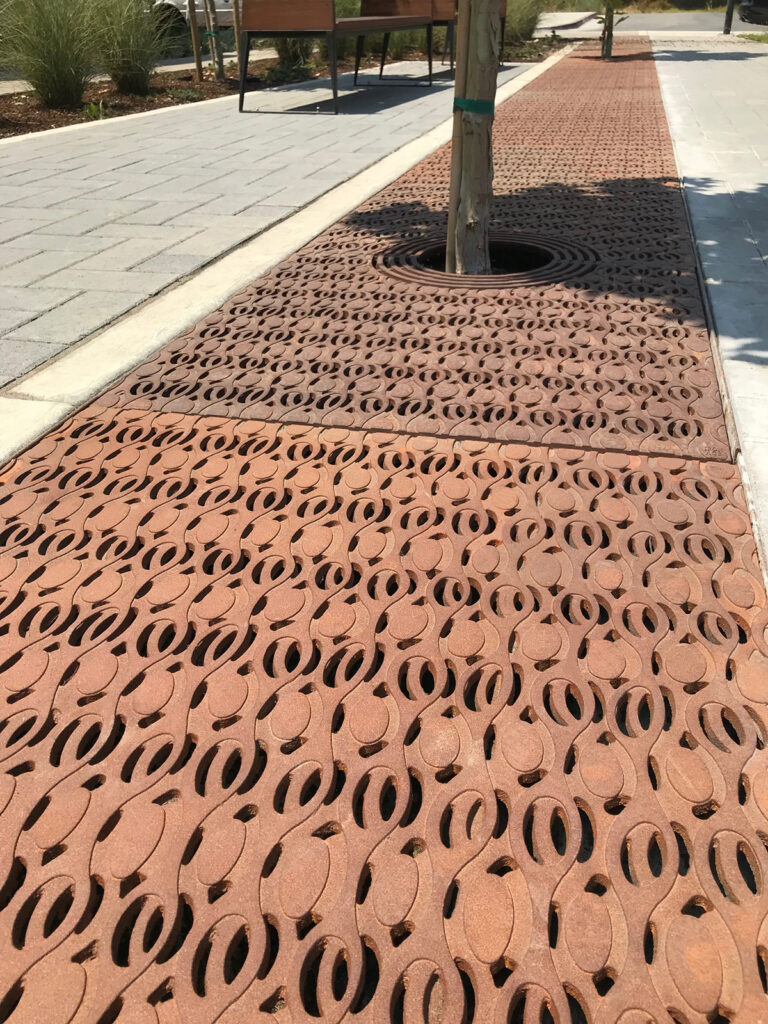

Janis 3′ x 6′ tree grate, arrayed with 36″ x 36″ Janis large grate array panels; cast iron with baked-on-oil finish. PROJECT: 1401 Wood Street. LOCATION: Oakland, CA.

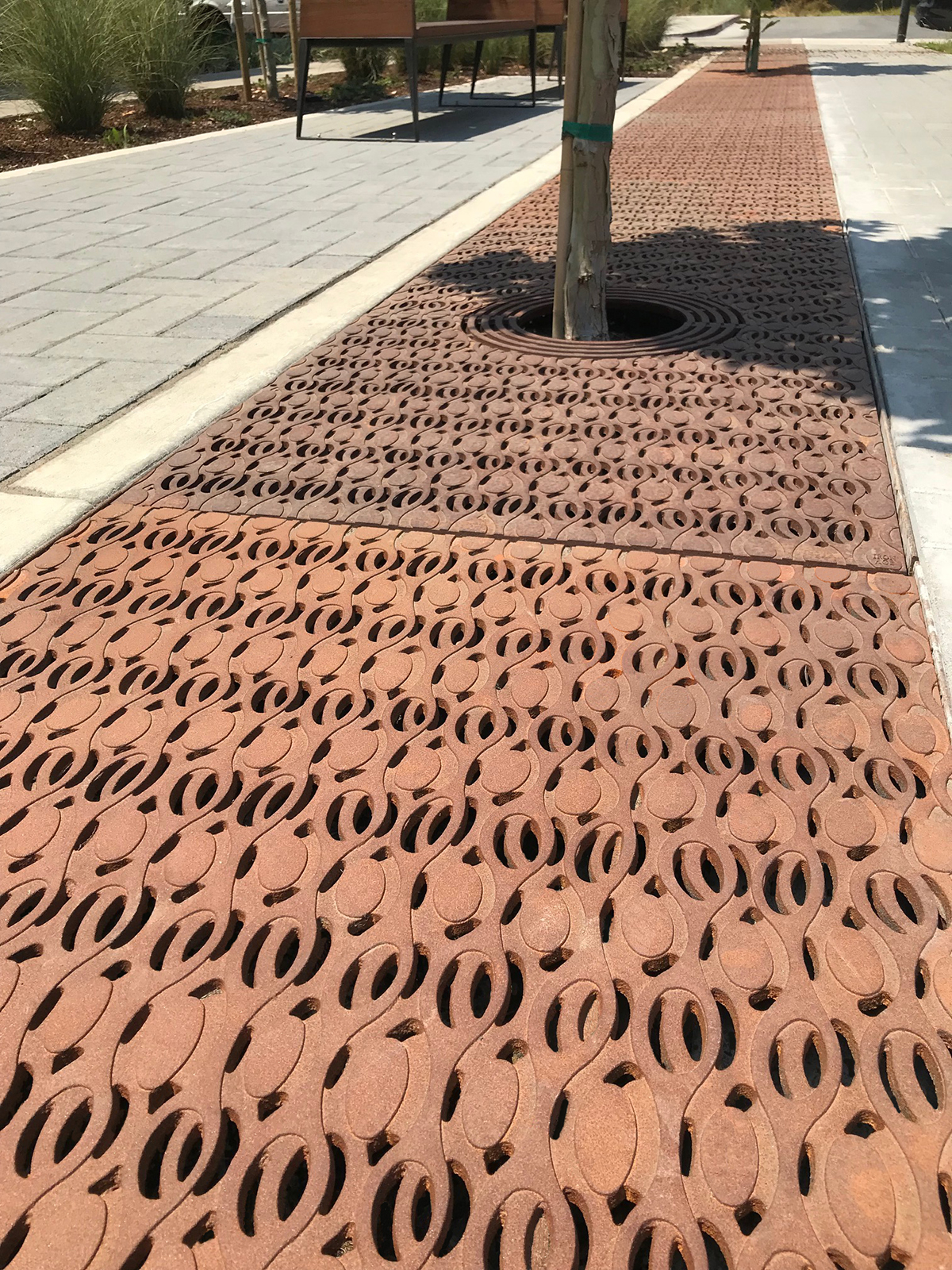

Janis 3′ x 6′ tree grate, arrayed with 36″ x 36″ Janis large grate array panels; cast iron with baked-on-oil finish. PROJECT: 1401 Wood Street. LOCATION: Oakland, CA.

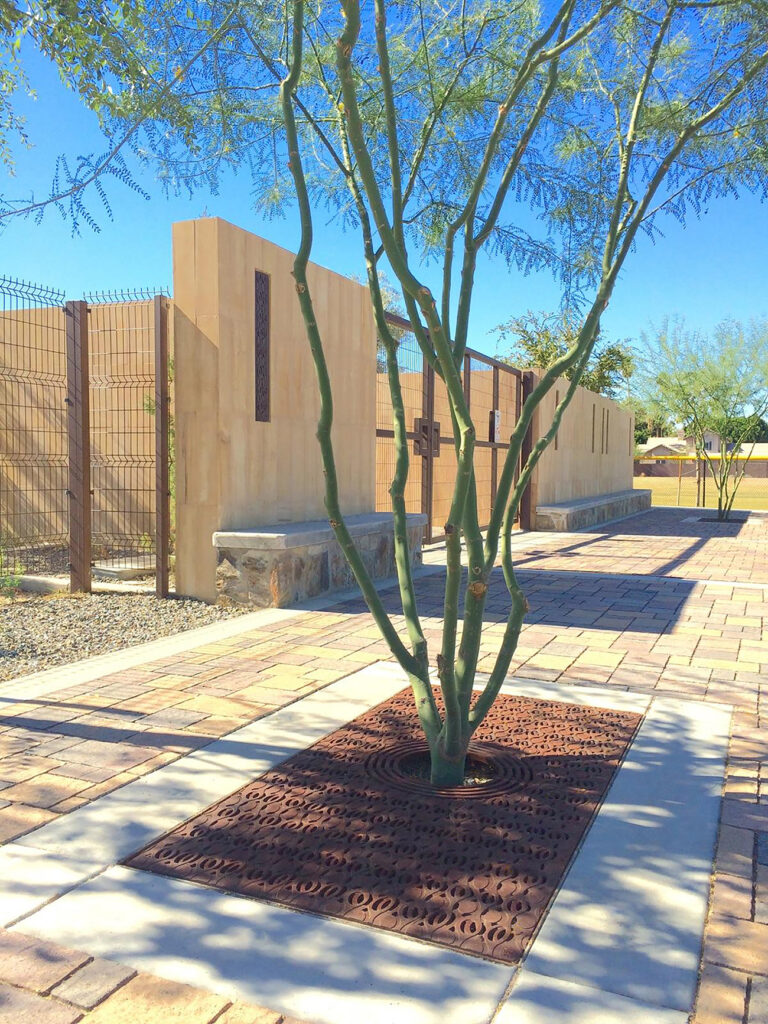

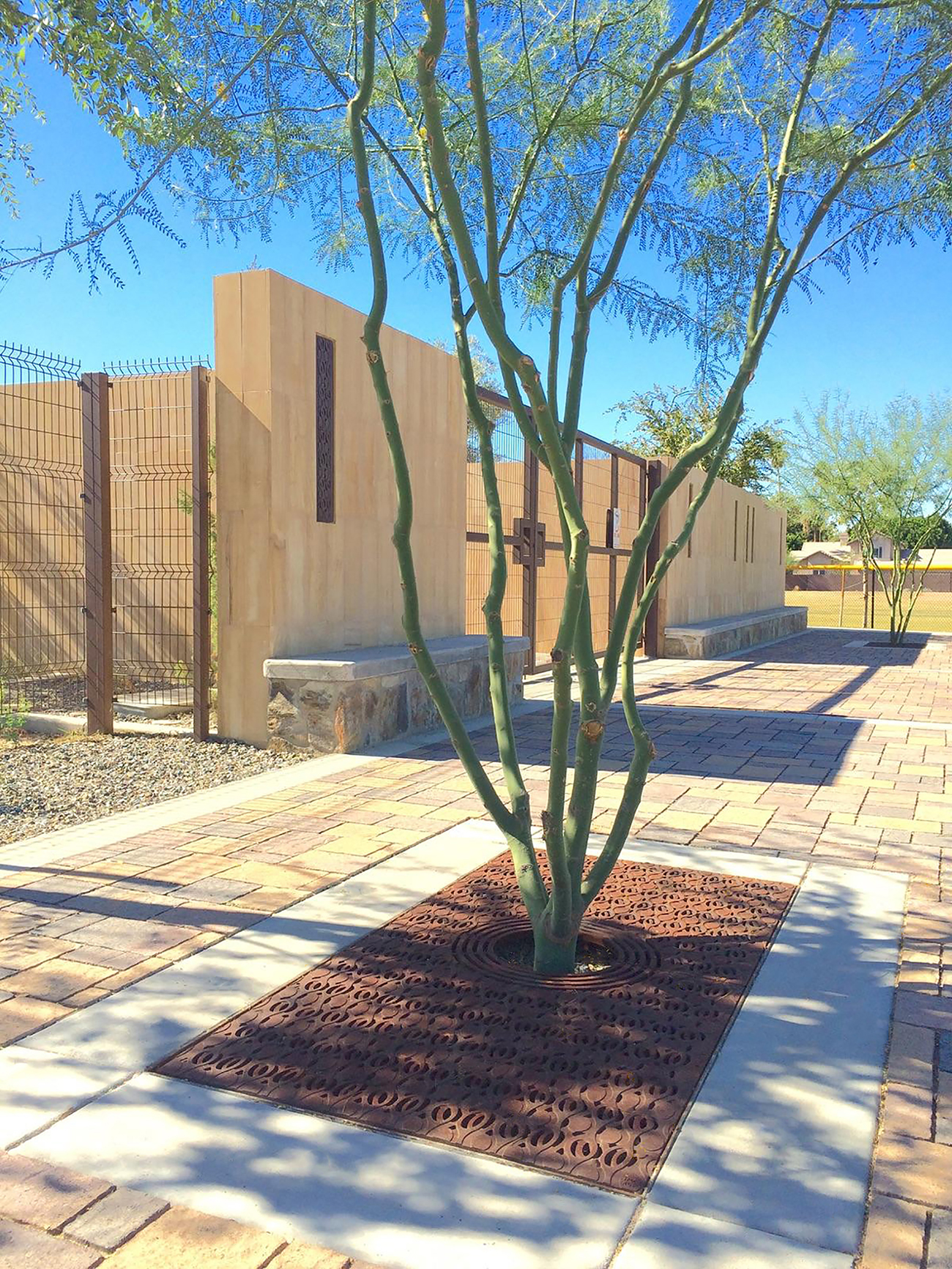

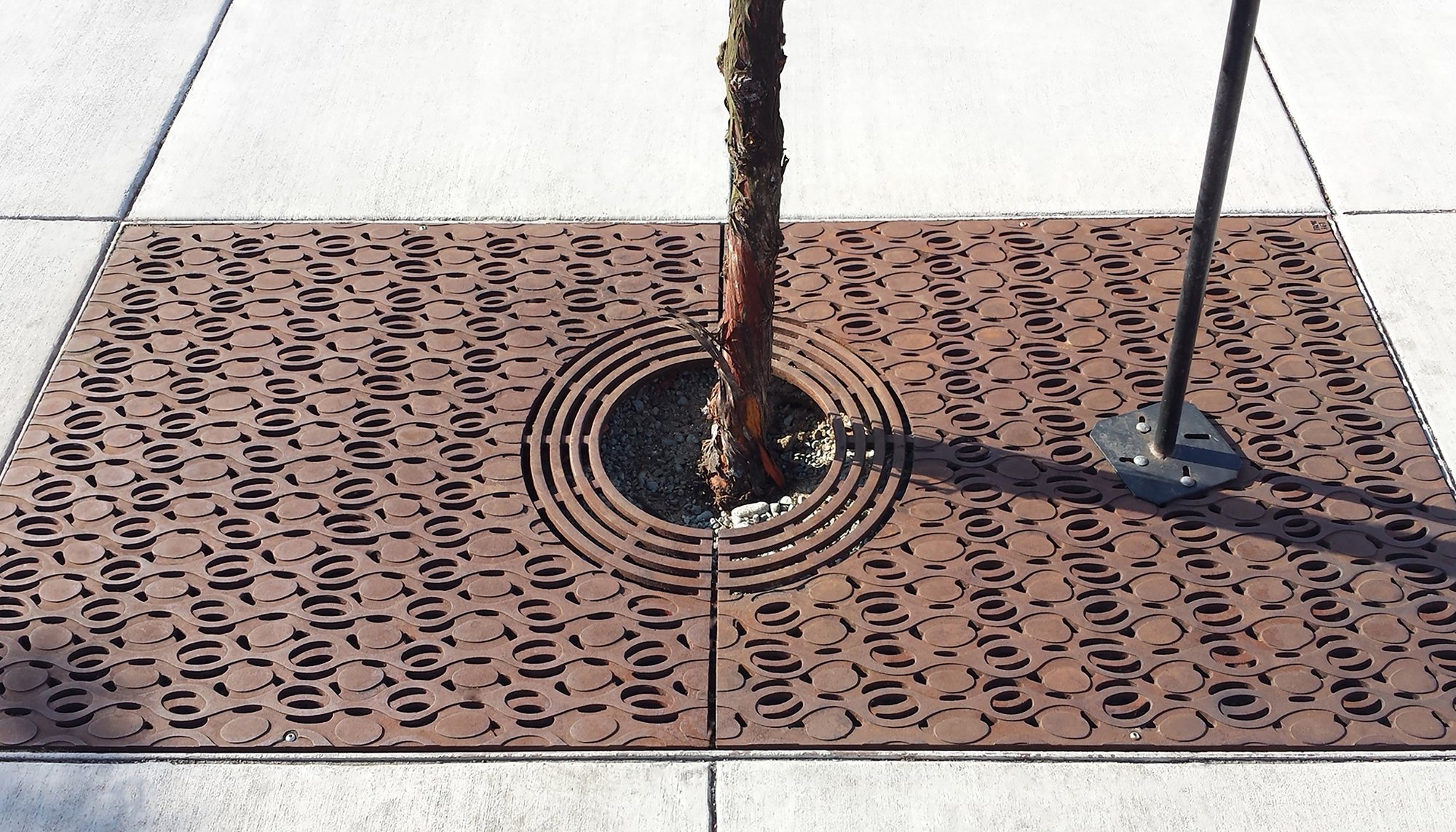

Janis 3′ x 6′ tree grate, cast iron with baked-on-oil finish. Also pictured is our 5″ Janis trench grate, used as a sconce. PROJECT: All Saints Church. LOCATION: Phoenix, AZ.

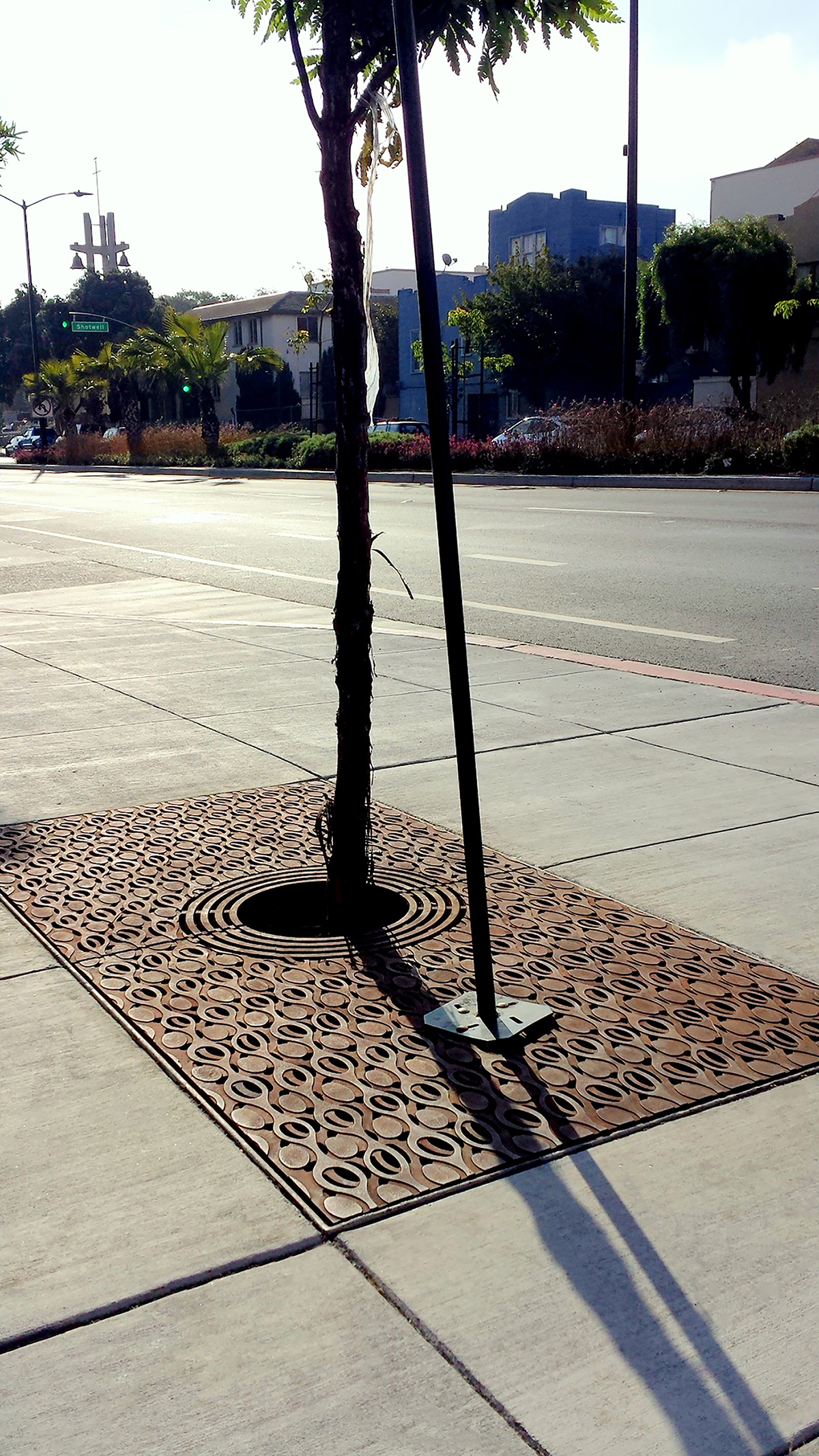

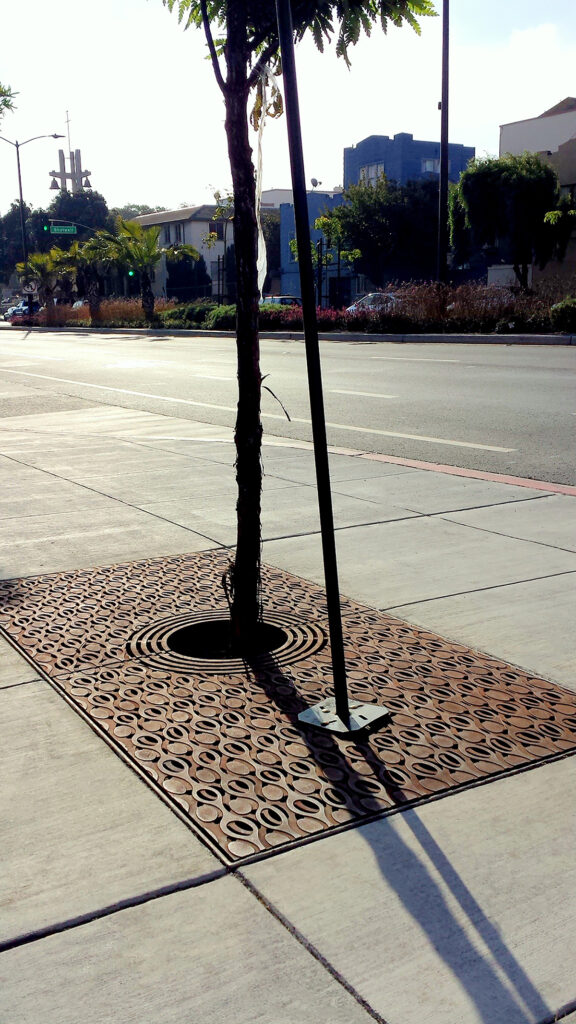

Janis 3′ x 6′ tree grate, cast iron with baked-on-oil finish. PROJECT: Cesar Chavez Streetscape. LOCATION: San Francisco, CA.

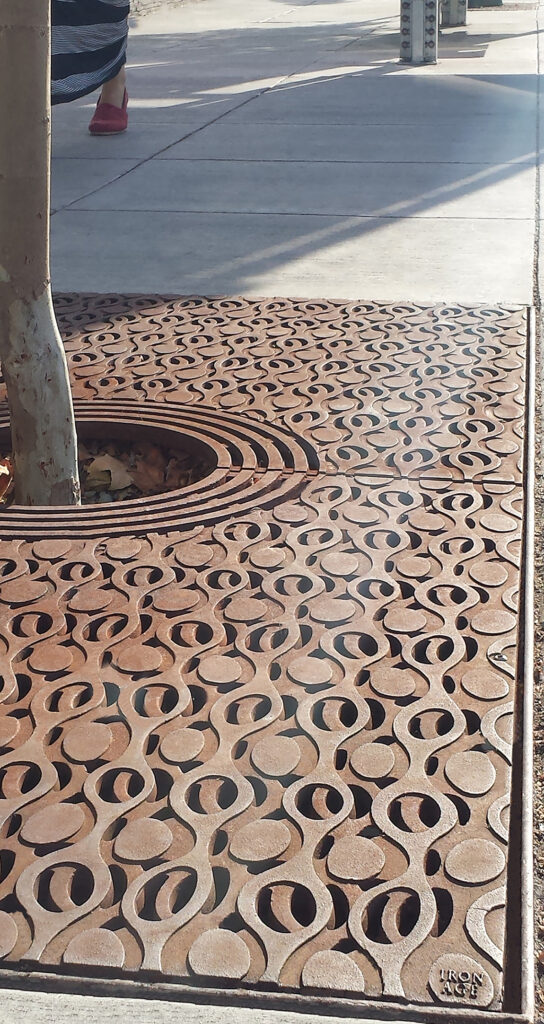

Janis 3′ x 6′ tree grate, cast iron with baked-on-oil finish. PROJECT: Cesar Chavez Streetscape. LOCATION: San Francisco, CA.
Janis 3′ x 6′ tree grate, cast iron with baked-on-oil finish. PROJECT: Cesar Chavez Streetscape. LOCATION: San Francisco, CA.
Similar Products:
View additional products featuring the Janis design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
