Detailed Specifications:

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Janis 24" Sq.
Product ID	JN24-24I14
Dimensions	23.8" x 23.8" x 2.0"
Drain Manufacturer	NDS®
Fits	NDS® 2400 Series
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	88.19
Free Drain Area	13.23%
Gallons Per Minute (GPM)	98.15
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-007-081

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Janis 36" Sq. PEDESTRIAN LOAD ONLY
Product ID	JX36-36I99FW
Dimensions	35.94" x 35.94" x 1.25"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	140
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze Cast Ductile Iron

Photo Gallery:

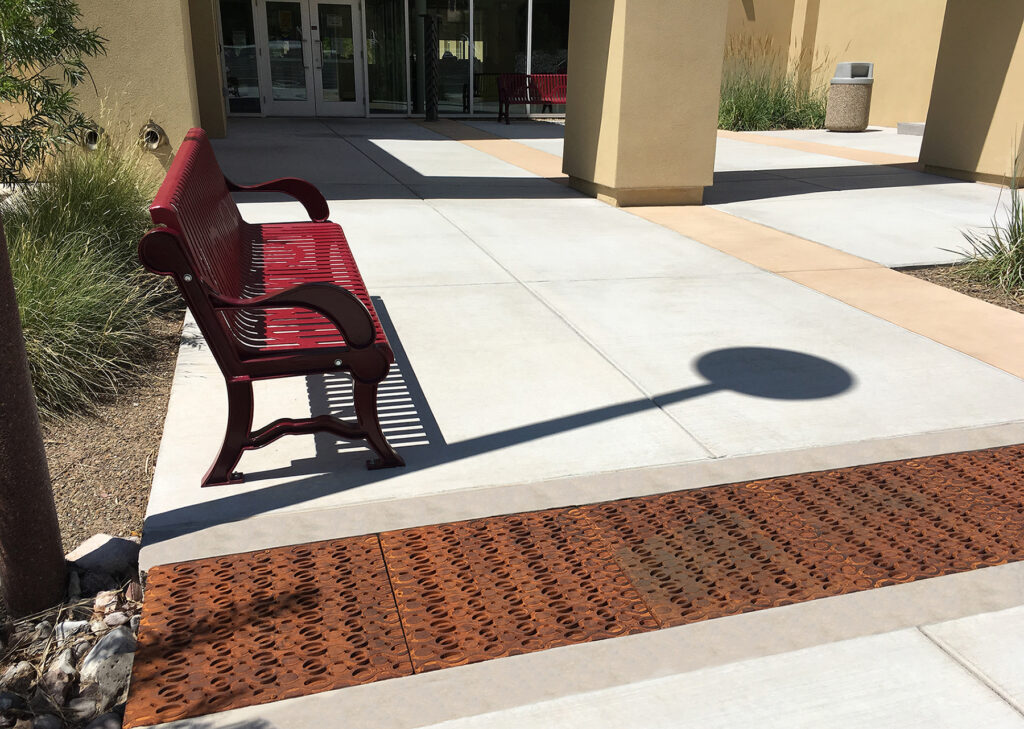

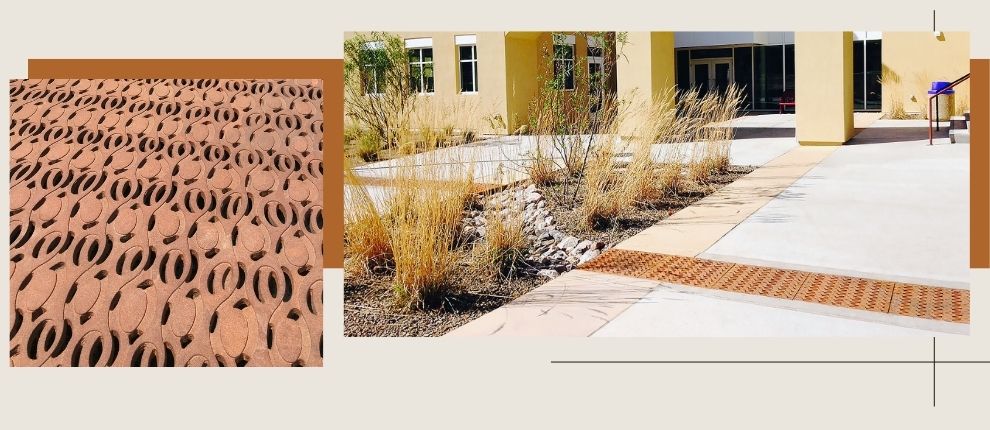

Janis 24″ Sq. catch basin grate (shown arrayed as trench grates). Project: Jefferson Middle School, Albuquerque, NM

Janis 24″ Sq. catch basin grate (shown arrayed as trench grates). Project: Jefferson Middle School, Albuquerque, NM
