Description:
The simple sunburst pattern of our Corona Tree Grate is a traditional motif that radiates timeless style. Offering heel-proof protection with 1/4″ slotted openings.
Description:
The simple sunburst pattern of our Corona Tree Grate is a traditional motif that radiates timeless style. Offering heel-proof protection with 1/4″ slotted openings.
Detailed Specifications:
![]() |
||
Name / Design | Corona 42" x 42" Heel Proof | |
---|---|---|
Product ID | COX42-42I99TGHP | |
Dimensions | 41.88" x 41.88" x 1" | |
Fits |
Iron Age Custom Frame |
|
Frame(s) |
"E" Frame Installation Frame Types |
|
Material | Cast Iron | |
Optional Finish |
Baked On Oil Finish
Powder Coat
|
|
Weight lb(s) | 164 | |
Free Drain Area | 14.51% | |
Gallons Per Minute (GPM) | 295.14 | |
Recycled Content | 80% | |
ADA Compliant | Yes | |
Optional Material Upgrades |
Cast Aluminum
Cast Bronze
Cast Ductile Iron
|
Photo Gallery:

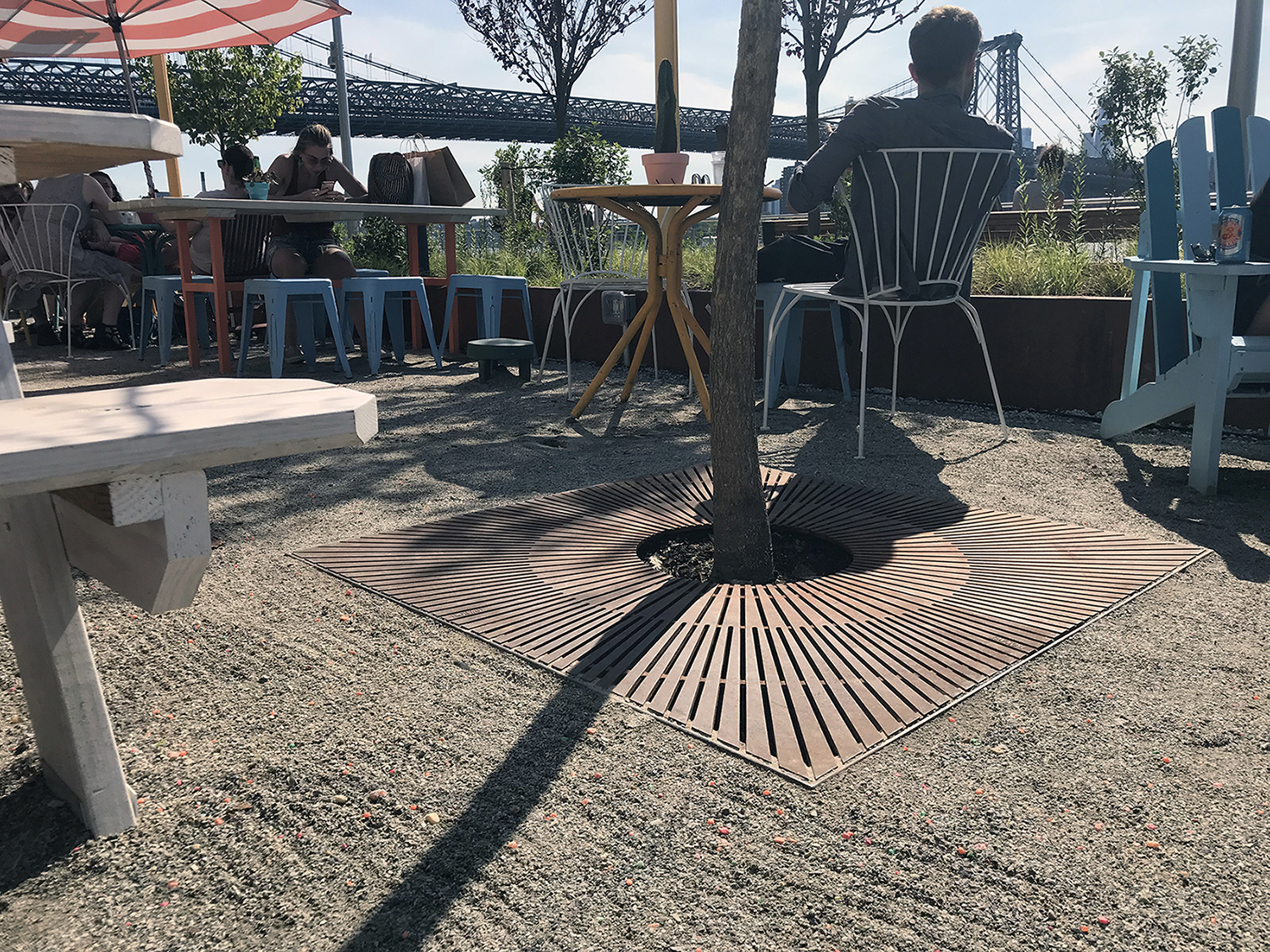

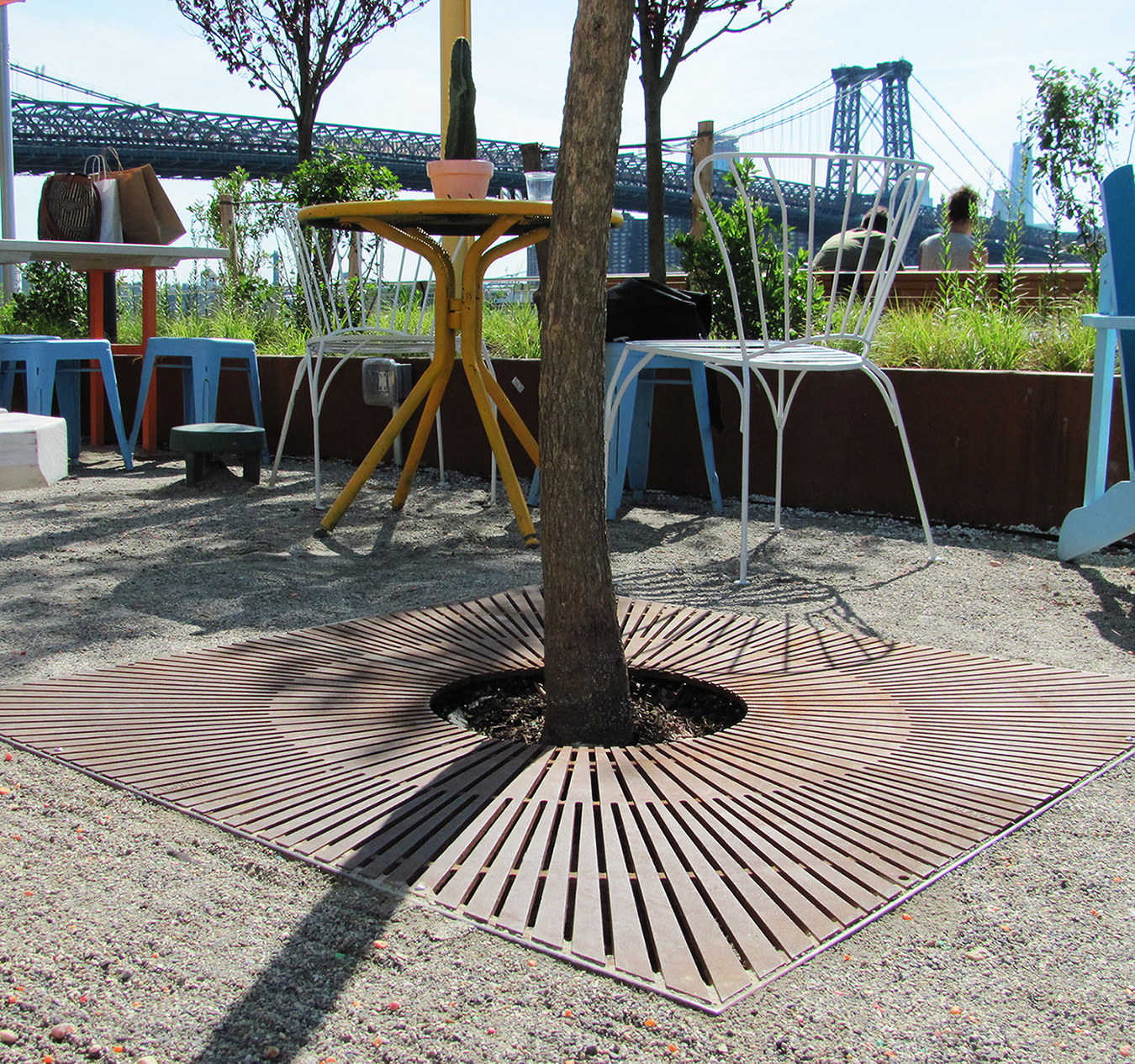

Corona 4′ x 4′ tree grate, raw cast iron. Project: Domino Park, Brooklyn, NY. Landscape Architect: James Corner Field Operations.
Corona 4′ x 4′ tree grate, raw cast iron. Project: Domino Park, Brooklyn, NY. Landscape Architect: James Corner Field Operations.
3′ Sq. Corona Tree Grate, raw cast iron. Project: Oviedo Medical Center, Oviedo, FL
Corona 4′ Sq. tree grate, raw cast iron.
Corona 4′ Sq. tree grate, raw cast iron.
Corona 4′ Sq. tree grate, raw cast iron.
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
