Minnione Catch Basin Grates
A pattern of sculpted, flowing lines gives our Minnione design an organic rhythm and brings a lifelike, natural energy to any outdoor space.
Select Size:
Detailed Specifications:
- Name / Design
- Minnione 26" x 28" PEDESTRIAN LOAD ONLY
- Product ID
- MX26-28I99
- Dimensions
- 26" x 28" x 1'
- Fits
-
Iron Age Custom Frame
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 92
- Free Drain Area
- 16.43%
- Gallons Per Minute (GPM)
- 156.73
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Copyright Registration No.
- VA 1-964-893
Photo Gallery:
Click image for high-res file and description

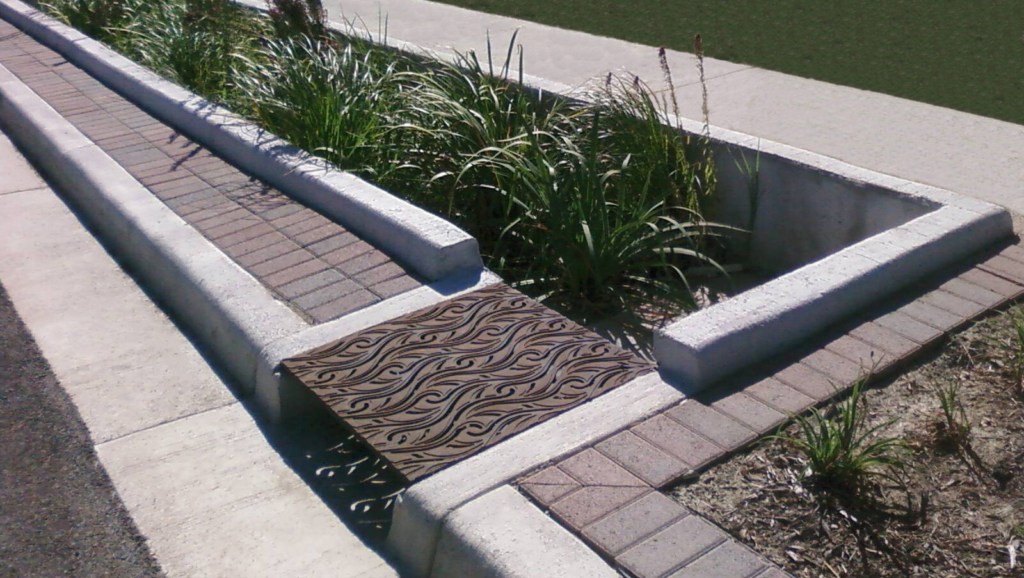

Minnione 26″ x 28″ grate, raw cast iron, used in a storm water retention/rain garden project. LOCATION: Lawrence Village, IN.

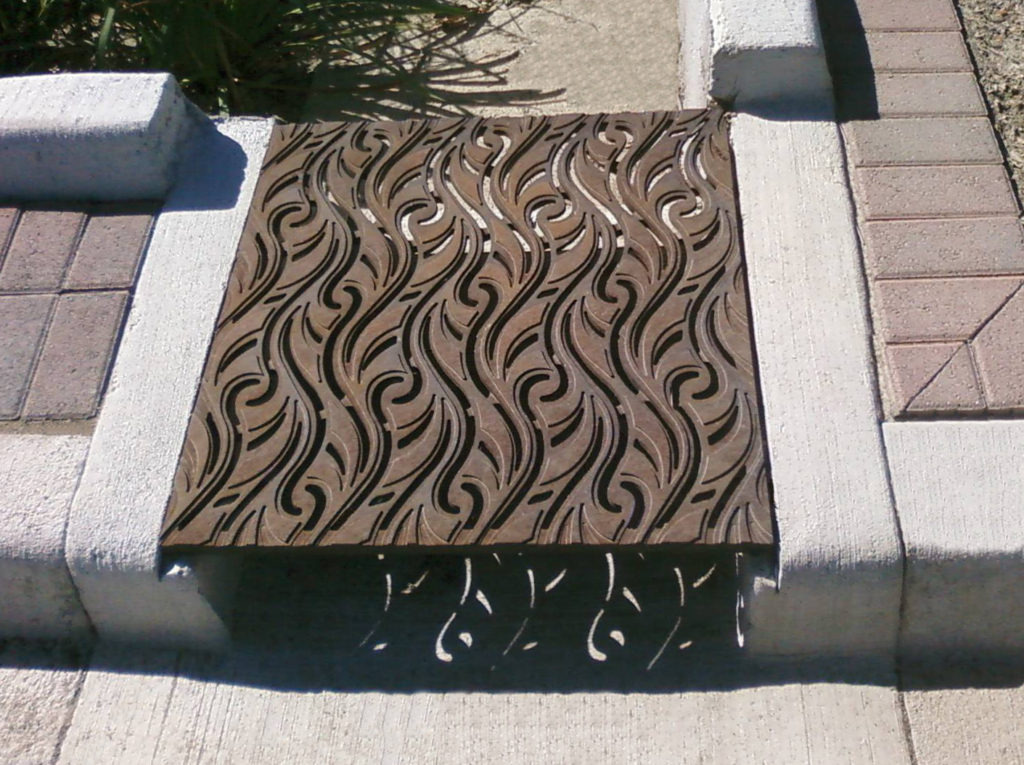

Minnione 26″ x 28″ grate, raw cast iron, used in a storm water retention/rain garden project. LOCATION: Lawrence Village, IN.

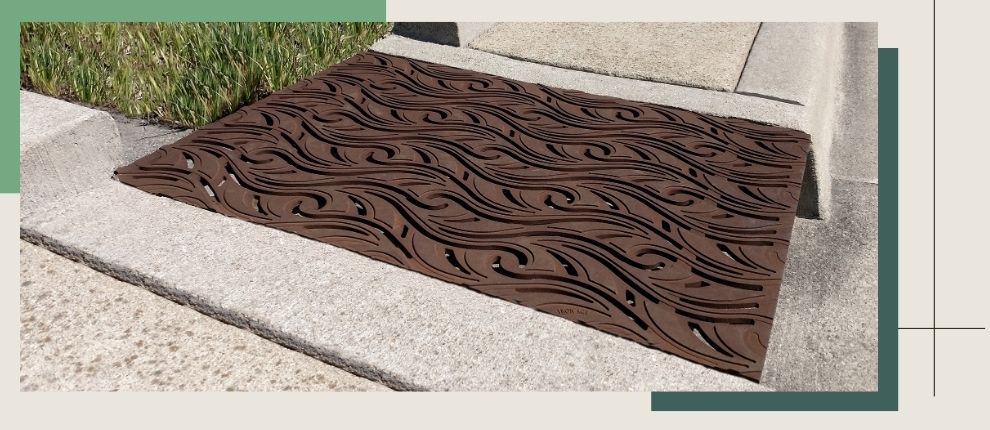

Minnione 26″ x 36″ grate, raw cast iron. Shown arrayed as rain garden/bioswale inlet.
Minnione 26″ x 36″ grate, raw cast iron. Shown arrayed as rain garden/bioswale inlet.
Minnione 26″ x 36″ grate, raw cast iron. Shown arrayed as rain garden/bioswale inlet.
