Warp Tree Grates
Suggesting energy and movement, the swirling graphic intensity of our Warp pattern attracts attention and brings an exciting element to its hardscape surroundings.
Select Size:
Detailed Specifications:
- Name / Design
- Warp 4' Dia.
- Product ID
- WX48Dia.I99TG
- Dimensions
- 47.88" Dia. X 1.00"
- Fits
-
Iron Age Custom Frame
- Frame(s)
-
Frame Types
"E" Frame Installation
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 166.68
- Free Drain Area
- 31.57%
- Gallons Per Minute (GPM)
- 707.18
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Copyright Registration No.
- VA 2-246-553
Photo Gallery:
Click image for high-res file and description

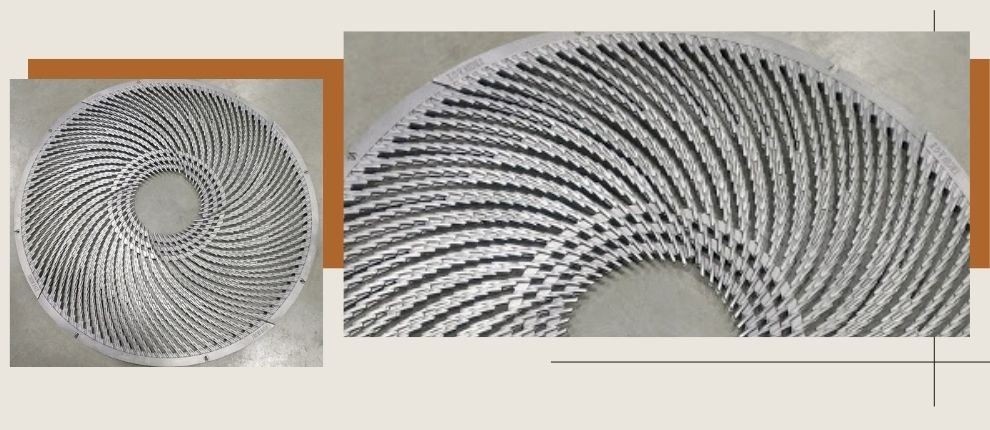

Warp 4′ dia. tree grate, raw cast iron. This photo was taken at our foundry, right after casting, before the iron began it’s oxidation process.
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
