Warp

Description:

Suggesting energy and movement, the swirling graphic intensity of our Warp pattern attracts attention and brings an exciting element to its hardscape surroundings.



Detailed Specifications:

Name / Design Warp 4' Dia.
Product ID WX48Dia.I99TG
Dimensions 48"Dia. X 1.25"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Frame(s) 4' Dia. "E" Frame
Frame Types
"E" Frame Installation
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 244
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Warp 4' x 4' (Pattern Charge May Apply)
Product ID WX48-48I99TG
Dimensions 48" x 48"x 1.25"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Frame(s) 4' Sq. "E" Frame
Frame Types
"E" Frame Installation
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 332
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Warp 5' Dia. (Pattern Charge May Apply)
Product ID WX60DiaI99TG
Dimensions 60" Dia. x 1.25"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Frame(s) 5' Dia. "E" Frame
Frame Types
"E" Frame Installation
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 416
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Warp 5' x 5' (Pattern Charge May Apply)
Product ID WX60-60I99TG
Dimensions 60" x 60" x 1.25"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Frame(s) 5' Sq. "E" Frame
Frame Types
"E" Frame Installation
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 520
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze

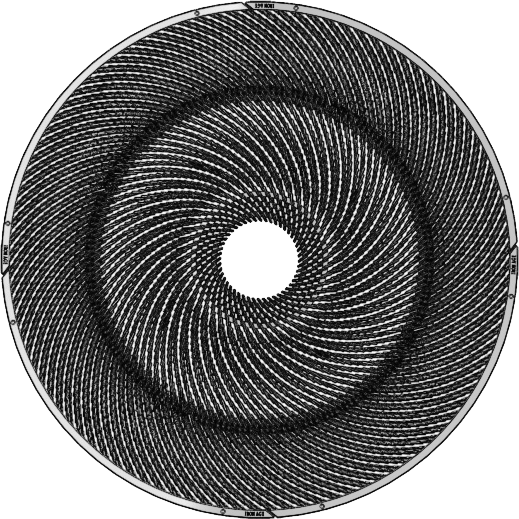

Name / Design Warp 6' Dia. (Pattern Charge May Apply)
Product ID WX72DiaI99TG
Dimensions 72" Dia. x 1.25"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Frame(s) 6' Dia. "E" Frame
Frame Types
"E" Frame Installation
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 572
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze

Photo Gallery:

Standard Finish

For details, see Materials and Finish Options under Resources.

Optional Finish

For details, see Materials and Finish Options under Resources.

Optional Material Upgrades

Call for pricing and lead time.
