Tree Grates
Sonoma Tree Grates
The trademark refinement and surface detail inherent in our designs allows the Sonoma Tree Grate to transcend its utilitarian roots and become something decidedly more appealing.
Select Size:
Detailed Specifications:
- Name / Design
- Sonoma 3' x 3'
- Product ID
- SOX36-36I99TG
- Dimensions
- 35.88" x 35.88" x 1"
- Fits
-
Iron Age Custom Frame
- Frame(s)
-
Frame Types
"E" Frame Installation
- Material
- Cast Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 115.12
- Free Drain Area
- 12.79%
- Gallons Per Minute (GPM)
- 90.97
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Copyright Registration No.
- VA 1-964-355
Photo Gallery:
Click image for high-res file and description

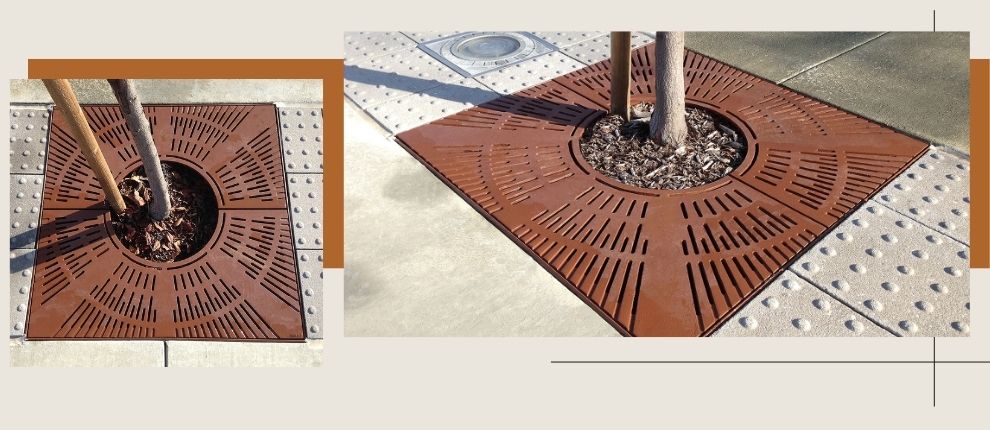

Sonoma 3′ x 3′ tree grate, cast iron with powder coat finish. PROJECT: Sonoma State University Green Music Center. LOCATION: Rohnert Park, CA.

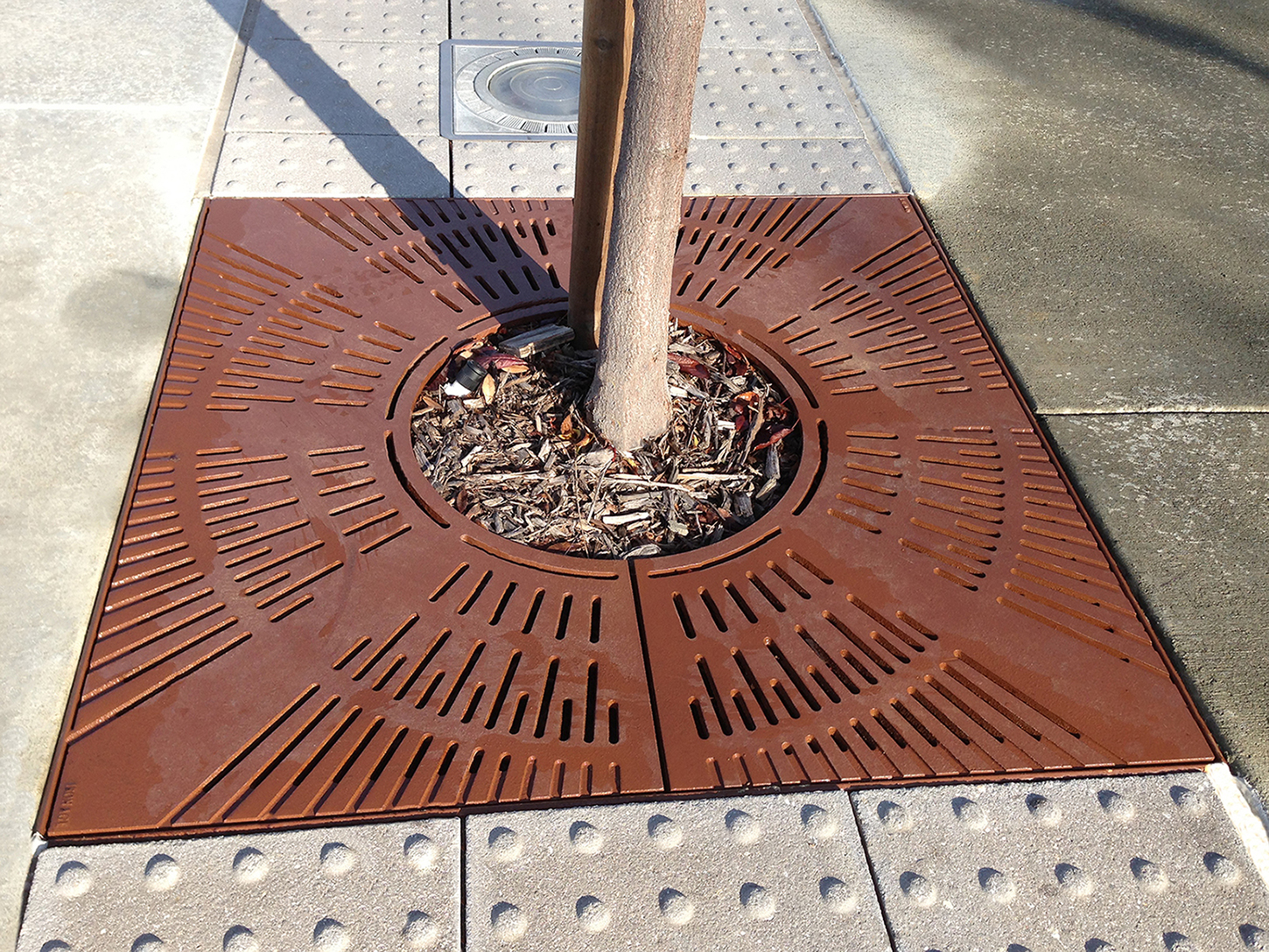

Sonoma 3′ x 3′ tree grate, cast iron with powder coat finish. PROJECT: Sonoma State University Green Music Center. LOCATION: Rohnert Park, CA.

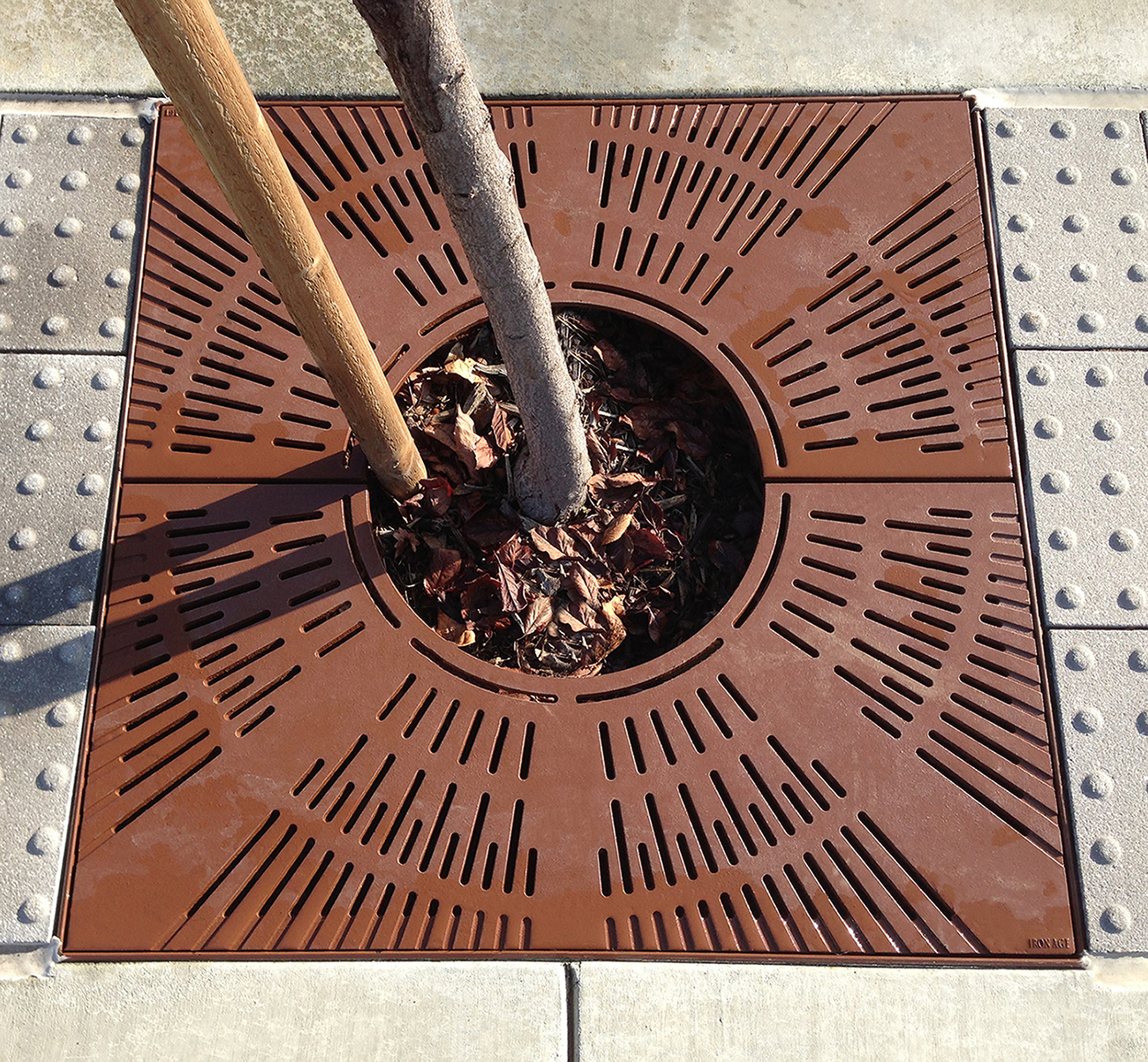

Sonoma 3′ x 3′ tree grate, cast iron with powder coat finish. PROJECT: Sonoma State University Green Music Center. LOCATION: Rohnert Park, CA.
Similar Products:
View additional products featuring the Sonoma design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
