Products
Catch Basin Grates
Argo Catch Basin Grates

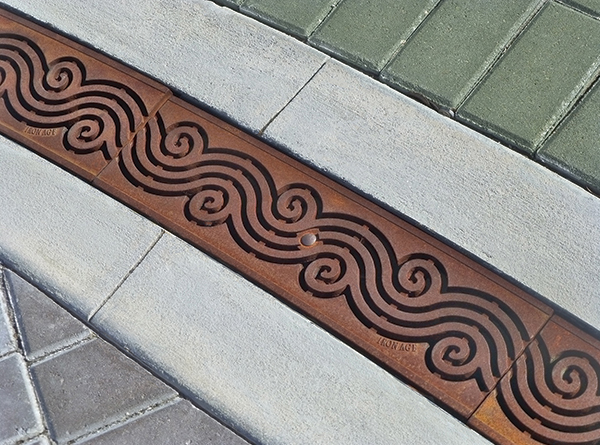

Inspired by ancient tales of the mythical ship, Argo’s rolling-wave pattern suggests moving currents of water and wind.
Select Size:
Detailed Specifications:
- Name / Design
- Argo 36" x 36" Heel-Proof
- Product ID
- AX36-36I99HP
- Dimensions
- 35.88" x 35.88" x 1.25"
- Fits
-
Iron Age Custom Frame
- Frame(s)
-
Frame Types
"E" Frame Installation
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 133.80
- Free Drain Area
- 16.94%
- Gallons Per Minute (GPM)
- 285.69
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Copyright Registration No.
- VA 1-970-743
Photo Gallery:
Click image for high-res file and description

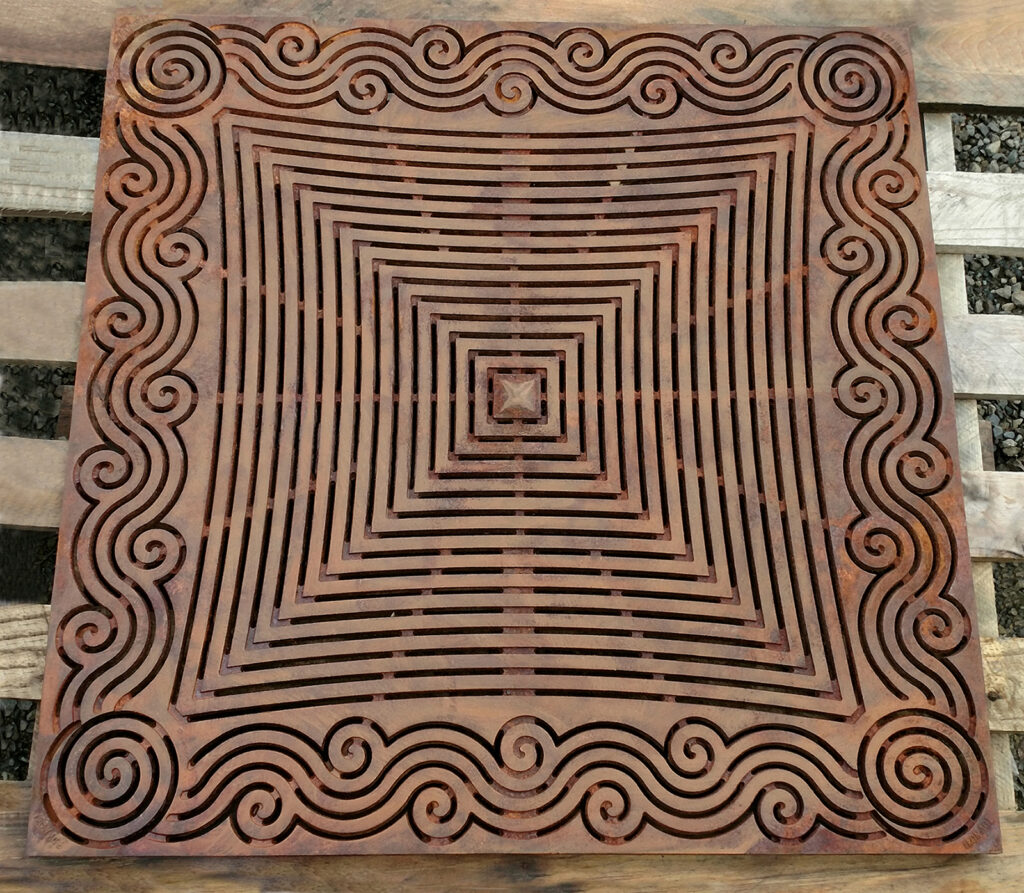

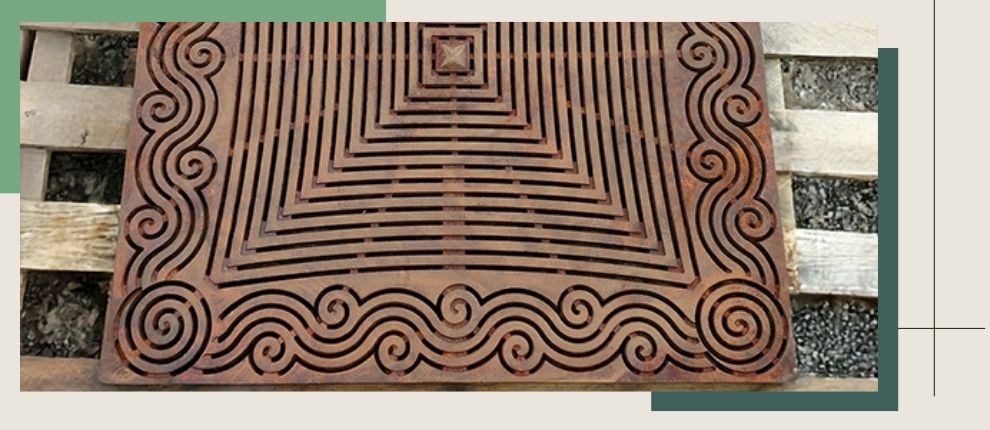

Argo 36″ x 36″ heel-proof catch basin grate, raw cast iron. Shown prior to installation.
Similar Products:
View additional products featuring the Argo design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
