Large Grate Array Panels
Locust Large Grate Array Panels
The popularity of our Locust pattern points to a natural affinity for organic design elements. Available in a wide range of shapes and sizes, these signature grates are designed to be combined into any number of unique applications.
Select Size:
Detailed Specifications:
- Name / Design
- Locust 20" x 40" Heel-Proof, PEDESTRIAN LOAD ONLY
- Product ID
- LX20-40I99HP
- Dimensions
- 20.00" x 40.00" x 1.25"
- Fits
-
Iron Age Custom Frame
- Material
- Cast Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 72.72
- Free Drain Area
- 7.91%
- Gallons Per Minute (GPM)
- 82.91
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
Photo Gallery:
Click image for high-res file and description

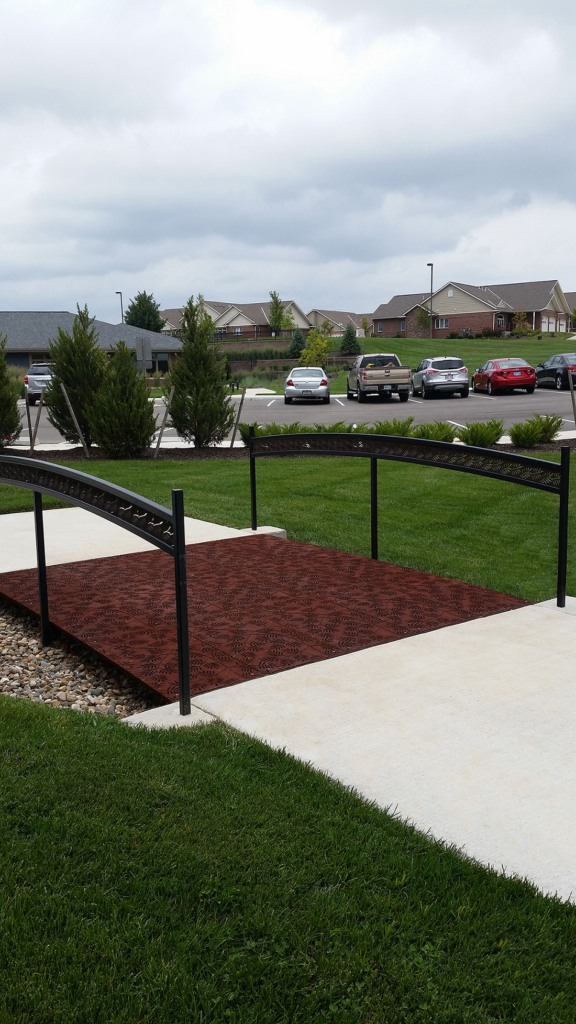

Locust 20″ x 40″ heel-proof grate, cast iron with baked-on-oil finish. Arrayed as a pedestrian bridge with matching laser-cut hand rail.Â
Locust 20″ x 40″ heel-proof grate, cast iron with baked-on-oil finish. Arrayed as a pedestrian bridge with matching laser-cut hand rail.Â

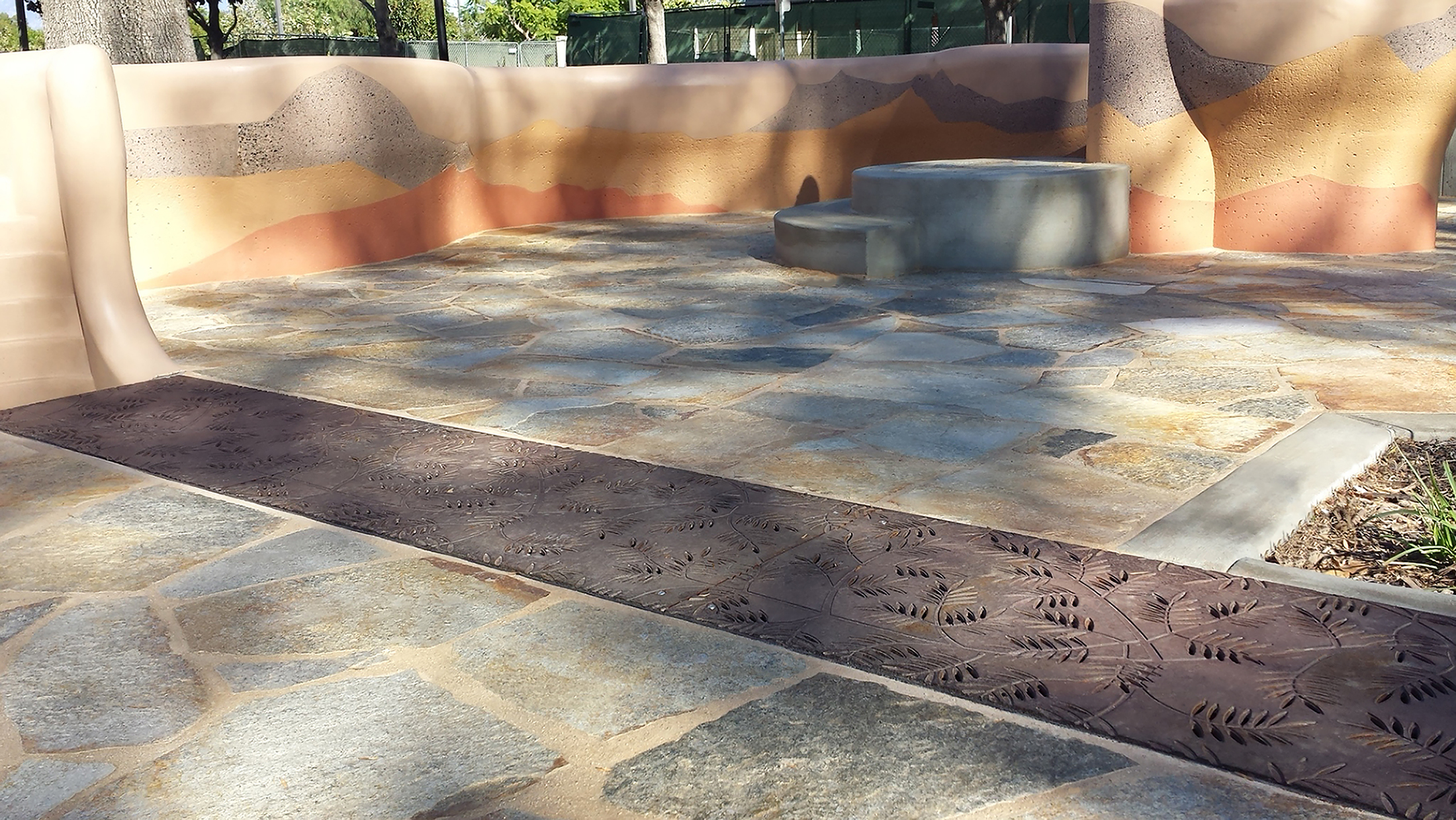

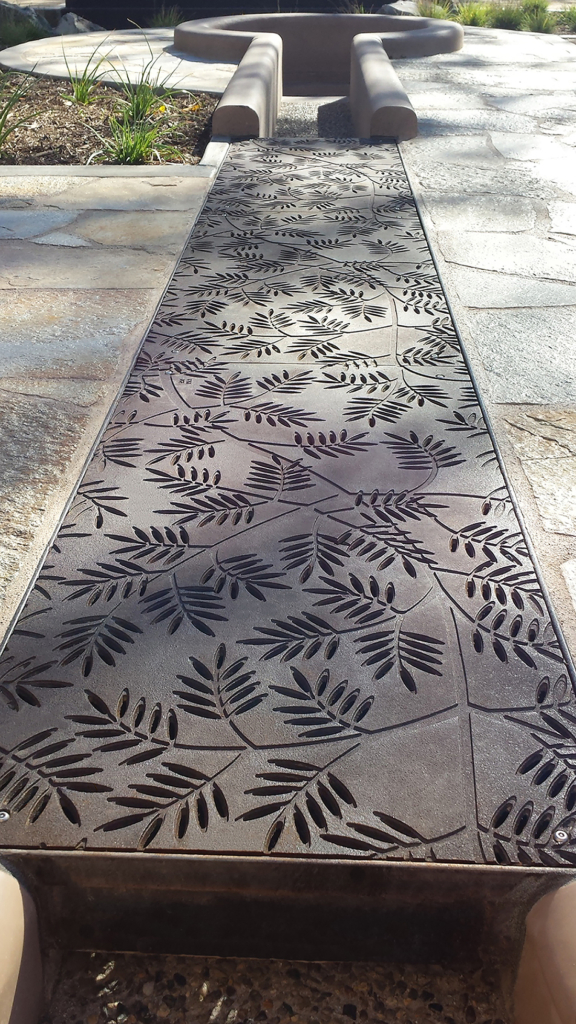

Locust 20″ x 40″ heel-proof grate, cast iron with baked-on-oil finish. PROJECT: Conservation Park. LOCATION: Ontario, CA.
Locust 20″ x 40″ heel-proof grate, cast iron with baked-on-oil finish. PROJECT: Conservation Park. LOCATION: Ontario, CA.
Locust 20″ x 40″ heel-proof grate, cast iron with baked-on-oil finish. PROJECT: Conservation Park. LOCATION: Ontario, CA.
Locust 20″ x 40″ heel-proof grate, cast iron with baked-on-oil finish. PROJECT: Conservation Park. LOCATION: Ontario, CA.

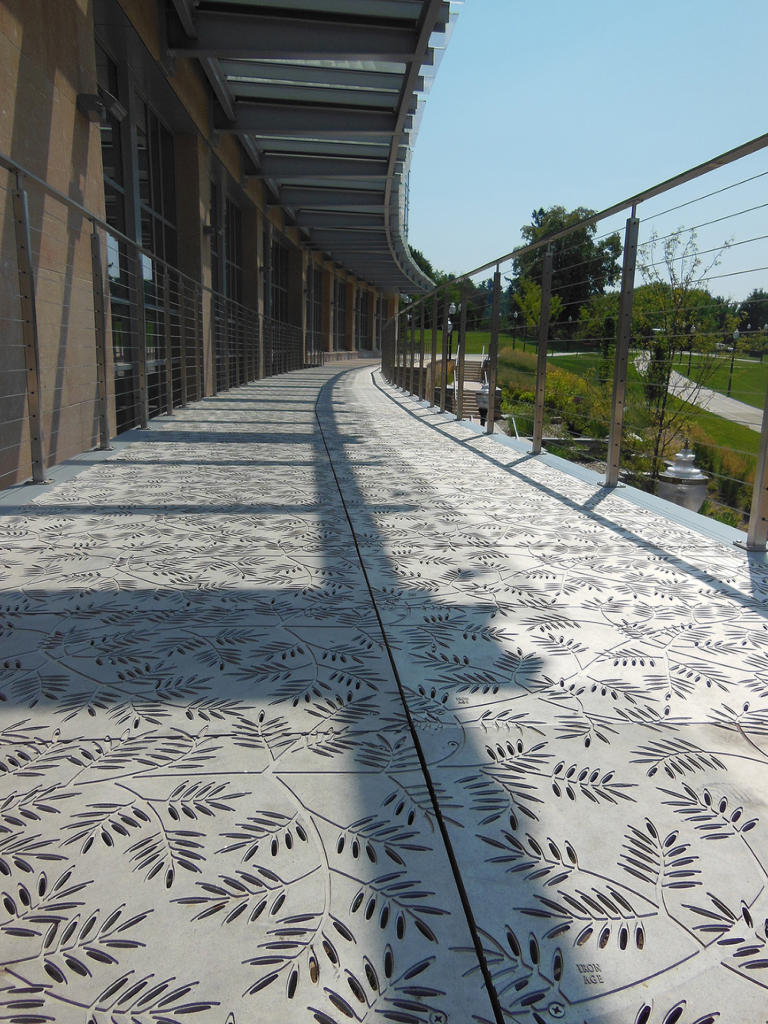

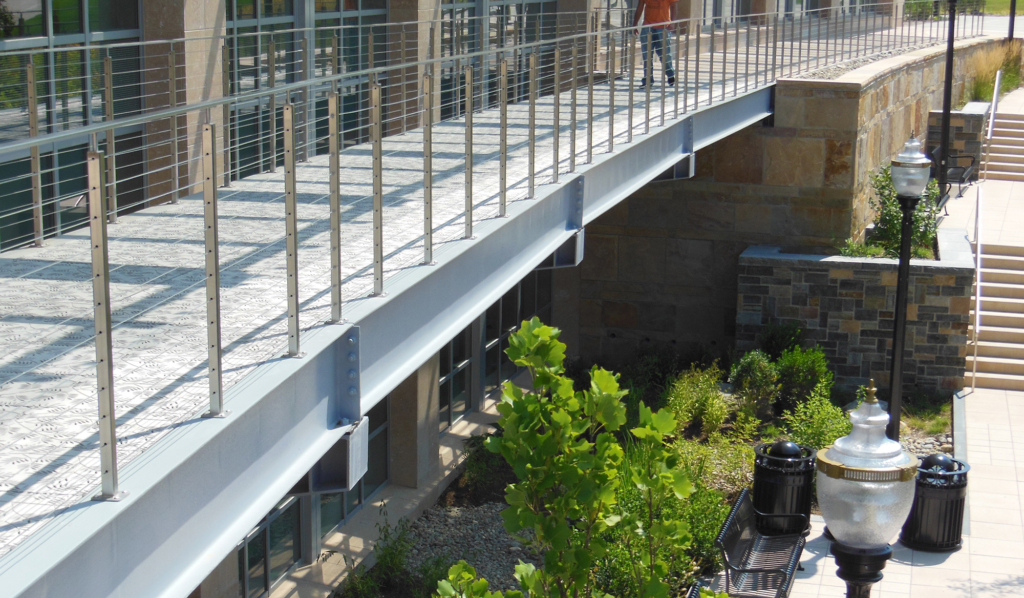

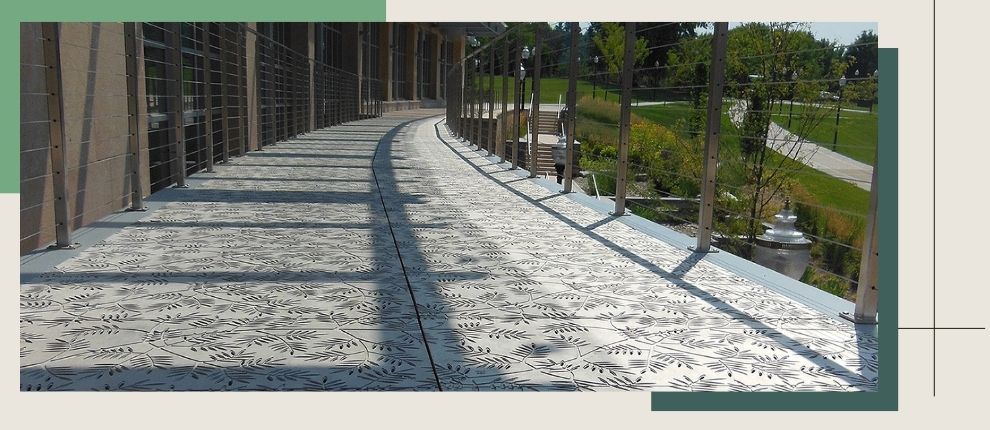

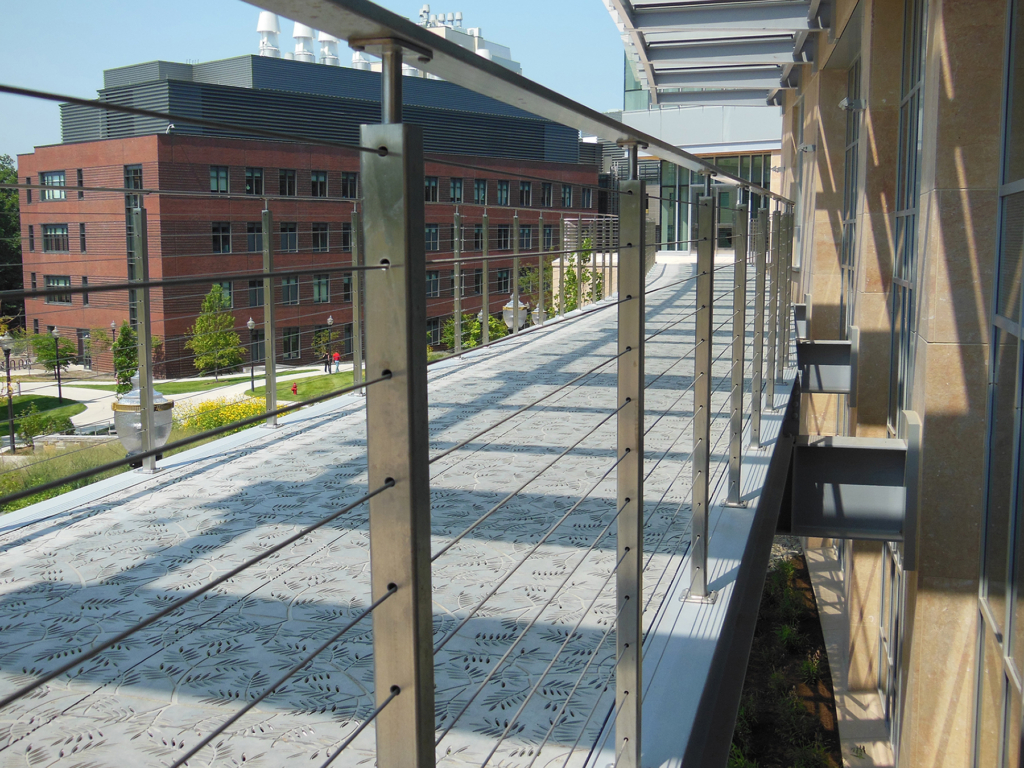

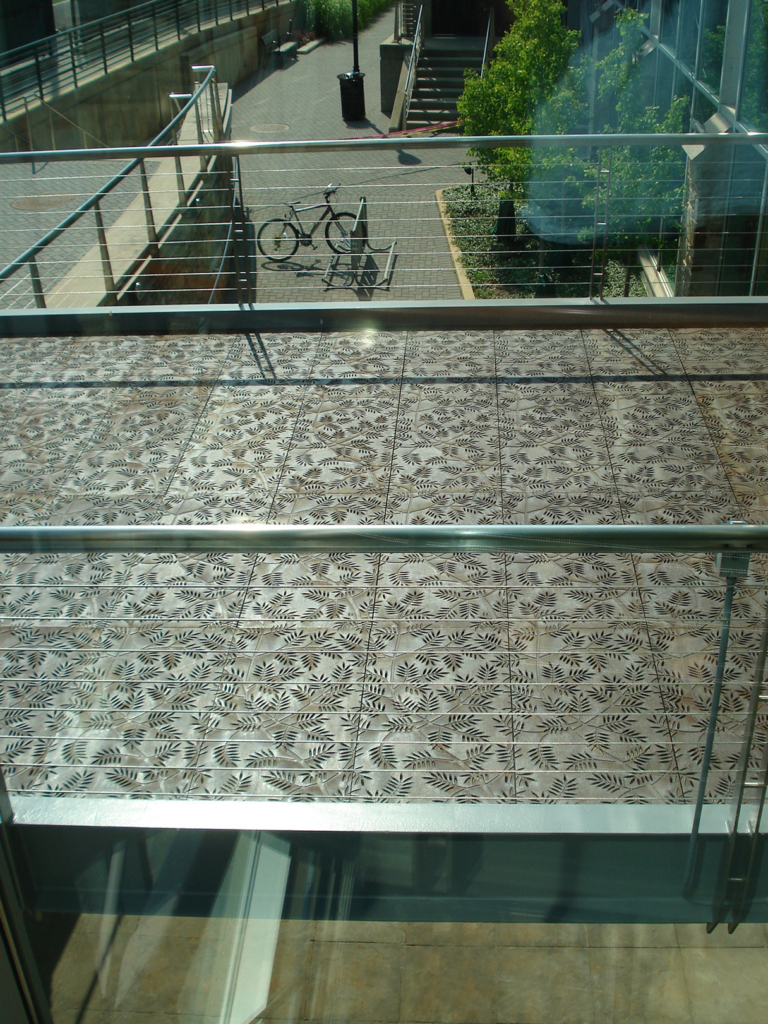

Locust 20″ x 40″ heel-proof grate, raw cast aluminum, arrayed as a pedestrian bridge. DESIGN: Towers|Golde. PROJECT: Life Science Laboratories, University of Massachusetts – Amherst. LOCATION: Amherst, MA
Locust 20″ x 40″ heel-proof grate, raw cast aluminum, arrayed as a pedestrian bridge. DESIGN: Towers|Golde. PROJECT: Life Science Laboratories, University of Massachusetts – Amherst. LOCATION: Amherst, MA
Locust 20″ x 40″ heel-proof grate, raw cast aluminum, arrayed as a pedestrian bridge. DESIGN: Towers|Golde. PROJECT: Life Science Laboratories, University of Massachusetts – Amherst. LOCATION: Amherst, MA
Locust 20″ x 40″ heel-proof grate, raw cast aluminum, arrayed as a pedestrian bridge. DESIGN: Towers|Golde. PROJECT: Life Science Laboratories, University of Massachusetts – Amherst. LOCATION: Amherst, MA

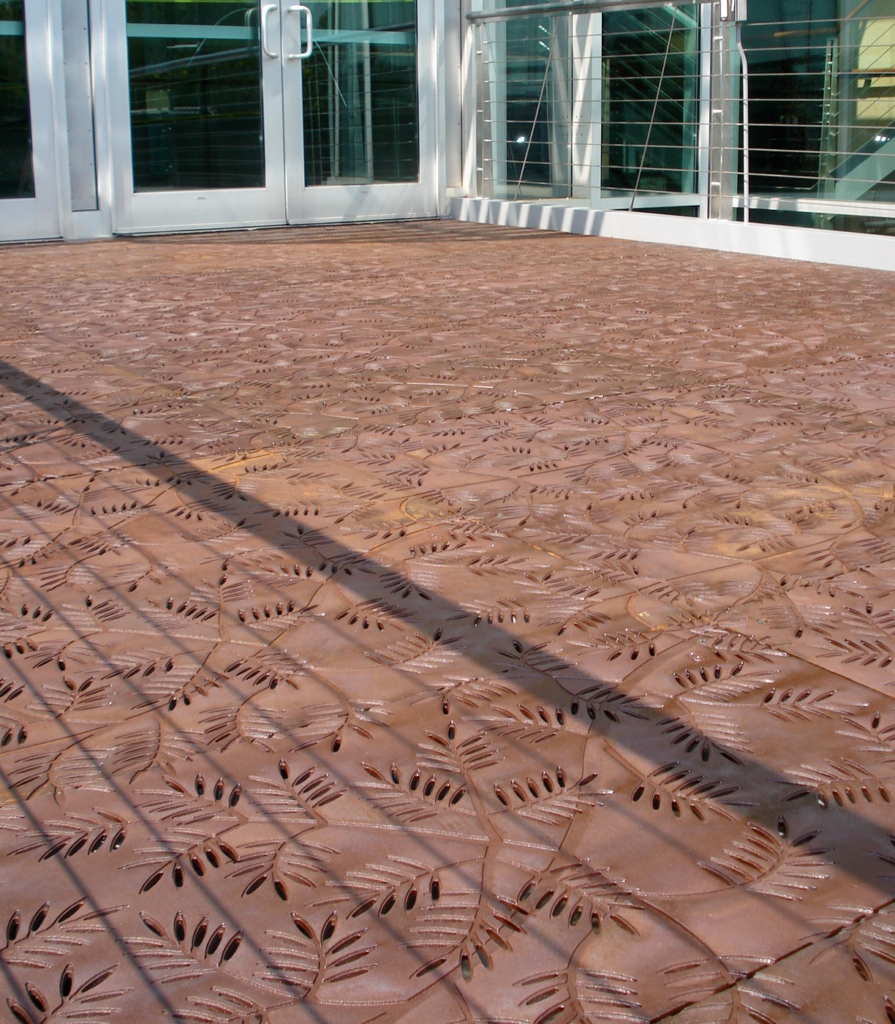

Locust 20″ x 40″ heel-proof grate, cast iron with baked-on-oil finish. Shown arrayed as pedestrian bridge deck. DESIGN: Hord Coplan Macht. PROJECT: Loyola University Baltimore Campus. LOCATION: Baltimore, MD.Â
Locust 20″ x 40″ heel-proof grate, cast iron with baked-on-oil finish. Shown arrayed as pedestrian bridge deck. DESIGN: Hord Coplan Macht. PROJECT: Loyola University Baltimore Campus. LOCATION: Baltimore, MD.Â
Locust 20″ x 40″ heel-proof grate, cast iron with baked-on-oil finish. Shown arrayed as pedestrian bridge deck. DESIGN: Hord Coplan Macht. PROJECT: Loyola University Baltimore Campus. LOCATION: Baltimore, MD.Â
Similar Products:
View additional products featuring the Locust design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
