Large Grate Array Panels
Interlaken Large Grate Array Panels
A classically-inspired circle and diamond pattern gives our signature Interlaken design a timeless appeal, along with the ability to complement a wide variety of architectural applications.
Select Size:
Detailed Specifications:
- Name / Design

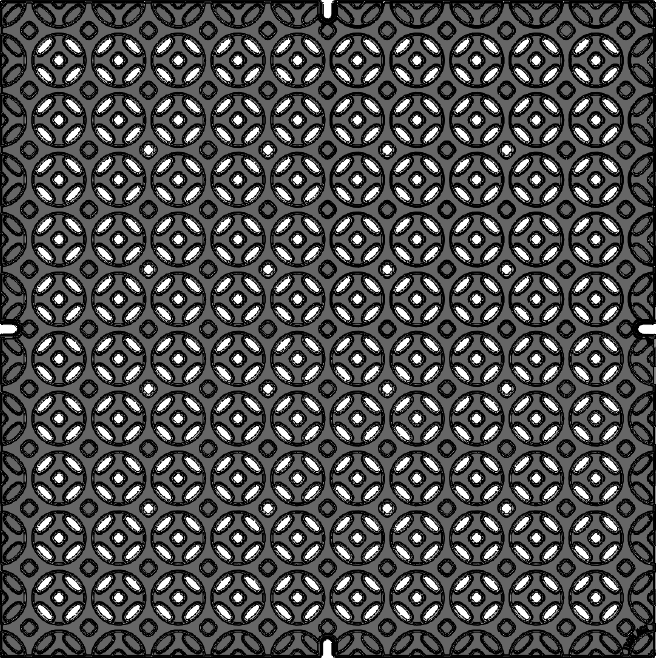

- Interlaken 24" x 24" PEDESTRIAN LOAD ONLY
- Product ID
- IX24-24I99FW
- Dimensions
- 23.88" x 23.99" x 1.00"
- Fits
-
Iron Age Custom Frame
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 64.67
- Free Drain Area
- 11.78%
- Gallons Per Minute (GPM)
- 87.97
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
Photo Gallery:
Click image for high-res file and description

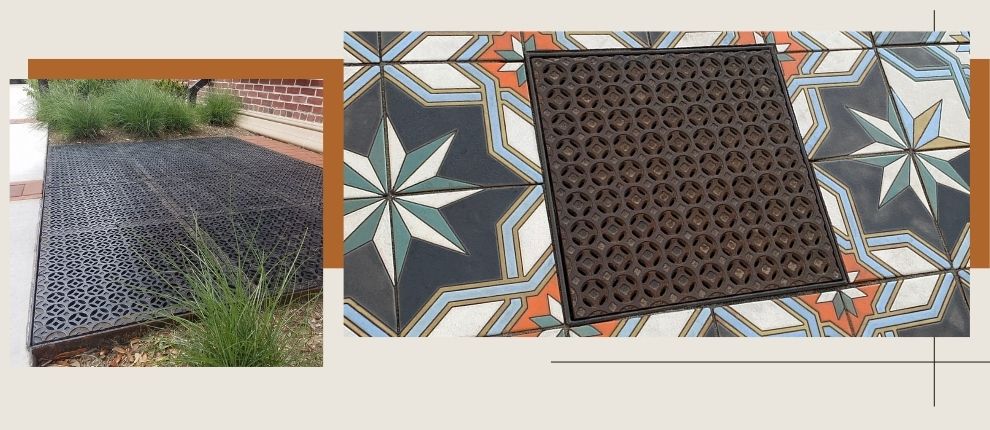

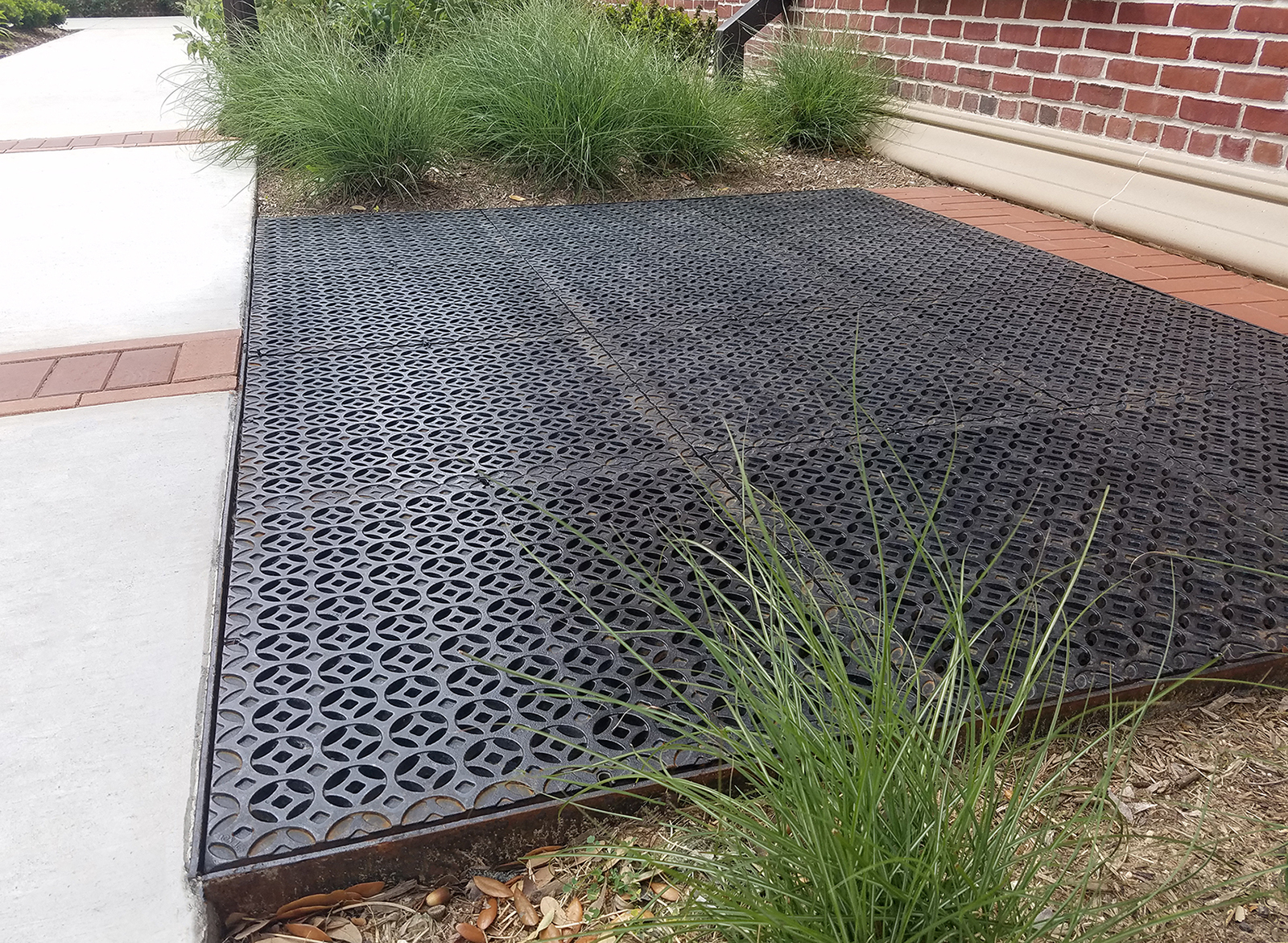

Interlaken 24″ x 24″ grate – pedestrian load only. Cast iron with black powder coat finish. GENERAL CONTRACTOR: Brookstone Construction. PROJECT: St. Luke’s Methodist Church. LOCATION: Houston, TX.
Interlaken 24″ x 24″ grate – pedestrian load only. Cast iron with baked-on-oil finish. DESIGN: Gensler / Los Angeles. PROJECT: Paseo Nuevo. LOCATION: Santa Barbara, CA.

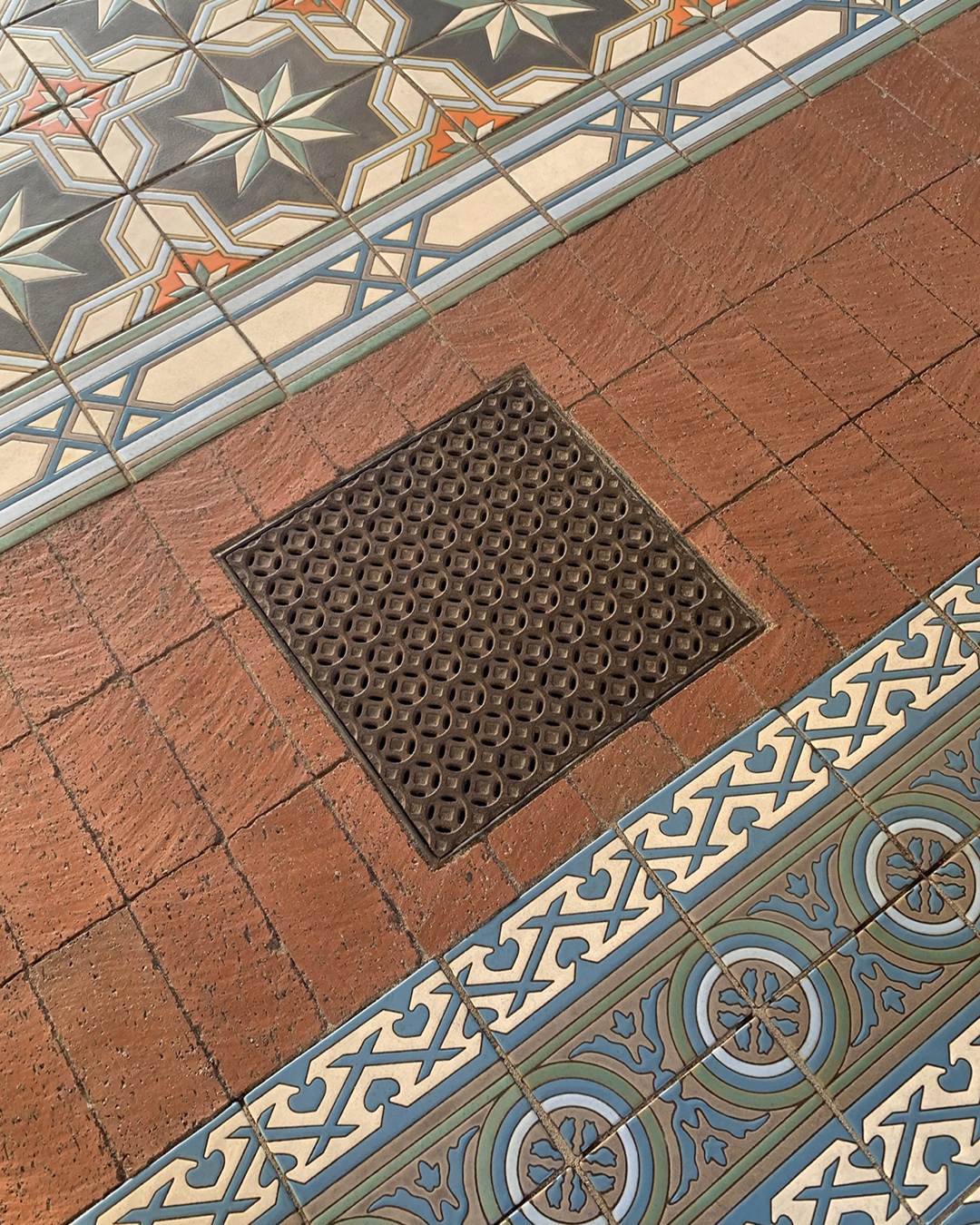

Interlaken 24″ x 24″ grate – pedestrian load only. Cast iron with baked-on-oil finish. DESIGN: Gensler / Los Angeles. PROJECT: Paseo Nuevo. LOCATION: Santa Barbara, CA.

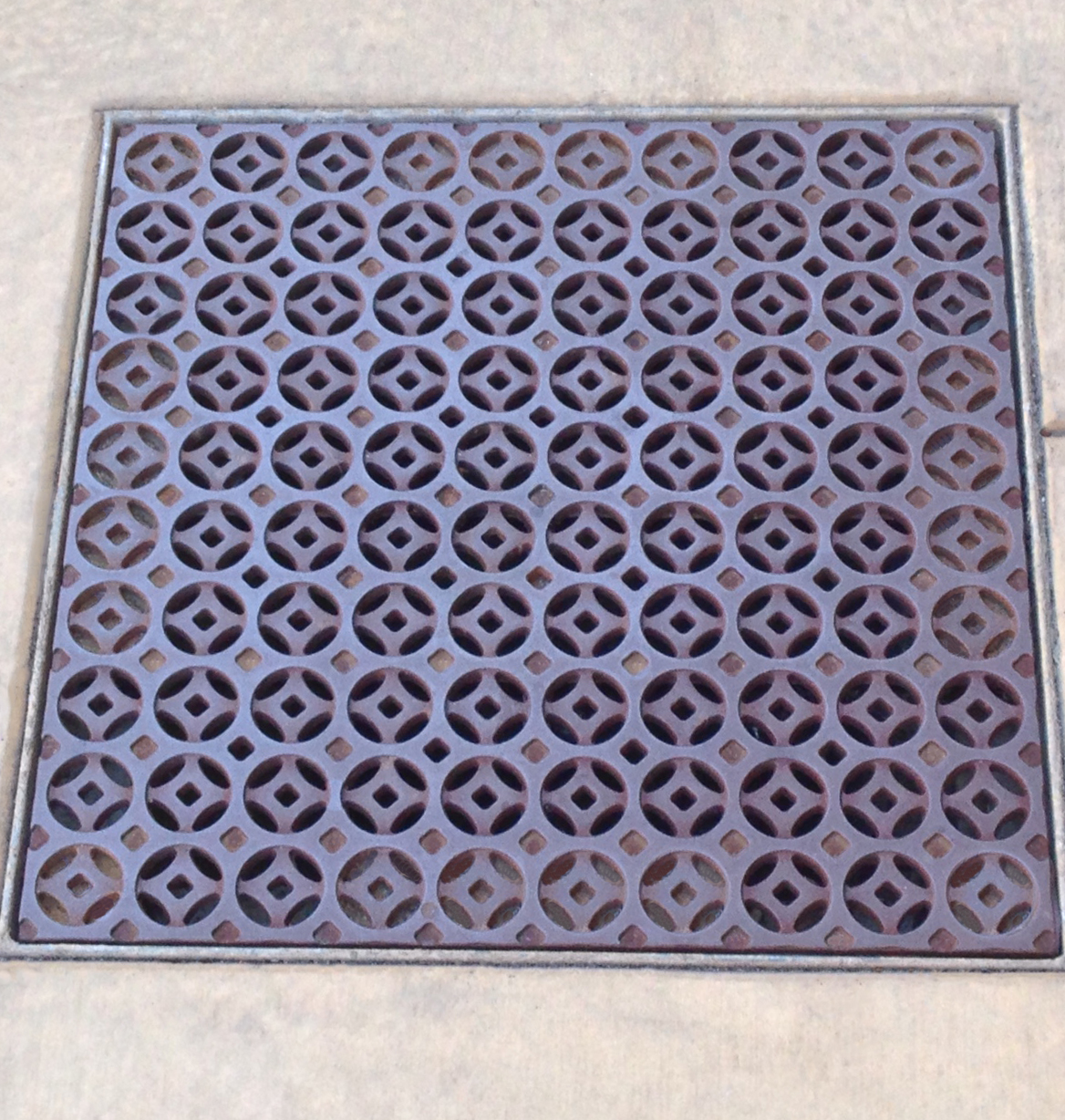

Interlaken 24″ x 24″ grate – pedestrian load only. Cast iron with baked-on-oil finish.  PROJECT: Meritage Resort & Spa. LOCATION: Napa,CA.
Similar Products:
View additional products featuring the Interlaken design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
