Urban Rhythms

Detailed Specifications:

		Spec Sheet
Name / Design	Urban Rhythms 8" x 18" SOLID
Product ID	URX18-8I99S
Dimensions	7.88" x 17.88" x .75"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	16.73
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Urban Rhythms 9" x 18" Heel-Proof
Product ID	URX9-18I99HP
Dimensions	8.75" x 18" x 1.5"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	19
Free Drain Area	17%
Gallons Per Minute (GPM)	36.1
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 1-964-892

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Urban Rhythms 12" x 18" Heel-Proof
Product ID	URX12-18I99HP
Dimensions	11.88" x 17.88" x .75"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	16.41
Free Drain Area	12.47%
Gallons Per Minute (GPM)	34.68
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-330-317

	Spec Sheet
Name / Design	Urban Rhythms 18" x 16" SOLID
Product ID	URX18-16I99S
Dimensions	17.88" x 15.88" x .75"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	34.70
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Urban Rhythms 18" x 20" Heel-Proof
Product ID	URX18-20I99HP
Dimensions	17.88" x 20.25" x 1.50"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	48.17
Free Drain Area	10.34%
Gallons Per Minute (GPM)	48.97
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet
Name / Design	Urban Rhythms 18" x 20" SOLID
Product ID	URX18-20I99S
Dimensions	17.88" x 20.25" x 1.00"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	48.17
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

Photo Gallery:

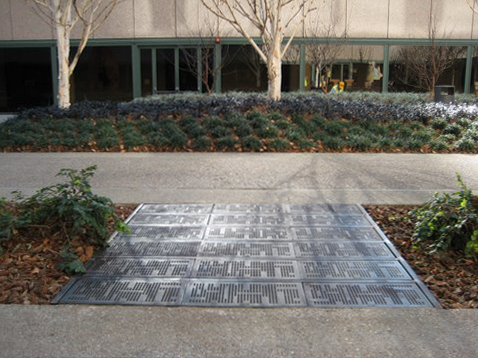

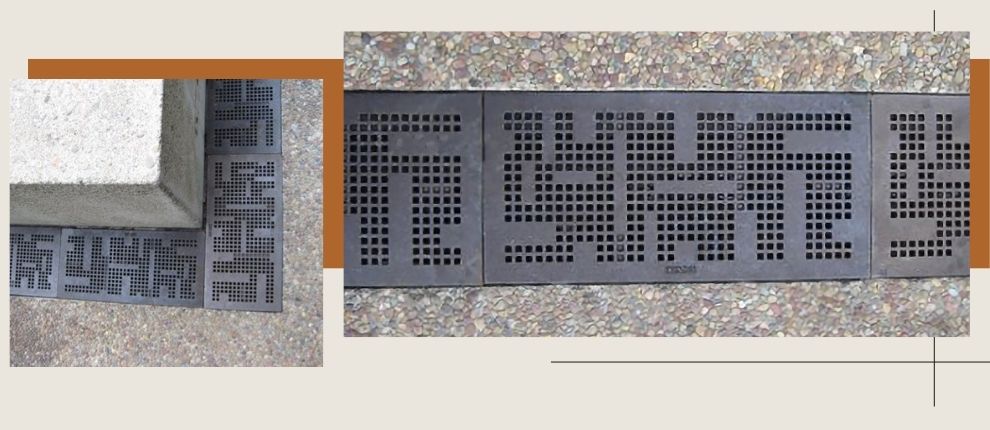

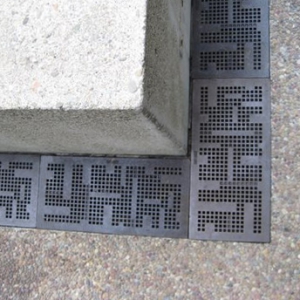

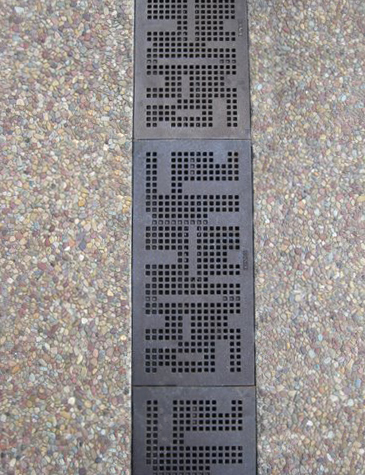

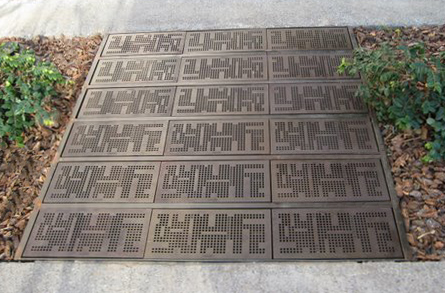

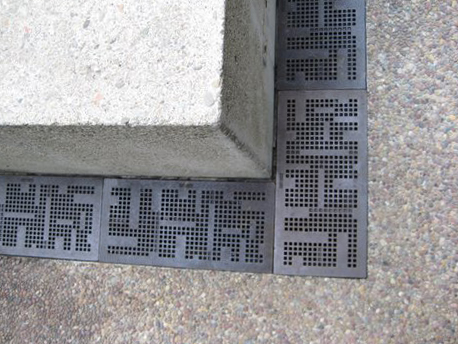

Urban Rhythms 9″ x 20″ trench grate, cast ductile iron with our baked on oil finish. Arrayed on a pedestrian bridge, San Francisco Federal Reserve. Architect: Sasaki.

Download photo

Urban Rhythms 9″ x 20″ trench grate, cast ductile iron with our baked on oil finish. Arrayed on a pedestrian bridge, San Francisco Federal Reserve. Architect: Sasaki.

Download photo

Urban Rhythms 9″ x 20″ trench grate, cast ductile iron with our baked on oil finish. Arrayed on a pedestrian bridge, San Francisco Federal Reserve. Architect: Sasaki.

Download photo

Urban Rhythms 9″ x 20″ trench grate, cast ductile iron with our baked on oil finish. Arrayed on a pedestrian bridge, San Francisco Federal Reserve. Architect: Sasaki.

Download photo
