Urban Rhythms

Detailed Specifications:

		Spec Sheet

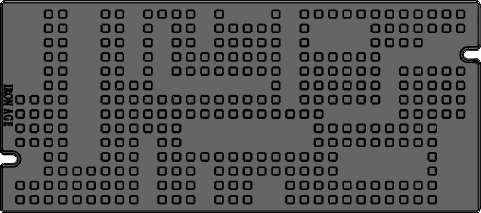

Name / Design	Urban Rhythms 8" x 18" Solid Cover
Product ID	URX18-8I99S
Dimensions	7.88" x 17.88" x .75"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	16.73
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet
Name / Design	Urban Rhythms 18" x 16" Solid Cover
Product ID	URX18-16I99S
Dimensions	17.88" x 15.88" x .75"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	34.70
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet
Name / Design	Urban Rhythms 18" x 20" Solid Cover
Product ID	URX18-20I99S
Dimensions	17.88" x 20.25" x 1.00"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	48.17
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

Photo Gallery:

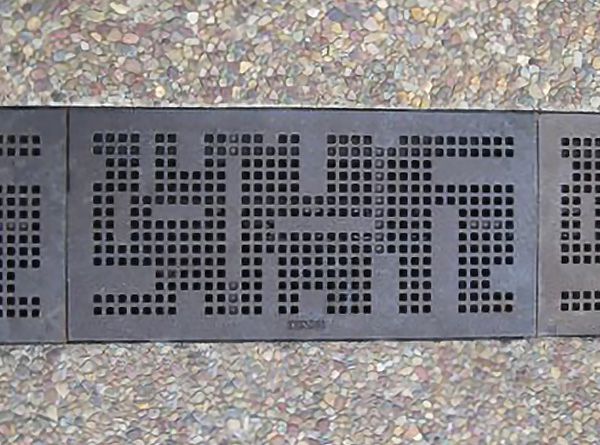

Custom 8″ x 18″ Urban Rhythm solid cover, raw cast iron. Project: DC United Soccer Stadium, Washington, DC. Design/Engineering: AECOM.

Custom 18″ x 16″ Urban Rhythm solid cover, raw cast iron. Project: DC United Soccer Stadium, Washington, DC. Design/Engineering: AECOM.

Custom 18″ x 20″ Urban Rhythm solid cover, raw cast iron. Project: DC United Soccer Stadium, Washington, DC. Design/Engineering: AECOM.

Custom 18″ x 20″ Urban Rhythm solid cover, raw cast iron. Project: DC United Soccer Stadium, Washington, DC. Design/Engineering: AECOM.

Custom 18″ x 20″ Urban Rhythm solid cover, raw cast iron. Project: DC United Soccer Stadium, Washington, DC. Design/Engineering: AECOM.
