Tree Grates
Explora Tree Grates
Our Explora pattern features a modular, industrial design motif that lends itself well to unique applications, such as grated walkways, large tree grate arrays and more.
Select Size:
Detailed Specifications:
- Name / Design
- Explora 5' x 5'
- Product ID
- EXX60-60I99
- Dimensions
- 59.88" x 59.88" x 1.25"
- Fits
-
Iron Age Custom Frame
- Frame(s)
-
"E" Frame Installation
Frame Types
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 265.68
- Free Drain Area
- 16.71%
- Gallons Per Minute (GPM)
- 752.52
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Copyright Registration No.
- VA 2-345-020
Photo Gallery:
Click image for high-res file and description

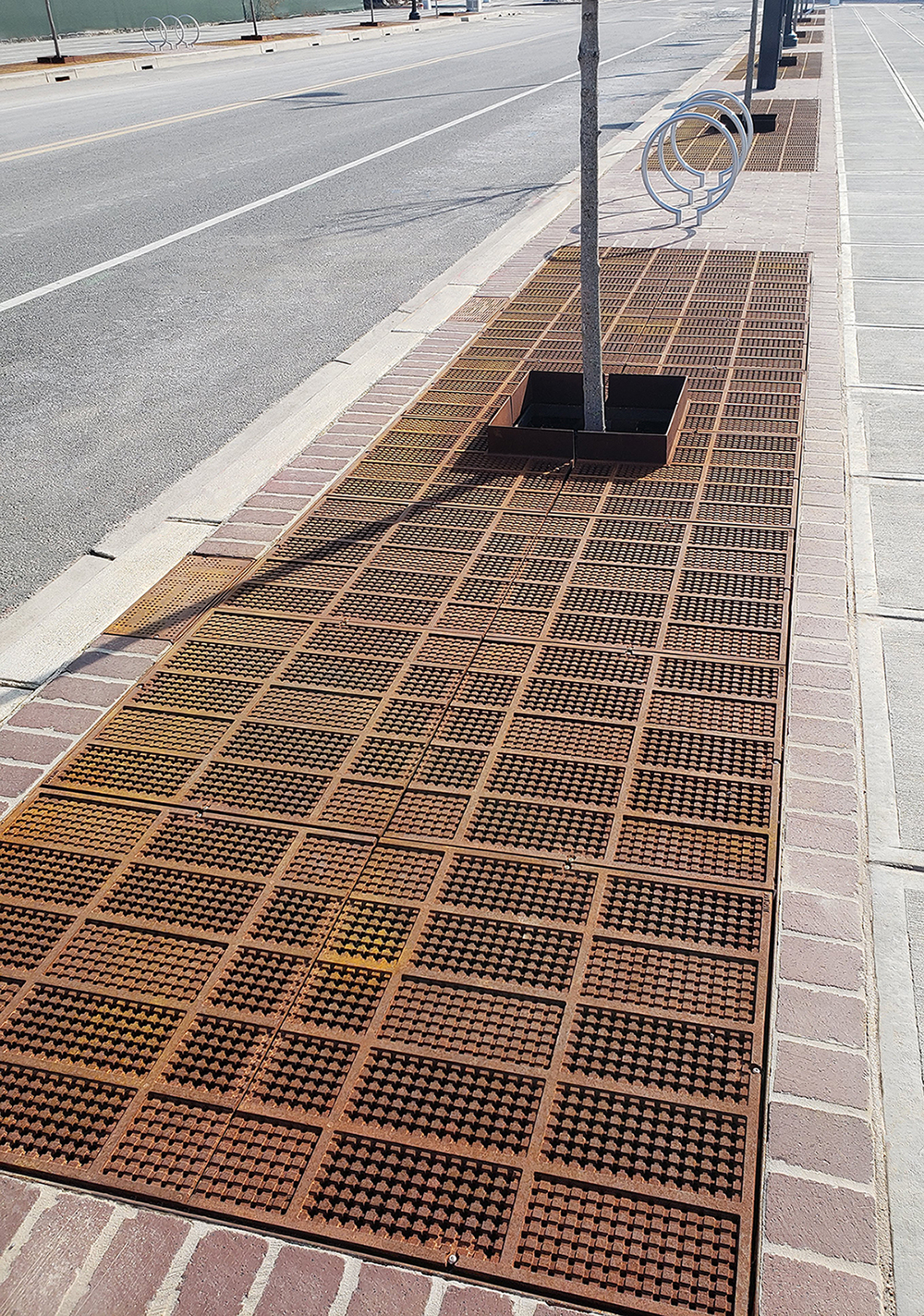

Explora 5′ x 20′ tree grate array, raw cast iron. DESIGN/ENGINEERING: AECOM. PROJECT: DC United Soccer Stadium. LOCATION: Washington, DC.
Explora 5′ x 20′ tree grate array, raw cast iron. DESIGN/ENGINEERING: AECOM. PROJECT: DC United Soccer Stadium. LOCATION: Washington, DC.

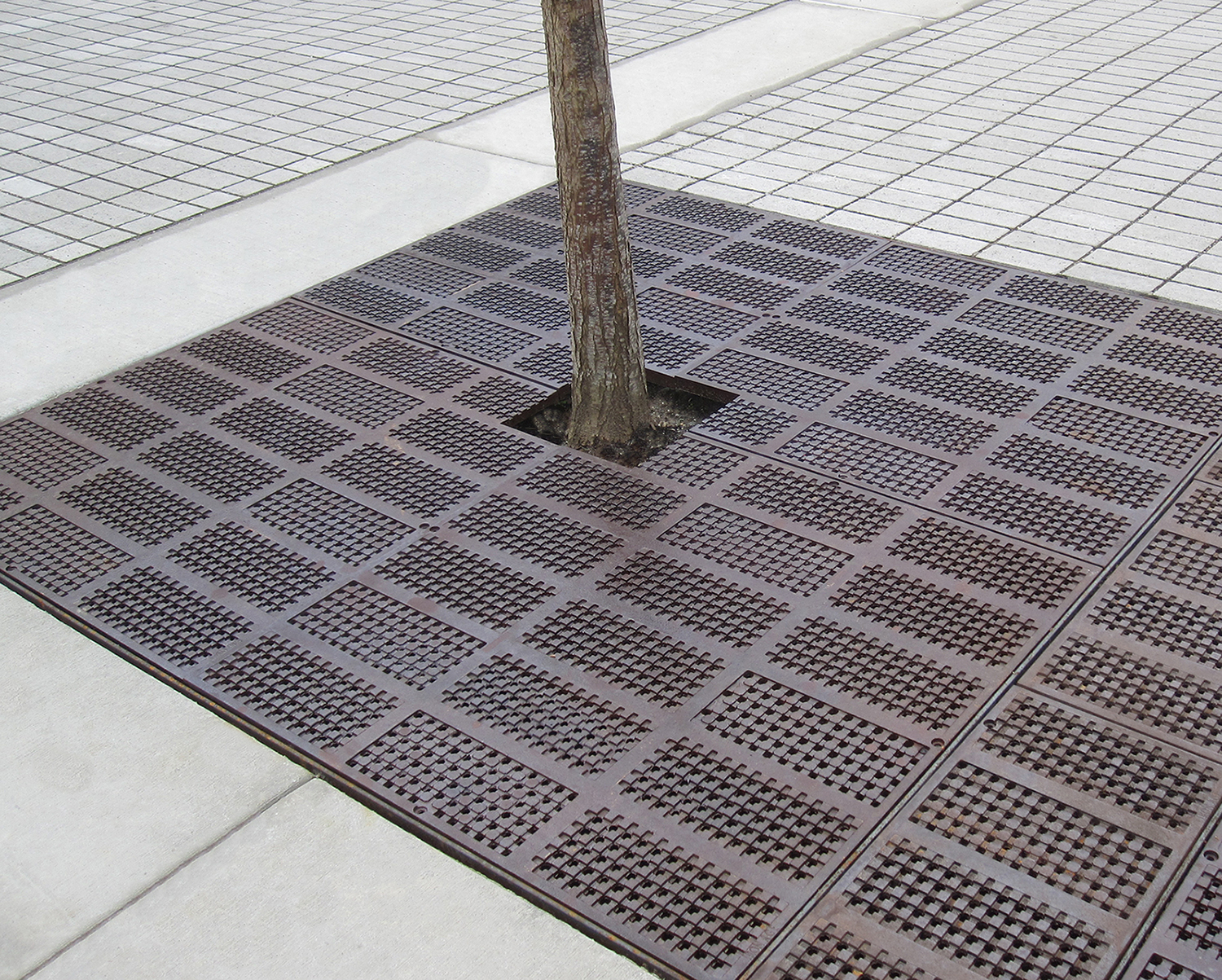

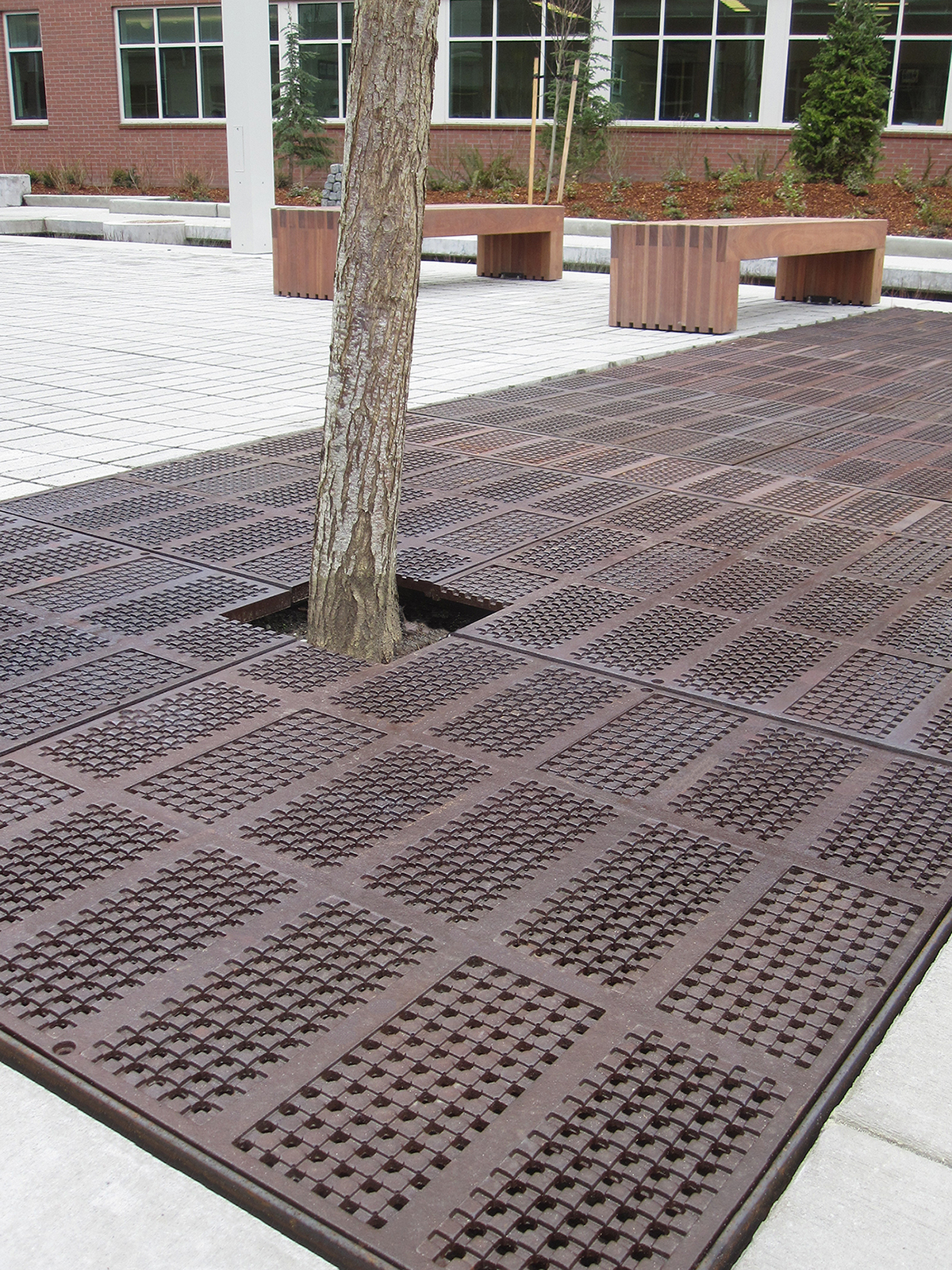

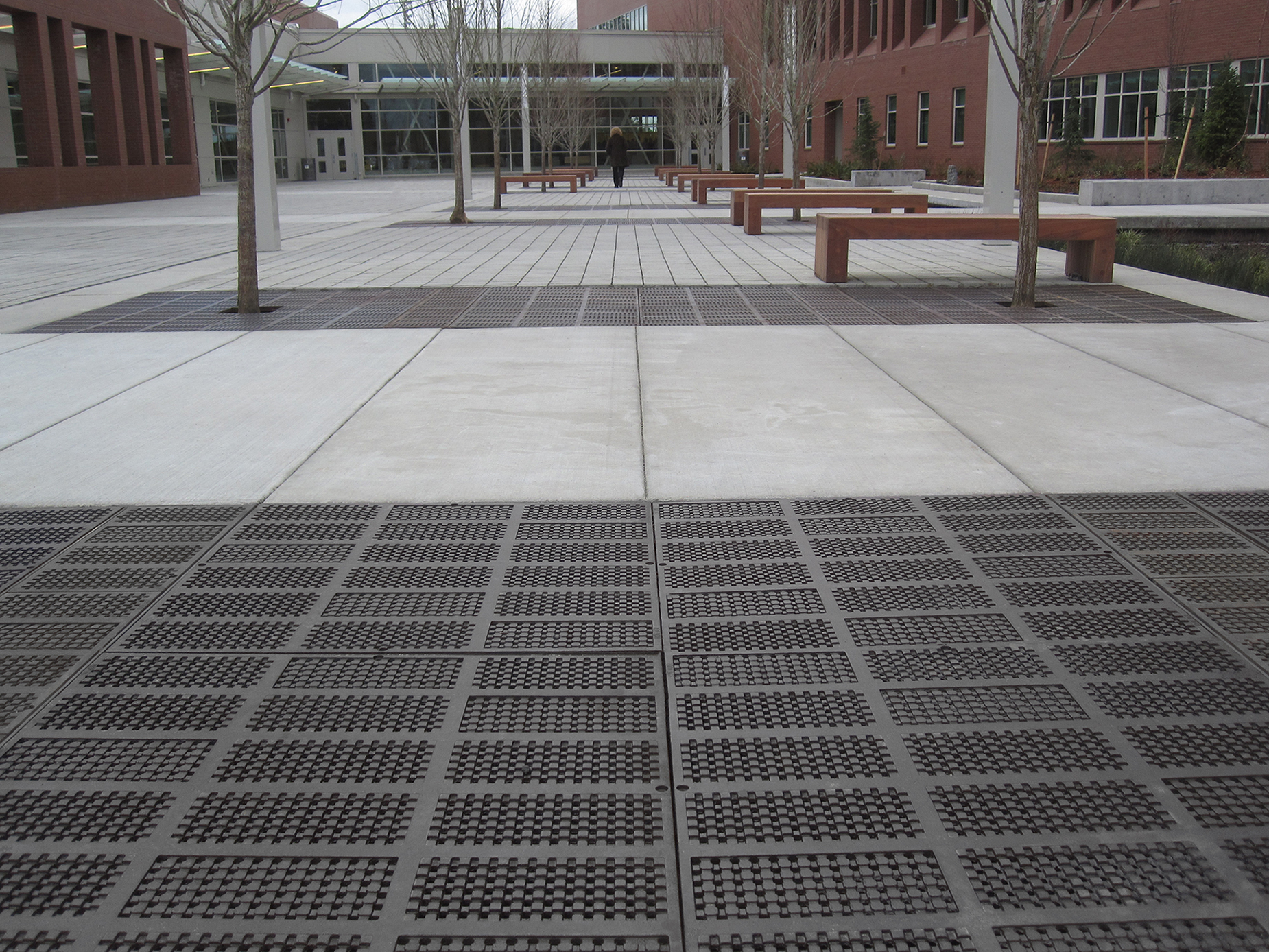

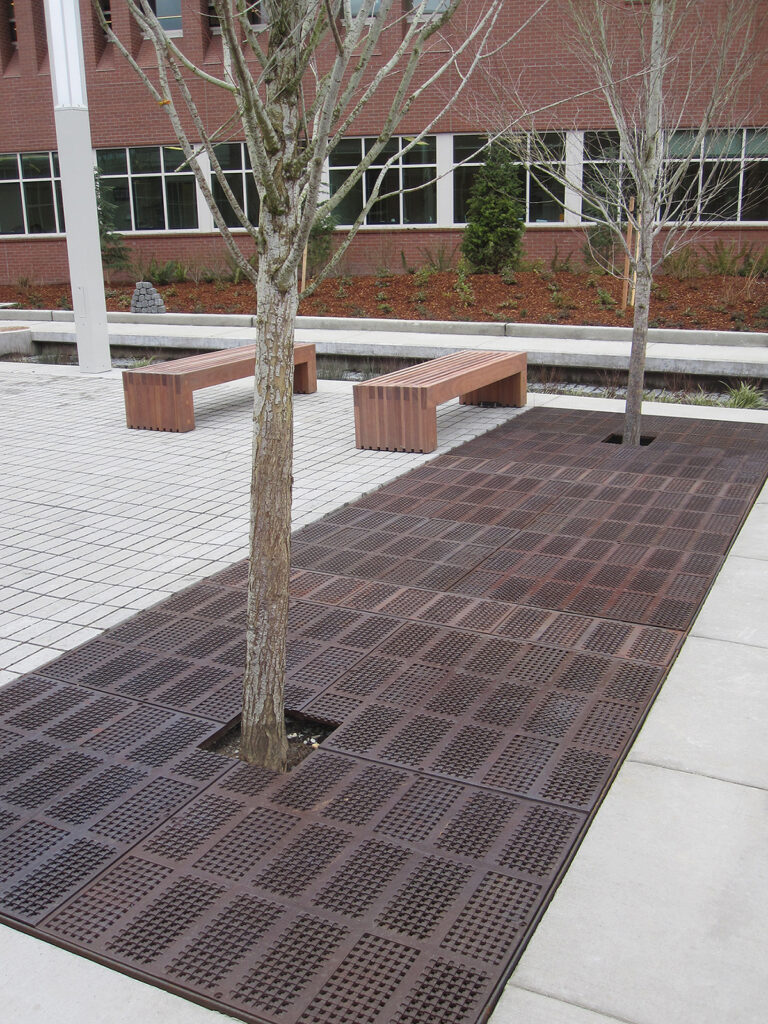

Explora 6′ x 6′ tree grate on a large array with our Explora 12″ x 24″ trench grate, cast iron with baked-on-oil finish. PROJECT: Bellevue High School. LOCATION: Bellevue WA.
Explora 6′ x 6′ tree grate on a large array with our Explora 12″ x 24″ trench grate, cast iron with baked-on-oil finish. PROJECT: Bellevue High School. LOCATION: Bellevue WA.
Explora 6′ x 6′ tree grate on a large array with our Explora 12″ x 24″ trench grate, cast iron with baked-on-oil finish. PROJECT: Bellevue High School. LOCATION: Bellevue WA.
Explora 6′ x 6′ tree grate on a large array with our Explora 12″ x 24″ trench grate, cast iron with baked-on-oil finish. PROJECT: Bellevue High School. LOCATION: Bellevue WA.
Similar Products:
View additional products featuring the Explora design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
