Description:
Our Explora pattern features a modular, industrial design motif that lends itself well to unique applications, such as grated walkways, large tree grate arrays and more.
Explora
Size Options:
Similar Products:
Detailed Specifications:
 |
||
| Name / Design | Explora 5' x 5' | |
|---|---|---|
| Product ID | EXX60-60I99 | |
| Dimensions | 59.88" x 59.88" x 1.25" | |
| Fits |
Iron Age Custom Frame |
|
| Frame(s) |
"E" Frame Installation Frame Types |
|
| Material | Cast Ductile Iron | |
| Standard Finish | Raw | |
| Optional Finish |
Baked On Oil Finish
Powder Coat
|
|
| Weight lb(s) | 265.68 | |
| Free Drain Area | 16.71% | |
| Gallons Per Minute (GPM) | 752.52 | |
| Recycled Content | 80% | |
| ADA Compliant | Yes | |
| Optional Material Upgrades |
Cast Aluminum
Cast Bronze
|
|
| Copyright Registration No. | VA 2-345-020 | |
Photo Gallery:

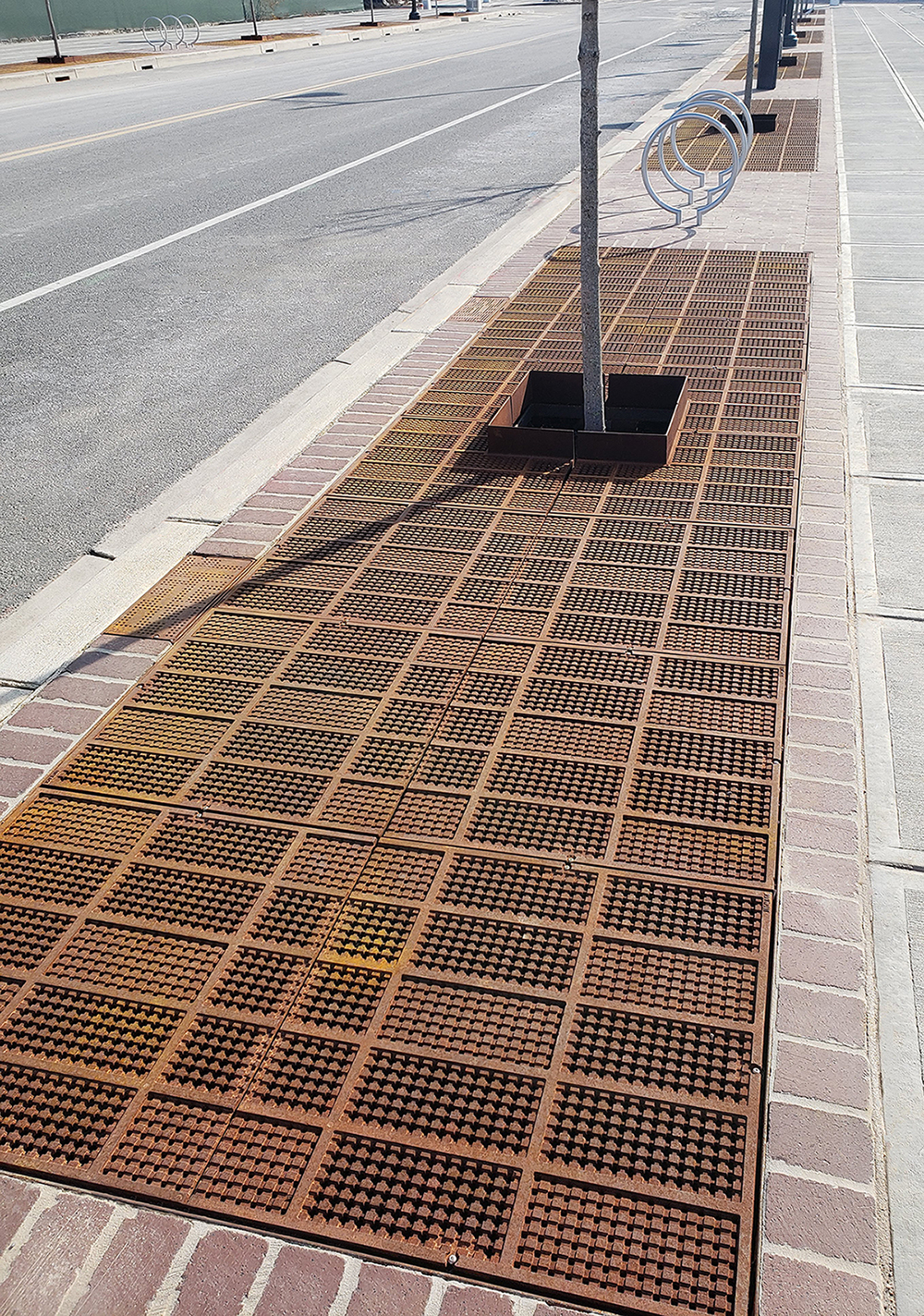

Explora 5′ x 20′ tree grate array, raw cast iron. Project: DC United Soccer Stadium, Washington, DC. Design/Engineering: AECOM
Download photo
Explora 5′ x 20′ tree grate array, raw cast iron. Project: DC United Soccer Stadium, Washington, DC. Design/Engineering: AECOM
Download photo

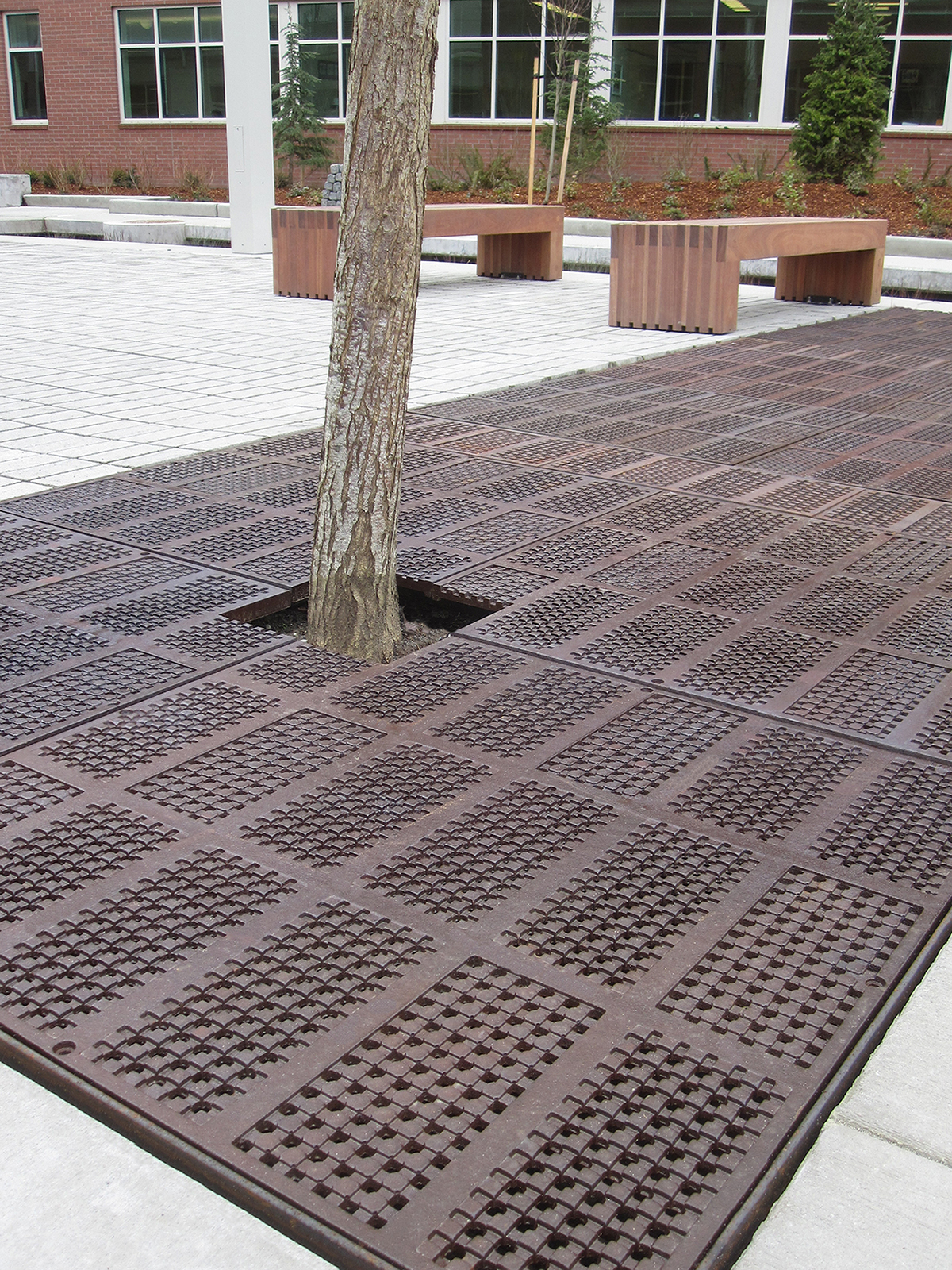

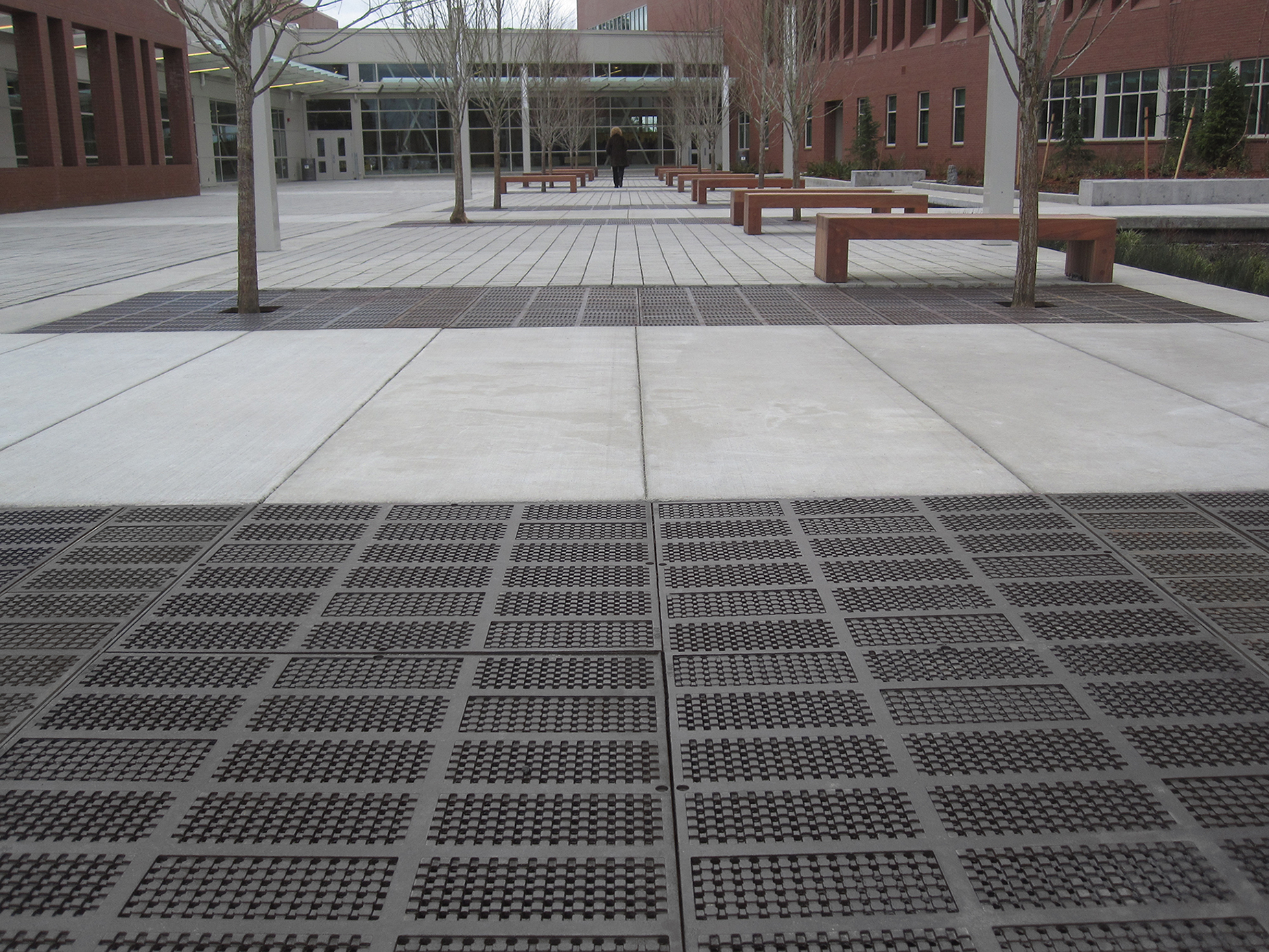

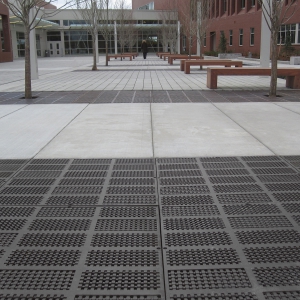

Explora 6′ Sq. tree grate on a large array with our Explora 12″ x 24″ trench grate, cast iron with our baked on oil finish. Bellevue High School, Bellevue WA.
Download photo
Explora 6′ Sq. tree grate on a large array with our Explora 12″ x 24″ trench grate, cast iron with our baked on oil finish. Bellevue High School, Bellevue WA.
Download photo
Explora 6′ Sq. tree grate on a large array with our Explora 12″ x 24″ trench grate, cast iron with our baked on oil finish. Bellevue High School, Bellevue WA.
Download photo
Explora 6′ Sq. tree grate on a large array with our Explora 12″ x 24″ trench grate, cast iron with our baked on oil finish. Bellevue High School, Bellevue WA.
Download photo
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
