Carbochon

Description:

The bold, geometric face of our Carbochon pattern is designed to beautifully accentuate a wide variety of surrounding surfaces and landscapes.



Detailed Specifications:

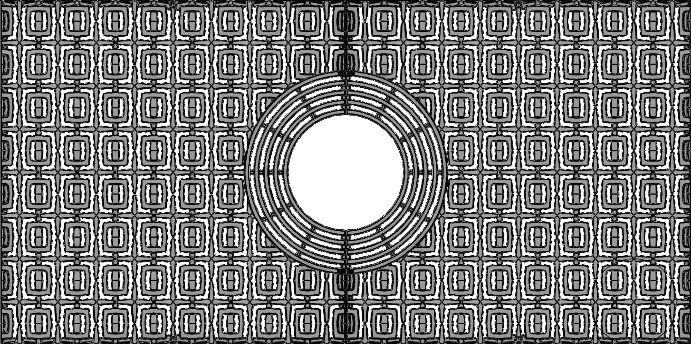

Name / Design Carbochon 3' x 6'
Product ID CX36-72I99TG
Dimensions 36" x 72" x 1.25"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Frame(s) 3' x 6' "E" Frame
Frame Types
"E" Frame Installation
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 251
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 1-970-748

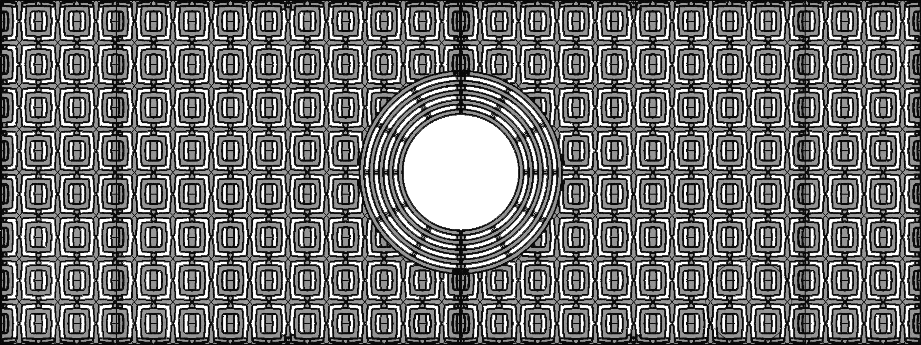

Name / Design Carbochon 3' x 8'
Product ID CX36-96I99TG
Dimensions 36" x 96" x 1.25"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Frame(s) Frame Types
"E" Frame Installation
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 333
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 1-964-348

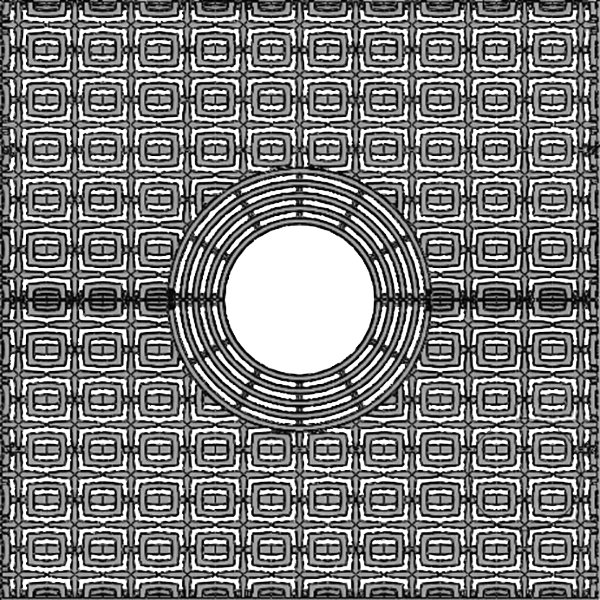

Name / Design Carbochon 4' x 4'
Product ID CX48-48I99TG
Dimensions 48" x 48" x 1.25"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Frame(s) 4' Sq. "E" Frame-For 2 piece tree grate
Frame Types
"E" Frame Installation
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 227
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 1-970-765

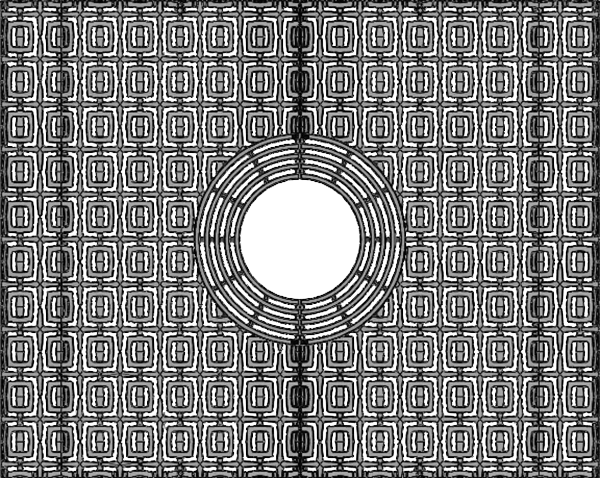

Name / Design Carbochon 4' x 5'
Product ID CX48-60I99TG
Dimensions 48" x 60" x 1.25"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Frame(s) Frame Types
"E" Frame Installation
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 277
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 1-970-752

Photo Gallery:

Standard Finish

For details, see Materials and Finish Options under Resources.

Optional Finish

For details, see Materials and Finish Options under Resources.

Optional Material Upgrades

Call for pricing and lead time.
