Curb Inlet / Bioswale System
Rain Curb Inlet / Bioswale System
We designed a heavy-duty, cast iron curb inlet to interface with our standard steel trench frames. The frames cut across the sidewalk, with Rain grates covering the open runnel where water flows from the street into a bioswale on the other side. Click here for more information.
Select Size:
Detailed Specifications:
- Name / Design
- Rain 18" Heel-Proof
- Dimensions
- 18" wide
- Fits
-
Iron Age Custom Frame
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Recycled Content
- 80%
- ADA Compliant
- Yes
Photo Gallery:
Click image for high-res file and description

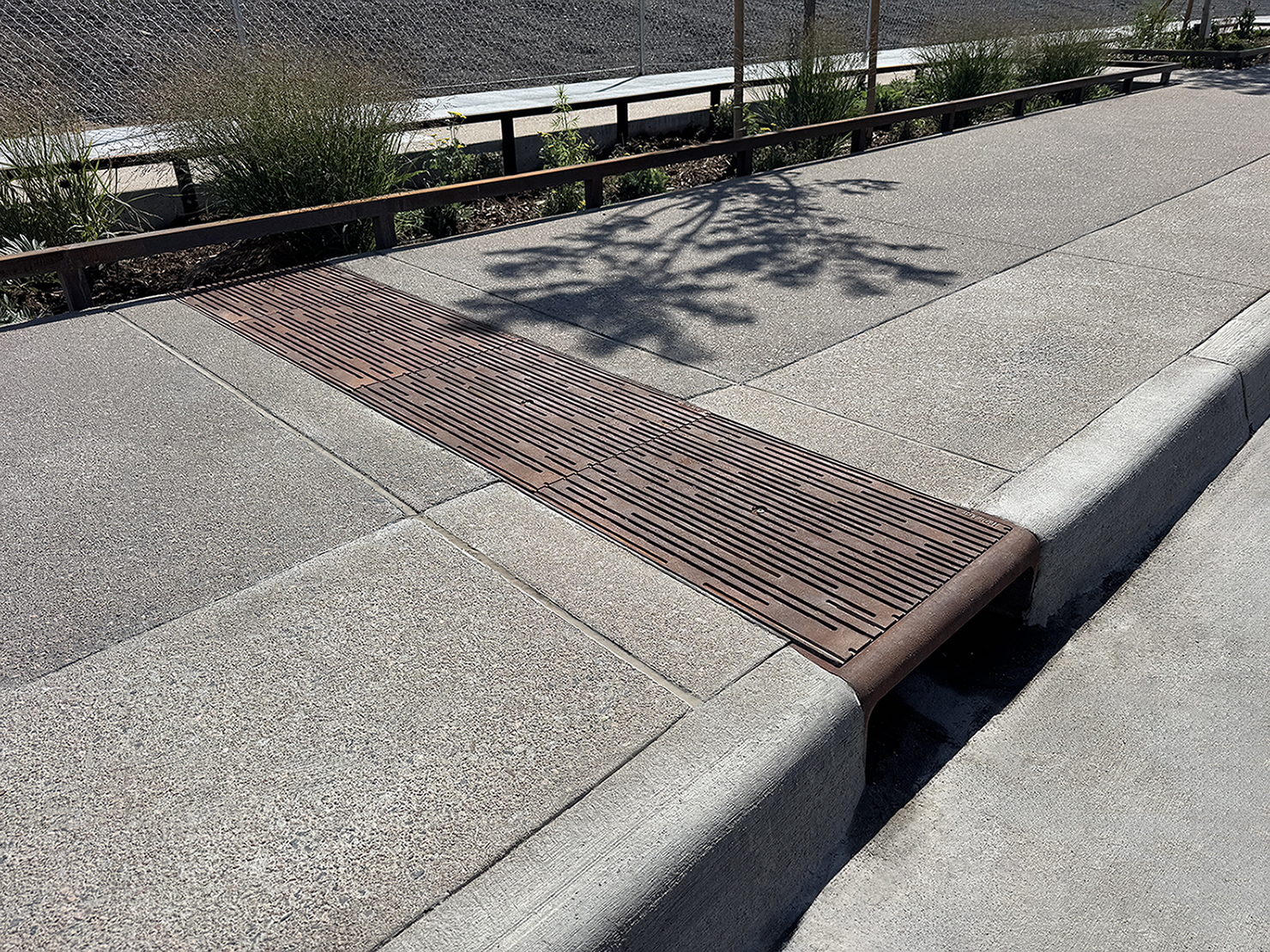

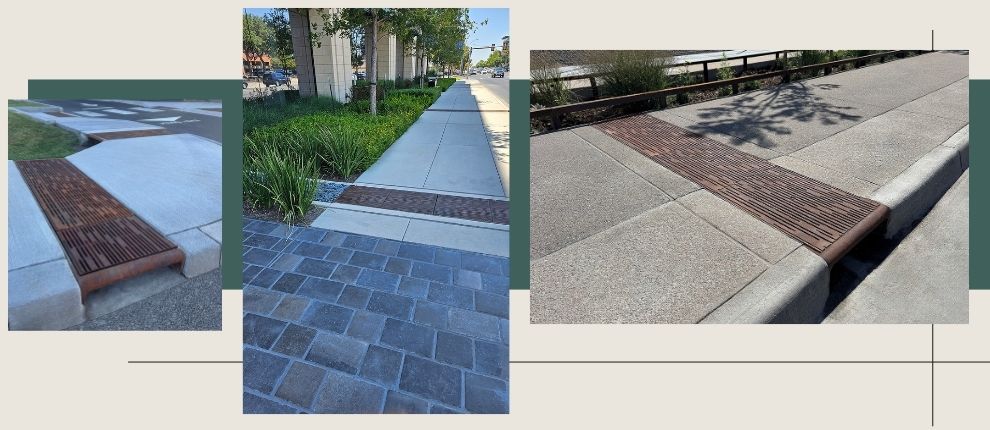

18″ wide, cast iron curb inlet and Rain 18″ x 24″ heel-proof grates sitting atop embedded steel trench frames. Grates are raw cast ductile iron. DESIGN: Sasaki Associates, Inc. INSTALLATION: Swinerton. PROJECT: Denargo Market. LOCATION: Denver, CO.

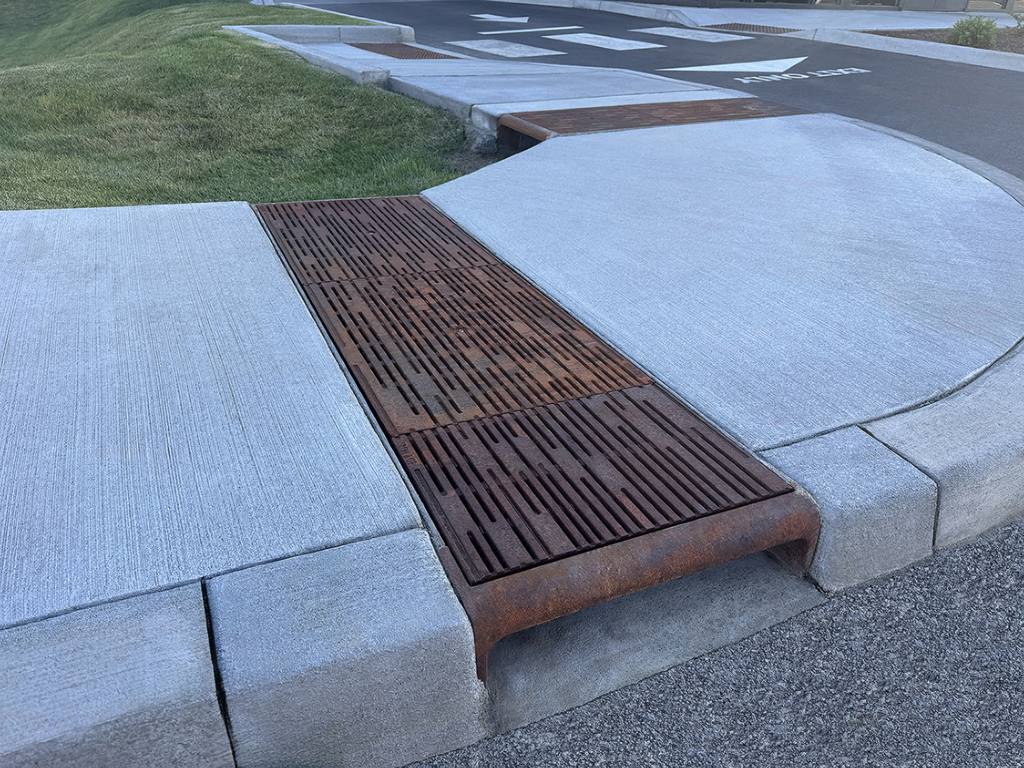

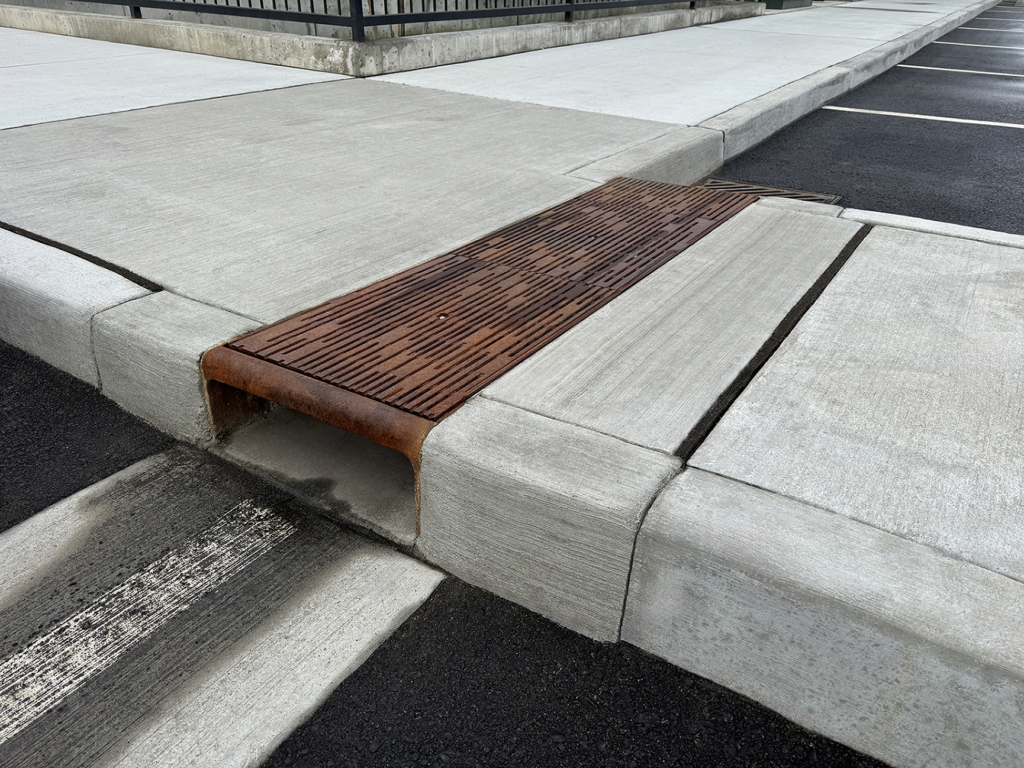

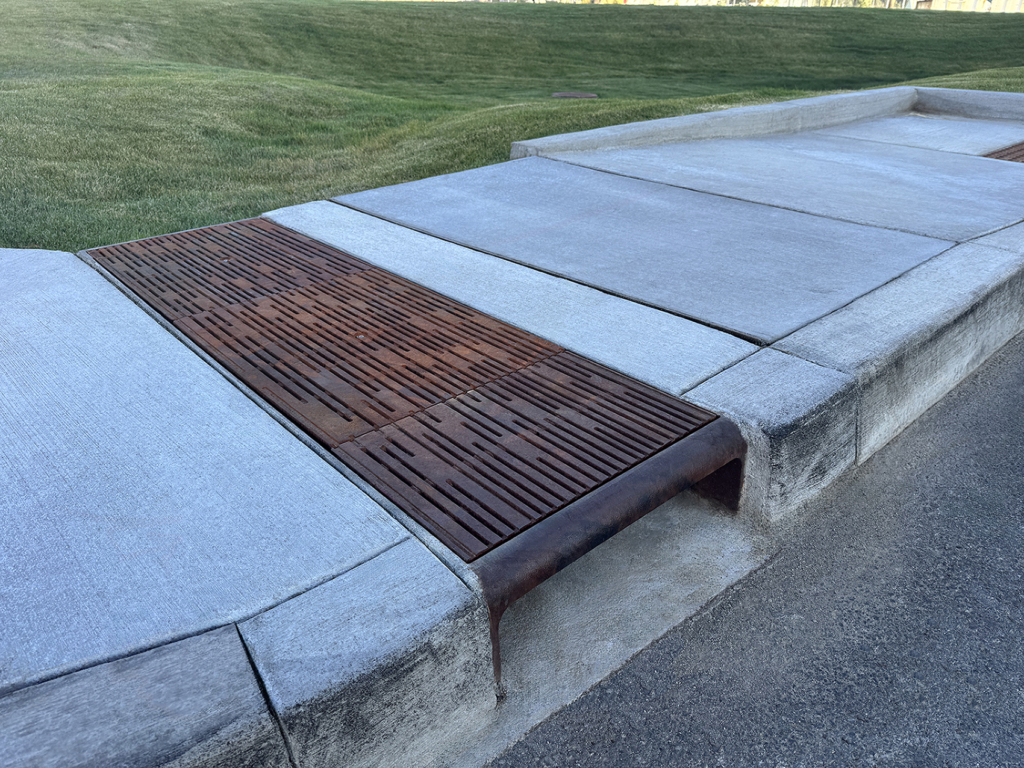

18″ wide, cast iron curb inlet and Rain 18″ x 24″ heel-proof grates sitting atop embedded steel trench frames. Grates are raw cast ductile iron. DESIGN: DCI Engineering. PROJECT: W Pointe Parkway. LOCATION: Post Falls, ID.
18″ wide, cast iron curb inlet and Rain 18″ x 24″ heel-proof grates sitting atop embedded steel trench frames. Grates are raw cast ductile iron. DESIGN: DCI Engineering. PROJECT: W Pointe Parkway. LOCATION: Post Falls, ID.
18″ wide, cast iron curb inlet and Rain 18″ x 24″ heel-proof grates sitting atop embedded steel trench frames. Grates are raw cast ductile iron. DESIGN: DCI Engineering. PROJECT: W Pointe Parkway. LOCATION: Post Falls, ID.

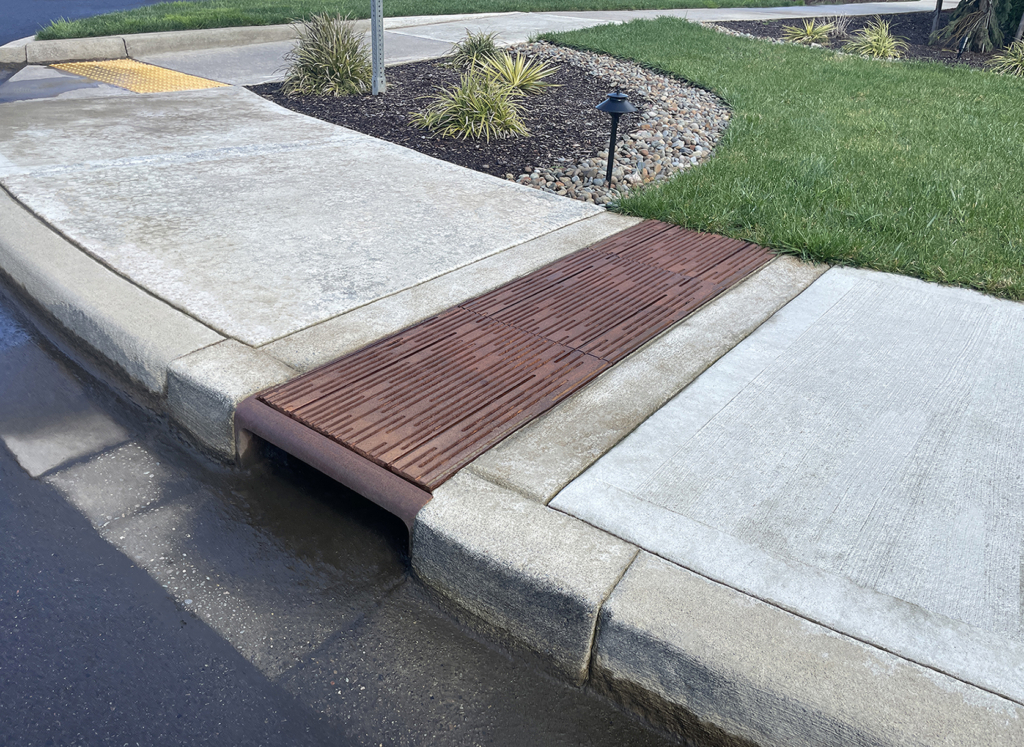

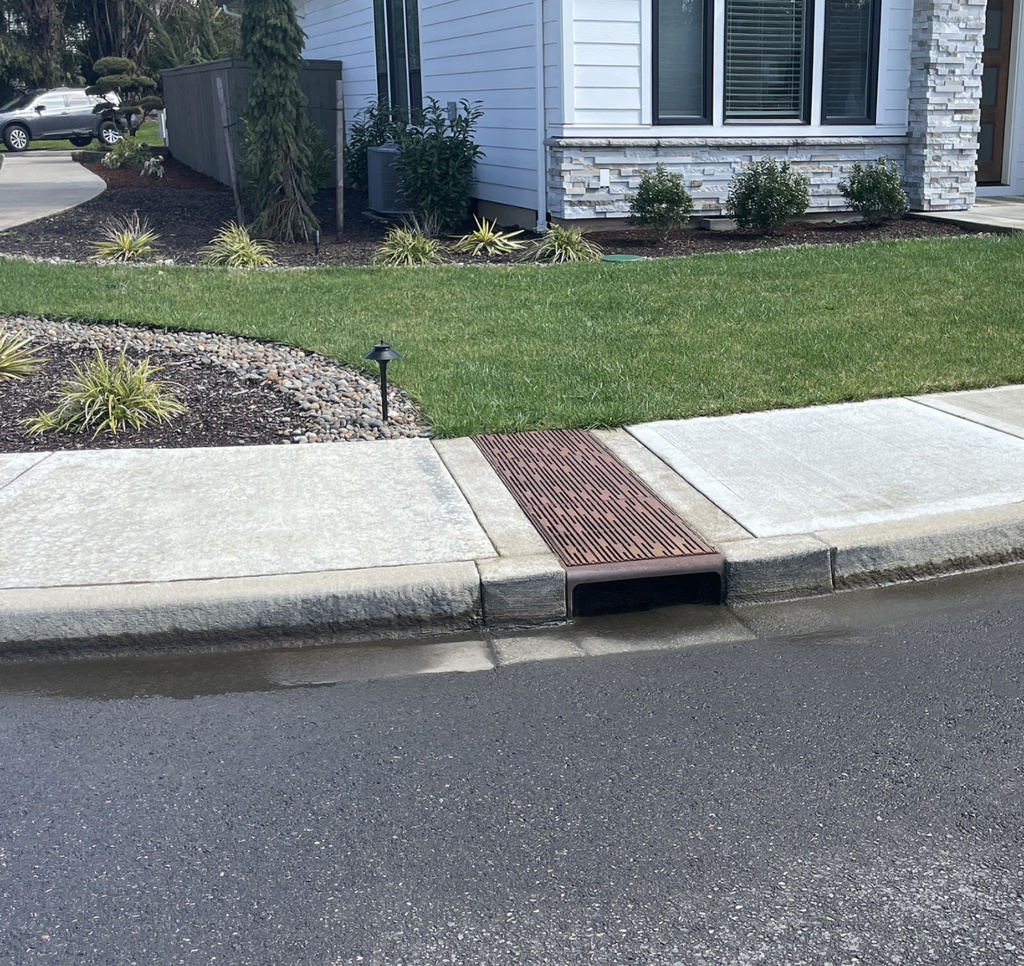

18″ wide, cast iron curb inlet and Rain 18″ x 24″ heel-proof grates sitting atop embedded steel trench frames. Grates are cast ductile iron with baked-on-oil finish. DESIGN: Ginn Group. PROJECT: Felida Overlook Development. LOCATION: Battleground, WA.
18″ wide, cast iron curb inlet and Rain 18″ x 24″ heel-proof grates sitting atop embedded steel trench frames. Grates are cast ductile iron with baked-on-oil finish. DESIGN: Ginn Group. PROJECT: Felida Overlook Development. LOCATION: Battleground, WA.

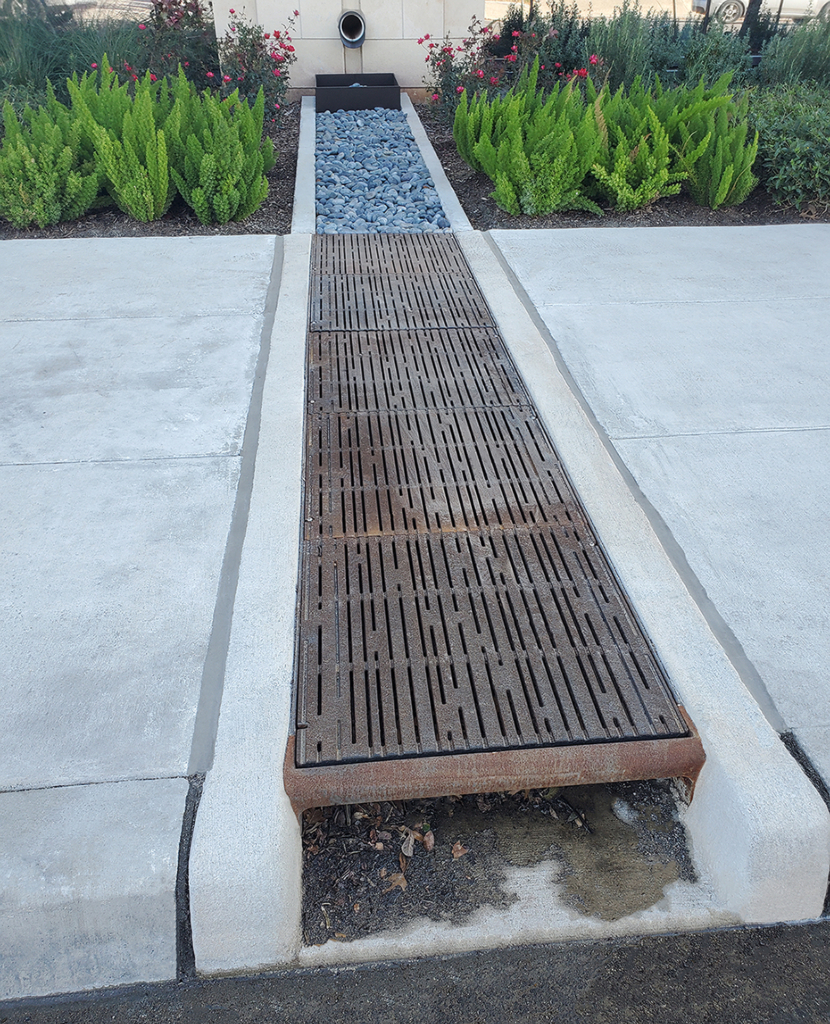

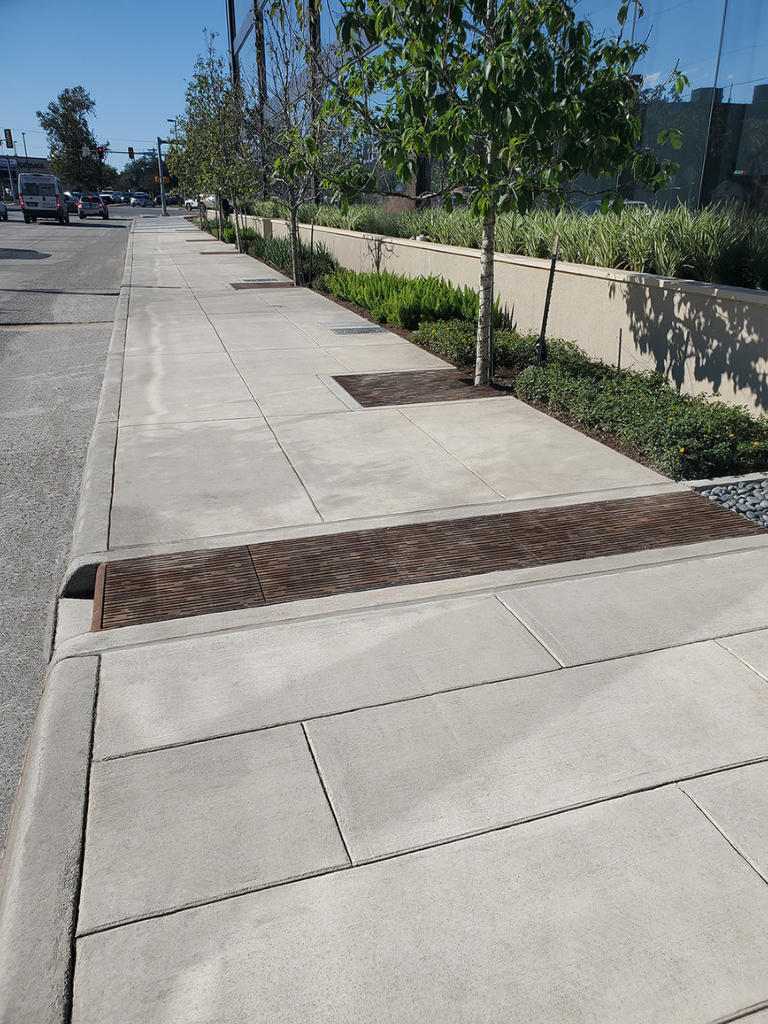

24″ wide, cast iron curb inlet and Rain 24″ x 24″ heel-proof grates sitting atop embedded steel trench frames. Grates are cast ductile iron with baked-on-oil finish. DESIGN: KW Landscape Architects – San Antonio. INSTALLATION: E-Z Bel Construction. PROJECT: 7600 Broadway. LOCATION: San Antonio, TX.
24″ wide, cast iron curb inlet and Rain 24″ x 24″ heel-proof grates sitting atop embedded steel trench frames. Grates are cast ductile iron with baked-on-oil finish. DESIGN: KW Landscape Architects – San Antonio. INSTALLATION: E-Z Bel Construction. PROJECT: 7600 Broadway. LOCATION: San Antonio, TX.

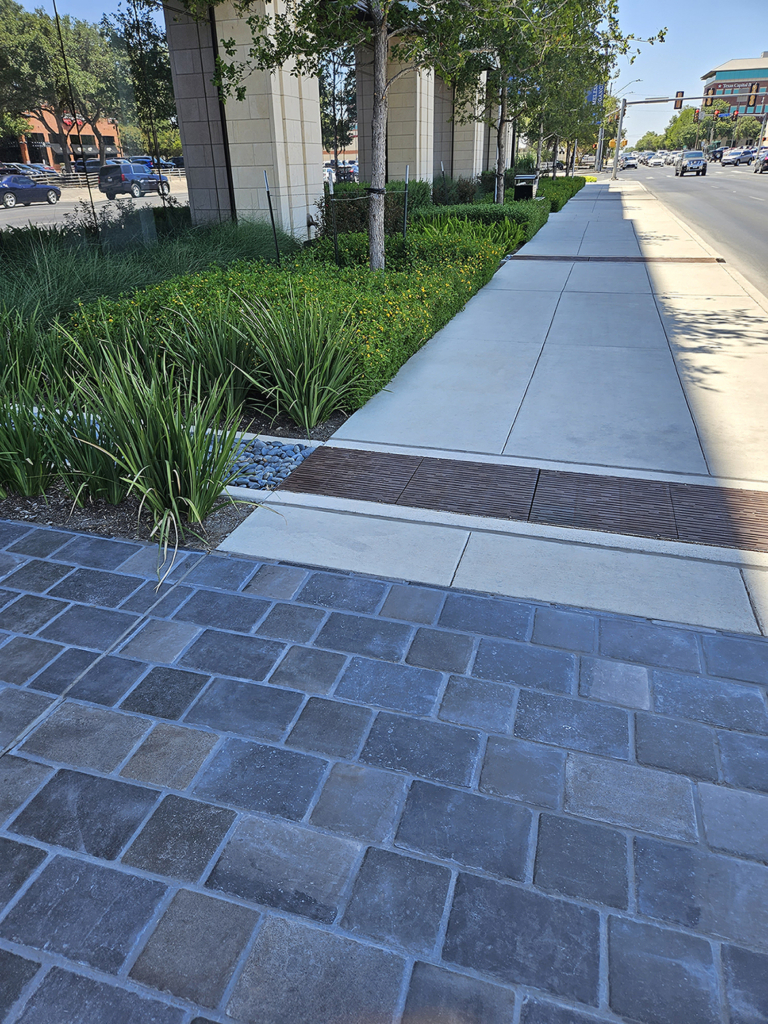

24″ wide, cast iron curb inlet and Rain 24″ x 24″ heel-proof grates sitting atop embedded steel trench frames. In the background are tree grates made from Rain 24″ x 48″ heel-proof grate panels. All grates are cast ductile iron with baked-on-oil finish. DESIGN: KW Landscape Architects – San Antonio. INSTALLATION: E-Z Bel Construction. PROJECT: 7600 Broadway. LOCATION: San Antonio, TX.

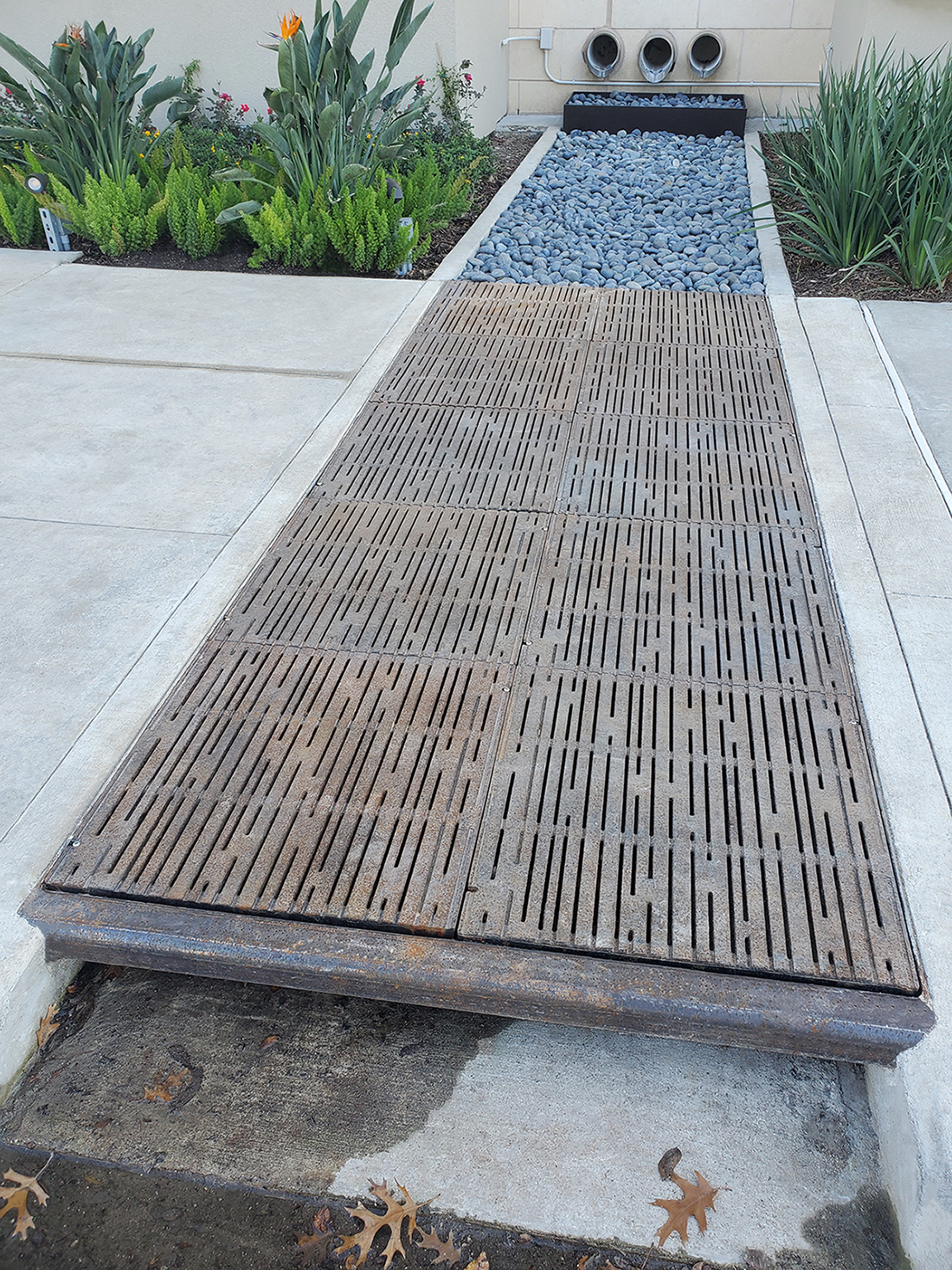

48″ wide, cast iron curb inlet and side-by-side Rain 24″ x 24″ heel-proof grates sitting atop embedded steel trench frames. Grates are cast ductile iron with baked-on-oil finish. DESIGN: KW Landscape Architects – San Antonio. INSTALLATION: E-Z Bel Construction. PROJECT: 7600 Broadway. LOCATION: San Antonio, TX.
