Tree Grates
Mercado Tree Grates
Our signature Interlaken pattern circles the center tree opening and outside edges of this classic slotted grate, giving our Mercado design a refined, metropolitan appeal.
Select Size:
Detailed Specifications:
- Name / Design
- Mercado 5' x 8'
- Product ID
- MEX60-96I99TG
- Dimensions
- 59.88" x 95.88" x 1.25"
- Fits
-
Iron Age Custom Frame
- Frame(s)
-
Frame Types
"E" Frame Installation
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 515.44
- Free Drain Area
- 22.98%
- Gallons Per Minute (GPM)
- 1777.32
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Copyright Registration No.
- Pending
Photo Gallery:
Click image for high-res file and description

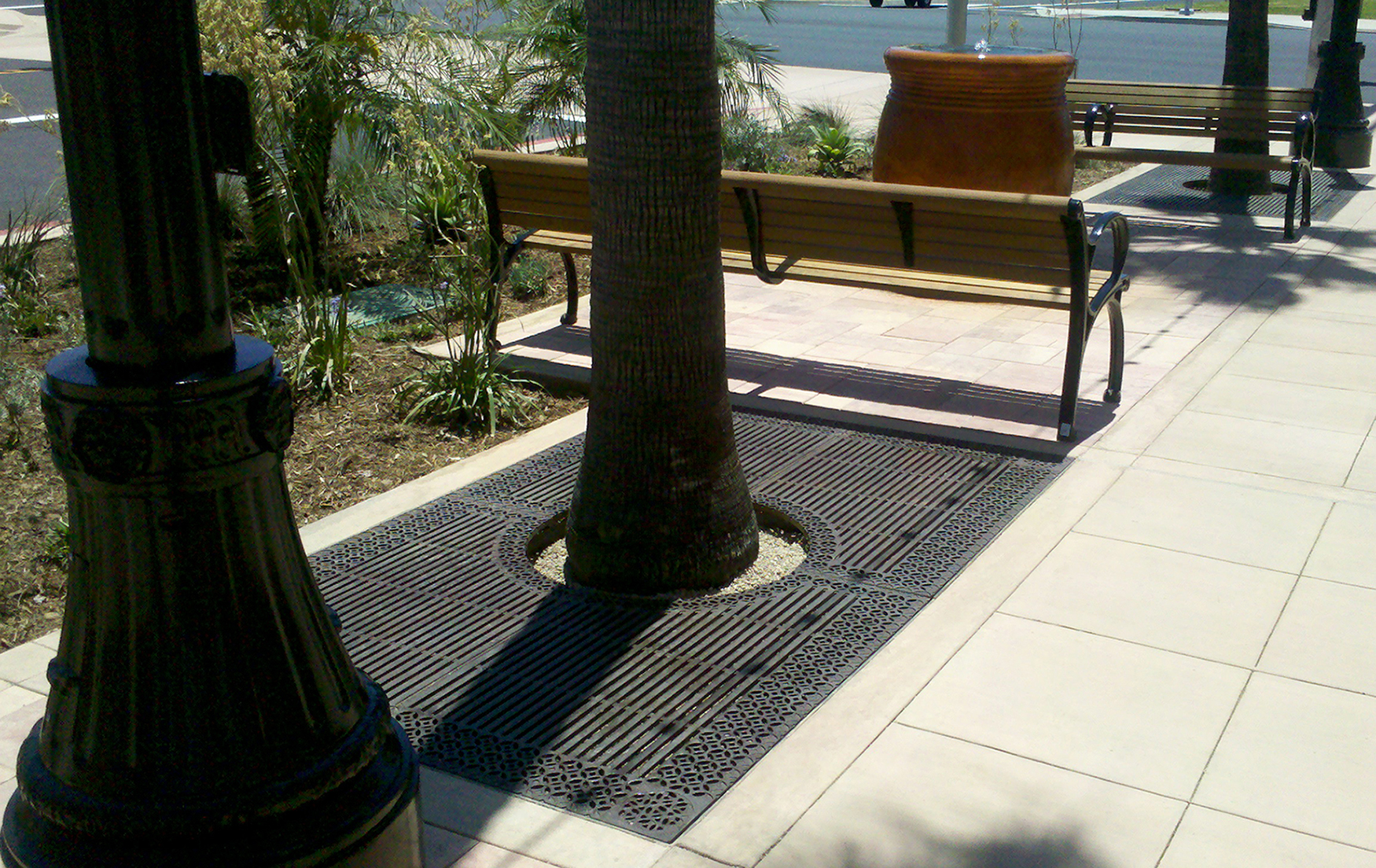

Mercado 5′ x 8′ tree grate, cast iron with baked-on-oil finish. DESIGN: AECOM-San Diego. PROJECT: Mercado District. LOCATION: City of Escondido.

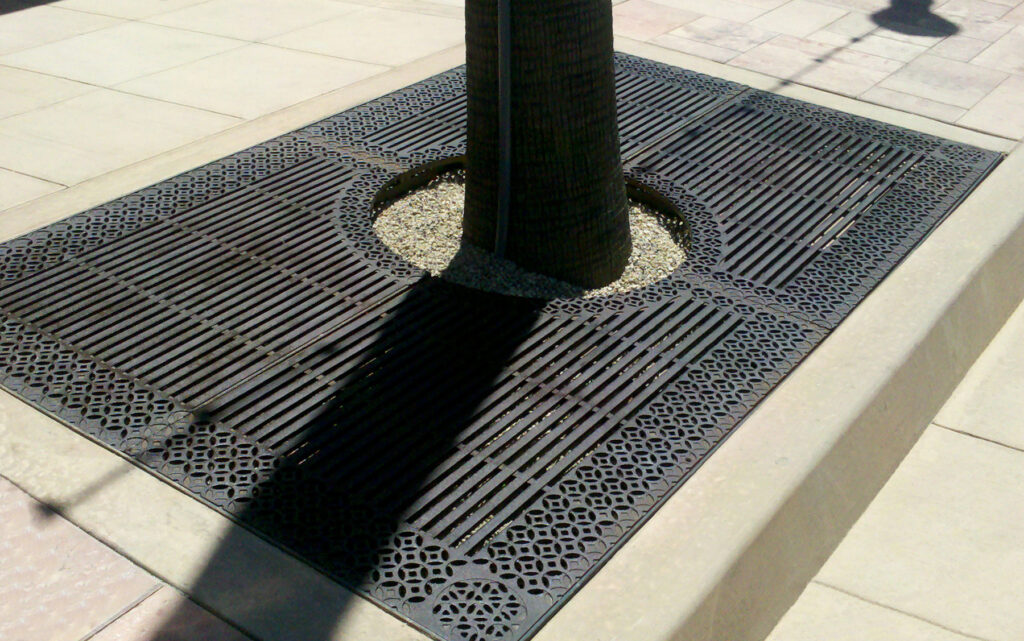

Mercado 5′ x 8′ tree grate, cast iron with baked-on-oil finish. DESIGN: AECOM-San Diego. PROJECT: Mercado District. LOCATION: City of Escondido.

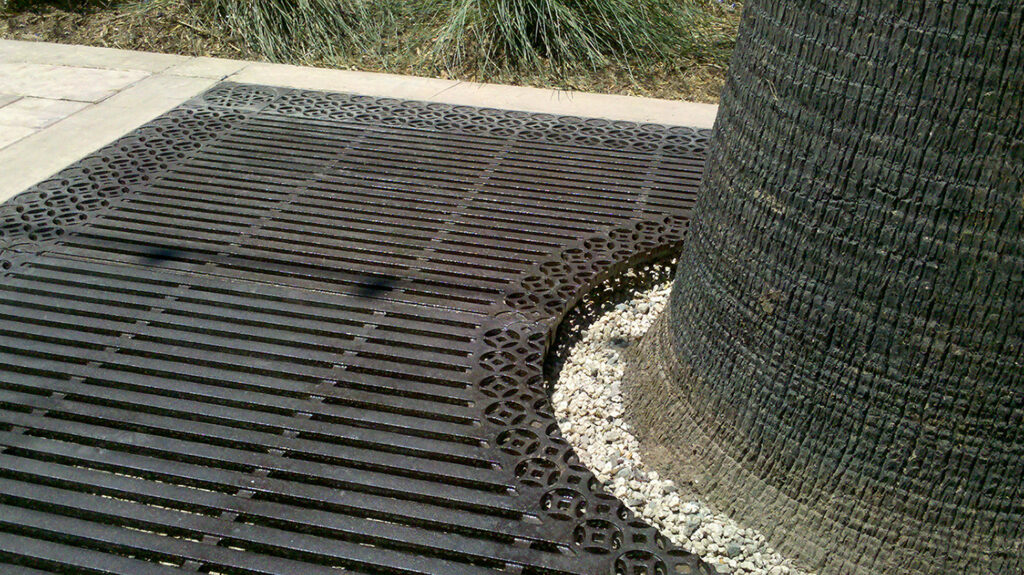

Mercado 5′ x 8′ tree grate, cast iron with baked-on-oil finish. DESIGN: AECOM-San Diego. PROJECT: Mercado District. LOCATION: City of Escondido.

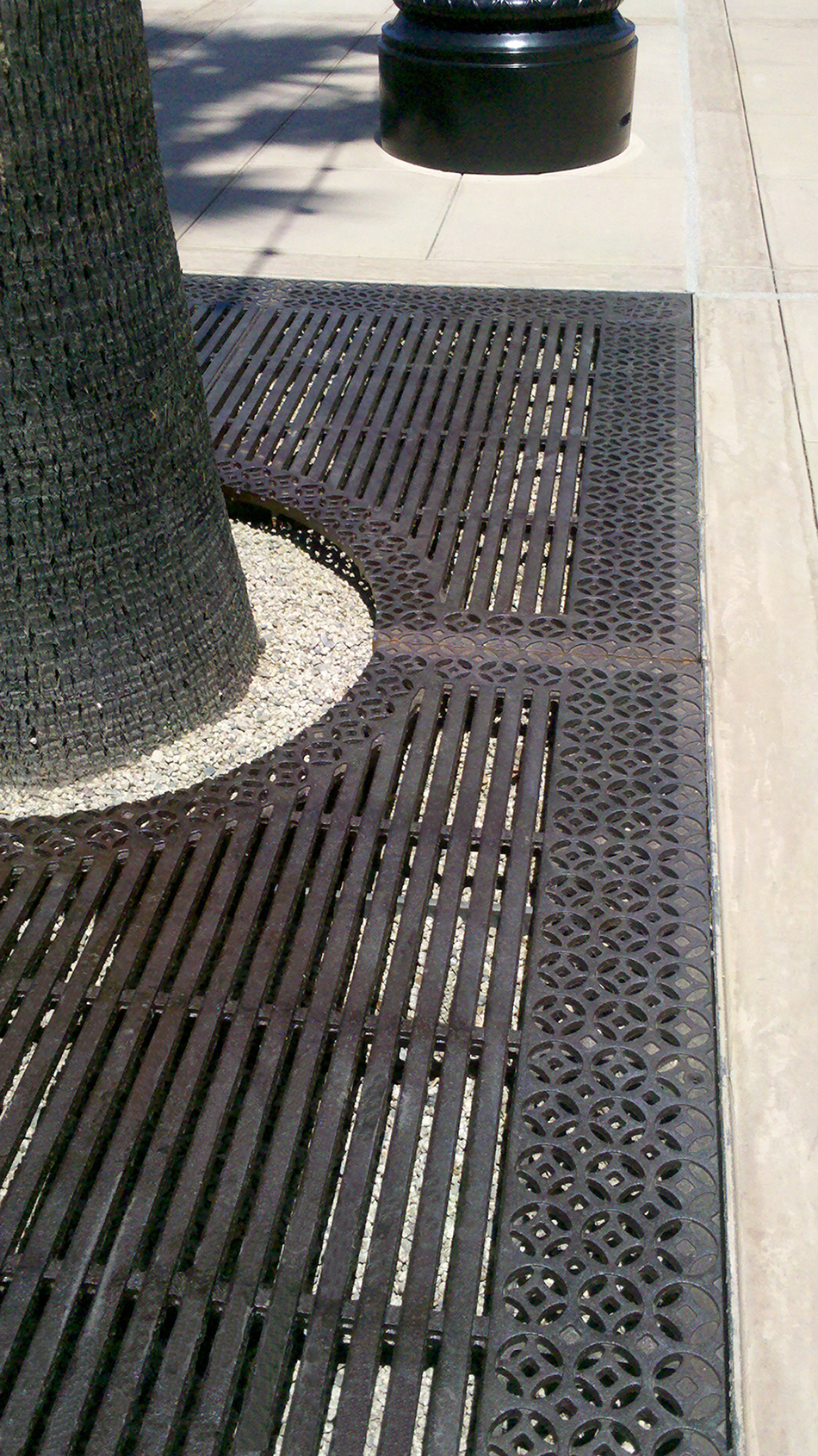

Mercado 5′ x 8′ tree grate, cast iron with baked-on-oil finish. DESIGN: AECOM-San Diego. PROJECT: Mercado District. LOCATION: City of Escondido.
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
