Description:
Our signature Interlaken pattern circles the center tree opening and outside edges of this classic slotted grate, giving our Mercado design a refined, metropolitan appeal.
Description:
Our signature Interlaken pattern circles the center tree opening and outside edges of this classic slotted grate, giving our Mercado design a refined, metropolitan appeal.
Detailed Specifications:
![]() |
||
Name / Design | Mercado 5' x 8' | |
---|---|---|
Product ID | MEX60-96I99TG | |
Dimensions | 60" x 96" x 1.25" | |
Drain Manufacturer |
Iron Age Designs® |
|
Fits |
Iron Age Custom Frame |
|
Frame(s) |
Frame Types "E" Frame Installation |
|
Material | Cast Iron | |
Standard Finish | Raw | |
Optional Finish |
Baked On Oil Finish
Powder Coat
|
|
Recycled Content | 80% | |
ADA Compliant | Yes | |
Optional Material Upgrades |
Cast Aluminum
Cast Bronze
|
|
Copyright Registration No. | Pending |
Photo Gallery:

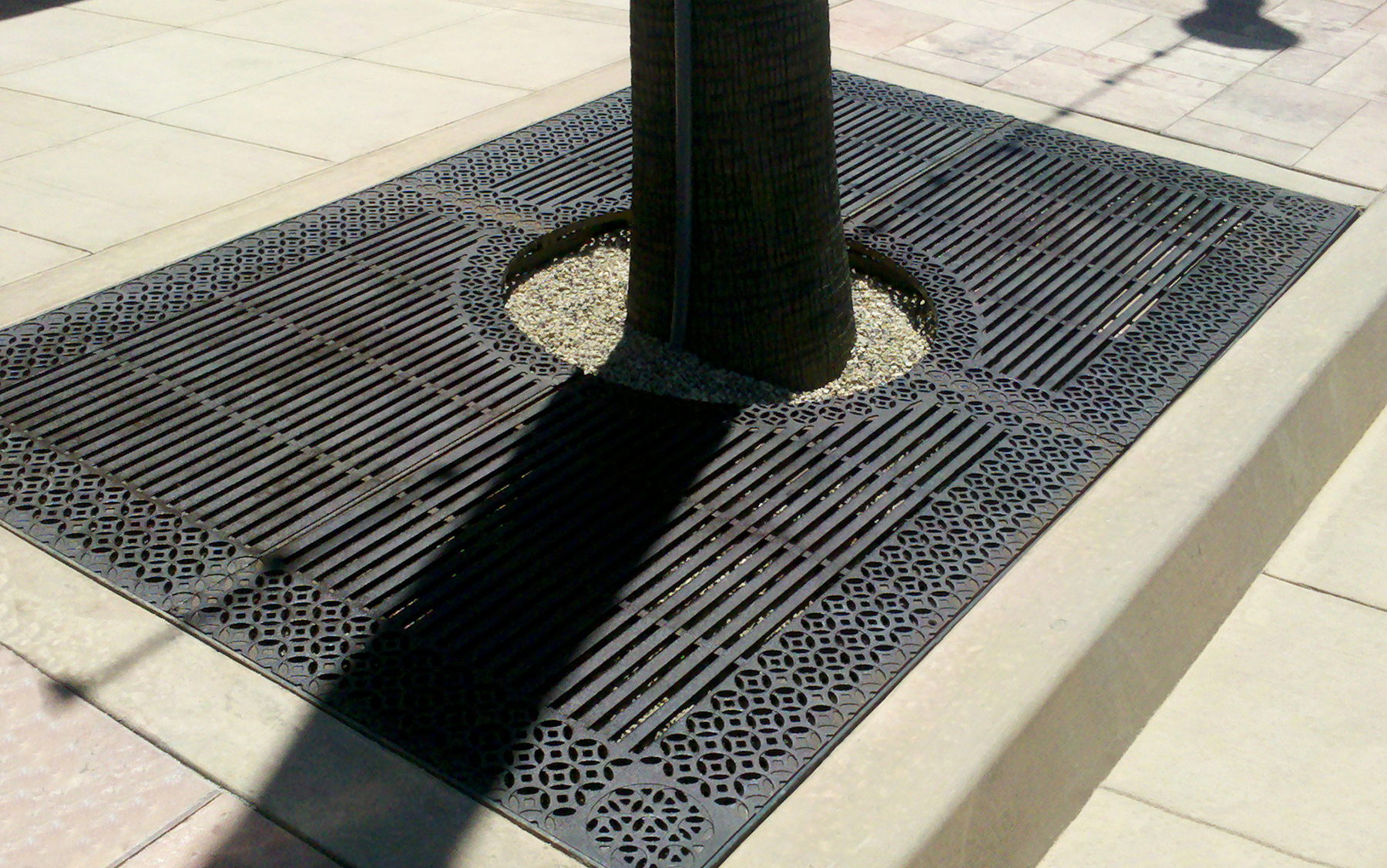

Mercado 5′ x 8′ tree grate, cast iron with our baked on oil finish. Project Location: City of Escondido, Mercado district. Architect: AECOM-San Diego.
Mercado 5′ x 8′ tree grate, cast iron with our baked on oil finish. Project Location: City of Escondido, Mercado district. Architect: AECOM-San Diego.
Mercado 5′ x 8′ tree grate, cast iron with our baked on oil finish. Project Location: City of Escondido, Mercado district. Architect: AECOM-San Diego.
Mercado 5′ x 8′ tree grate, cast iron with our baked on oil finish. Project Location: City of Escondido, Mercado district. Architect: AECOM-San Diego.
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
