Tree Grates
Madras Tree Grates
We’ve designed the Madras with staggered spacing and slight variations in surface depth, creating a unique, eye-catching take on your typical linear grate.
Select Size:
Detailed Specifications:
- Name / Design
- Madras 4' x 4' Heel-Proof
- Product ID
- MDX48-48I99TGHP
- Dimensions
- 47.85" x 47.85" x 1"
- Fits
-
Iron Age Custom Frame
- Frame(s)
-
"E" Frame Installation
Frame Types
- Material
- Cast Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 222
- Free Drain Area
- 12.9%
- Gallons Per Minute (GPM)
- 363.14
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Copyright Registration No.
- VA 2-246-545
Photo Gallery:
Click image for high-res file and description

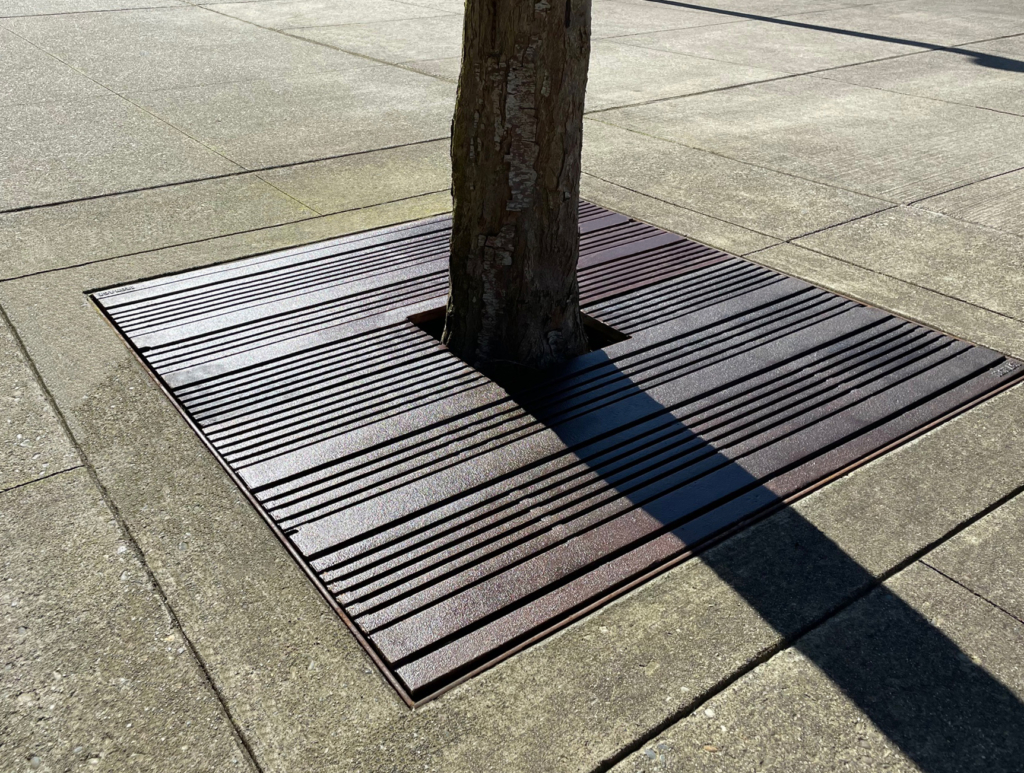

Madras 4′ x 4′ heel-proof tree grate, cast iron with baked-on-oil finish.
Madras 4′ x 4′ heel-proof tree grate, cast iron with baked-on-oil finish.

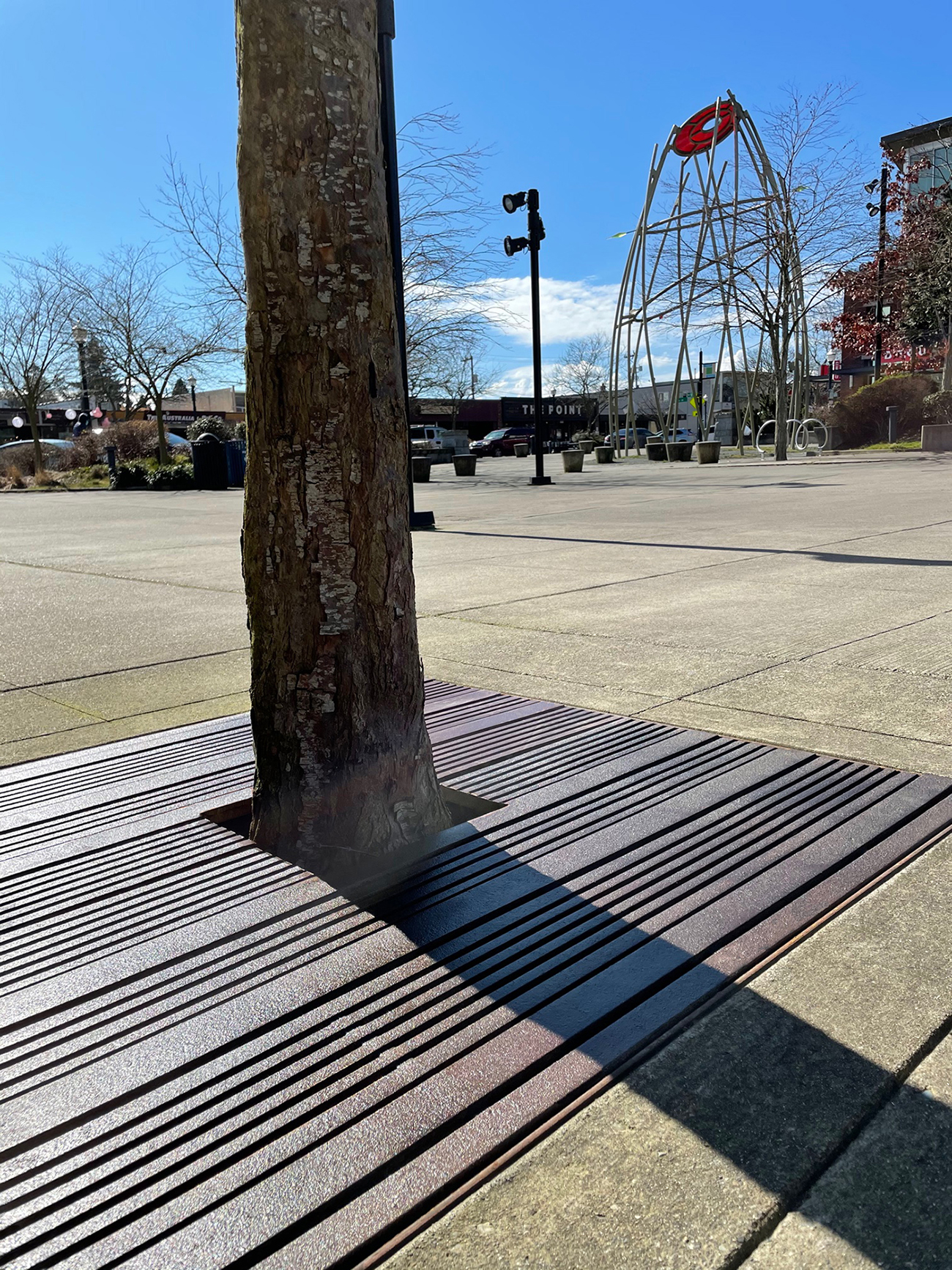

Madras 4′ x 4′ heel-proof tree grate, raw cast iron.

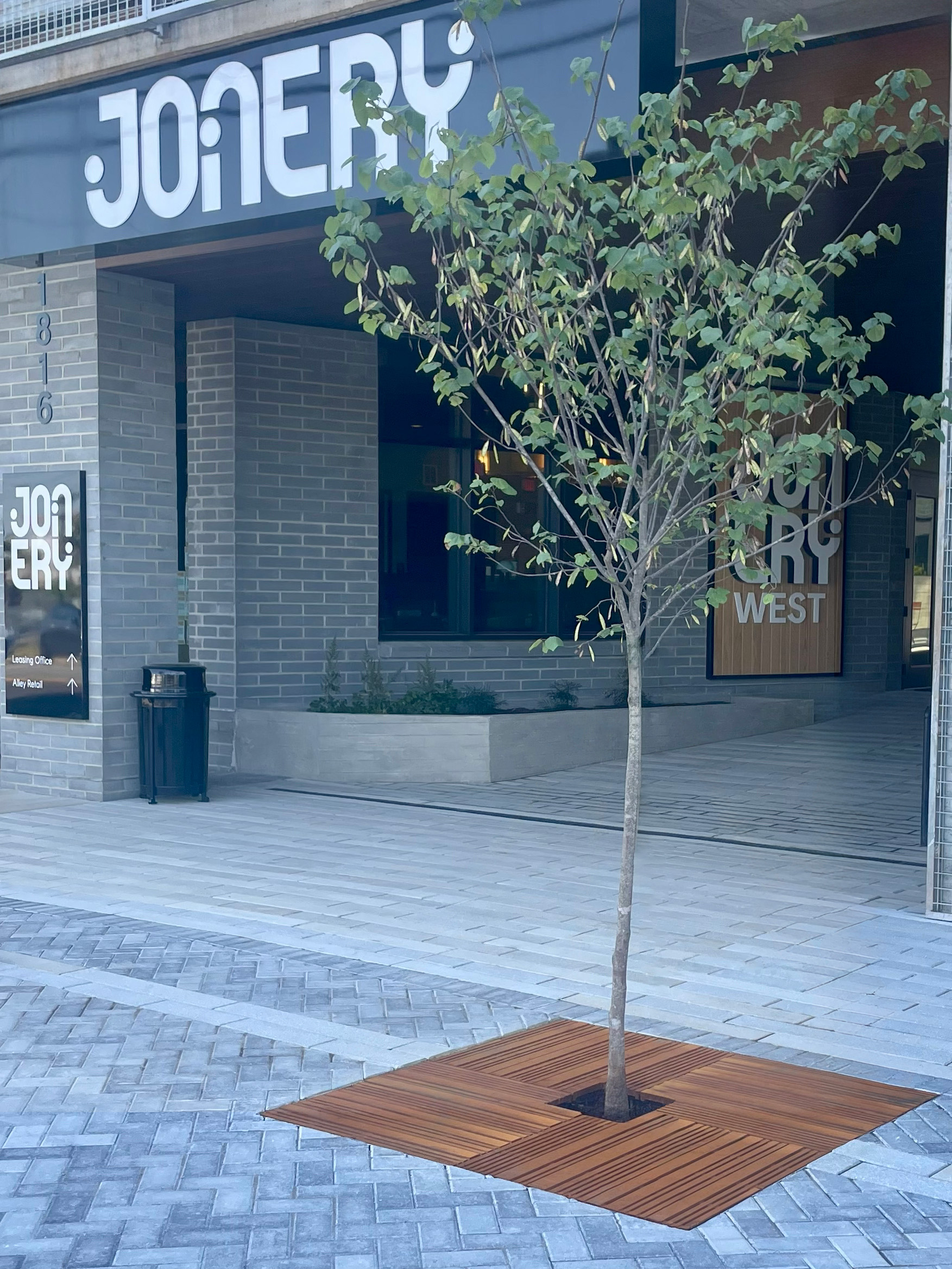

Madras 5′ x 5′ heel-proof tree grate, raw cast iron. DESIGN: V3 Companies. INSTALLATION: Metrolina Landscape. PROJECT: The Joinery. LOCATION: Charlotte, NC.

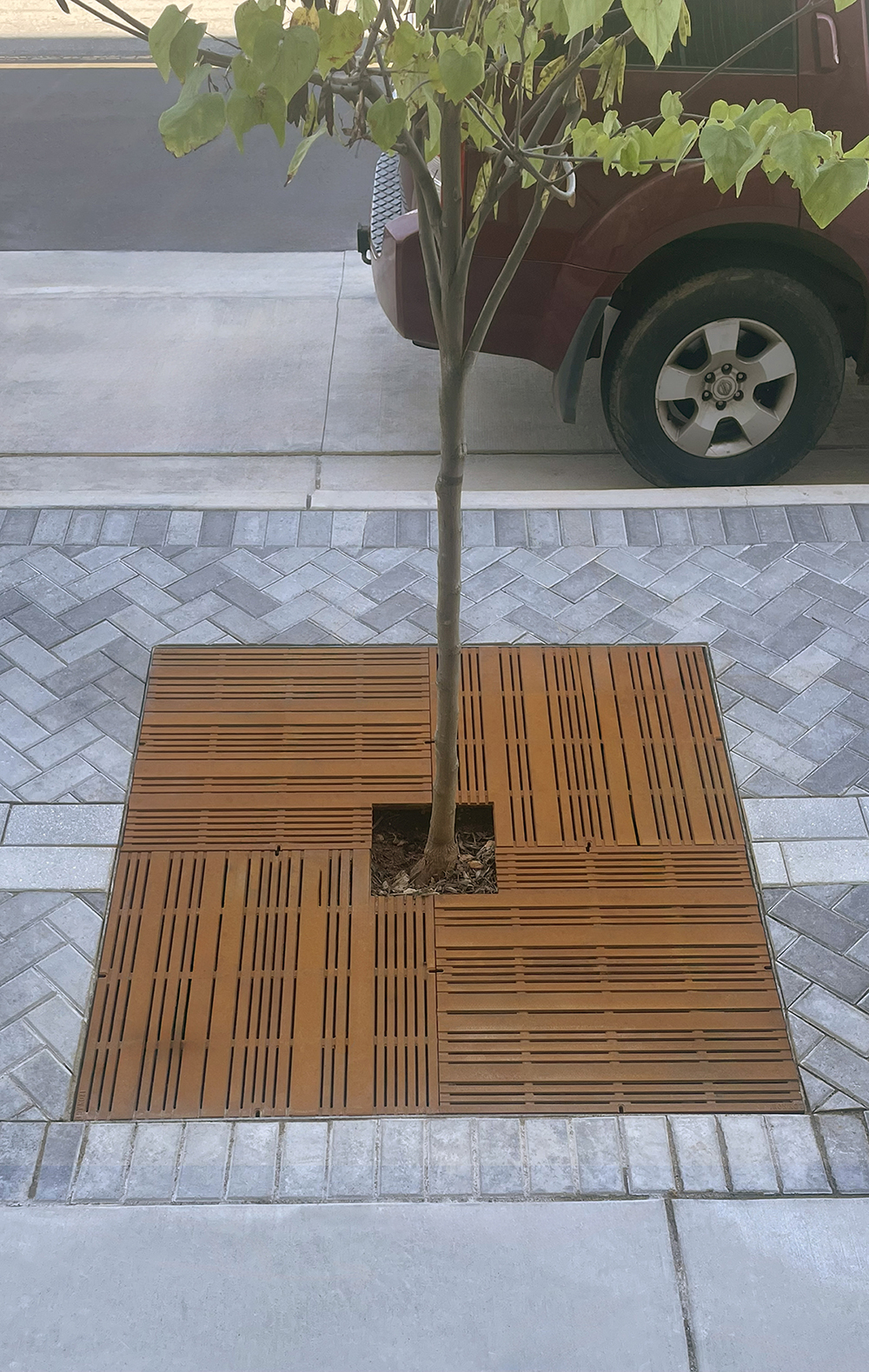

Madras 5′ x 5′ heel-proof tree grate, raw cast iron. DESIGN: V3 Companies. INSTALLATION: Metrolina Landscape. PROJECT: The Joinery. LOCATION: Charlotte, NC.
Similar Products:
View additional products featuring the Madras design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
