Kurf

Description:

Our newest linear pattern is a unique take on a type of cut normally made to facilitate the bending of a piece of wood. The “cuts” create a notched appearance that allows for plenty of drainage while still offering heel proof protection.

Detailed Specifications:

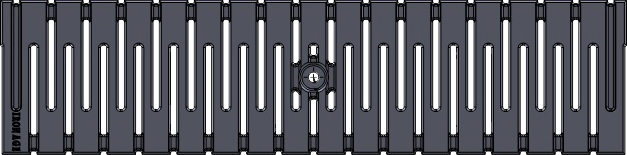

Name / Design Kurf 5" x 20" Heel Proof
Product ID KUA5-20I21HP
Dimensions 4.81" x 19.56" x .81"
Drain Manufacturer
ABT®
ACO™
MEA®
Fits ABT® PolyDrain®
ACO™ K100, K100S, KS100
MEA® 1000 Series
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 11.54
Free Drain Area 18.3%
Gallons Per Minute (GPM) 22.65
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-246-526

Photo Gallery:

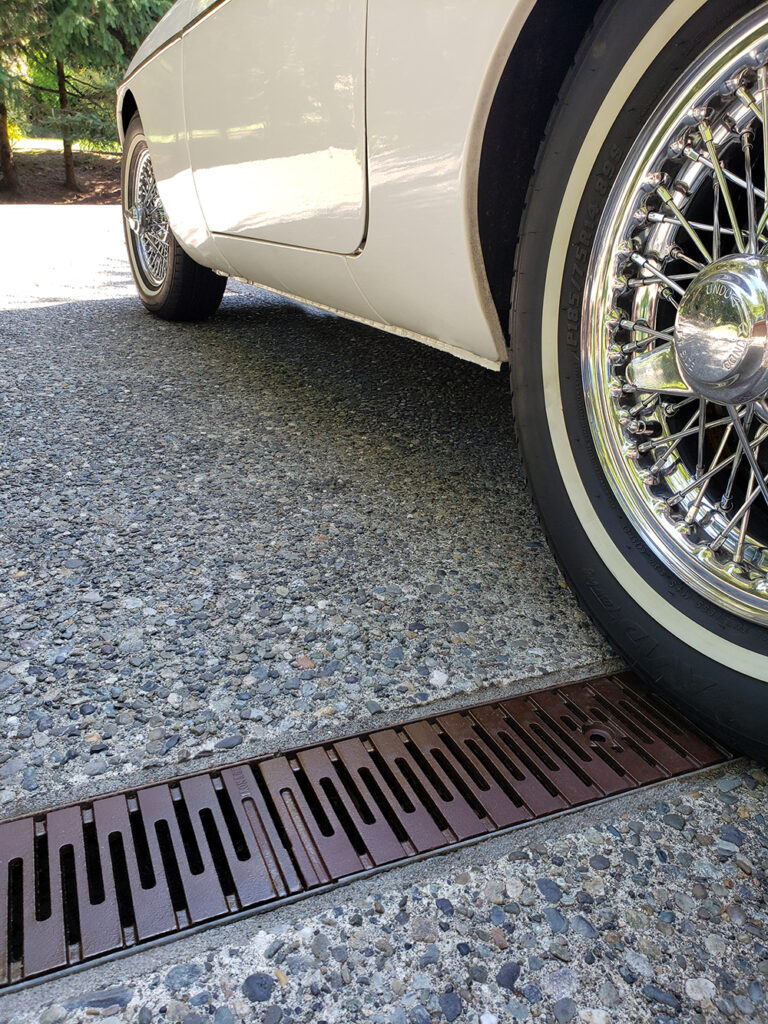

Standard Finish

For details, see Materials and Finish Options under Resources.

Optional Finish

For details, see Materials and Finish Options under Resources.

Optional Material Upgrades

Call for pricing and lead time.
