Trench Grates
Kurf Trench Grates
Our newest linear pattern is a unique take on a type of cut normally made to facilitate the bending of a piece of wood. The “cuts” create a notched appearance that allows for plenty of drainage while still offering heel proof protection.
Select Size:
Detailed Specifications:
- Name / Design
- Kurf 5" x 20" Heel-Proof
- Product ID
- KUA5-20I21HP
- Dimensions
- 4.81" x 19.56" x .81"
- Drain Manufacturer
-
ABT®ACO™Anrin™MEA®
- Fits
-
ABT® PolyDrain®
ACO™ K100, K100S, KS100
Anrin™ KE-100 Series
MEA® 1000 Series
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 11.54
- Free Drain Area
- 18.3%
- Gallons Per Minute (GPM)
- 22.65
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Copyright Registration No.
- VA 2-246-526
Photo Gallery:
Click image for high-res file and description

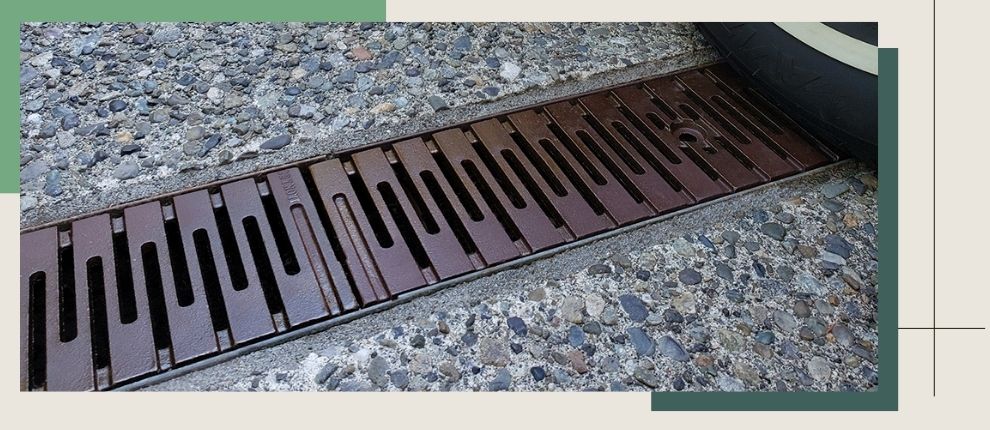

Kurf 5″ x 20″ heel-proof trench grate, cast ductile iron with baked-on-oil finish.
Kurf 5″ x 20″ heel-proof trench grate, cast ductile iron with baked-on-oil finish.
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
