Radius Grates
Janis Radius Grates
The organic arrangement and beautifully sculptured surface of our Janis pattern evokes river rocks and flowing water, adding a natural vitality to any landscape design.
Select Size:
Detailed Specifications:
- Name / Design
- Janis 5" Wide, 20'-2" CLR
- Product ID
- JR5-20I9920
- Dimensions
- 4.88" x 19.78" x .75"
- Drain Manufacturer
-
Iron Age Designs®
- Fits
-
Iron Age Custom Frame
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 10
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Patent No.
- Pending
Photo Gallery:
Click image for high-res file and description

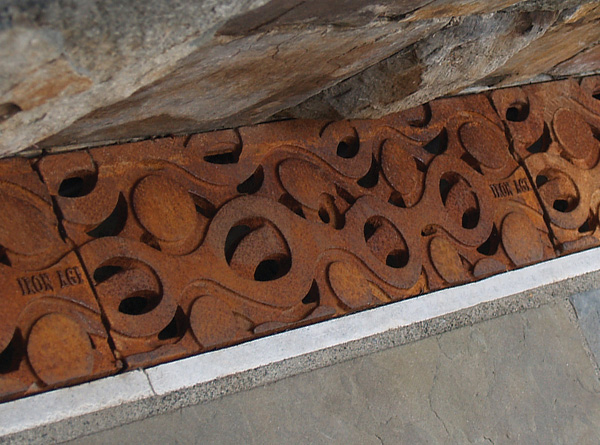

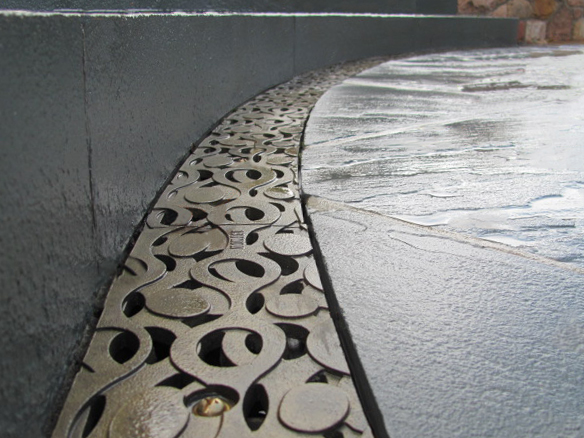

Janis 5″ radius trench grate, raw cast bronze.

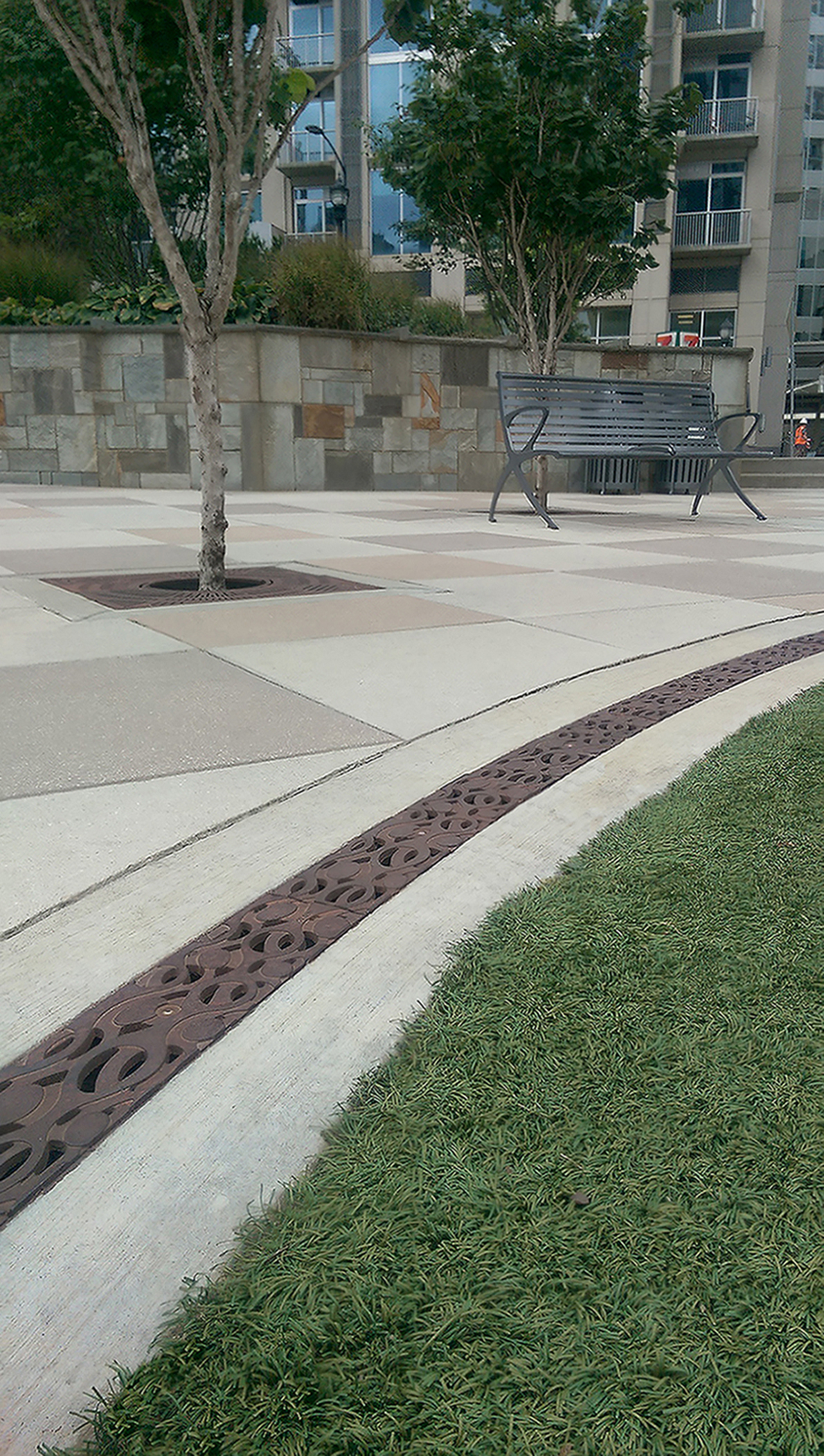

Janis 5″ wide radius trench grate, raw cast iron. DESIGN: LandDesign. PROJECT: Romare Bearden Park. LOCATION: Charlotte, NC.
Janis 5″ wide radius trench grate, raw cast iron. DESIGN: LandDesign. PROJECT: Romare Bearden Park. LOCATION: Charlotte, NC.
Janis 5″ wide radius trench grate, raw cast iron. DESIGN: LandDesign. PROJECT: Romare Bearden Park. LOCATION: Charlotte, NC.
Janis 5″ wide radius trench grate, raw cast iron. DESIGN: LandDesign. PROJECT: Romare Bearden Park. LOCATION: Charlotte, NC.
Janis 5″ wide radius trench grate, raw cast ductile iron. PROJECT: UMASS Amherst College of Art. LOCATION: Amherst, MA.
Janis 5″ wide radius trench grate, raw cast ductile iron. PROJECT: Pike & Rose. LOCATION: North Bethesda, MD.
Similar Products:
View additional products featuring the Janis design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
