Catch Basin Grates
Ground Swell Catch Basin Grates
Our Ground Swell pattern can be arrayed to resemble a rolling wave, or to create rippling circles, offering a subtle sense of movement along with flexibility in layout and design.
Select Size:
Detailed Specifications:
- Name / Design
- Ground Swell 18" x 25" Heel-Proof, Heavy-Duty
- Product ID
- GSX18-25I99HPHD
- Dimensions
- 17.94" x 24.94" x 1.5"
- Fits
-
Iron Age Custom Frame
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 55.98
- Free Drain Area
- 14.94%
- Gallons Per Minute (GPM)
- 87.60
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
Photo Gallery:
Click image for high-res file and description

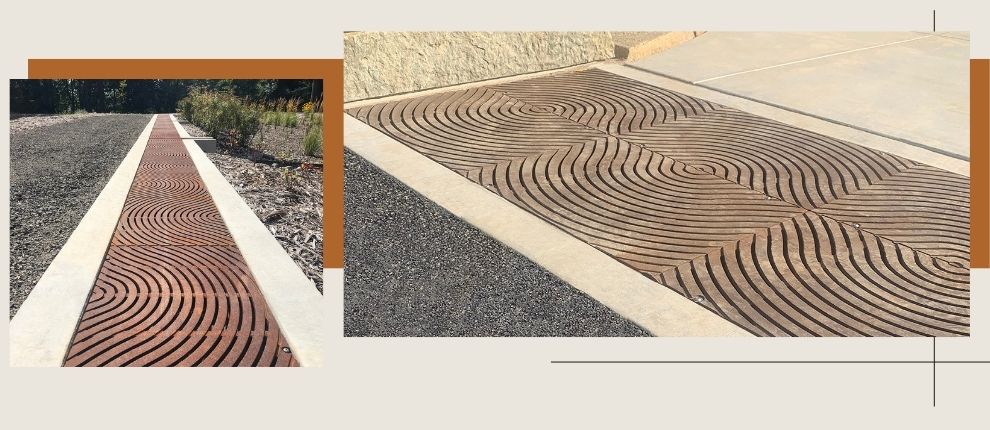

Ground Swell 18″ x 25″ heel-proof heavy-duty trench grate (shown in 3′ x 8’5″ array), raw cast ductile iron. DESIGN: Pashek + MTR. PROJECT: Wightman Park. LOCATION: Squirrel Hill, Pittsburgh, PA.
Ground Swell 18″ x 25″ heel-proof heavy-duty trench grate (shown in 3′ x 8’5″ array), raw cast ductile iron. DESIGN: Pashek + MTR. PROJECT: Wightman Park. LOCATION: Squirrel Hill, Pittsburgh, PA.
Ground Swell 18″ x 25″ heel-proof heavy-duty trench grate (shown in 3′ x 8’5″ array), raw cast ductile iron. DESIGN: Pashek + MTR. PROJECT: Wightman Park. LOCATION: Squirrel Hill, Pittsburgh, PA.
Ground Swell 18″ x 25″ heel-proof heavy-duty catch basin grate (shown arrayed as trench grates), black powder coat finish. PROJECT: Warm Springs BART Station. LOCATION: Fremont, CA.
Ground Swell 18″ x 25″ heel-proof heavy-duty trench grate, raw cast ductile iron. DESIGN: Jens Swenson, Landscape Architect at Parametrix. CIVIL ENGINEERS: NL Olson & Associates. PROJECT: Whispering Firs Stormwater Park. LOCATION: Silverdale, WA.
Ground Swell 18″ x 25″ heel-proof heavy-duty trench grate, raw cast ductile iron. DESIGN: Jens Swenson, Landscape Architect at Parametrix. CIVIL ENGINEERS: NL Olson & Associates. PROJECT: Whispering Firs Stormwater Park. LOCATION: Silverdale, WA.
Similar Products:
View additional products featuring the Ground Swell design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
