Ground Swell

Description:

Our Ground Swell pattern can be arrayed to resemble a rolling wave or to create rippling circles, offering a subtle sense of movement along with flexibility in layout and design.







Size Options:
Similar Products:

Detailed Specifications:

Name / Design Ground Swell 12" x 18"
Product ID GSX12-18I99
Dimensions 11.88" x 17.88" x 1"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 13.48
Free Drain Area 25.64%
Gallons Per Minute (GPM) 70.56
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 1-990-516
Name / Design Ground Swell 18" x 25" Heel Proof, Heavy Duty
Product ID GSX18-25I99HPHD
Dimensions 17.94" x 24.94" x 1.5"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 55.89
Free Drain Area 14.94%
Gallons Per Minute (GPM) 87.60
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze

Photo Gallery:

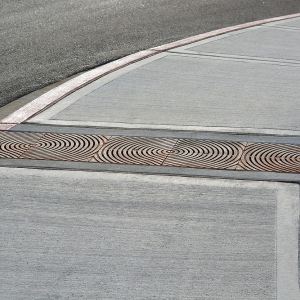

Ground Swell 18x25 HD (5) E

Ground Swell 12″ x 18″ trench grate, raw cast ductile iron.


Download photo

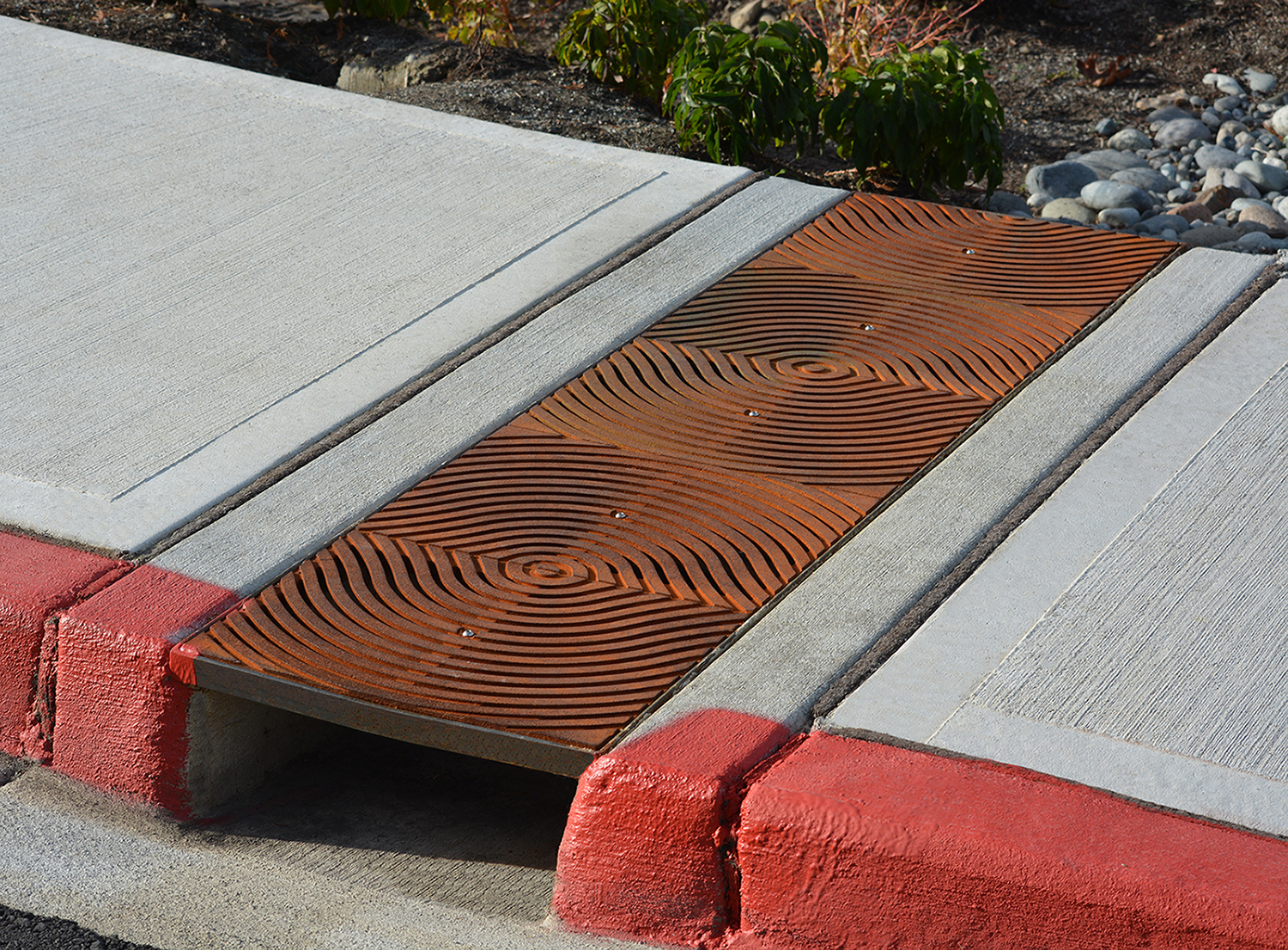

Ground Swell 18x25 HD (6) E

Ground Swell 12″ x 18″ trench grate, raw cast ductile iron.


Download photo
??????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????

Ground Swell 18″ x 25″ heavy-duty trench grate (shown in 3′ x 8’5″ array), raw cast ductile iron. DESIGN: Pashek + MTR. PROJECT: Wightman Park. LOCATION: Squirrel Hill, Pittsburgh, PA.


Download photo
??????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????

Ground Swell 18″ x 25″ heavy-duty trench grate (shown in 3′ x 8’5″ array), raw cast ductile iron. DESIGN: Pashek + MTR. PROJECT: Wightman Park. LOCATION: Squirrel Hill, Pittsburgh, PA.


Download photo
??????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????

Ground Swell 18″ x 25″ heavy-duty trench grate (shown in 3′ x 8’5″ array), raw cast ductile iron. DESIGN: Pashek + MTR. PROJECT: Wightman Park. LOCATION: Squirrel Hill, Pittsburgh, PA.


Download photo
Ground Swell 18x25 HD E

Ground Swell 18″ x 25″ heavy-duty trench grate, black powder coat finish. PROJECT: Warm Springs BART Station. LOCATION: Fremont, CA.


Download photo
Ground Swell 18x25 HD (3) E

Ground Swell 18″ x 25″ heavy-duty trench grate, black powder coat finish. PROJECT: Warm Springs BART Station. LOCATION: Fremont, CA.


Download photo
Ground Swell 18x25 HD (2) E

Ground Swell 18″ x 25″ heavy-duty trench grate, black powder coat finish. PROJECT: Warm Springs BART Station. LOCATION: Fremont, CA.


Download photo
Ground_Swell_18_x_25_HDHP_1_E

Ground Swell 18″ x 25″ heavy-duty, heel-proof trench grate, raw cast ductile iron. DESIGN: Jens Swenson, Landscape Architect at Parametrix. CIVIL ENGINEERS: NL Olson & Associates. PROJECT: Whispering Firs Stormwater Park. LOCATION: Silverdale, WA.




Download photo
Ground_Swell_18_x_25_HDHP_3_E

Ground Swell 18″ x 25″ heavy-duty, heel-proof trench grate, raw cast ductile iron. DESIGN: Jens Swenson, Landscape Architect at Parametrix. CIVIL ENGINEERS: NL Olson & Associates. PROJECT: Whispering Firs Stormwater Park. LOCATION: Silverdale, WA.




Download photo
Ground_Swell_18_x_25_HDHP_2_E

Ground Swell 18″ x 25″ heavy-duty, heel-proof trench grate, raw cast ductile iron. DESIGN: Jens Swenson, Landscape Architect at Parametrix. CIVIL ENGINEERS: NL Olson & Associates. PROJECT: Whispering Firs Stormwater Park. LOCATION: Silverdale, WA.




Download photo
???????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????

Ground Swell 18″ x 25″ heavy-duty, heel-proof trench grate, raw cast ductile iron. DESIGN: Jens Swenson, Landscape Architect at Parametrix. CIVIL ENGINEERS: NL Olson & Associates. PROJECT: Whispering Firs Stormwater Park. LOCATION: Silverdale, WA.




Download photo
Ground_Swell_18_x_25_HDHP_5_E

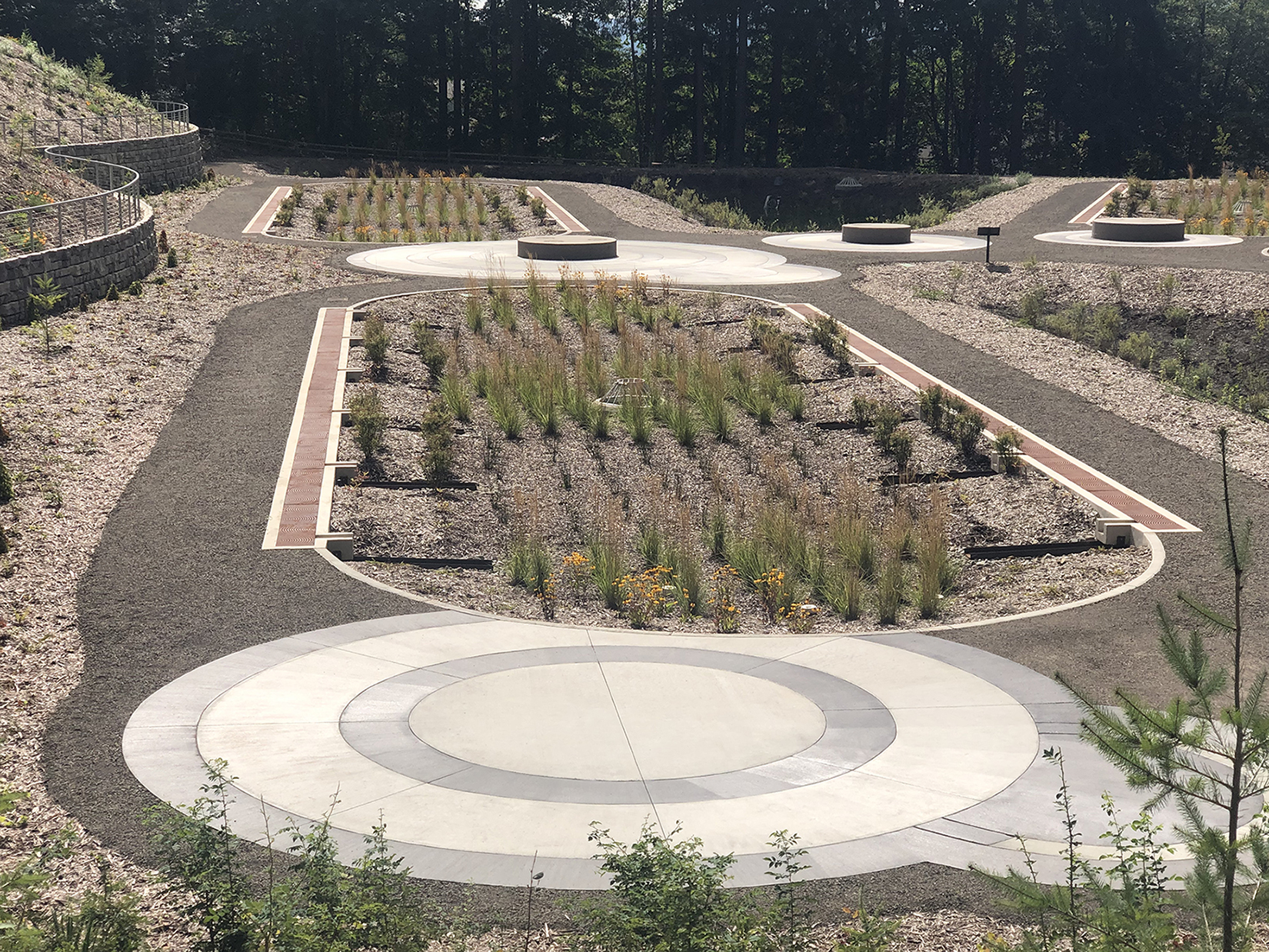

Ground Swell 18″ x 25″ heavy-duty, heel-proof trench grate, raw cast ductile iron. DESIGN: Jens Swenson, Landscape Architect at Parametrix. CIVIL ENGINEERS: NL Olson & Associates. PROJECT: Whispering Firs Stormwater Park. LOCATION: Silverdale, WA.




Download photo
